In turning operations, maintaining stability and alignment is critical to producing accurate and high-quality machined components. The tailstock is one of the most important components of a lathe because it provides support for long or slender workpieces and enables additional machining operations such as drilling, reaming, and tapping. Without proper tailstock support, workpieces can deflect, vibrate, or become misaligned, leading to poor surface finish, dimensional errors, and premature tool wear.

Tailstock accessories such as live centres, drill chucks, and other supporting tools enhance the functionality of the tailstock and allow machinists to perform a wide range of operations efficiently. By selecting the correct accessories and maintaining proper alignment, machinists can improve machining accuracy, increase tool life, and ensure consistent production results.

The Role of the Tailstock in Lathe Operations

The tailstock is mounted on the opposite end of the lathe bed from the headstock and can be moved along the bed to support workpieces of different lengths. Its primary function is to support the free end of a workpiece during turning operations. This support is especially important when machining long shafts or components that may flex under cutting forces.

The tailstock also provides a mounting point for tools used in axial machining operations. Drill chucks, reamers, taps, and other tooling can be mounted in the tailstock spindle, allowing holes to be drilled or finished directly on the lathe.

Because of its versatility, the tailstock plays a vital role in both manual and CNC lathe machining.

Live Centres: Reducing Friction and Improving Support

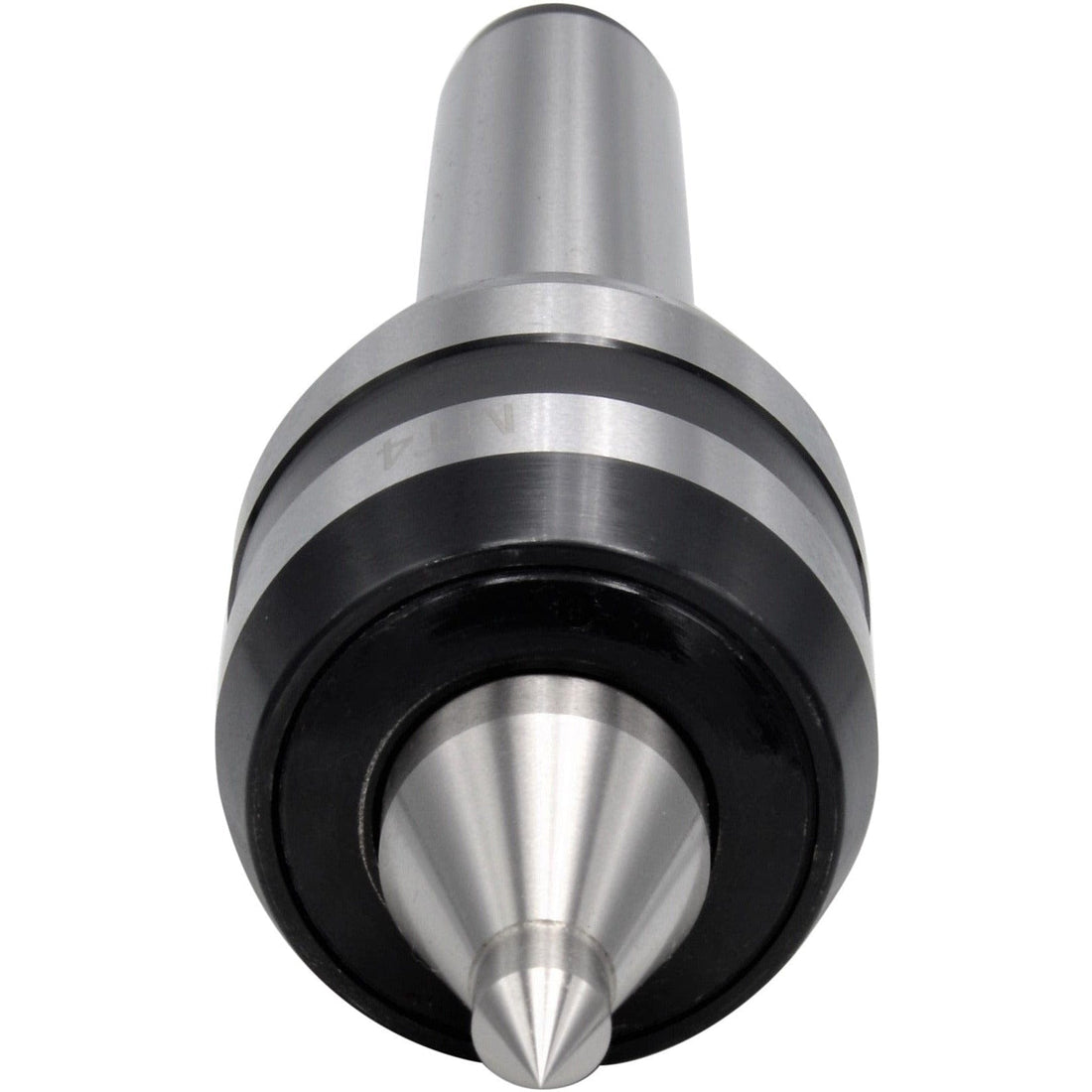

One of the most common tailstock accessories is the live centre. A live centre is designed to rotate with the workpiece, reducing friction and heat generation during machining.

How Live Centres Work

A live centre consists of a hardened point mounted on precision bearings. When the workpiece rotates, the centre rotates with it, minimizing friction between the centre and the workpiece.

This design provides several important advantages compared to traditional dead centres, which remain stationary during operation.

Advantages of Live Centres

Reduced Friction

Because the centre rotates with the workpiece, friction between the centre and the workpiece is greatly reduced. This helps prevent overheating and damage to the workpiece.

Improved Surface Finish

Reduced friction and smoother rotation result in more stable machining conditions, improving the surface finish of the final part.

Support for Long Workpieces

Live centres provide reliable support for long shafts or slender components that might otherwise deflect under cutting forces.

Extended Tool Life

Stable workpiece support reduces vibration and chatter, helping cutting tools last longer.

Common Applications of Live Centres

Live centres are widely used in machining operations such as:

• Turning long shafts

• Precision finishing operations

• High-speed machining

• CNC turning applications

They are especially useful when machining components that require high accuracy and smooth surface finishes.

Tailstock Drill Chucks: Accurate Drilling on the Lathe

Another important tailstock accessory is the drill chuck. Drill chucks allow machinists to perform drilling operations directly on the lathe, ensuring that holes are perfectly aligned with the axis of the workpiece.

How Tailstock Drill Chucks Work

A drill chuck is mounted in the tailstock spindle using a Morse taper shank or an arbor. The chuck holds drill bits securely and allows the machinist to feed the drill into the rotating workpiece using the tailstock handwheel.

This setup provides excellent alignment between the drill and the workpiece, improving hole accuracy and reducing the risk of drill breakage.

Benefits of Tailstock Drill Chucks

Accurate Hole Alignment

Because the drill is aligned with the spindle axis, holes can be drilled precisely along the centerline of the workpiece.

Versatility

Drill chucks can accommodate a wide range of drill sizes, making them suitable for many machining tasks.

Convenient Operation

The tailstock feed mechanism allows controlled drilling, improving accuracy and reducing operator fatigue.

Multiple Tool Compatibility

In addition to drills, tailstock chucks can hold tools such as:

• Reamers

• Taps

• Countersinks

• Centre drills


This versatility makes the tailstock an essential component for secondary machining operations.

Additional Tailstock Accessories

In addition to live centres and drill chucks, several other accessories enhance the performance and flexibility of the tailstock.

Dead Centres

Dead centres are traditional tailstock centres that remain stationary while the workpiece rotates against them. Although they generate more friction than live centres, they are still useful in certain applications.

Dead centres are commonly used for:

• Grinding operations

• Precision turning

• Situations where maximum rigidity is required

They are typically made from hardened steel or carbide to withstand wear.

Morse Taper Centres

Most tailstock accessories are designed with Morse taper shanks, which provide a secure and self-locking fit inside the tailstock spindle. Morse tapers ensure that accessories remain firmly in place during machining operations.

Common Morse taper sizes include:

• MT2

• MT3

• MT4

• MT5

The correct taper size must match the tailstock spindle for proper installation.

Tailstock Offset for Taper Turning

Some lathes allow the tailstock to be offset slightly from the spindle centerline. This feature enables machinists to produce tapered components without specialized tooling.

By shifting the tailstock sideways, the workpiece rotates at a slight angle relative to the cutting tool, creating a tapered surface.

Tailstock offset taper turning is commonly used for:

• Long, gradual tapers

• Repair work

• Small production runs

Importance of Proper Tailstock Alignment

Correct tailstock alignment is essential for accurate machining. If the tailstock is misaligned, it can cause several problems during turning operations.

Effects of Tailstock Misalignment

Misalignment may lead to:

• Tapered workpieces when straight turning is intended

• Increased tool wear

• Poor surface finish

• Excessive vibration

Regular inspection and adjustment of the tailstock help maintain machining accuracy.

Checking Tailstock Alignment

Machinists typically verify alignment using:

• Test bars

• Dial indicators

• Precision ground shafts

These tools allow accurate measurement and adjustment of the tailstock position.

Best Practices for Using Tailstock Accessories

To ensure reliable machining performance, machinists should follow several best practices when using tailstock accessories.

Maintain Clean Taper Surfaces

The Morse taper surfaces of both the tailstock and accessory must be clean and free of debris. Dirt or chips can cause misalignment and reduce holding strength.

Use Proper Lubrication

When using dead centres, lubrication should be applied to reduce friction between the centre and the workpiece.

Minimize Tool Overhang

Keeping accessories as short as possible improves rigidity and reduces vibration during machining.

Apply Proper Support Pressure

Excessive pressure from the tailstock can cause deformation of the workpiece, while insufficient pressure may allow the workpiece to move during cutting.

Correct pressure ensures stable machining conditions.

Benefits of Using Quality Tailstock Accessories

Using high-quality tailstock accessories provides several advantages in machining operations.

Improved Machining Accuracy

Proper support and alignment ensure that components are machined to precise dimensions.

Reduced Workpiece Deflection

Supporting long workpieces prevents bending and vibration, improving machining stability.

Increased Tool Life

Stable setups reduce cutting forces and vibration, helping cutting tools last longer.

Enhanced Machining Versatility

Tailstock accessories allow machinists to perform multiple operations on a single machine, improving productivity.

Tailstock Accessories in Modern Machining

Despite advances in CNC technology, the tailstock remains a critical component in many turning operations. Whether machining large shafts, precision components, or small production parts, tailstock accessories provide essential support and functionality.

Live centres, drill chucks, and other accessories enable machinists to perform accurate drilling, support long workpieces, and maintain stable cutting conditions. When combined with proper setup and alignment, these tools ensure consistent machining results and improved productivity.

By selecting the right tailstock accessories and maintaining proper machine setup, machinists can achieve high levels of accuracy, extend tool life, and protect both the workpiece and cutting tools. Tailstock accessories continue to play a key role in modern machining, ensuring that lathe operations remain precise, efficient, and reliable.
