Live Centre Extended Nose MT4 M14 Drawbar Medium Duty

Live Centre Extended Nose MT4 M14 Drawbar Medium Duty Designed for medium speed medium load lathes. Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris...
$89.00 AUD
$89.00 AUD
(-0%)
Vendor: Dajiu
SKU: 592
Availability: In Stock
Subtotal: $89.00
Morse Taper 4 Live centre Extended Nose M14 drawbar

Live Centre Extended Nose MT4 M14 Drawbar Medium Duty

$89.00

Live Centre Extended Nose MT4 M14 Drawbar Medium Duty

$89.00

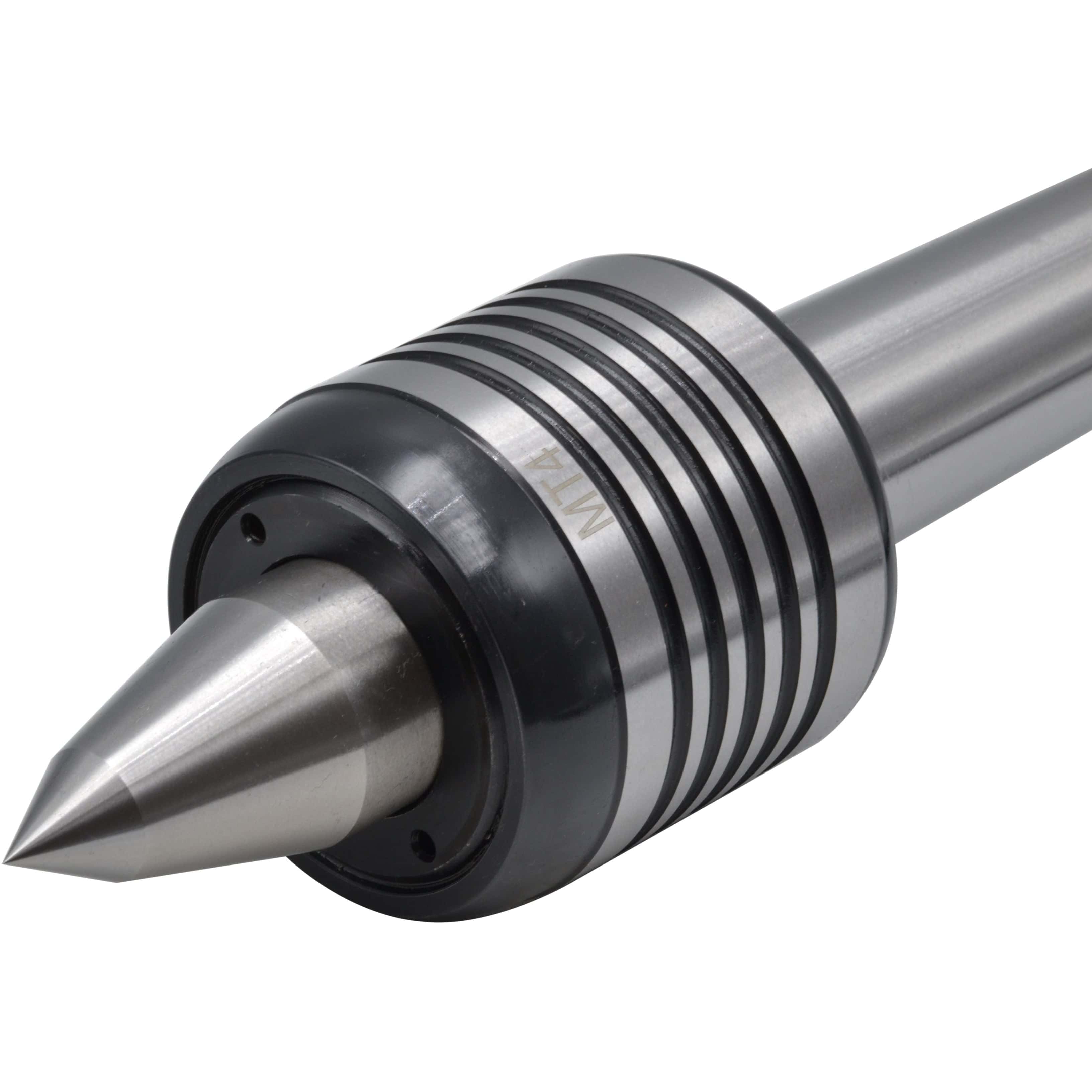

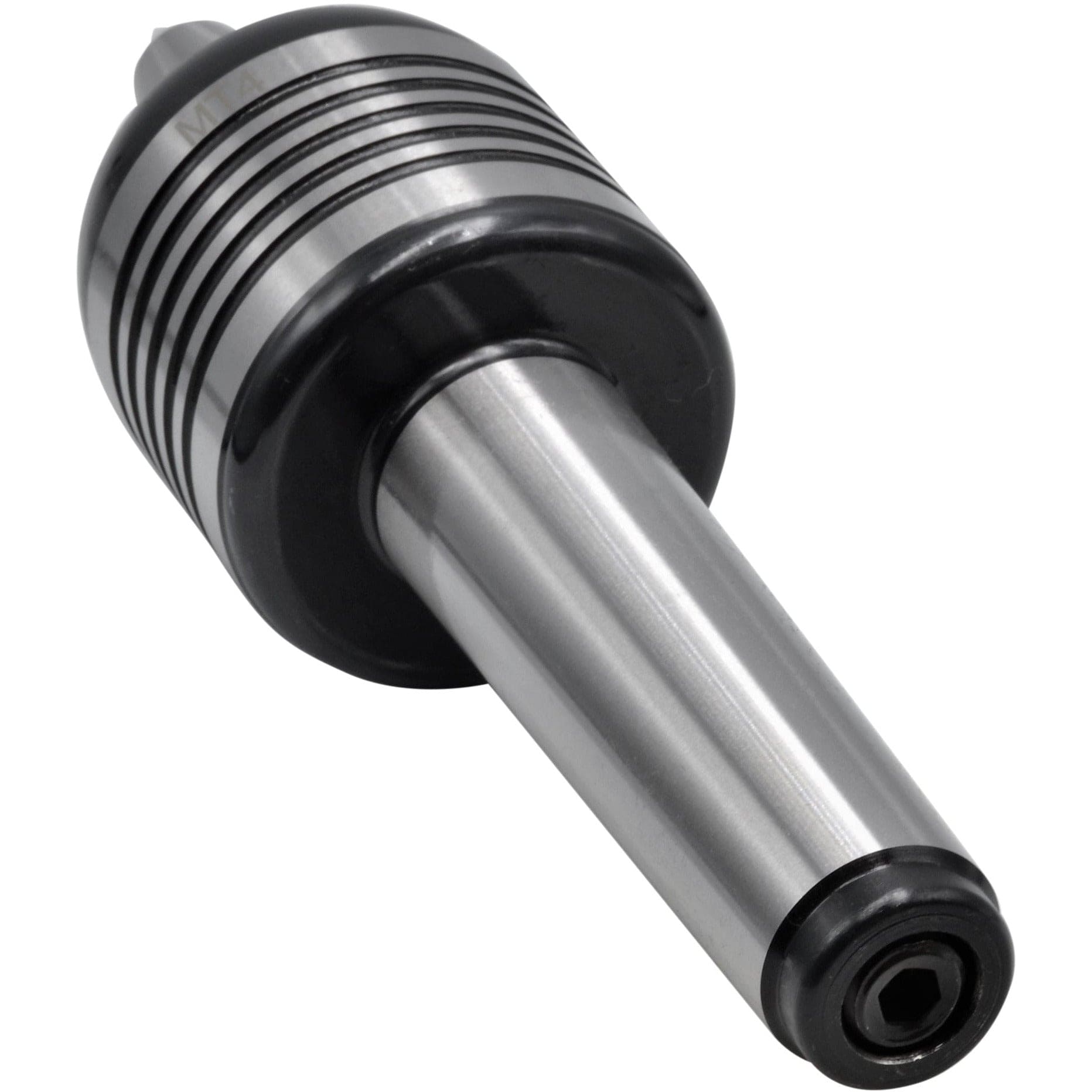

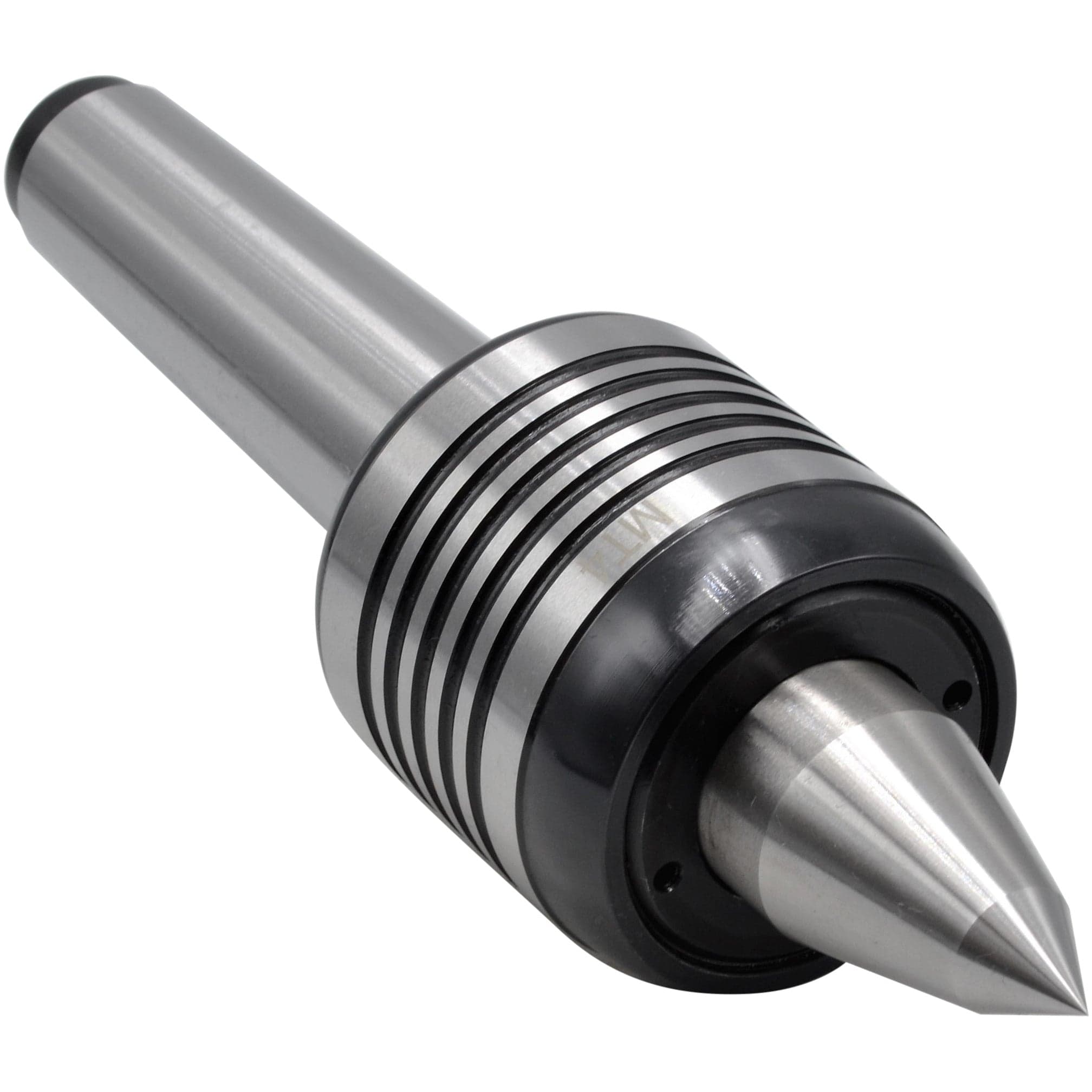

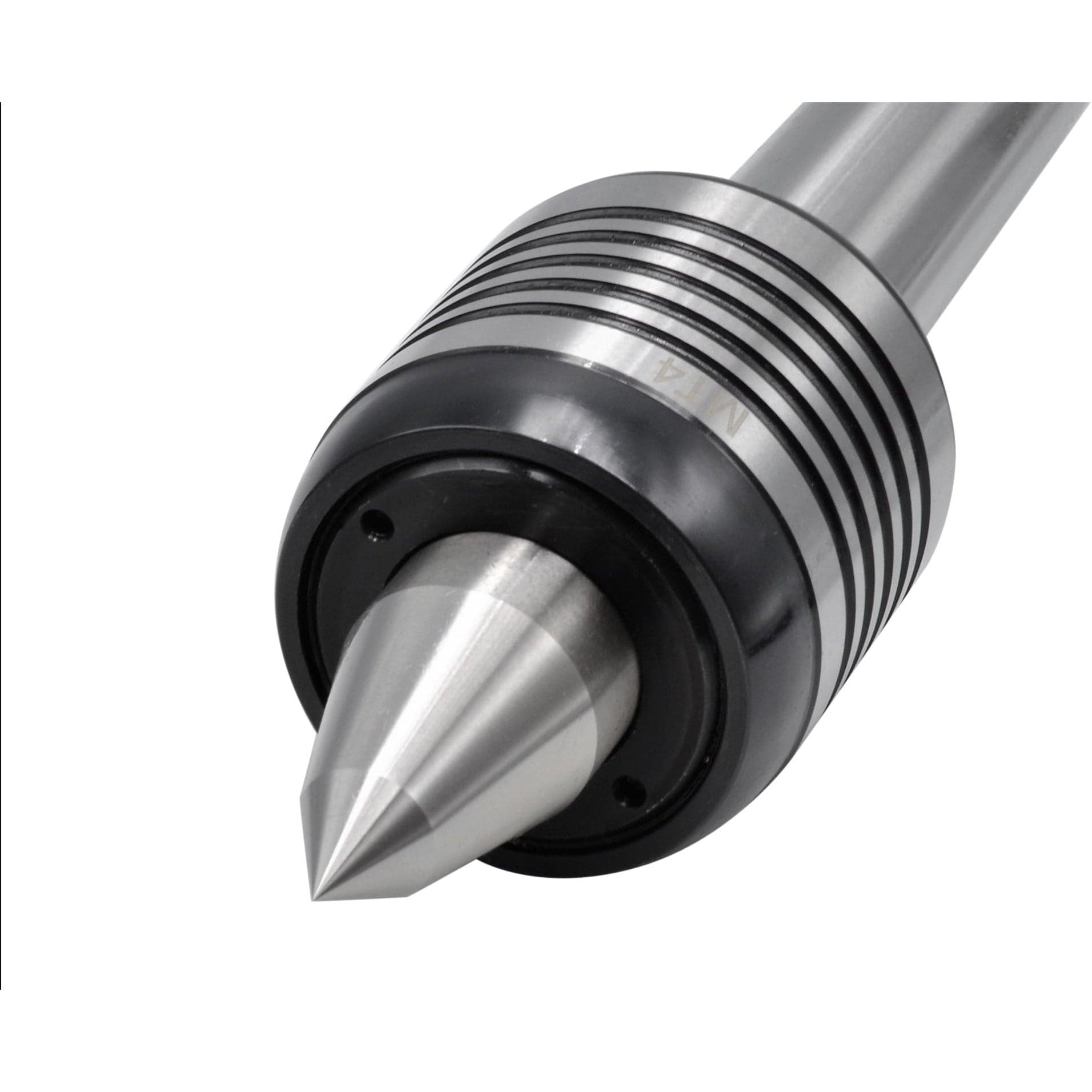

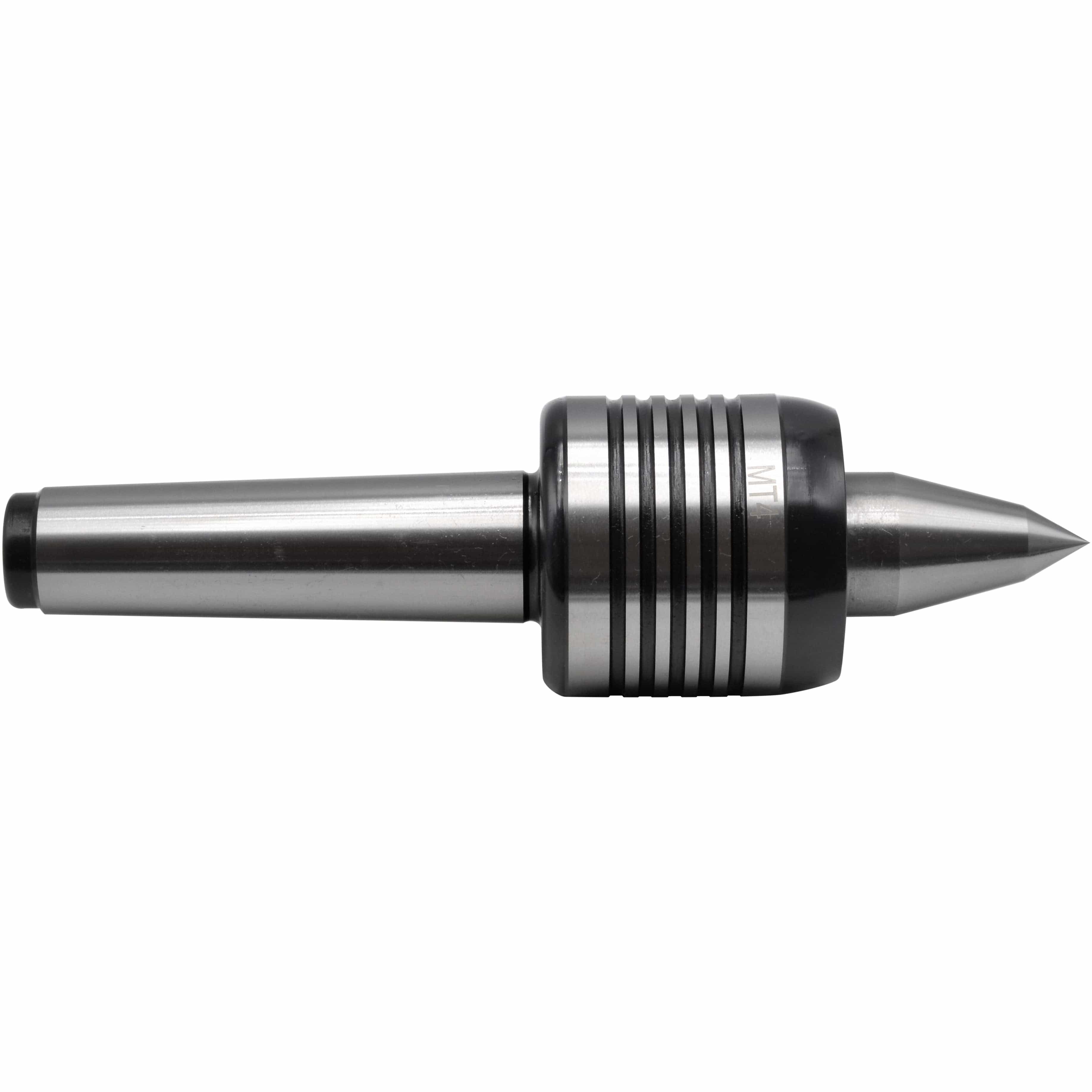

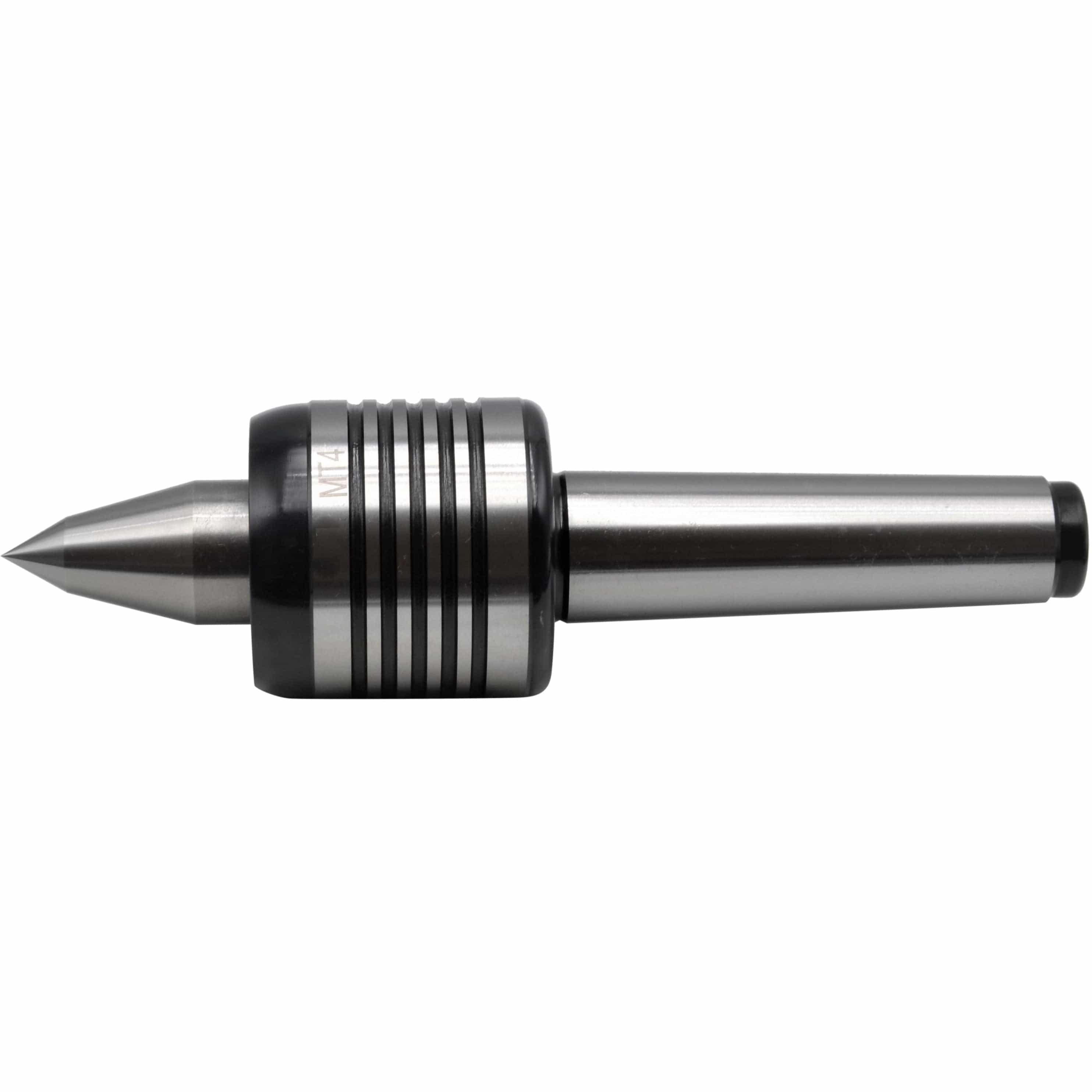

Live Centre Extended Nose MT4 M14 Drawbar Medium Duty

Designed for medium speed medium load lathes.
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 4
  • Part No:DJ-L08002/MT4
  • Max RPM: 2500
  • Accuracy: 0.008 mm
  • Load Capacity: 400 kg
  • 60 Degree Centre Point
  • Triple bearing
  • M14 Drawbar thread with cap

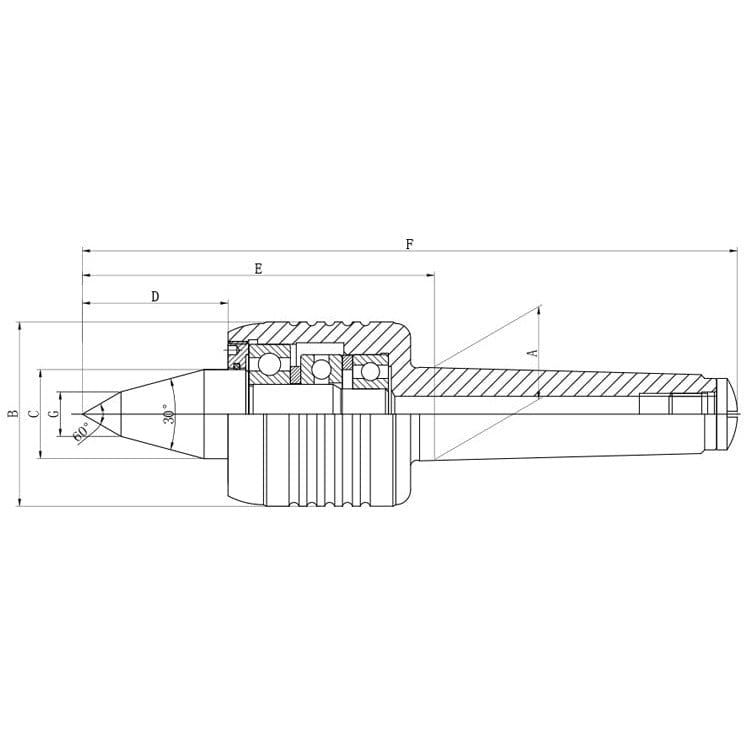

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 45 24 42 98 162 10
    MT3 23.825 52 26 44 104 185 12
    MT4 31.267 60 30 49 117 220 15
    MT5 44.399 77 44 70 150 280 20
