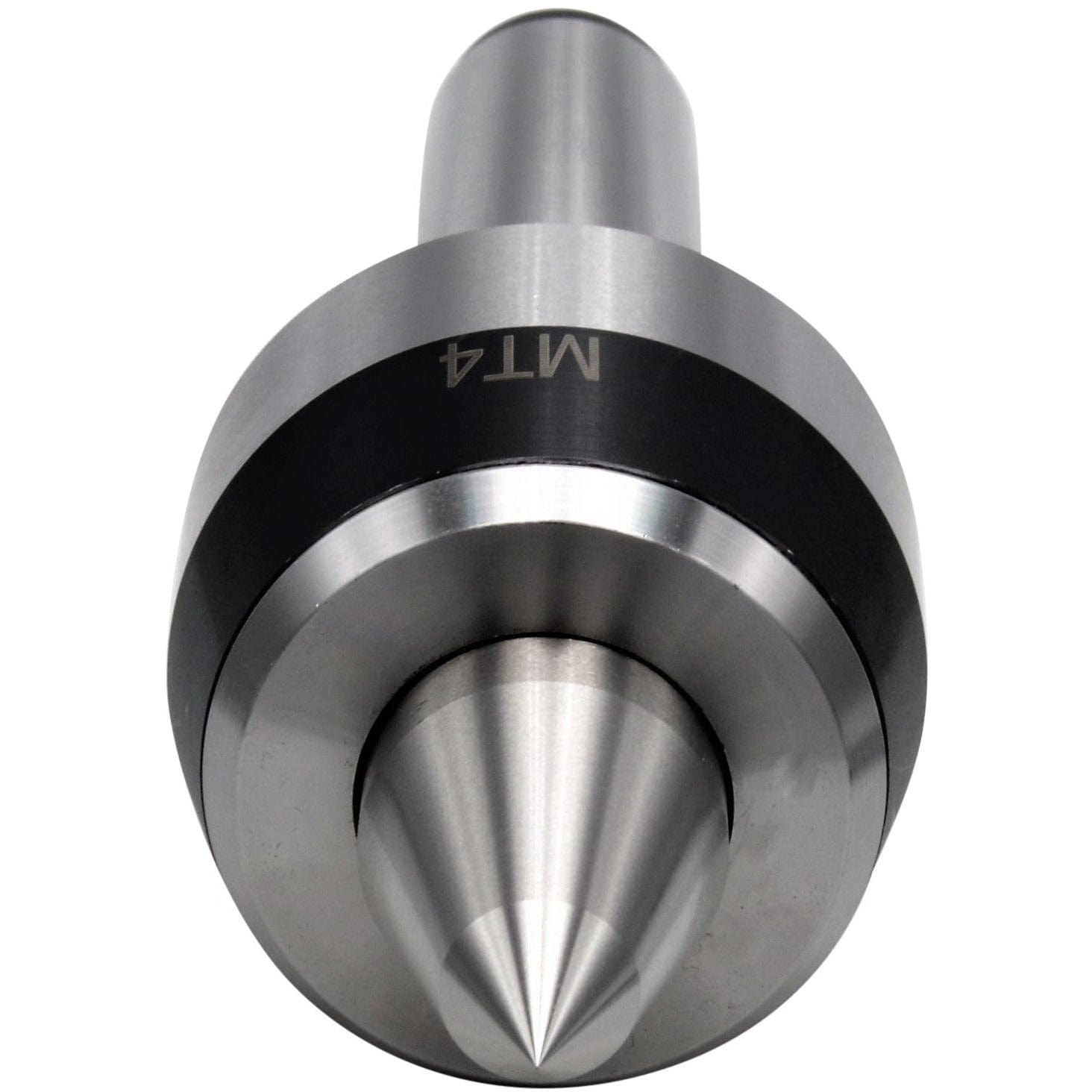

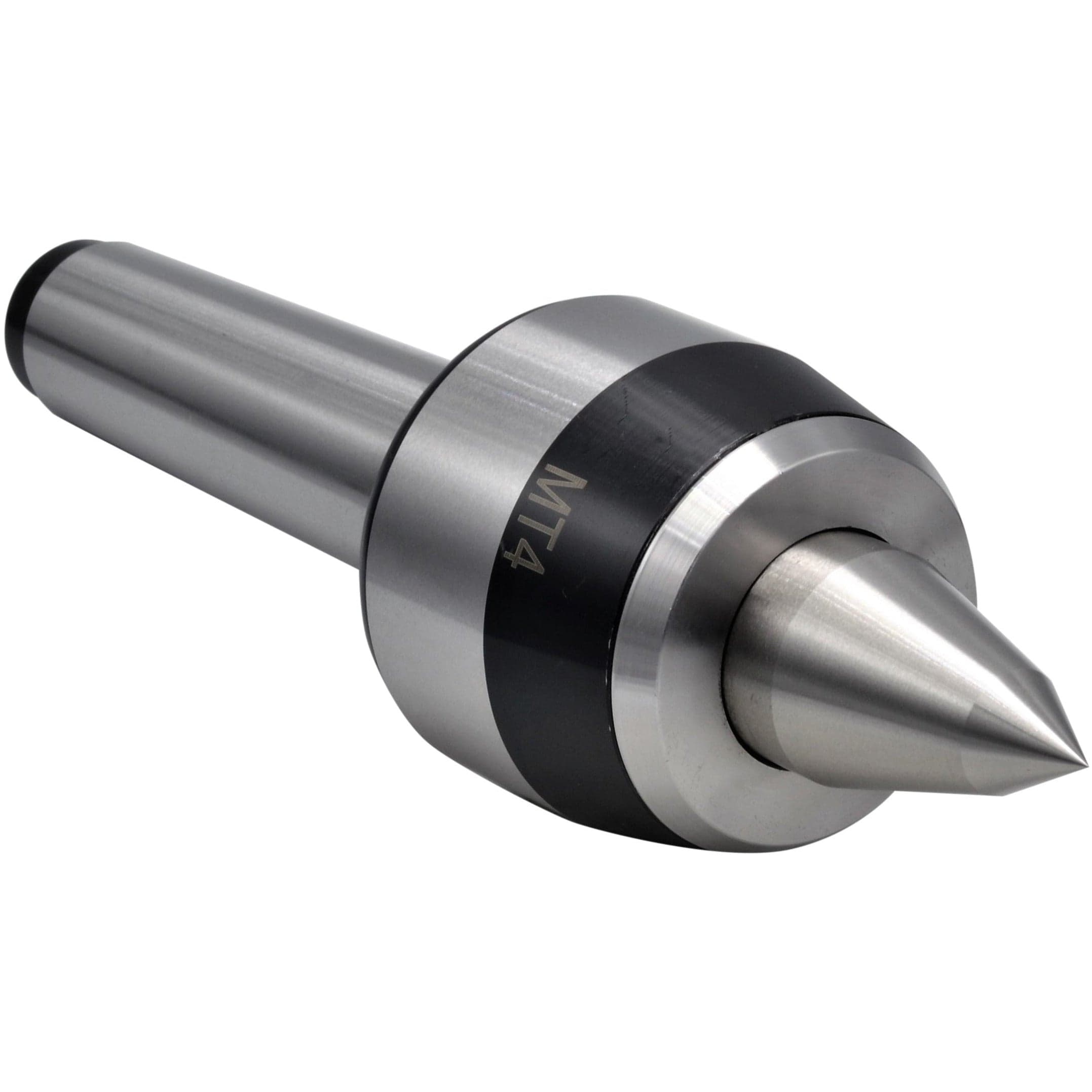

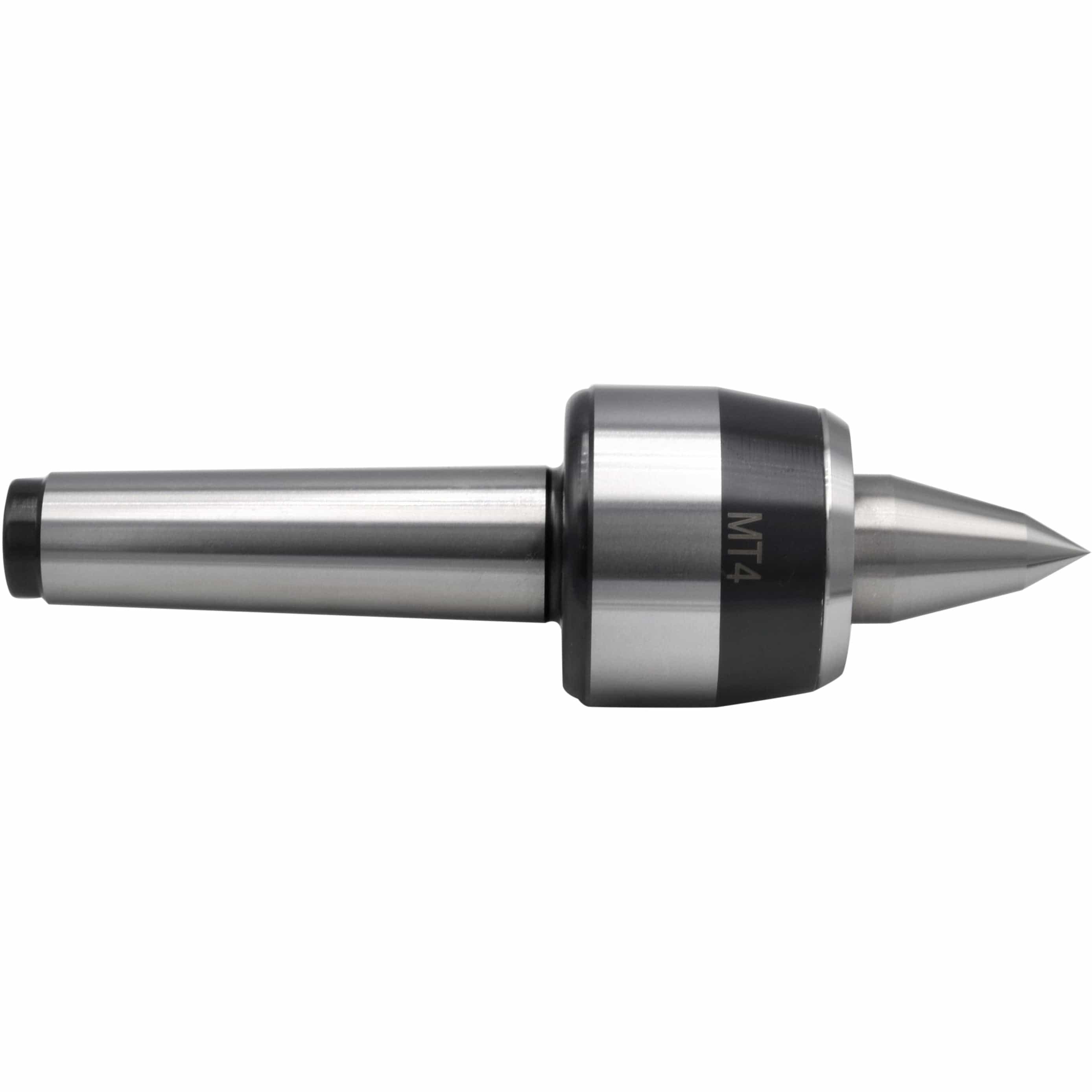

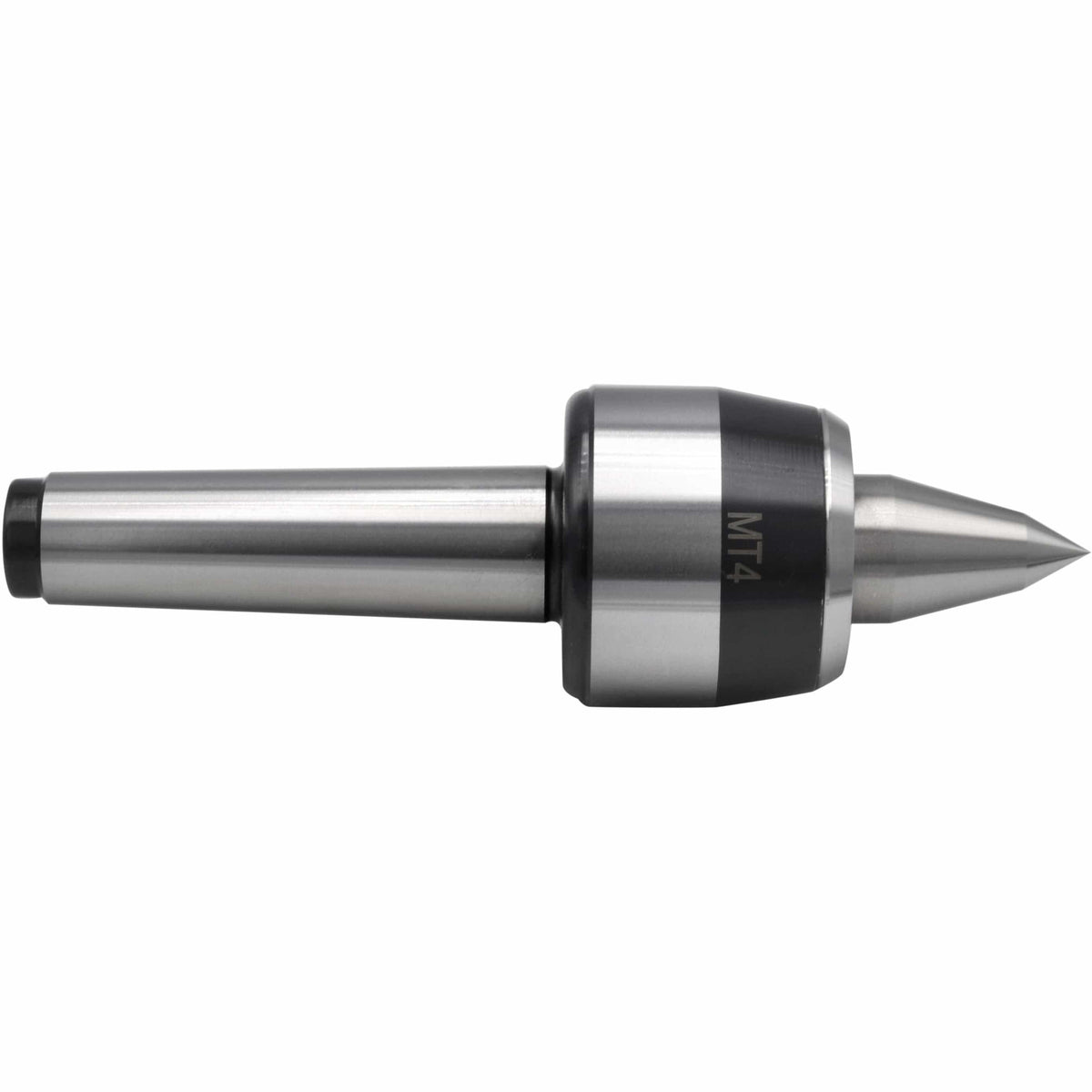

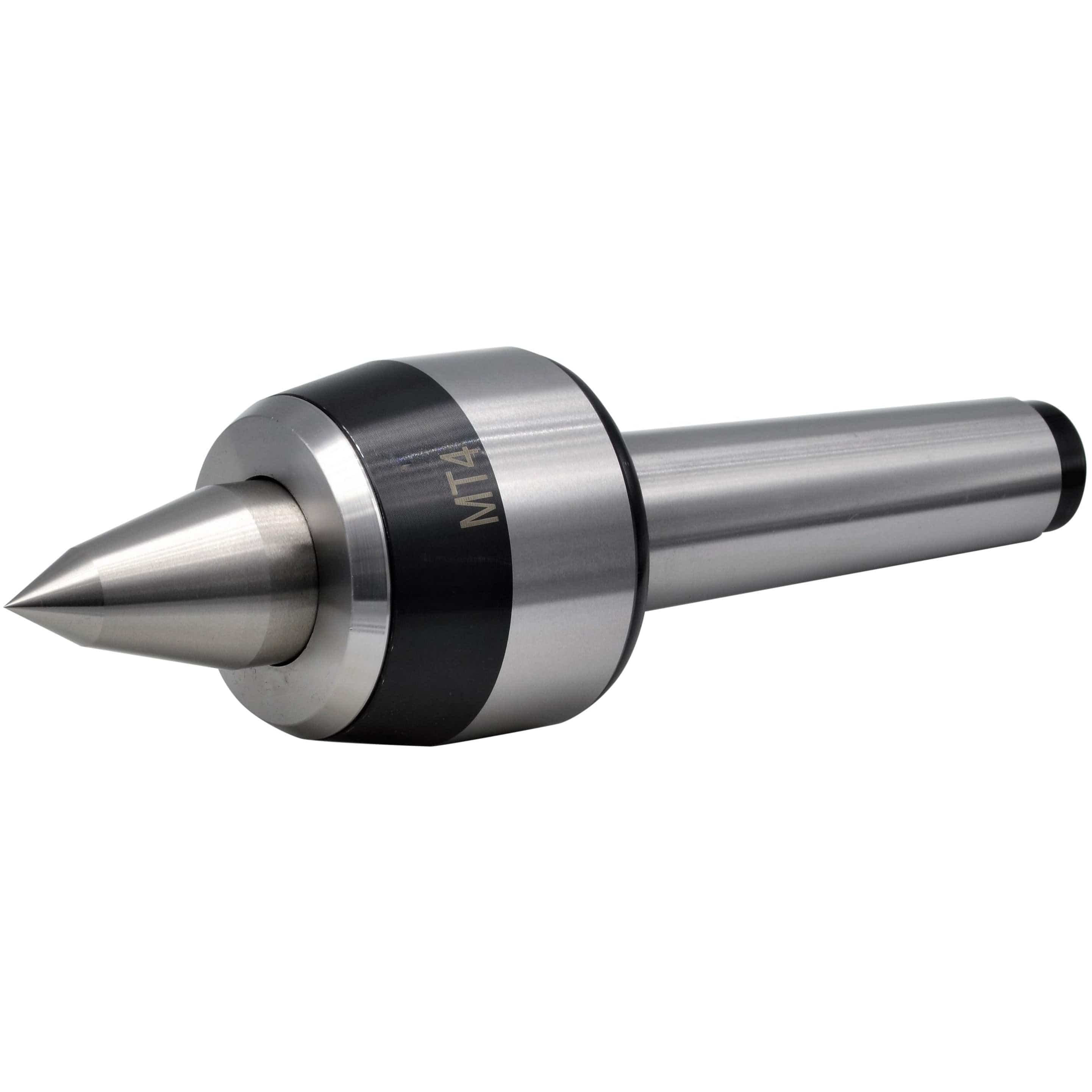

Morse Taper 4 Extended Nose High Speed Live Centre

Morse Taper 4 High Speed Live Centre Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing...
$249.00 AUD
$249.00 AUD
(-0%)
Vendor: Dajiu
SKU: 560
Availability: In Stock
Subtotal: $249.00
Morse Taper 4 Extended Nose High Speed Live Centre M14 drawbar

Morse Taper 4 Extended Nose High Speed Live Centre

$249.00

Morse Taper 4 Extended Nose High Speed Live Centre

$249.00

Morse Taper 4 High Speed Live Centre

Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing

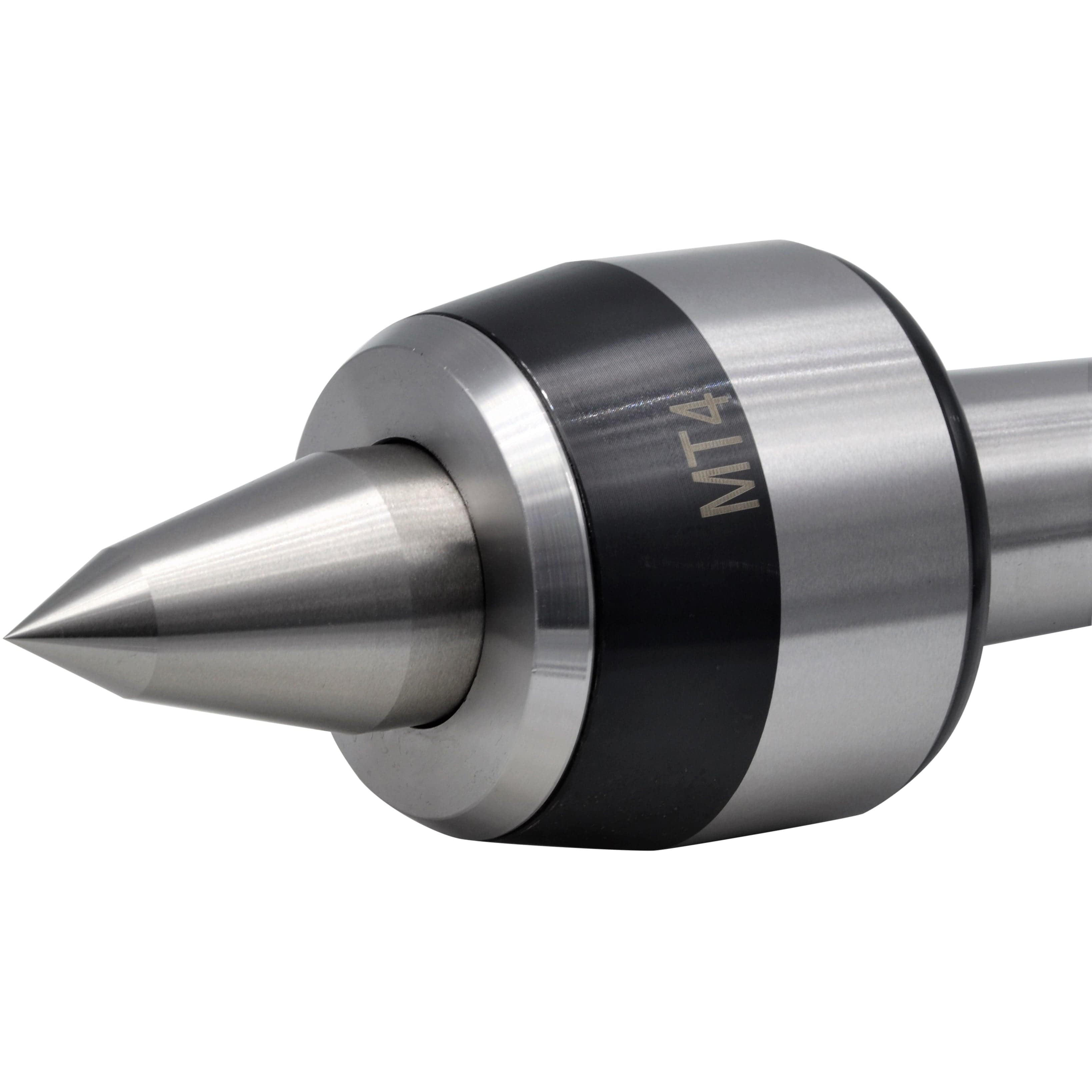

Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 4
  • Part No:DJ-LO6006/MT4
  • Max RPM: 3500
  • Accuracy: 0.005 mm
  • Load Capacity: 500 kg
  • 60 Degree Centre Point
  • Triple bearing

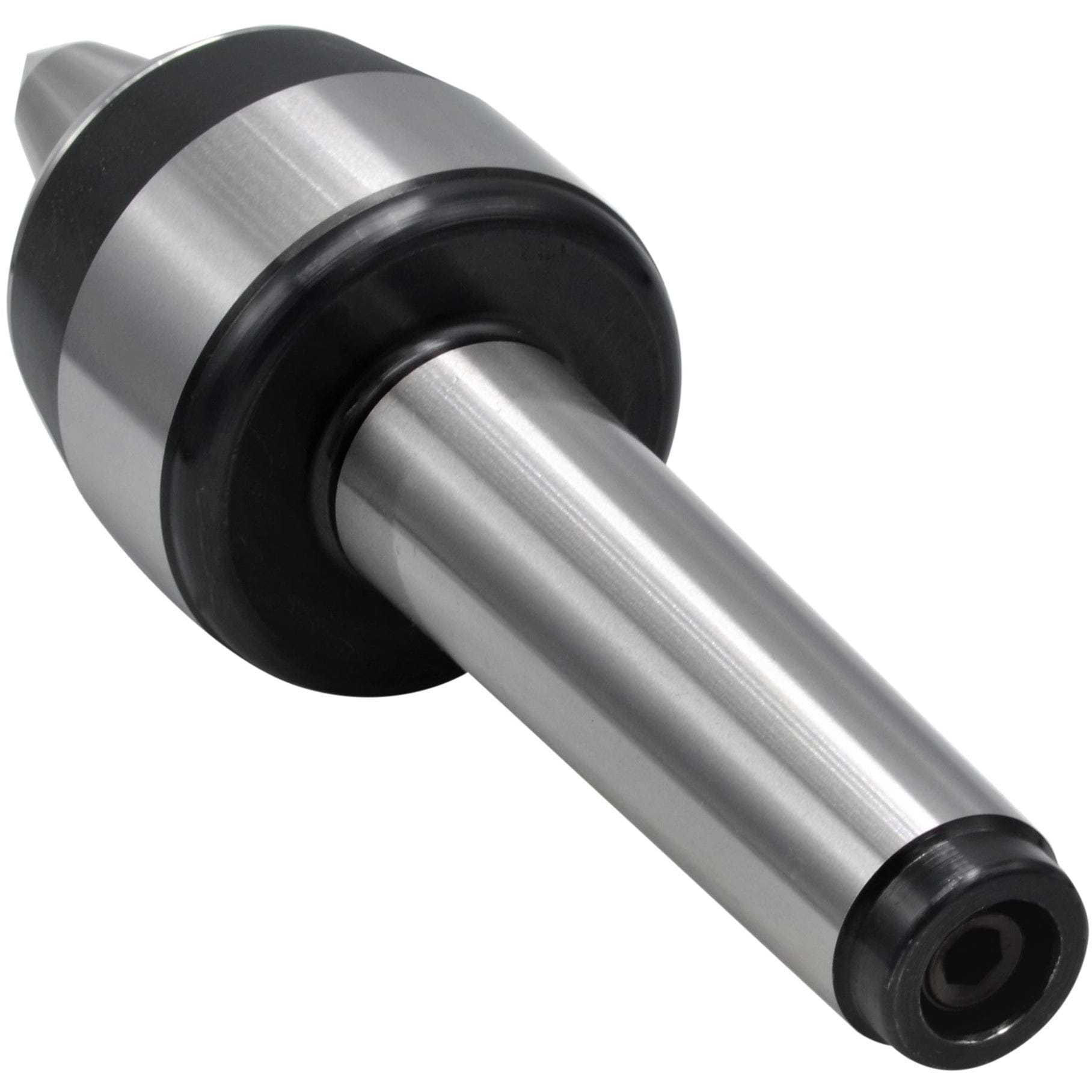

  • M14 Drawbar thread with cap

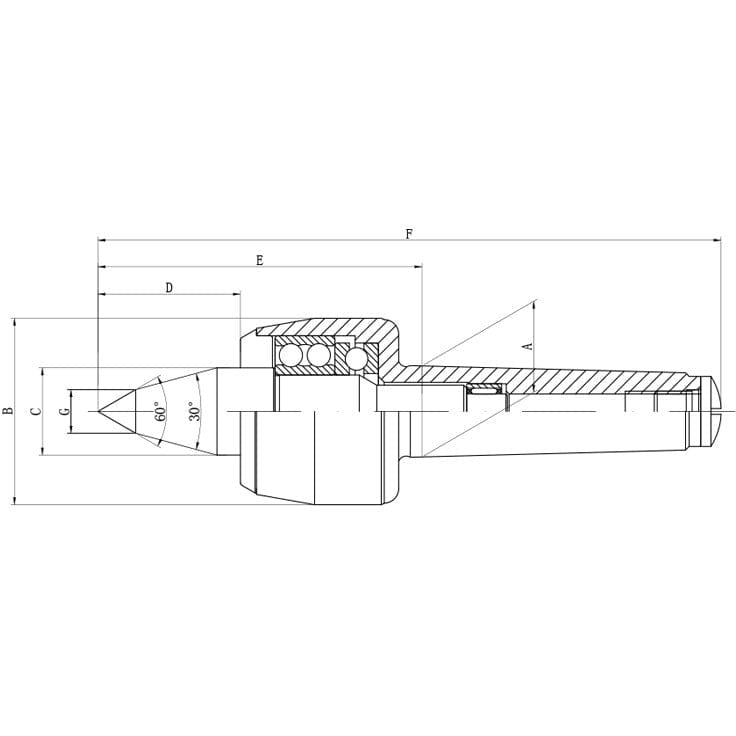

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 47 24 42 92 156 10
    MT3 23.825 59 25 43.5 102 184 12
    MT4 31.267 64 30 49 112 214.5 15
    MT5 44.399 78 38
    58.5
    133 262 20
