Threading is a critical machining process used across manufacturing, maintenance, and fabrication industries. Whether producing internal threads in metal components, repairing damaged holes, or preparing parts for assembly, the accuracy and reliability of the thread depend heavily on the tap selected. Choosing between hand taps, spiral taps, and gun taps is not simply a matter of preference—it directly affects thread quality, tool life, machining speed, and the risk of tool breakage.

Understanding how each type of tap works, where it performs best, and how it handles chips is essential for machinists, engineers, and workshop operators aiming to achieve consistent and efficient threading results.

Why Tap Selection Matters

Tapping generates significant cutting forces and heat, especially in harder materials or deeper holes. Chips produced during the cutting process must be managed effectively. Poor chip evacuation is one of the most common causes of tap failure, leading to:

• Broken taps inside the hole

• Poor thread finish

• Dimensional inaccuracies

• Increased downtime and rework

Selecting the correct tap for the application improves productivity and ensures threads meet tolerance and performance requirements. The three most common categories—hand taps, spiral taps, and gun taps—each have distinct geometries and intended uses.

Hand Taps

Hand taps are the traditional choice for manual threading operations. They are typically supplied in sets of three, designed to progressively cut the thread rather than forming it in a single pass. This staged approach reduces cutting load and improves control during manual tapping.

A standard hand tap set includes:

• Taper Tap – Long lead, gradually starts the thread


• Second Tap – Continues thread formation with moderate lead


• Bottoming Tap – Finishes threads close to the bottom of blind holes

Because each tap removes only part of the material, hand tapping allows better feel and control, which is especially useful when threading delicate or small components.

Applications of Hand Taps

Hand taps are commonly used for:

• Maintenance and repair work

• Low-volume production

• Field work where machines are not available

• Softer materials such as aluminium, brass, and mild steel

They are particularly useful when precise control is required and the operator must “feel” cutting resistance.

Advantages

• Greater control during threading

• Reduced risk of sudden breakage when used correctly

• Suitable for blind holes when using taper-to-bottoming sequence

• Ideal for workshop and maintenance environments

Limitations

• Slower than machine tapping

• Not suited for high-production environments

• Greater dependency on operator skill

• Chip evacuation relies heavily on manual technique

Spiral Taps

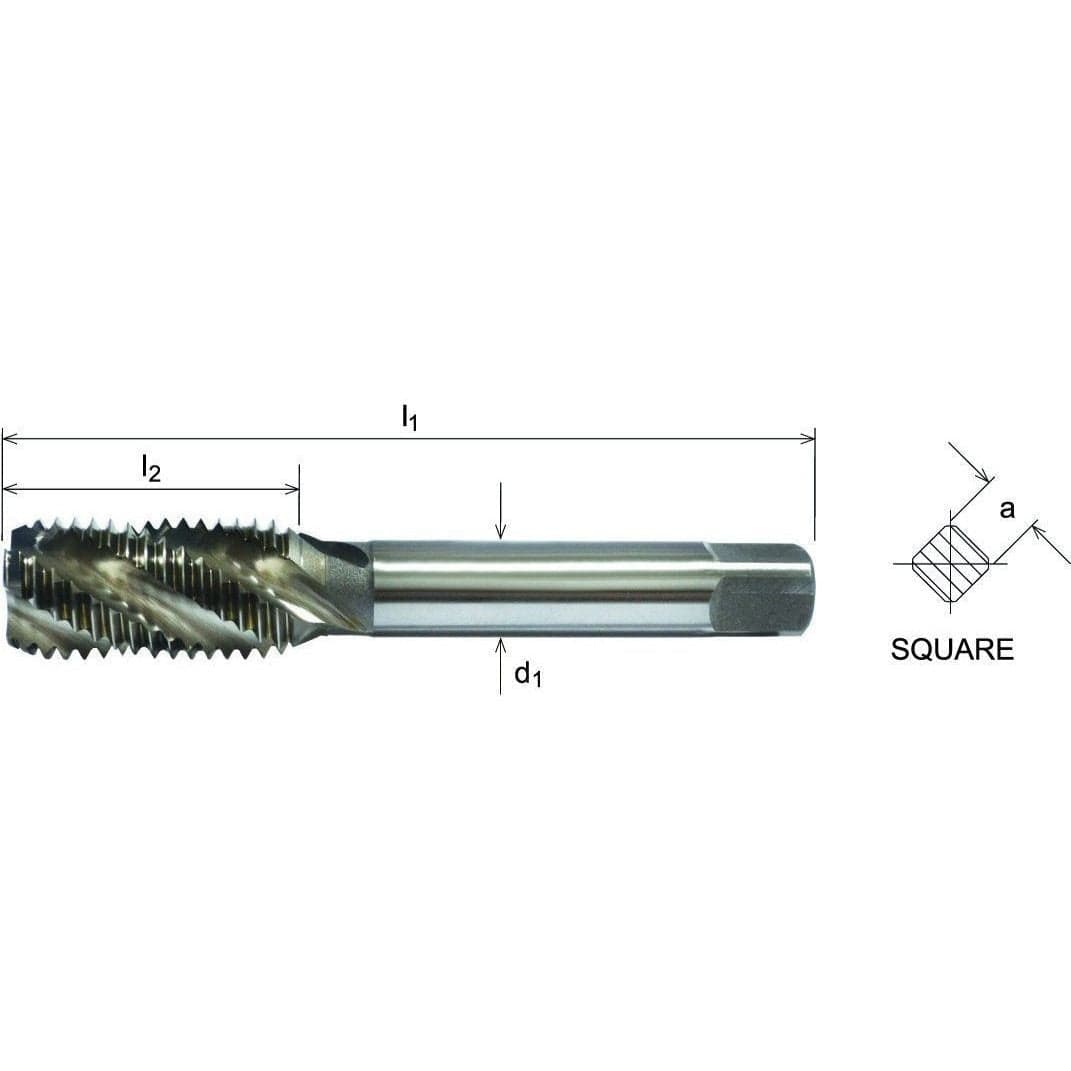

Spiral taps, also known as spiral flute taps, are designed for machine tapping and are optimized for efficient chip evacuation in blind holes. Their helical flute geometry actively pulls chips upward and out of the hole during cutting.

This design prevents chips from accumulating at the bottom of the hole—a major cause of tap breakage when threading blind holes.

Best Suited For

Spiral taps perform best in:

• Blind hole applications

• CNC machining operations

• Materials that produce long, continuous chips

• Deeper tapping operations

They are commonly used in stainless steel, alloy steels, and ductile materials where chip control is critical.

Advantages

• Excellent chip evacuation from blind holes

• Reduced chip packing

• Lower risk of tool breakage

• Improved thread finish

• Consistent performance in CNC environments

Limitations

• Not ideal for through holes where chips can exit forward

• Higher cost than standard hand taps

• Requires rigid machine setup and correct speeds

When to Choose Spiral Taps

Spiral taps are the preferred choice when tapping blind holes in production or CNC environments. Their geometry protects both the tool and the workpiece by preventing chip congestion, which can otherwise damage threads and break taps.

Gun Taps (Spiral Point Taps)

Gun taps, often called spiral point taps, are specifically designed for through-hole applications. Unlike spiral taps that pull chips upward, gun taps push chips forward ahead of the cutting action and out the exit side of the hole.

This forward chip movement makes them extremely efficient in production environments.

Ideal Applications

Gun taps excel in:

• Through-hole tapping

• High-speed machine tapping

• Production machining

• Automated and CNC operations

They are commonly used in steels, cast iron, and other materials where consistent production and speed are priorities.

Advantages

• Efficient chip flow forward and out of the hole

• Faster tapping speeds

• Longer tool life in production settings

• Excellent thread consistency

• Reduced clogging in through holes

Limitations

• Not suitable for blind holes (chips cannot escape forward)

• Requires machine tapping

• May not perform well in very ductile materials without proper lubrication

Why Production Shops Prefer Gun Taps

Gun taps are widely used in manufacturing because they allow high-speed tapping with minimal interruption. Their ability to manage chips effectively supports consistent cycle times and reduces the risk of tap breakage in automated environments.

Comparing Chip Control

Chip management is the defining difference between hand taps, spiral taps, and gun taps.

• Hand taps rely on manual backing-off to break chips

• Spiral taps pull chips upward out of blind holes

• Gun taps push chips forward through through-holes

Selecting the wrong tap for chip direction is a common cause of failure. For example:

• Using a gun tap in a blind hole can trap chips at the bottom


• Using a spiral tap in a through hole may reduce efficiency

Matching chip flow direction to hole type is essential.

Material Considerations

Different materials produce different chip forms, and tap selection should reflect this.

Soft materials (aluminium, brass):

• Hand taps or spiral taps work well


Steels and alloy materials:

• Spiral taps for blind holes

• Gun taps for through holes

Stainless steel:

• Spiral taps preferred due to long chip formation

Cast iron:

• Gun taps perform well due to short, brittle chips

Production vs Manual Work

The environment also influences tap choice.

Manual workshops:

• Hand taps remain essential

• Flexibility and control are priorities

CNC machining:

• Spiral taps for blind holes

• Gun taps for through holes

High-volume production:

• Gun taps dominate due to speed and consistency

Selecting the Right Tap

Choosing the correct tap involves considering several factors:

1. Hole type (blind or through)

2. Material being machined

3. Production volume

4. Machine rigidity

5. Chip formation characteristics

6. Thread depth and tolerance requirements

A poor choice may lead to:

• Tap breakage

• Damaged threads

• Machine downtime

• Increased tooling costs

A correct choice improves:

• Thread accuracy

• Surface finish

• Tool life

• Productivity

The Role of Machine Setup and Lubrication

Even the best tap will fail if setup is incorrect. Proper lubrication, correct speed and feed, and machine rigidity all influence results.

• Use appropriate cutting fluids

• Maintain correct alignment

• Avoid excessive torque

• Monitor chip evacuation

These factors work together with tap design to produce consistent threading outcomes.

Hand taps, spiral taps, and gun taps each serve a distinct purpose in machining and threading operations. Hand taps provide flexibility and control for manual work and maintenance tasks. Spiral taps are essential for blind holes, where chip evacuation upward prevents breakage. Gun taps dominate through-hole and production environments, pushing chips forward for faster and more efficient tapping.

Understanding the differences between these tap types allows machinists and engineers to select the right tool for the job, improving thread quality, reducing tool wear, and supporting reliable production. With the correct tap selection and proper setup, threading becomes a predictable, efficient process that delivers consistent results across a wide range of materials and applications.
