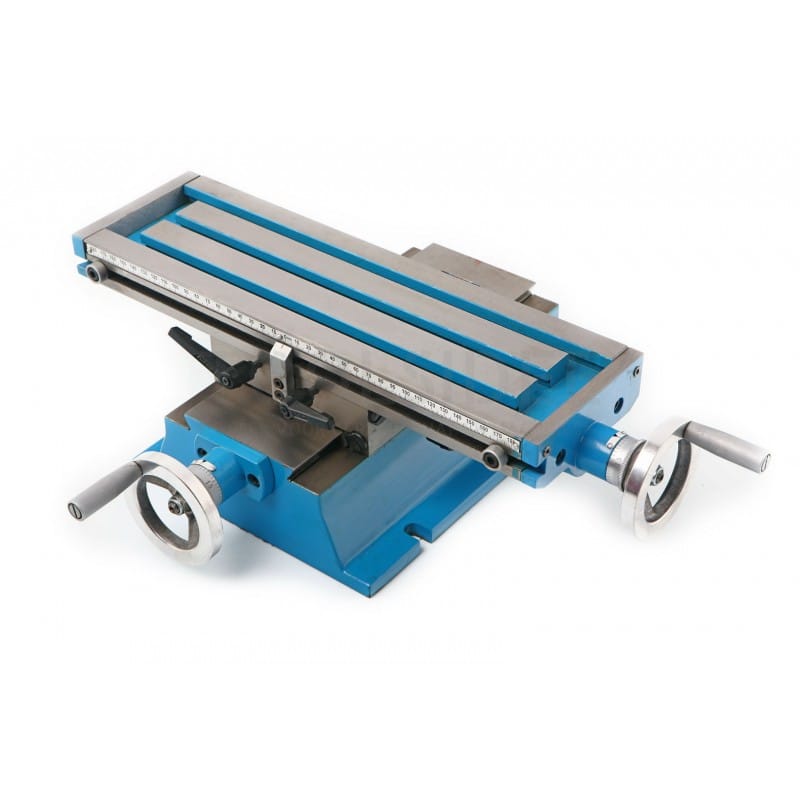

Accurate machining begins long before the cutting tool engages the material. One of the most overlooked yet critical aspects of any machining operation is workholding. No matter how advanced the CNC machine or how high-performance the cutting tool, poor workholding will compromise accuracy, surface finish, and tool life. Inconsistent clamping can introduce vibration, movement, and misalignment—resulting in scrap parts, damaged tooling, and wasted production time.

Workholding is the foundation of repeatable precision. Whether you are milling, drilling, tapping, or grinding, securing the workpiece correctly ensures dimensional accuracy, improved finish quality, and longer tool longevity. Understanding the fundamentals of vices, clamps, and setup blocks helps machinists build reliable, stable setups for both manual and CNC environments.

Why Workholding Matters

During machining, cutting forces act on the workpiece in multiple directions. If the part is not rigidly secured, these forces can cause:

• Micro-movement or slipping


• Chatter and vibration


• Inconsistent dimensions


• Poor surface finish


• Premature tool wear


• Broken cutters or drills

Even a slight shift of a few microns can impact tight tolerance applications. In production environments, inconsistent clamping also reduces repeatability, leading to variation between parts.

Effective workholding must achieve three key objectives:

1. Rigidity – Prevent movement under cutting forces


2. Accuracy – Maintain correct alignment and positioning


3. Repeatability – Ensure consistent results across multiple parts

With these fundamentals in mind, let’s examine the core components of most workshop setups.

Machine Vices

Machine vices (or vises) are among the most widely used workholding devices in milling and drilling operations. They provide stable and repeatable clamping through parallel jaws and a precision-ground base.

Milling Vices

Milling vices are designed for accuracy and rigidity. They typically feature:

• Hardened and ground jaws


• Precision-ground base surfaces


• Minimal jaw lift under clamping pressure


• High clamping force

Quality milling vices maintain jaw parallelism under load. Inferior designs may experience “jaw lift,” where the movable jaw rises slightly when tightened, causing the workpiece to tilt. This affects squareness and dimensional control.

Milling vices are ideal for:

• Squaring blocks


• Slotting operations


• Profile milling


• Face milling


• Production runs requiring repeatability

In CNC machining, precision vices are often mounted permanently on the machine table to maintain consistent zero references.

Drill Press Vices

Drill press vices are generally smaller and lighter than milling vices. They are designed for vertical drilling applications where cutting forces are primarily axial (downward).

Key characteristics include:

• Compact footprint


• Quick positioning


• Versatile clamping

While suitable for drilling and light machining, they are not typically rigid enough for heavy milling operations. Using a drill press vice for aggressive side-cutting can lead to movement and inaccuracy.

Offset and Angle Vices

Offset or angle vices allow the workpiece to be positioned at a specific angle. These are useful for:

• Chamfering operations


• Angled drilling


• Multi-face machining


• Specialty setups


Angle vices reduce the need for complex fixturing when machining parts that require non-standard orientations. However, they must be properly aligned to maintain accuracy.

Clamps

Clamps are essential for holding irregularly shaped, oversized, or non-parallel workpieces that cannot fit inside a standard vice. They offer flexibility in setup design and are often used directly on machine tables with T-slots.

F-Clamps

F-clamps are versatile and commonly used in workshops. They are suitable for:

• Temporary holding


• Light machining


• Assembly work

While convenient, F-clamps are generally not ideal for high-force machining operations where precision is critical.

Angle Clamps

Angle clamps secure two surfaces at 90° and are often used when machining welded assemblies or fabricating square components.

Applications include:

• Welding preparation


• Milling perpendicular faces


• Frame construction

Proper alignment of angle clamps ensures squareness during machining or fabrication.

Ratchet Clamps

Ratchet clamps provide fast, adjustable grip and are often used in production environments where speed matters.

Benefits include:

• Quick adjustment


• Consistent clamping pressure


• Reduced setup time

However, machinists must ensure that ratchet clamps provide sufficient rigidity for the operation being performed.

Setup Blocks and Parallels

Setup blocks and parallels are fundamental accessories in accurate machining setups. They ensure proper height, spacing, and alignment.

Parallels

Parallels are precision-ground bars placed inside a vice beneath the workpiece. They serve several purposes:

• Elevate the workpiece above the vice base


• Allow through-drilling without damaging the vice


• Maintain consistent height positioning


• Improve clamping stability

Using parallels ensures that the workpiece sits flat and square. Without them, parts may tilt or rest unevenly against the vice base.

Setup Blocks

Setup blocks provide consistent spacing and height reference. They are especially useful for:

• Multi-step machining


• Repetitive setups


• Aligning fixtures


• Supporting irregular components


In precision machining environments, setup blocks are often ground to tight tolerances, allowing machinists to build accurate and repeatable configurations.

Workholding and Surface Finish

One of the most immediate indicators of poor workholding is surface finish quality. Vibration or movement causes chatter marks and inconsistent cutting patterns.

Secure workholding:

• Reduces vibration


• Maintains constant chip load


• Improves surface integrity


• Enhances dimensional control


In high-speed CNC machining, even minor instability can significantly impact finish quality. This is particularly critical when working with carbide tooling, where rigidity is essential.

Tool Life and Workholding

Tool wear is directly influenced by stability. When a workpiece shifts during cutting:

• Cutting edges experience uneven loads


• Heat distribution becomes inconsistent


• Tool edges chip prematurely

Stable clamping distributes forces evenly across the tool, extending tool life and reducing downtime.

In production settings, improved workholding can dramatically lower tooling costs over time.

Best Practices for Secure Workholding

To maximise machining performance, follow these best practices:

1. Clean all contact surfaces before clamping.


2. Ensure the machine table and vice base are free from chips and debris.


3. Use appropriate torque when tightening.


4. Confirm alignment using dial indicators where necessary.


5. Avoid overhang that reduces rigidity.


6. Support long workpieces properly.


7. Match the clamping method to the cutting forces involved.

Taking the time to build a solid setup reduces errors later in the process.

Workholding in CNC vs Manual Machining

In manual machining, operators can feel vibration and adjust accordingly. In CNC environments, however, the machine continues cutting regardless of instability.

This makes secure and repeatable workholding even more critical in automated production. CNC machining often uses dedicated fixtures to improve speed and repeatability, but the fundamentals remain the same:

• Rigidity


• Accuracy


• Repeatability

Workholding is the silent partner in machining success. While cutting tools and machine capabilities often receive the most attention, the stability of the workpiece ultimately determines the quality of the result.

Machine vices provide reliable and repeatable clamping for general machining. Clamps offer flexibility for irregular parts and large components. Setup blocks and parallels ensure accurate positioning and alignment. Together, these tools form the backbone of precision machining.

By understanding and applying workholding fundamentals, machinists can improve surface finish, extend tool life, reduce scrap, and achieve consistent, repeatable results. In every operation—whether milling, drilling, or complex CNC machining—secure workholding is not optional. It is essential.
