Alignment is a critical factor in machining accuracy, machine longevity, and overall component quality. Even minor deviations from true level can introduce vibration, accelerate tool wear, and lead to dimensional inaccuracies that affect finished parts. Engineers’ levels and machinist levels are precision instruments specifically designed to detect and measure very small angular deviations with exceptional sensitivity, making them essential tools in workshop setup, maintenance, and inspection environments.

In modern engineering and manufacturing, where tolerances are increasingly tight, ensuring machines and components are perfectly aligned is not optional — it is fundamental to consistent, repeatable performance.

Why Alignment Matters in Machining and Engineering

Machine alignment directly impacts cutting accuracy, tool life, and surface finish quality. When equipment such as lathes, milling machines, grinders, or CNC systems are not properly levelled, forces are distributed unevenly. This can lead to:

• Increased vibration and chatter

• Uneven tool wear

• Poor surface finishes

• Dimensional inconsistencies

• Premature machine component failure


Even small alignment errors can compound over time, especially in high-precision environments. For example, a misaligned lathe bed can produce tapered components, while an unlevel milling machine may cause inconsistent depths of cut across a workpiece.

Engineers’ levels and machinist levels provide a reliable way to detect these issues early, allowing technicians to correct alignment before it affects production quality.

What Makes Engineers’ Levels Different?

Unlike standard spirit levels used in construction, engineers’ levels are precision instruments engineered specifically for fine mechanical alignment. They are designed to detect extremely small angular changes over short distances, often measured in thousandths of an inch per foot or millimetres per metre.

Key characteristics include:

• High sensitivity: Capable of detecting minute deviations that standard levels cannot identify


• Precision-ground bases: Ensures consistent contact with machine surfaces


• Fine adjustment capability: Designed for accurate setup and calibration


• Stable vial construction: Minimises distortion and reading errors


These levels are manufactured to strict tolerances and often undergo calibration to ensure accuracy across their measurement range.

Machinist Levels vs Engineers’ Levels

While the terms are sometimes used interchangeably, machinist levels and engineers’ levels can differ slightly in design and application.

Engineers’ levels are typically used for installation, alignment, and calibration tasks where extremely fine measurements are required.

Machinist levels are commonly used in workshops for day-to-day setup, machine levelling, and maintenance checks.

Both types share similar features, including high-precision bases and sensitive vials, but their use often depends on the environment and the level of precision required.

Sensitivity and Accuracy

The defining feature of these instruments is their sensitivity. Engineers’ levels can detect angular changes far smaller than those visible with standard bubble levels.

Typical sensitivities may include:

• 0.02 mm/m

• 0.01 mm/m

• 0.005 mm/m

This level of precision allows technicians to identify and correct very small misalignments that could otherwise affect machining accuracy or machine performance.

Common Uses in Engineering and Machining

Engineers’ levels and machinist levels are used across a wide range of applications where accurate alignment is essential.

Machine Installation and Setup

When installing new machinery, accurate levelling is one of the first and most important steps. Proper alignment ensures:

• Correct load distribution

• Stable operation

• Accurate cutting performance

• Reduced long-term wear

Engineers’ levels help installers ensure the machine base is perfectly aligned before commissioning.

Aligning Lathes and Milling Machines

Precision machines must be level to produce accurate parts. Machinist levels are used to:

• Align lathe beds

• Check milling machine tables

• Verify grinder alignment

• Calibrate CNC equipment


These checks help maintain machining accuracy and repeatability.

Checking Flatness and Levelness of Components

Engineers’ levels are also used to verify the flatness and alignment of large components or assemblies. This is particularly important in:

• Tool and die manufacturing

• Structural fabrication

• Assembly environments

Even slight deviations can affect component fit and function.

Maintenance and Calibration

Routine maintenance includes checking machine alignment to ensure ongoing performance. Over time, factors such as floor settling, vibration, and wear can cause machines to drift out of level.

Using machinist levels during maintenance helps:

• Detect alignment changes

• Prevent machining errors

• Extend machine lifespan

Supporting Precision Work with Complementary Tools

Engineers’ levels are rarely used in isolation. They are often part of a broader precision measurement system that includes:

• Straight edges

• Surface plates

• Dial indicators

• Gauge blocks

Together, these tools enable technicians to perform detailed setup and calibration procedures.

For example, a surface plate provides a stable reference plane, while an engineer’s level confirms alignment across the surface. Straight edges help identify deviations, and dial indicators measure movement or variation during adjustment.

This integrated approach ensures machines and components are aligned to exact specifications.

Reducing Vibration and Improving Performance

One of the major benefits of proper leveling is vibration reduction. Misaligned machines can generate uneven forces that lead to:

• Chatter during cutting

• Reduced tool life

• Lower surface quality

• Increased operator fatigue

By ensuring machines are correctly levelled, engineers’ levels help create a more stable machining environment. This results in smoother cutting, better finishes, and improved productivity.

Role in Quality Assurance and Inspection

Alignment tools are also essential for quality control processes. Engineers’ levels help confirm that machinery and fixtures meet required setup standards before production begins.

In inspection environments, they can be used to:

• Verify fixture alignment

• Confirm assembly accuracy

• Support calibration procedures

Ensuring proper alignment at this stage prevents costly rework and rejected components later.

Choosing the Right Level

Selecting the appropriate engineer’s or machinist level depends on the application and required precision. Key considerations include:

• Sensitivity rating

• Length of the level

• Base construction and material

• Calibration certification

• Intended environment (installation, workshop, inspection)

Higher-sensitivity levels are typically used for calibration and installation, while slightly lower sensitivity tools may be sufficient for routine workshop checks.

Best Practices for Use

To maintain accuracy, engineers’ levels should be used correctly and handled carefully.

Recommended practices include:

• Cleaning contact surfaces before measurement

• Avoiding temperature extremes

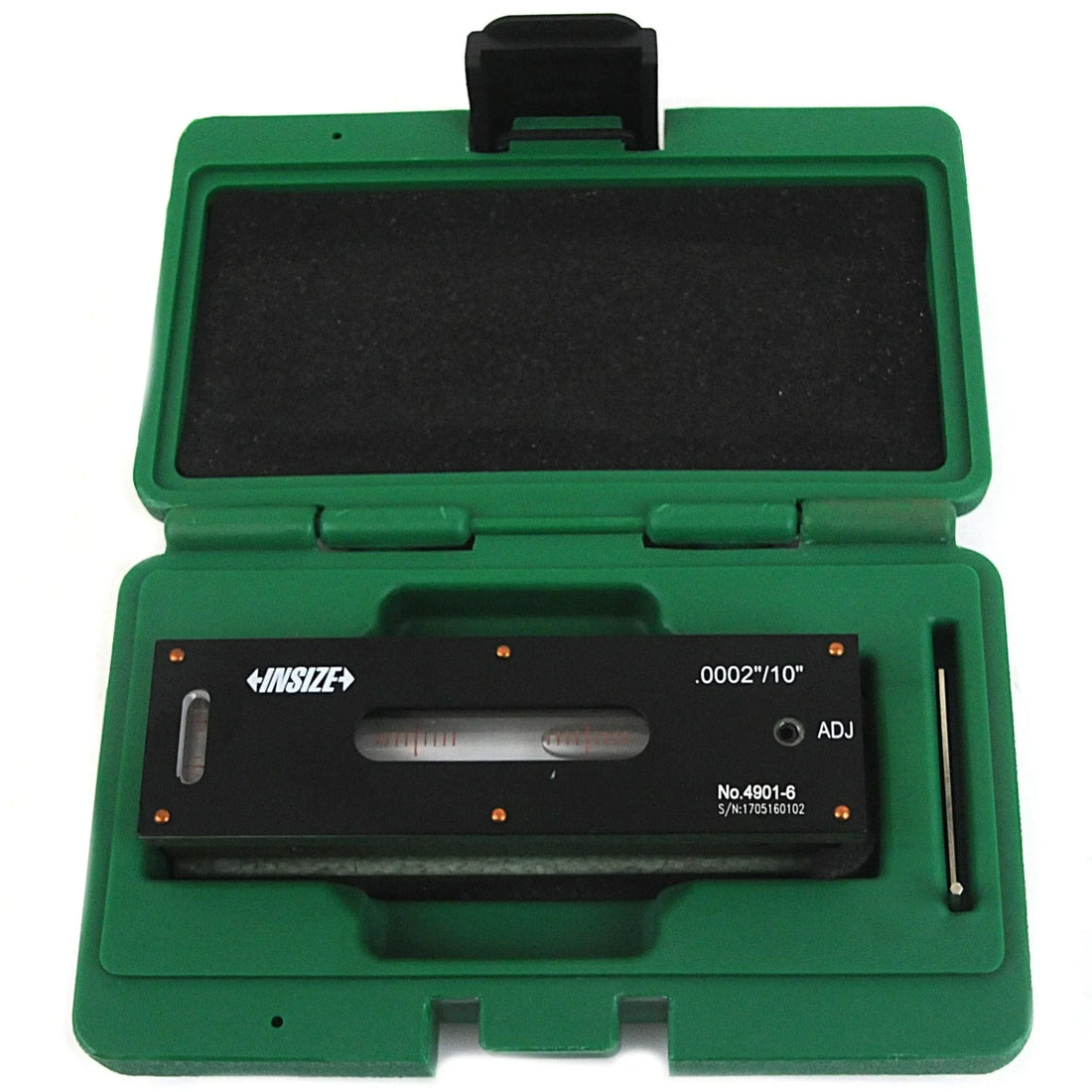

• Storing the level in a protective case

• Periodically checking calibration

• Using stable reference surfaces

Proper handling ensures the instrument continues to provide reliable readings over time.

Supporting Long-Term Machine Reliability

Accurate alignment not only improves machining performance but also extends the lifespan of equipment. Machines operating out of level experience uneven loading, which can lead to premature wear of bearings, guides, and structural components.

Regular alignment checks using machinist levels help:

• Prevent mechanical strain

• Maintain structural integrity

• Reduce maintenance costs

Over time, this contributes to more reliable and efficient operations.

The Importance of Precision Alignment in Modern Manufacturing

As manufacturing tolerances become tighter and production speeds increase, the importance of precision alignment continues to grow. Engineers’ levels and machinist levels play a fundamental role in ensuring machines operate correctly, components meet specifications, and production processes remain consistent.

They provide a simple yet highly effective method for detecting misalignment, supporting accurate setup, and maintaining machine performance.

In workshops, production facilities, and inspection environments, these instruments remain essential tools for achieving precision, reliability, and quality.

By incorporating engineers’ levels into installation, maintenance, and inspection routines, manufacturers can reduce errors, improve efficiency, and ensure that machines and components operate exactly as intended.
