Measuring internal diameters accurately is a critical task in machining, automotive repair, and quality control. Whether you’re working on engine cylinders, hydraulic components, or precision machinery, even slight deviations in bore size can cause major issues such as poor fit, excessive wear, or mechanical failure. That’s why selecting the right tool for measuring bores is essential.

Bore gauges are specifically designed to measure internal diameters with high accuracy. They come in several types, including dial bore gauges, telescopic gauges, and digital bore gauges, each offering unique advantages depending on the application. This guide will help you understand the differences, applications, and best practices for using these tools effectively.

Dial Bore Gauges

Dial bore gauges are one of the most common tools for internal diameter measurement in professional machining and quality control environments. They operate on a comparative principle, meaning they do not measure absolute dimensions directly. Instead, they indicate the deviation from a reference dimension set on an external standard, such as a micrometer or gauge block.

How Dial Bore Gauges Work

A dial bore gauge has a spring-loaded measuring head with three contact points. When inserted into a bore, the gauge measures the variation from the preset reference, and the reading is displayed on a dial indicator. The dial clearly shows whether the bore is above or below the target dimension, allowing for quick assessment.

Advantages

• Precision: Capable of measuring minute deviations, often down to 0.001 mm (0.0001 inch).


• Comparative measurement: Excellent for checking tolerances in production environments.


• Versatile: Can measure a wide range of bore diameters by changing the interchangeable anvils.


Applications

Dial bore gauges are commonly used in:

• Engine cylinder inspections.


• Hydraulic or pneumatic cylinder production.


• Precision machining quality control.

While highly accurate, dial bore gauges require a reference measurement to provide absolute bore dimensions. They are best suited for environments where precision and repeatability are critical.

Telescopic Gauges

Telescopic gauges offer a simpler and more cost-effective option for measuring internal diameters. They consist of a spring-loaded expanding head and a handle, allowing the operator to manually adjust the tool to the bore size.

How Telescopic Gauges Work

To use a telescopic gauge, the operator inserts it into the bore and expands the measuring head until it fits snugly. The gauge is then removed carefully and measured using an external micrometer. The operator relies on feel and technique to ensure the gauge is fully seated within the bore.

Advantages

• Affordable: Lower cost compared to dial or digital bore gauges.


• Portable and lightweight: Ideal for fieldwork or general workshop use.


• Simple design: Easy to maintain and does not require calibration as frequently as more complex tools.

Applications

Telescopic gauges are suitable for:

• Less critical measurements where extreme precision is not required.


• General workshop applications, including machine repair or maintenance tasks.


• Measuring components where comparative tools are unavailable.

While practical, telescopic gauges rely heavily on operator skill. Inaccurate insertion or improper measurement technique can result in errors, so they are less suitable for environments demanding high precision.

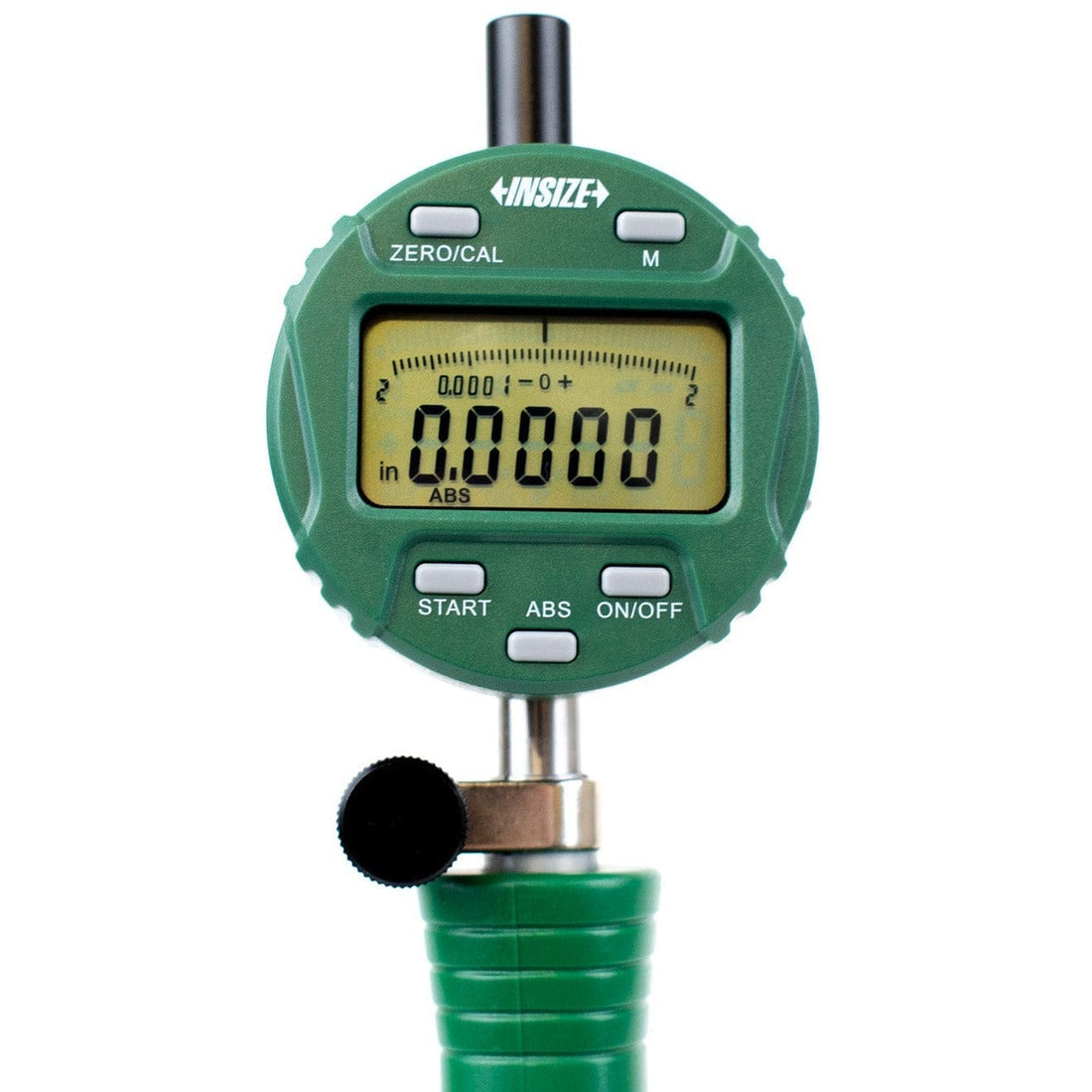

Digital Bore Gauges

Digital bore gauges are the modern solution for internal diameter measurement, combining accuracy, speed, and convenience. These tools provide absolute measurements directly in digital form, eliminating the need for manual calculations or dial reading interpretation.

How Digital Bore Gauges Work

Digital bore gauges use an electronic measuring head with contact points and a digital display. Once inserted into the bore, the gauge provides a direct reading of the internal diameter. Many models also include data output options, allowing measurements to be recorded automatically for inspection reports or quality control documentation.

Advantages

• Fast and repeatable: Digital readouts reduce human error and allow quick measurements.


• High precision: Typically accurate to within 0.01 mm or better.


• Data logging: Many digital gauges can export measurements for traceability and quality records.


• User-friendly: Requires minimal training compared to manual comparative tools.

Applications

Digital bore gauges are ideal for:

• Production inspection lines where speed and consistency are important.


• Laboratories or metrology environments requiring precise and documented measurements.


• Any application where repeated measurements across multiple components are necessary.


Although more expensive than traditional gauges, digital bore gauges improve workflow efficiency, reduce measurement errors, and provide traceable results.

Best Practices for Bore Measurement

Regardless of the type of bore gauge used, following best practices is essential for accurate and reliable results:

1. Use a Reference Standard: Even dial and telescopic gauges require a calibrated micrometer or master ring gauge to ensure accuracy.


2. Measure Multiple Points: For precise evaluation, measure the bore at several positions along its length and at multiple angles to check for taper or ovality.


3. Temperature Consideration: Ensure components and gauges are at the same temperature, as thermal expansion can affect measurements.


4. Clean the Bore: Dirt, oil, or burrs can cause inaccurate readings, so always clean the bore before measurement.


5. Consistent Technique: Especially for telescopic gauges, use consistent insertion and feel to minimize operator-induced errors.


6. Regular Calibration: All bore gauges should be calibrated periodically to maintain measurement integrity.

Combining Bore Gauges with Micrometers

For absolute measurements, bore gauges are typically used alongside micrometers. While the bore gauge provides the comparative reading or captures the bore profile, a micrometer measures the reference size accurately. This combination ensures accuracy, repeatability, and traceability, which are vital in precision engineering and quality control applications.

For example, a telescopic gauge can be inserted into a cylinder bore, then measured with an outside micrometer to determine the exact diameter. Similarly, a dial bore gauge can be zeroed with a micrometer and used to measure multiple engine cylinders quickly, ensuring uniformity and compliance with specifications.

Measuring internal diameters accurately is essential for mechanical reliability, product quality, and safety. Bore gauges—whether dial, telescopic, or digital—offer precise solutions for a variety of applications, from general workshop tasks to high-precision inspection environments.

• Dial bore gauges excel in comparative measurement and quality control.


• Telescopic gauges are practical and cost-effective for general use.


• Digital bore gauges provide fast, accurate, and traceable readings for modern production and inspection workflows.

By understanding the types of bore gauges, their operation, and best practices, professionals can ensure accurate measurements, reduce rework, and maintain high-quality standards in their machining and engineering projects. Investing in the right bore gauge and following proper measurement techniques is a small step that pays off in precision, efficiency, and reliability.
