When drilling holes in metal, the choice of cutting tool can have a major impact on productivity, hole quality, and overall machining efficiency. While twist drills have long been the standard for general drilling tasks, annular cutters have become the preferred solution for producing larger holes in structural steel, plate, and fabrication environments. Understanding the differences between these tools helps machinists, fabricators, and maintenance professionals select the most efficient method for their application.

Understanding the Two Drilling Methods

At first glance, annular cutters and twist drills may appear to serve the same purpose—they both create holes in metal. However, the way they remove material and the results they produce are very different.

Twist drills remove material across the entire diameter of the hole, converting all of it into chips. This requires more cutting force, more energy, and generates higher heat levels. In contrast, annular cutters remove material only around the perimeter of the hole, leaving a solid slug or “core” in the center. Because less material is being cut, annular cutters can operate faster and more efficiently.

This fundamental difference explains why annular cutters are widely used in structural steel fabrication, bridge construction, shipbuilding, and heavy engineering, where large-diameter holes must be drilled quickly and accurately.

What Are Annular Cutters?

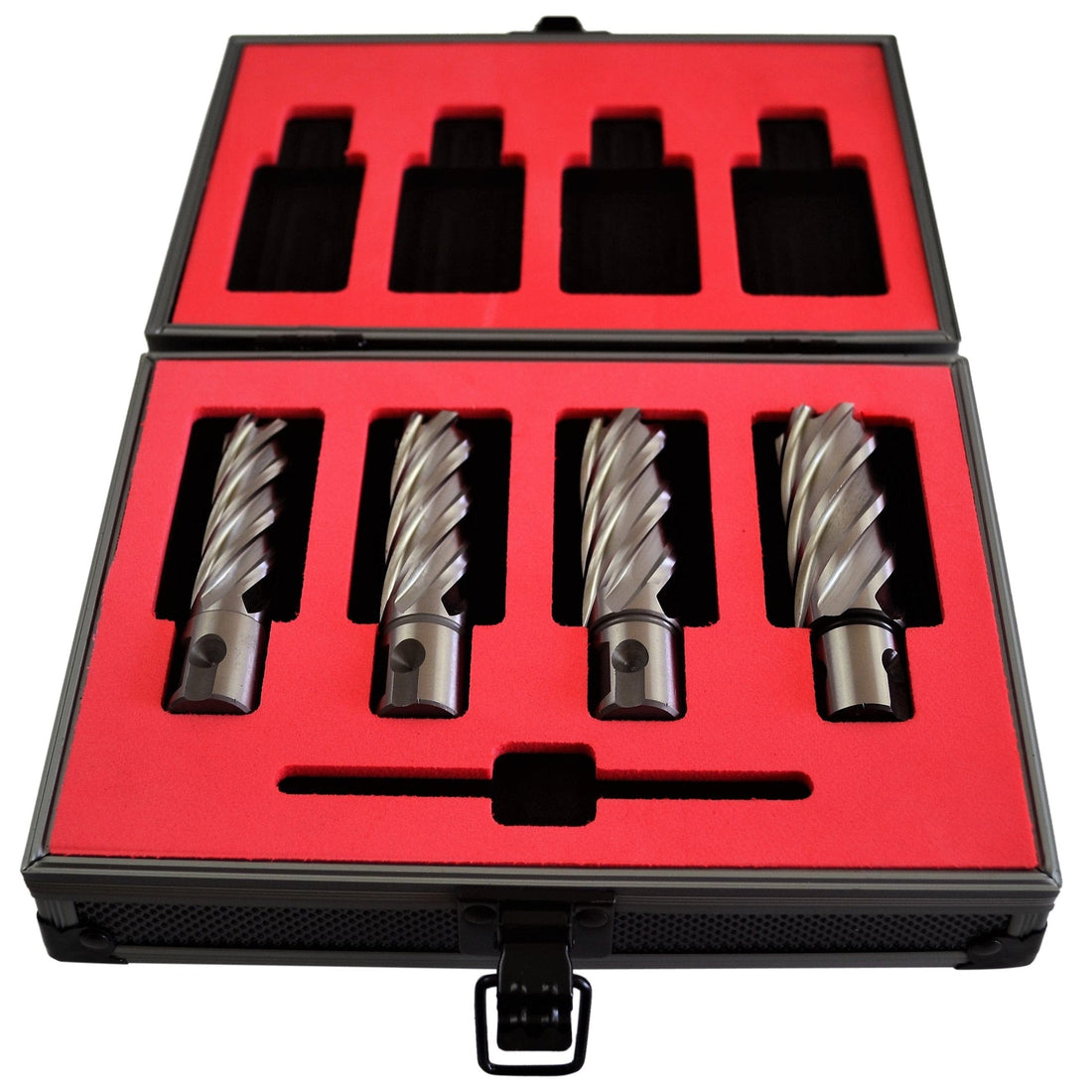

Annular cutters are hollow, cylindrical cutting tools designed to produce holes by cutting only the outer edge of the hole diameter. They are commonly used with magnetic base drilling machines (mag drills), which provide the rigidity and stability required for precise holemaking in steel structures and plate materials.

Unlike twist drills, which rely on a pointed tip to penetrate material, annular cutters use multiple cutting teeth arranged around the circumference of the tool. These teeth shear the material efficiently while ejecting chips outward, reducing resistance and heat buildup.

Key Benefits of Annular Cutters

Faster cutting speeds
Because annular cutters remove less material, they can achieve significantly higher penetration rates compared to twist drills. This makes them ideal for repetitive drilling operations and production environments.

Lower power requirements
Removing only the perimeter of the hole reduces torque demand and energy consumption. This allows operators to drill larger holes using relatively compact machines.

Cleaner holes
Annular cutters typically produce smoother hole walls with minimal burr formation. The cutting geometry promotes consistent shearing rather than tearing, resulting in better finish quality.

Improved tool life
Reduced cutting load and heat generation extend the lifespan of the tool, especially when used with proper lubrication and coolant.

Accuracy and repeatability
Annular cutters are designed for stable, controlled drilling. When paired with a magnetic drill, they maintain alignment and produce accurate hole sizes with minimal deviation.

Typical Applications

Annular cutters are widely used in:

• Structural steel fabrication


• Bridge and infrastructure construction


• Rail and heavy equipment maintenance


• Shipbuilding and offshore engineering


• Plate drilling in manufacturing environments


They are especially effective for holes ranging from medium to large diameters where efficiency and hole quality are critical.

Twist Drills: A Proven, Versatile Solution

Despite the advantages of annular cutters, twist drills remain an essential tool in machining and fabrication. Their versatility, availability, and adaptability make them suitable for a wide range of drilling tasks.

Twist drills are solid tools with helical flutes designed to evacuate chips as the cutting edges penetrate material. They are available in many sizes, materials, and geometries, allowing them to be used on everything from plastics and aluminium to hardened steels.

When Twist Drills Make Sense

Smaller hole diameters
For small holes, twist drills are often more practical and economical. Annular cutters are generally designed for larger diameters and may not be suitable for fine drilling work.

General-purpose drilling
Twist drills are the go-to solution for workshop drilling, maintenance tasks, and fabrication where hole sizes vary frequently.

Portable or hand drilling
Hand drills and portable power tools are typically designed for twist drill use. Annular cutters require a rigid setup, usually with a magnetic drill.

Multi-material applications
Twist drills can be used across a wide range of materials, including wood, plastics, and non-ferrous metals, making them more flexible for general use.

Step drilling and pilot holes
They are ideal for creating pilot holes, enlarging existing holes, or drilling through thin materials where annular cutters may not perform optimally.

Efficiency Comparison: Material Removal and Performance

The biggest performance difference between annular cutters and twist drills lies in material removal.

With a twist drill, the entire cross-section of the hole becomes chips. For large holes, this requires significant cutting force and generates heat, which can affect both tool life and hole quality.

Annular cutters, on the other hand, remove only a ring of material. This dramatically reduces cutting resistance and improves efficiency. As a result:

• Feed rates can be higher


• Cycle times are shorter


• Heat buildup is reduced


• Tool wear occurs more slowly


This efficiency advantage becomes increasingly noticeable as hole diameter increases. In production environments, switching from twist drills to annular cutters for large holes can significantly improve productivity.

Hole Quality and Finish

Hole quality is another important factor when choosing between the two methods.

Annular cutters typically produce:

• Smooth hole walls


• Minimal burr formation


• Consistent diameter accuracy


• Reduced need for secondary finishing


Twist drills, particularly when used in large diameters, may produce more burrs and rougher surfaces, especially if cutting conditions are not ideal. Additional deburring or finishing may be required.

However, for small holes and thin materials, twist drills can still deliver excellent results when properly selected and applied.

Machine Requirements and Setup

Annular cutters require stable, rigid machines—most commonly magnetic drills. These machines clamp securely to the workpiece, ensuring alignment and reducing vibration.

Proper setup includes:

• Secure magnetic base positioning


• Pilot pin alignment


• Coolant or lubrication use


• Correct feed pressure


Twist drills are more forgiving and can be used in:

• Drill presses


• CNC machines


• Hand drills


• Portable setups


This flexibility makes them indispensable for general workshop use.

Cost Considerations

Initial cost is another factor influencing tool selection.

Twist drills are generally less expensive and widely available. They are ideal for occasional drilling tasks or environments where many different hole sizes are required.

Annular cutters may have a higher upfront cost, but they often provide better long-term value in production environments due to:

• Faster drilling times


• Longer tool life


• Reduced machine wear


• Lower energy consumption


For operations involving repeated large-diameter drilling, annular cutters can deliver significant cost savings over time.

Choosing the Right Method

Selecting between annular cutters and twist drills depends on several factors:

Use annular cutters when:

• Drilling large-diameter holes


• Working with structural steel or plate


• Speed and productivity are priorities


• Hole finish quality is critical


• A magnetic drill or rigid setup is available


Use twist drills when:

• Drilling smaller holes


• Performing general-purpose workshop tasks


• Using portable or hand-held tools


• Working across multiple materials


• Creating pilot holes or step drilling

Both annular cutters and twist drills have important roles in metalworking and fabrication. Twist drills remain the most versatile and widely used drilling tools, capable of handling a broad range of materials and applications. Annular cutters, however, excel when it comes to large-diameter holes in steel, delivering faster cutting, cleaner results, and improved efficiency.

Understanding the strengths of each tool allows machinists and fabricators to make informed decisions that improve productivity, reduce tool wear, and enhance hole quality. In environments where time, accuracy, and finish matter, choosing the right drilling method can make a significant difference in overall performance and operational efficiency.
