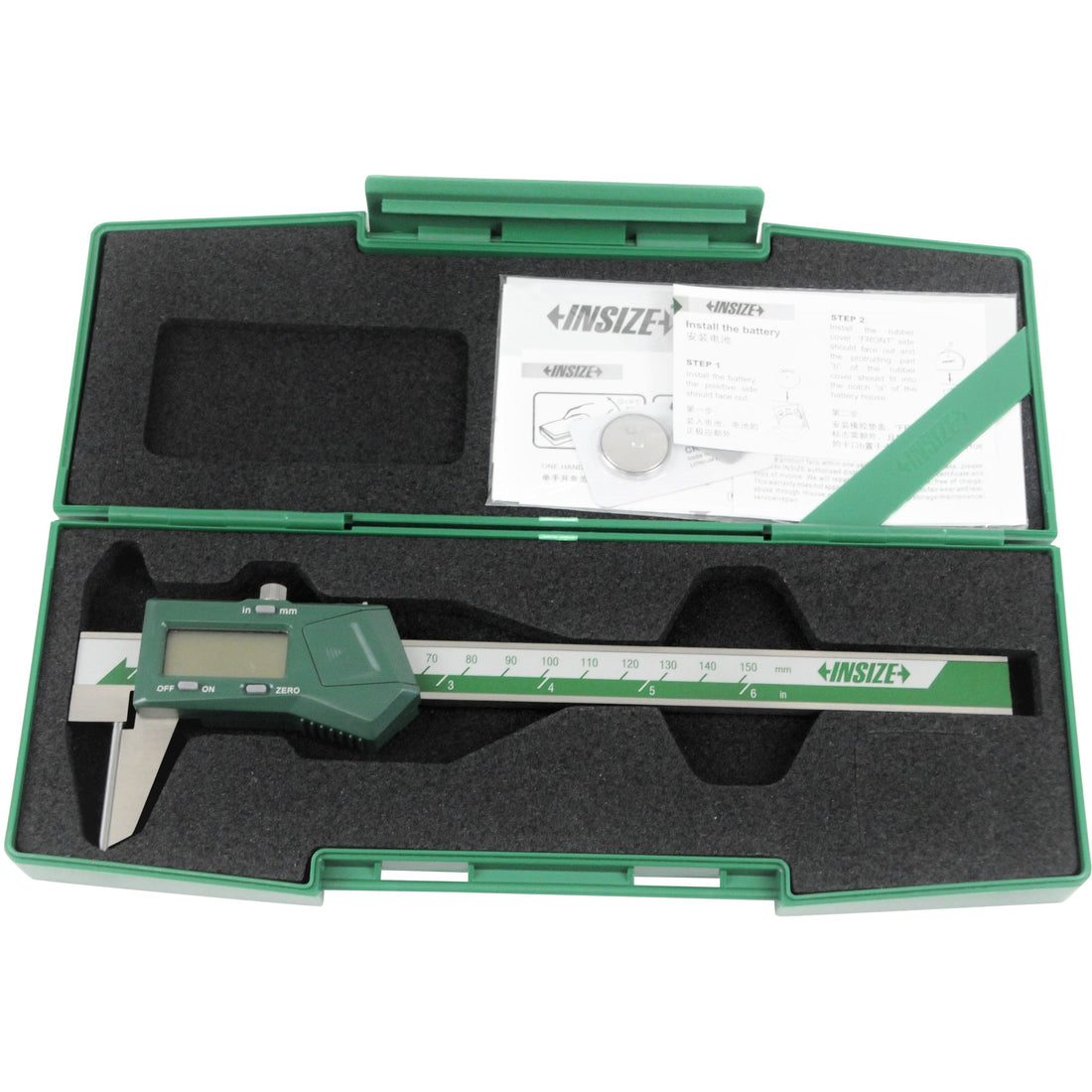

Accurate measurements are critical in construction and engineering. Even minor discrepancies can lead to poor fits, structural issues, or costly rework. One of the most widely used tools for precise measurement is the digital vernier caliper. With its ability to measure inside, outside, and depth dimensions, it’s essential for engineers, machinists, and construction professionals. However, to ensure reliable results, digital vernier calipers must be properly calibrated.

In this article, we’ll walk you through why calibration matters, step-by-step instructions for calibrating your device, and best practices to maintain measurement accuracy.

Why Calibrating a Digital Vernier Caliper Matters

Digital vernier calipers are precise, often providing readings with resolutions as fine as 0.01 mm or 0.0005 inches. But like all precision instruments, they can drift over time due to:

• Wear and tear from repeated use


• Exposure to dust, moisture, or extreme temperatures


• Accidental drops or impacts


• Battery voltage fluctuations


If your caliper isn’t calibrated regularly, measurements may become inconsistent, leading to:

• Poor component fit in assemblies


• Increased scrap material and waste


• Safety risks in structural applications


• Non-compliance with engineering tolerances and standards


Calibrating your digital vernier caliper ensures that measurements remain accurate, repeatable, and trustworthy.

Tools Needed for Calibration

Before starting, gather the following items:

• Certified gauge blocks or calibration standards


• A clean, flat reference surface (like a granite plate)


• Soft cloth or lint-free wipes


• The digital vernier caliper itself


Optional but recommended:

• Calibration certificate if your organization requires documented verification


• Tweezers or gloves to handle gauge blocks to avoid contaminating them


Step-by-Step Guide to Calibrating a Digital Vernier Caliper

Step 1: Clean the Caliper and Reference Tools

Begin by cleaning the caliper’s measuring faces, jaws, and depth rod. Even tiny dust particles or oil residues can affect readings. Wipe the gauge blocks and reference surfaces to ensure they are free of debris. This simple step prevents measurement errors caused by contamination.

Step 2: Zero the Caliper

1. Close the caliper jaws completely.


2. Press the zero button on the digital display.


3. Verify that the display reads 0.00 mm or 0.000 inches.


This sets the baseline and ensures that all measurements start from an accurate reference point. If the caliper does not zero correctly, it may need servicing.

Step 3: Check Calibration with Gauge Blocks

1. Select a certified gauge block of known thickness (e.g., 25 mm or 1 inch).


2. Open the caliper jaws and place the gauge block between them.


3. Gently close the jaws until they contact the block without applying excessive force.


4. Compare the reading on the digital display with the gauge block’s nominal value.


If the reading matches within the caliper’s specified tolerance (typically ±0.01 mm for digital calipers), your tool is properly calibrated. If not, proceed to adjustment.

Step 4: Adjust the Caliper (If Necessary)

Some digital vernier calipers allow fine calibration adjustments:

1. Refer to the caliper’s instruction manual for adjustment procedures.


2. Use the calibration function (if available) or follow the manufacturer’s method to align the display reading with the gauge block.


3. Repeat Step 3 to confirm the accuracy after adjustment.


If your caliper cannot be adjusted digitally and still shows discrepancies, it may require professional servicing.

Step 5: Verify Across the Measuring Range

Accuracy should be consistent across the caliper’s entire range:

• Measure additional gauge blocks of different sizes (e.g., 10 mm, 50 mm, 75 mm).


• Check inside and outside measurements using appropriate features of the caliper.


• Measure the depth using a flat reference surface and the caliper’s depth rod.


This ensures the caliper is accurate for all types of measurements.

Step 6: Record Calibration Results

For quality assurance and compliance with engineering standards, document:

• The date of calibration


• Gauge block values used


• Measured readings and deviations


• Technician or engineer performing the calibration


Maintaining calibration records is particularly important for certified manufacturing environments, inspection labs, and engineering projects requiring traceability.

Best Practices for Maintaining Digital Vernier Caliper Accuracy

• Regular cleaning: Wipe jaws and body before and after use.


• Avoid excessive force: Pressing too hard can damage the spindle or digital sensor.


• Store properly: Keep in a protective case, away from dust, moisture, and direct sunlight.


• Periodic recalibration: Depending on usage, calibrate monthly, quarterly, or as recommended by standards.


• Battery management: Replace batteries before voltage drops cause display errors.


Following these practices extends the life of your caliper and ensures measurement reliability over time.

Common Mistakes to Avoid During Calibration

• Skipping the zeroing step before measurement


• Using dirty or damaged gauge blocks


• Applying uneven pressure on the caliper jaws


• Ignoring temperature variations (most digital calipers are temperature-sensitive)


• Failing to document calibration results


Awareness of these common mistakes can prevent costly errors and ensure professional-quality measurements.

In construction and engineering, precision is non-negotiable. A digital vernier caliper is one of the most versatile and essential tools in any professional workshop, but its effectiveness depends entirely on proper calibration.

By following a consistent calibration routine — cleaning, zeroing, verifying with gauge blocks, and documenting results — professionals can maintain accurate measurements, reduce material waste, and meet tight engineering tolerances.

Investing time in calibrating your digital vernier caliper isn’t just good practice — it’s a commitment to quality, safety, and efficiency in every project.
