In both automotive and industrial environments, fluid and air systems rely heavily on secure, reliable connections to function safely and efficiently. Brake line fittings and pneumatic fittings may appear to be small components, but their role is critical. A single poorly fitted connection can lead to leaks, pressure loss, system failure, or even serious safety risks. Whether managing hydraulic brake systems in vehicles or compressed air systems in industrial machinery, choosing and installing the right fittings is essential for performance and reliability.

Understanding how these fittings work, their applications, and how to select the right type can significantly reduce downtime, improve safety, and extend the life of equipment.

Understanding Brake Line Fittings

Brake line fittings are designed to connect sections of tubing within a hydraulic braking system. These systems rely on pressurised fluid to transfer force from the brake pedal to the braking components at the wheels. Because of this, brake line fittings must maintain a completely sealed system under high pressure.

Brake line fittings are commonly used in automotive, transport, and heavy machinery applications. They are engineered to withstand vibration, temperature changes, and exposure to harsh environments such as road debris, moisture, and chemicals.

Types of Brake Line Fittings

There are several types of brake line fittings, each designed for specific applications:

Flare Fittings
Flare fittings are among the most common in brake systems. They use a flared end on the tubing to create a tight seal when compressed against the fitting. Double flare and bubble flare types are widely used depending on regional standards.

Compression Fittings
Compression fittings use a ferrule to compress the tubing and create a seal. While easy to install, they are typically not recommended for high-pressure brake systems unless specifically rated for such use.

Banjo Fittings
Banjo fittings are often used in tight spaces where flexibility is needed. They consist of a hollow bolt and a circular fitting that allows fluid to pass through while maintaining a secure connection.

Threaded Fittings
Threaded connections, such as metric or imperial threads, are used to connect brake lines to components like master cylinders or calipers. Proper thread matching is critical to avoid leaks.

Importance of Leak-Free Brake Systems

In hydraulic braking systems, even the smallest leak can compromise performance. Brake fluid must remain contained within the system to maintain pressure. If a fitting fails, it can result in reduced braking efficiency or total brake failure.

Key considerations for brake line fittings include:

• Pressure Resistance: Must handle high hydraulic pressure without deformation.

• Material Strength: Typically made from steel, brass, or coated materials for durability.

• Corrosion Resistance: Essential for long-term reliability, especially in outdoor or automotive environments.

• Precision Manufacturing: Ensures proper sealing and fitment.

Reliable brake line fittings are not just about performance—they are a critical safety component that directly affects operator and passenger safety.

Understanding Pneumatic Fittings

Pneumatic fittings are used to connect components in compressed air systems. These systems power a wide range of industrial tools, machinery, and automation equipment. Pneumatic fittings ensure that air flows efficiently between compressors, hoses, valves, and actuators.

Unlike hydraulic systems, pneumatic systems operate using compressed air or gas. While generally lower in pressure than hydraulic systems, they still require secure connections to maintain efficiency and prevent leaks.

Types of Pneumatic Fittings

Pneumatic fittings come in various designs to suit different applications:

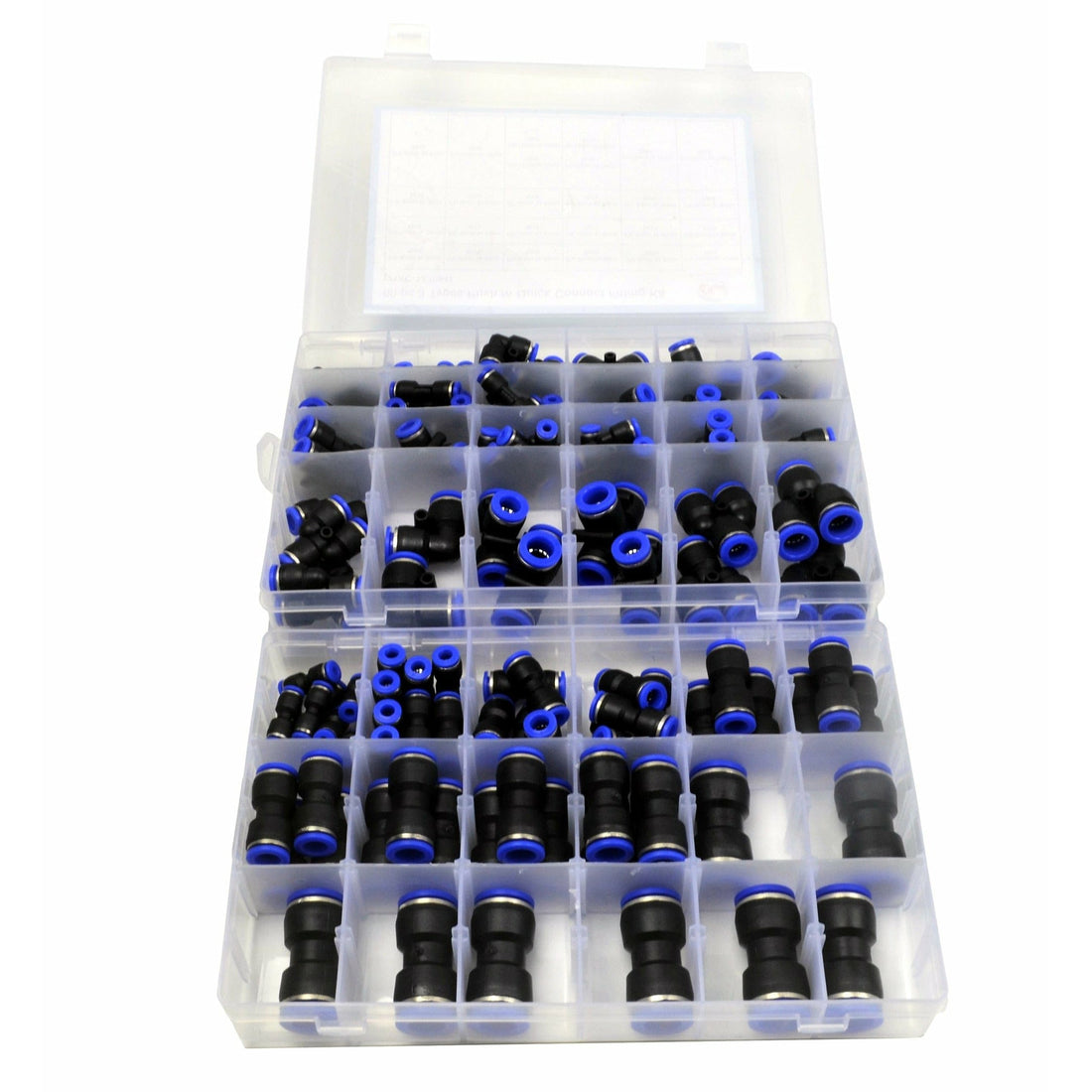

Push-to-Connect Fittings
These are widely used in modern pneumatic systems. They allow quick and easy connection of tubing without the need for tools, making installation and maintenance fast and efficient.

Barbed Fittings
Barbed fittings are used with flexible tubing. The barbs grip the inside of the hose, creating a secure connection when combined with clamps.

Threaded Pneumatic Fittings
These fittings connect to components using threaded connections such as BSP or NPT. Proper sealing methods, such as thread tape or sealant, are often required.

Quick-Disconnect Couplings
Quick couplings allow rapid connection and disconnection of air lines. They are commonly used in workshops where tools need to be swapped frequently.

Applications of Pneumatic Fittings

Pneumatic fittings are essential in a wide range of industries:

• Manufacturing: Powering automated machinery and production lines.

• Automotive Workshops: Operating air tools such as impact wrenches and spray guns.

• Construction: Supporting pneumatic equipment on job sites.

• Food and Packaging: Used in clean and controlled environments for automation.

• Robotics and Automation: Enabling precise movement and control of actuators.

Their versatility and ease of use make pneumatic systems a popular choice for many industrial applications.

Key Differences Between Brake Line and Pneumatic Fittings

While both types of fittings are used to connect fluid or air systems, they serve different purposes and operate under different conditions:

• Medium: Brake line fittings handle hydraulic fluid, while pneumatic fittings handle compressed air.

• Pressure Requirements: Hydraulic systems typically operate at higher pressures than pneumatic systems.

• Sealing Methods: Brake fittings require extremely tight seals, while pneumatic fittings focus on preventing air leaks.

• Application Focus: Brake fittings are safety-critical, while pneumatic fittings are often performance and efficiency-focused.

Understanding these differences is important when selecting the correct fitting for a specific application.

Tips for Selecting the Right Fittings

Choosing the correct brake line or pneumatic fitting involves several key considerations:

Match Pressure Ratings
Always ensure the fitting is rated for the operating pressure of the system. Using an under-rated fitting can lead to failure.

Material Compatibility
Select materials that are compatible with the fluid or air system. For example, corrosion-resistant materials are essential in harsh environments.

Thread Compatibility
Ensure threads match correctly (e.g., BSP, NPT, or metric). Mismatched threads can cause leaks or damage components.

Environmental Conditions
Consider exposure to temperature, moisture, chemicals, and vibration when selecting fittings.

Ease of Installation
Choose fittings that suit the installation environment and maintenance requirements, especially in systems requiring frequent adjustments.

Best Practices for Installation

Proper installation is just as important as selecting the right fitting. Even high-quality fittings can fail if installed incorrectly.

• Clean all components before installation to prevent contamination.

• Use appropriate tools to avoid damaging threads or fittings.

• Apply thread sealant where required, but avoid overuse.

• Ensure fittings are tightened to the correct torque specifications.

• Inspect connections regularly for signs of wear, leaks, or corrosion.

Following these practices helps maintain system integrity and prevents unexpected failures.

Maintenance and Inspection

Routine maintenance is essential to ensure long-term performance of both brake line and pneumatic systems. Regular inspections can identify issues before they become serious problems.

Look for:

• Signs of leaks or pressure loss

• Corrosion or rust on fittings

• Cracked or worn tubing

• Loose connections due to vibration

Replacing worn or damaged fittings promptly can prevent costly downtime and improve overall system safety.

Brake line and pneumatic fittings are small but essential components that play a major role in the performance and safety of fluid and air systems. From ensuring reliable braking in vehicles to maintaining efficient airflow in industrial automation, these fittings are critical to system operation.

Selecting the right fittings, installing them correctly, and maintaining them regularly can significantly reduce the risk of leaks, failures, and downtime. By prioritising quality and compatibility, operators and technicians can ensure that their systems remain safe, efficient, and dependable.

In any application—automotive, industrial, or workshop—reliable fittings are the foundation of a well-functioning system. Investing in the right components is not just a matter of performance, but a commitment to safety and long-term reliability.
