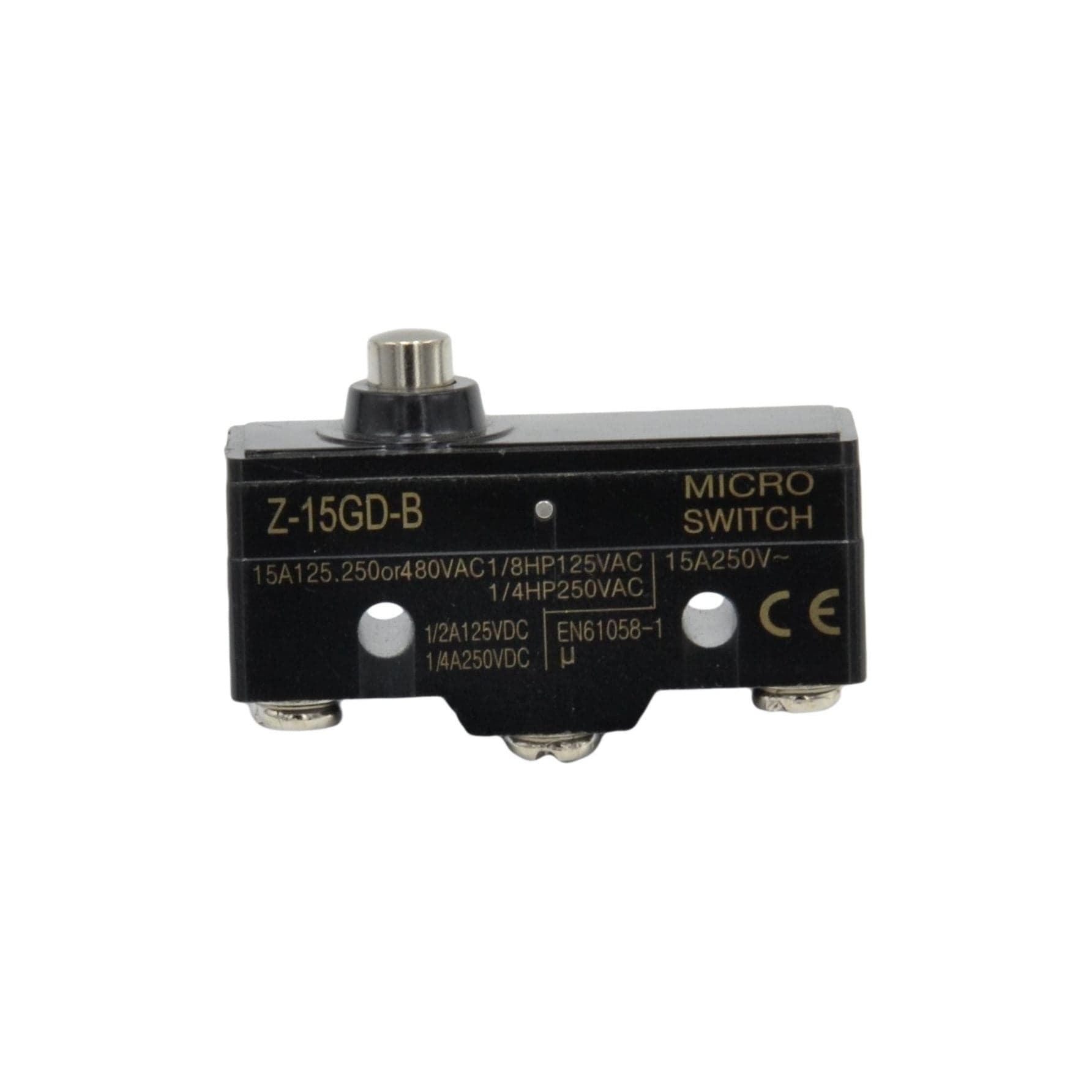

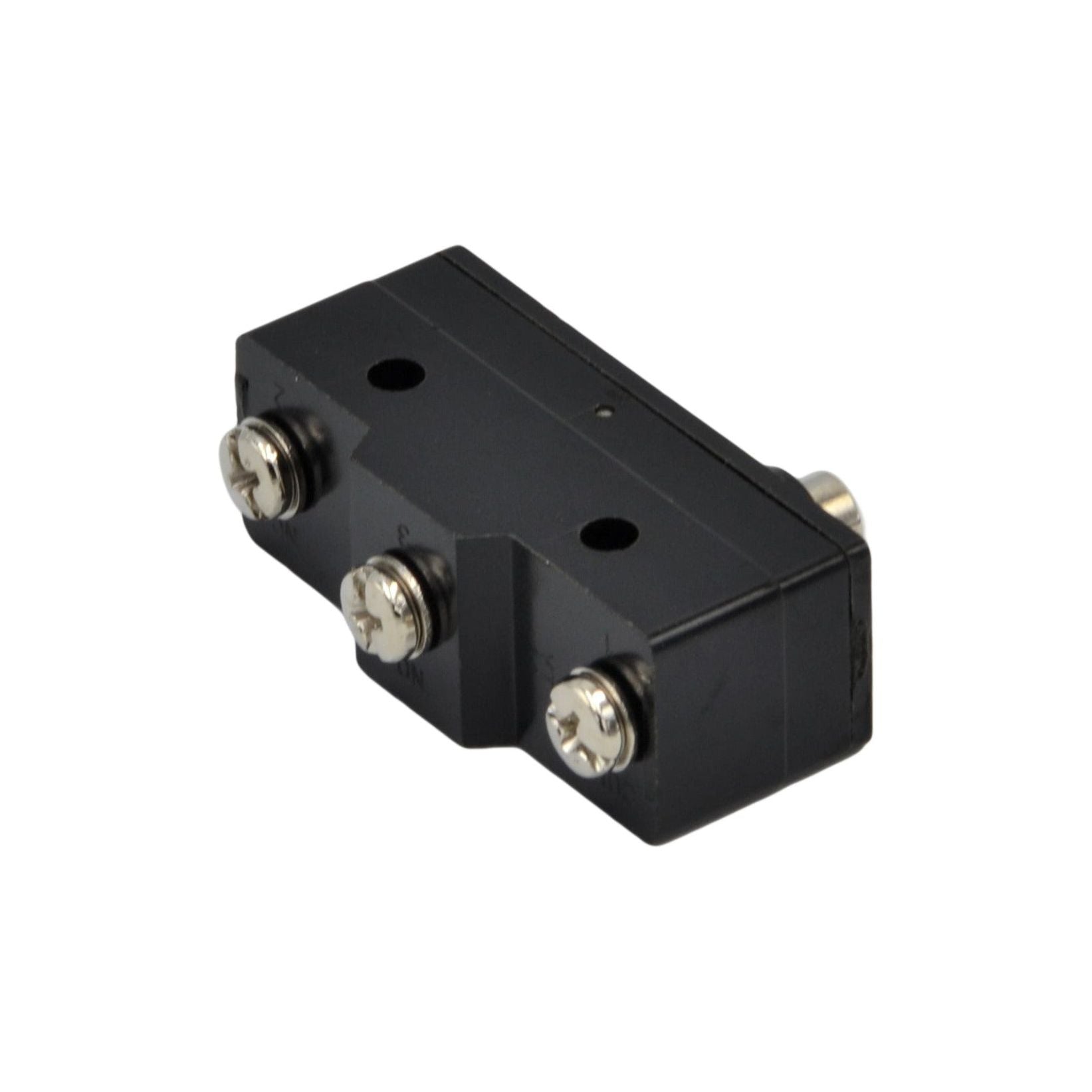

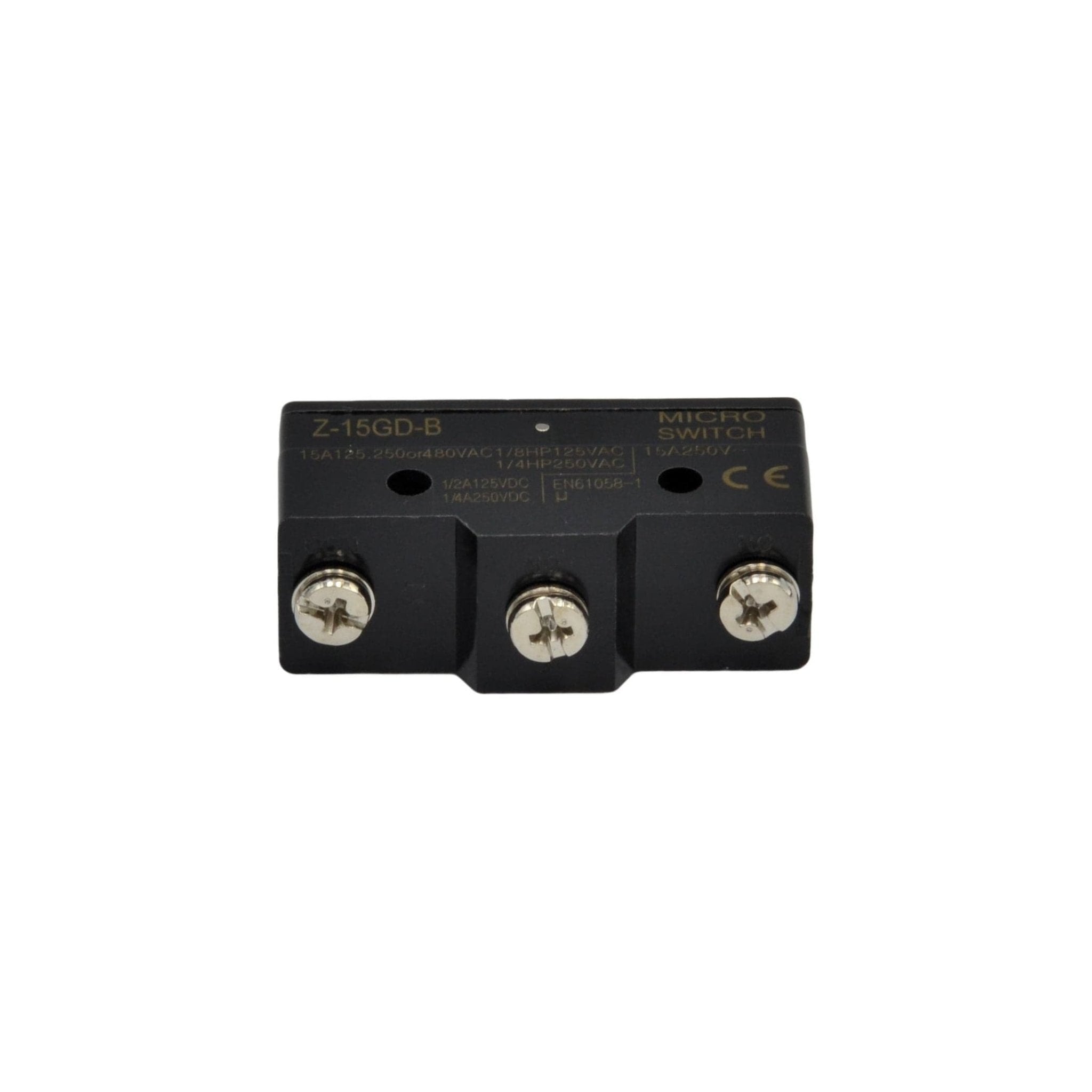

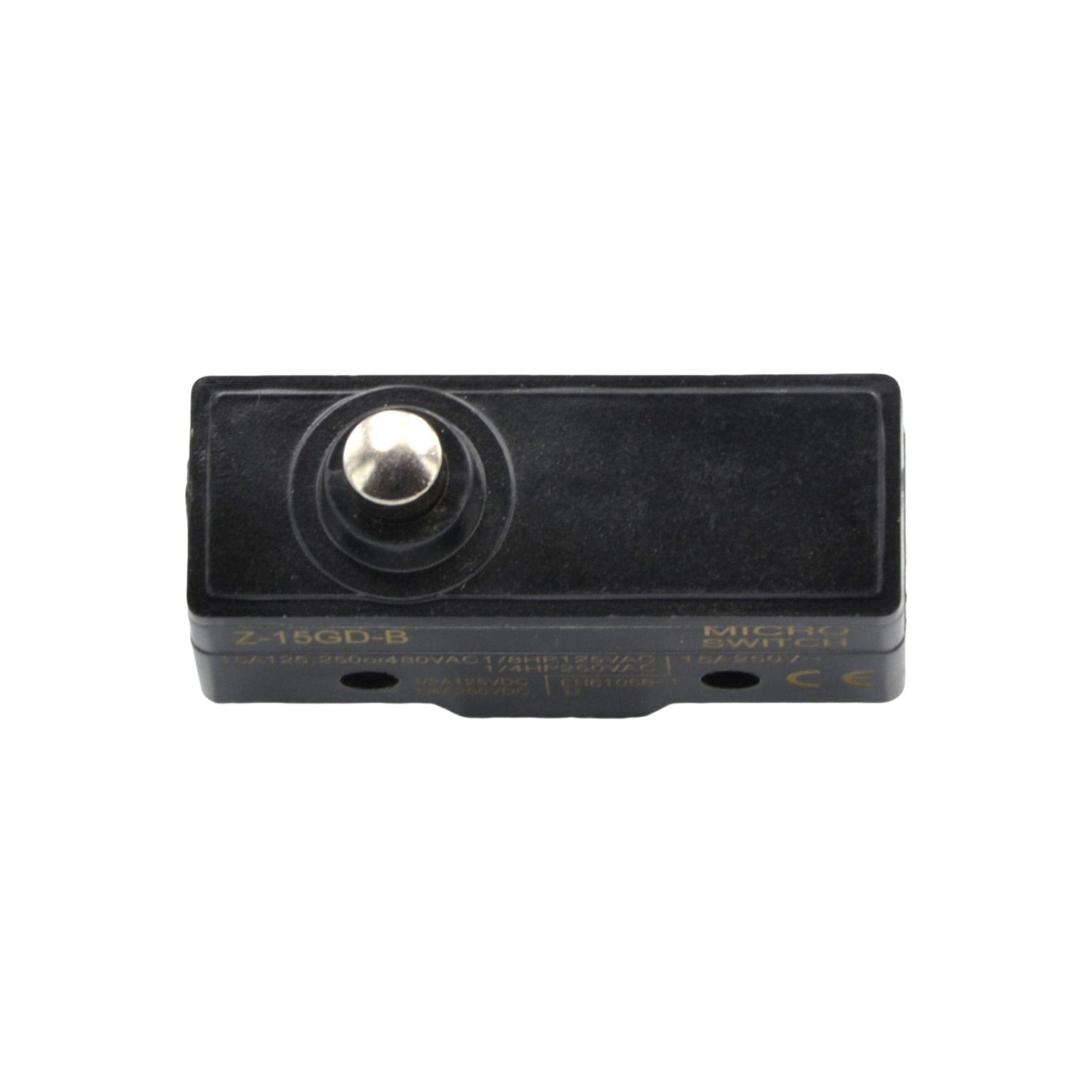

Z-15GD-B. Short Spring Plunger SPDT 15 A
Vendor: Tianyi
SKU: Z-15GD-B
$32.00
Order in The Next to get it by
Real Time 6 Visitor Right Now
Spend $1 to get Free Shipping
Features
- Diverse actuators with adjustable action positions
- High switching capacity for both on and off (15A)
- Exceptional accuracy
- A broad range of operational speeds
- Each type offers a choice of solder terminals, tab terminals (marked as 'C'), or blank options for screw terminals.
Contact Form
-
Close
Close - Carry the son together
Open
Characteristics
- Operation speed: 0.01mm~1m/sec
- Operating Frequency: Mechanical: 240 operations/min Electrical: 20 Operations/min
- Contact resistance: 15MΩ max.(initial value)
- Insulation resistance: 100MΩ min.(at500VDC)
- Dielectric strength: 1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
- 1500VAC, 50M660Hz For 1 minute between current-carrying and non current-carrying metal parts
- 1500VAC, 50M660Hz For 1 minute between each terminal and ground
- 10-50Hz,1.5mm double amplitude
- Shock:Mechanical Durable: 1000m.Sec(about 100G' S)
- Malfunction: 300m.Sec(about 30G' S)
- Ambient temperature: General purpose type: -25~+80°C, Sealed type:-15~80°C
- Humidity General purpose type: 85%RH max, Sealed type: 95%RH max.
- Life: Mechanical: 20,000,000 operation/min
- Electrical: 500,000 operation/min
- Weight: About 22 to 58g
