XCK-T171 Spring Rod Lever Limit Switch
Click to enlarge

in stock

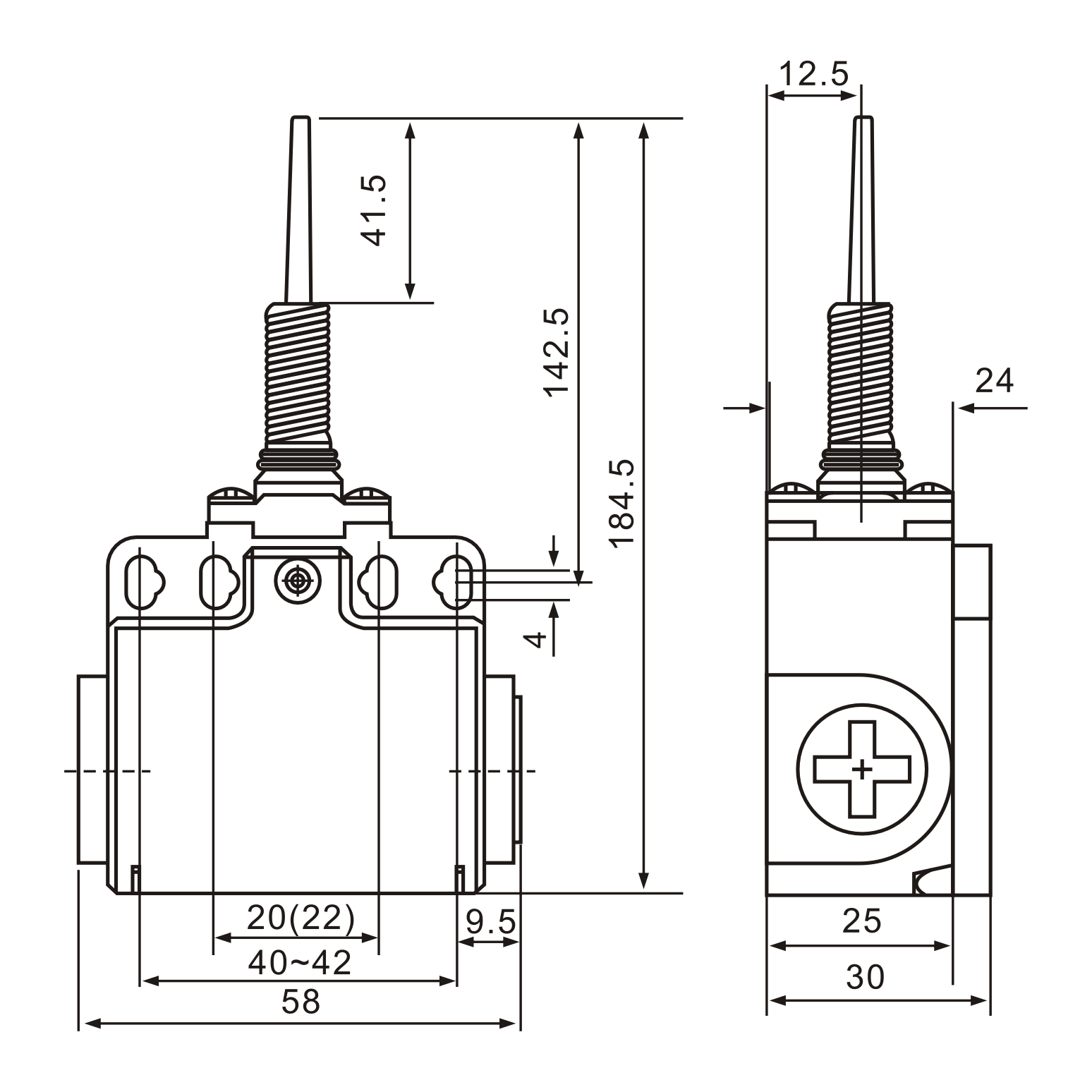

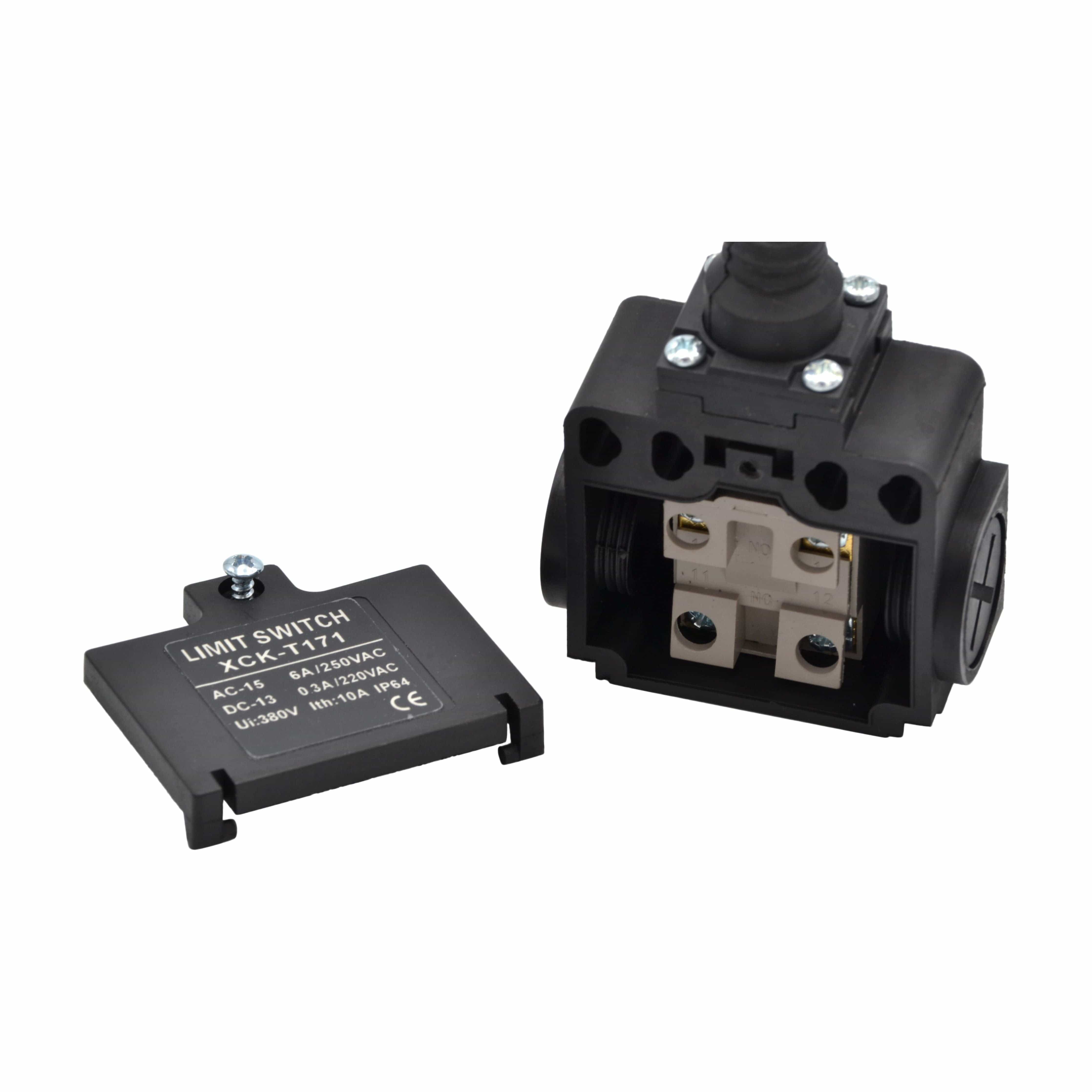

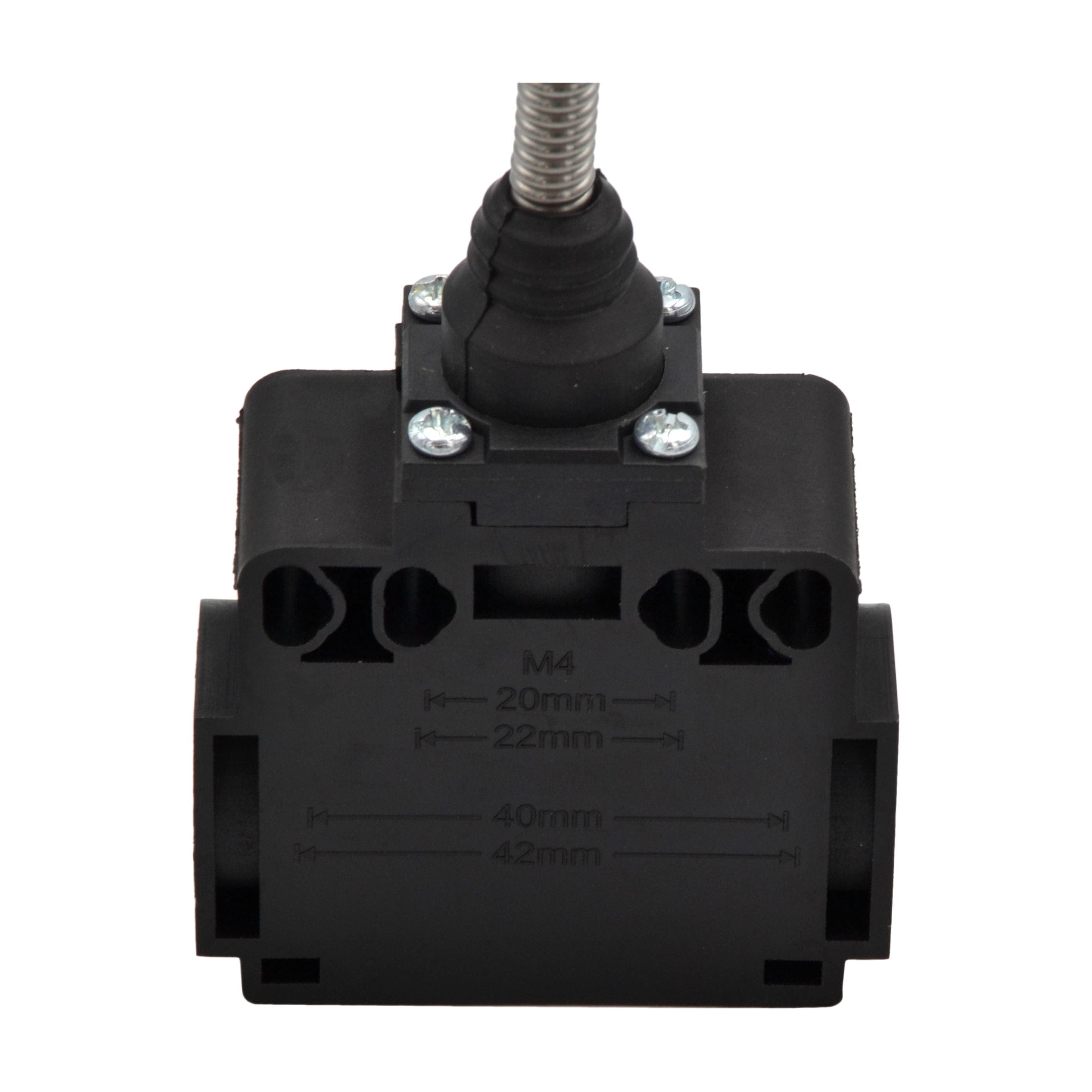

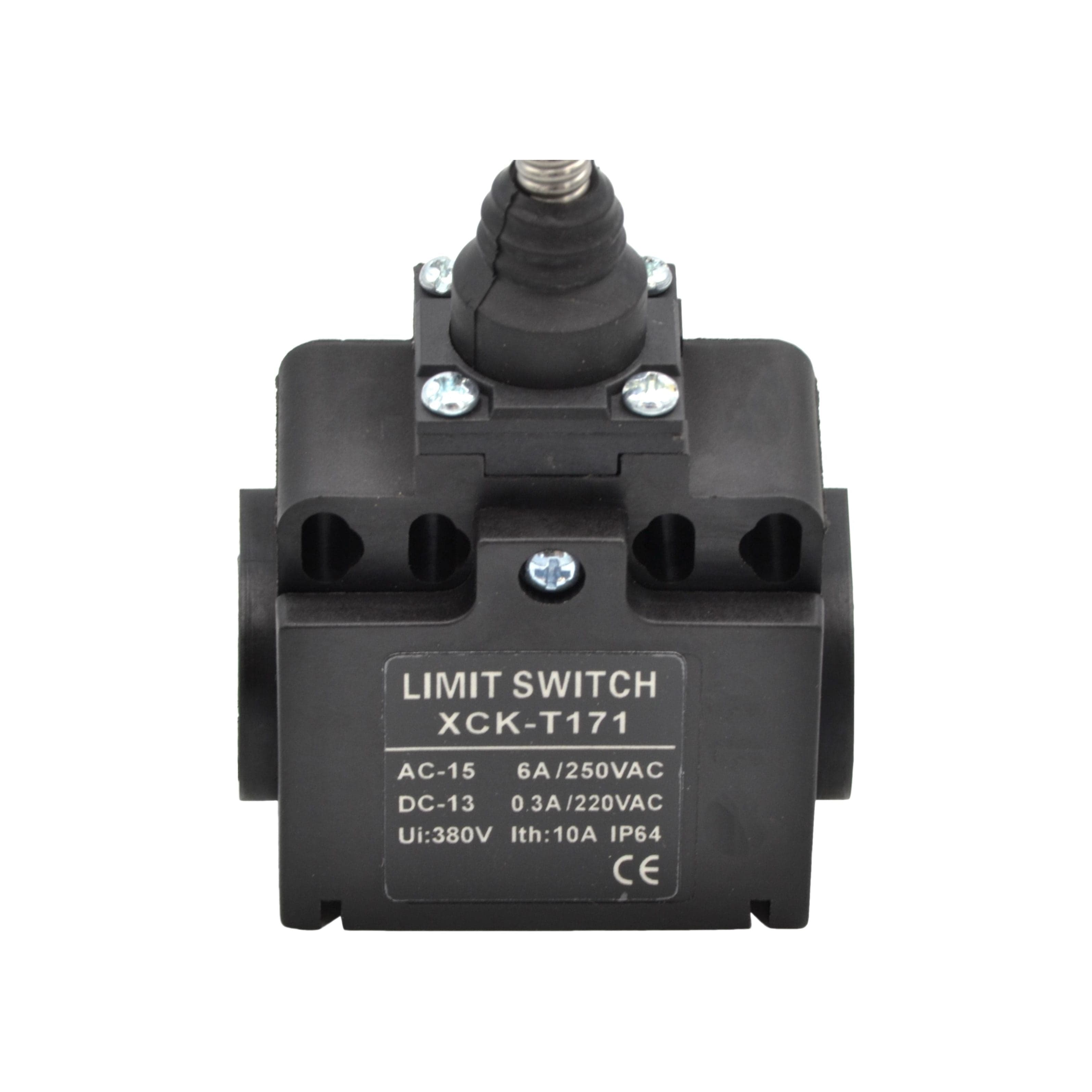

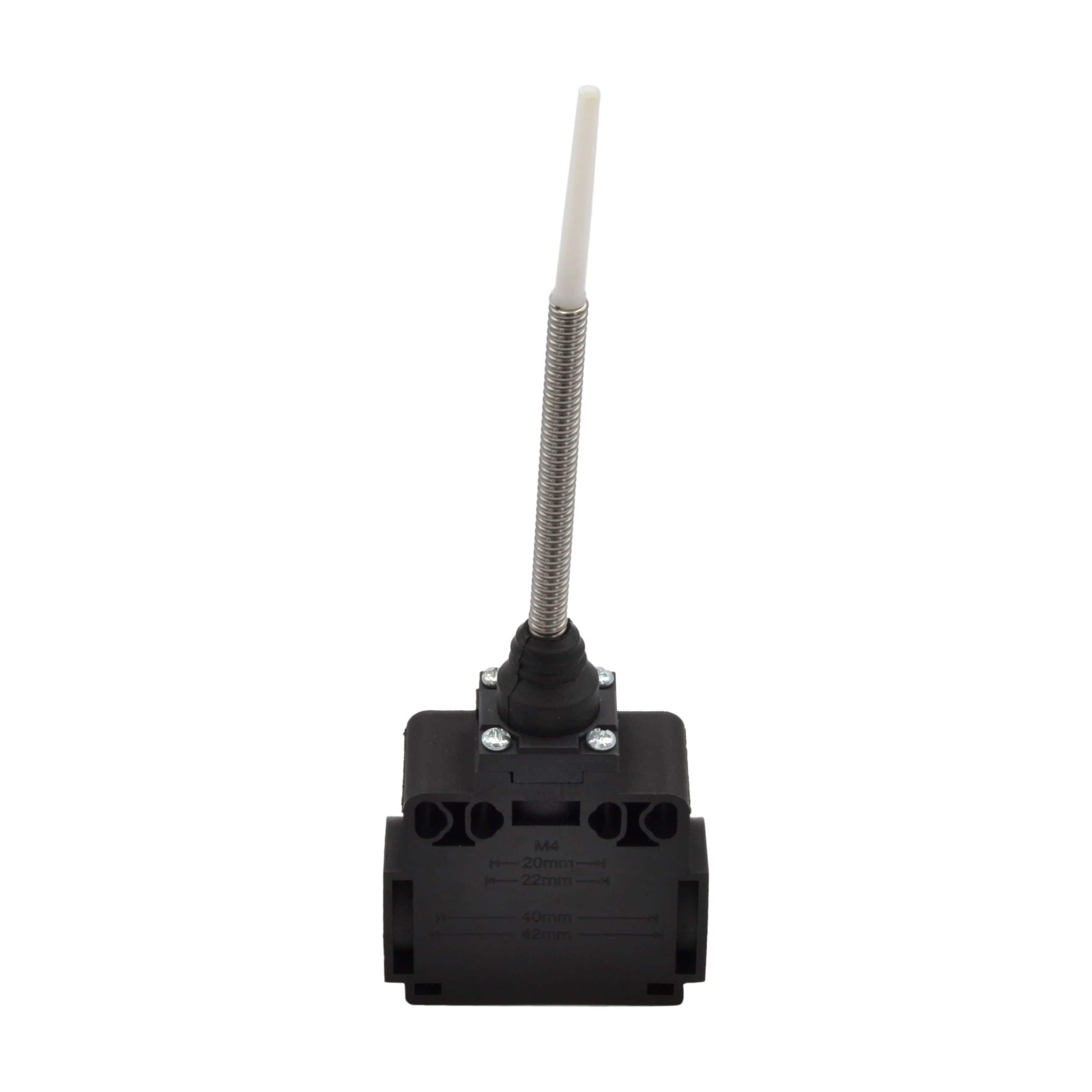

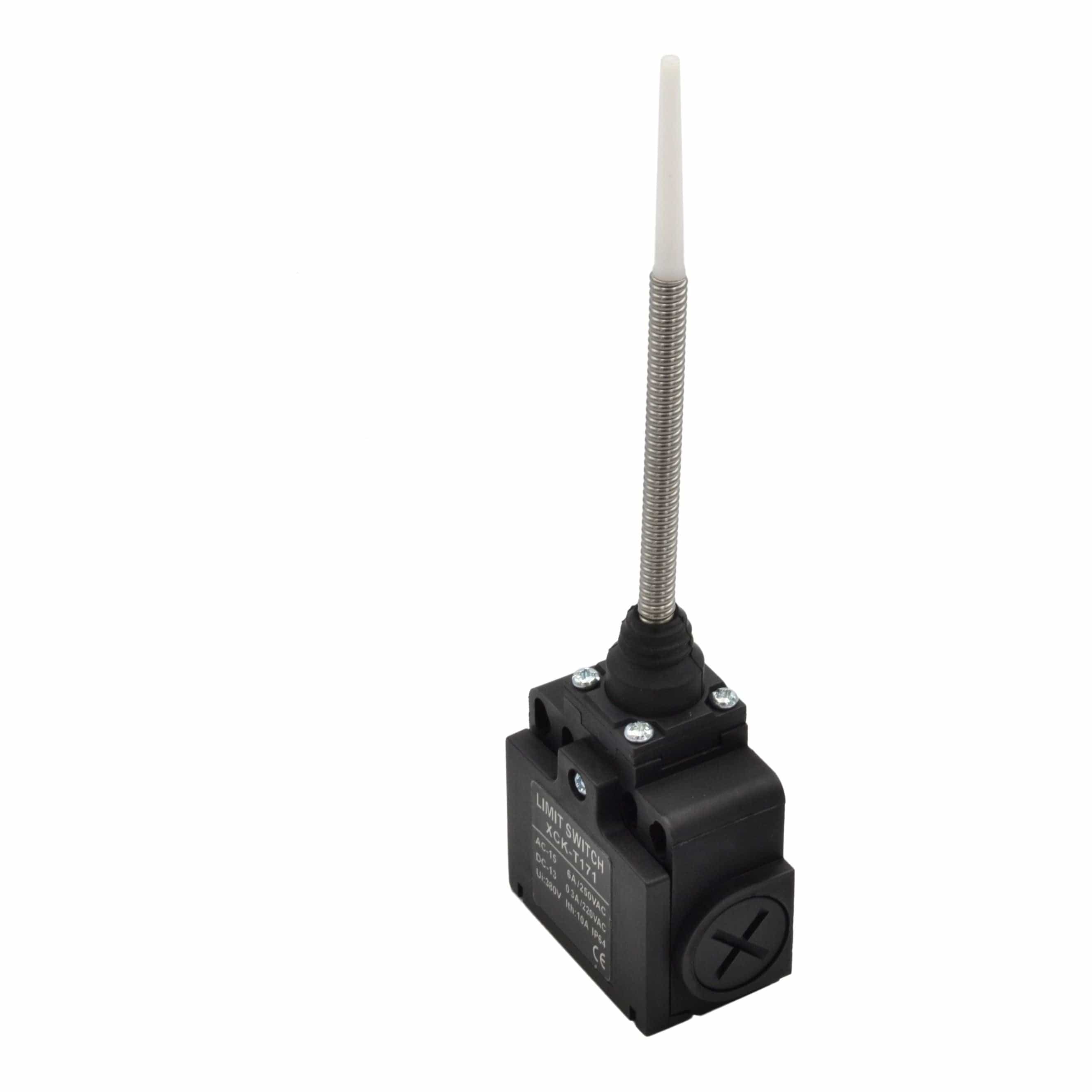

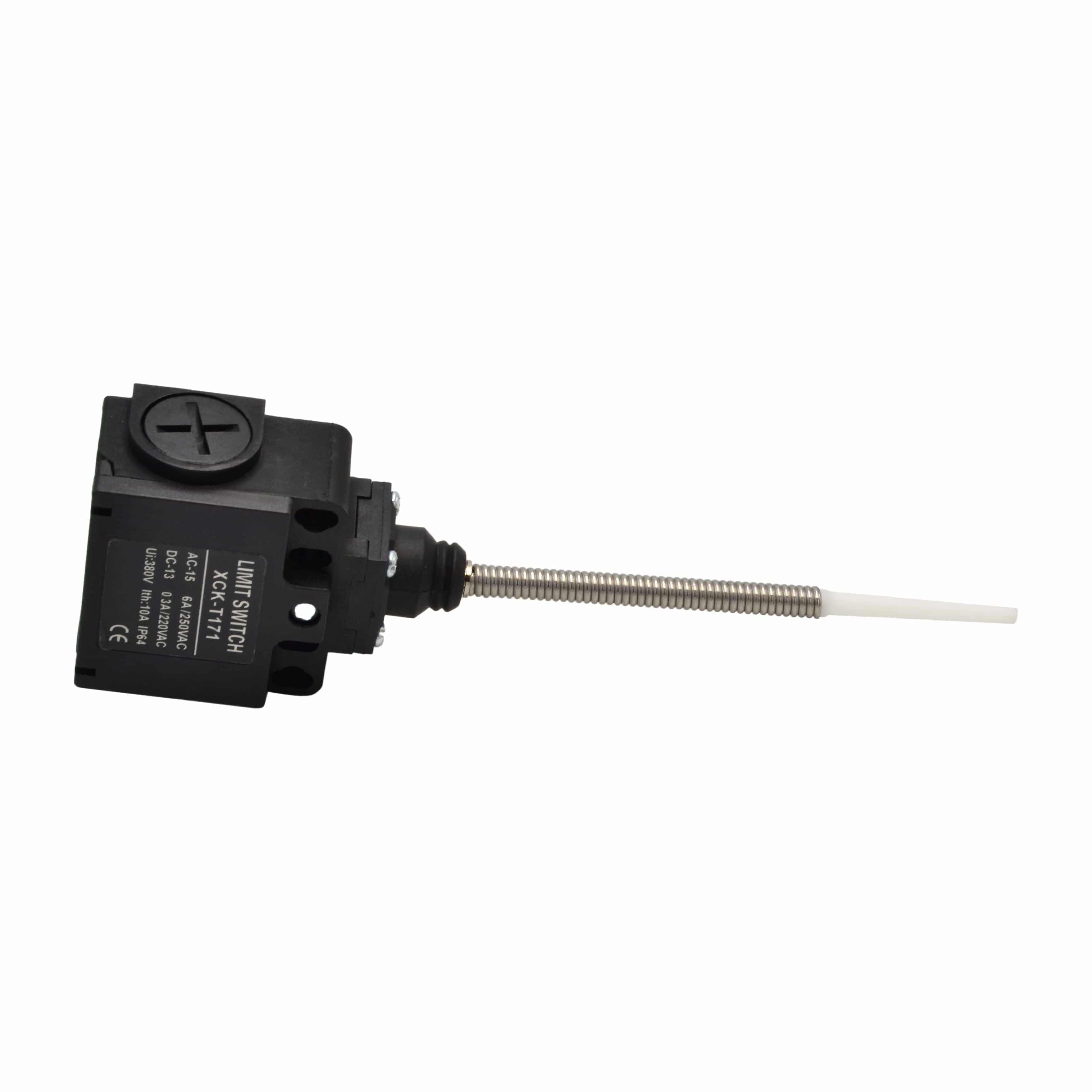

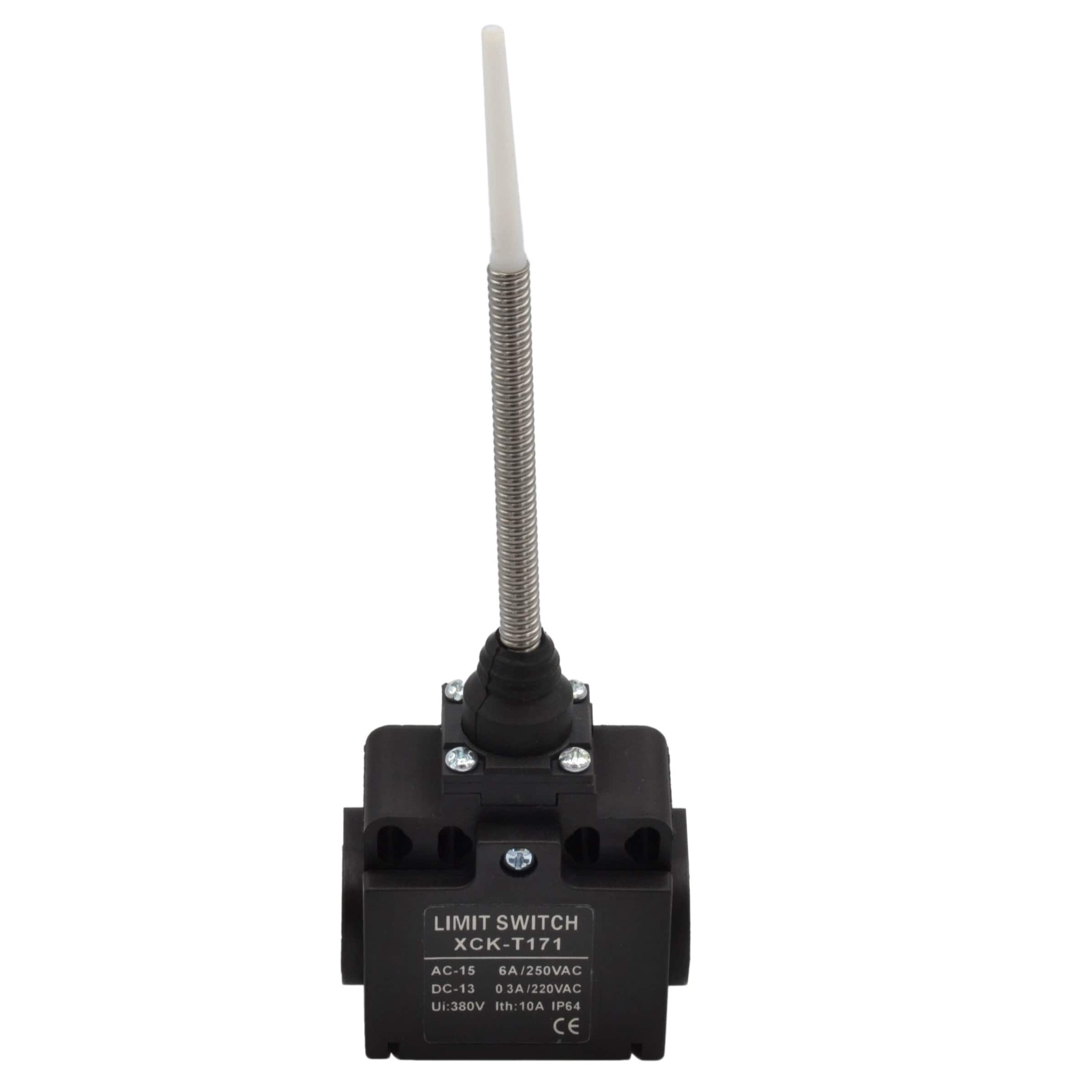

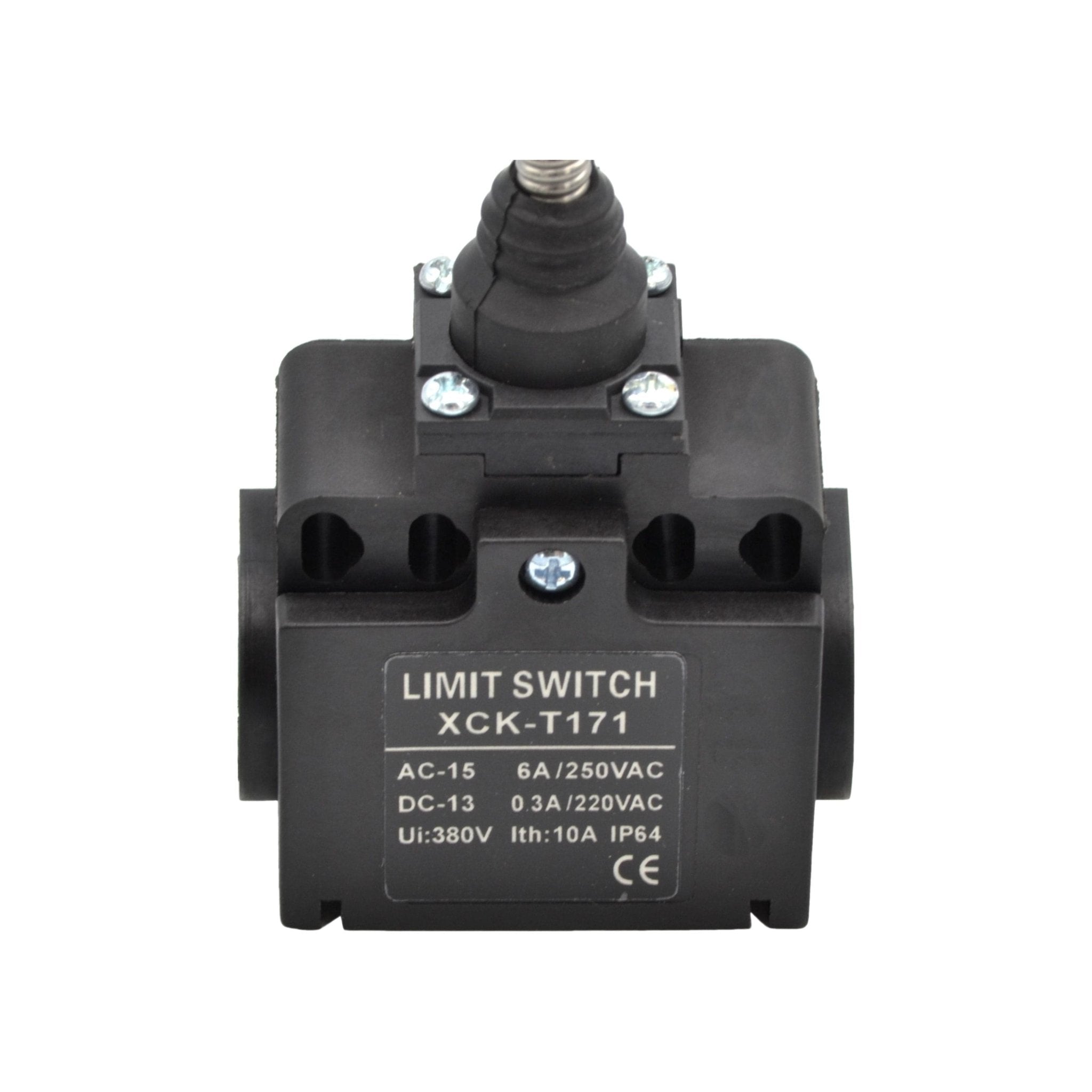

XCK-T171 Spring Rod Lever Limit Switch

sold in last hours
Vendor: Tianyi
SKU: XCK-T171
$32.00
Order in The Next to get it by
Real Time 5 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Switch

Barcode: 749355906918

Features

  • Economical and made of plastic material.
  • Features stainless steel rollers, punches, and springs.
  • Offers an extensive swing amplitude of ±95°.
  • Equipped with a PG13.5 cable gland option.

Characteristics

Double break mechanism INO+INC Force Break snap action
Rated voltage/current 10(4)A, 125,250VAC/6(2)A,380VAC For inductance Load, Cos ϕ=0.4
Contact resistance 25m Ω max. (initial value)
Insulation resistance 100m Ω min, (at 500VDC)
Dielectric strength 1000VAC , 50/60Hz For 1 minute between terminals of the same polarity
1500VAC , 50/60Hz For 1 minute between current-carrying and non current-carrying metal parts
1500VAC , 50/60Hz For 1 minute between each terminal and ground
Electrical Life 500,000 at 10A 250VAC Resistive
Mechanical Life 10,000,000 operations min. (under rated conditions)
Operating speed 5mm/s to 0.5m/s
Degree of protraction IP66
Ambient temperature rise Max 30°C over ambient temperature at voltage/current
Conformed standards Ceneeles En 50041, En 50047, IEC 337-1, VDE 0660
Operation temperature -5 C-+65 C (with no icing)
Storage temperature -5 C-+65 C (with no icing)
Ambient operating humidity 95% RH Max.
Shock resistance Malfunction durable: 1000m/s2 min.
Malfunction: 300m/s2 min.
Vibration frequency Malfunction: 10 to 55 Hz, 1.5mm Double amplitude
Terminal screw torsional force 6-8 kgf-cm
Other screw torsional force Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire Diameter ϕ 2 Max
Cable diameter ϕ 12 Max

Specifications

Model XCA-P 110 102 121 118 127 145 106 171 181 149
XCA-T 110 102 121 118 127 145 106 171 181 149
Operating Force Of (max) 700g 700g 700g 500g 700g 500g-cm 100g 100g 100 500g-cm
Release Force Rf (min) 200g 200g 200g 100g-cm 200g 100g-cm 40g 40g 40 100g-cm
Pre-travel PT (max) 1.8mm 1.8mm 1.8mm 20 ° 1.8mm 20 ° 30mm 30mm 30mm 20 °
Tripping position Tp±10% 2.0mm 2.0mm 2.0mm 22.5° 2.0mm 22.5° 22.5° 22.5° 22.5° 22.5°
Movement differential MD (max) 1.2mm 1.2mm 1.2mm 10° 1.2mm 10° 14° 14° 14° 10°
Over travel OT (min) 4.0mm 4.0mm 4.0mm 75° 4.0mm 75° 20mm 20mm 20mm 75°
Total travel TT 5.8mm 5.8mm 5.8mm 90° 5.8mm 90° 50mm 50mm 50mm 90°
Rotray indexing 22.5° 22.5° 22.5°
