XALD328 Double Pole Control Station NO/NC with plunger stop
Click to enlarge

in stock

XALD328 Three Pole Control Station NO/NC with plunger stop

sold in last hours
Vendor: Twin Eagle Imports
SKU: 1016
$59.00
Order in The Next to get it by
Real Time 6 Visitor Right Now

Product Type: Switch

Barcode: 749355913756

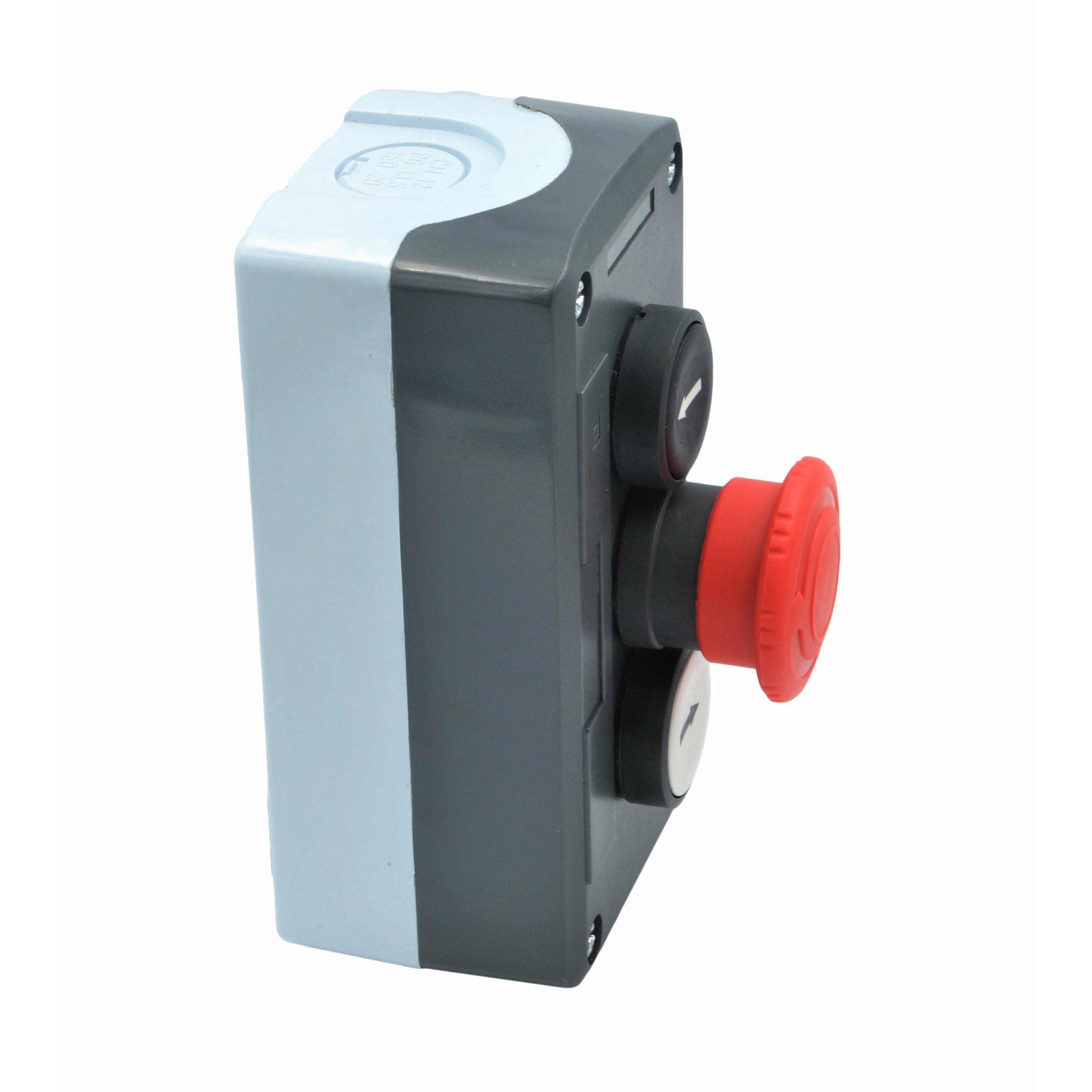

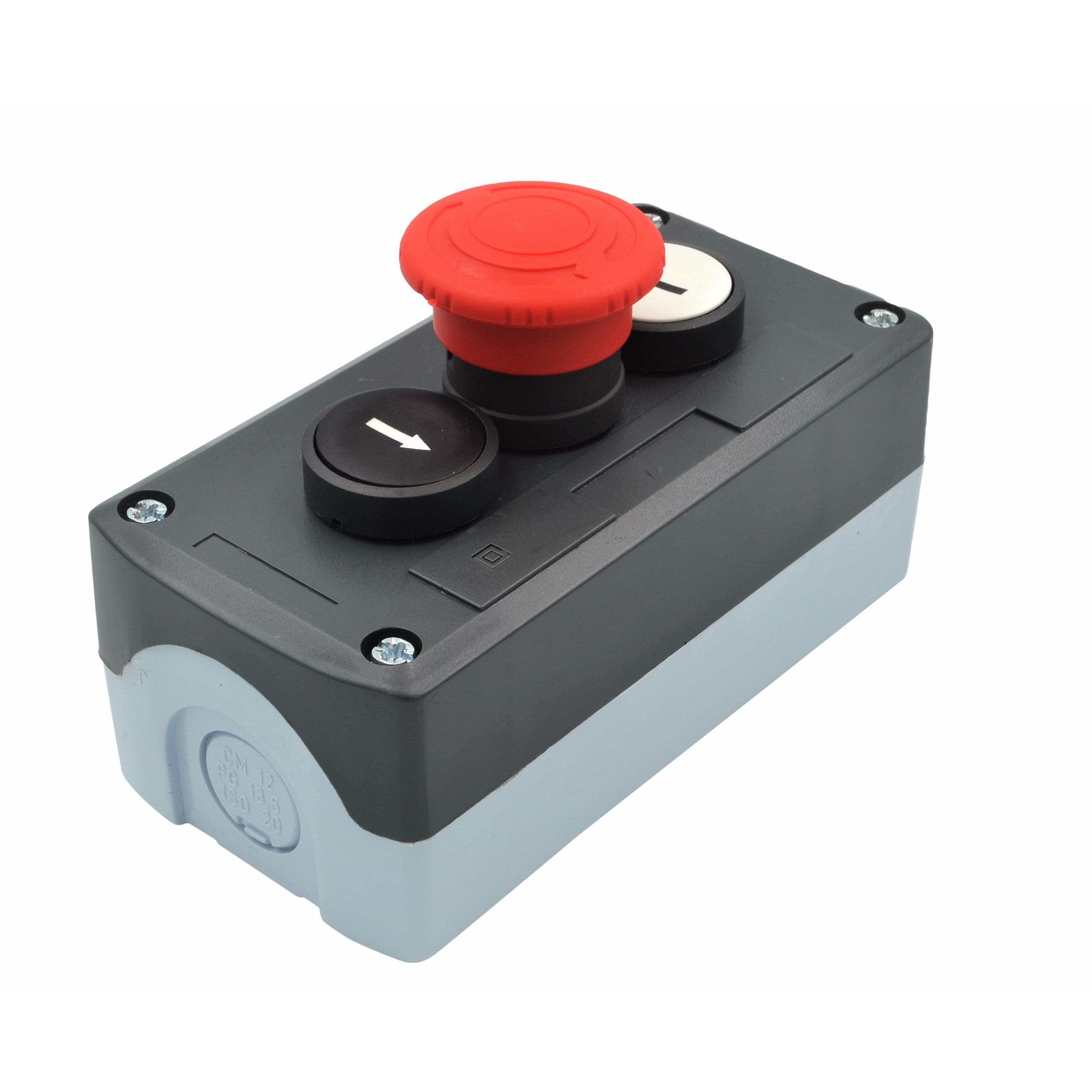

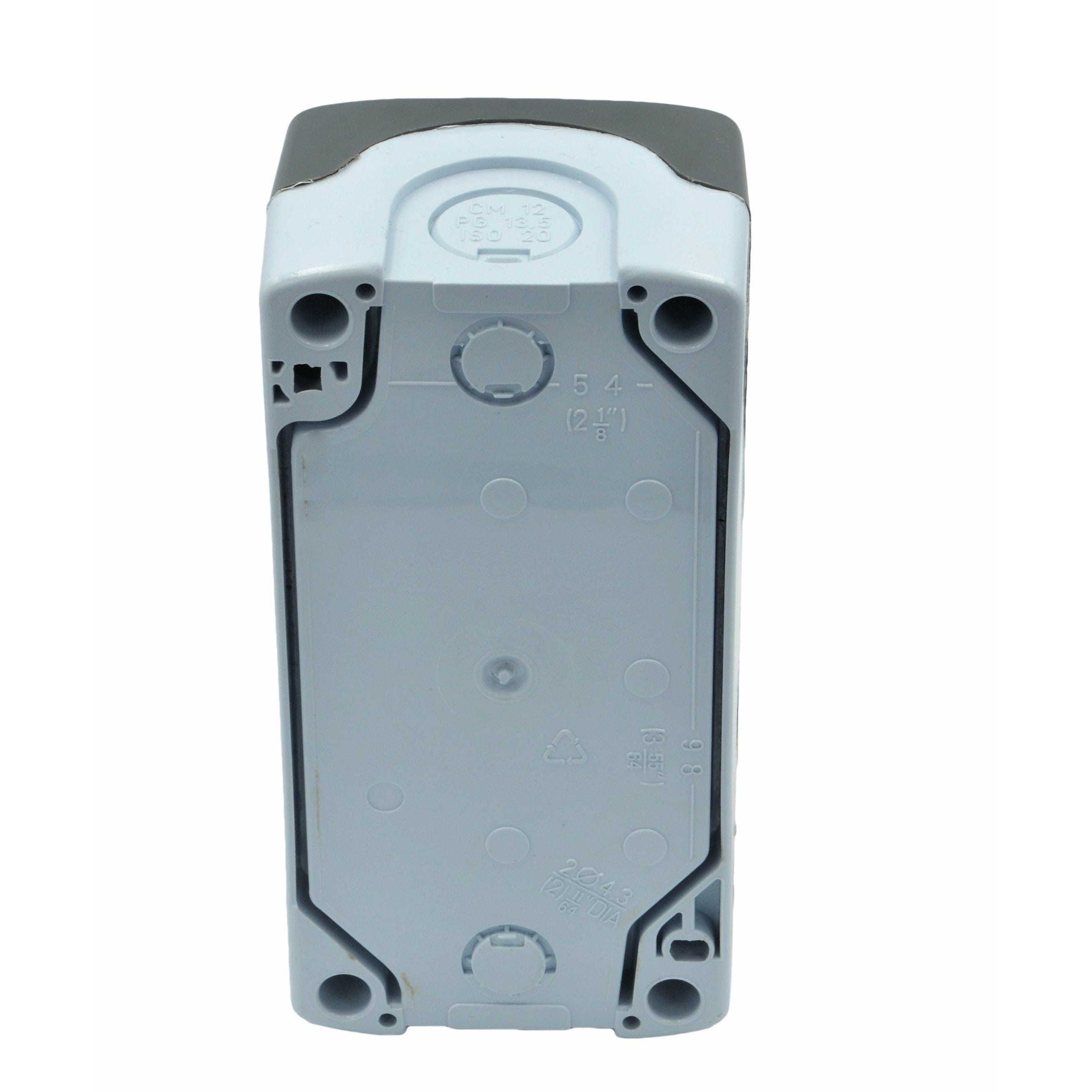

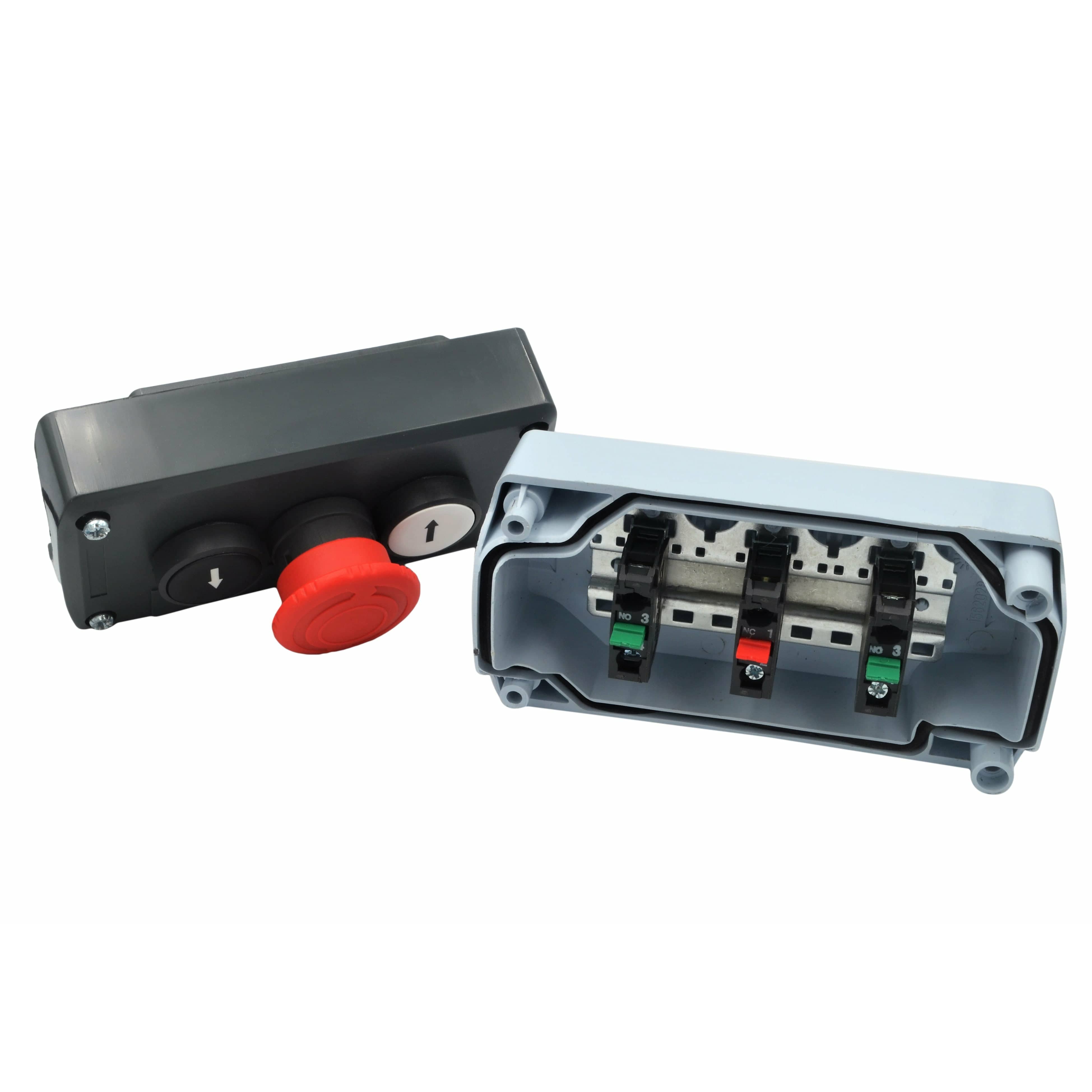

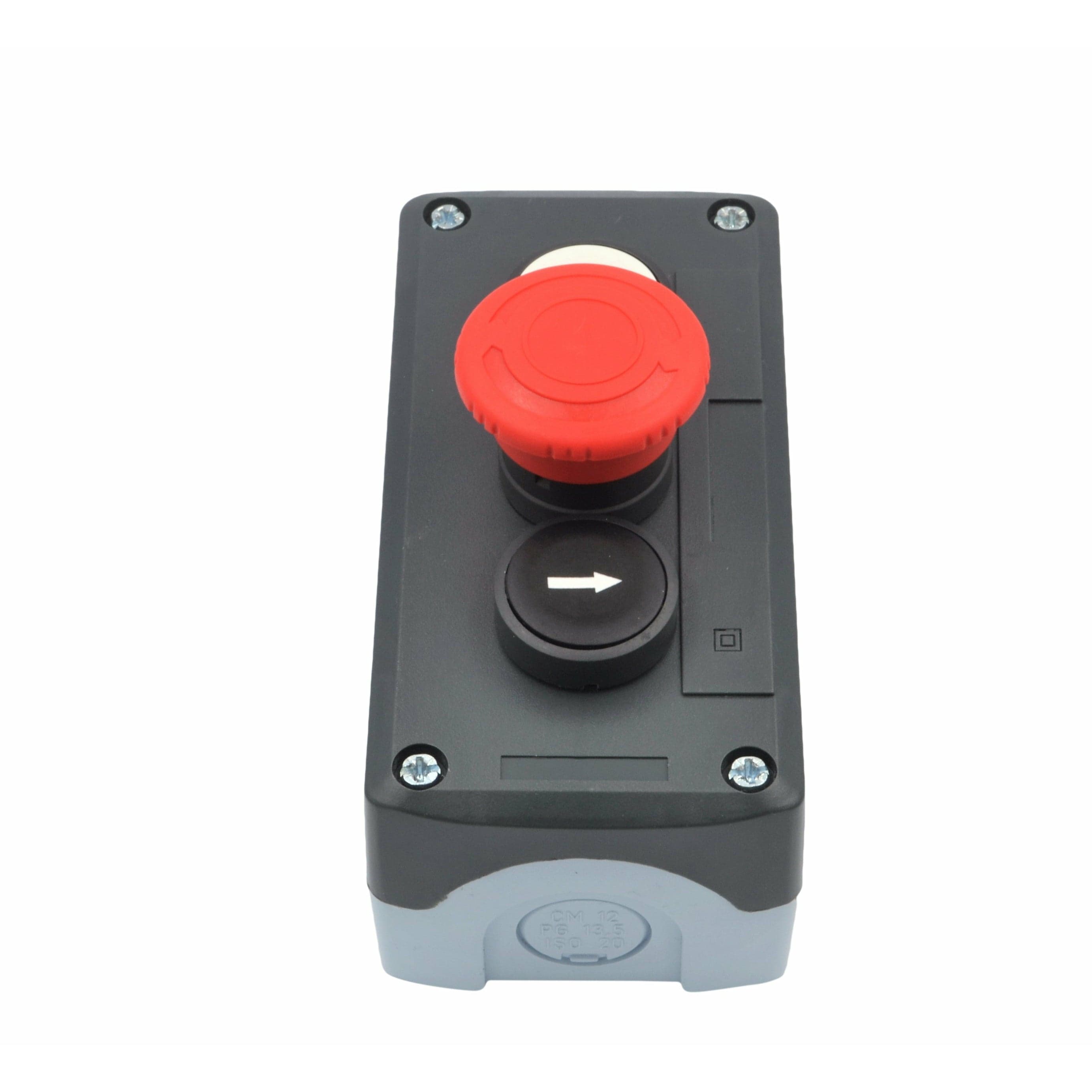

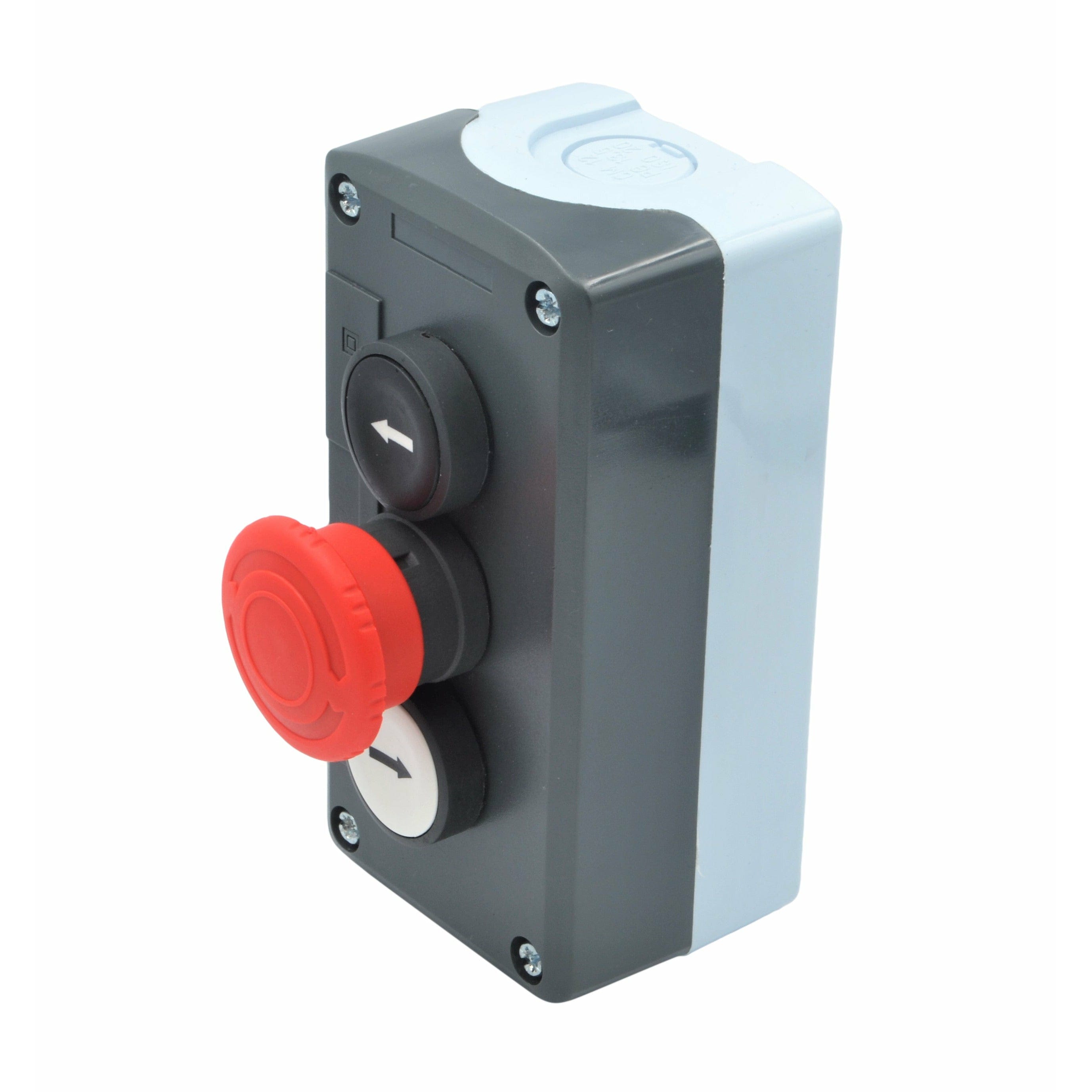

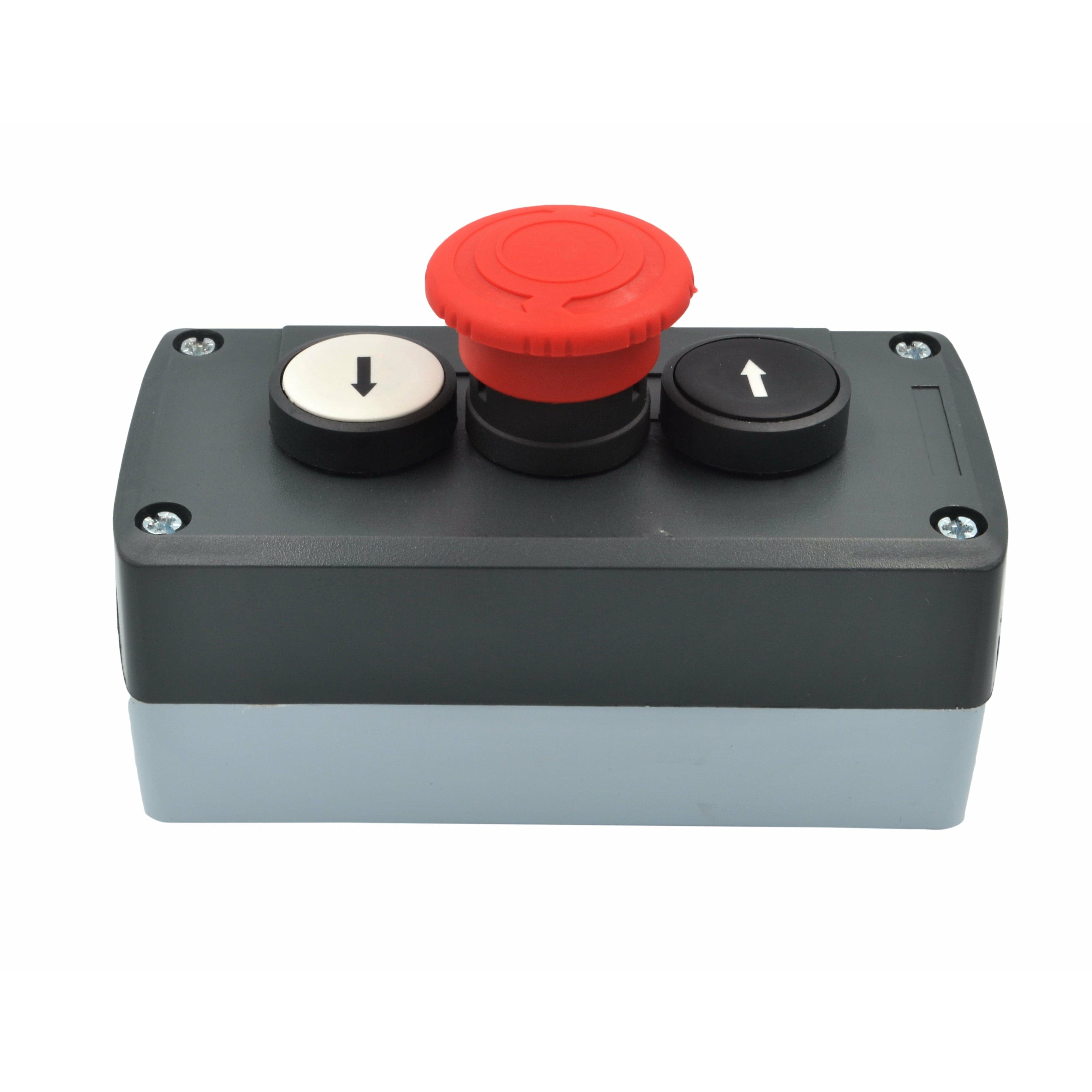

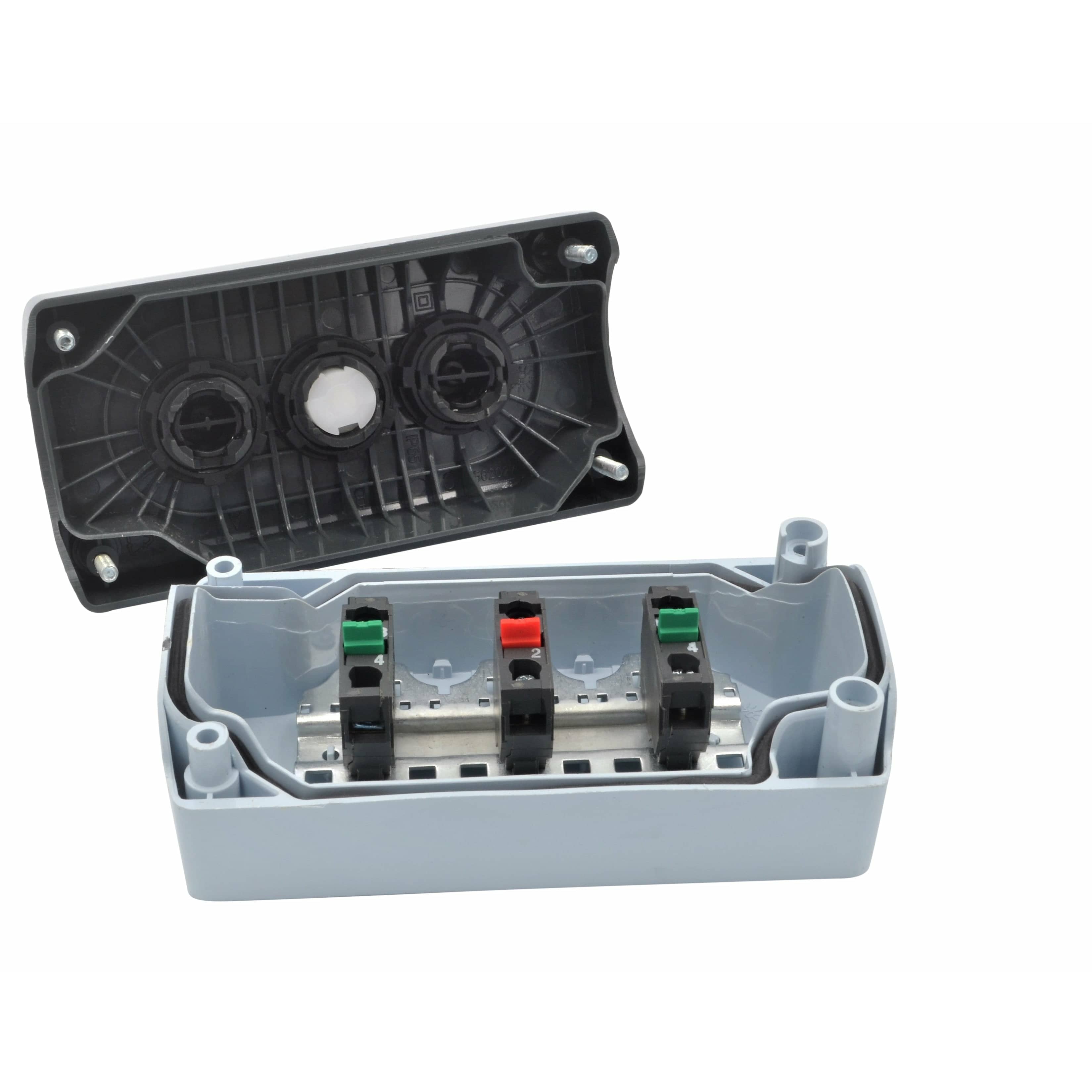

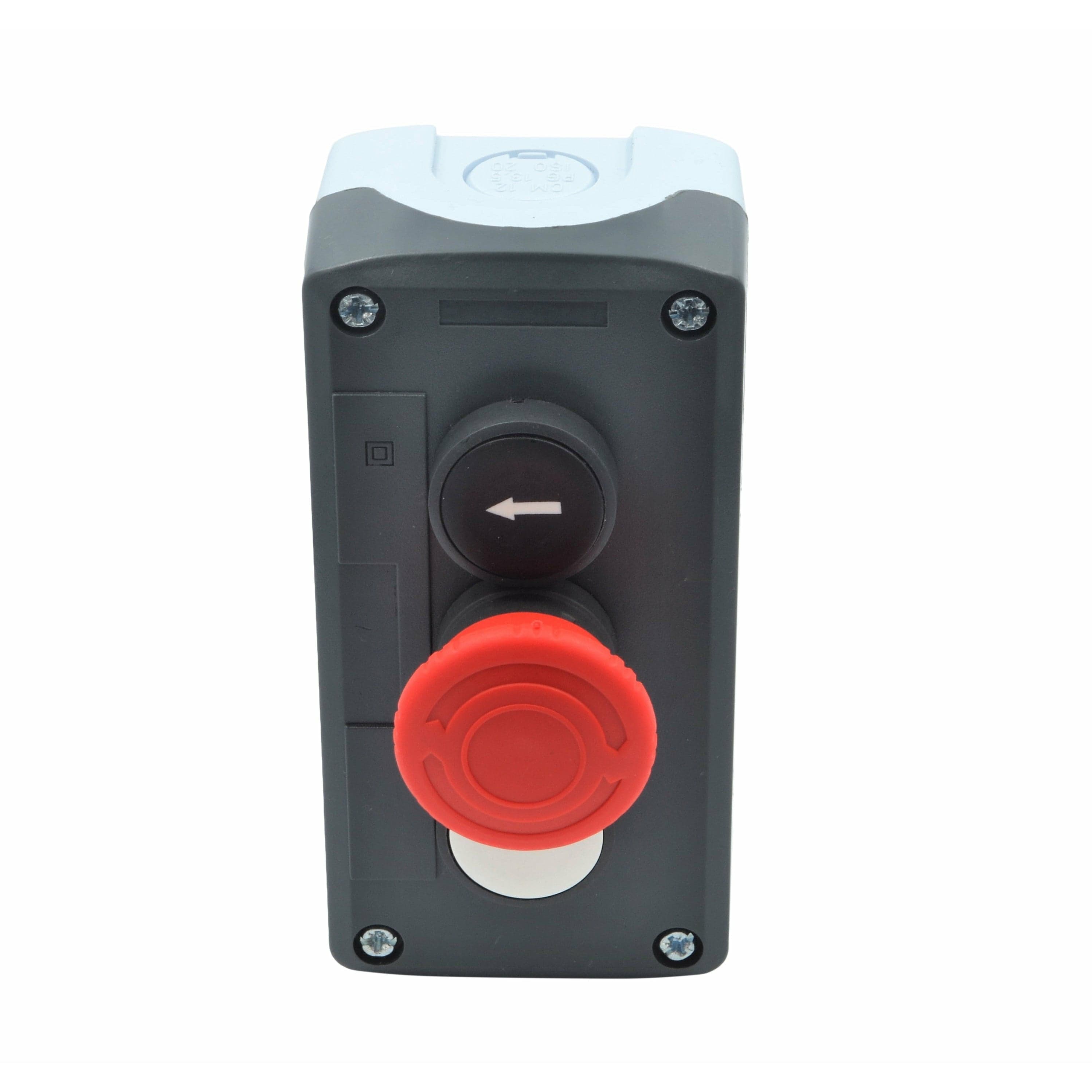

Three Pole Control Station XALD328

Specifications

  • Button colour - Black/White with direction arrow
  • Mushroom head red.
  • Casing colour - Grey
  • IP Rating - IP69K
  • Momentary spring return
  • Plunger Operation - Latching turn release
  • Number of poles - 3
  • Width - 66 mm
  • Length - 136 mm
  • Height - 90 mm
  • 1 flush push-button white 1 NO black up arrow marking
    1 flush push-button black 1 NO white down arrow marking
    1 mushroom head Ø 30 mm push-button red 1 NC
  • Maximum AC Voltage -600 V
  • Maximum DC Voltage -600 V
  • Minimum operating temperature - -25°C
  • Maximum operating temperature - +70°C
  • Terminal type - Screw
  • Comparison Part No XALD328
