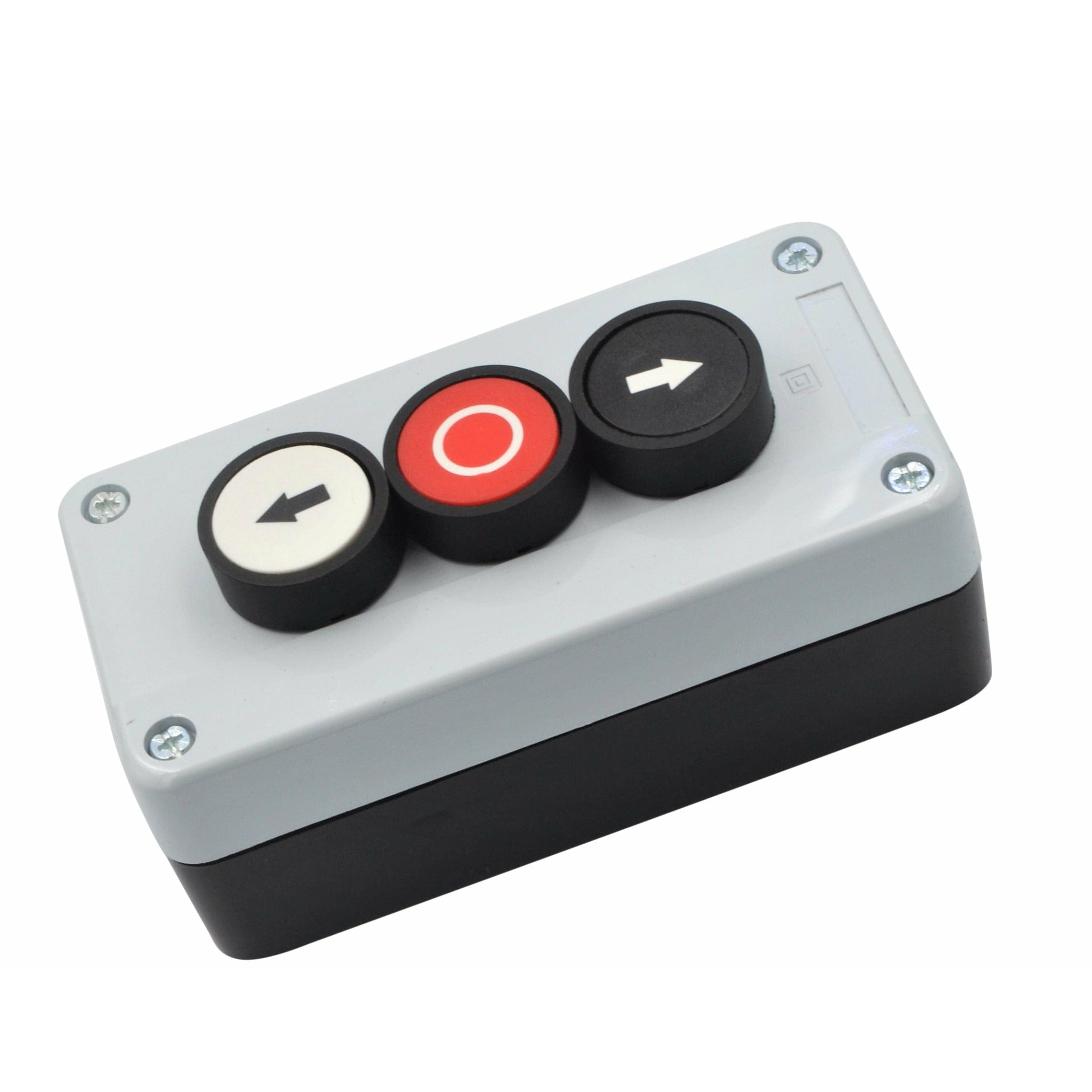

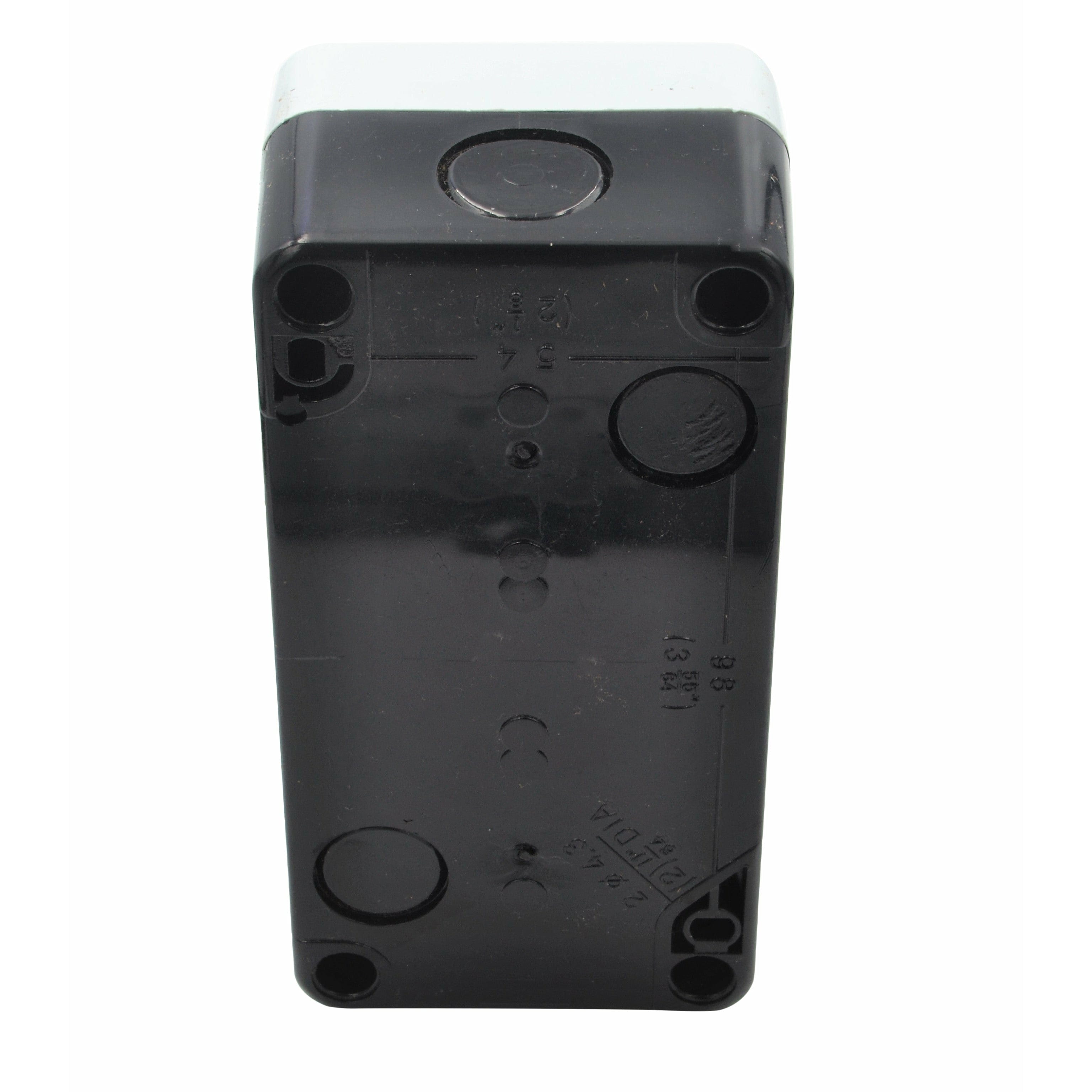

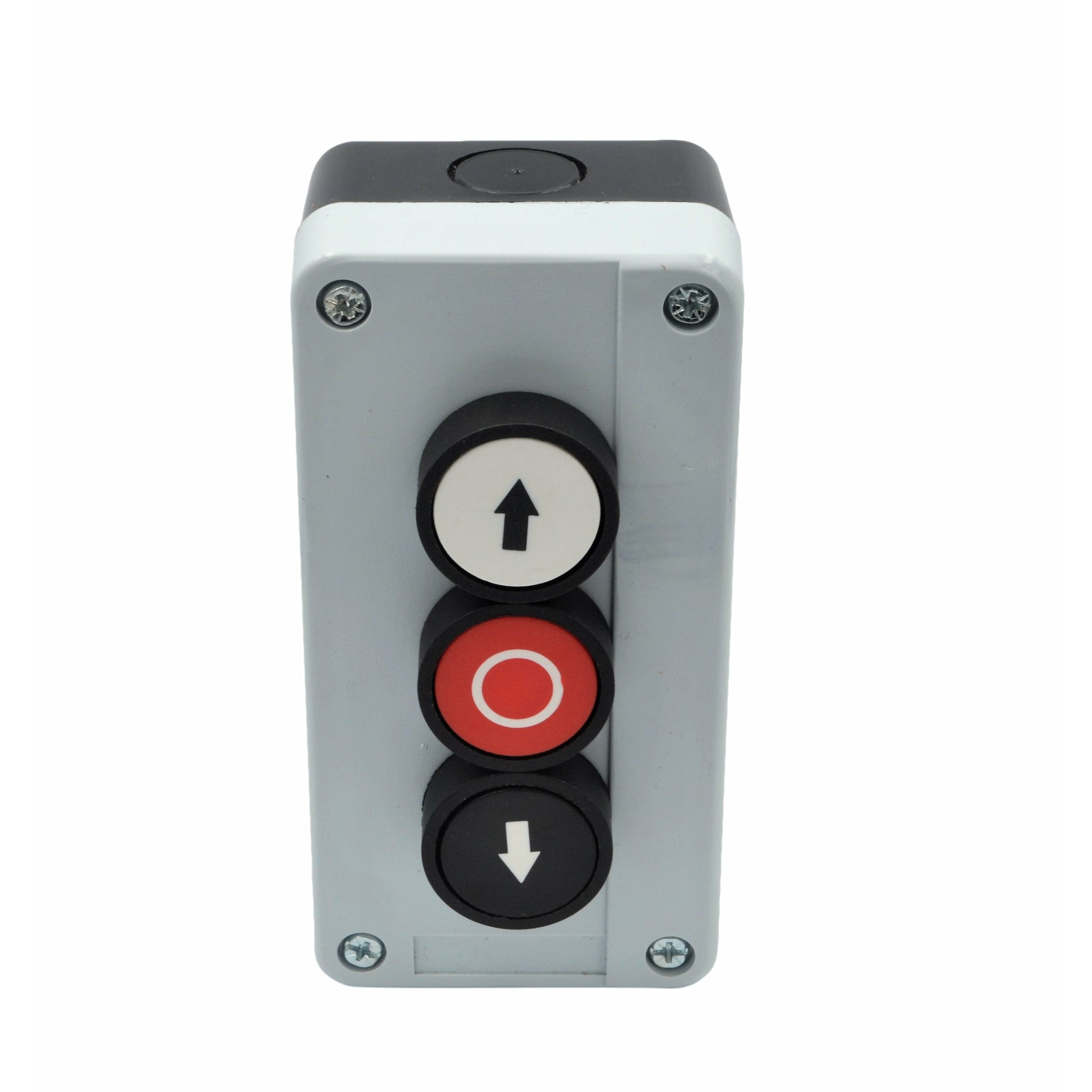

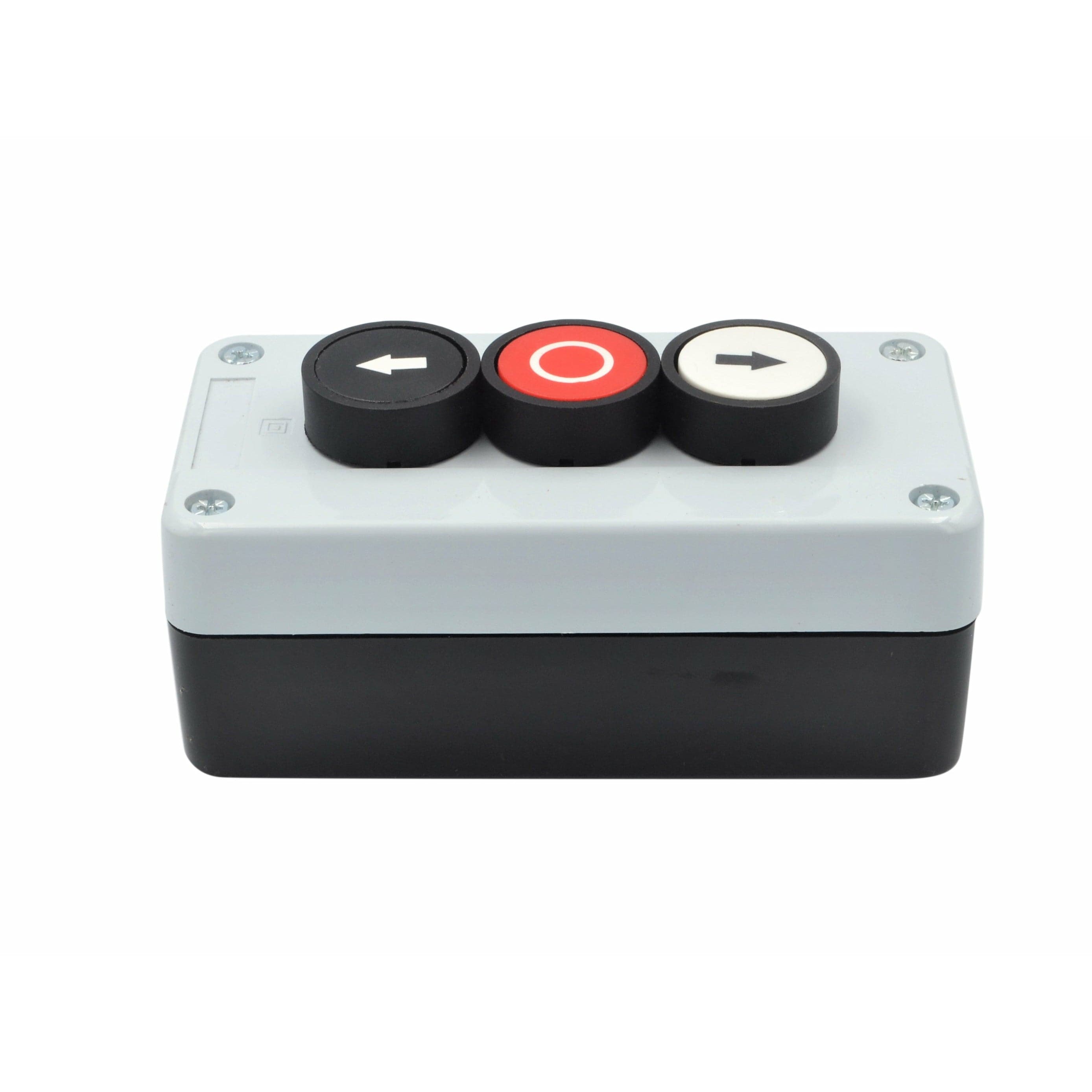

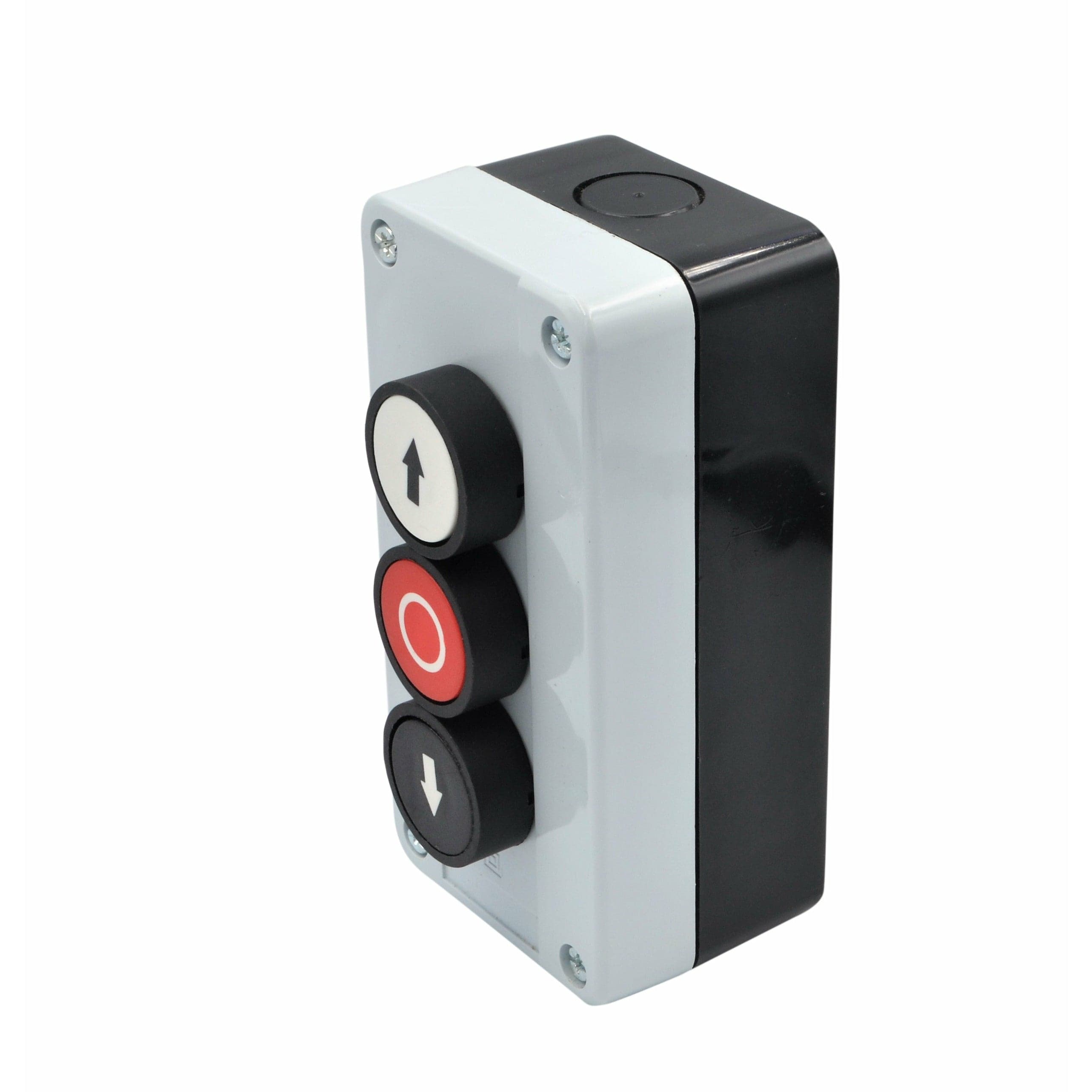

XALB324 Three Pole Control Station NO/NC with plunger stop
Click to enlarge

in stock

XALB324 Three Pole Control Station NO/NC with plunger stop

sold in last hours
Vendor: Twin Eagle Imports
SKU: 1017
$59.00
Order in The Next to get it by
Real Time 5 Visitor Right Now

Product Type: Switch

Barcode: 749355913749

Three Pole Control Station XALB324

Specifications

  • Button colour - Black/White with direction arrow,Red stop
  • Casing colour - White/Black
  • IP Rating - IP69K
  • Momentary spring return
  • Number of poles - 3
  • Width - 67 mm
  • Length - 132 mm
  • Height - 64 mm

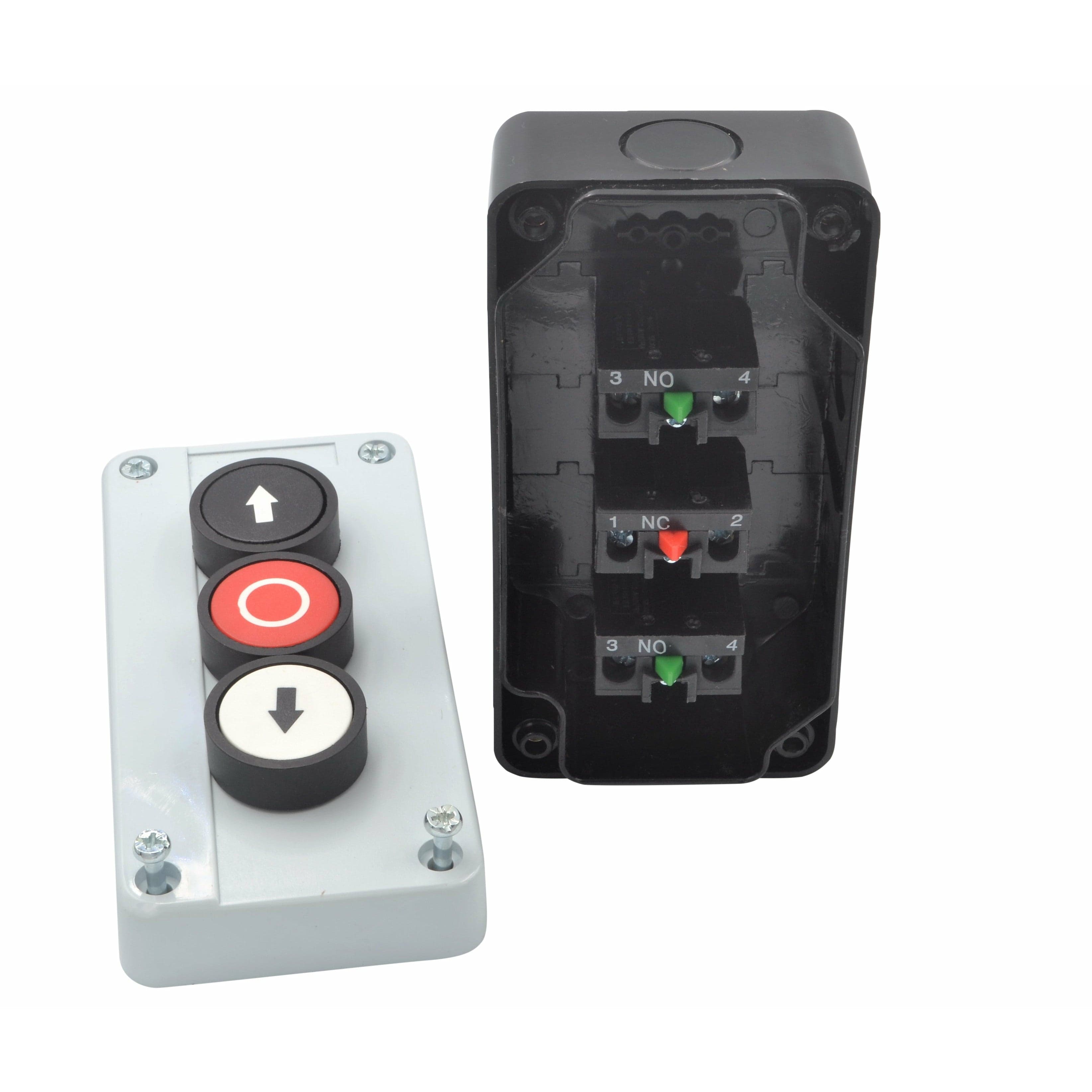

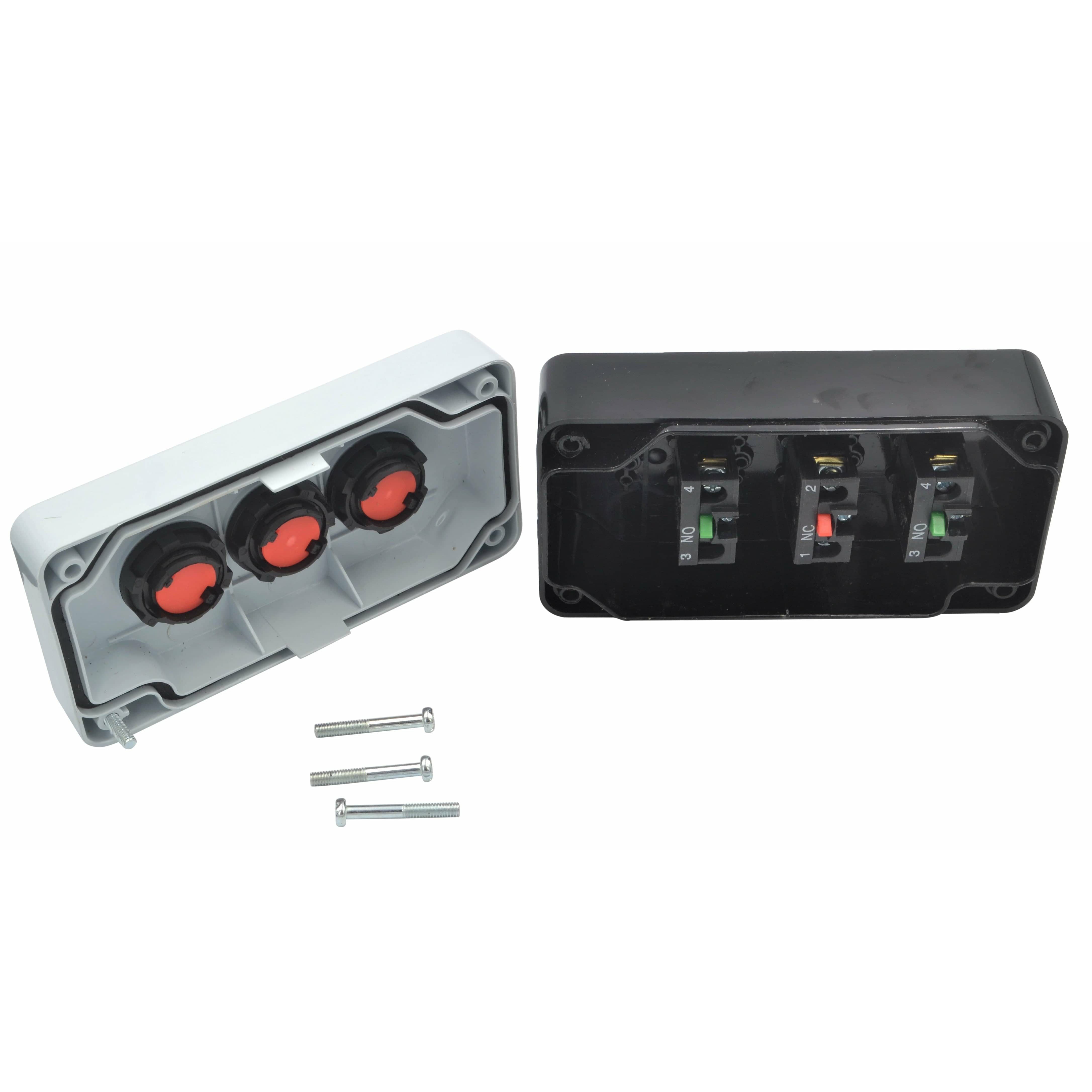

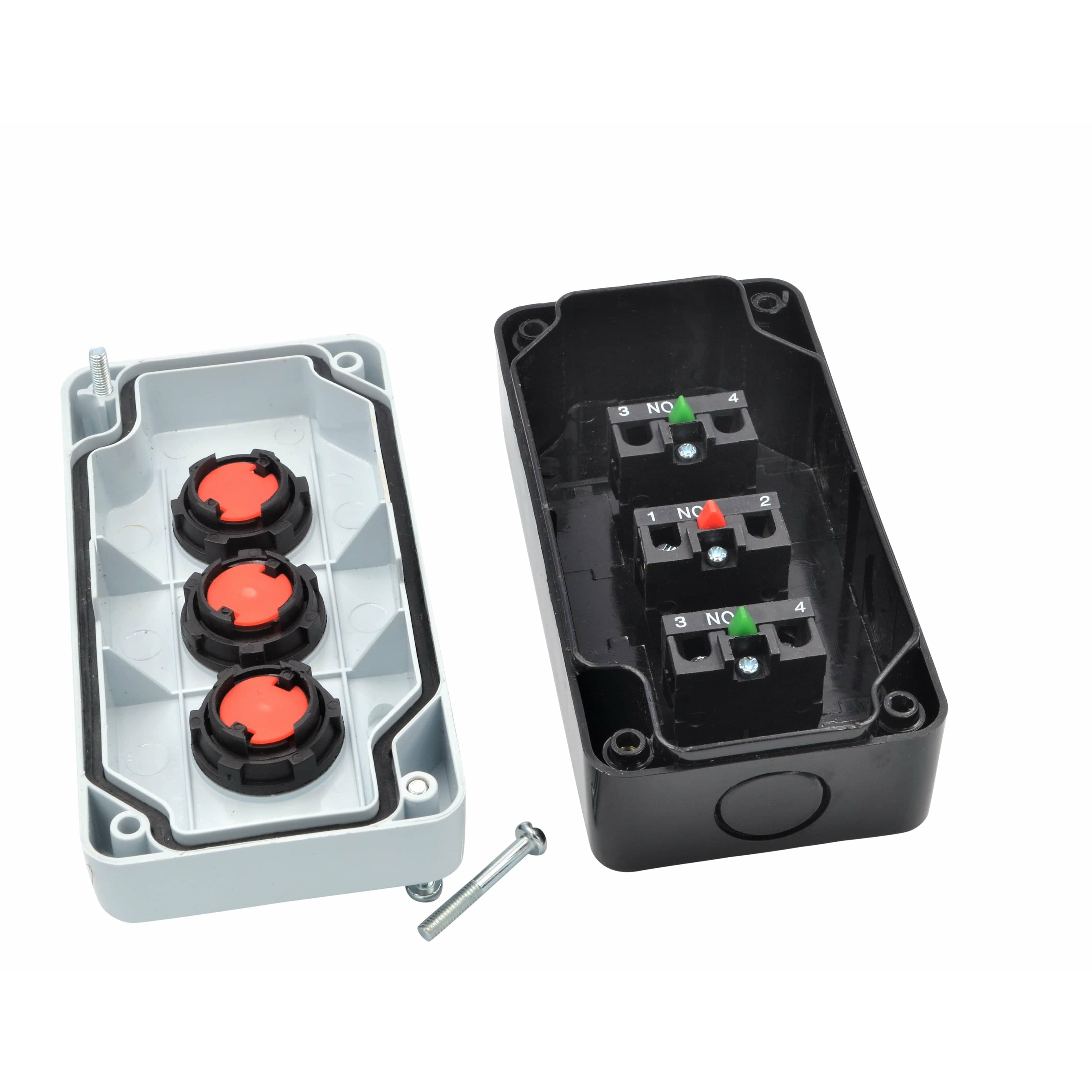

  • 1 flush push-button white 1 NO black up arrow marking
    1 flush push-button black 1 NO white down arrow marking
    1 flush push-button Red 1 NC O marking
  • Maximum AC Voltage -600 V
  • Maximum DC Voltage -600 V
  • Minimum operating temperature - -25°C
  • Maximum operating temperature - +70°C
  • Terminal type - Screw
  • Comparison Part No XALB324
