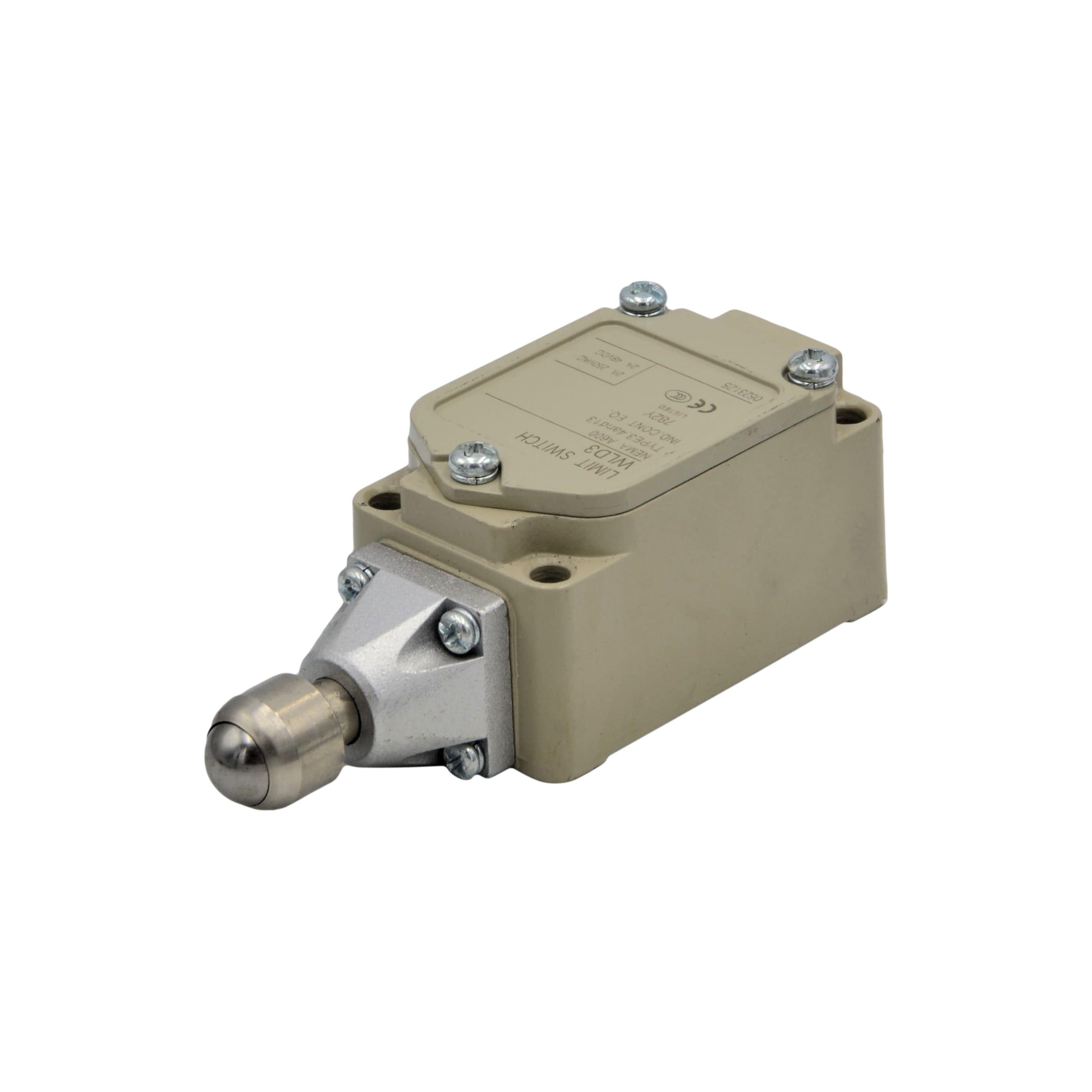

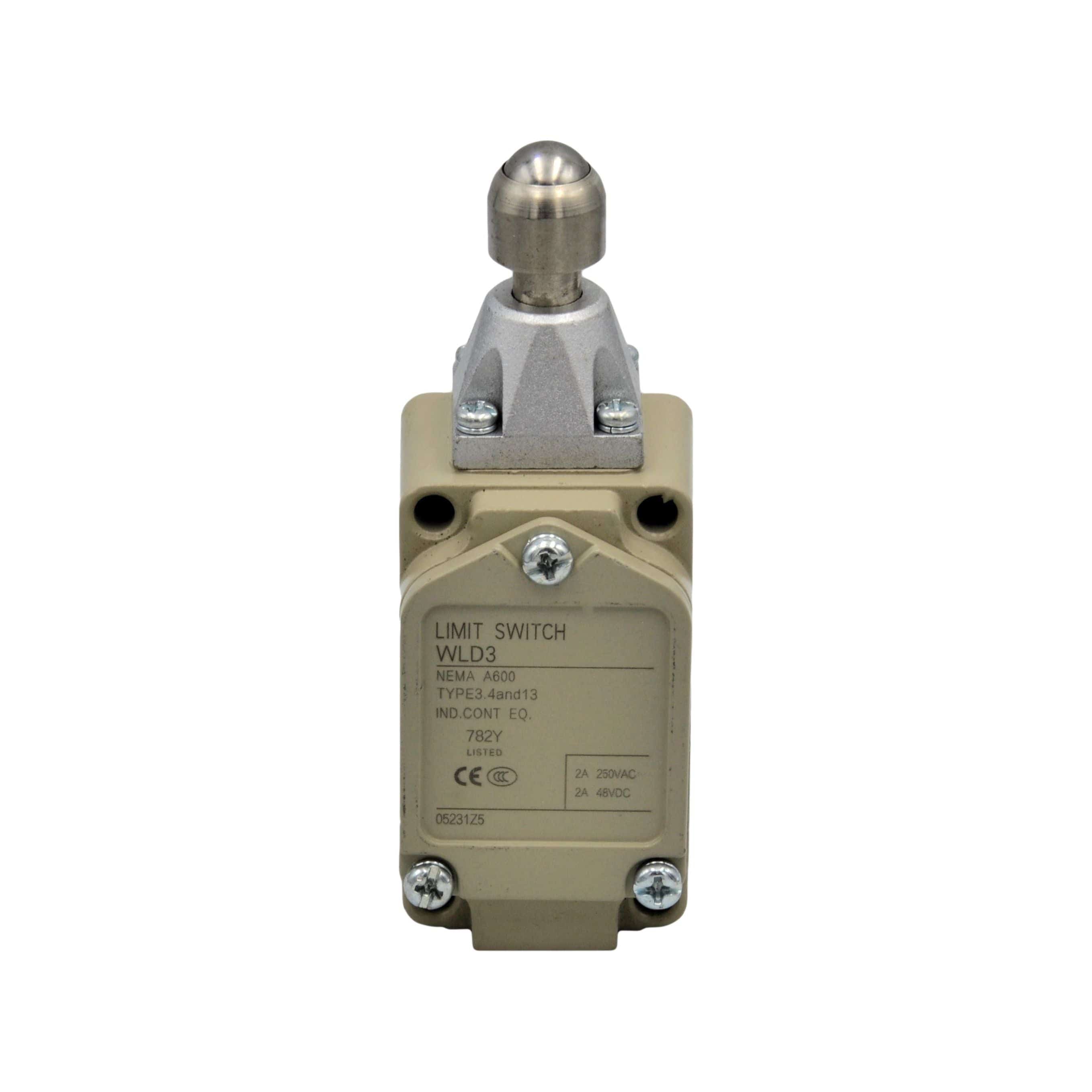

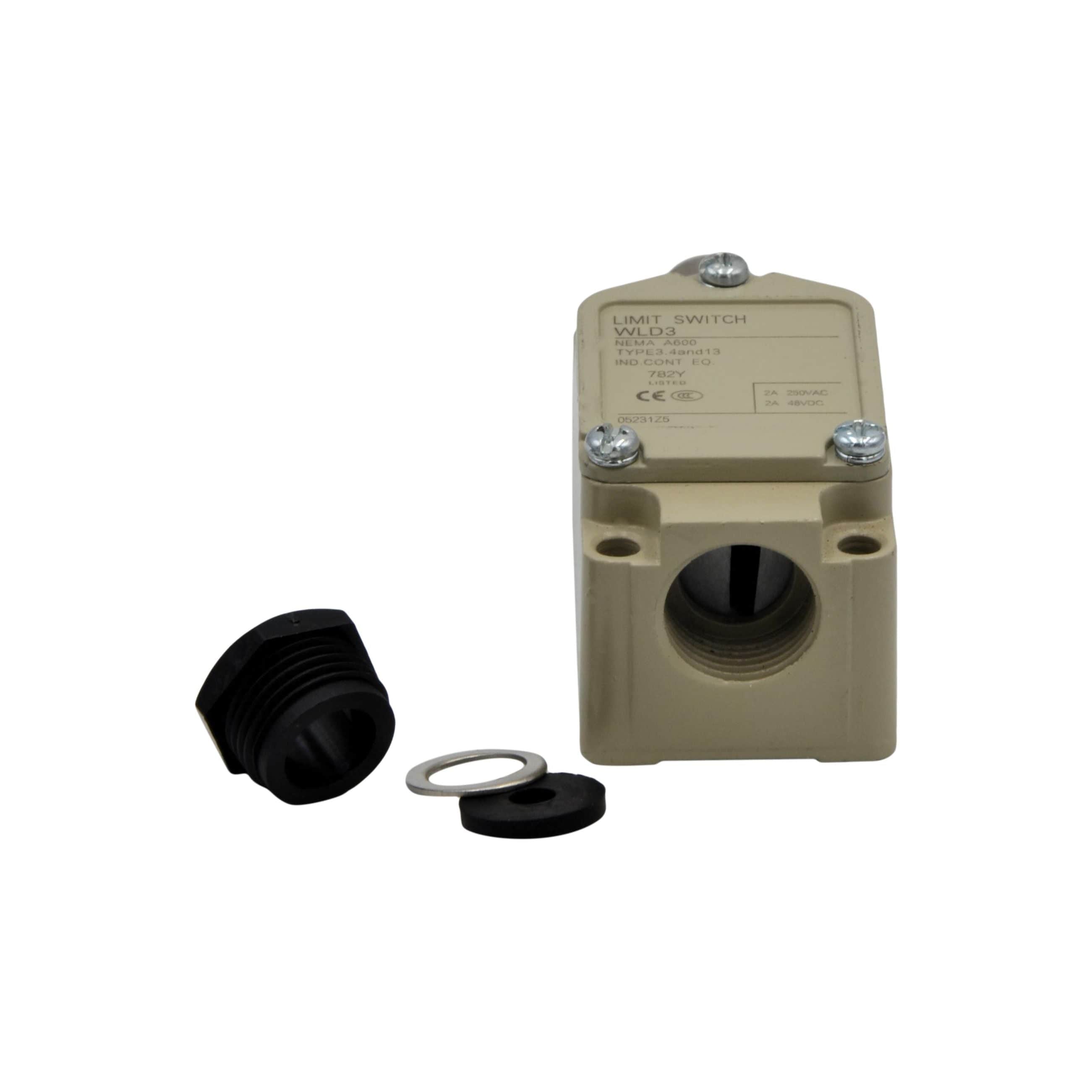

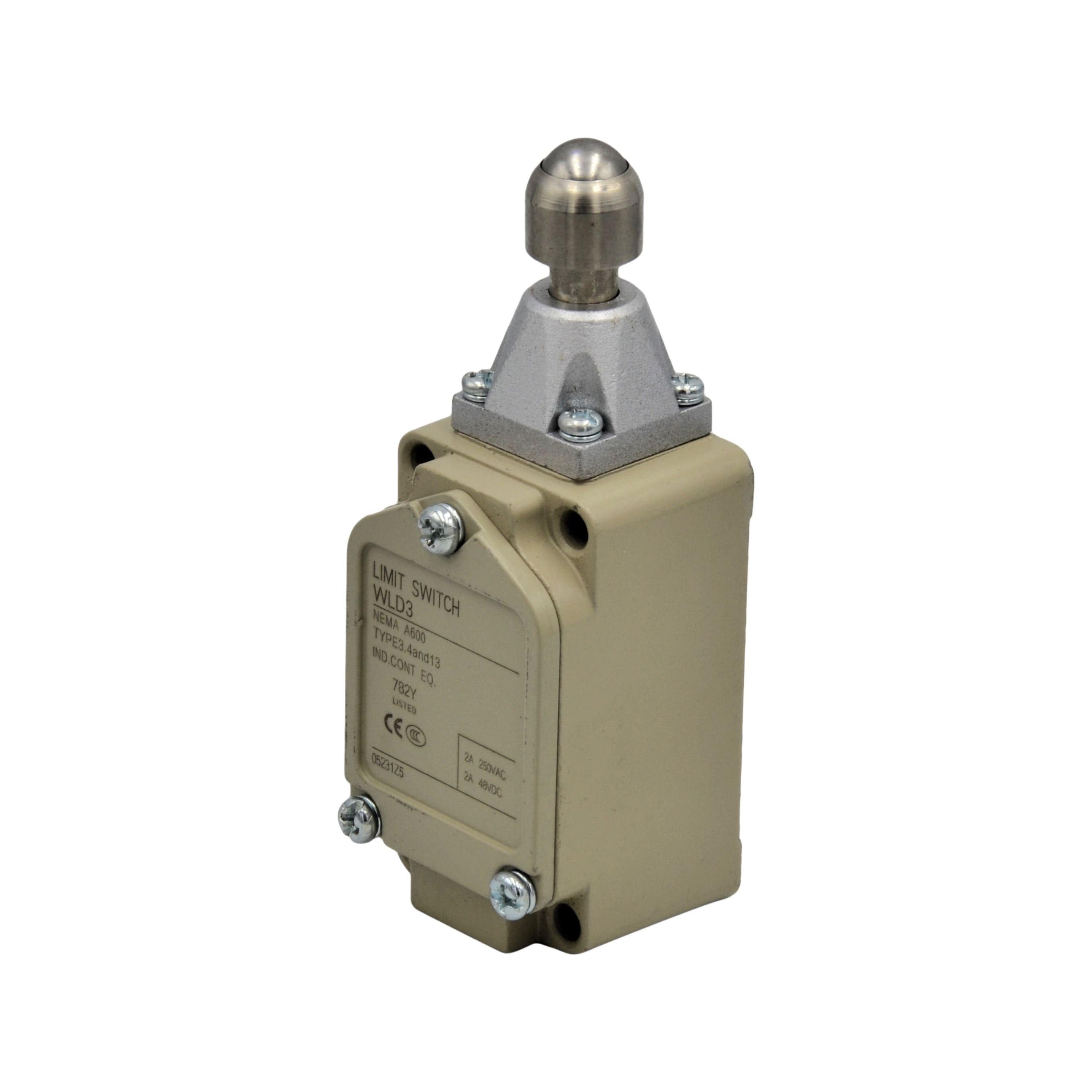

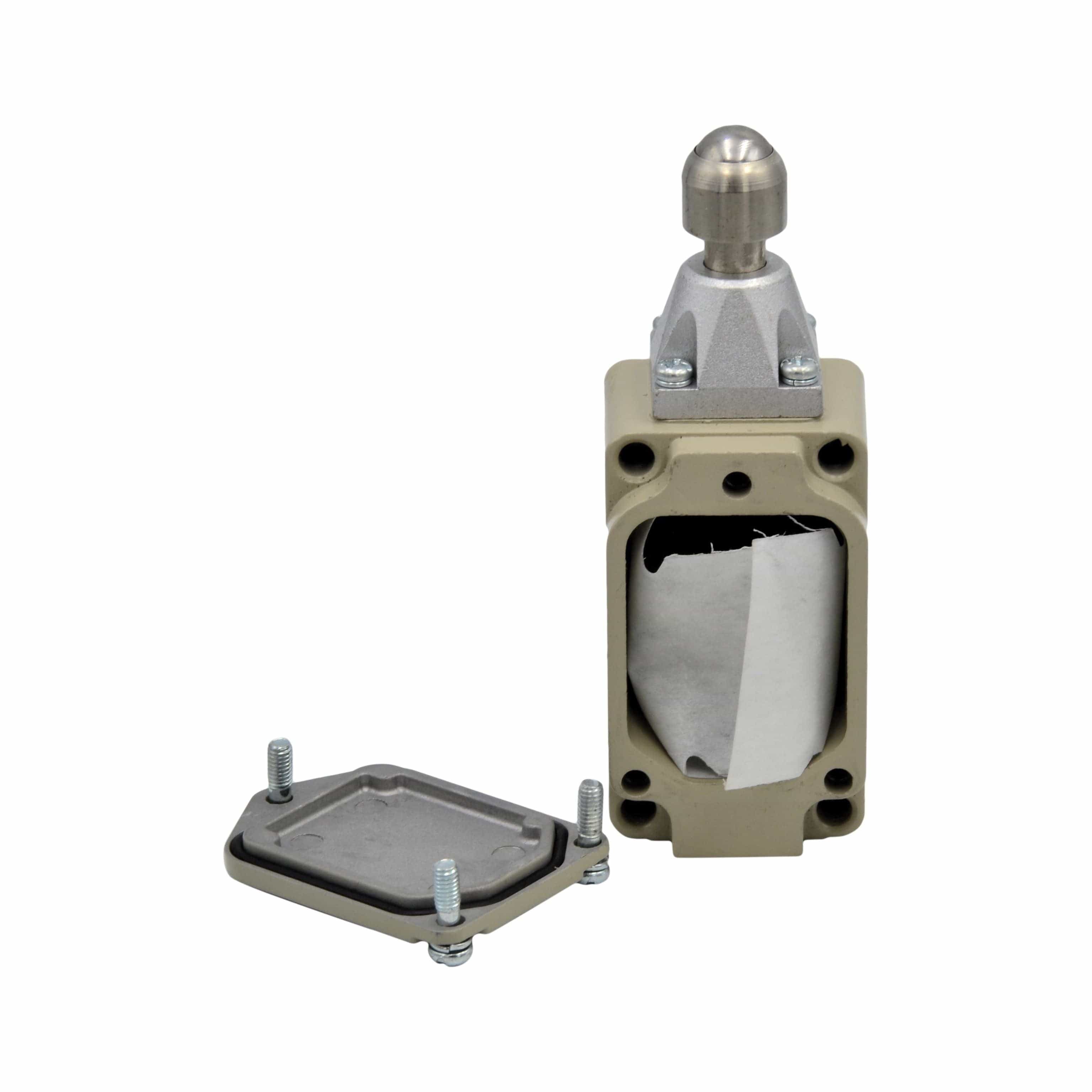

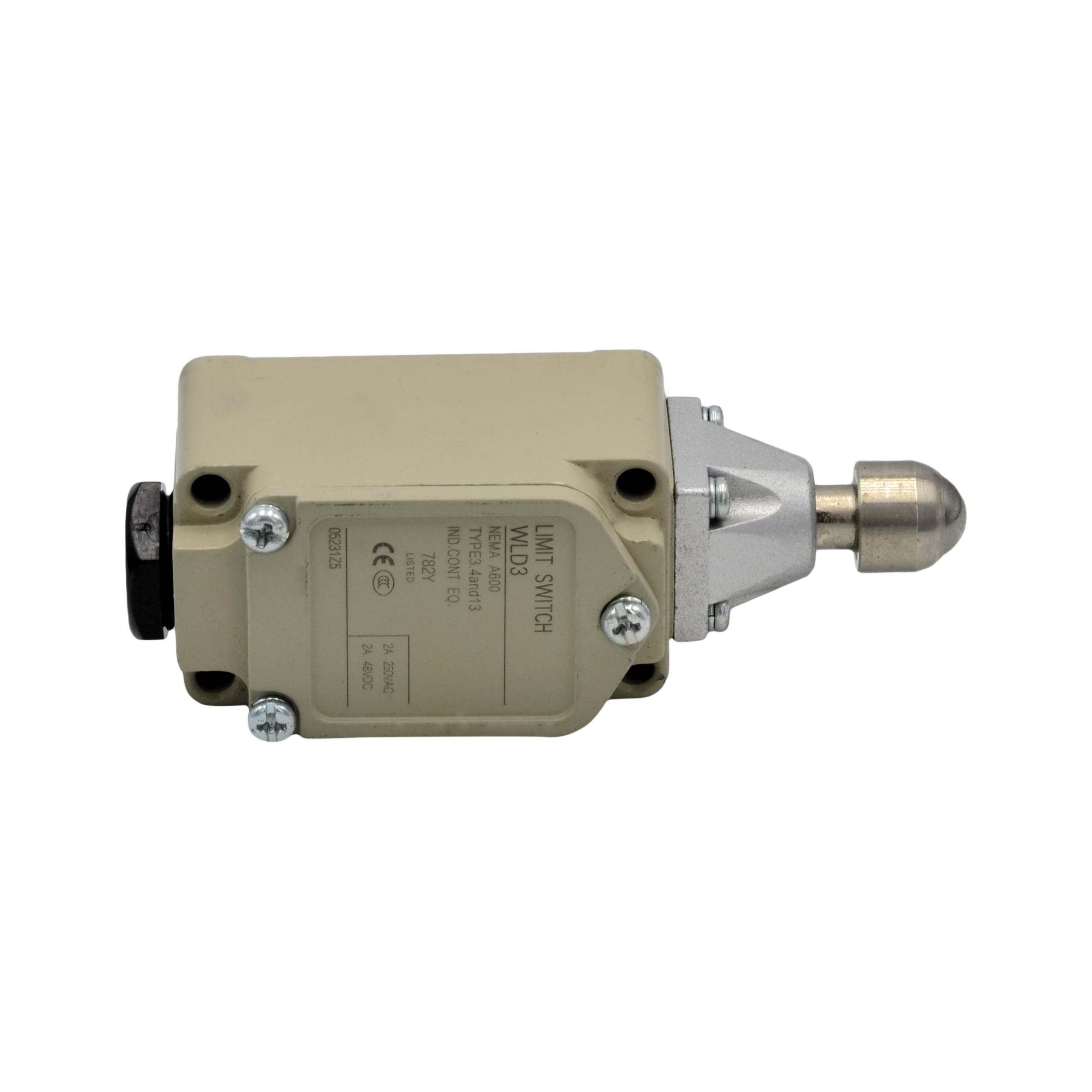

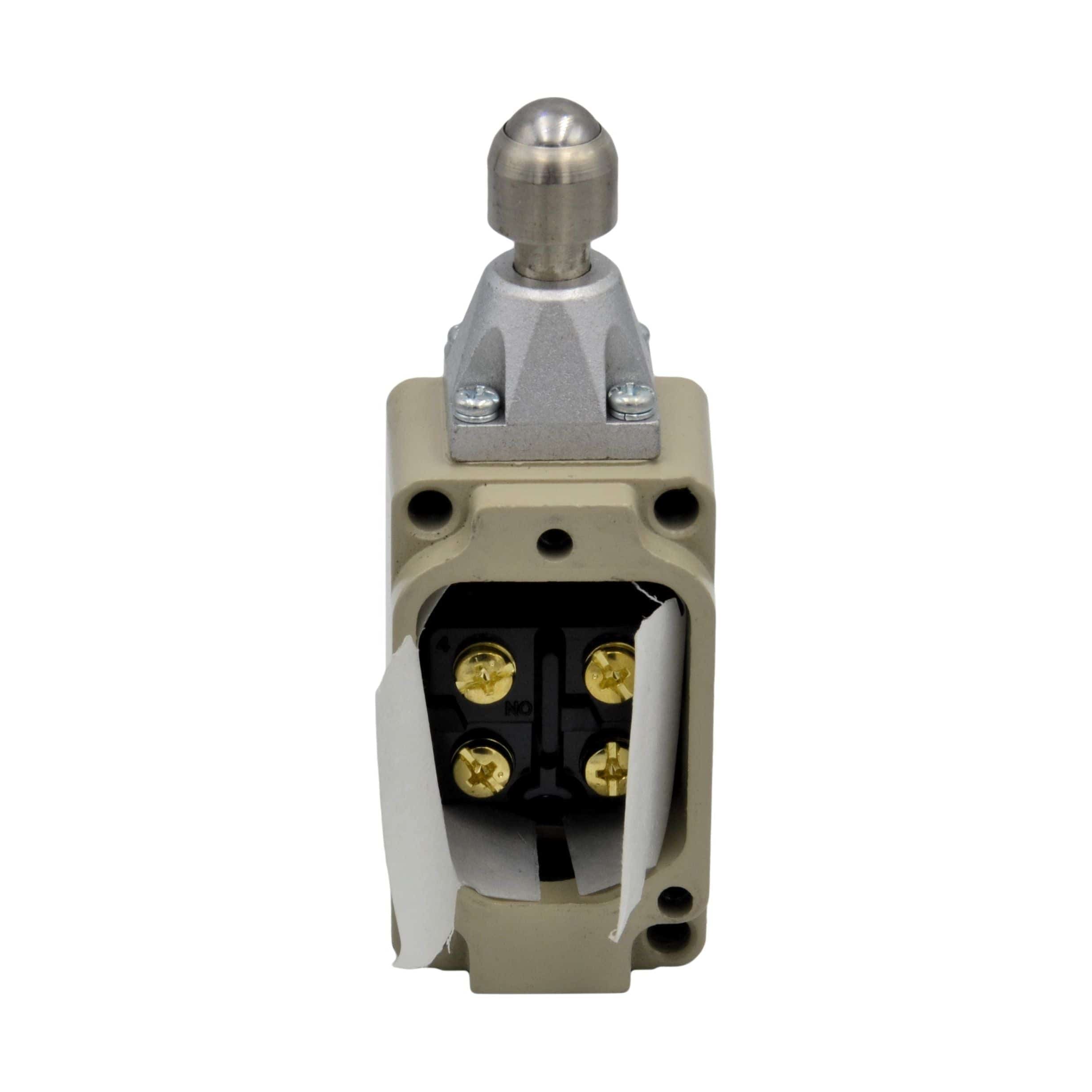

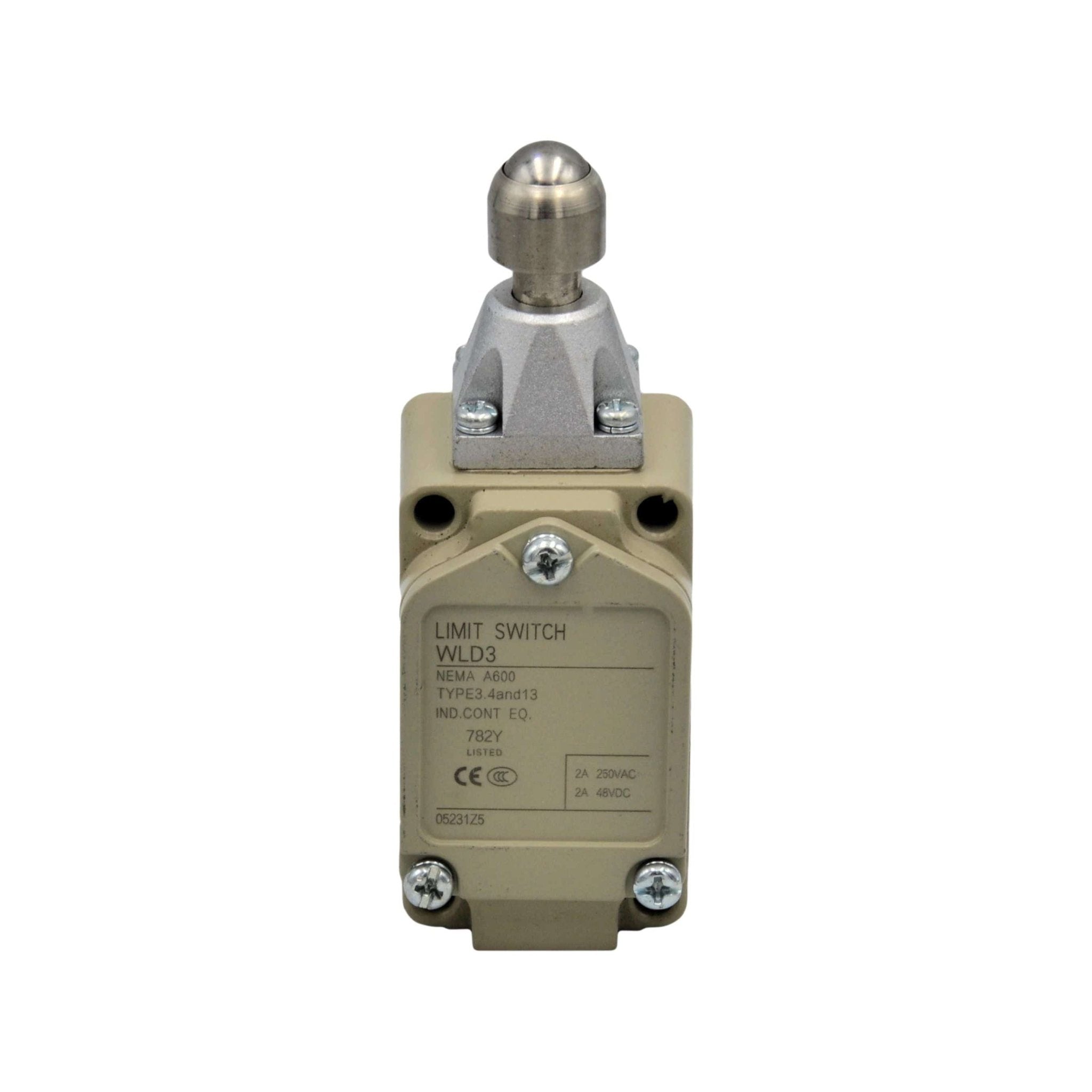

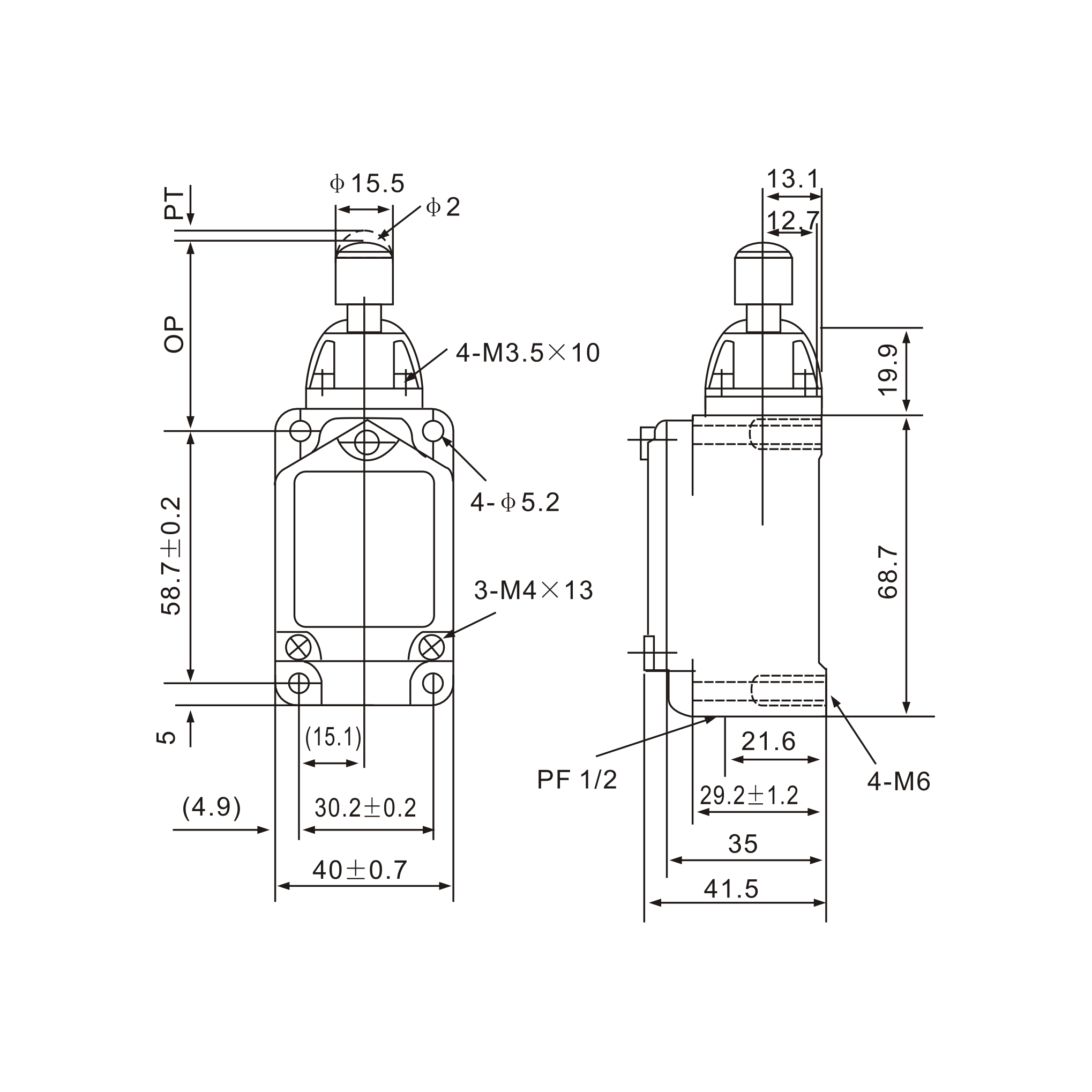

WLD3 Stainless Steel Button Plunger Limit Switch

Features Double-Circuit Limit Switch Durable Aluminum Outer Casing Encloses the Components IP66 Rated for Protection Against Water, Oil, and Dust Capable of Handling Currents Up to 10 Amps Adjustable Rotary...
$32.00
$32.00
(-0%)
Vendor: Tianyi
SKU: WLD3
Availability: In Stock
Subtotal: $32.00
WLD3 Stainless Steel Button Plunger Limit Switch

WLD3 Stainless Steel Button Plunger Limit Switch

$32.00

WLD3 Stainless Steel Button Plunger Limit Switch

$32.00

Features

  • Double-Circuit Limit Switch
  • Durable Aluminum Outer Casing Encloses the Components
  • IP66 Rated for Protection Against Water, Oil, and Dust
  • Capable of Handling Currents Up to 10 Amps
  • Adjustable Rotary Lever Actuator to Suit Specific Applications
  • Equipped with a Built-In Contact Stand Featuring a Double-Spring Mechanism for Extended Service Life

Ratings

Rated Voltage Non-inductive load(A) Inductive load(A)
Resistance load Lamp Load Inductive load Motor Load
NC NO NC NO NC NO NC NO
125VAC 10 3 1.5 10 5 2
250VAC 5 2 1 5 3 1
480VAC 3 1.5 0.8 3 1.5 0.8
600VAC 1 1 0.5 1.5 1 0.5
8VDC 10 6 3 10 6
14VDC 10 6 3 10 6
30VDC 6 4 3 6 4
125VDC 0.8 0.2 0.2 0.8 0.2
250VDC 0.4 0.1 0.1 0.4 0.1

Contact Form

  • OpenOpen
  • CloseClose
  • Notes:
  • Inductive load has a power factor of 0.4 min(AC)and a time constant of 7 ms.

    Lamp load has inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.

Characteristics

Operation speed 1mm-2m/s(TLC2) 1mm-2m/s
Operation Frequency 120 Mechanical:120operations/minute. Electrical:30operations/minute
Contact resistance 15MΩ 15MΩ Max (initial value)
Insulation resistance 100MΩ (500VDC) 100MΩ min (at 500VDC)
Dielectric strength 1000VAC , 50/660Hz 1000VAC , 50/660Hz For 1 minute between terminals of the same polarity
1500VAC , 50/660Hz 1500VAC , 50M660Hz For 1 minute between current-carrying and non current-carrying metal parts
1500VAC , 50/660Hz 1500VAC , 50M660Hz For 1 minute between each terminal and ground
Vibration 10-50Hz,1.5mm 10-50Hz,1.5mm double amplitude
Shock 1000m/Sec²(100G'S) Mechanical durability:1000m.Sec² (about 100G' S)
300m/Sec² (30G'S) Malfunction:300m.Sec² (about 30G' S)
Ambient temperature -10-+80°C Use:-10-+80°C
Humidity 95%RH <95%RH
Life 15,000,000(OT) Mechanical:15,000,000 operation above(under rated OT)
500,000 Electrical:500,000 operation above
Weight 275(TWLCA2-2) About275g
Degree of Protection IP66 IP66

Operating Characteristics

Type WLCA2-2 WLCD2 WLNJ WJNJ-S2 WJCA12-2-Q WLCL WLCA-32-41 WLD WLNJ-2 WLNJ-30 WLD1 WLD3
OF(max) 1360g 2720g 150g 29g 1360g 142g 1200g 2720g 120g 120g 270g 270g
RF(min) 227g 910g - - 227g 28g - 910g - - 910g 910g
PT(max) 20 ° 1.7mm 28mm 28mm 20 ° 20 ° 55 ° 1.7mm 28mm 28mm 1.7mm 1.7mm
OT(min) 30 ° 5.6mm - - 30 ° 30 ° 35 ° 6.4mm - - 5.6mm 5.6mm
MD(max) 12 ° 1mm - - 12 ° 12 ° - 1mm - - 1mm 1mm
TF(max) 2720g - - - 2720g 200g - - - - 2720g 2720g
TT(min) 50 ° 6.5+_0.8mm - - 50 ° 50 ° OP:90+-10° - - - 6.5+_0.8mm 9+_0.8mm
