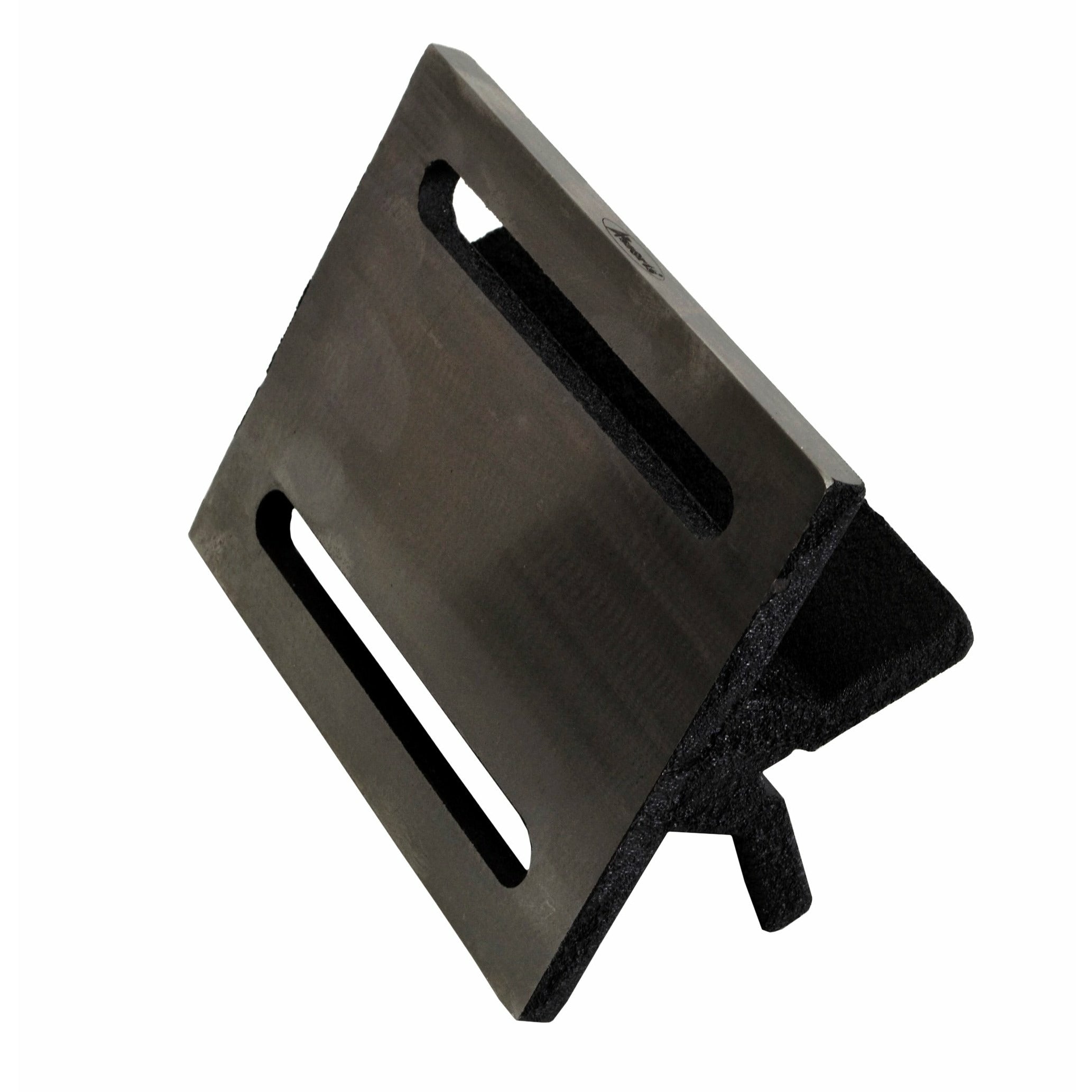

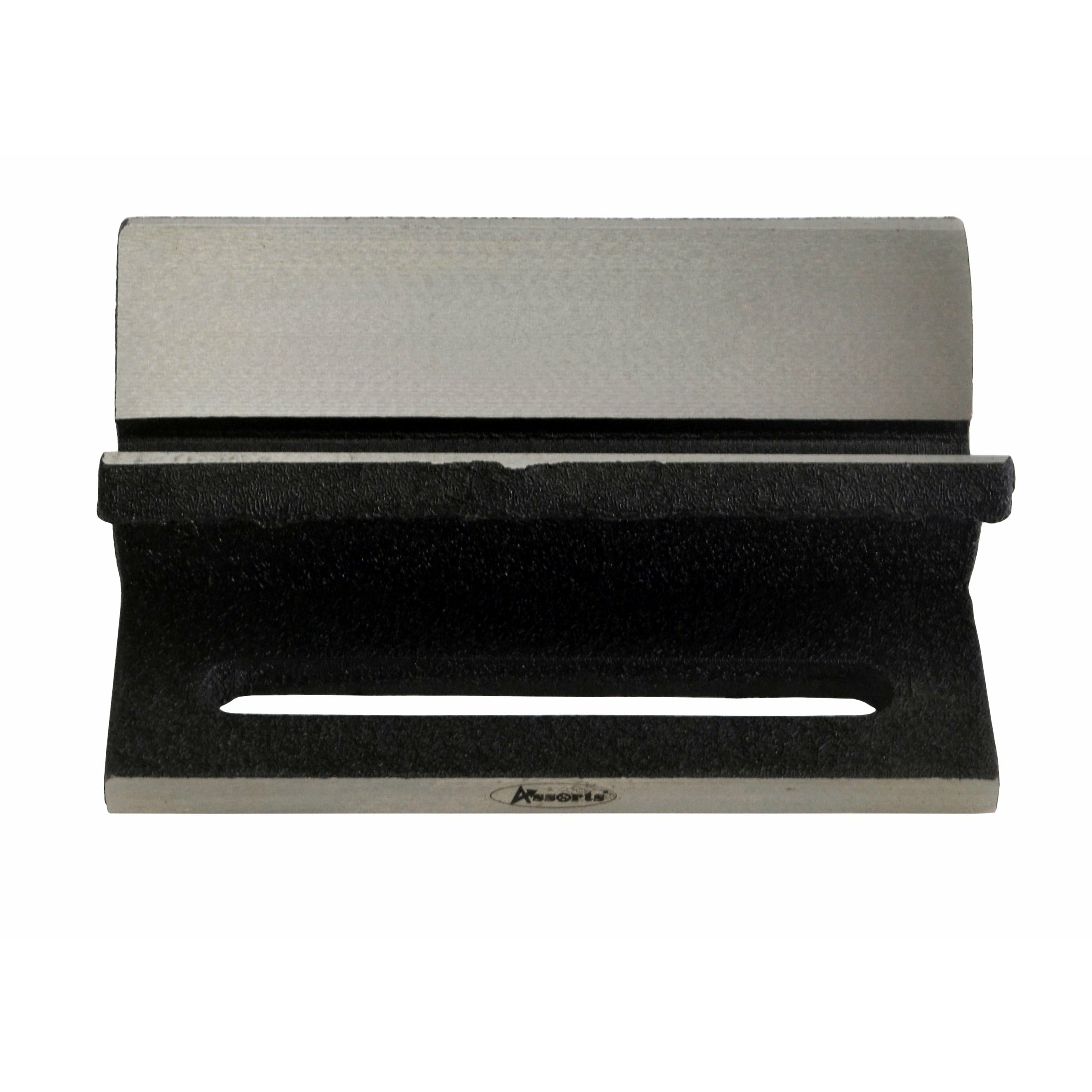

V Block Angle Plate 5"x4" Jig Fixture for Center Drilling round bar
Click to enlarge

in stock

V Block Angle Plate 5"x4" Jig Fixture for Center Drilling

sold in last hours
Vendor: Twin Eagle Imports
SKU: 394
$79.00
Order in The Next to get it by
Real Time 1 Visitor Right Now

Product Type: Angle Plate

Barcode: 880928491605

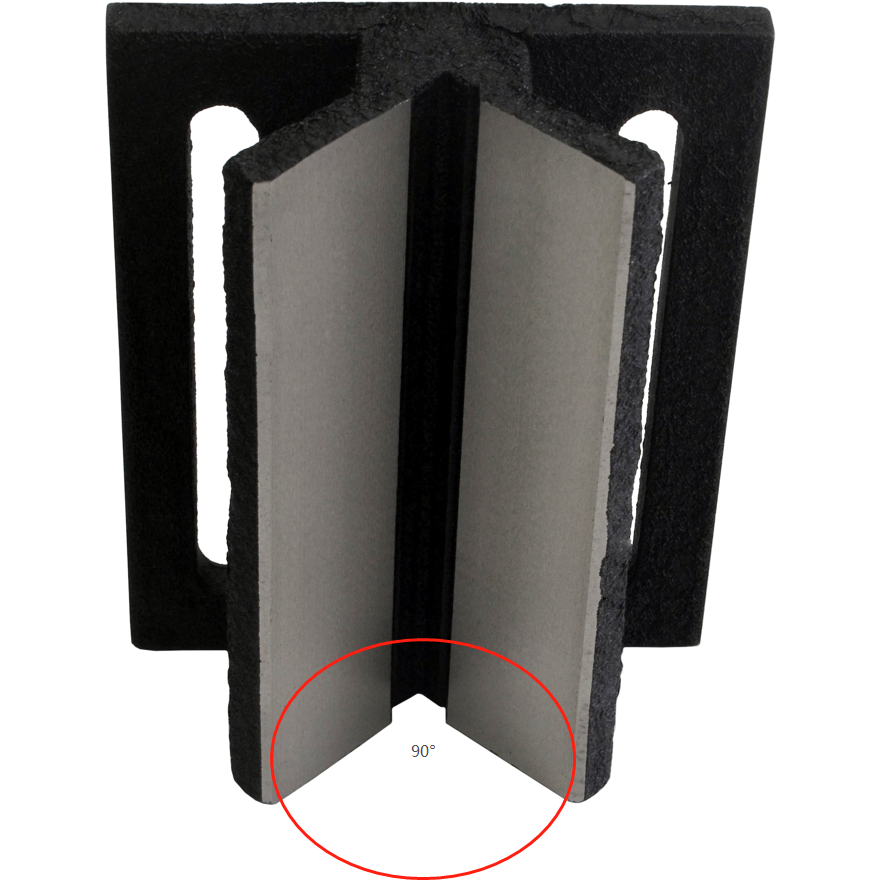

V Block 5"x 4"

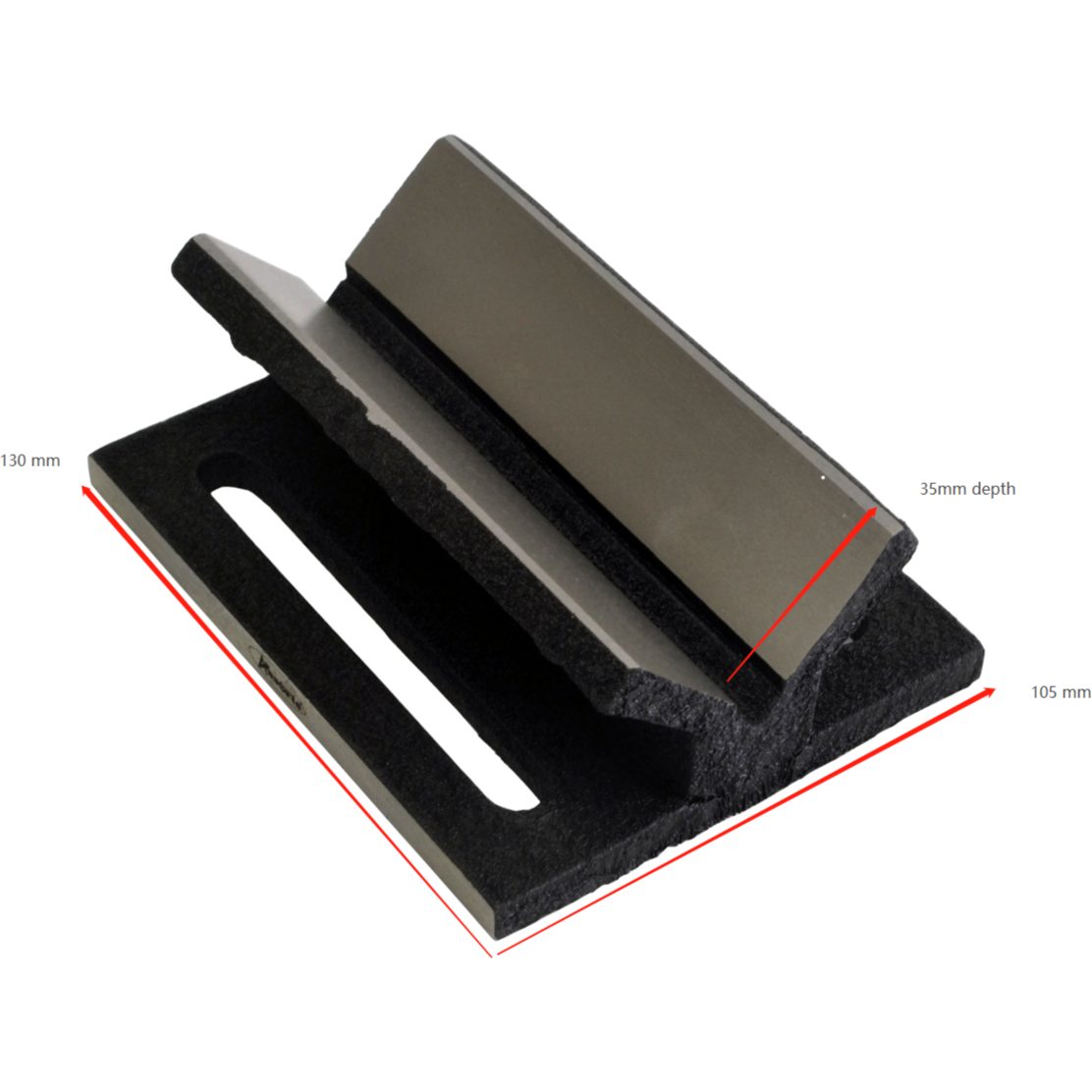

  • Overall Length – 5” (130 mm)
  • Height – 1 13/16” (46 mm)
  • Width – 4” (105 mm)

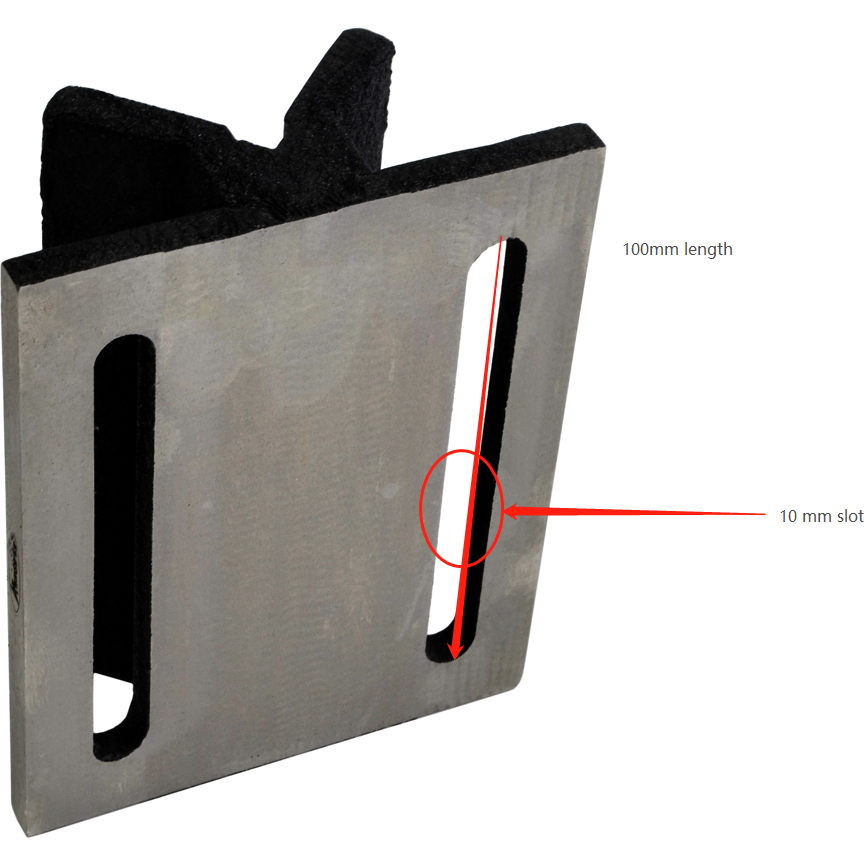

  • Slot size 10mm x 100mm
  • Overall weight 1.5 kg

-Web plate design, made out of Cast Iron with Precision Ground finish. .
-Stress Relieved.
-Perfect for working with round bar.

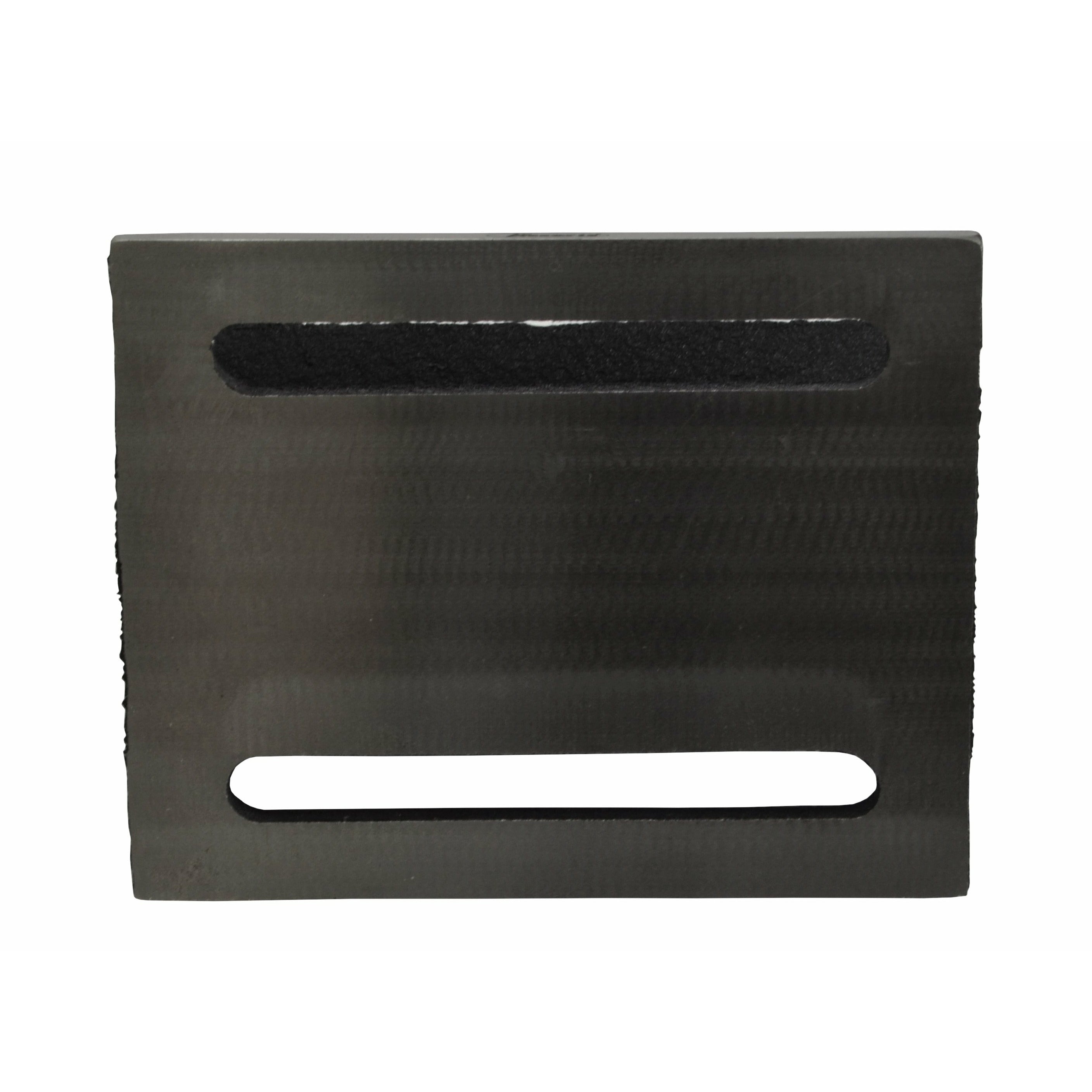

-Clamping slots for easy mounting onto work spaces for machining, layout and inspection accuracy.
-Webbed type.
-All ends have been machined square and parallel within .005" per 6"
