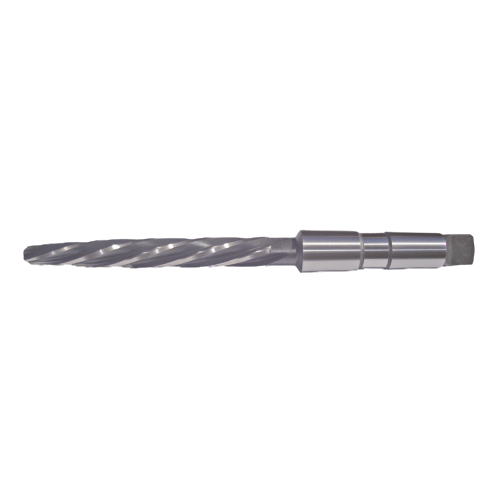

Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer

Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer, Morse Taper Shank No. 3 The Somta Series 721 MTS Taper Bridge Machine Reamer is manufactured from premium High-Speed Steel...
$508.00
$0.00
$508.00
(-0%)
Vendor: SOMTA
SKU: 7213000
Availability: In Stock
Subtotal: $508.00
SOMTA REAMERS Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer

Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer

$0.00 $508.00

Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer

$0.00 $508.00

Somta Series 721 – 30mm MT3 Taper Bridge Machine Reamer, Morse Taper Shank No. 3

The Somta Series 721 MTS Taper Bridge Machine Reamer is manufactured from premium High-Speed Steel (HSS) and is specifically designed for opening out and aligning existing holes in structural steelwork and bridge fabrication applications. Its robust design makes it ideal for enlarging rivet and bolt holes with high accuracy and excellent surface finish.

Manufactured to BS 328, ISO 2238 and DIN 311 standards, this machine reamer features a 1:10 taper with a 20° helix angle, providing smooth cutting action and efficient chip evacuation. The Morse Taper Shank No. 3 ensures rigid mounting and stable performance during heavy-duty reaming operations.

Key Features & Benefits

  • Manufactured from premium High-Speed Steel (HSS)
  • Designed for opening and aligning existing holes
  • Ideal for structural steelwork and bridge fabrication
  • Morse Taper Shank No. 3 for secure machine mounting
  • Manufactured to BS 328, ISO 2238 and DIN 311 standards
  • 1:10 taper design for accurate hole enlargement
  • 20° helix angle for smooth cutting and chip evacuation
  • Right-hand cutting direction
  • Precision ground for excellent dimensional accuracy
  • Long service life in demanding industrial applications

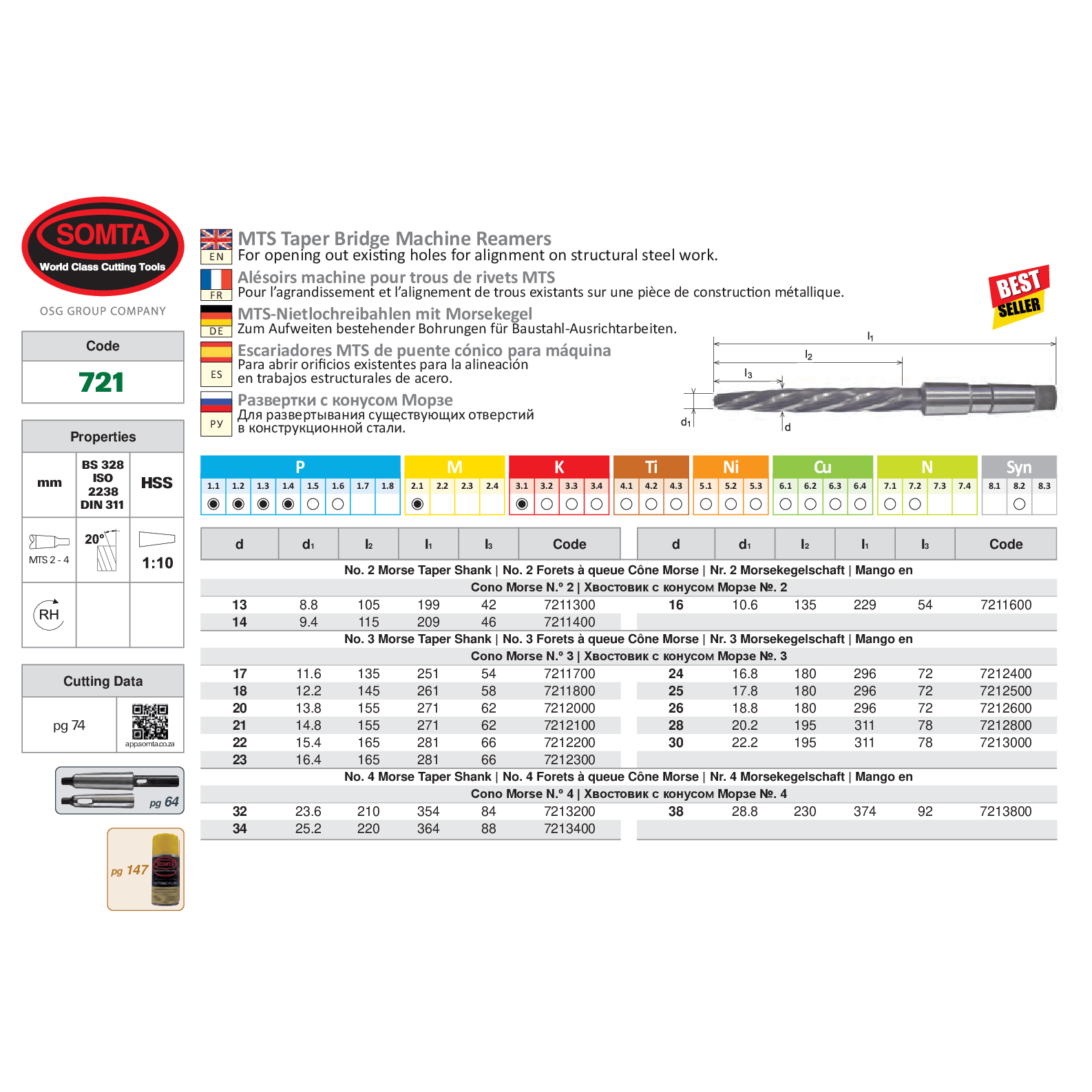

Technical Specifications

  • Brand: Somta
  • Series: 721
  • Part Number: 7213000
  • Reamer Diameter (d): 30mm
  • Small End Diameter (d1): 22.2mm
  • Morse Taper Shank: No. 3
  • Flute Length (l2): 195mm
  • Overall Length (l1): 311mm
  • Taper Length (l3): 78mm
  • Material: High-Speed Steel (HSS)
  • Standards: BS 328 / ISO 2238 / DIN 311
  • Taper: 1:10
  • Helix Angle: 20°
  • Cutting Direction: Right Hand
  • Application: Enlarging and aligning existing holes in structural steelwork

Somta MTS Taper Bridge Machine Reamers are trusted by fabricators and engineers for their precision manufacturing and dependable performance. The Series 721 30mm Bridge Machine Reamer provides accurate hole alignment, excellent surface finishes, and extended tool life for heavy-duty reaming operations.
