Somta Series 556 - HSSE-V Spiral Flute Tap UNF 5/16" (Standard)

Optimized for Precision Blind Hole Tapping The Somta Series 556 HSSE-V Spiral Flute Tap UNF 5/16" is a high-performance machine tap specifically engineered for blind hole applications. Featuring a 35°...
$56.00
$56.00
(-0%)
Vendor: SOMTA
SKU: 5560790
Availability: In Stock
Subtotal: $56.00
Twin Eagles  SOMTA - HSSE-V SPIRAL FLUTE TAP UNF  (STANDARD)

Somta Series 556 - HSSE-V Spiral Flute Tap UNF 5/16" (Standard)

$56.00

Somta Series 556 - HSSE-V Spiral Flute Tap UNF 5/16" (Standard)

$56.00

Optimized for Precision Blind Hole Tapping

The Somta Series 556 HSSE-V Spiral Flute Tap UNF 5/16" is a high-performance machine tap specifically engineered for blind hole applications. Featuring a 35° right-hand helix, this tap efficiently lifts swarf upward, ensuring clean and precise threading in both CNC and conventional machines.

Key Features & Benefits

Ideal for Blind Holes – Spiral flute design effectively removes chips, preventing clogging and ensuring smooth operation.
HSSE-V3 High-Speed Steel – Provides superior durability and extended tool life.
60° Thread Flank Angle – Ensures strong, accurate, and precise thread formation.
Right-Hand Cutting – Designed for standard Unified National Fine (UNF) threading applications.
ISO 529 Standard – Manufactured to industry-grade specifications for reliability.
Versatile General-Purpose Use – Suitable for a wide range of materials and machining applications.

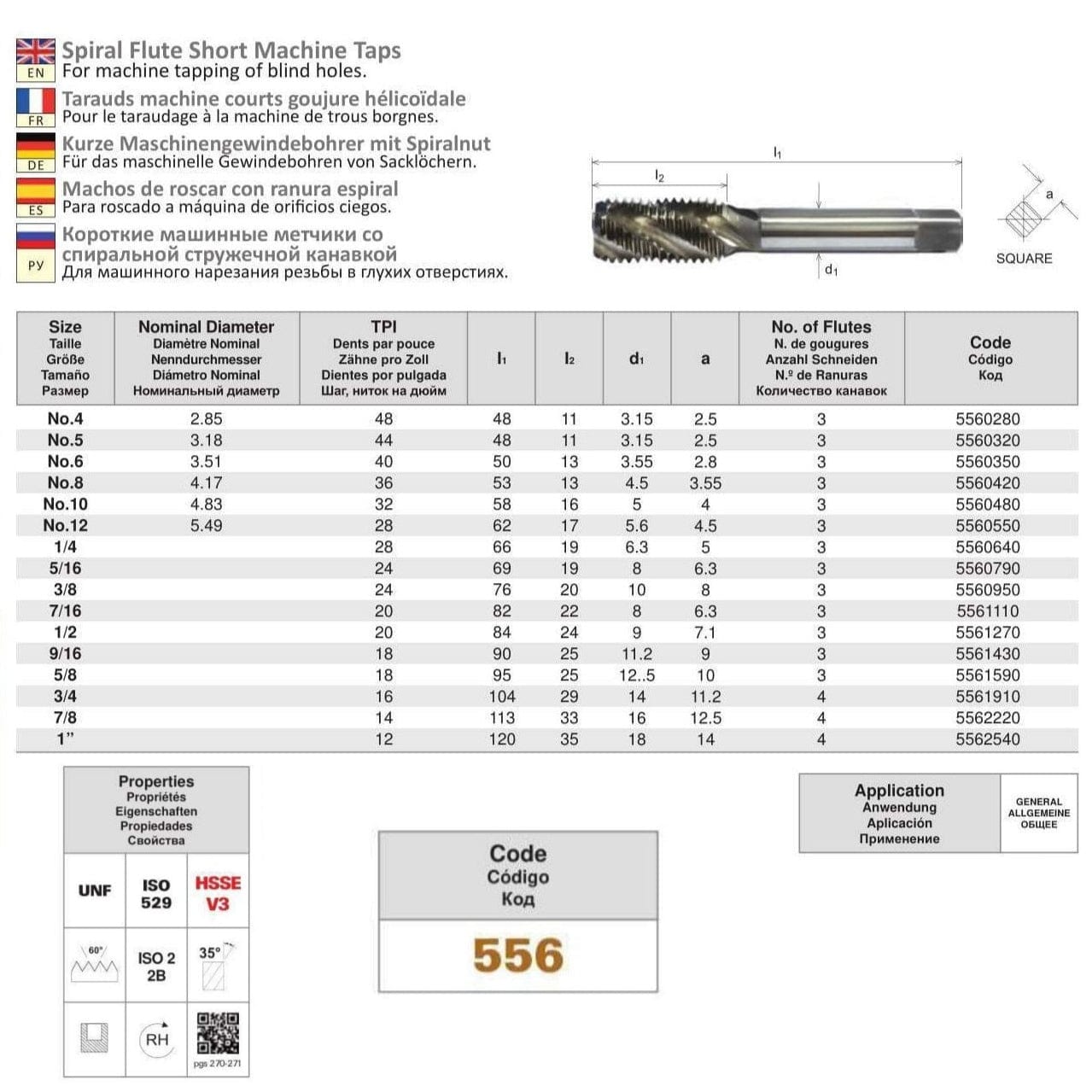

Technical Specifications

🔹 Thread Size: UNF 5/16"
🔹 Thread Standard: Unified National Fine (UNF)
🔹 Thread Tolerance Class: ISO 2 (2B)
🔹 Flank Angle: 60°

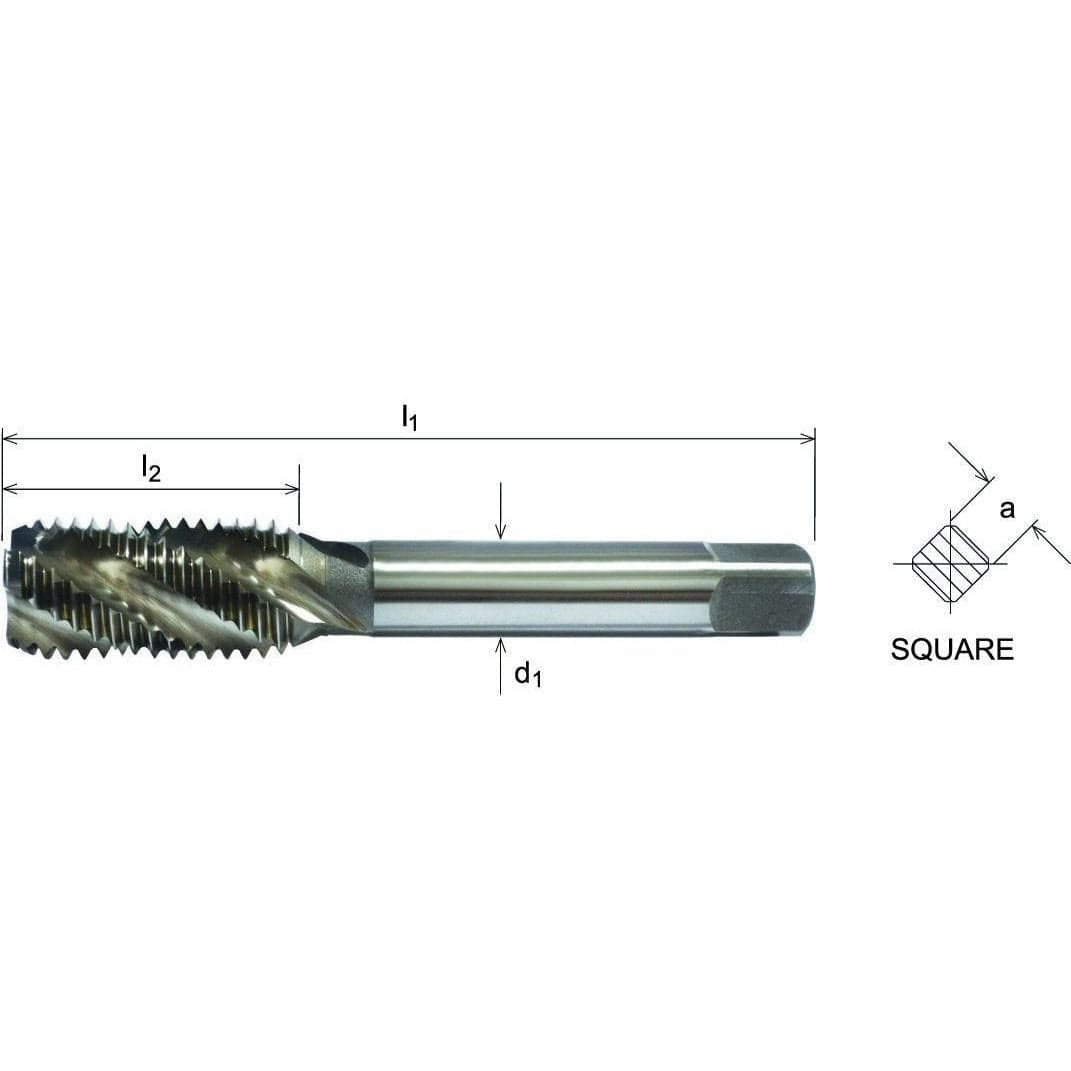

🔹 Tap Type: Spiral Flute Short Machine Tap
🔹 Helix Angle: 35° Right-Hand
🔹 Cutting Direction: Right-Hand
🔹 Application: General-Purpose Blind Hole Tapping
🔹 Shank Standard: ISO 529
🔹 Material: HSSE-V3 (High-Speed Steel)
🔹 Hole Type: Blind Hole

Why Choose the Somta Series 556 UNF 5/16" Spiral Flute Tap?

Optimized for Blind Hole Applications – Ensures efficient swarf evacuation for smooth and precise threading.
Durable HSSE-V3 Material – Provides excellent wear resistance and longevity.
Reliable & Consistent Performance – Ideal for precision machining in CNC and manual operations.
Strong & Accurate Thread Formation – ISO 2 (2B) tolerance ensures secure and precise UNF 5/16" threads.

Achieve exceptional accuracy and efficiency with the Somta Series 556 HSSE-V Spiral Flute Tap UNF 5/16" – the perfect tool for professional blind hole tapping applications.
