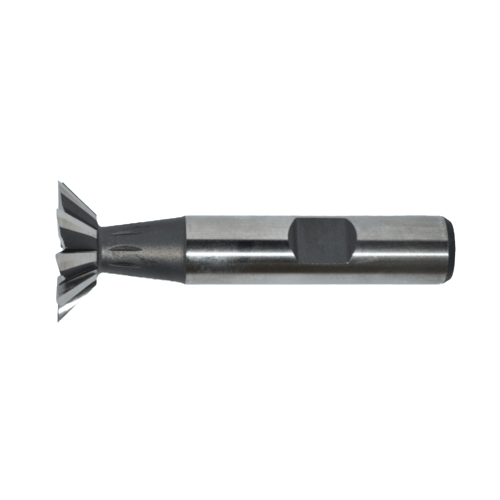

Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN

Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN (Code 3863201) The Somta Series 386 Dovetail Cutter is designed for the accurate machining...
$289.00
$0.00
$289.00
(-0%)
Vendor: SOMTA
SKU: 3863201
Availability: In Stock
Subtotal: $289.00
SOMTA MILLING CUTTERS Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN

Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN

$0.00 $289.00

Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN

$0.00 $289.00

Somta Series 386 – 32mm x 60° HSS Co5 Dovetail Cutter DIN 1833 Form C TiN (Code 3863201)

The Somta Series 386 Dovetail Cutter is designed for the accurate machining of dovetail slides used in machine tool tables, jigs, fixtures, and precision tooling applications. Manufactured from premium HSS Co5 (5% Cobalt High-Speed Steel), this cutter delivers superior wear resistance, heat tolerance, and extended tool life when machining a wide range of engineering materials.

Featuring a 60° dovetail angle and precision-ground cutting edges, the cutter produces accurate dovetail profiles with excellent surface finish. The robust construction and multiple cutting teeth provide smooth cutting action and enhanced stability, making it suitable for both maintenance workshops and production environments.

Key Features & Benefits

  • Manufactured from premium HSS Co5 (5% Cobalt High-Speed Steel)
  • 60° dovetail cutter for precision slide and fixture machining
  • Designed for producing dovetail slides and guideways
  • Conforms to DIN 1833 Form C
  • 12 precision-ground cutting teeth for smooth machining
  • High wear resistance and excellent heat performance
  • Suitable for general engineering and toolroom applications
  • Precision shank with h6 tolerance for secure holding
  • Ideal for machine tables, jigs, fixtures, and custom tooling

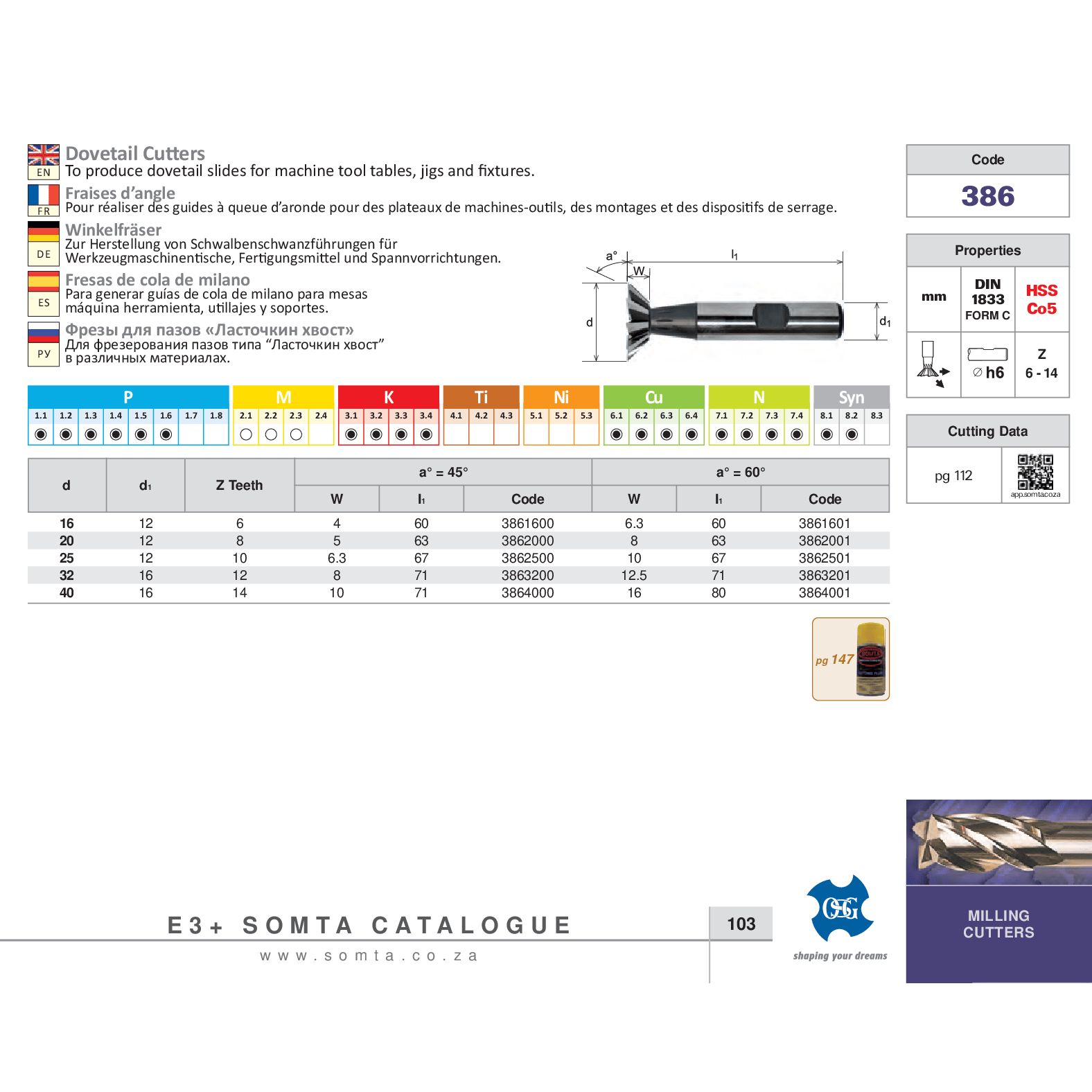

Technical Specifications

  • Brand: Somta
  • Series: 386
  • Part Number: 3863201
  • Tool Type: Dovetail Cutter
  • Cutting Diameter (d): 32mm
  • Shank Diameter (d1): 16mm
  • Included Angle: 60°
  • Cutting Width (W): 12.5mm
  • Overall Length (l1): 71mm
  • Number of Teeth (Z): 12
  • Material: HSS Co5
  • Standard: DIN 1833 Form C
  • Shank Tolerance: h6
  • Application: Machining dovetail slides, guideways, jigs, and fixtures

The Somta 3863201 Dovetail Cutter provides the precision, rigidity, and durability required for producing high-quality 60° dovetail profiles in demanding toolroom and industrial machining applications.
