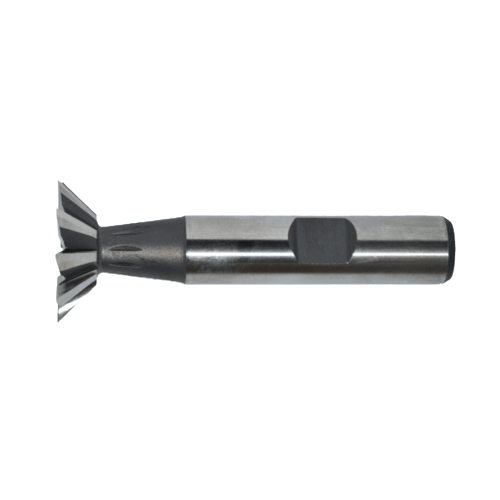

Somta Series 386 – 16mm x 60° HSS Dovetail Cutter, 6 Teeth, DIN 1833 Form C

The Somta Series 386 16mm Dovetail Cutter is manufactured from premium HSS Co5 (High-Speed Steel with Cobalt) and is designed for machining precision dovetail slides used in machine tool tables, jigs, fixtures, and specialised tooling applications. Manufactured to DIN 1833 Form C standards, this cutter provides exceptional accuracy, rigidity, and extended tool life.

Featuring a 60° included angle and 6 cutting teeth, this dovetail cutter delivers smooth cutting action and excellent surface finishes in a wide range of engineering materials. The precision ground cutting geometry ensures accurate dovetail profiles and reliable machining performance in demanding workshop and industrial environments.

Key Features & Benefits

  • Manufactured from premium HSS Co5 cobalt high-speed steel
  • Designed for machining dovetail slides and guideways
  • Manufactured to DIN 1833 Form C standard
  • 60° included angle for precision dovetail profiles
  • 6 cutting teeth for smooth and efficient cutting
  • Precision ground for excellent dimensional accuracy
  • Cylindrical shank with h6 tolerance for secure holding
  • High wear resistance and long tool life
  • Suitable for jigs, fixtures, machine tables, and tooling applications
  • Ideal for professional engineering and production machining

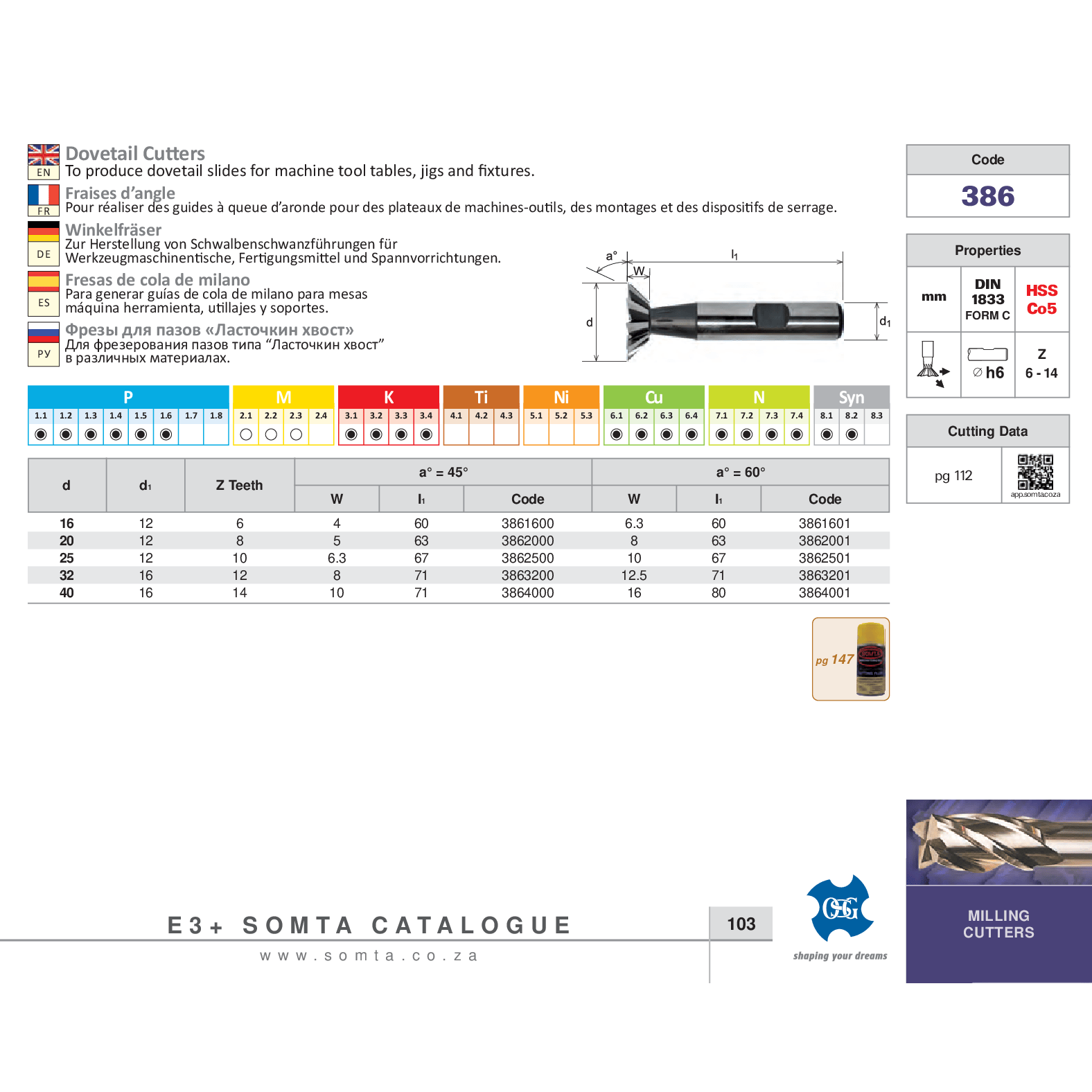

Technical Specifications

  • Brand: Somta
  • Series: 386
  • Part Number: 3861601
  • Cutter Diameter (d): 16mm
  • Shank Diameter (d1): 12mm
  • Included Angle: 60°
  • Cutting Width (W): 6.3mm
  • Overall Length (l1): 60mm
  • Number of Teeth (Z): 6
  • Material: HSS Co5
  • Standard: DIN 1833 Form C
  • Shank Tolerance: h6
  • Application: Machining dovetail slides, jigs, fixtures, and machine tool tables

Somta dovetail cutters are trusted by machinists and toolmakers worldwide for their precision manufacturing and dependable cutting performance. The Series 386 16mm x 60° Dovetail Cutter delivers accurate profile generation and long service life for demanding milling applications.
