Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill) | 3492858 The SOMTA 3492858 is a heavy-duty 1-1/8″ 2-flute slot drill crafted from premium HSS-Co8 (8% cobalt...
$239.31
$0.00
$239.31
(-0%)
Vendor: SOMTA
SKU: 3492858
Availability: In Stock
Subtotal: $239.31
Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $239.31

Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $239.31

Somta Series 349 – 1-1/8" HSS-Co8 2 Flute End Mill (Slot Drill) | 3492858

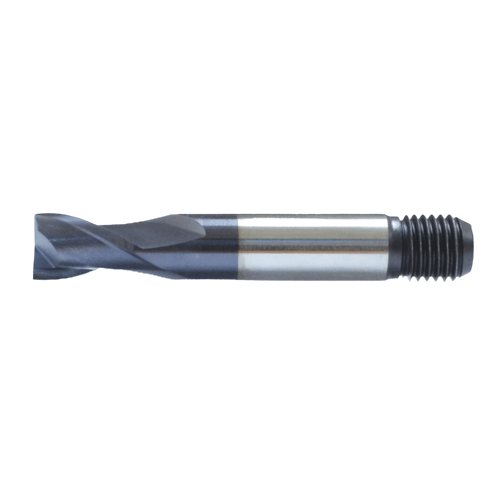

The SOMTA 3492858 is a heavy-duty 1-1/8″ 2-flute slot drill crafted from premium HSS-Co8 (8% cobalt high-speed steel), engineered for maximum strength, heat resistance, and wear performance. Designed for machining larger keyways, slots, and pockets, it ensures smooth cutting and superior dimensional accuracy in steel, stainless steel, and cast iron applications.

Key Features & Benefits

  • HSS-Co8 Material – Provides exceptional hardness, thermal stability, and wear resistance under load.
  • 2-Flute Geometry – Optimized for chip evacuation and consistent cutting performance in deep slots.
  • Centre-Cutting Capability – Allows plunge, slot, and contour milling with precision.
  • DIN 327 Standard – Ensures uniform dimensional accuracy and repeatable tool quality.
  • Optional TiAlN Coating – Enhances performance and longevity in dry or high-speed machining conditions.

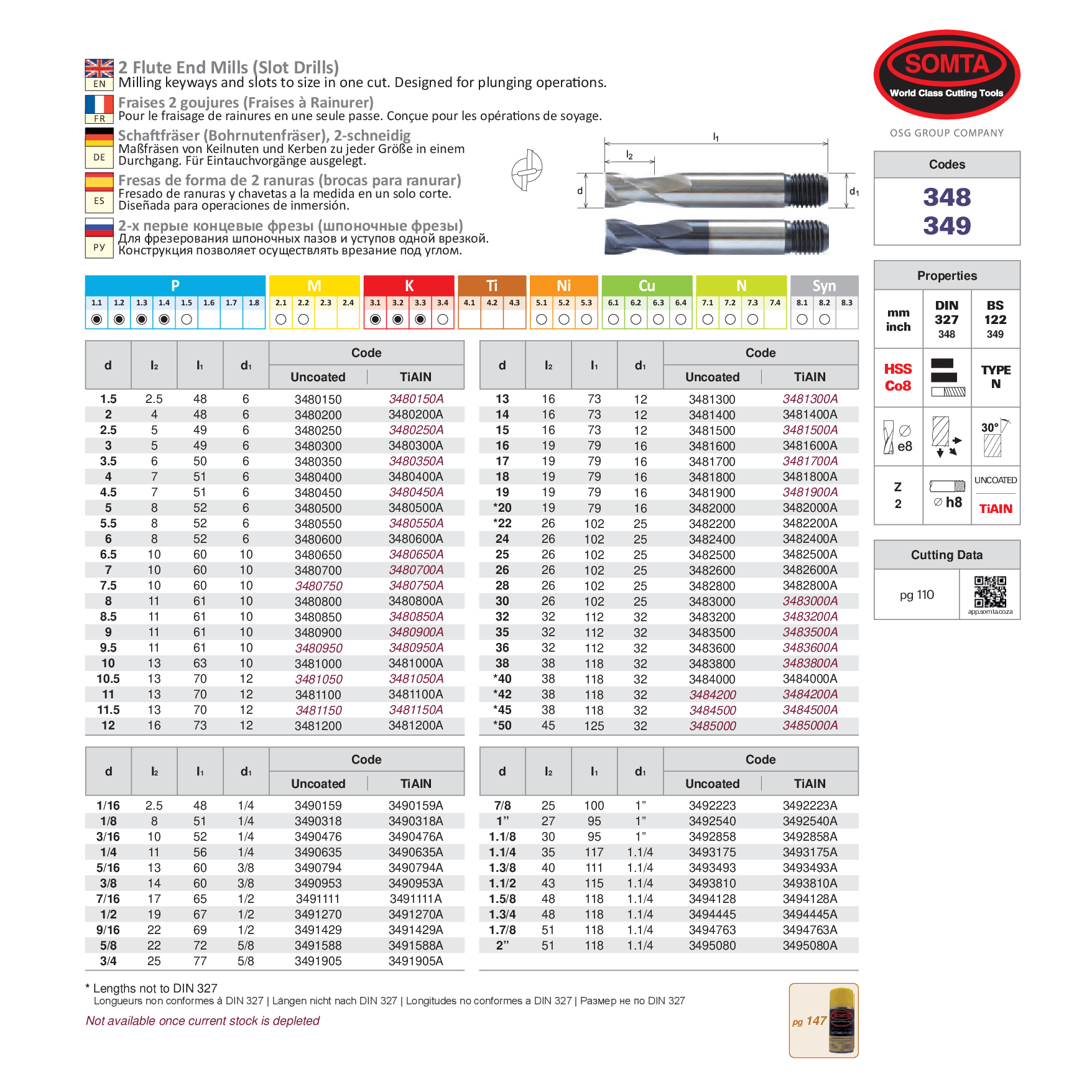

Technical Specifications

  • Part No: 3492858
  • Tool Type: 2-Flute Slot Drill / End Mill
  • Cutting Diameter (d): 1-1/8″ (28.58 mm)
  • Flute Length (l₂): 30 mm
  • Overall Length (l₁): 95 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8)
  • Standard: DIN 327
  • Finish: Uncoated / Optional TiAlN
  • Applications: Ideal for machining deep slots, keyways, and profiles in steel, stainless steel, and cast iron.

Why Choose SOMTA Cutting Tools?

  • Precision Engineered Flutes – Guarantee excellent surface finish and stable cutting performance.
  • Extended Tool Life – Cobalt alloy provides superior thermal stability and resistance to wear.
  • Versatile Machining Performance – Performs reliably on both CNC and manual milling machines.
  • Trusted SOMTA Reliability – Manufactured to exacting global standards for consistent industrial performance.

The SOMTA 3492858 delivers strength, accuracy, and endurance—making it the perfect solution for high-precision slot and keyway milling in demanding machining environments.
