Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill) | 3493810 The SOMTA 3493810 is a precision-engineered 1-1/2″ 2-flute slot drill made from high-performance HSS-Co8 (8% cobalt...
$451.87
$0.00
$451.87
(-0%)
Vendor: SOMTA
SKU: 3493810
Availability: In Stock
Subtotal: $451.87
Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $451.87

Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $451.87

Somta Series 349 – 1-1/2" HSS-Co8 2 Flute End Mill (Slot Drill) | 3493810

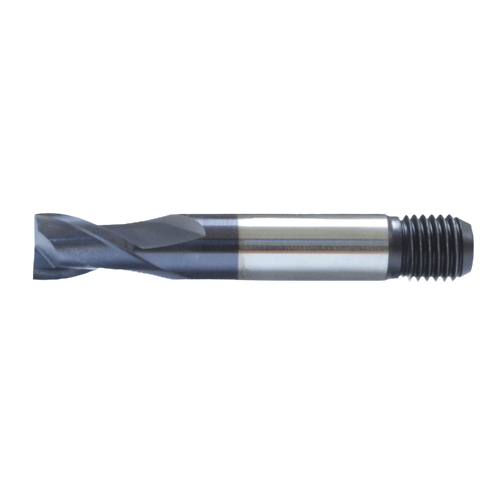

The SOMTA 3493810 is a precision-engineered 1-1/2″ 2-flute slot drill made from high-performance HSS-Co8 (8% cobalt high-speed steel), designed for superior performance in demanding milling operations. It provides exceptional heat resistance, tool life, and dimensional accuracy when machining deep slots, keyways, and contours in hardened steels, stainless steels, and cast iron.

Key Features & Benefits

  • Premium HSS-Co8 Material – Delivers outstanding hardness, red-heat resistance, and wear performance for extended service life.
  • 2-Flute Geometry – Provides excellent chip evacuation and smooth cutting in slotting and pocket milling applications.
  • Centre-Cutting Design – Enables plunge, ramp, and contour milling operations with precision.
  • DIN 327 Standard – Guarantees consistent accuracy and dimensional control for repeatable results.
  • Optional TiAlN Coating – Enhances performance and durability under dry or high-speed cutting conditions.

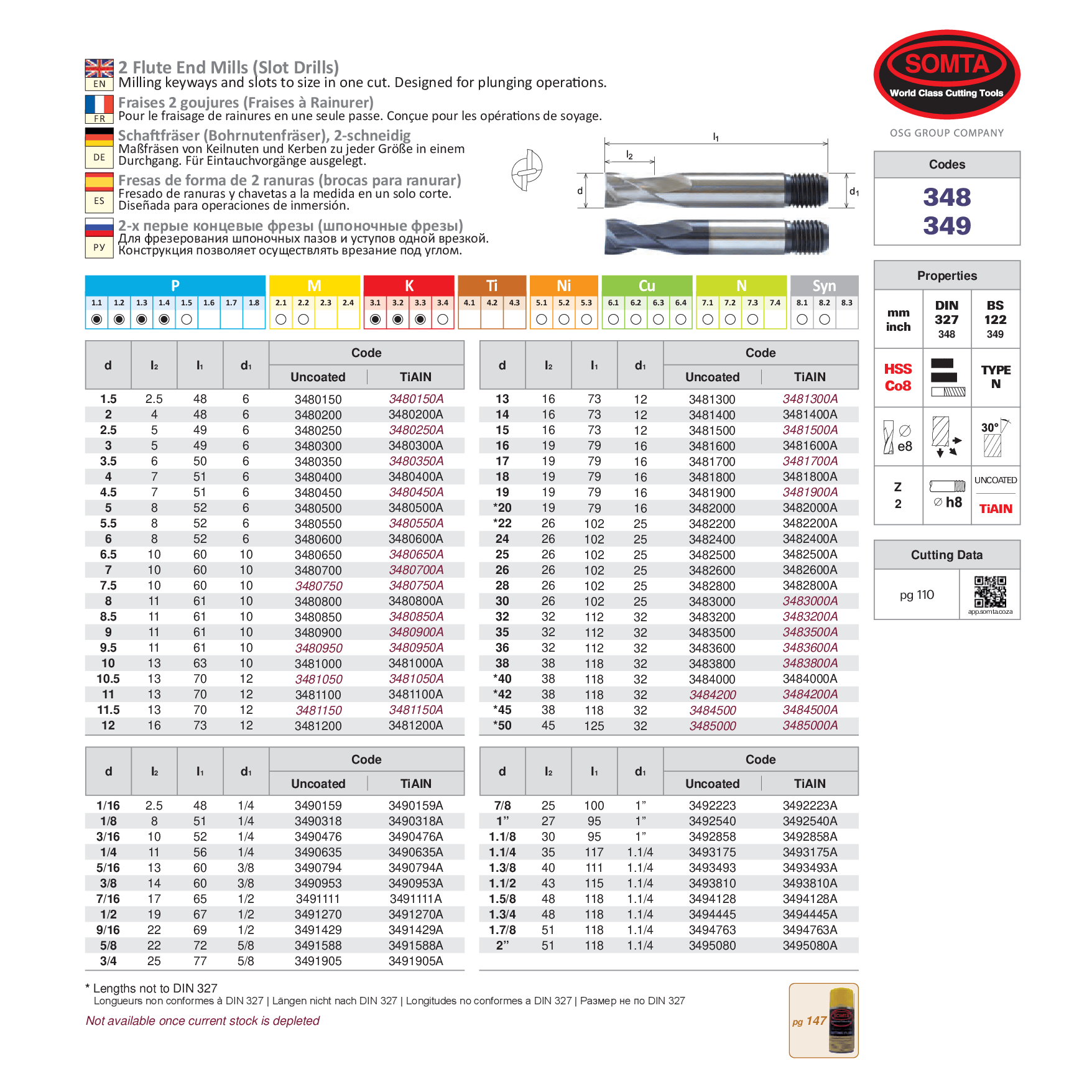

Technical Specifications

  • Part No: 3493810
  • Tool Type: 2-Flute Slot Drill / End Mill
  • Cutting Diameter (d): 1-1/2″ (38.10 mm)
  • Flute Length (l₂): 43 mm
  • Overall Length (l₁): 115 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8)
  • Standard: DIN 327
  • Finish: Uncoated / Optional TiAlN
  • Applications: Designed for slotting, pocketing, and contouring in steel, stainless steel, and cast iron materials.

Why Choose SOMTA Cutting Tools?

  • Precision Engineering – Ensures accurate cutting performance and smooth surface finishes.
  • Superior Durability – Retains sharpness under high temperatures and heavy cutting conditions.
  • Versatile Performance – Suitable for both CNC machining centers and manual milling machines.
  • Proven SOMTA Quality – Manufactured to global standards for industrial-grade reliability and consistency.

The SOMTA 3493810 offers unmatched performance, strength, and precision for heavy-duty slot and keyway milling applications—trusted by professionals for superior machining results.
