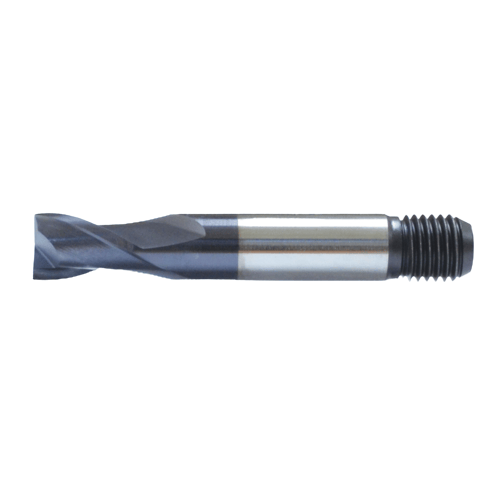

Somta Series 348 – 30.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 30.0 mm HSS Slot Drill (2 Flute) | 3483000 The SOMTA 3483000 is a large-diameter 30.0 mm 2-flute slot drill constructed from high-grade HSS. Engineered for...
$277.38
$0.00
$277.38
(-0%)
Vendor: SOMTA
SKU: 3483000
Availability: In Stock
Subtotal: $277.38
Somta Series 348 – 30.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 30.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $277.38

Somta Series 348 – 30.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $277.38

Somta Series 348 – 30.0 mm HSS Slot Drill (2 Flute) | 3483000

The SOMTA 3483000 is a large-diameter 30.0 mm 2-flute slot drill constructed from high-grade HSS. Engineered for accuracy and durability, it is ideal for slotting, keyway, and pocket milling in a wide range of materials including mild steels, cast irons, and non-ferrous metals.

Key Features & Benefits

  • High-Speed Steel Material – Offers reliable toughness and resistance to tool wear.
  • 2-Flute Design – Provides smooth cutting and efficient chip evacuation.
  • Centre-Cutting Capability – Suitable for direct plunge and contour milling.
  • Optional Coating – Enhances performance and longevity during continuous use.
  • DIN 327 Standard – Ensures consistent tool accuracy and geometry.

Technical Specifications

  • Part No: 3483000
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 30.0 mm
  • Flute Length (l₂): 26 mm
  • Overall Length (l₁): 102 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel (HSS)
  • Coating: Uncoated / optional coating
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Slotting, keyway, and pocket milling in steels, cast irons, and non-ferrous materials.

Why Choose SOMTA Cutting Tools?

  • Precision Engineering – Delivers clean and consistent results every time.
  • Long Tool Life – Retains edge sharpness through multiple operations.
  • Versatile Application – Ideal for manual and CNC milling machines.
  • Trusted SOMTA Brand – Synonymous with quality and performance in cutting tools.

The SOMTA 3483000 combines strength, precision, and durability for large-scale industrial slot milling.
