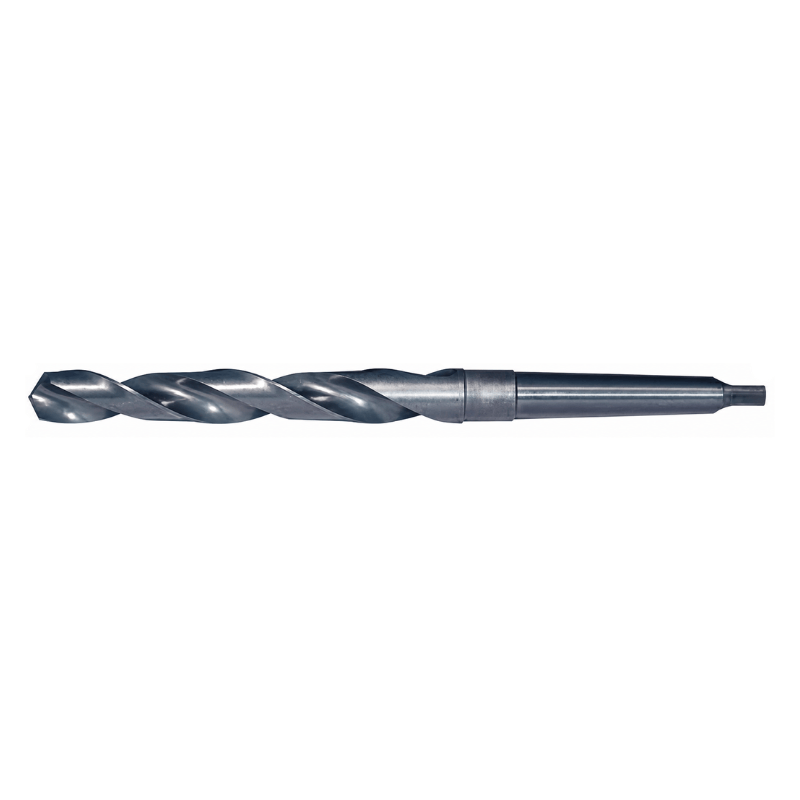

Somta Series 201 – 12.5 mm HSS Morse Taper Shank Drill MT1 DIN 345

The Somta Series 201 Morse Taper Shank Drill is engineered for precision drilling in industrial, engineering, and metalworking applications. Manufactured from premium high speed steel, this drill delivers reliable cutting...
$57.58
$0.00
$57.58
(-0%)
Vendor: SOMTA
SKU: 2011250
Availability: In Stock
Subtotal: $57.58
SOMTA DRILLS Somta Series 201 – 12.5 mm HSS Morse Taper Shank Drill MT1 DIN 345

Somta Series 201 – 12.5 mm HSS Morse Taper Shank Drill MT1 DIN 345

$0.00 $57.58

Somta Series 201 – 12.5 mm HSS Morse Taper Shank Drill MT1 DIN 345

$0.00 $57.58

The Somta Series 201 Morse Taper Shank Drill is engineered for precision drilling in industrial, engineering, and metalworking applications. Manufactured from premium high speed steel, this drill delivers reliable cutting performance, excellent durability, and consistent hole accuracy across a wide range of ferrous materials.

Designed to DIN 345 standards, the drill features a Morse taper shank for secure machine holding and improved rigidity during heavy-duty drilling operations. The 118° thinned point design improves centering accuracy, reduces drilling pressure, and enhances chip evacuation for smoother drilling performance.

Key Features & Benefits

  • Somta Series 201 Morse taper shank drill
  • Part Number: 2011250
  • Drill Diameter: 12.5mm

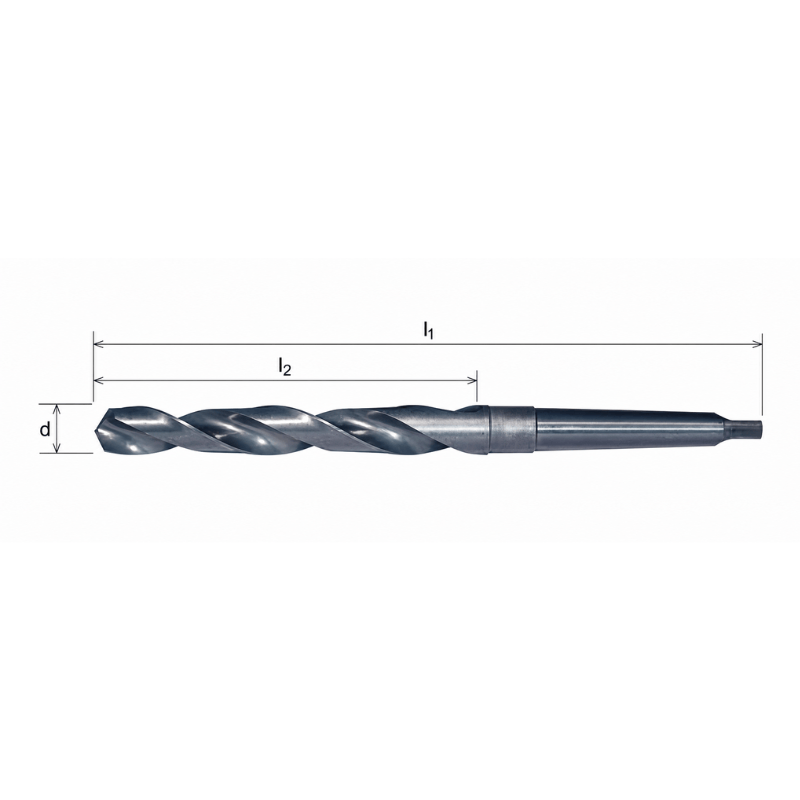

  • Overall Length (l1): 182mm
  • Flute Length (l2): 101mm
  • Manufactured from premium HSS
  • 118° thinned point for accurate centering
  • Type N general-purpose drill geometry
  • 30° helix angle for improved chip evacuation
  • Morse taper shank for secure machine fitment
  • Bright finish shank and point
  • Suitable for precision drilling applications
  • Manufactured to DIN 345 standards

Technical Specifications

  • Brand: Somta
  • Series: 201
  • Tool Type: Morse Taper Shank Drill
  • Diameter: 12.5mm
  • Overall Length: 182mm
  • Flute Length: 101mm
  • Material: HSS
  • Point Angle: 118°
  • Helix Angle: 30°
  • Drill Type: Type N
  • Standard: DIN 345
  • Shank Type: Morse Taper No.1
  • Finish: Bright finish shank and point
  • Code: 2011250

Somta cutting tools are trusted worldwide for their precision engineering, consistent performance, and durability in industrial machining, fabrication, maintenance, and general engineering applications.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
