Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill

Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill HSS Blue Finish The Somta Series 2A1 MTS Chipbreaker Drill is manufactured from premium High-Speed Steel (HSS) and is designed for high-performance...
$184.21
$0.00
$184.21
(-0%)
Vendor: SOMTA
SKU: 2A12342
Availability: In Stock
Subtotal: $184.21
SOMTA Drill Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill

Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill

$0.00 $184.21

Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill

$0.00 $184.21

Somta Series 2A1 – 59/64" MT3 Chipbreaker Drill HSS Blue Finish

The Somta Series 2A1 MTS Chipbreaker Drill is manufactured from premium High-Speed Steel (HSS) and is designed for high-performance production drilling applications. The specialised chipbreaker point geometry improves chip control and reduces cutting forces, making it ideal for efficient drilling in demanding production environments.

Manufactured to DIN 345 standards, this Morse Taper Shank drill features a Type N flute profile, 118° point angle, and blue finish for enhanced drilling performance. The h8 body tolerance and 30° helix angle provide excellent accuracy, rigidity, and smooth chip evacuation when machining a wide range of ferrous and non-ferrous materials.

Key Features & Benefits

  • Premium High-Speed Steel (HSS) construction
  • Chipbreaker point geometry for high-performance production drilling
  • Morse Taper Shank design for secure machine mounting
  • Manufactured to DIN 345 standards
  • Type N flute geometry for general engineering applications
  • 118° point angle for accurate hole starting
  • 30° helix angle for efficient chip evacuation
  • h8 body tolerance for precision drilling
  • Blue finish for reliable cutting performance
  • Suitable for production workshops and heavy-duty machining operations

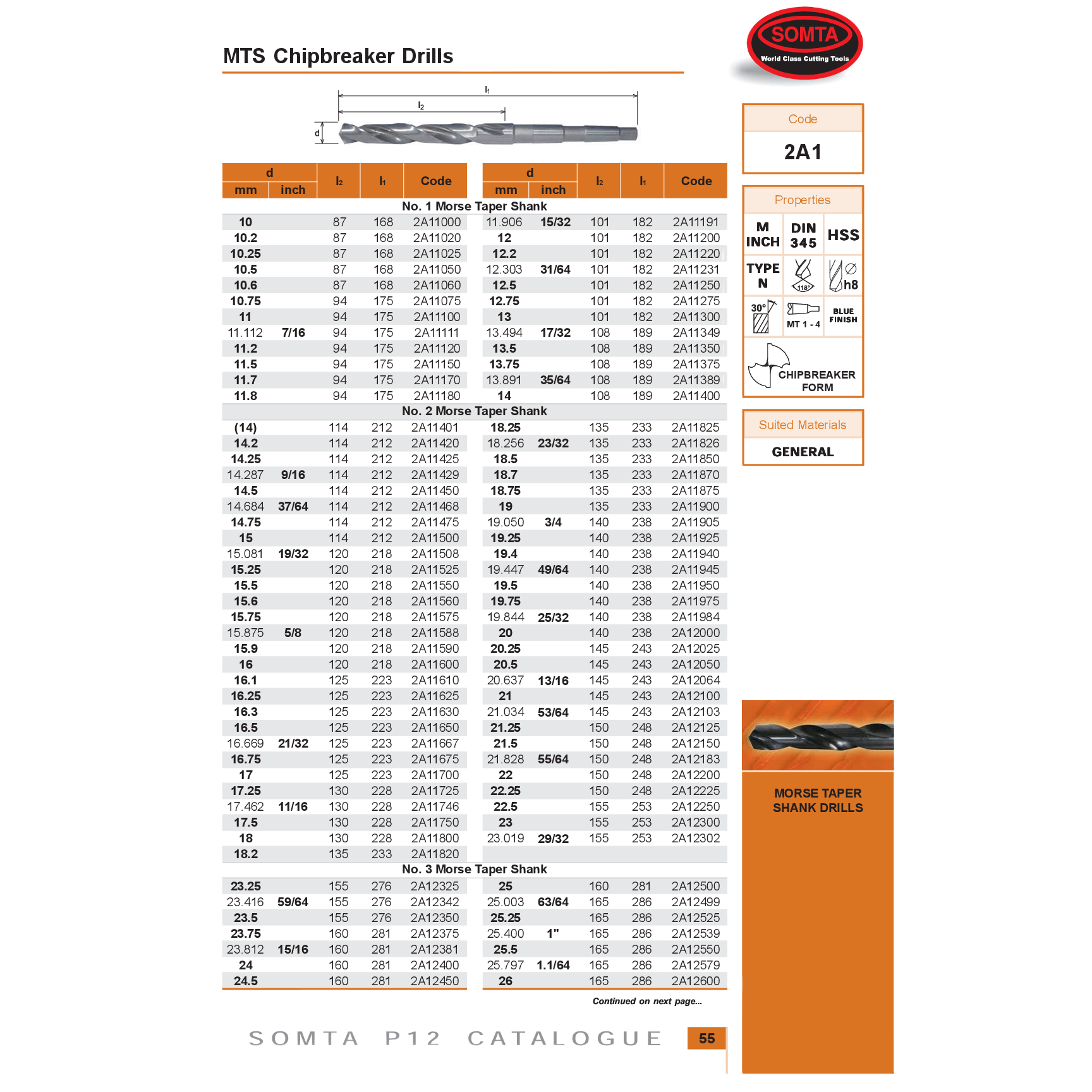

Technical Specifications

  • Brand: Somta
  • Series: 2A1
  • Part Number: 2A12342
  • Tool Type: MTS Chipbreaker Drill
  • Drill Diameter: 59/64" (23.416mm)
  • Shank Type: Morse Taper No. 3
  • Flute Length (l2): 155mm
  • Overall Length (l1): 276mm
  • Material: High-Speed Steel (HSS)
  • Standard: DIN 345
  • Flute Type: Type N
  • Point Angle: 118°
  • Helix Angle: 30°
  • Body Tolerance: h8
  • Finish: Blue Finish
  • Application: High-performance production drilling

Somta Series 2A1 Chipbreaker Drills are trusted by machinists for their durability, accuracy, and efficient chip control. The 2A12342 59/64" MTS Chipbreaker Drill delivers dependable performance and extended tool life for demanding production drilling applications.
