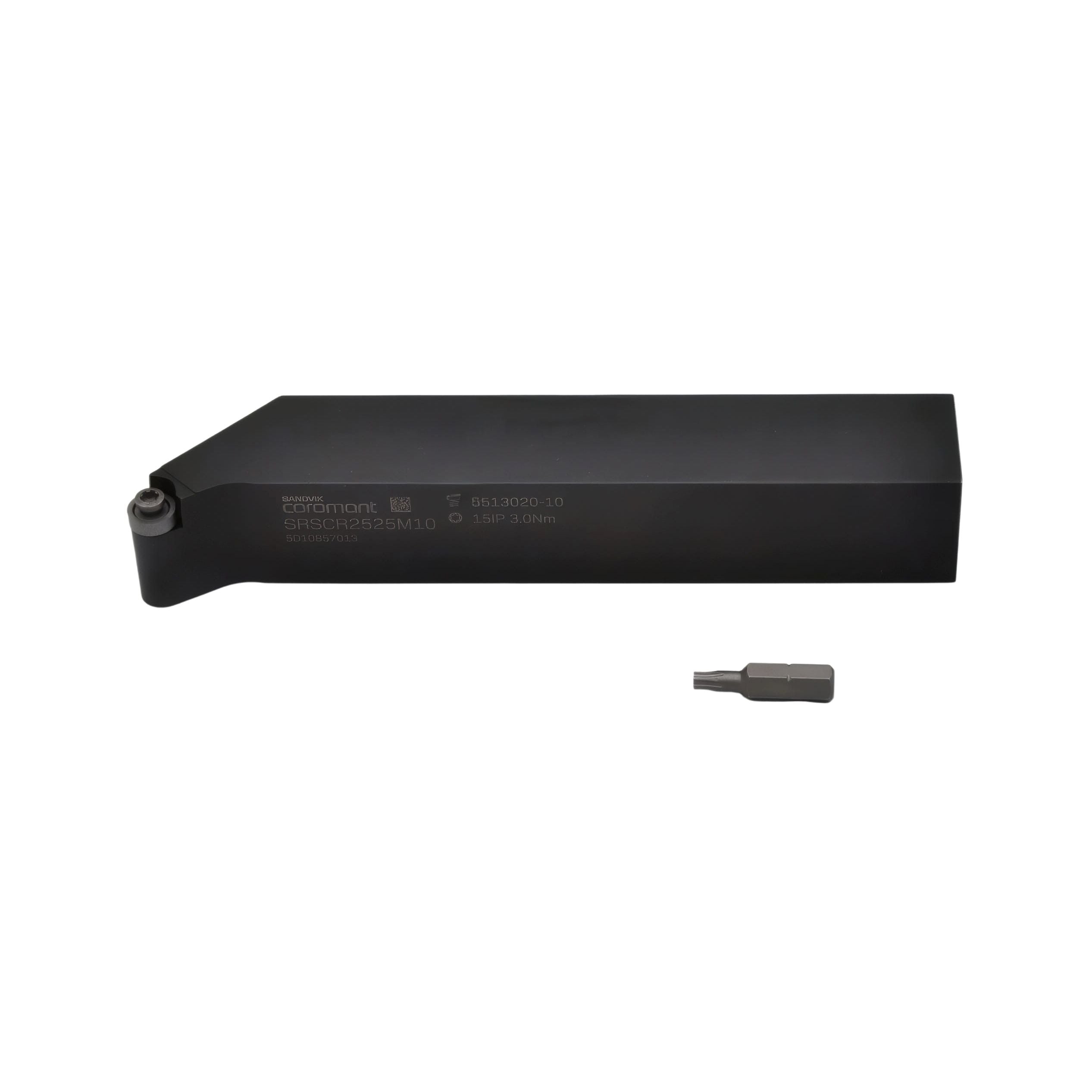

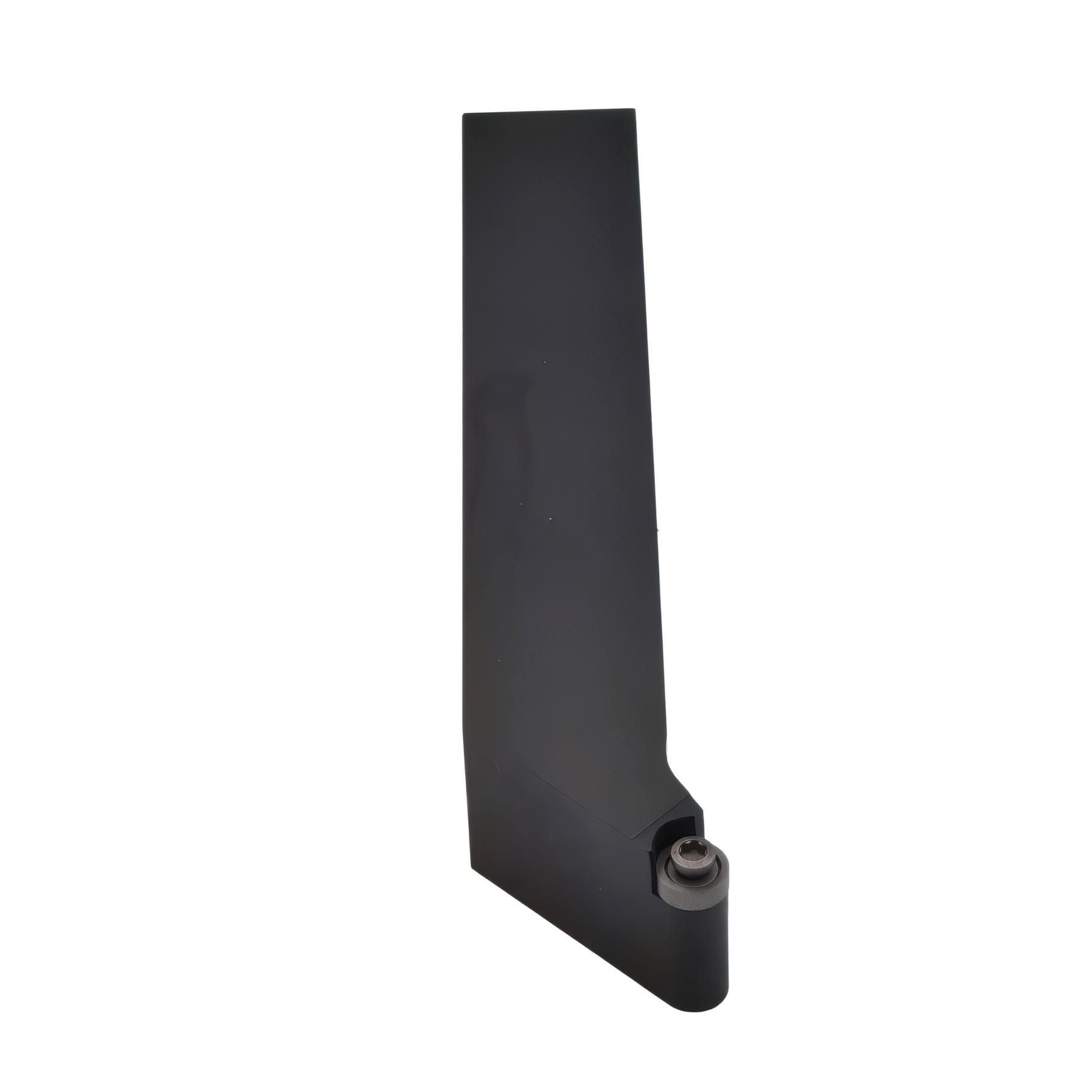

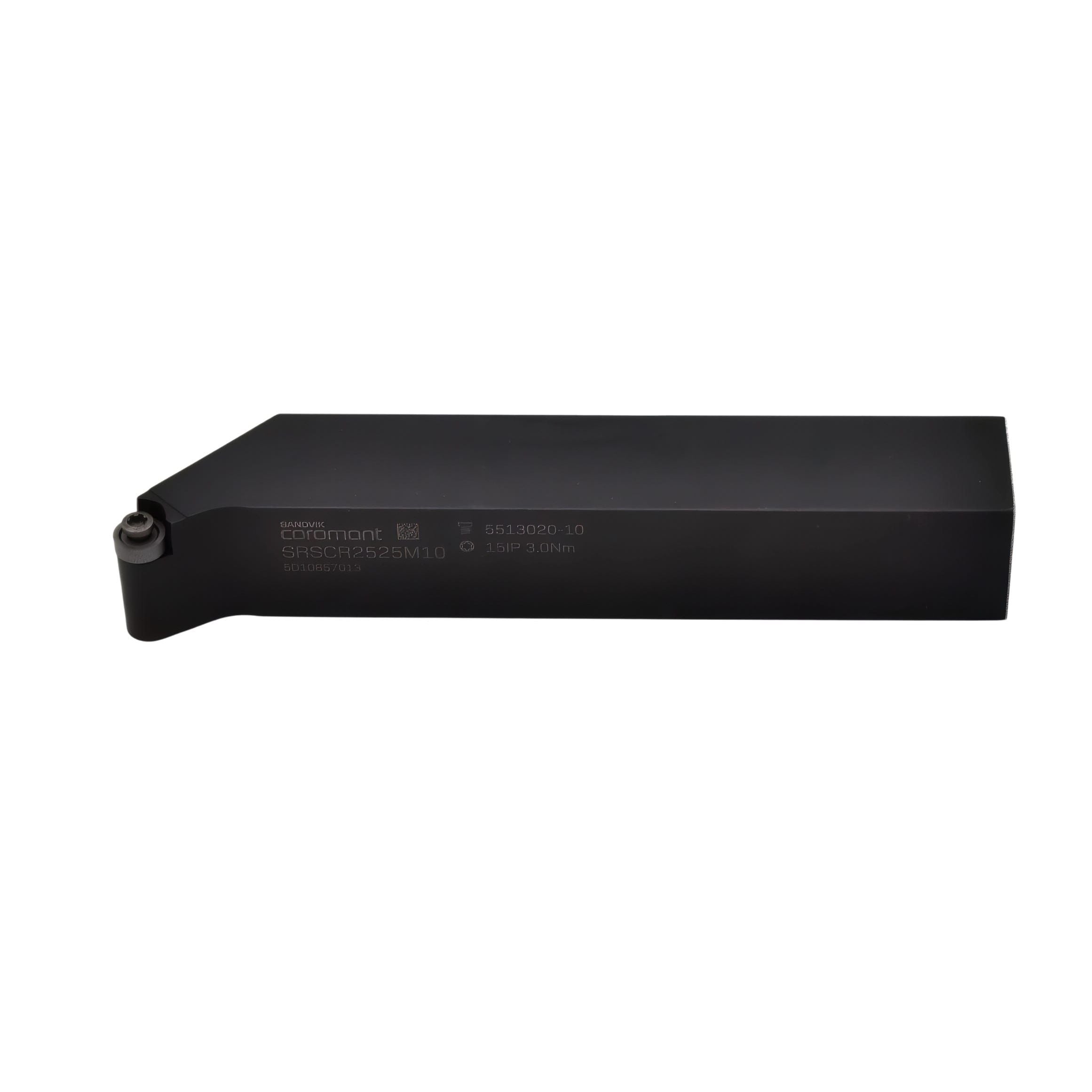

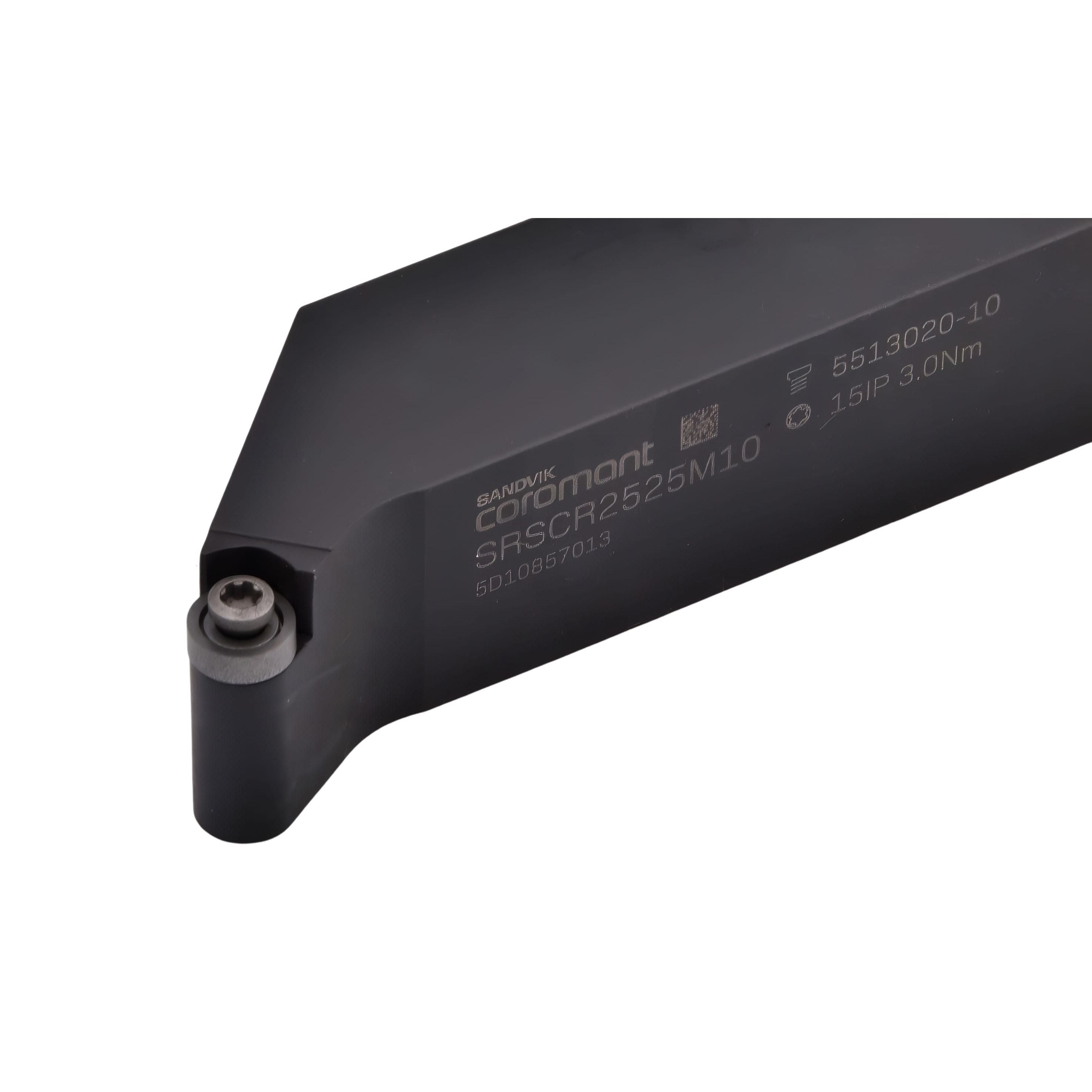

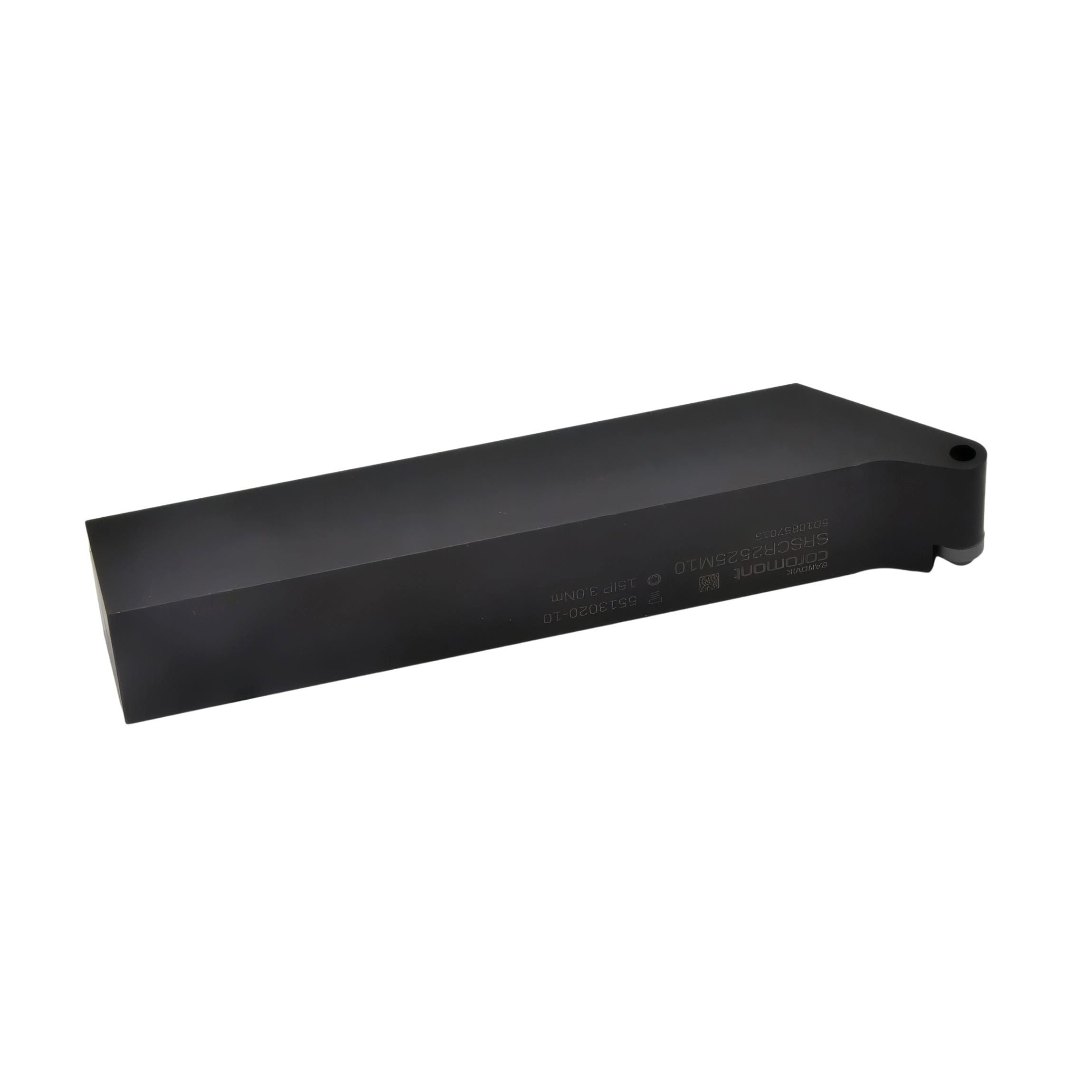

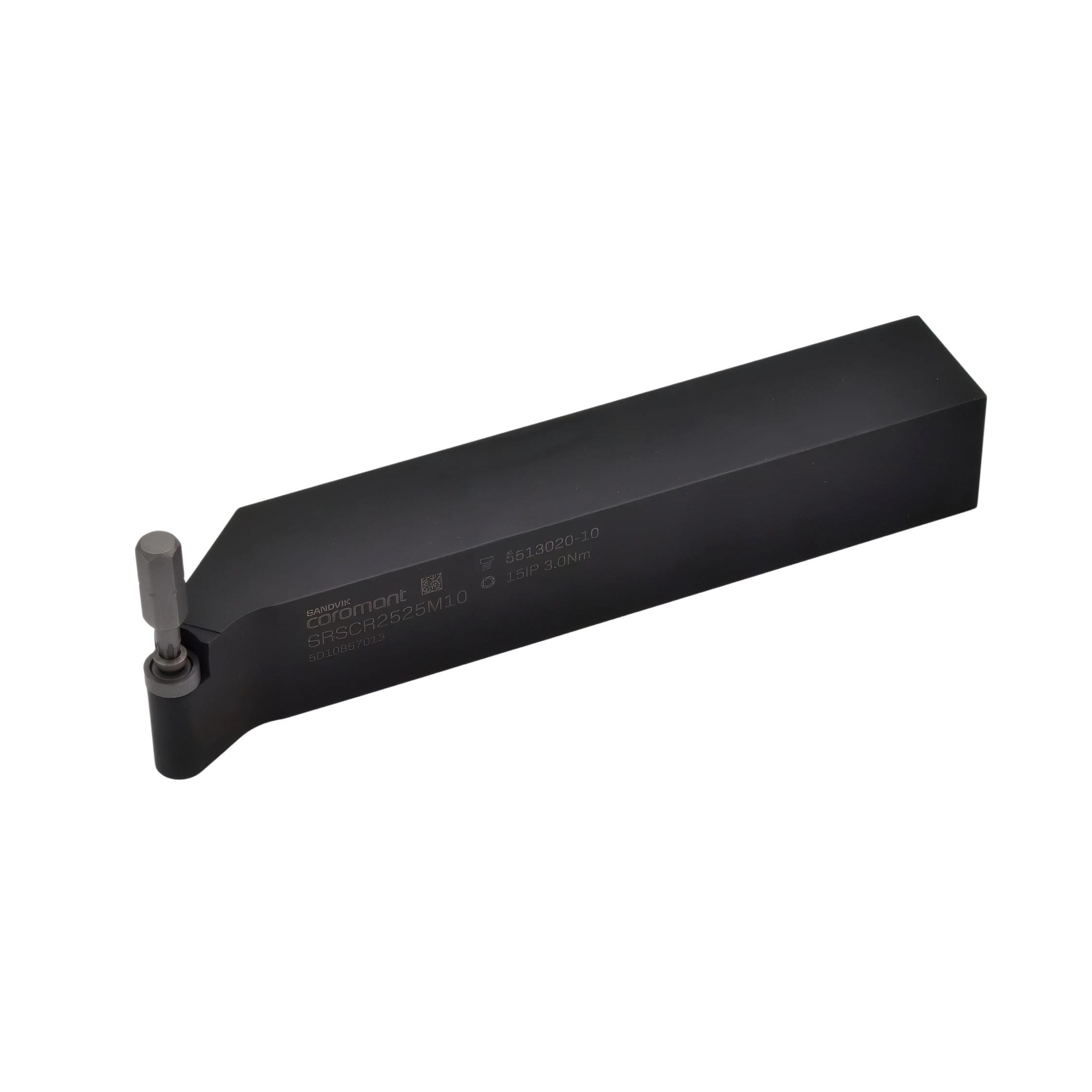

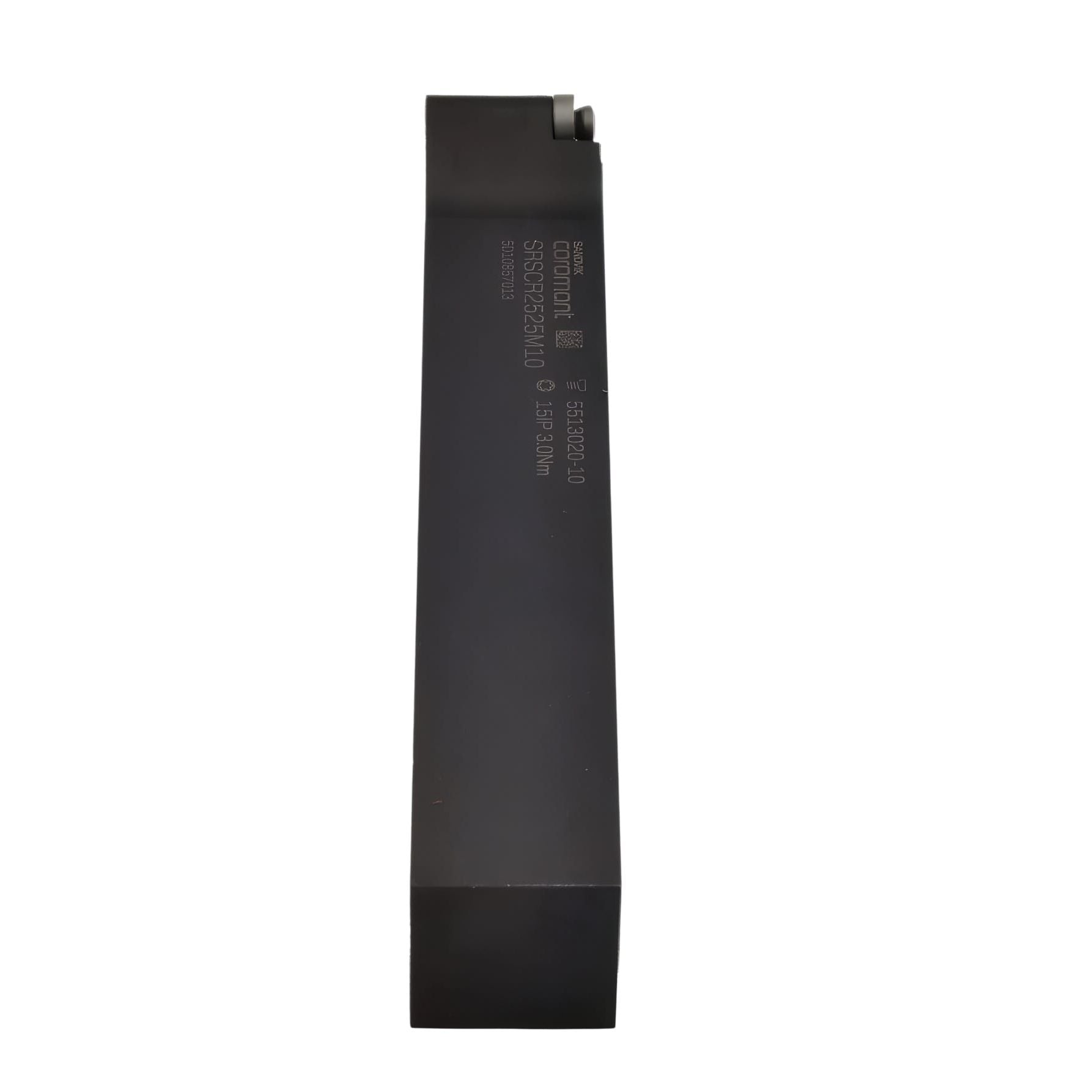

Sandvik SRSCR 2525M 10 – External Turning Tool Holder

The SRSCR 2525M 10 is a high-performance external turning toolholder from Sandvik Coromant, engineered for precision machining and dependable performance. As part of the CoroTurn® 107 system, this toolholder is...
$199.00
$0.00
$199.00
(-0%)
Vendor: SANDVIK
SKU: SRSCR 2525M 10
Availability: In Stock
Subtotal: $199.00
SANDVIK Tool Holder Sandvik SRSCR 2525M 10 – External Turning Tool Holder

Sandvik SRSCR 2525M 10 – External Turning Tool Holder

$0.00 $199.00

Sandvik SRSCR 2525M 10 – External Turning Tool Holder

$0.00 $199.00

The SRSCR 2525M 10 is a high-performance external turning toolholder from Sandvik Coromant, engineered for precision machining and dependable performance. As part of the CoroTurn® 107 system, this toolholder is built with a robust steel body and features a clamp with screw-through-hole clamping system to ensure secure and accurate insert positioning. The 25 × 25 mm rectangular shank allows for stable mounting in standard tool posts, making it suitable for both CNC and manual lathes.

Designed for use with RCMT 10T3 inserts, this right-hand toolholder delivers smooth cutting performance and excellent versatility across a range of turning applications. Its rigid construction helps minimise vibration, while the 27° maximum ramping angle enables efficient profiling and turning operations. Ideal for general machining, the SRSCR 2525M 10 ensures consistent results in demanding workshop environments.

Key Features & Benefits

• Compatible with RCMT 10T3 round inserts for versatile turning applications.
• Clamp with screw-through-hole system ensures secure insert clamping.
• Right-hand toolholder design for directional machining operations.
• Rigid 25 × 25 mm rectangular shank for stable and secure mounting.
• Durable steel construction for long service life and vibration resistance.
• Part of Sandvik Coromant CoroTurn® 107 system for precision turning.

Technical Specifications

Item No / Material Id: SRSCR 2525M 10
Insert Compatibility: RCMT 10T3 M0
Clamping Type: Clamp with screw through hole
Shank Size: 25 × 25 mm
Overall Length (OAL): 150 mm
Maximum Overhang: 28 mm
Maximum Ramping Angle: 27°
Hand: Right
Functional Width: 32 mm
Functional Height: 25 mm
Torque: 3 Nm
Coolant Entry: Without coolant entry
Coolant Exit: No coolant exit
Body Material: Steel
Insert Seat Size: 10
Insert Seat Size (Imperial): 0.394
Weight: 0.673 kg
