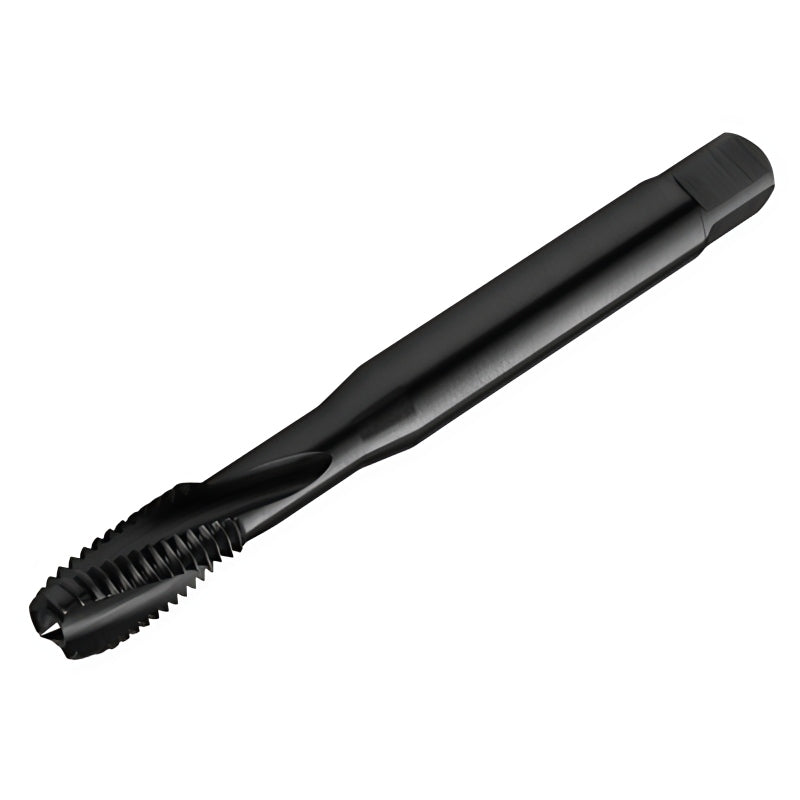

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

Sandvik #10-24 UNC Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1) Engineered for high-performance CNC and conventional machining. The spiral flute geometry (45° helix) lifts chips up and out...
$52.50
$52.50
(-0%)
Vendor: SANDVIK
SKU: T300-XM100DE-10-24 C145
Availability: In Stock
Subtotal: $52.50
Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

$52.50

Sandvik HSS-PM Blue Spiral Flute PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

$52.50

Sandvik #10-24 UNC Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Engineered for high-performance CNC and conventional machining. The spiral flute geometry (45° helix) lifts chips up and out toward the entry side, protecting the thread form and preventing chip packing in blind cavities. Ideal for blind holes in steels, stainless, and cast irons (PMK).

Key Features & Benefits

  • Extended Tool Life – HSS-PM substrate with PVD FeN coating resists wear and built-up edge.
  • Superior Chip Evacuation – 45° spiral flute pulls swarf out of blind holes for reliable tapping.
  • Production Ready – DIN 2184-1 shank; 3-flute design balances strength with chip space.
  • Consistent Accuracy – UNC 2B class for repeatable, in-spec threads.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK
Thread Size UNC #10-24 #10-24
Thread Form UNC 60° UNC 60°

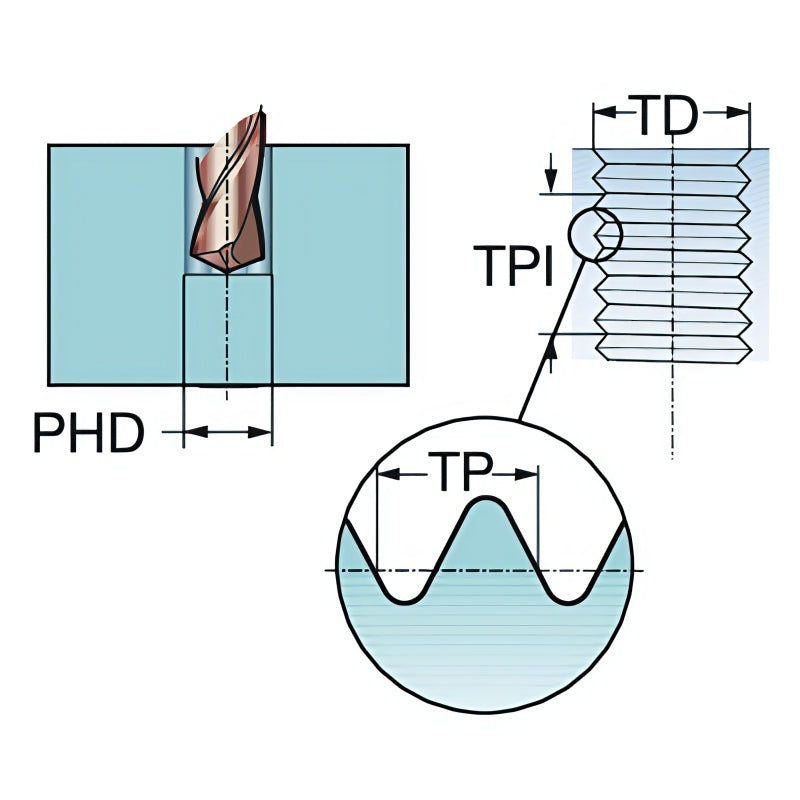

Thread Pitch 1.0583 mm (equiv.) 24 TPI
Thread Diameter 4.826 mm 0.1900 in
Tap Chamfer Length 2.1032 mm 0.0828 in
Premachined Hole Diameter 3.9 mm 0.1535 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1

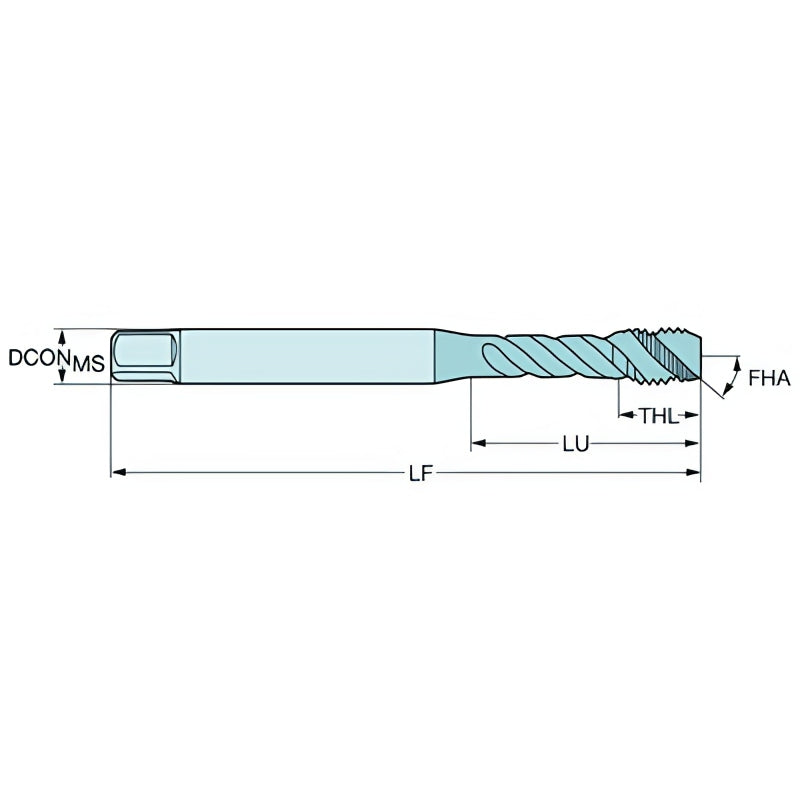

Usable Length (LU) 25 mm 0.9843 in
Functional Length (LF) 70 mm 2.7559 in
Overall Length (OAL) 72 mm 2.8346 in
Neck Diameter 3.62 mm 0.1425 in
Flute Count 3
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 8 mm 0.3150 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade C145
Substrate HSS-PM
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 6.00 × 4.90
Connection Diameter (Machine Side) 6.0 mm 0.2362 in
Connection Diameter Tolerance h9
Weight 0.0132 kg 0.0291 lb
Maximum Regrinds 0
Release Date 09/20/2014
Release Pack ID 14.2

Why Choose This Tool?

This Sandvik spiral flute tap combines an HSS-PM substrate, PVD FeN coating, and a 45° helix with a C-chamfer to deliver long life, crisp threads, and excellent chip control in blind holes—perfect for professional production on CNC or manual machines.
