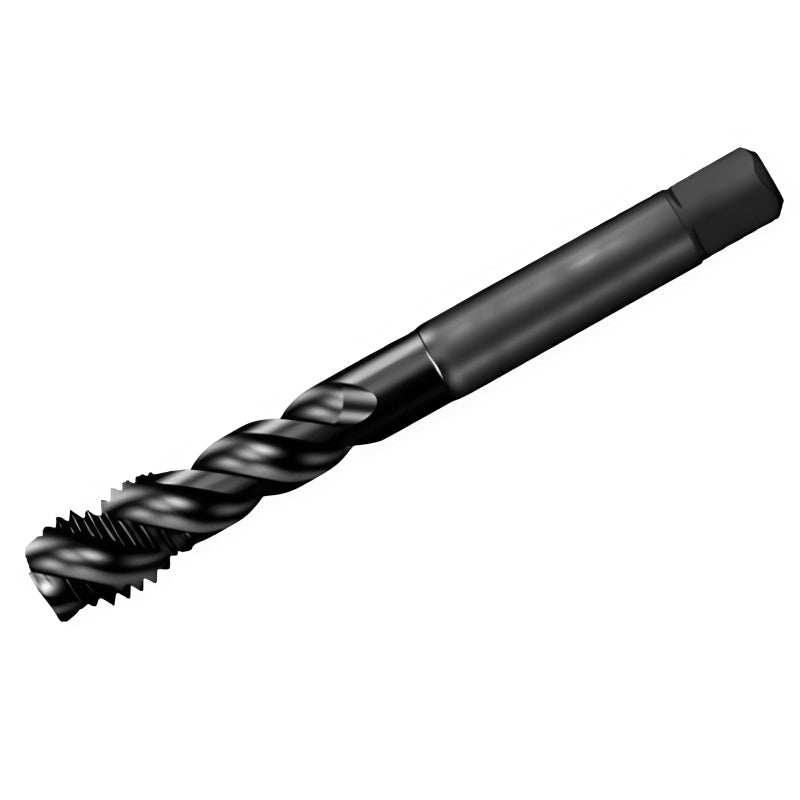

Sandvik UNF 7/8"-14 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Designed for threading operations in steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry is optimized for blind holes, efficiently lifting chips out of the hole while maintaining thread precision. Ideal for demanding CNC and conventional machining.

Key Features & Benefits

  • Durable Construction – HSS-E substrate with PVD FeN coating maximizes tool life and wear resistance.
  • Optimized for Blind Holes – 45° spiral flutes ensure clean chip evacuation and accurate threads.
  • Industrial Standard – Built to DIN 2184-1 standards for consistent performance and reliability.
  • Accurate Threading – Ground to UNF 2B tolerance class for precision fit in production environments.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK
Thread Size UNF 7/8"-14 7/8"-14
Thread Form UNF 60° UNF 60°

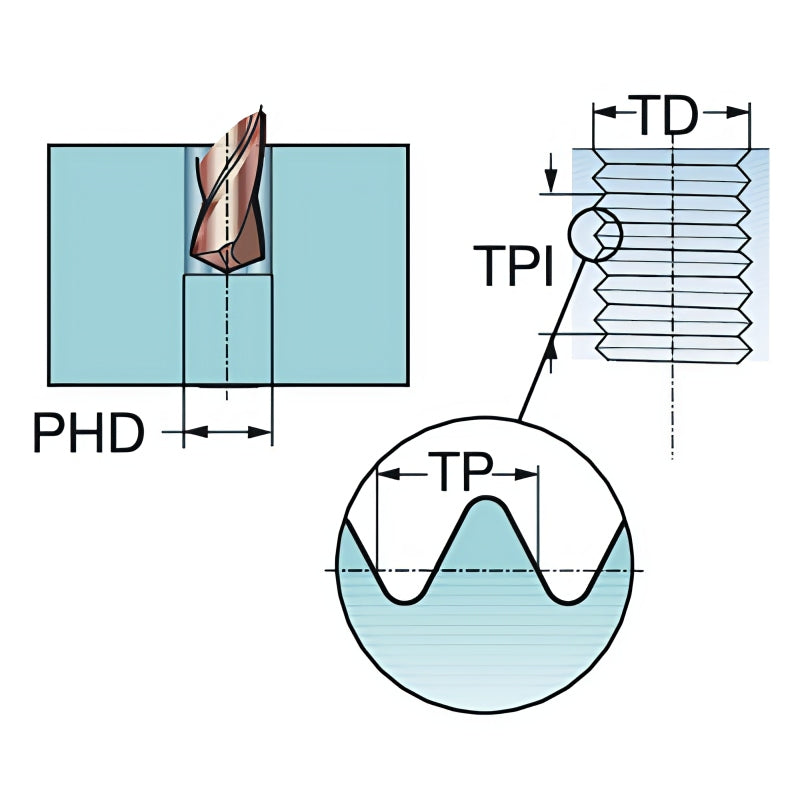

Thread Pitch 1.81 mm 14 TPI
Thread Diameter 22.23 mm 0.875 in
Tap Chamfer Length 3.76 mm 0.1481 in
Premachined Hole Diameter 20.4 mm 0.8031 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1
Usable Length (LU) 92.75 mm 3.6516 in

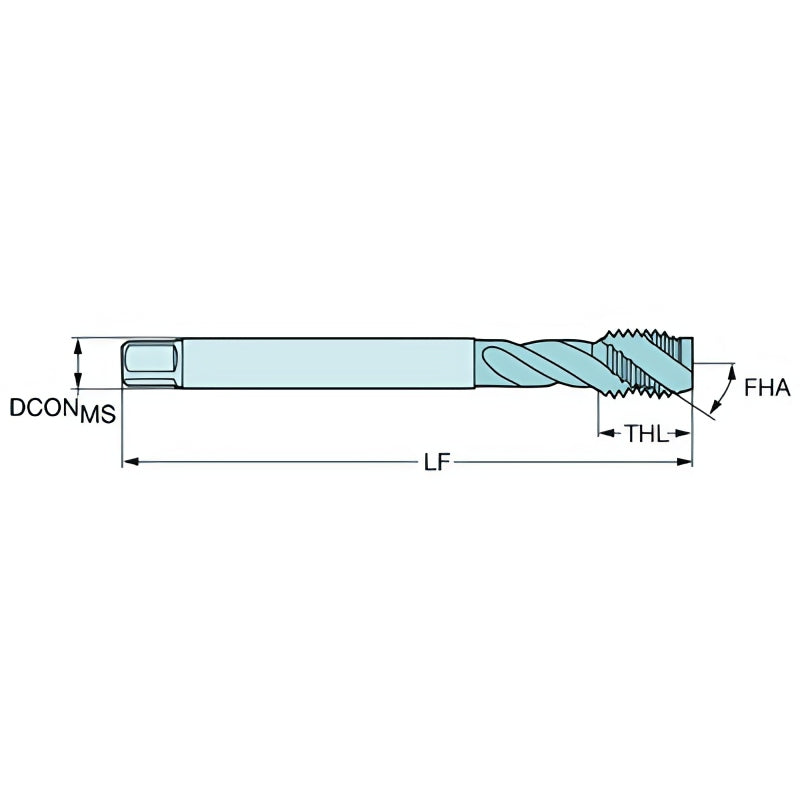

Functional Length (LF) 140 mm 5.5118 in
Overall Length (OAL) 140 mm 5.5118 in
Neck Diameter 17.6 mm 0.6929 in
Flute Count 4
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 25 mm 0.9843 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade B145
Substrate HSS-E
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 18.00 × 14.50
Connection Diameter (Machine Side) 18.0 mm 0.7087 in
Connection Diameter Tolerance h9
Weight 0.240 kg 0.5291 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

The Sandvik UNF 7/8"-14 spiral flute tap combines HSS-E toughness with a PVD FeN coating to ensure long life and reliable cutting performance. Its 45° spiral flute design guarantees efficient chip evacuation in blind holes, making it a reliable choice for threading steels, stainless steels, and cast irons in both CNC and manual applications.
