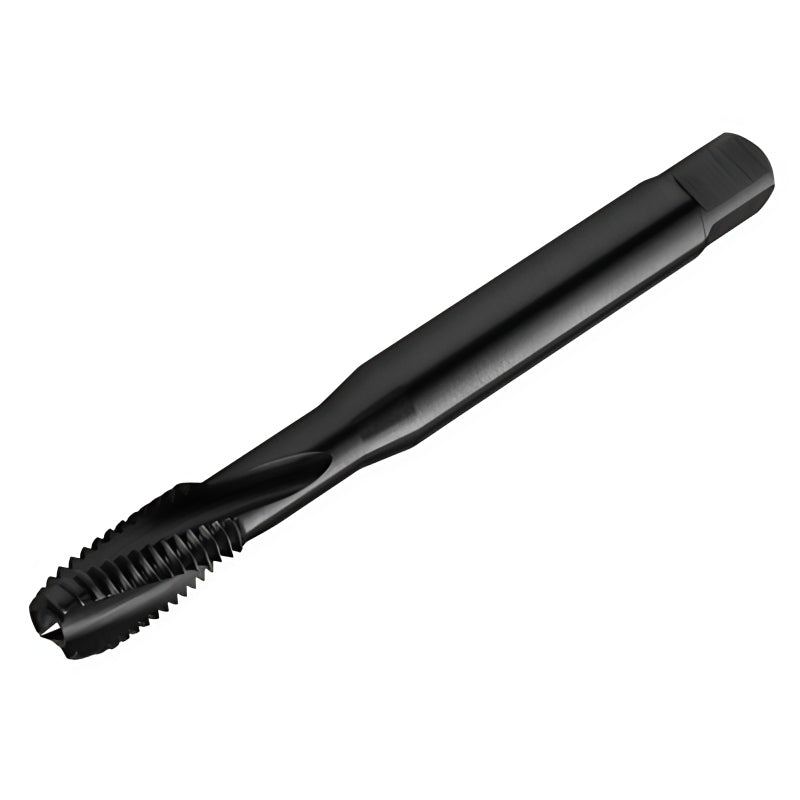

Engineered for precision CNC and manual machining. The spiral flute geometry with a 45° helix ensures chips are lifted smoothly out of the hole, preventing clogging and guaranteeing clean, accurate threads in steels, stainless steels, and cast irons (PMK). Specifically designed for blind hole applications.
Specification | Metric | Imperial |
---|---|---|
Workpiece Material(s) | PMK | — |

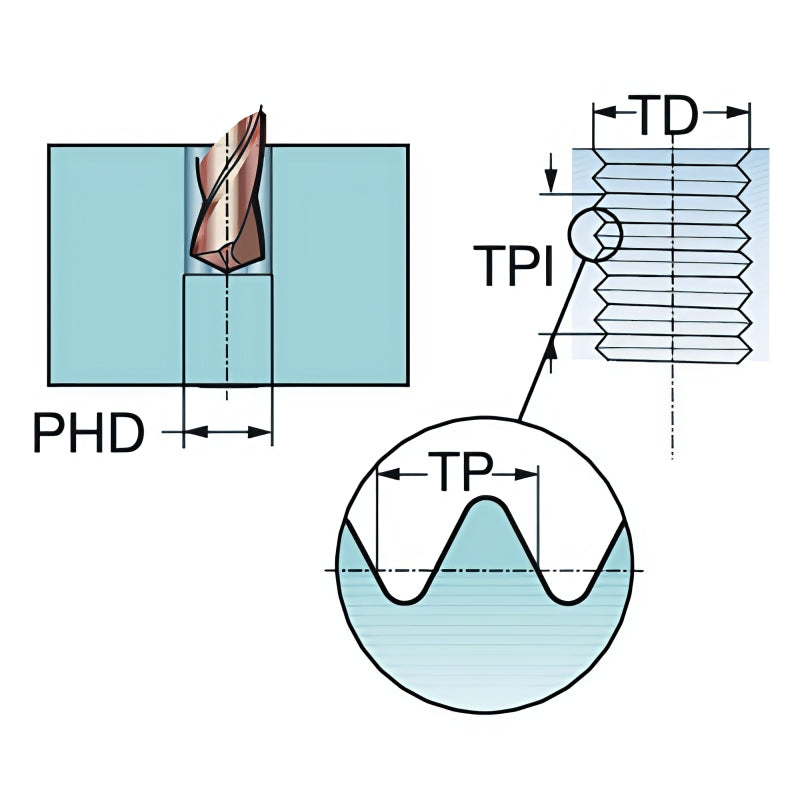

Thread Size | UNC 3/8-16 | 3/8-16 |
Thread Form | UNC 60° | UNC 60° |
Thread Pitch | 1.5875 mm (equiv.) | 16 TPI |
Thread Diameter | 9.525 mm | 0.3750 in |
Tap Chamfer Length | 3.3 mm | 0.1299 in |
Premachined Hole Diameter | 8.0 mm | 0.3150 in |
Premachined Hole Type / Hole Type | Blind hole | Blind hole |
Thread Tolerance Class | 2B | — |
Shank Standard | DIN 2184-1 | — |

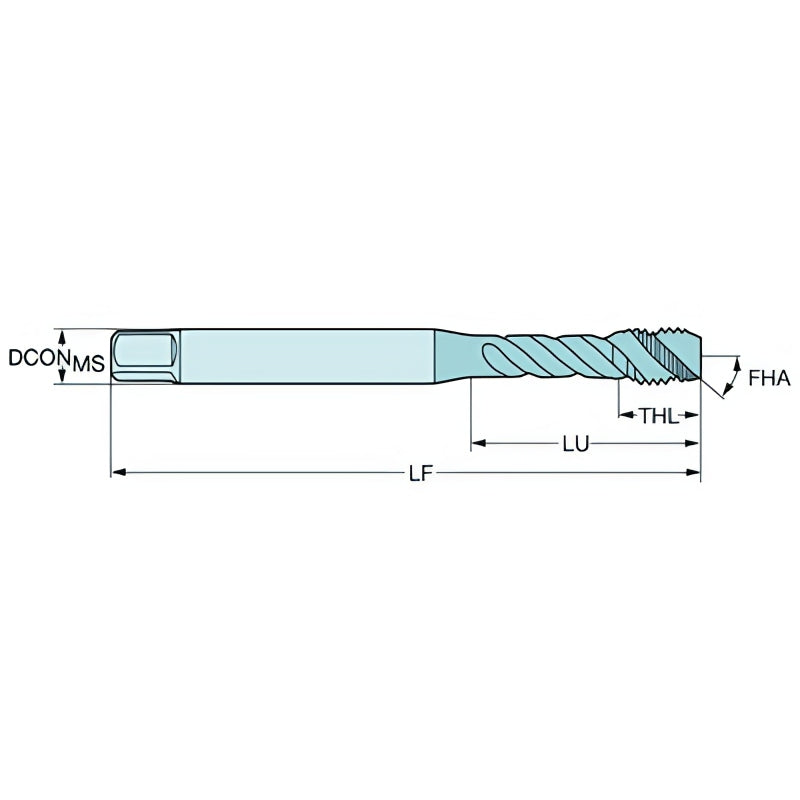

Usable Length (LU) | 39 mm | 1.5354 in |
Functional Length (LF) | 100 mm | 3.9370 in |
Overall Length (OAL) | 101.8 mm | 4.0079 in |
Neck Diameter | 7.3 mm | 0.2874 in |
Flute Count | 3 | — |
Flute Helix Angle | 45° | — |
Radial Rake Angle | 13° | — |
Threading Length | 15 mm | 0.5906 in |
Threading Chamfer Type | C = 2–3×TP | — |
Chip Breaker | XM | — |
Grade | C145 | — |
Substrate | HSS-PM | — |
Coating | PVD FeN | — |
Coolant Entry / Exit | Without / None | — |
Connection – Machine Side | Tap shank DIN-metric 10.00 × 8.00 | — |
Connection Diameter (Machine Side) | 10.0 mm | 0.3937 in |
Connection Diameter Tolerance | h9 | — |
Weight | 0.0518 kg | 0.1142 lb |
Maximum Regrinds | 0 | — |
Release Date | 02/25/2014 | — |
Release Pack ID | 14.1 | — |
This Sandvik spiral flute tap integrates a premium HSS-PM substrate, protective PVD FeN coating, and a 45° spiral design with a C-chamfer for optimized blind-hole tapping. Its durability, accuracy, and efficient chip evacuation make it ideal for both high-volume CNC production and precision manual machining.
