Sandvik HSS-E Blue Spiral Flute PVD FeN coated Tap M3 x 0.5, DIN 371 Reinforced Shank

Sandvik M3 × 0.5 Blue Spiral Flute Tap – Premium Blind Hole Tapping Engineered for high-performance CNC and conventional machining. The spiral flute design evacuates chips upward for clean, precise...
$43.00
$43.00
(-0%)
Vendor: SANDVIK
SKU: E346M3
Availability: In Stock
Subtotal: $43.00
Sandvik M3 x 0.5 Blue Spiral Flute Tap – Precision Tapping for Blind Holes

Sandvik HSS-E Blue Spiral Flute PVD FeN coated Tap M3 x 0.5, DIN 371 Reinforced Shank

$43.00

Sandvik HSS-E Blue Spiral Flute PVD FeN coated Tap M3 x 0.5, DIN 371 Reinforced Shank

$43.00

Sandvik M3 × 0.5 Blue Spiral Flute Tap – Premium Blind Hole Tapping

Engineered for high-performance CNC and conventional machining. The spiral flute design evacuates chips upward for clean, precise threads in stainless steel and other metals.

Key Features & Benefits

  • Extended Tool Life – Optimized material and geometry reduce adhesion, improving durability.
  • Efficient Chip Evacuation – Spiral flutes push swarf upward for continuous production.
  • High-Performance Production – Designed for stainless steel and other metals.
  • Precision Threading – Maintains tight 6H tolerance for consistent results.

Technical Specifications

Specification Metric Imperial
Thread Size M3
Thread Pitch 0.5 mm 0.0197 in
Thread Form M (Metric 60°)
Thread Diameter 3 mm 0.1181 in
Tap Chamfer Length 1.1359 mm 0.0447 in

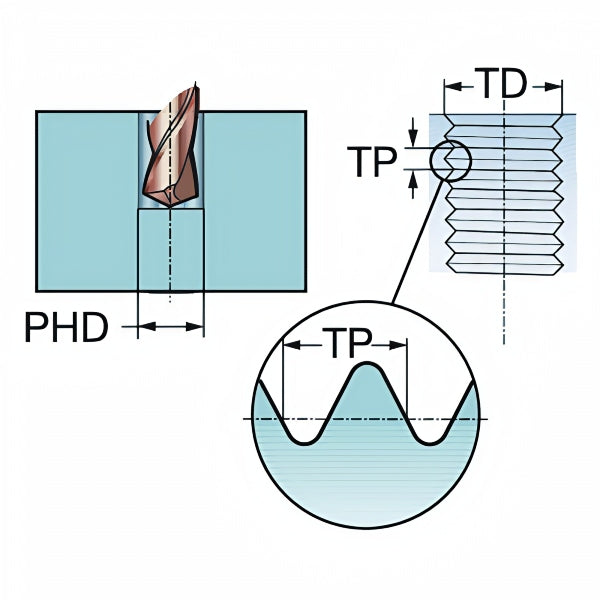

Premachined Hole Diameter 2.5 mm 0.0984 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 6H
Shank Standard DIN 371

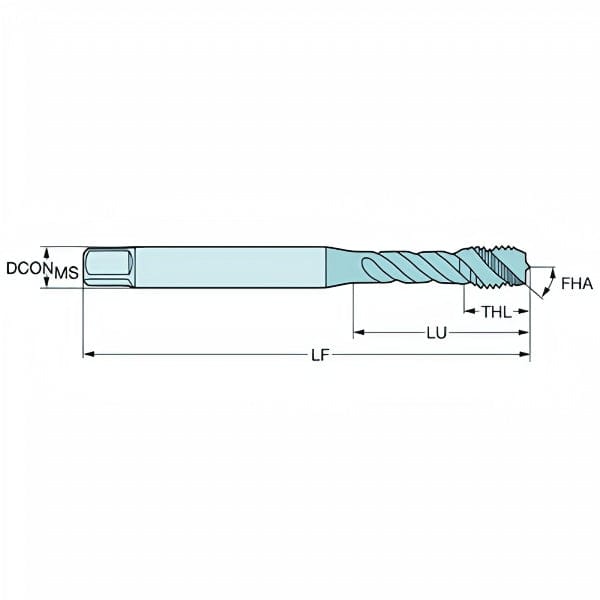

Usable Length 18 mm 0.7087 in
Functional Length 56 mm 2.2047 in
Overall Length 57.2 mm 2.2519 in
Neck Diameter 2.27 mm 0.0894 in
Flute Count 3
Flute Helix Angle 40°
Radial Rake Angle 11°
Threading Length 5.9 mm 0.2323 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker MM
Grade S9P4
Substrate HSS-E (High-Speed Steel)
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 3.50 × 2.70
Connection Diameter (Machine Side) 3.5 mm 0.1378 in
Connection Diameter Tolerance h9
Weight 0.006 kg 0.0132 lb
Maximum Regrinds 0
Release Date 12/12/2011
Release Pack ID 11.2

Why Choose This Tool?

This Sandvik spiral flute tap combines premium materials, optimized flute geometry, and precise manufacturing to deliver long tool life, accurate threads, and smooth production—perfect for professional-grade blind hole tapping in CNC or manual setups.

Get exceptional precision and efficiency with the Sandvik M3 × 0.5 Blue Spiral Flute Tap – the perfect tool for professional-grade blind hole tapping.
