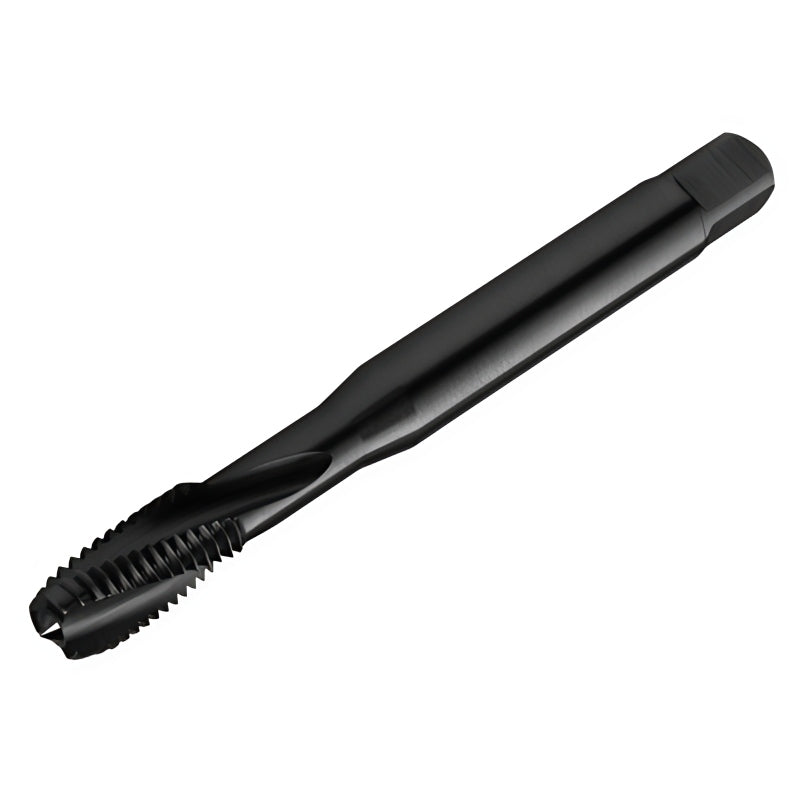

Engineered for high-performance CNC and conventional machining. Spiral point (gun nose) geometry drives chips forward, delivering fast, clean threads in stainless steel and other ISO M materials when tapping through holes.
Specification | Metric | Imperial |
---|---|---|
Workpiece Material (ISO) | M (Stainless steels) | — |
Thread Size | M10 | — |
Thread Pitch | 1.5 mm | 0.0591 in |
Thread Form | M (Metric 60°) | — |
Thread Diameter | 10.0 mm | 0.3937 in |
Tap Chamfer Length | 6.4394 mm | 0.2535 in |

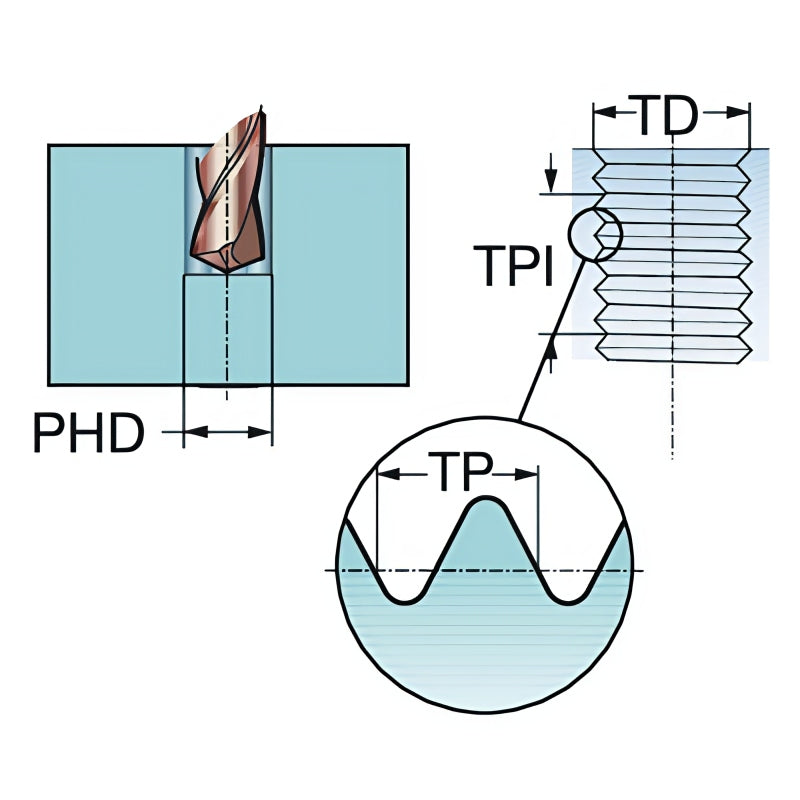

Premachined Hole Diameter | 8.5 mm | 0.3346 in |
Premachined Hole Type / Hole Type | Through hole | Through hole |
Thread Tolerance Class | 6H | — |
Shank Standard | DIN 371 (reinforced) | — |
Usable Length | 39 mm | 1.5354 in |
Functional Length | 100 mm | 3.9370 in |
Overall Length | 104.1 mm | 4.0984 in |
Neck Diameter | 7.65 mm | 0.3012 in |
Flute Count | 3 | — |
Flute Helix Angle | 0° (straight flutes) | — |
Radial Rake Angle | 9° | — |
Threading Length | 19.2 mm | 0.7559 in |
Threading Chamfer Type | B = 3.5–5×TP (Gun nose) | — |
Chip Breaker | MM | — |
Grade | S9P4 | — |
Substrate | HSS-E | — |
Coating | PVD FeN (“Blue”) | — |
Coolant Entry / Exit | Without / None | — |
Connection – Machine Side | Tap shank DIN-metric 10.00 × 8.00 | — |
Connection Diameter (Machine Side) | 10.0 mm | 0.3937 in |
Connection Diameter Tolerance | h9 | — |
Weight | 0.055 kg | 0.1213 lb |
Release Date | 12/12/2011 | — |
Release Pack ID | 11.2 | — |
This Sandvik CoroTap® 200 spiral point tap pairs a reinforced DIN 371 shank with a gun-nose B-chamfer and straight flutes to push chips forward—ideal for fast, reliable through-hole production in stainless steels. The HSS-E substrate and PVD FeN “blue” coating deliver excellent wear resistance and repeatable, high-quality threads.
