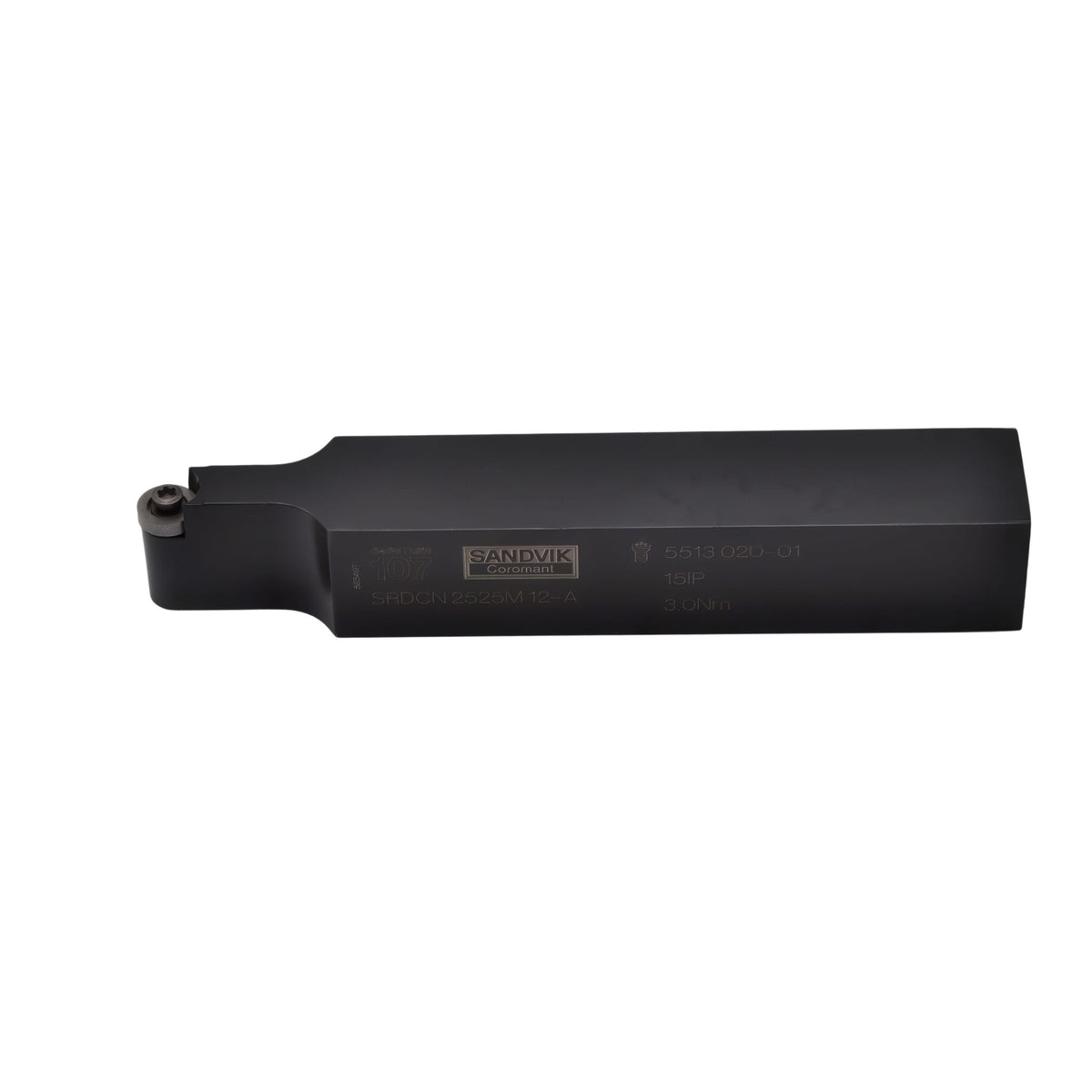

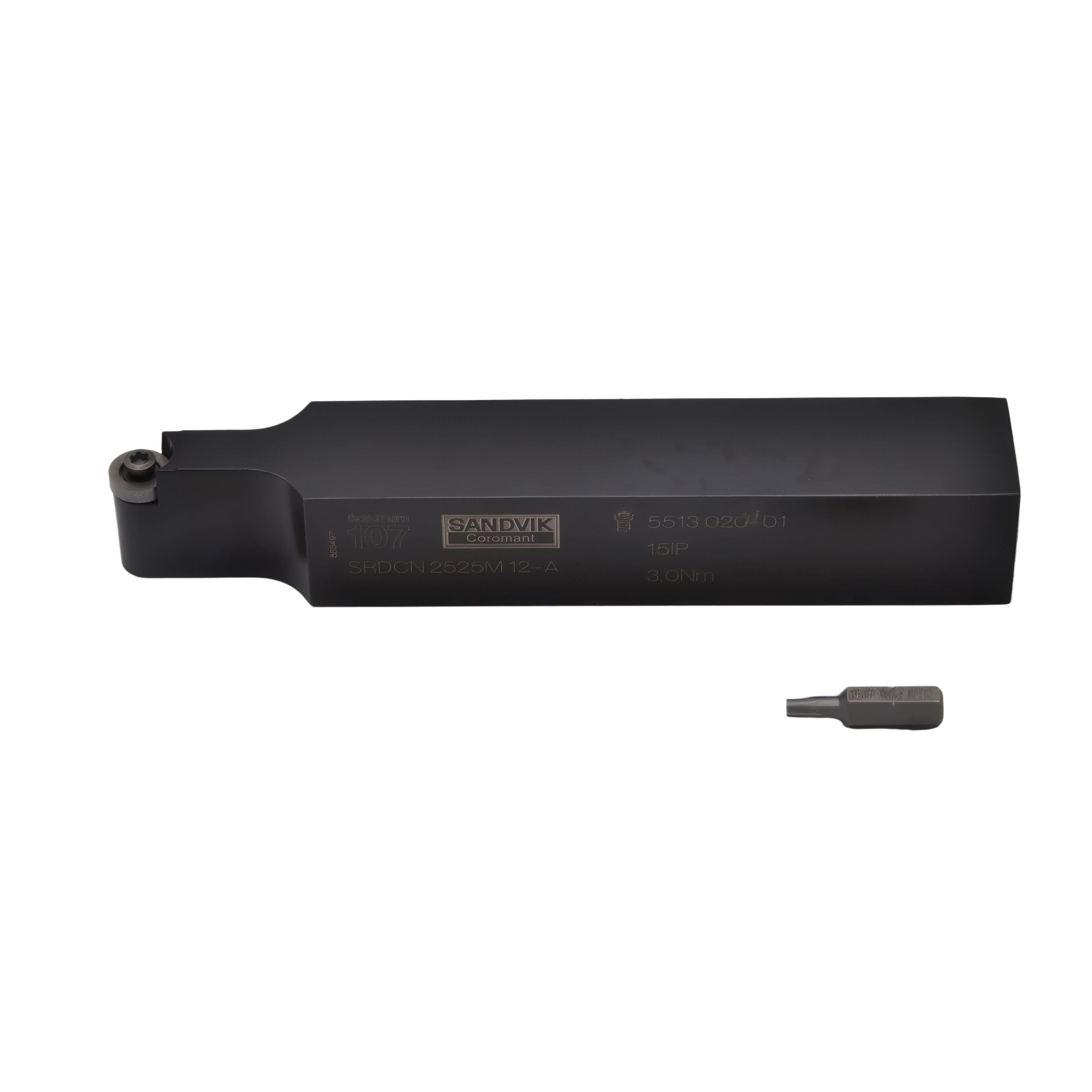

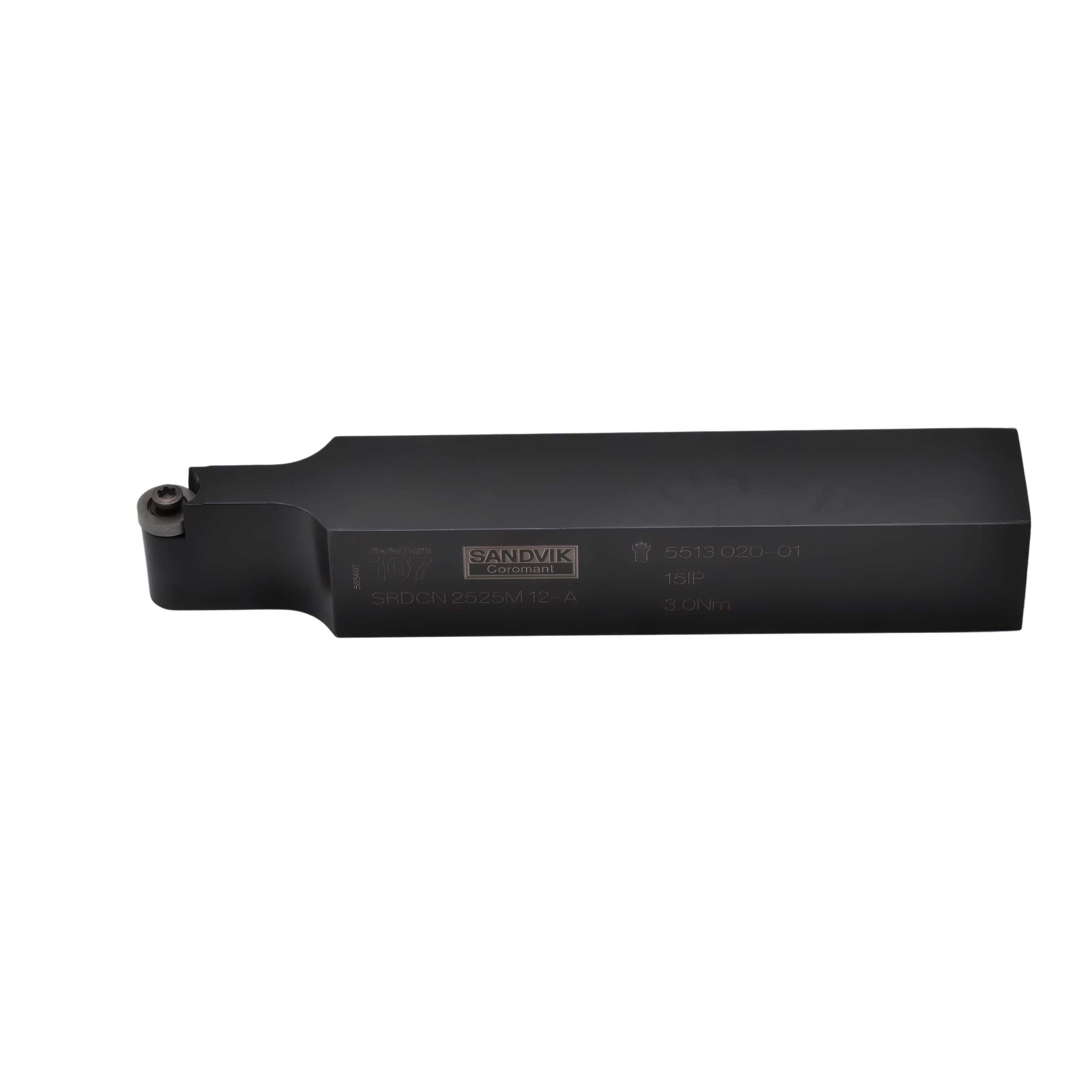

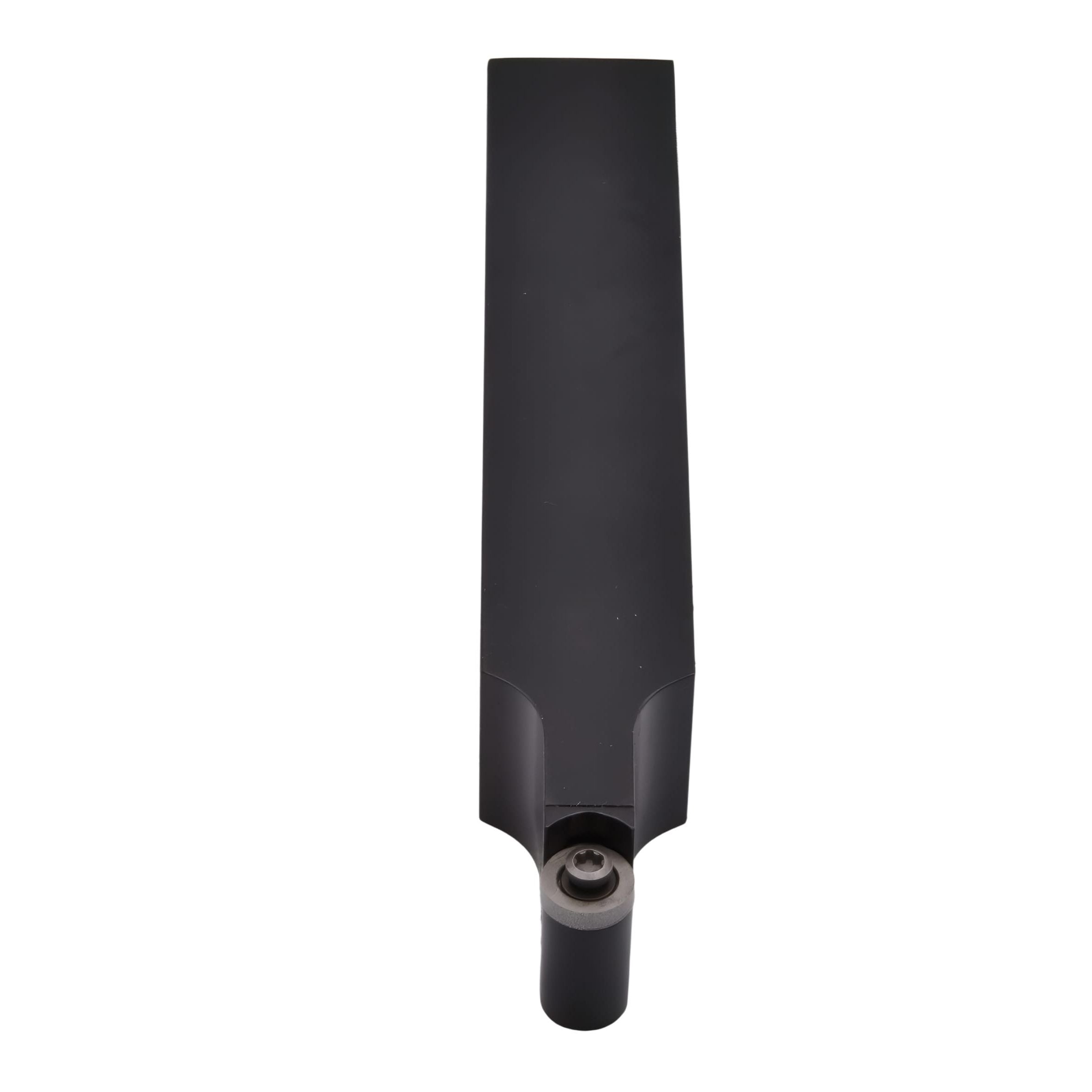

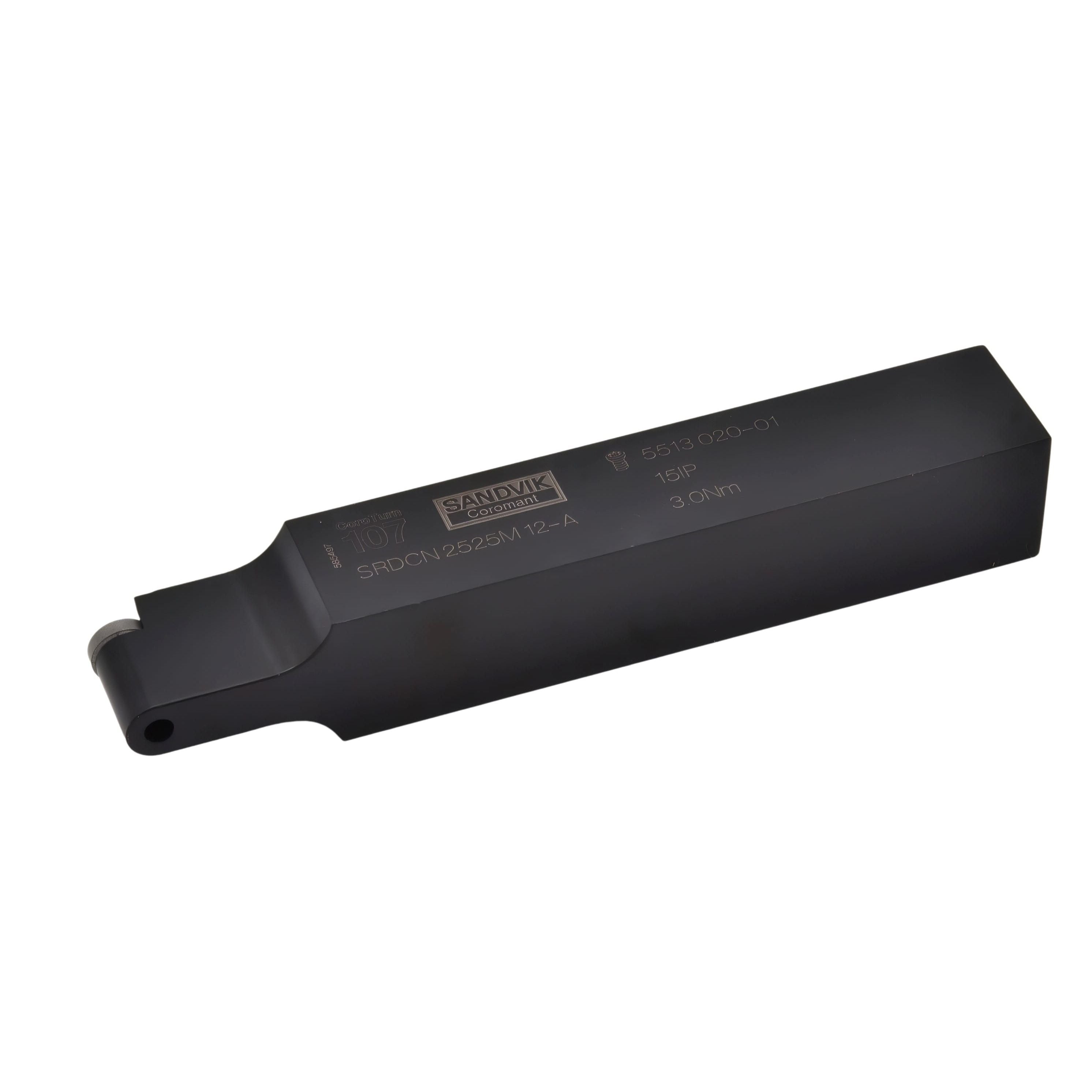

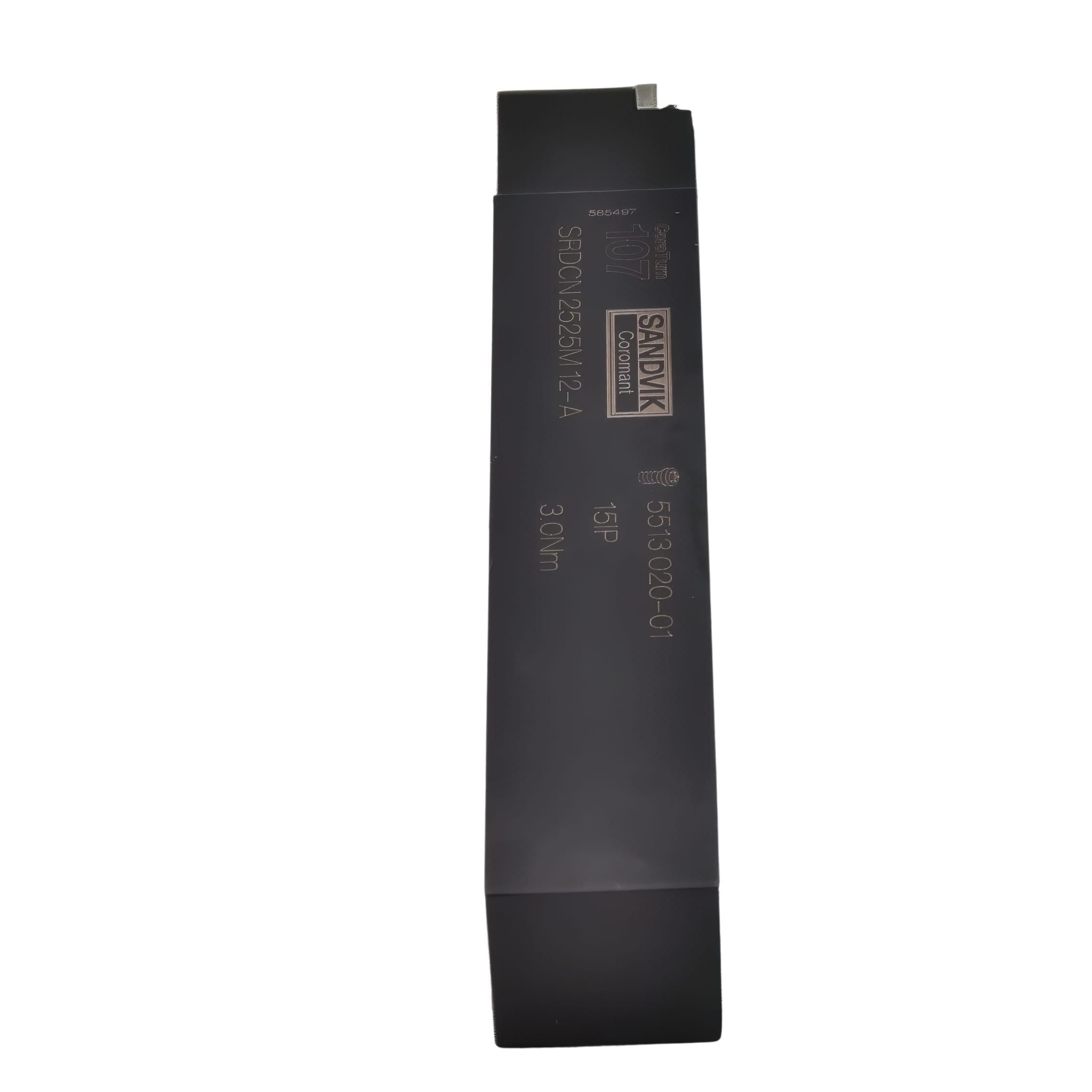

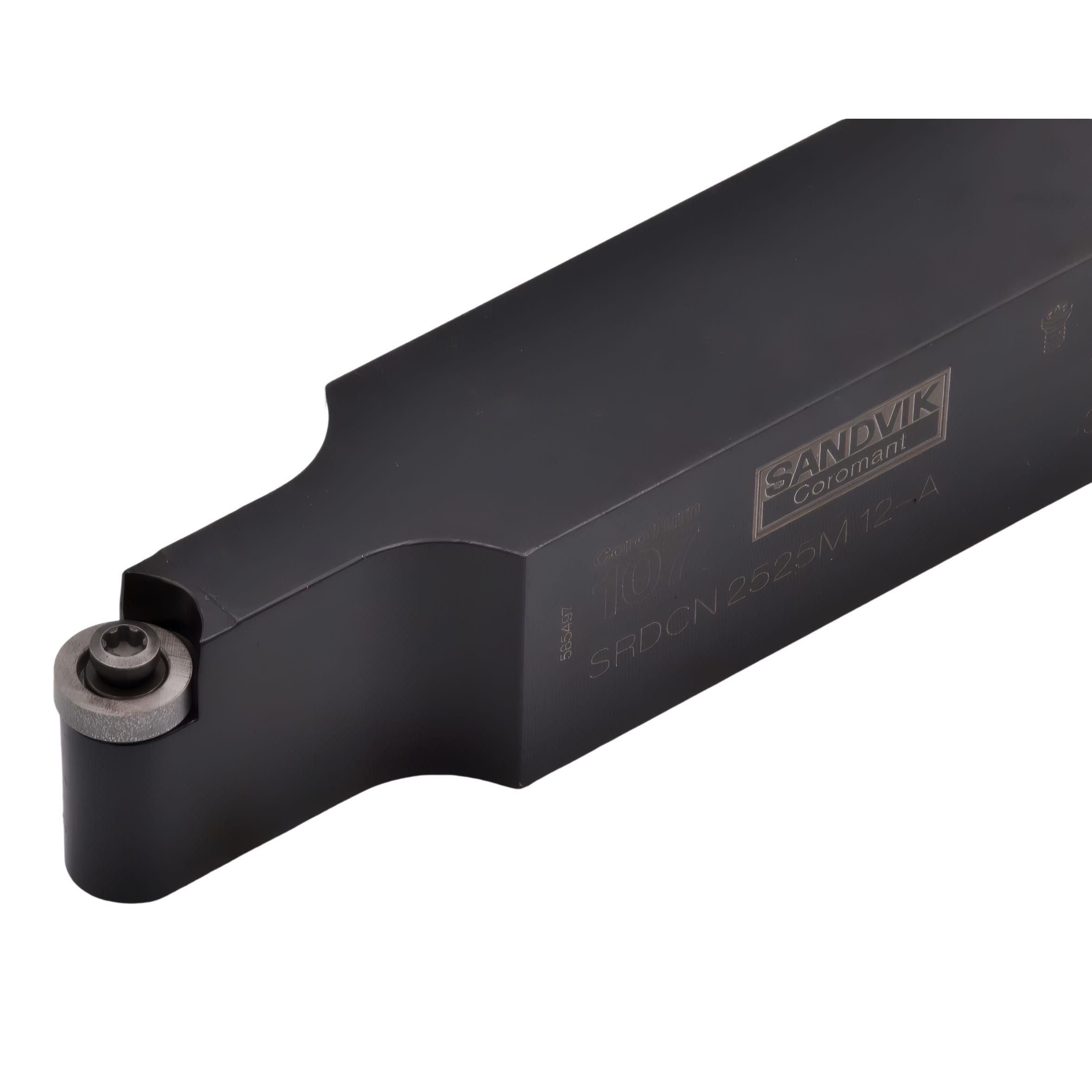

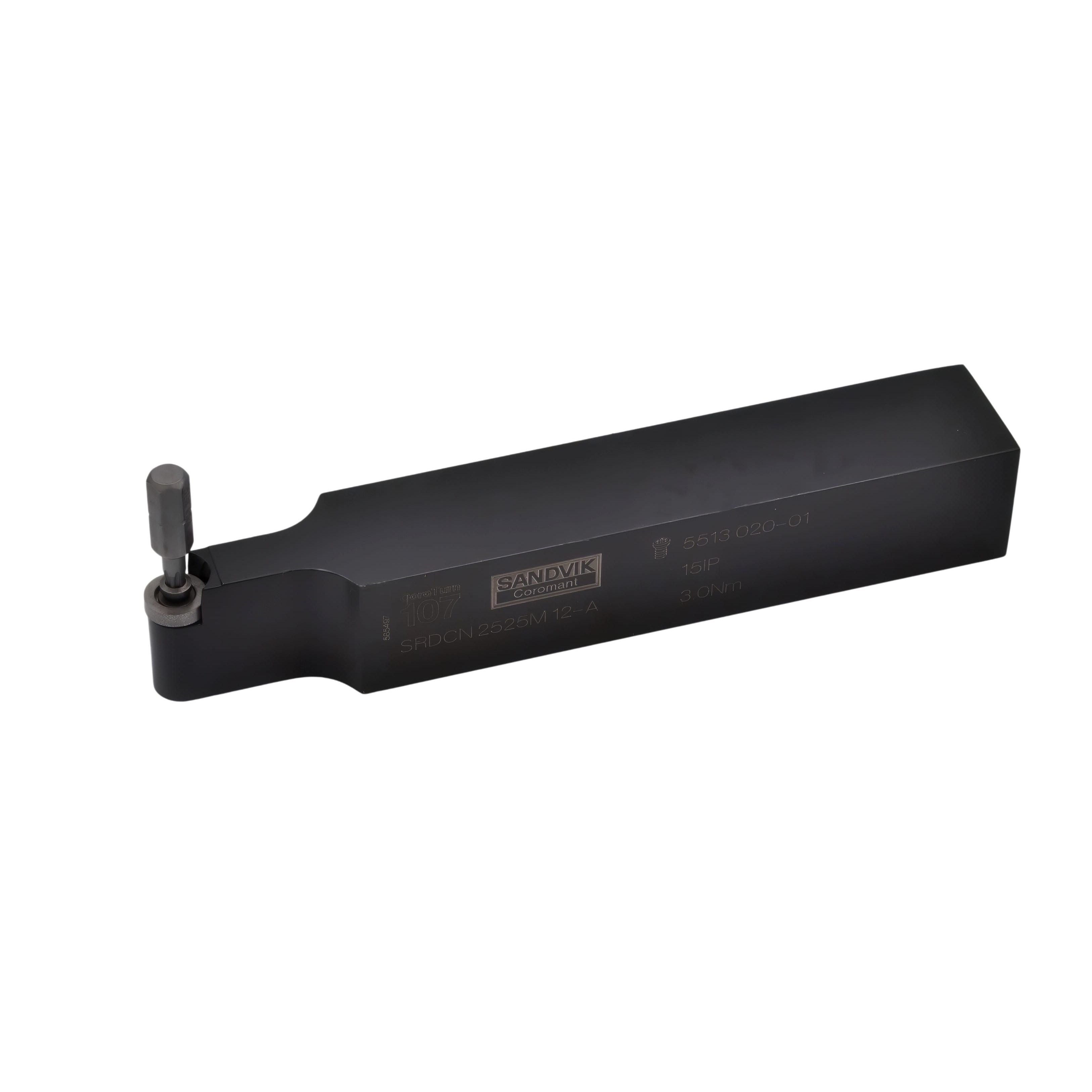

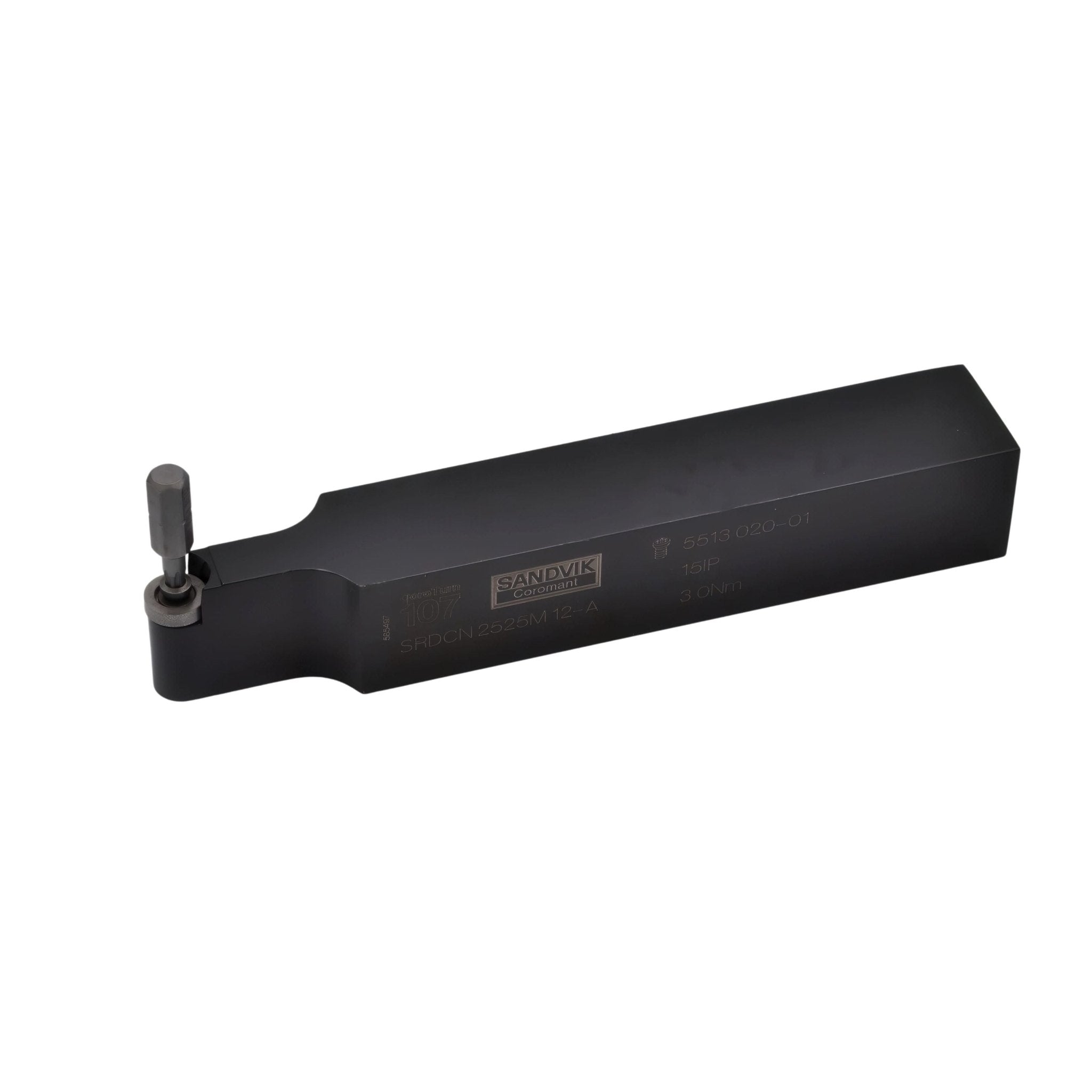

The SRDCN 2525M 12-A is a precision-engineered external turning toolholder from Sandvik Coromant, designed for reliable and stable machining performance. Part of the CoroTurn® 107 system, this toolholder is built with a robust steel body and features a secure clamp with screw-through-hole system for accurate insert positioning. The 25 × 25 mm rectangular shank ensures compatibility with standard tool posts, making it ideal for both CNC and manual lathe applications.
Designed to accommodate RCMT 1204 inserts, this toolholder delivers smooth cutting action and excellent versatility across a range of turning operations. Its neutral hand configuration and rigid design help minimise vibration while maintaining consistent machining accuracy. Suitable for general turning applications, the SRDCN 2525M 12-A provides dependable performance in demanding workshop environments.
Key Features & Benefits
• Compatible with RCMT 1204 round inserts for versatile turning applications.
• Clamp with screw-through-hole system ensures secure insert clamping.
• Rigid 25 × 25 mm rectangular shank for stable tool mounting.
• Neutral hand design for flexible machining operations.
• Durable steel construction for long service life and vibration resistance.
• Part of Sandvik Coromant CoroTurn® 107 system for precision turning.
Technical Specifications
Item No / Material Id: SRDCN 2525M 12-A
Insert Compatibility: RCMT 1204 M0
Clamping Type: Clamp with screw through hole
Shank Size: 25 × 25 mm
Overall Length (OAL): 150 mm
Usable Length: 28 mm
Maximum Overhang: 28 mm
Maximum Ramping Angle: 90°
Hand: Neutral
Functional Width: 18.5 mm
Functional Height: 25 mm
Torque: 3 Nm
Coolant Entry: Without coolant entry
Coolant Exit: No coolant exit
Body Material: Steel
Insert Seat Size: 12
Insert Seat Size (Imperial): 0.472
Weight: 0.6388 kg
