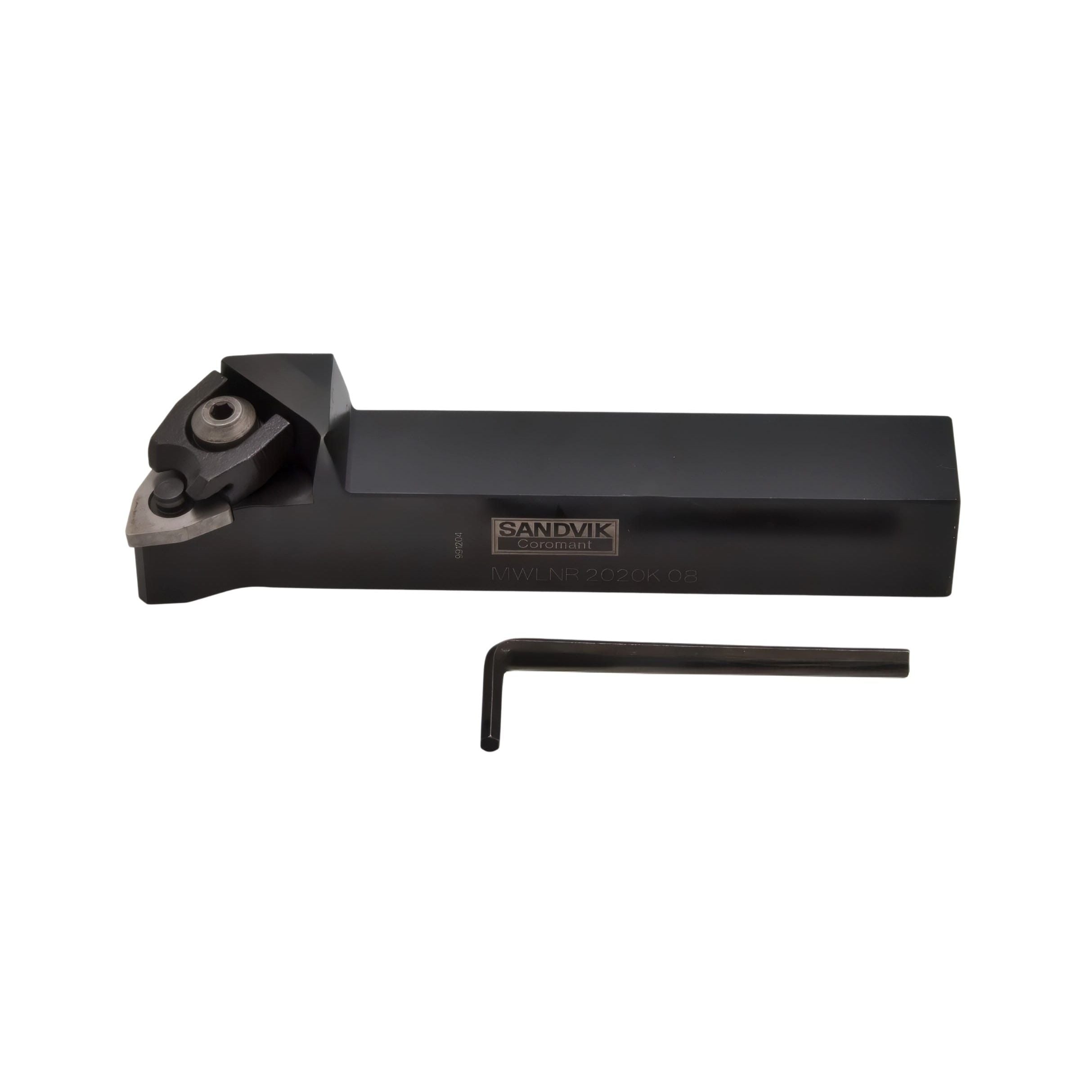

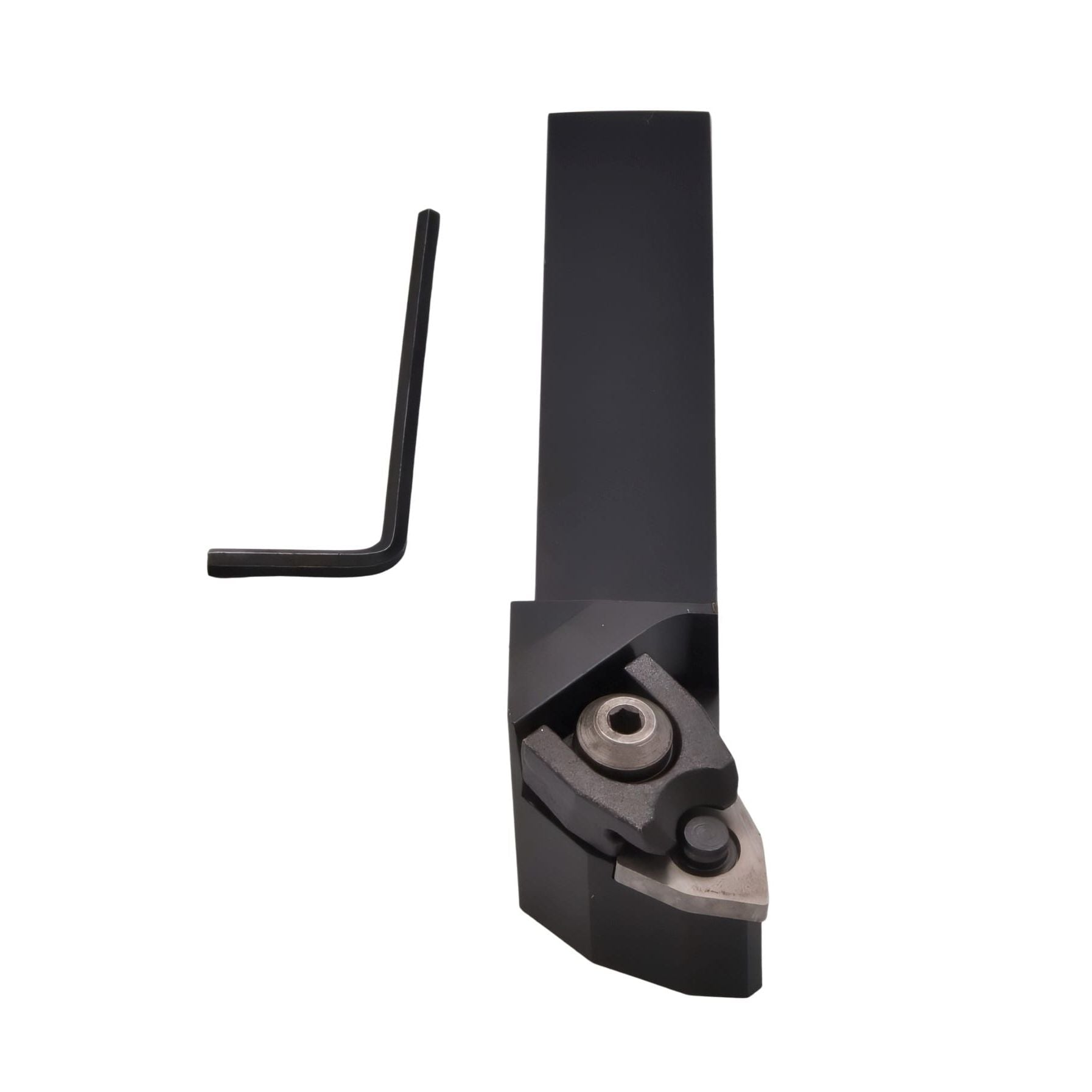

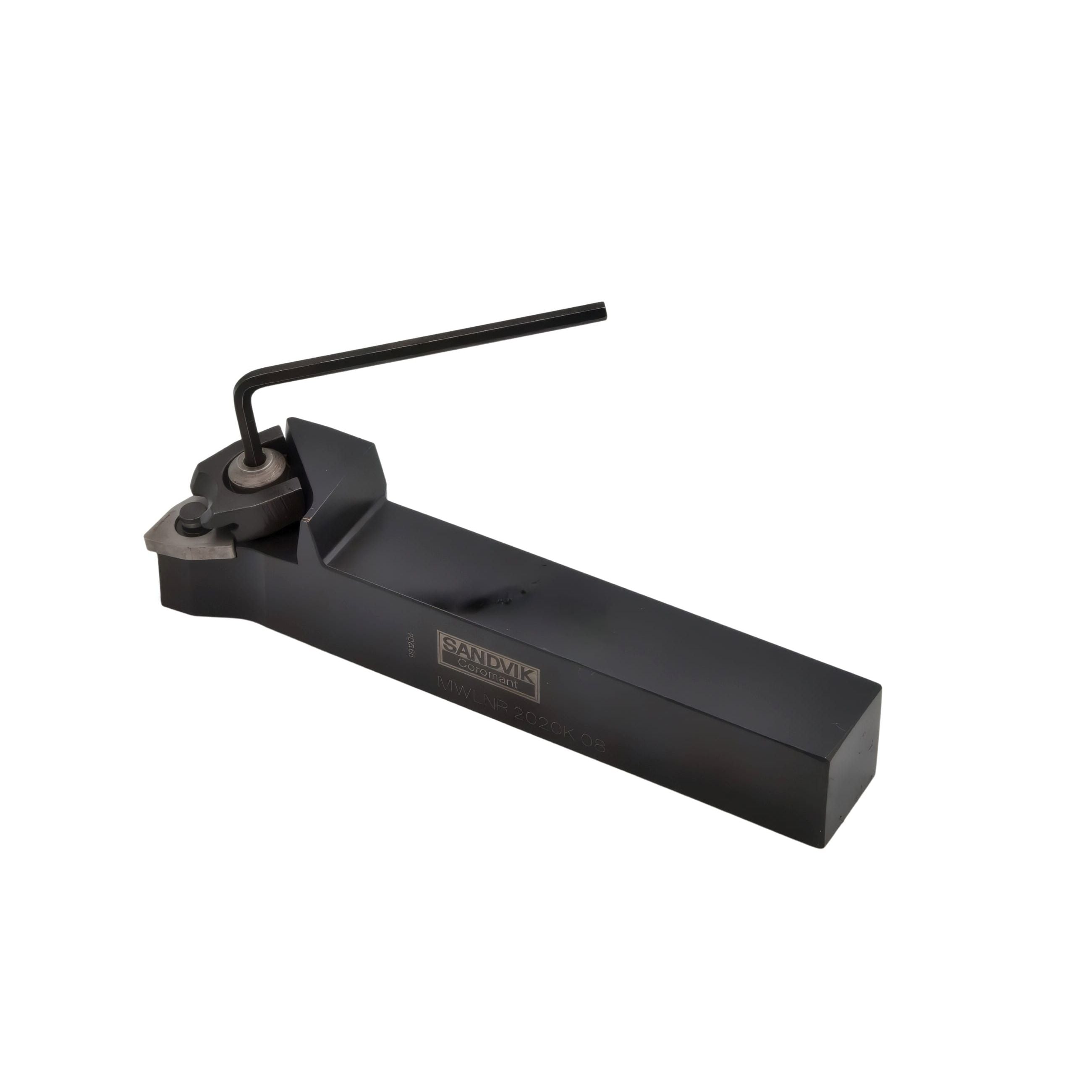

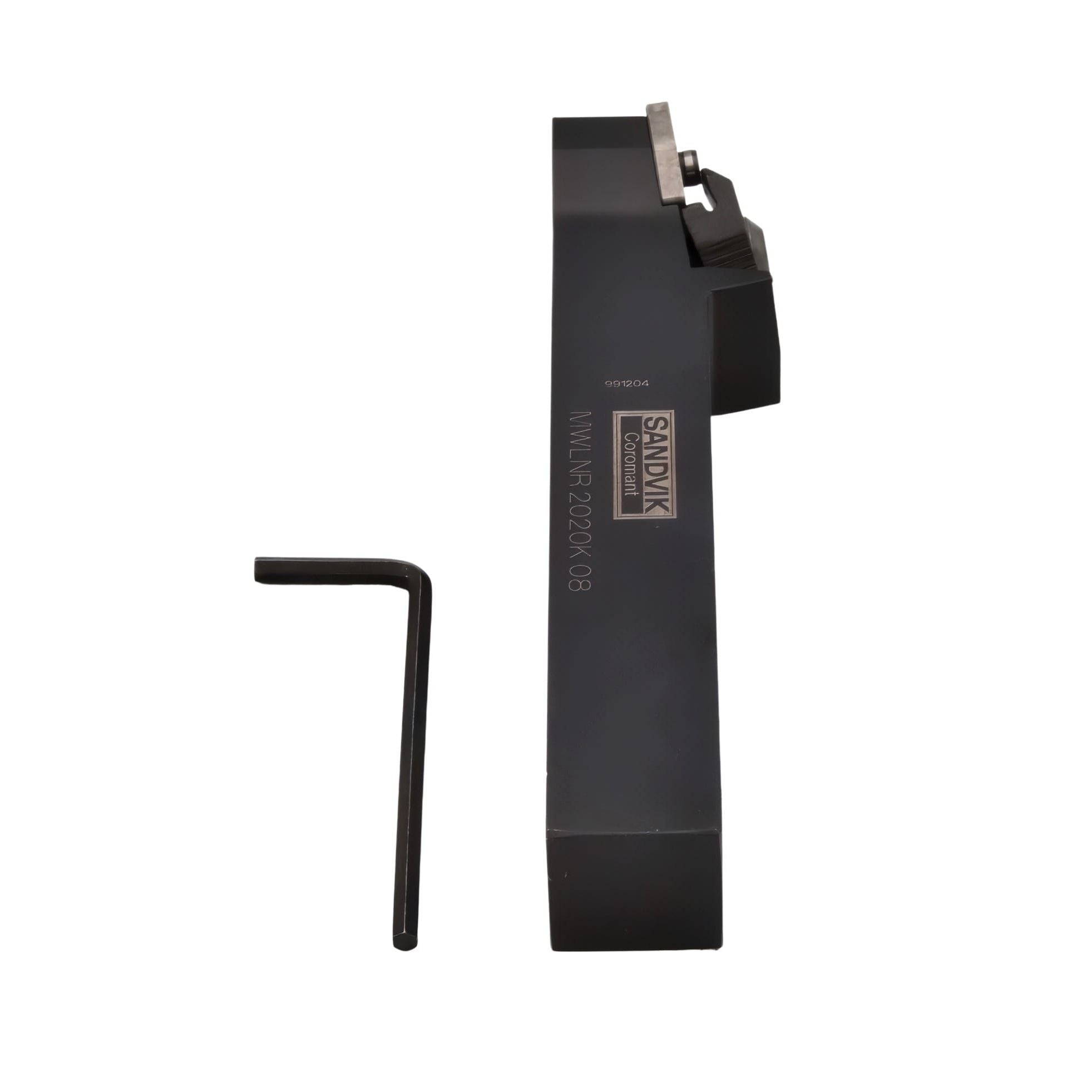

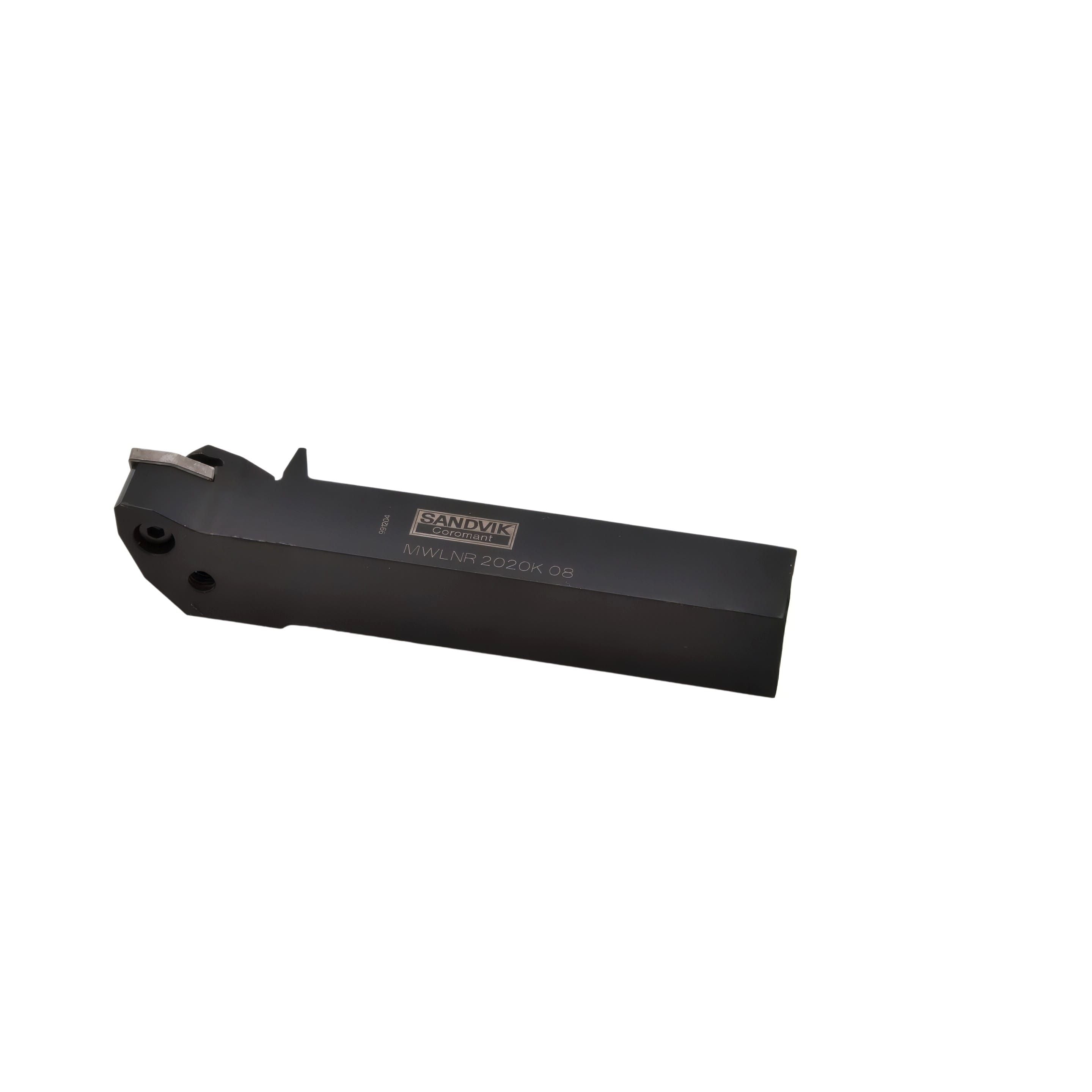

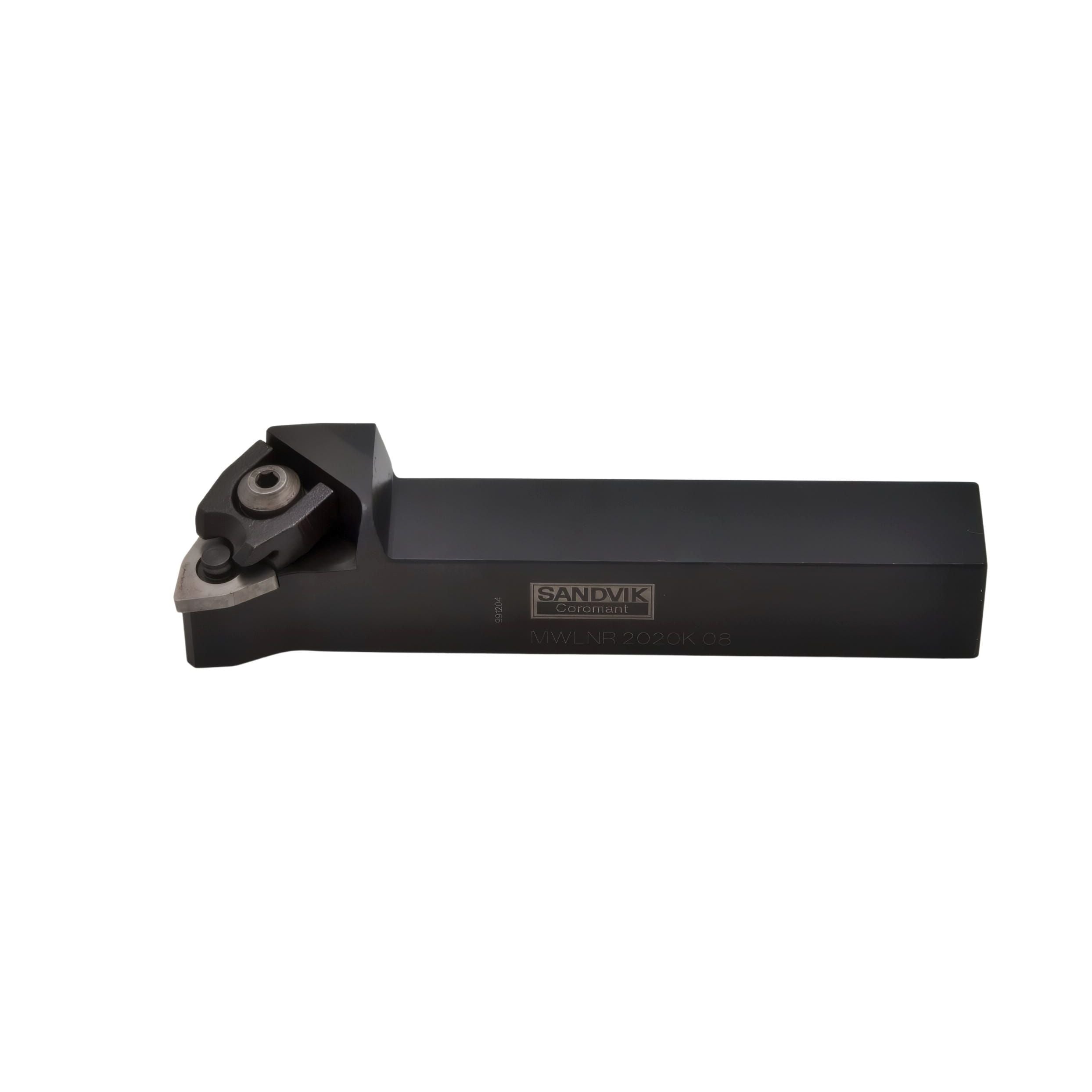

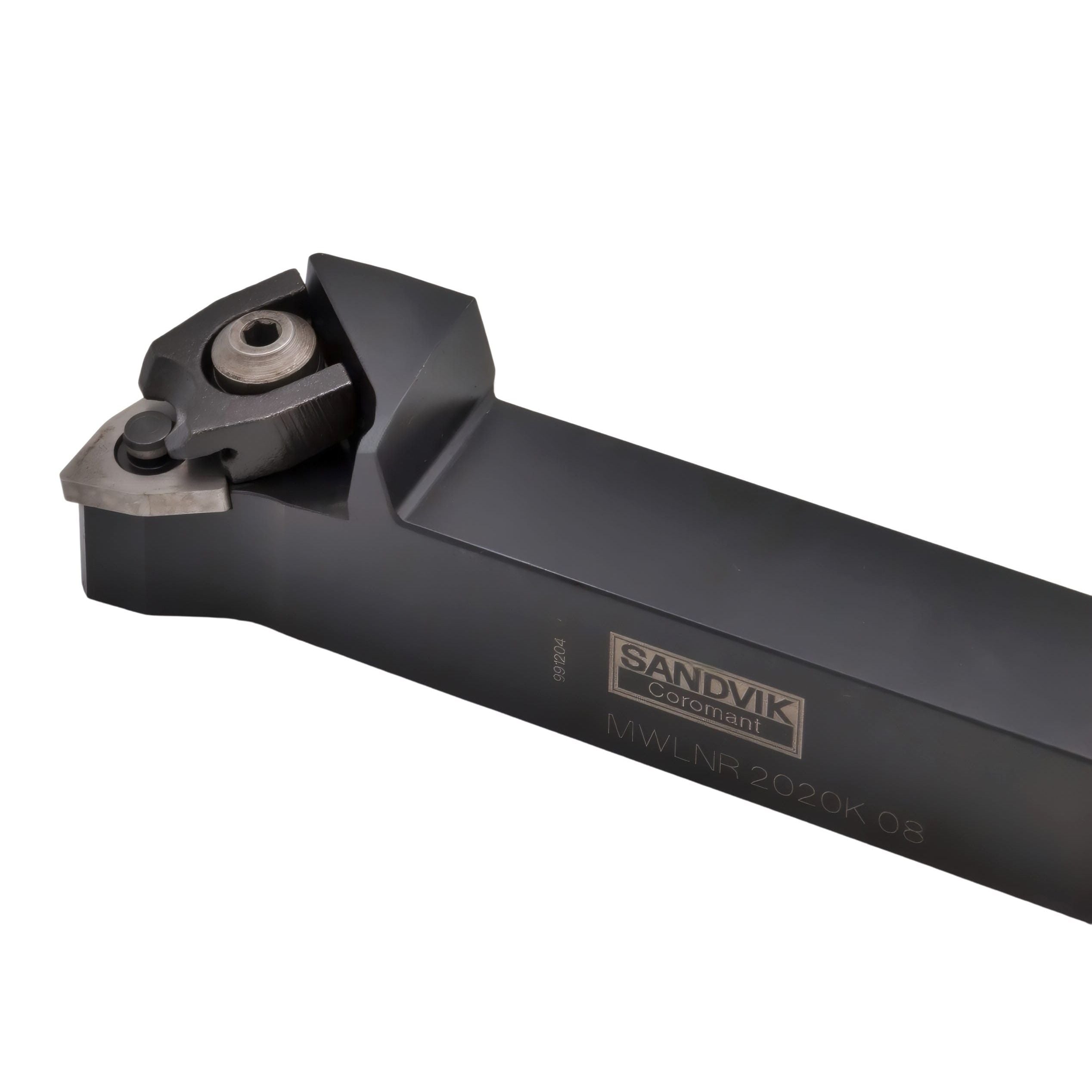

Sandvik Coromant MWLNR 2020K 08 External Turning Toolholder – 20×20mm Shank

The Sandvik Coromant MWLNR 2020K 08 is a robust external turning toolholder designed for heavy-duty machining and reliable performance. Part of the T-Max® P system, this toolholder is engineered for...
$183.00
$0.00
$183.00
(-0%)
Vendor: SANDVIK
SKU: MWLNR 2020K 08
Availability: In Stock
Subtotal: $183.00
SANDVIK TOOL HOLDERS Sandvik Coromant MWLNR 2020K 08 External Turning Toolholder – 20×20mm Shank

Sandvik Coromant MWLNR 2020K 08 External Turning Toolholder – 20×20mm Shank

$0.00 $183.00

Sandvik Coromant MWLNR 2020K 08 External Turning Toolholder – 20×20mm Shank

$0.00 $183.00

The Sandvik Coromant MWLNR 2020K 08 is a robust external turning toolholder designed for heavy-duty machining and reliable performance. Part of the T-Max® P system, this toolholder is engineered for stability and efficient material removal in roughing and general turning applications. The 20 × 20 mm square shank provides secure clamping in standard tool posts, ensuring rigidity and consistent machining accuracy.

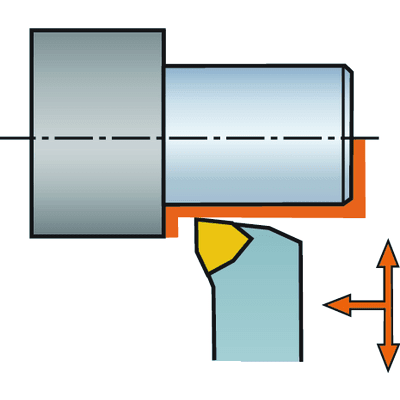

This right-hand toolholder is designed to accommodate WNMG 080408 inserts, delivering strong cutting edges and excellent durability for demanding turning operations. Featuring a wedge clamping system, it provides firm insert seating and repeatability under load. With a 95° cutting edge angle and negative rake design, the MWLNR 2020K 08 is ideal for external turning, profiling, and roughing of steel and stainless steel materials.

Key Features & Benefits

  • Compatible with WNMG 080408 negative inserts
  • Wedge clamping system for secure and stable insert positioning
  • Right-hand external turning toolholder
  • Rigid 20 × 20 mm square shank for stable mounting
  • 95° cutting edge angle for versatile turning and profiling
  • Negative rake geometry for high-strength and heavy-duty machining
  • Durable steel construction for long service life

Technical Specifications

  • Brand: Sandvik Coromant
  • Product Code: MWLNR 2020K 08
  • Tool Type: External Turning Toolholder
  • Insert Compatibility: WNMG 080408
  • Clamping Type: Wedge clamping
  • Hand: Right

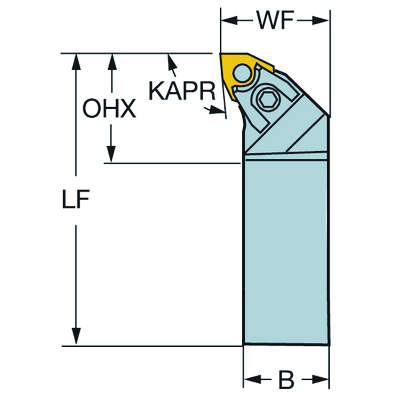

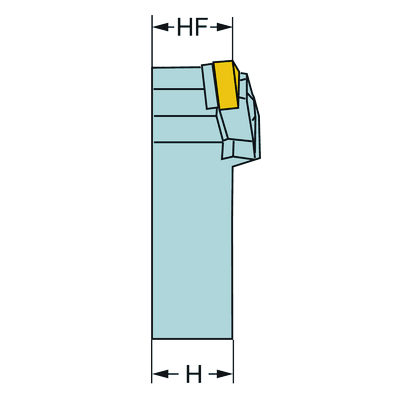

  • Shank Size: 20 × 20 mm
  • Overall Length (OAL): 125 mm
  • Functional Length: 125 mm
  • Maximum Overhang: 34 mm
  • Cutting Edge Angle: 95°
  • Lead Angle: -5°
  • Orthogonal Rake Angle: -6°
  • Inclination Angle: -6°
  • Torque: 4.5 Nm
  • Coolant Entry: Without coolant entry
  • Coolant Exit: No coolant exit
  • Body Material: Steel
  • Insert Seat Size: 08
  • Insert Seat Size (Imperial): 1/2
  • Weight: 0.4092 kg

Sandvik Coromant is a global leader in cutting tools and machining solutions, delivering high-performance tooling systems designed to maximise productivity, improve machining accuracy, and ensure long tool life in industrial applications worldwide.
