Sandvik A50U-DCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

The Sandvik A50U-DCLNR 16 is a premium internal turning and boring bar designed for high-precision machining and heavy-duty metal cutting applications. Featuring a 50 mm cylindrical shank with three flats,...
$717.00
$0.00
$717.00
(-0%)
SKU: A50U-DCLNR 16
Availability: In Stock
Subtotal: $717.00
SANDVIK AUSTRALIA PTY LTD BORING BAR Sandvik A50U-DCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

Sandvik A50U-DCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

$0.00 $717.00

Sandvik A50U-DCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

$0.00 $717.00

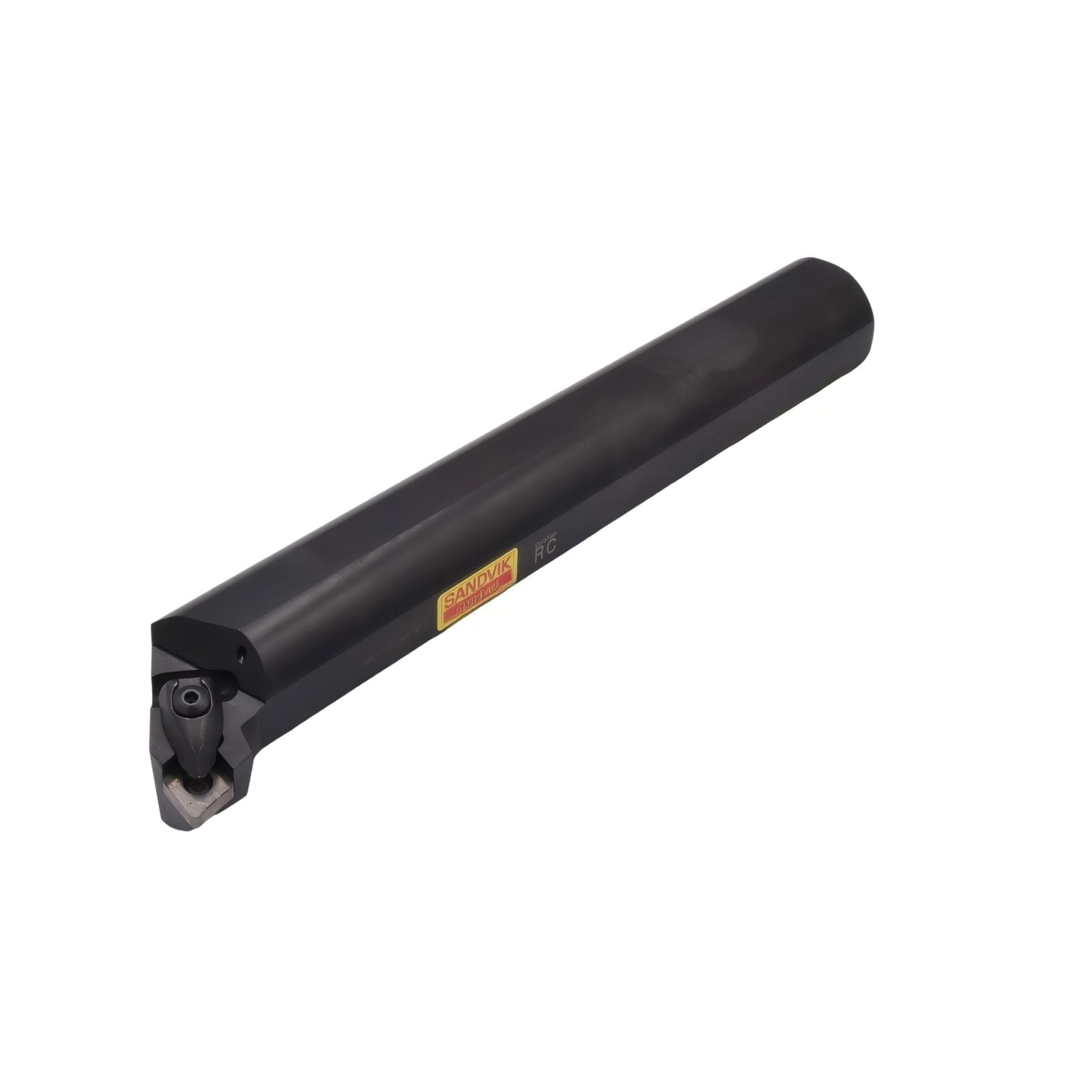

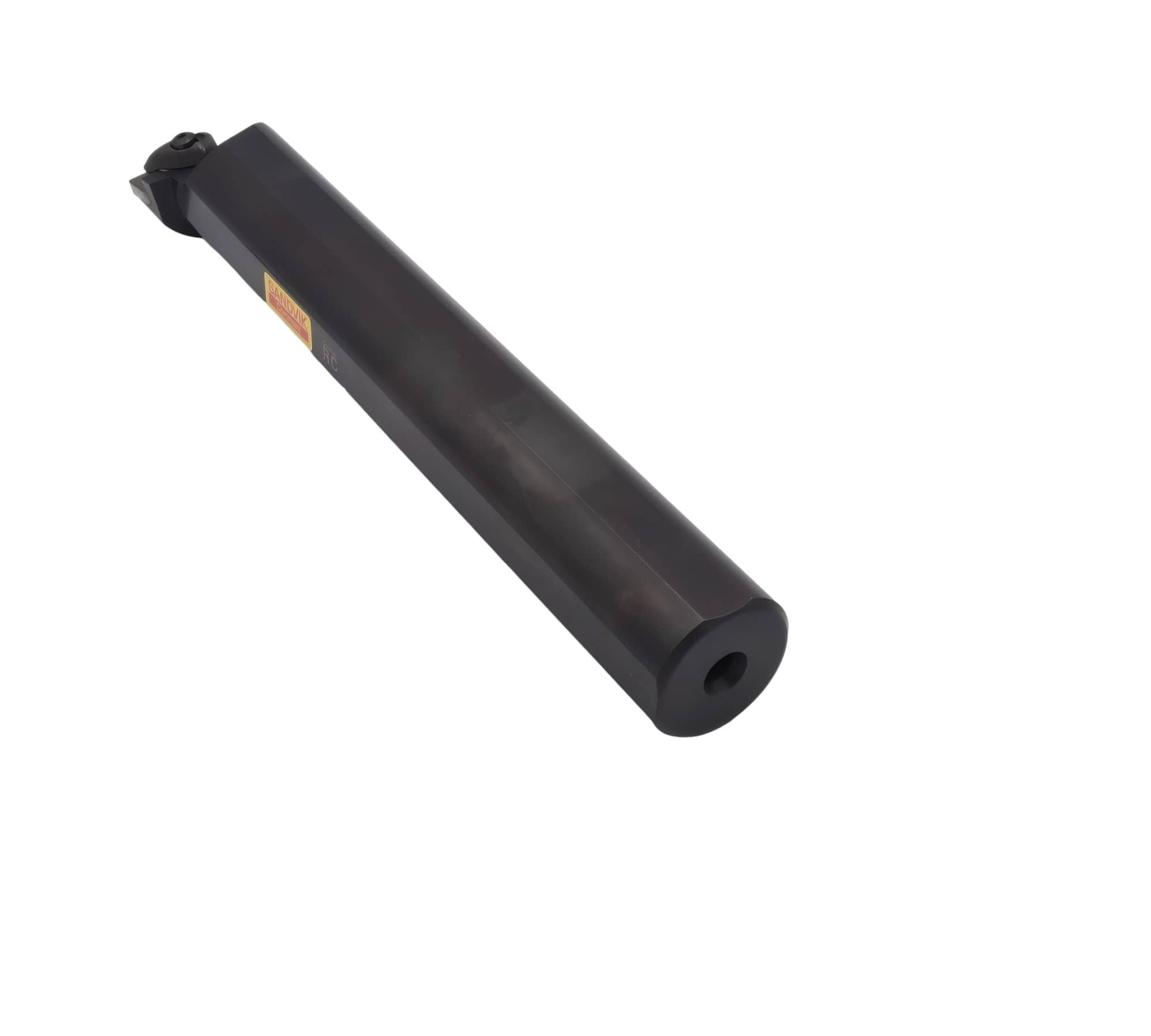

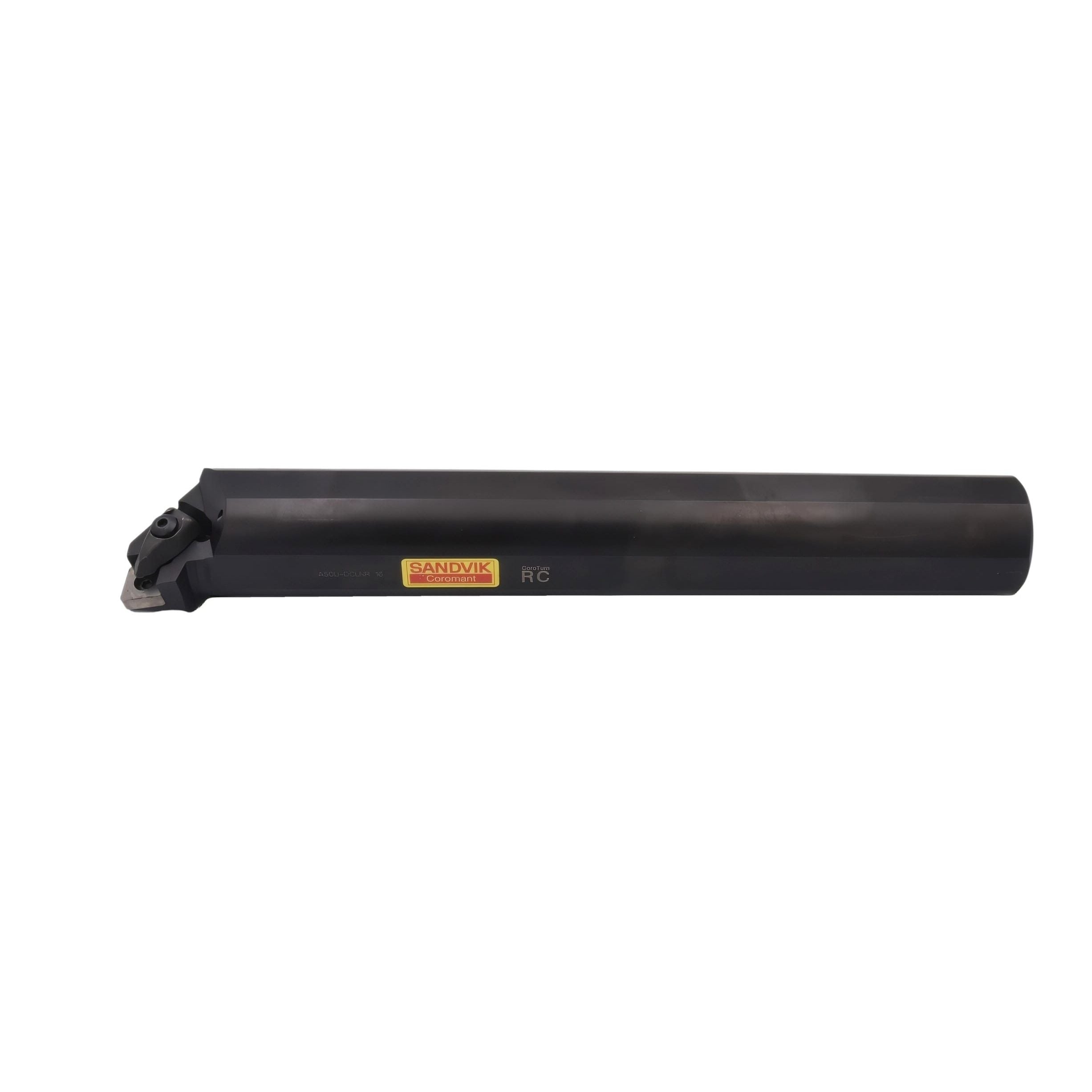

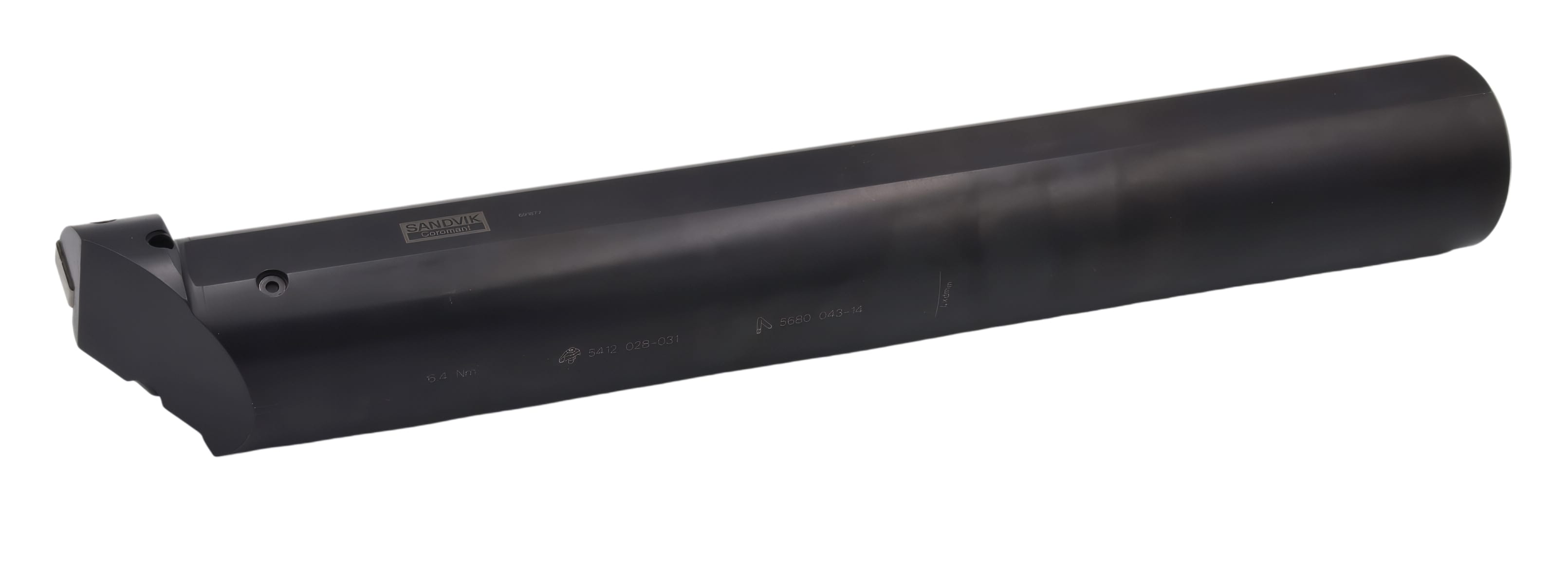

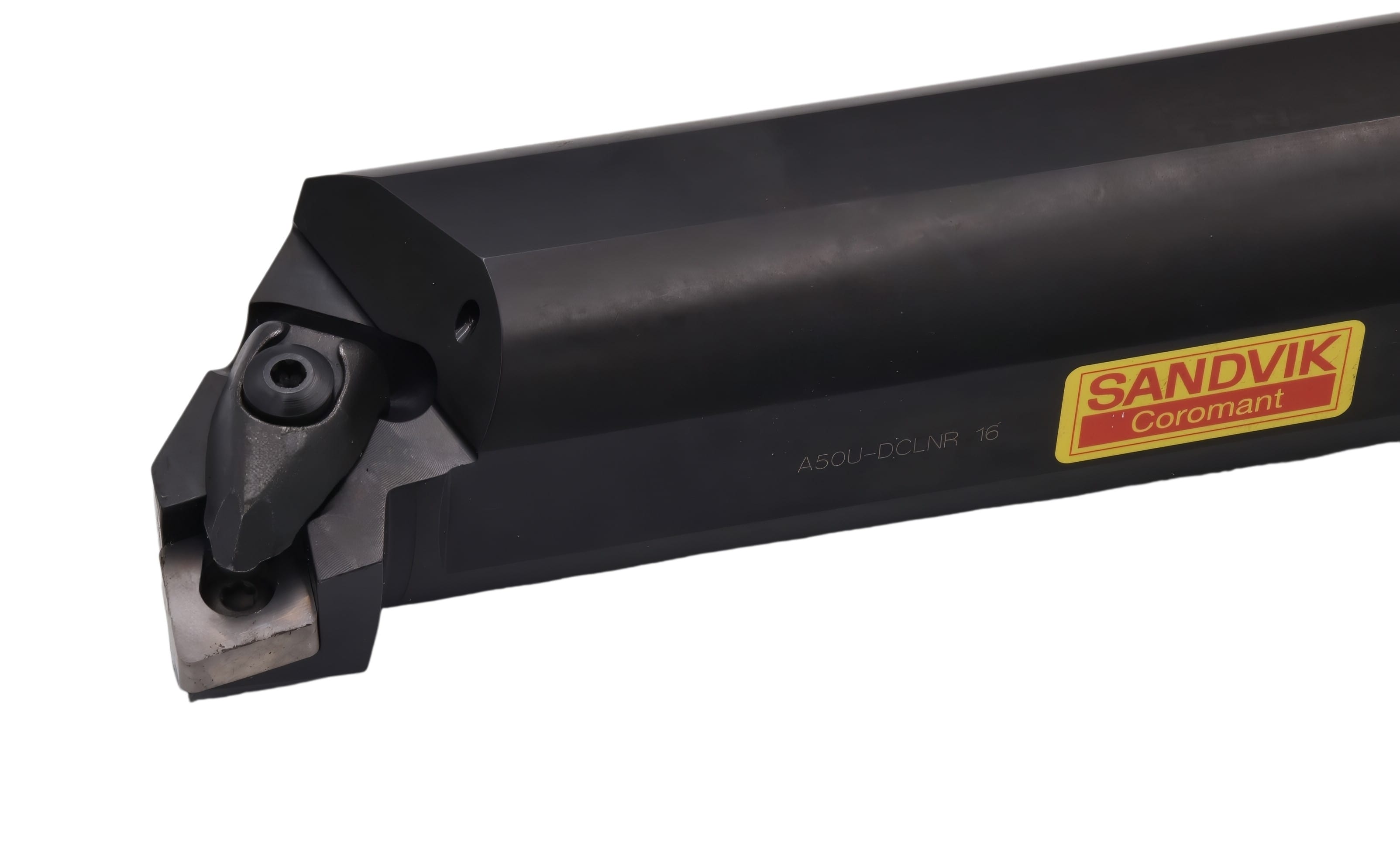

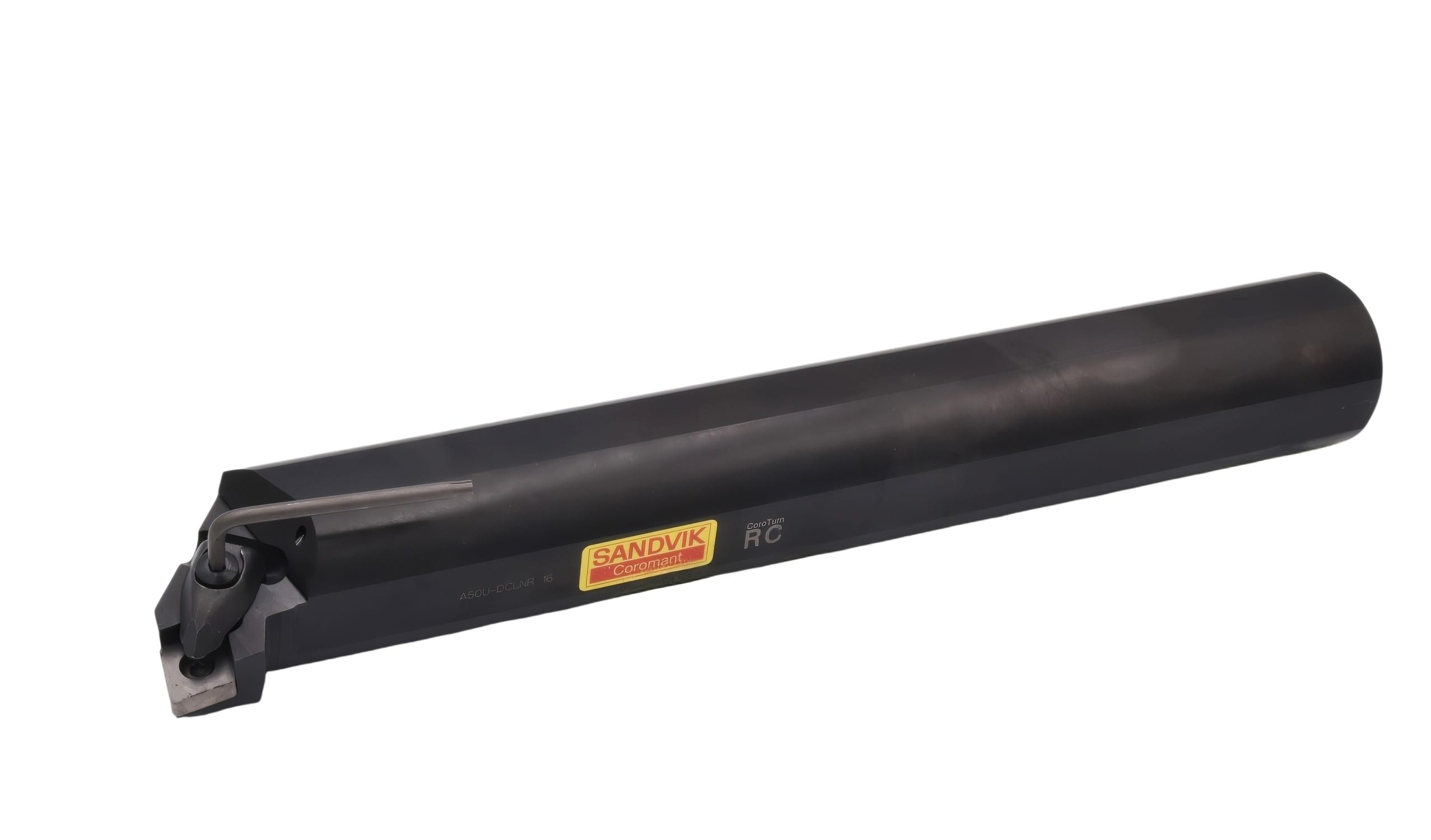

The Sandvik A50U-DCLNR 16 is a premium internal turning and boring bar designed for high-precision machining and heavy-duty metal cutting applications. Featuring a 50 mm cylindrical shank with three flats, this tool provides exceptional rigidity, secure clamping, and reliable performance when machining deep internal bores.

Compatible with CNMG 160612 indexable inserts, the A50U-DCLNR 16 utilizes a top clamp with insert hole engagement, delivering excellent insert security during demanding roughing and finishing operations. The tool features a 95° cutting edge angle and -5° lead angle, making it suitable for a wide range of internal longitudinal turning and facing applications.

With a 350 mm overall length and a maximum recommended overhang of 200 mm, this boring bar is engineered for machining deep internal features while maintaining high stability and accuracy. Internal coolant channels support coolant pressures up to 40 bar, improving chip evacuation, reducing heat generation, and extending insert life.

Manufactured from high-strength steel to Sandvik's renowned quality standards, the A50U-DCLNR 16 delivers dependable performance for automotive, aerospace, general engineering, and heavy industrial machining operations.

Features

  • Genuine Sandvik internal turning and boring bar.
  • Designed for CNMG 160612 indexable inserts.
  • 50 mm cylindrical shank with three flats for secure machine mounting.
  • Top clamp with insert hole engagement for strong insert retention.
  • 95° entering angle with -5° lead angle for versatile internal turning.
  • Internal coolant supply supports pressures up to 40 bar.
  • Suitable for deep internal machining with up to 200 mm recommended overhang.
  • Steel construction provides excellent rigidity and vibration resistance.
  • Right-hand cutting configuration.
  • Ideal for precision boring, profiling, and internal turning applications.

Specifications

  • Brand: Sandvik
  • Model: A50U-DCLNR 16
  • Application: Internal Turning / Boring
  • Hand: Right
  • Insert Type: CNMG 160612
  • Insert Seat: 16 (5/8")
  • Clamping System: Top clamp with insert hole engagement
  • Cutting Edge Angle: 95°
  • Lead Angle: -5°
  • Orthogonal Rake Angle: -6°
  • Inclination Angle: -13°
  • Minimum Bore Diameter: 63 mm
  • Minimum Overhang: 75 mm
  • Maximum Recommended Overhang: 200 mm
  • Body Diameter: 50 mm
  • Machine Connection: 50 mm cylindrical shank with three flats
  • Overall Length: 350 mm
  • Coolant Supply: Internal
  • Coolant Entry: Axial concentric
  • Coolant Exit: Axial inclined
  • Maximum Coolant Pressure: 40 bar
  • Torque: 6.4 Nm
  • Body Material: Steel
  • Weight: 4.711 kg
