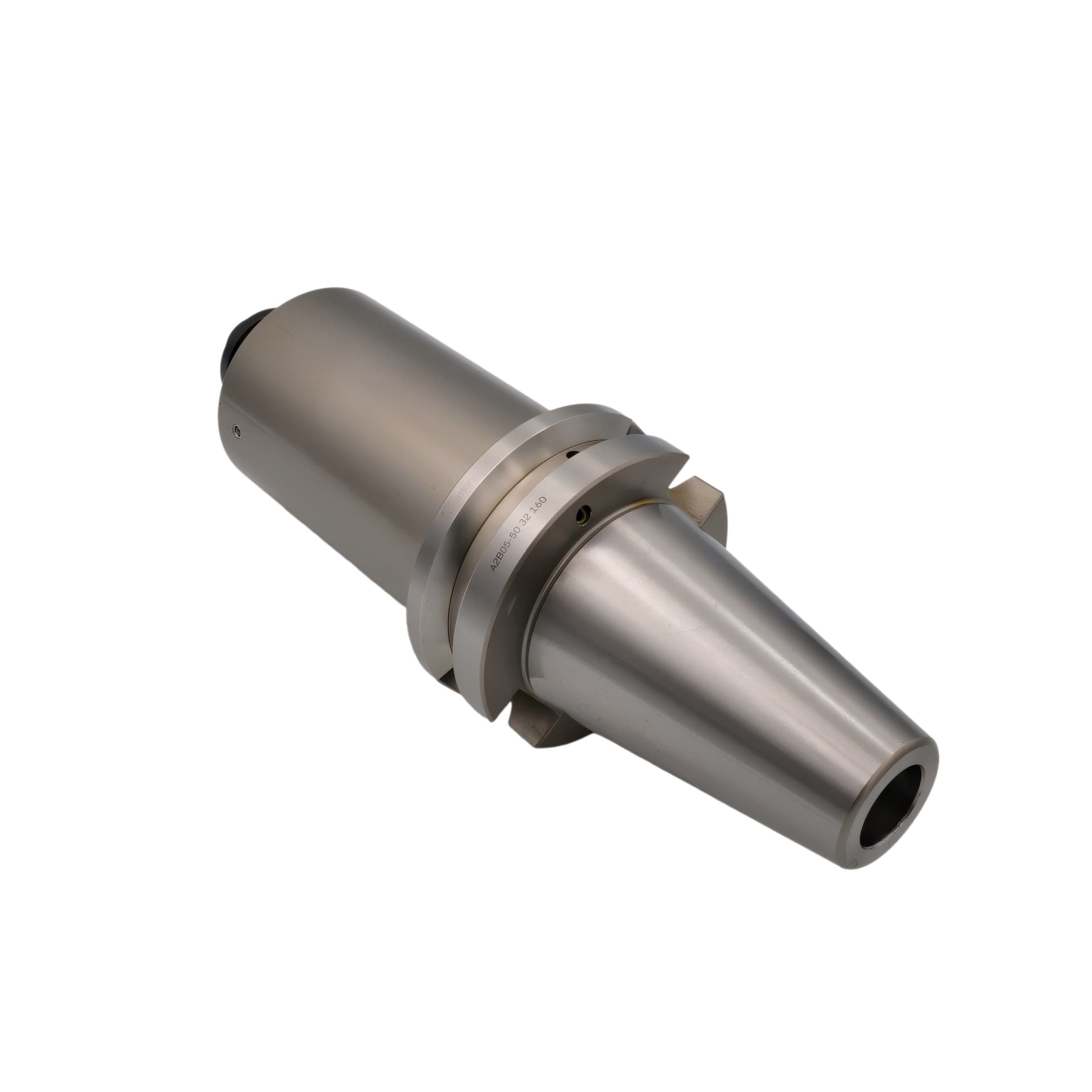

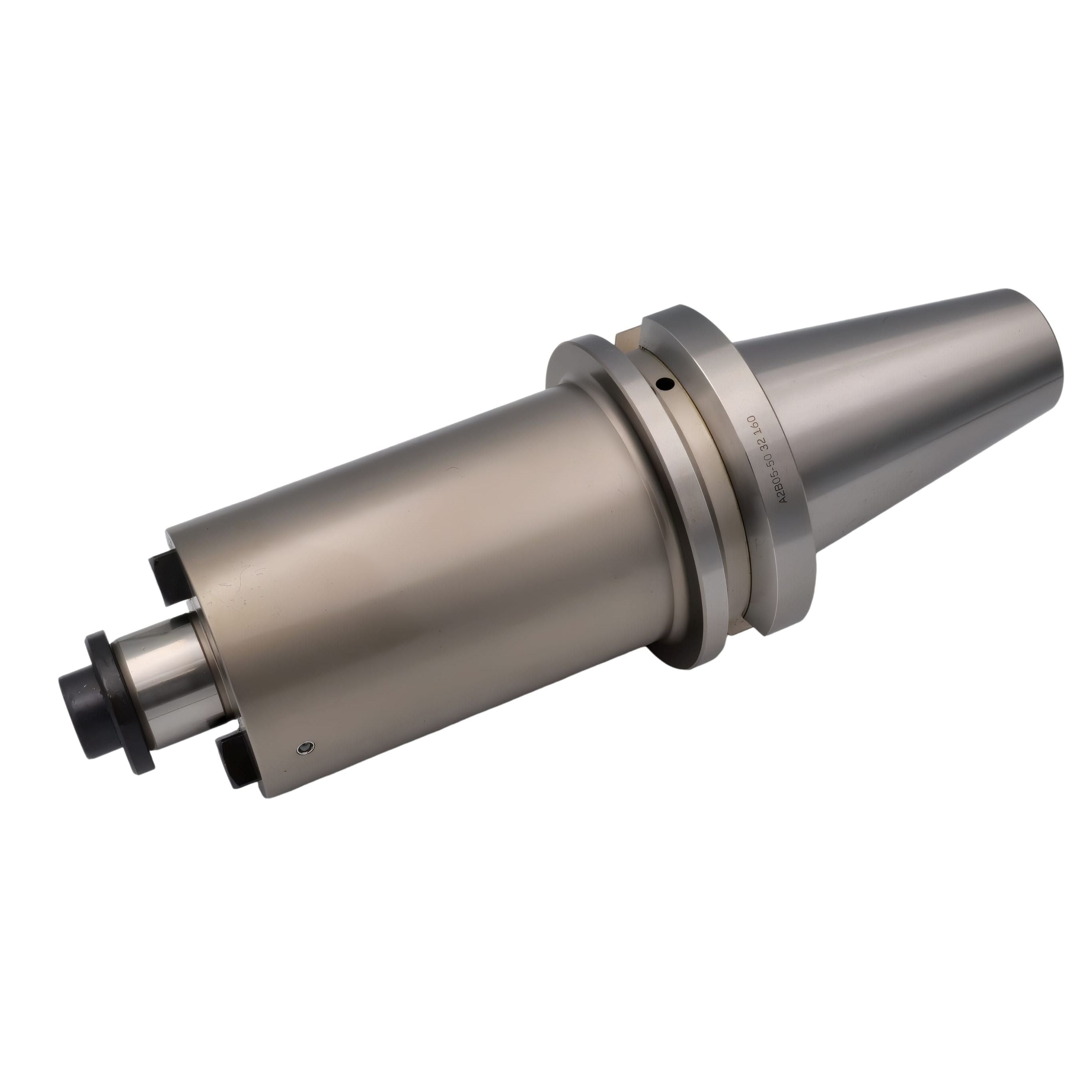

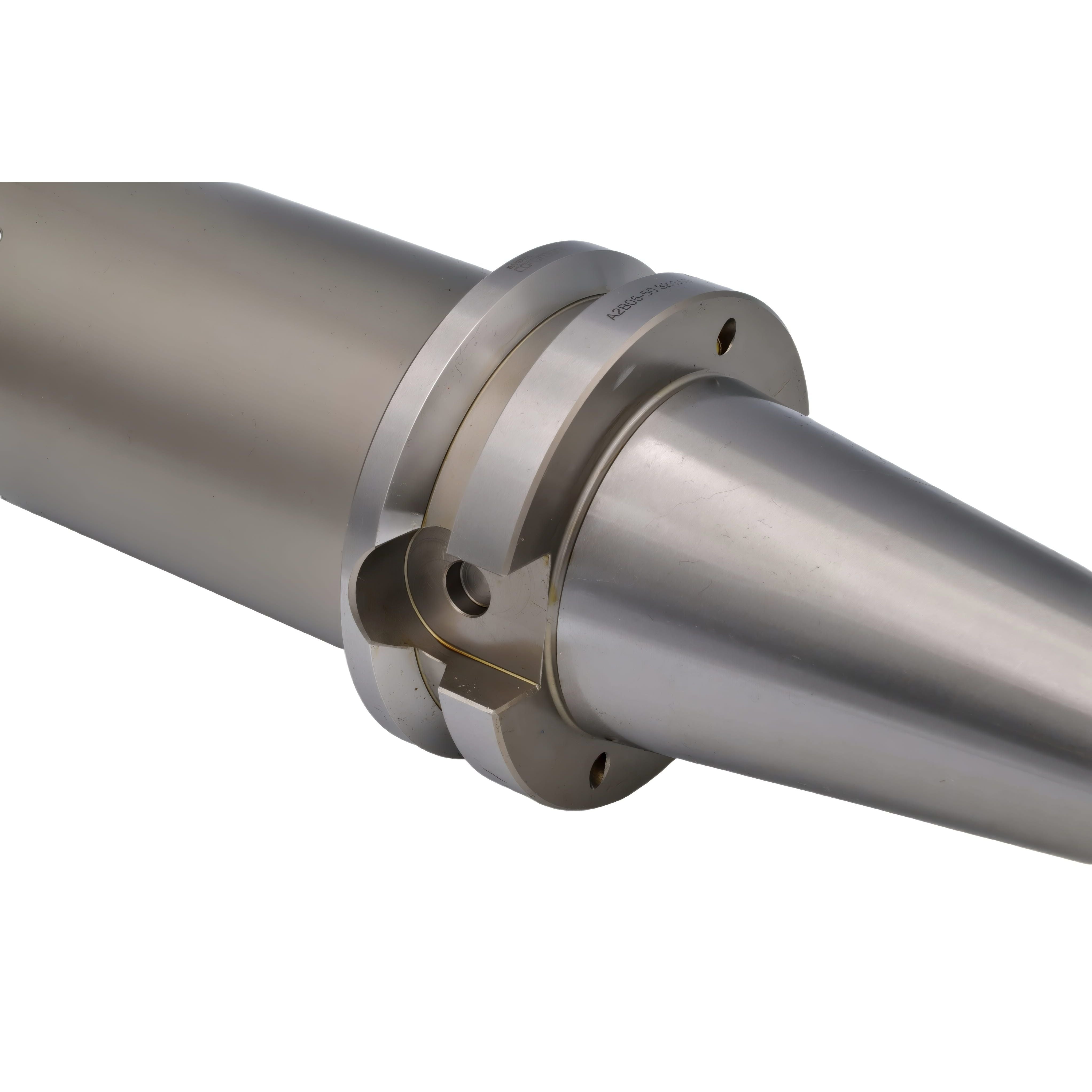

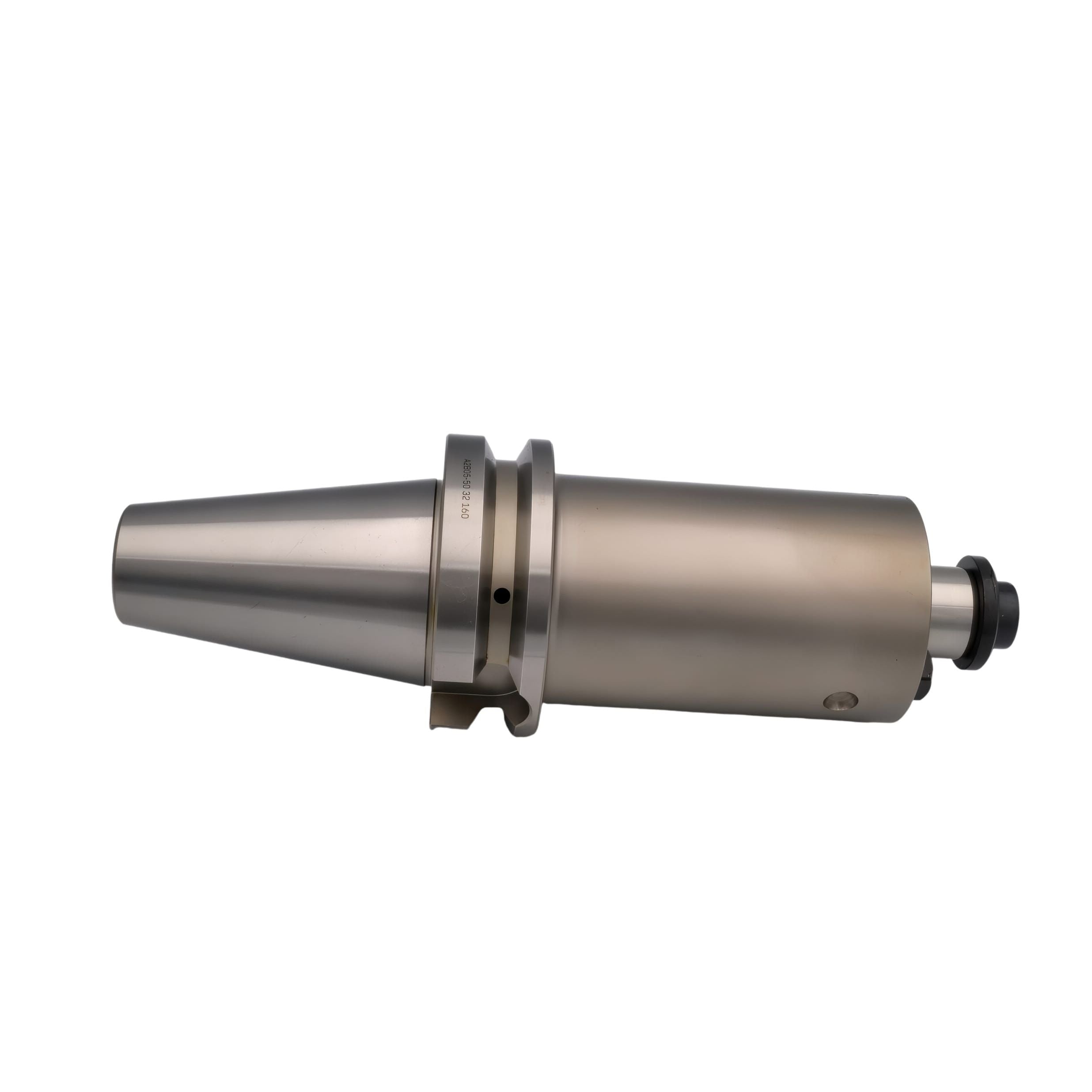

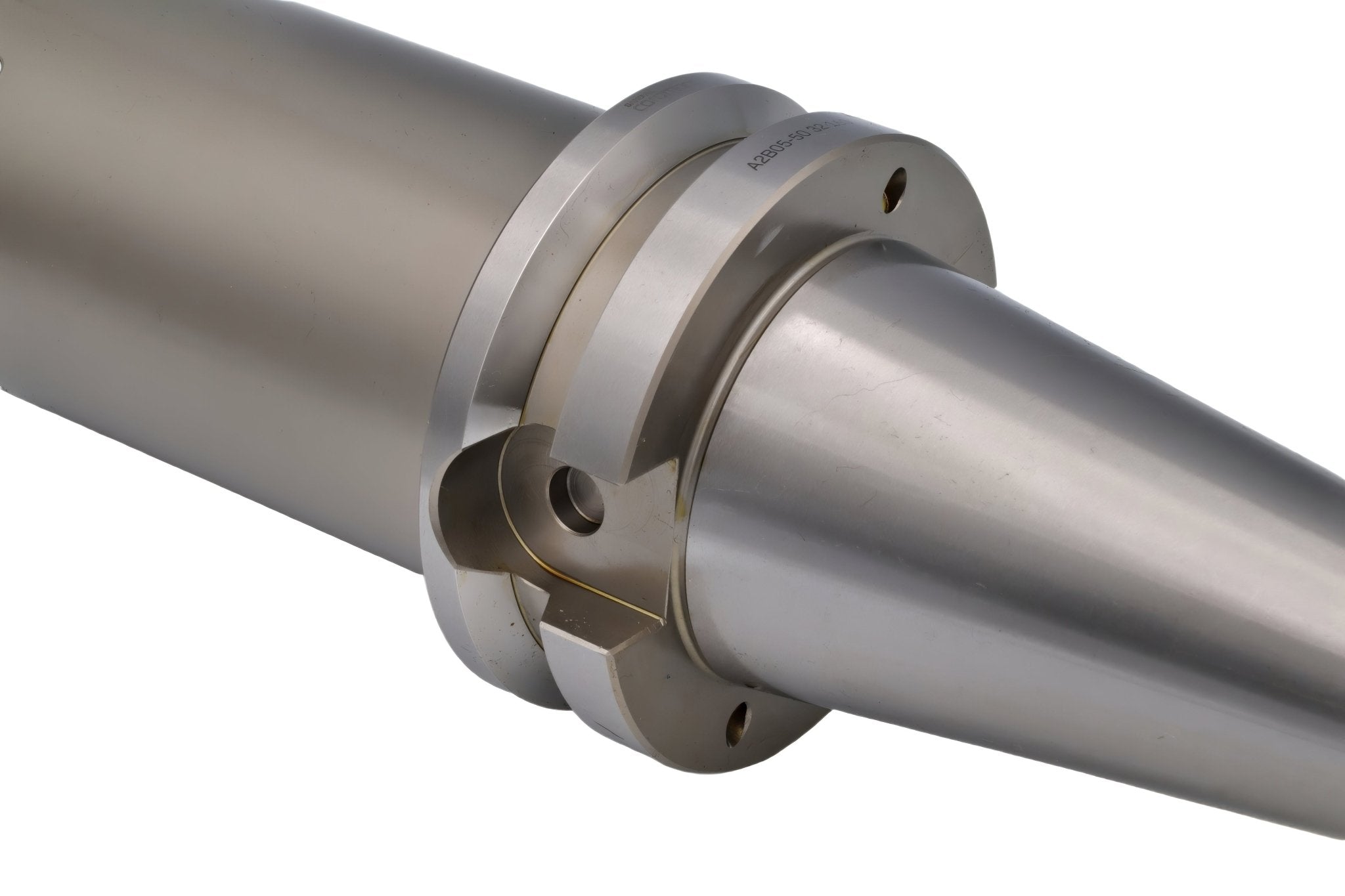

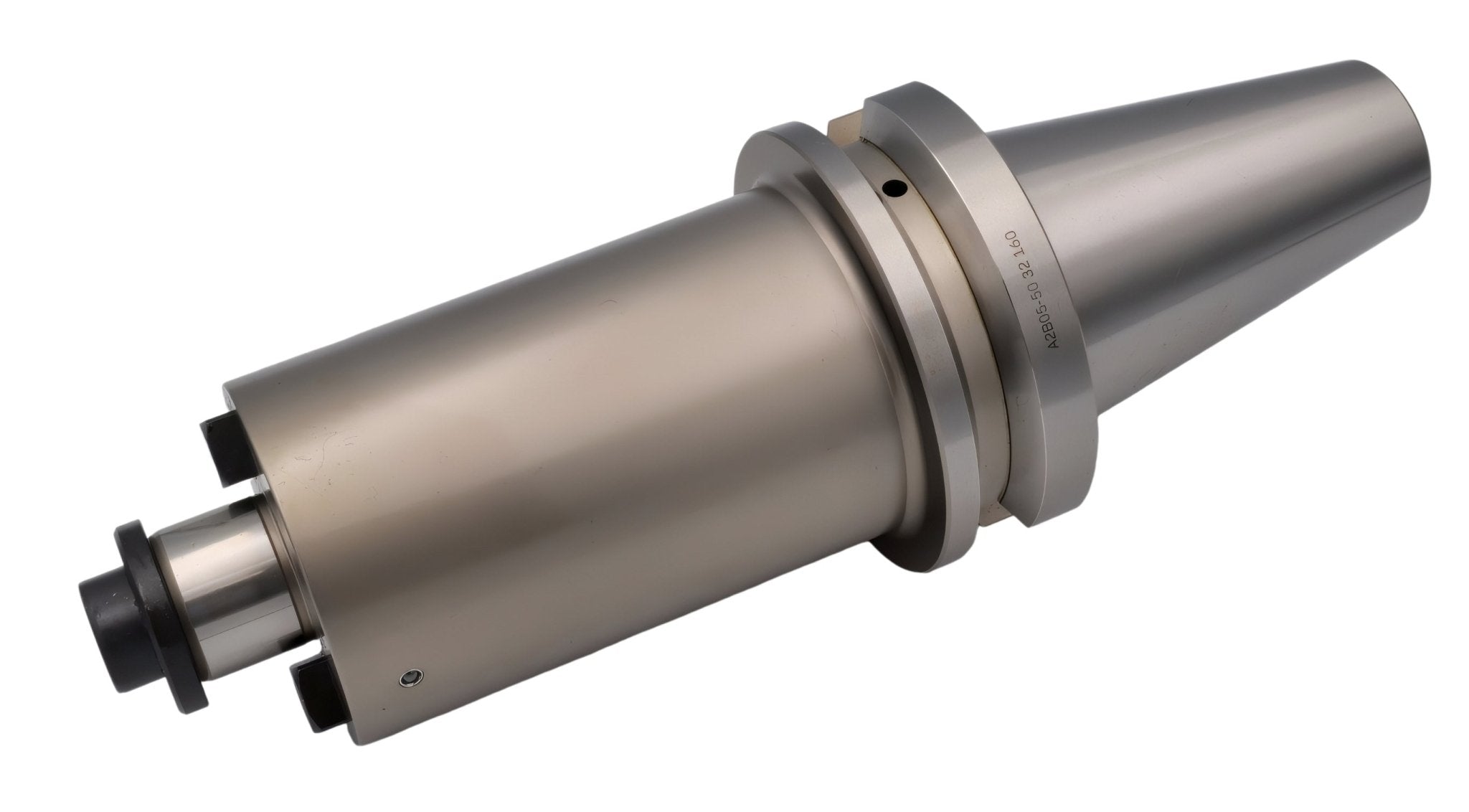

Sandvik BT50-SM27-160 – Shell Mill Holder (Ø32 mm Bore, BT50 Taper)

The Sandvik Coromant A2B05-50 32 160 is a high-precision MAS-BT50 arbor adapter engineered for secure mounting of milling cutters and arbor-mounted tooling in demanding machining environments. Designed to ISO 6462...
$280.00
$0.00
$280.00
(-0%)
SKU: A2B05-50 32 160
Availability: In Stock
Subtotal: $280.00

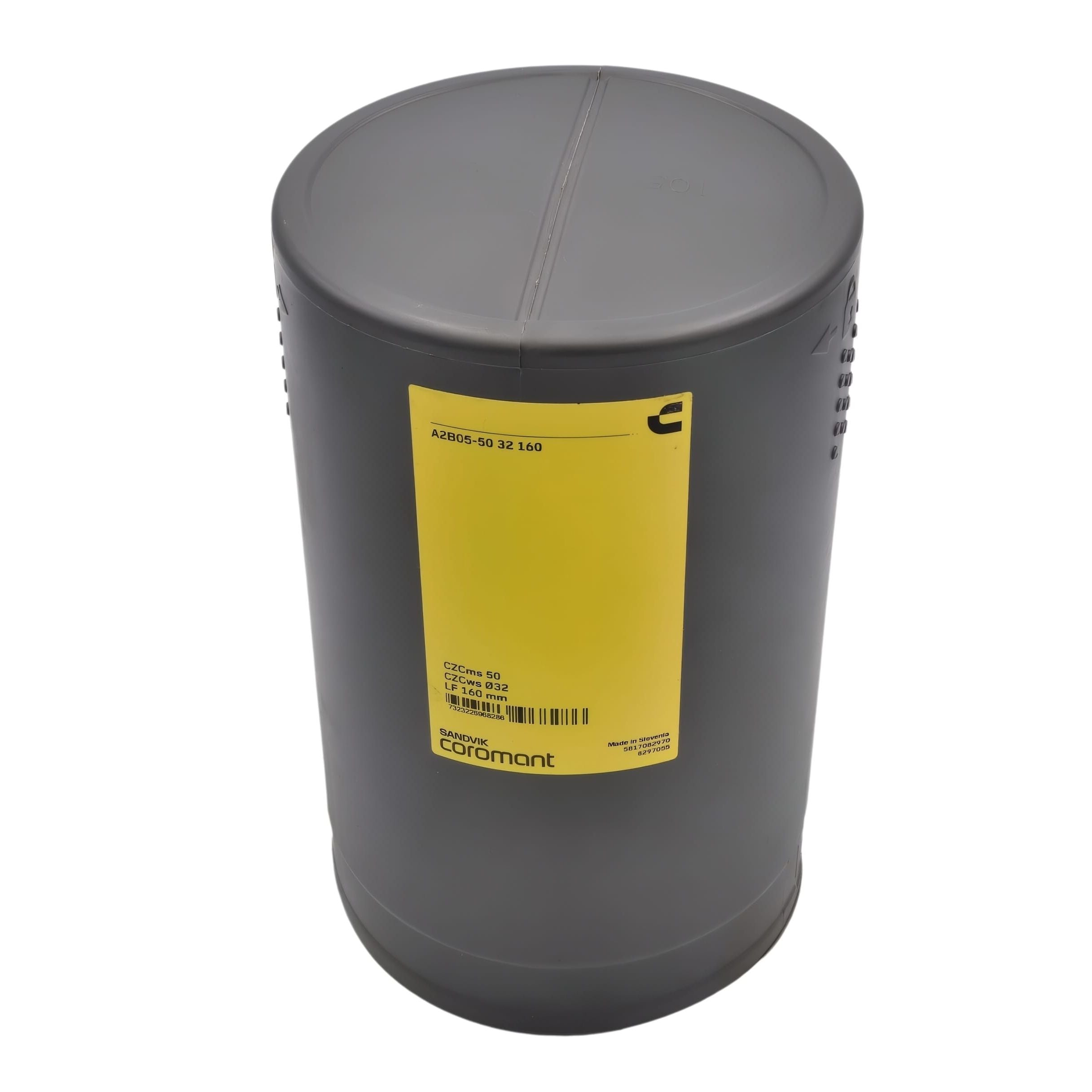

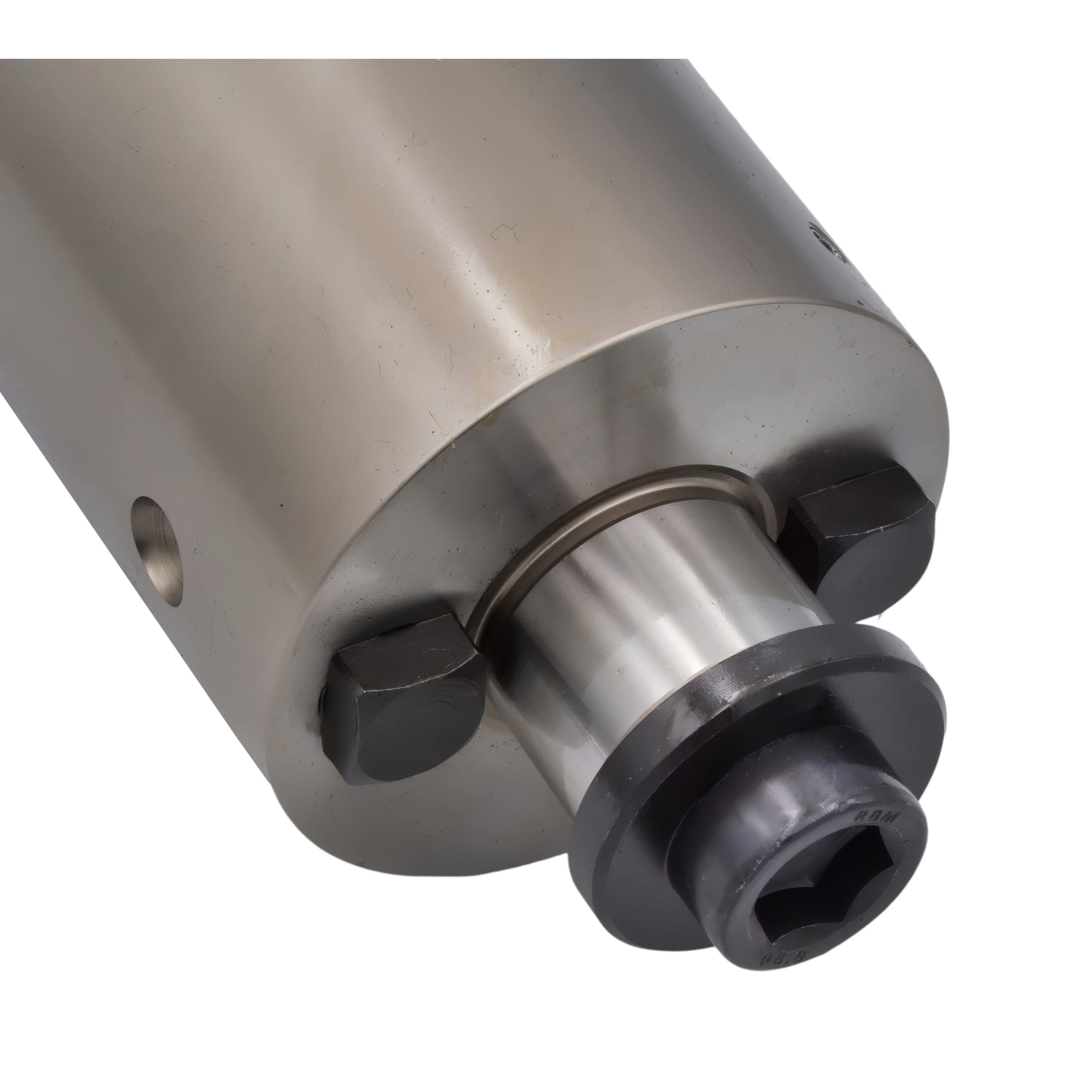

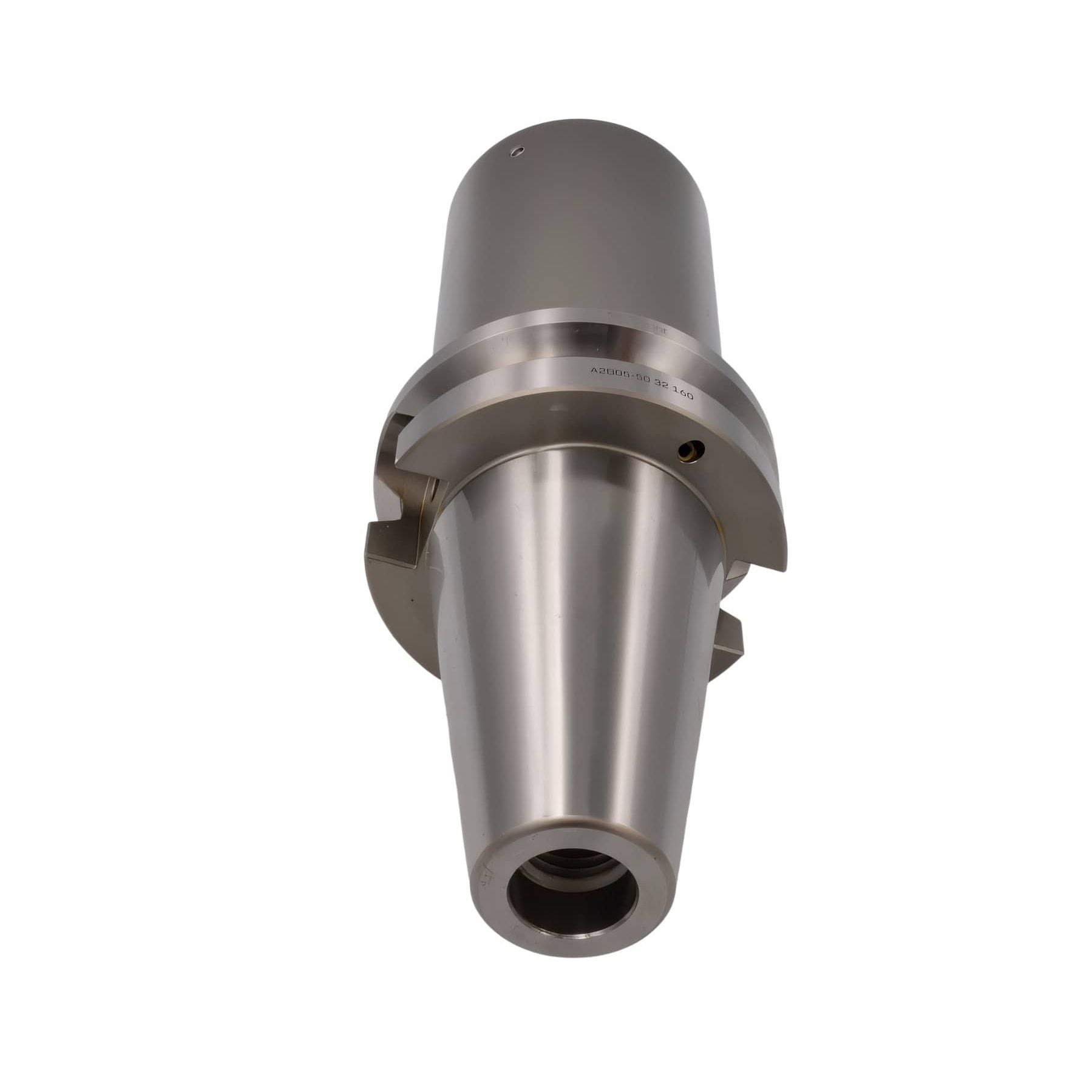

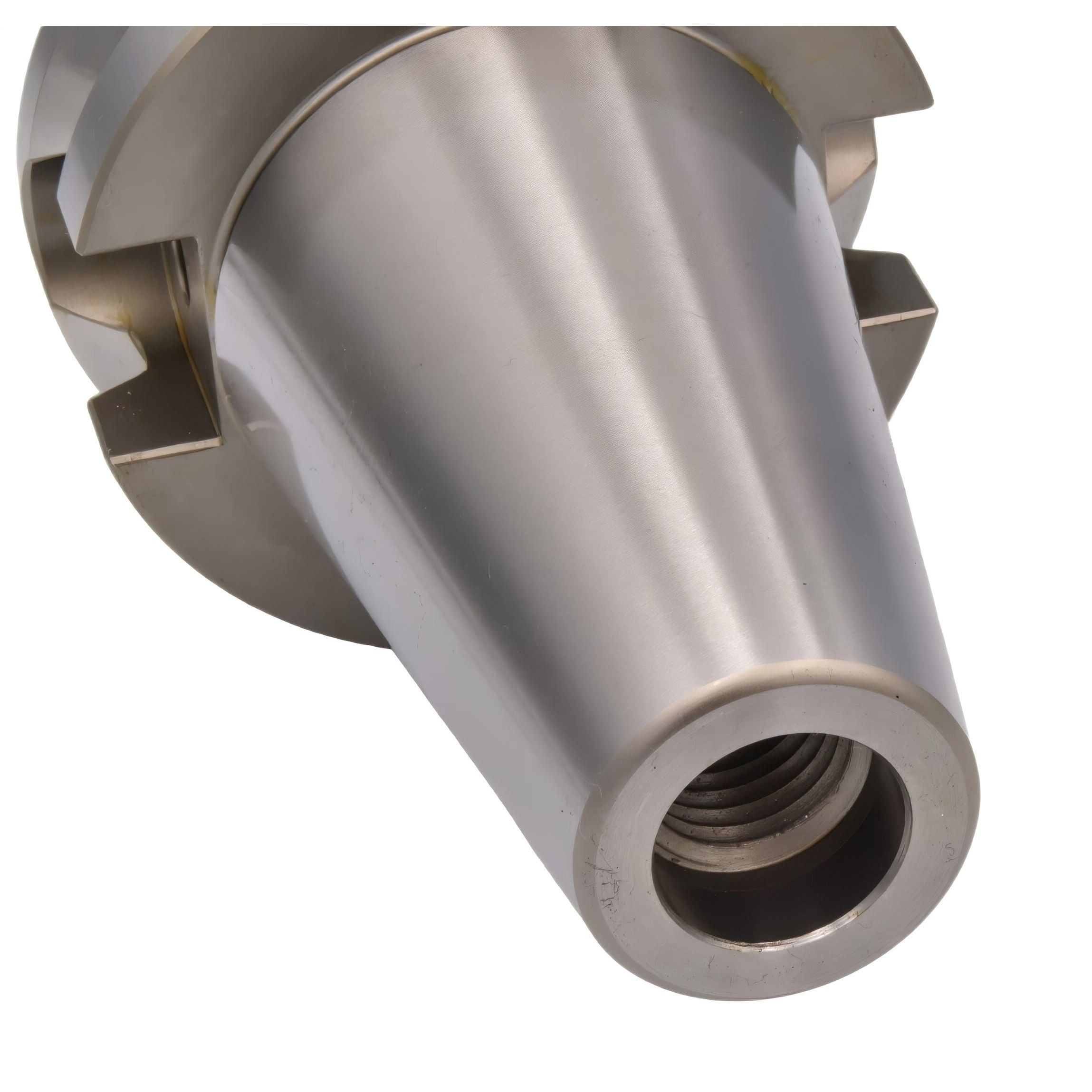

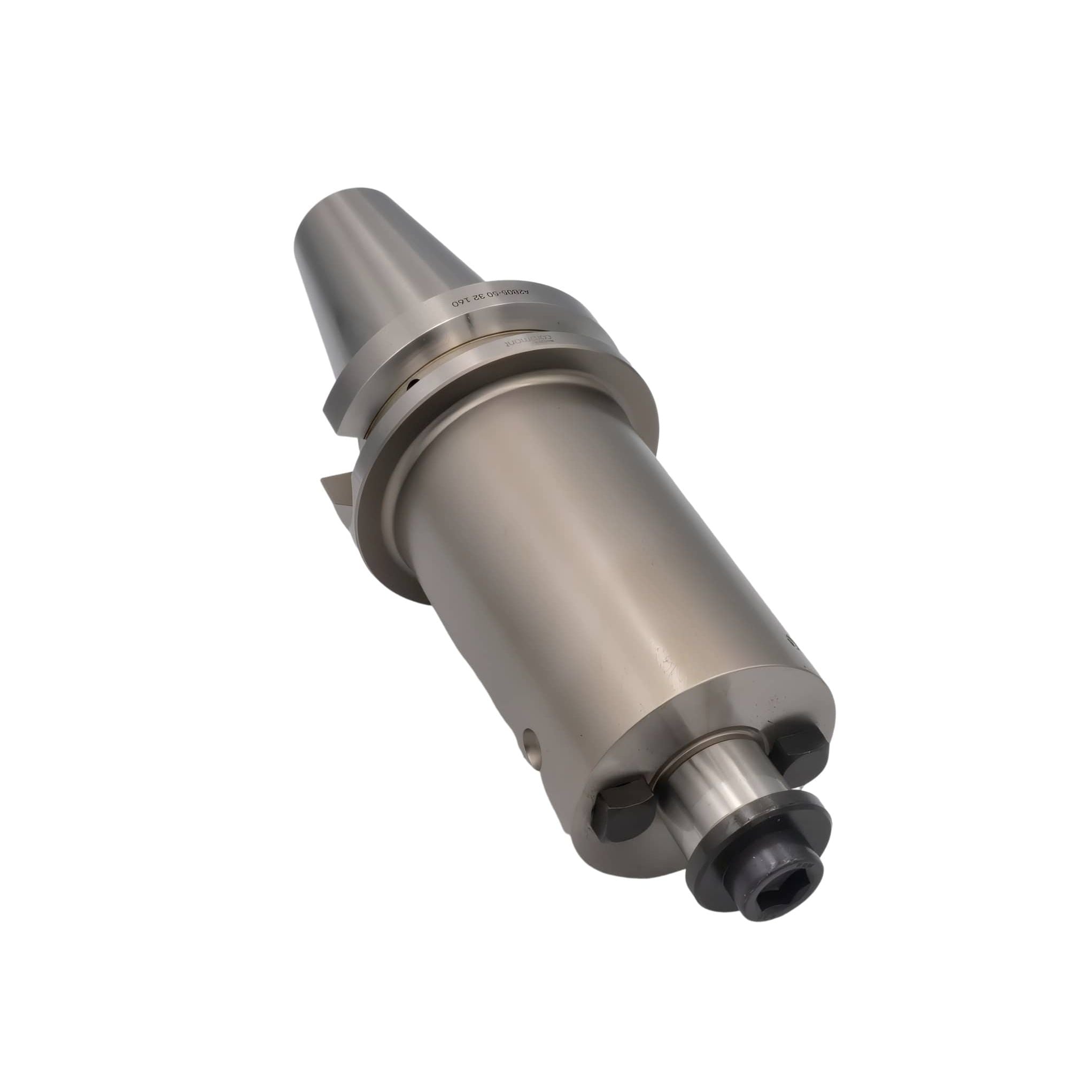

SANDVIK AUSTRALIA PTY LTD ACCESSORIES Sandvik Coromant A2B05-50 32 160 MAS-BT50 Arbor Adapter – Ø32mm x 160mm Projection

Sandvik BT50-SM27-160 – Shell Mill Holder (Ø32 mm Bore, BT50 Taper)

$0.00 $280.00

Sandvik BT50-SM27-160 – Shell Mill Holder (Ø32 mm Bore, BT50 Taper)

$0.00 $280.00

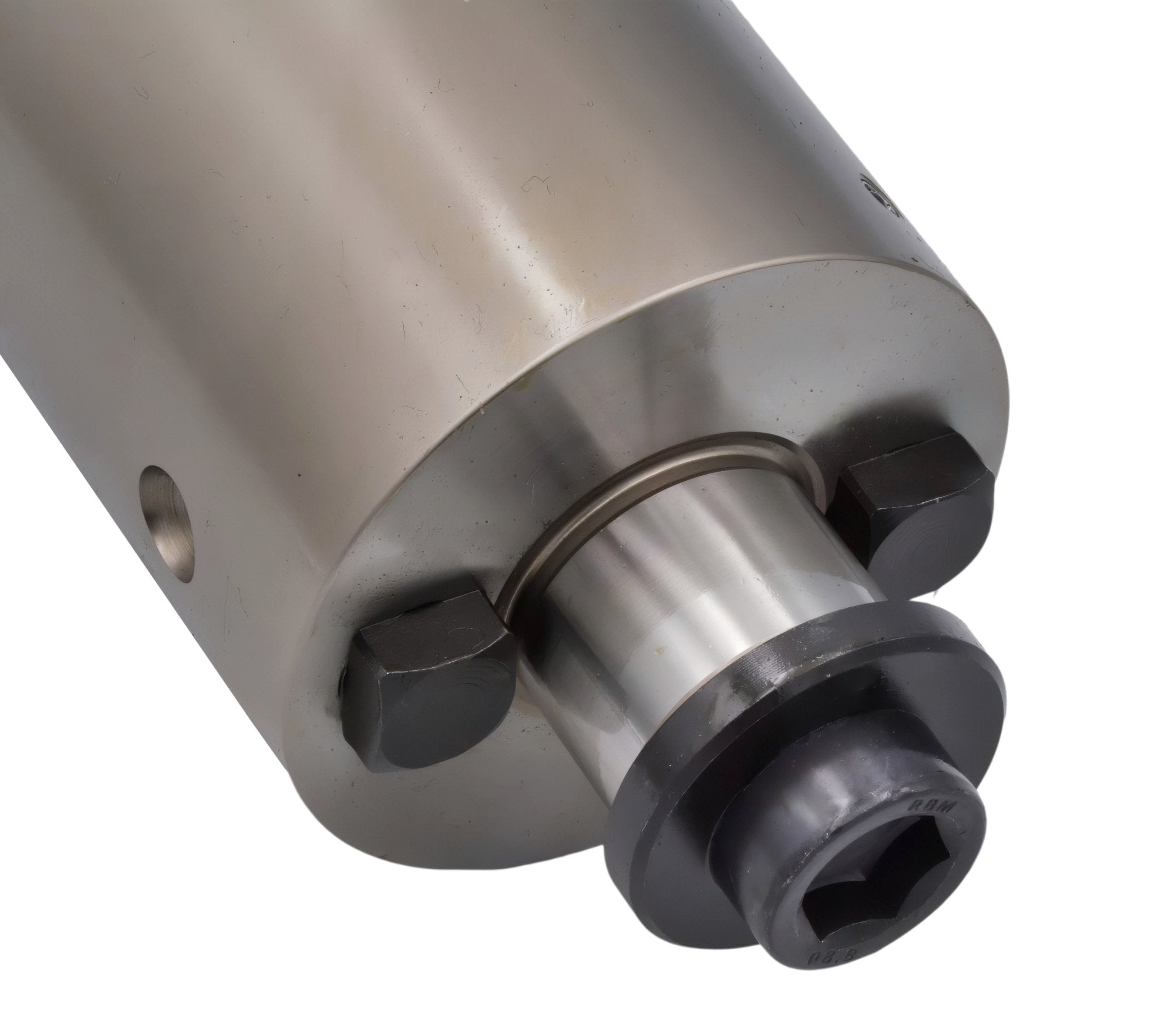

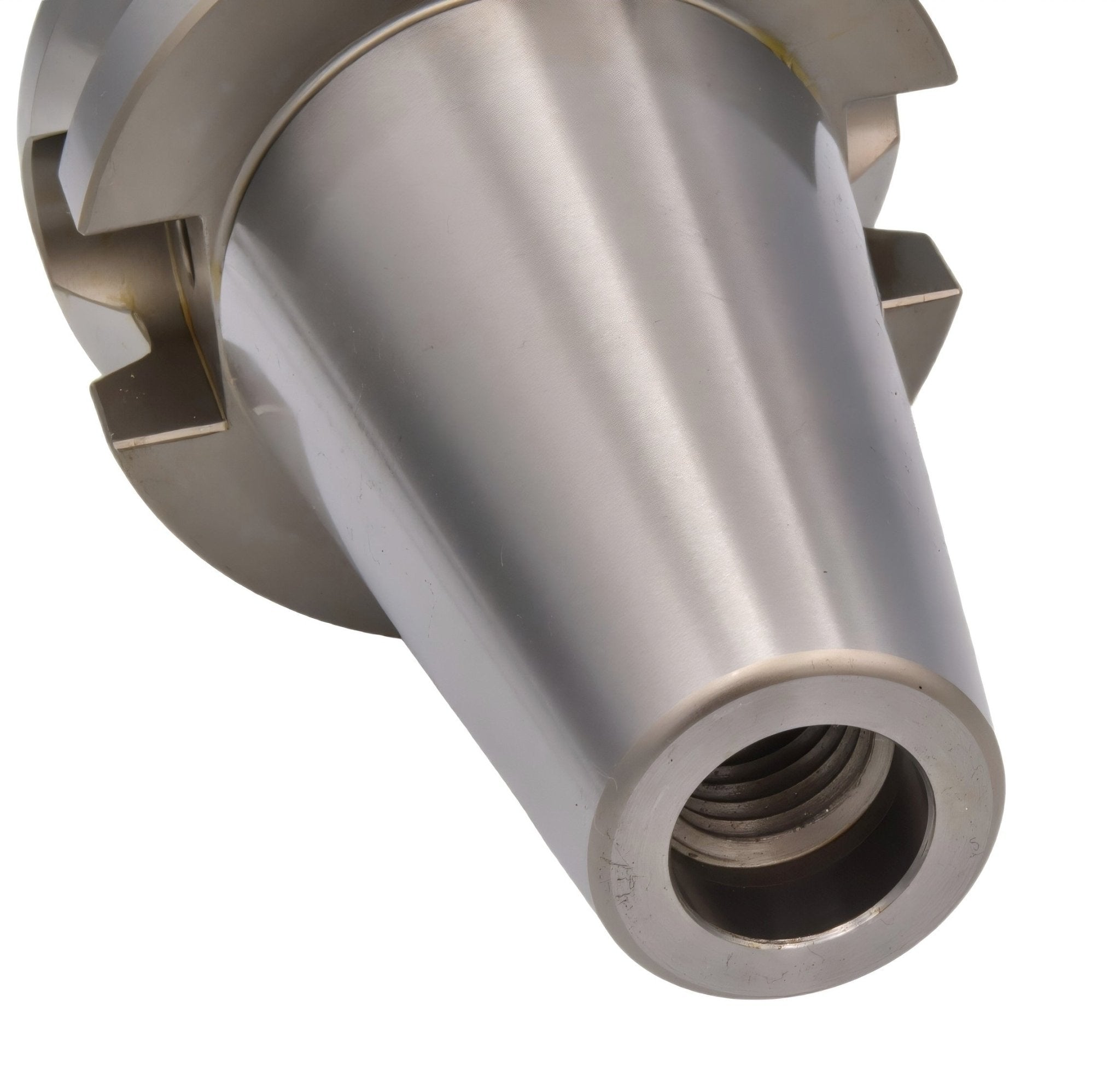

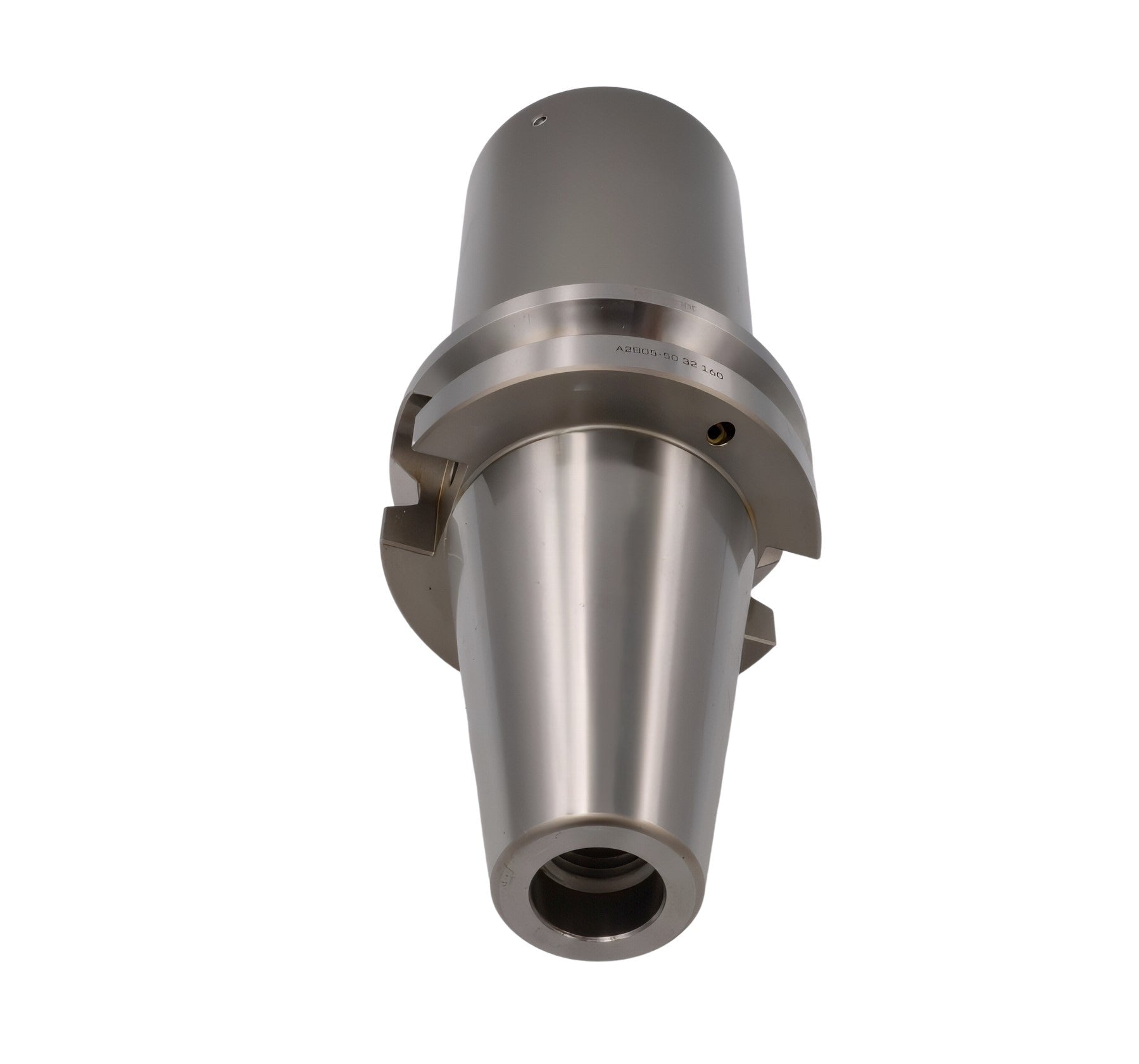

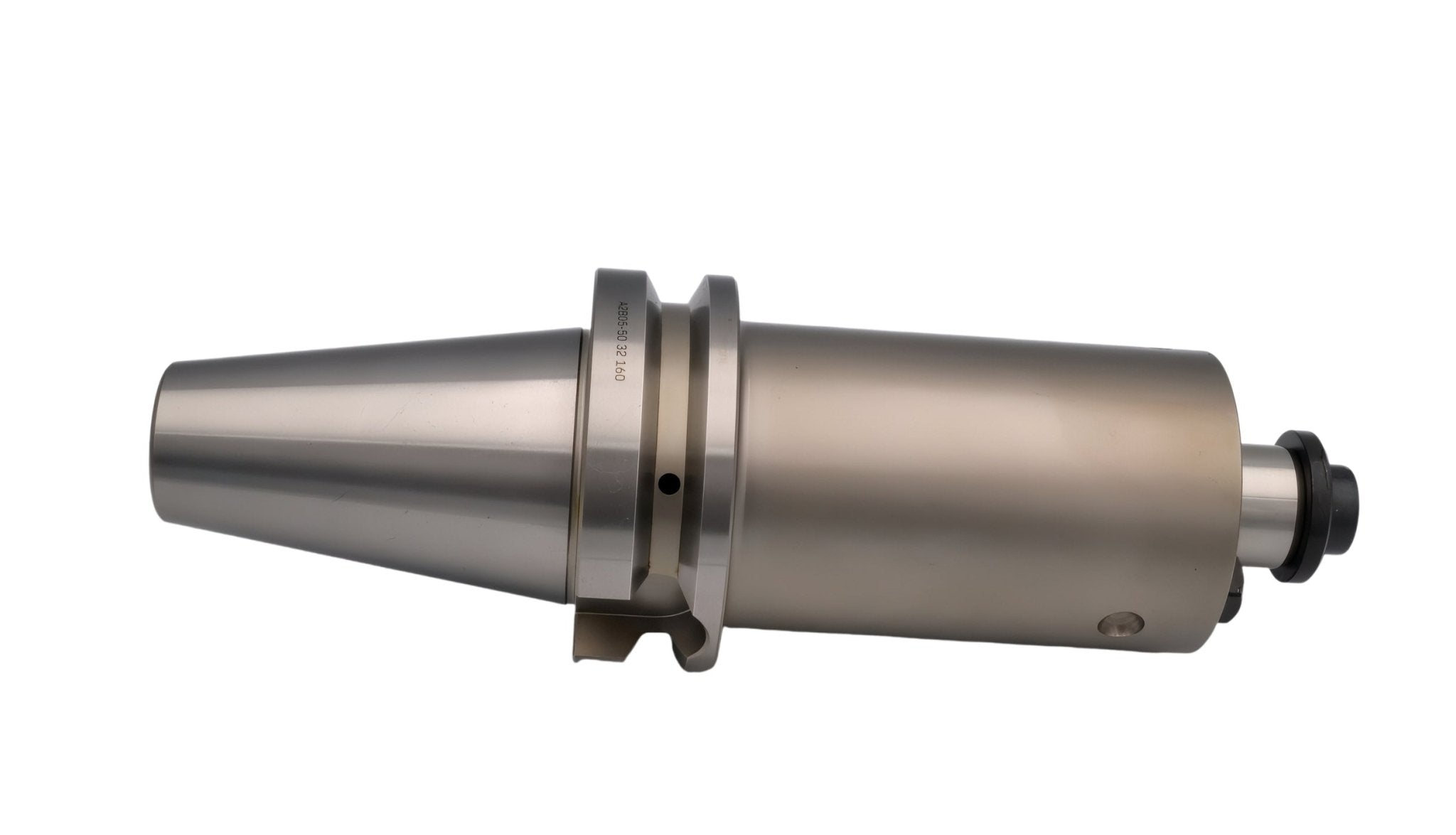

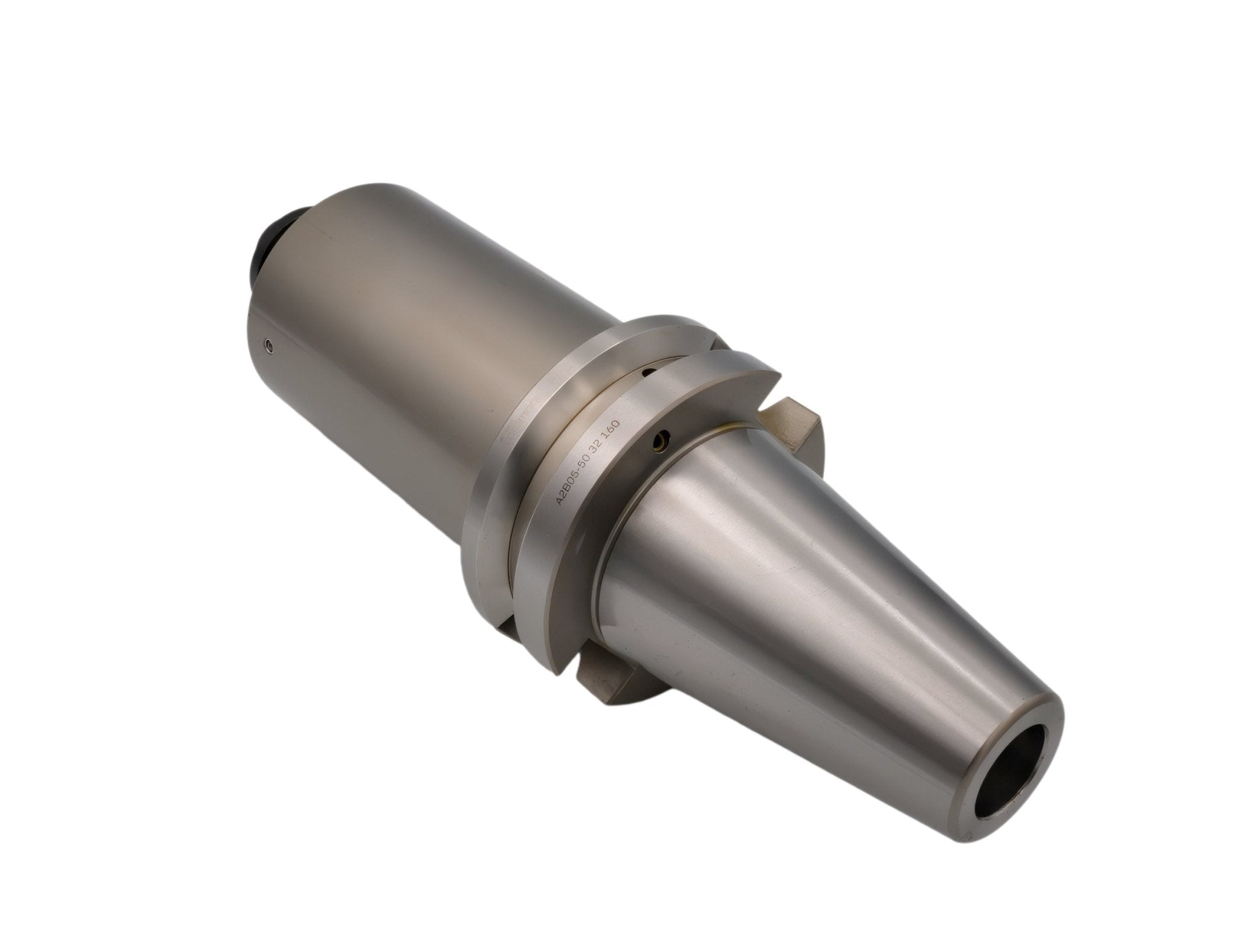

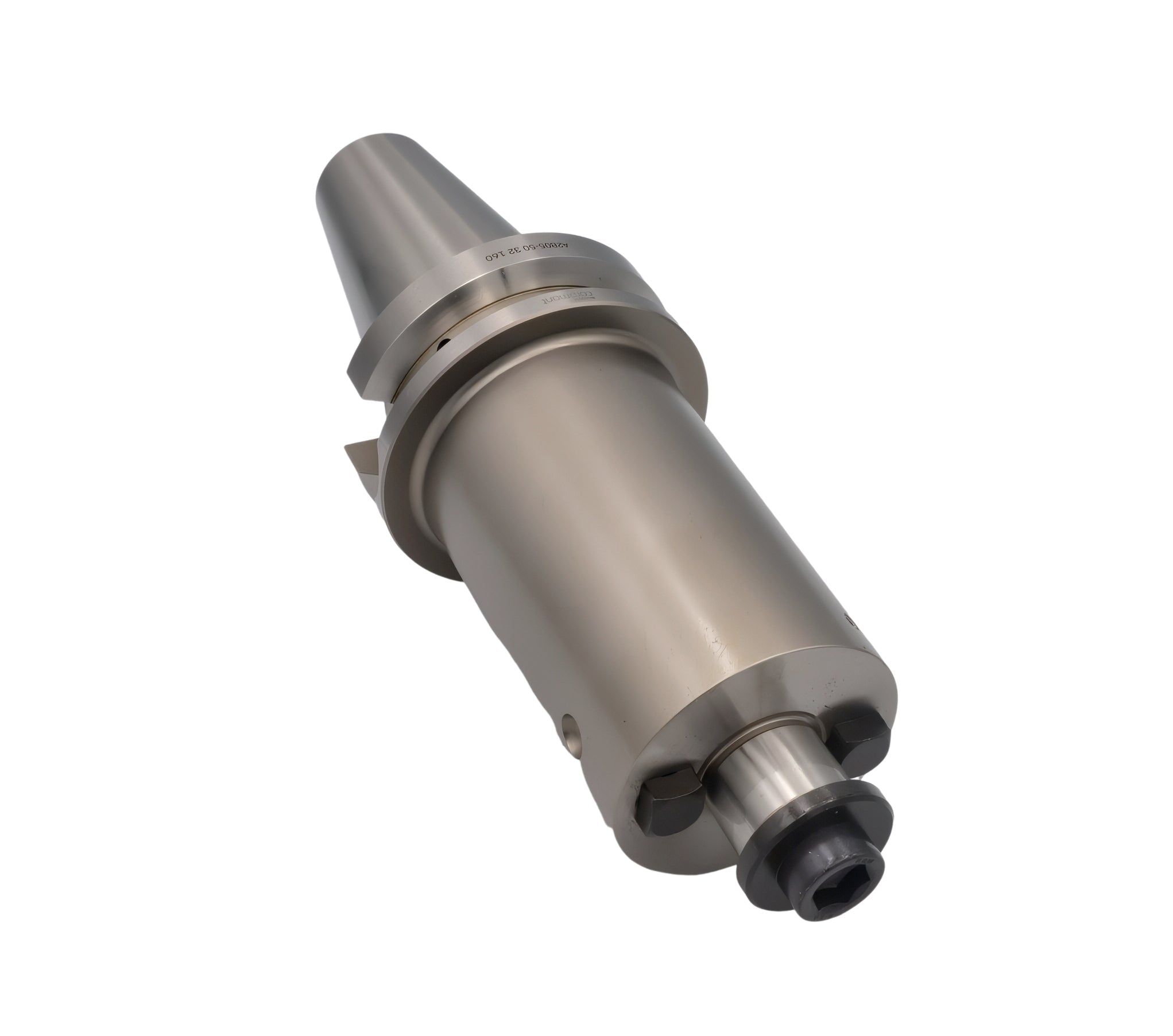

The Sandvik Coromant A2B05-50 32 160 is a high-precision MAS-BT50 arbor adapter engineered for secure mounting of milling cutters and arbor-mounted tooling in demanding machining environments. Designed to ISO 6462 standards, this adapter provides exceptional rigidity, accuracy, and balance, making it ideal for high-speed milling, face milling, and heavy-duty metal removal operations.

Featuring a BT50 machine-side connection and a 32 mm arbor interface, this adapter ensures reliable torque transmission and precise tool positioning. The integrated coolant delivery system supports both flange and axial coolant supply, improving chip evacuation and tool life during high-performance machining. Manufactured from high-grade steel and balanced by design, the A2B05-50 32 160 delivers stable cutting performance at spindle speeds up to 12,000 RPM.

Key Features & Benefits

  • MAS-BT50 spindle connection for secure and accurate tool holding
  • 32 mm arbor interface compatible with ISO 6462 arbor-mounted cutters
  • Designed for face milling and arbor-mounted machining applications
  • Integrated coolant delivery through flange and axial channels
  • Supports coolant pressures up to 80 bar
  • Balanced by design for high-speed machining stability
  • High-strength steel construction for durability and long service life
  • Suitable for heavy-duty milling and precision machining operations
  • Maximum spindle speed of 12,000 RPM

Technical Specifications

  • Brand: Sandvik Coromant
  • Product Code: A2B05-50 32 160
  • Tool Type: Arbor Adapter
  • Machine Side Connection: MAS-BT403 AD/B Central/Flange Coolant BT50
  • Workpiece Side Connection: ISO 6462 Arbor A/B
  • Arbor Diameter: 32 mm
  • Functional Length (LF): 160 mm
  • Overall Length (OAL): 285.8 mm
  • Functional Diameter: 69.85 mm
  • Body Diameter (BD_1): 78 mm
  • Body Diameter (BD_2): 100 mm
  • Body Length (LB_1): 119 mm
  • Body Length (LB_2): 160 mm
  • Retention Knob Thread Size: Metric M24
  • Coolant Entry Style: Decentral over flange and axial
  • Coolant Exit Style: Axial concentric on circle
  • Coolant Pressure: 80 bar
  • Maximum Rotational Speed: 12,000 RPM
  • Data Chip Pocket: Yes
  • Data Chip Pocket Size: Ø10 mm × 4.5 mm
  • Kappa (Z-Axis Rotation): 0°
  • Body Material: Steel
  • Balancing Method: Balancing by design
  • Weight: 8.039 kg

Sandvik Coromant is a world-leading manufacturer of metal cutting tools and tooling systems, recognized for delivering innovative, high-precision solutions that maximize machining productivity, accuracy, and reliability across modern manufacturing industries.
