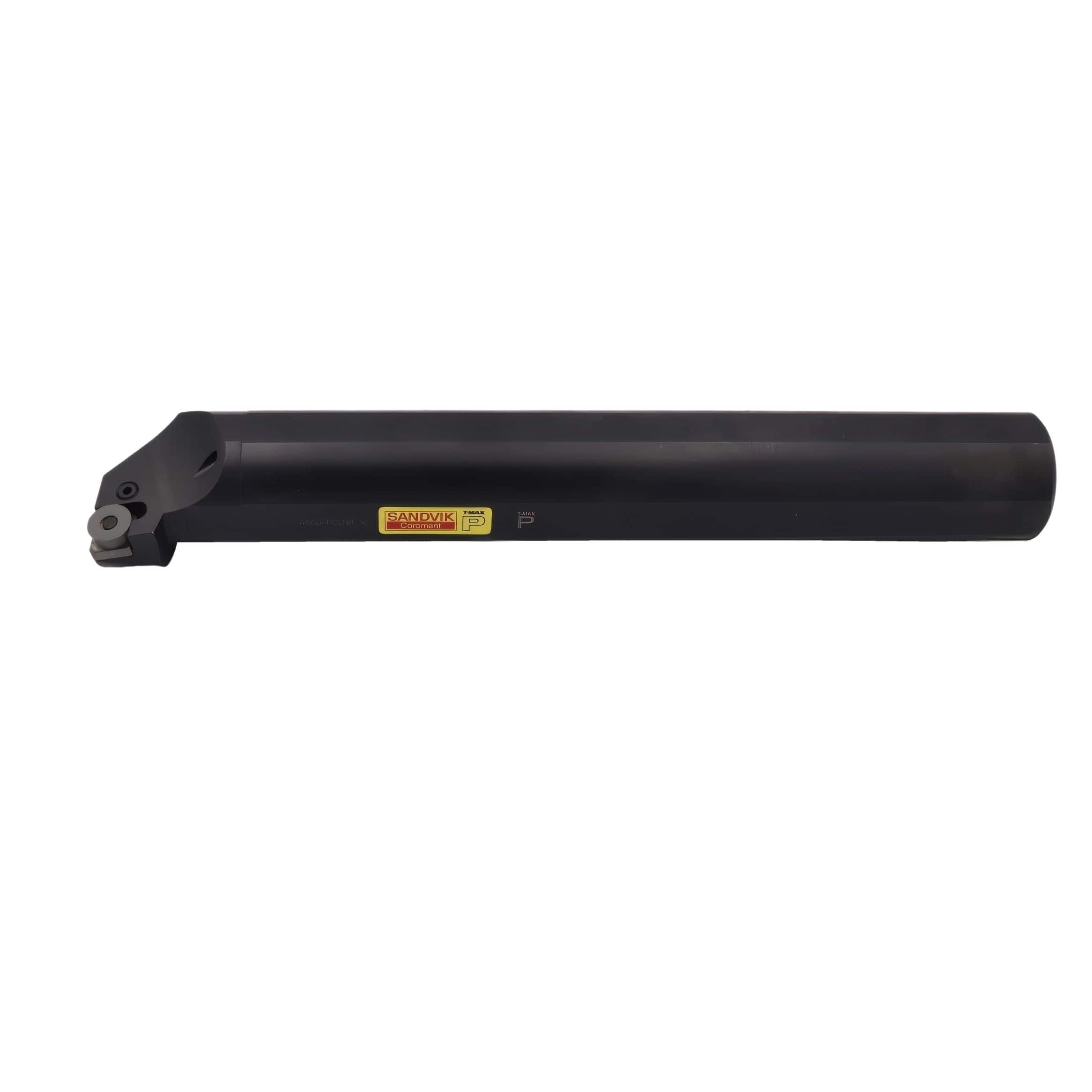

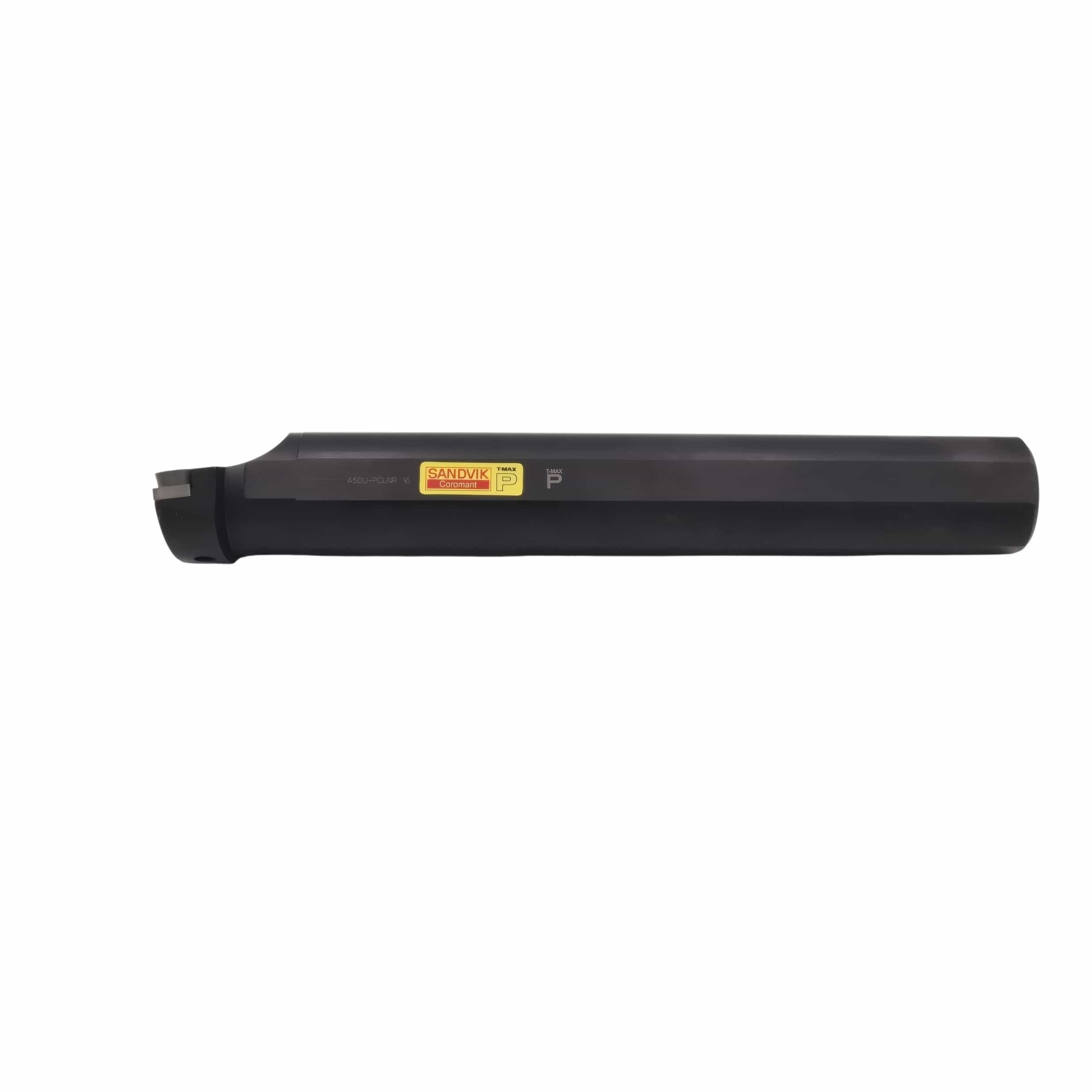

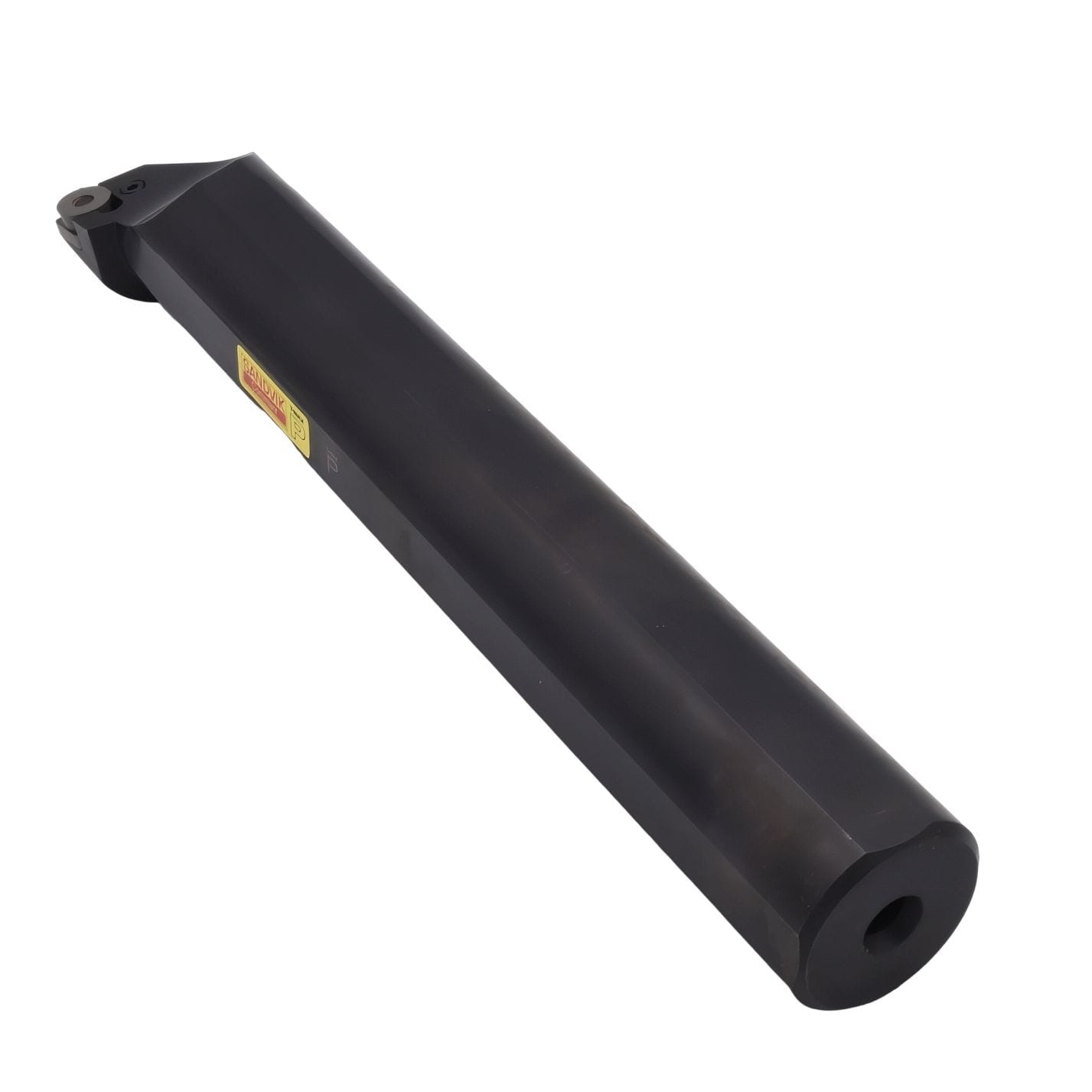

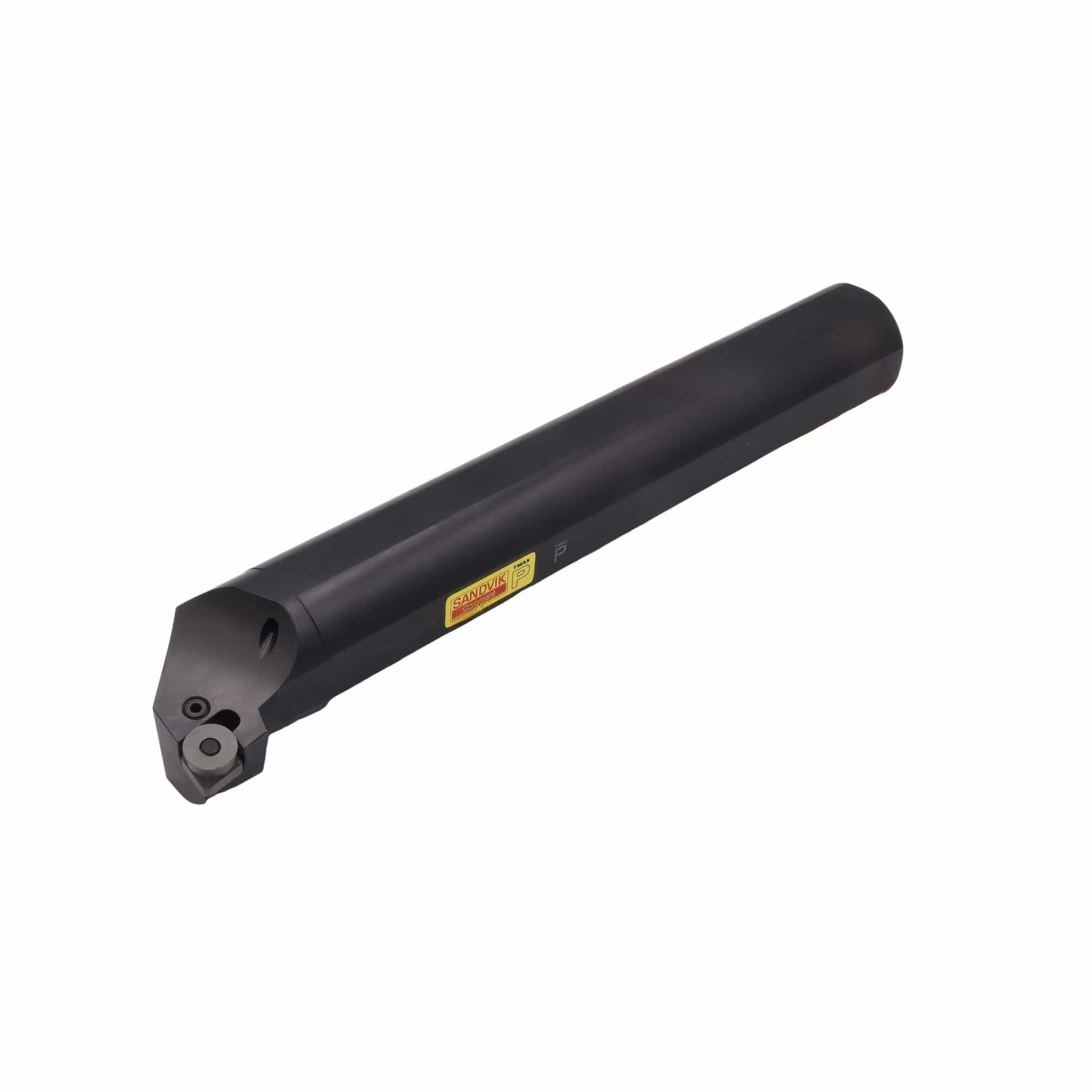

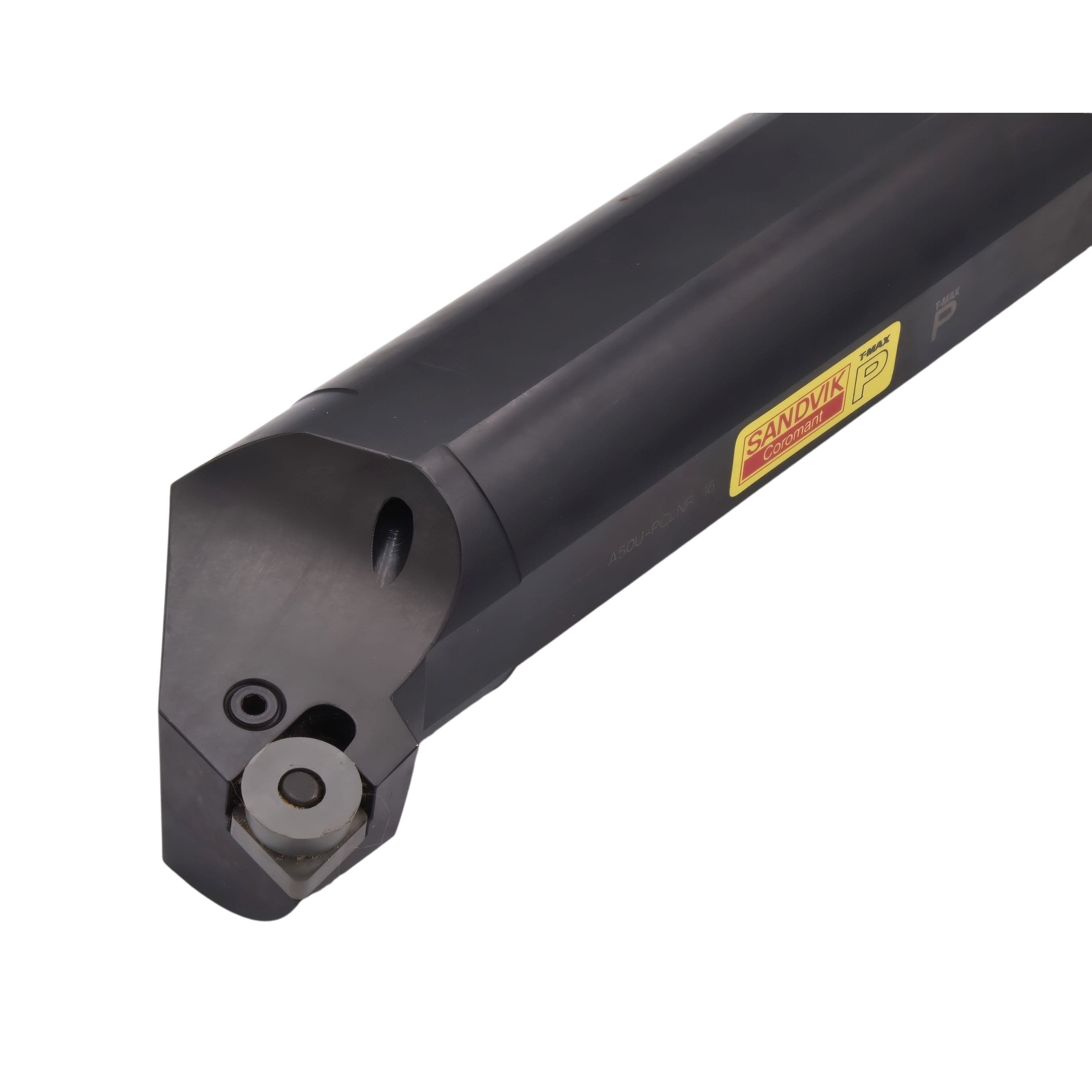

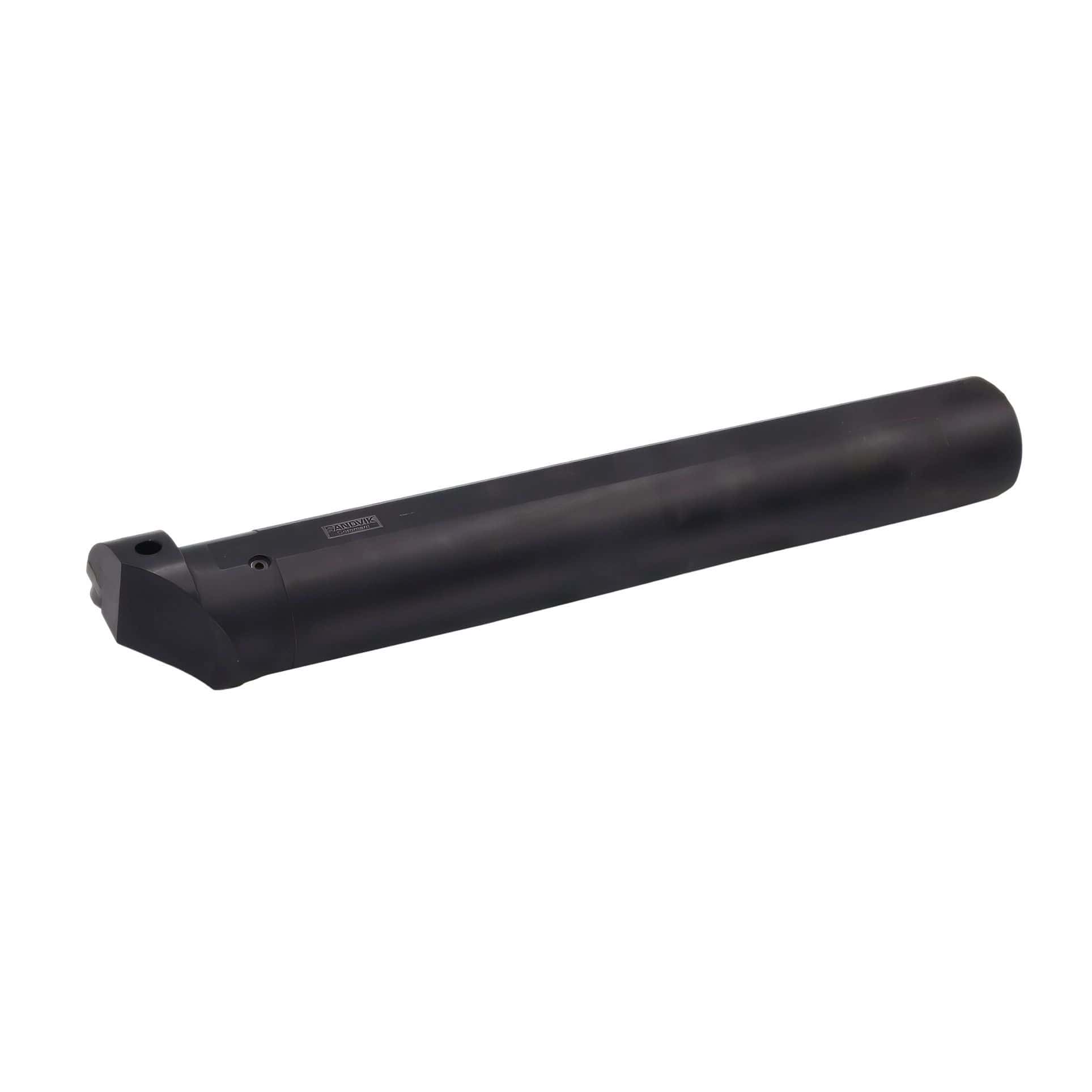

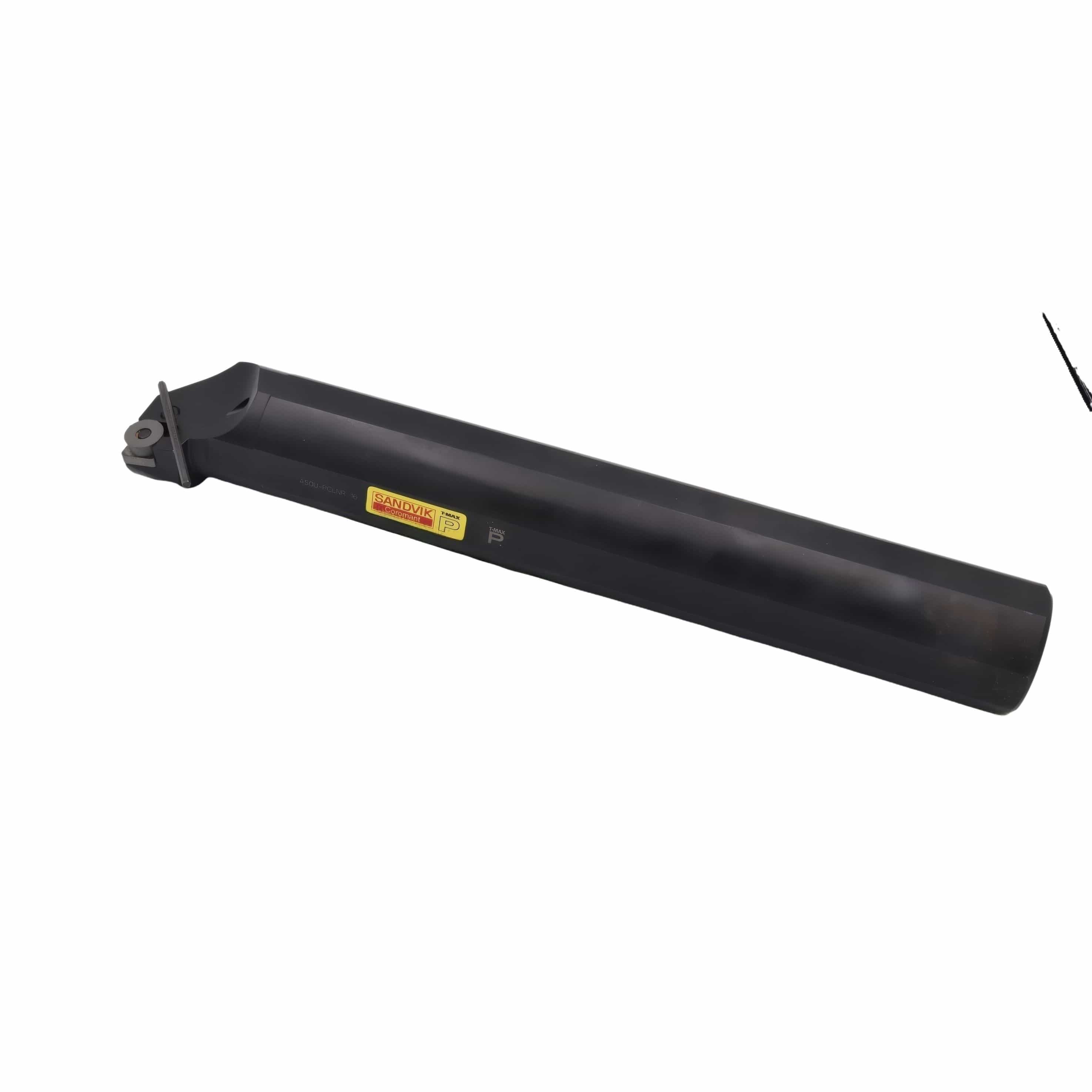

Sandvik A50U-PCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

The Sandvik A50U-PCLNR 16 is a high-performance internal turning and boring bar engineered for precision machining in demanding industrial environments. Featuring a robust 50 mm cylindrical shank with three flats,...
$700.00
$0.00
$700.00
(-0%)
Vendor: SANDVIK
SKU: A50U-PCLNR 16
Availability: In Stock
Subtotal: $700.00
SANDVIK BORING BAR Sandvik A50U-PCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

Sandvik A50U-PCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

$0.00 $700.00

Sandvik A50U-PCLNR 16 Cylindrical Boring Bar for CNMG 160612 Inserts

$0.00 $700.00

The Sandvik A50U-PCLNR 16 is a high-performance internal turning and boring bar engineered for precision machining in demanding industrial environments. Featuring a robust 50 mm cylindrical shank with three flats, this tool provides exceptional rigidity and stability for internal turning operations while minimizing vibration and maximizing machining accuracy.

Designed to accept CNMG 160612 indexable inserts, the A50U-PCLNR 16 utilizes a pin-through-hole clamping system for secure insert retention during heavy-duty cutting. The tool features a 95° cutting edge angle with a -5° lead angle, making it ideal for internal longitudinal turning and facing applications.

With an overall length of 350 mm and a maximum recommended overhang of 200 mm, this boring bar is suitable for machining deep internal features while maintaining excellent rigidity. Internal coolant channels support coolant pressures up to 40 bar, delivering efficient chip evacuation, improved tool life, and enhanced machining performance.

Manufactured from high-strength steel and engineered to Sandvik's exacting quality standards, the A50U-PCLNR 16 is an excellent choice for precision boring and internal turning in automotive, aerospace, general engineering, and heavy industrial applications.

Features

  • Genuine Sandvik internal turning and boring bar.
  • Designed for CNMG 160612 indexable inserts.
  • 50 mm cylindrical shank with three flats for secure tool holding.
  • 95° entering angle with -5° lead angle for versatile internal turning.
  • Pin-through-hole clamp provides reliable insert retention.
  • Internal coolant supply supports pressures up to 40 bar.
  • Suitable for deep boring applications with up to 200 mm recommended overhang.
  • Steel construction delivers excellent rigidity and vibration resistance.
  • Right-hand cutting configuration.
  • Ideal for precision internal turning and boring operations.

Specifications

  • Brand: Sandvik
  • Model: A50U-PCLNR 16
  • Application: Internal turning / Boring
  • Hand: Right
  • Insert Type: CNMG 160612
  • Insert Seat: 16 (5/8")
  • Clamping System: Pin through-hole clamp
  • Cutting Edge Angle: 95°
  • Lead Angle: -5°
  • Orthogonal Rake Angle: -6°
  • Inclination Angle: -11°
  • Minimum Bore Diameter: 63 mm
  • Minimum Overhang: 56 mm
  • Maximum Recommended Overhang: 200 mm
  • Body Diameter: 50 mm
  • Machine Connection: 50 mm cylindrical shank with three flats
  • Overall Length: 350 mm
  • Coolant Supply: Internal
  • Coolant Entry: Axial concentric
  • Coolant Exit: Axial inclined
  • Maximum Coolant Pressure: 40 bar
  • Torque: 5 Nm
  • Body Material: Steel
  • Weight: 4.714 kg
