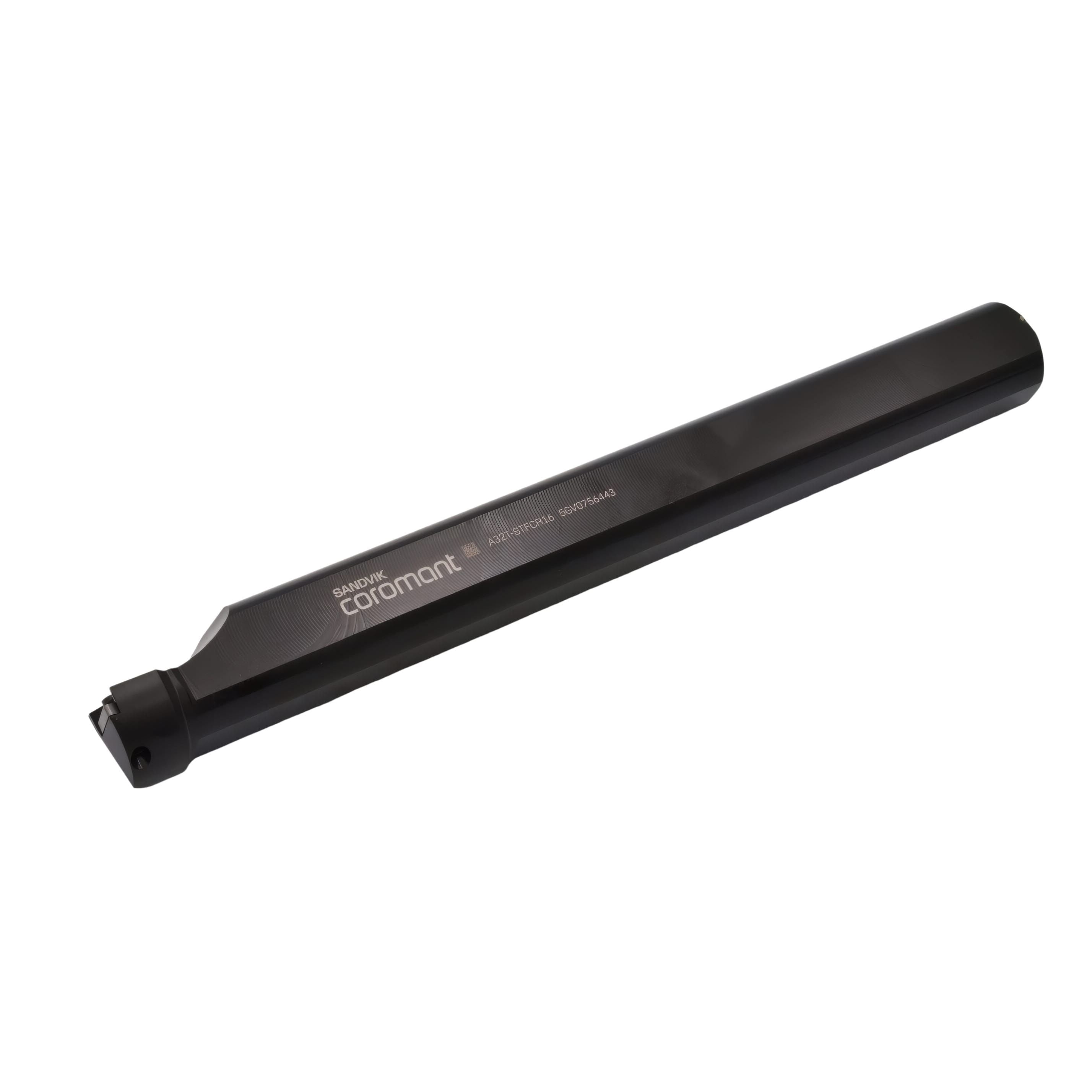

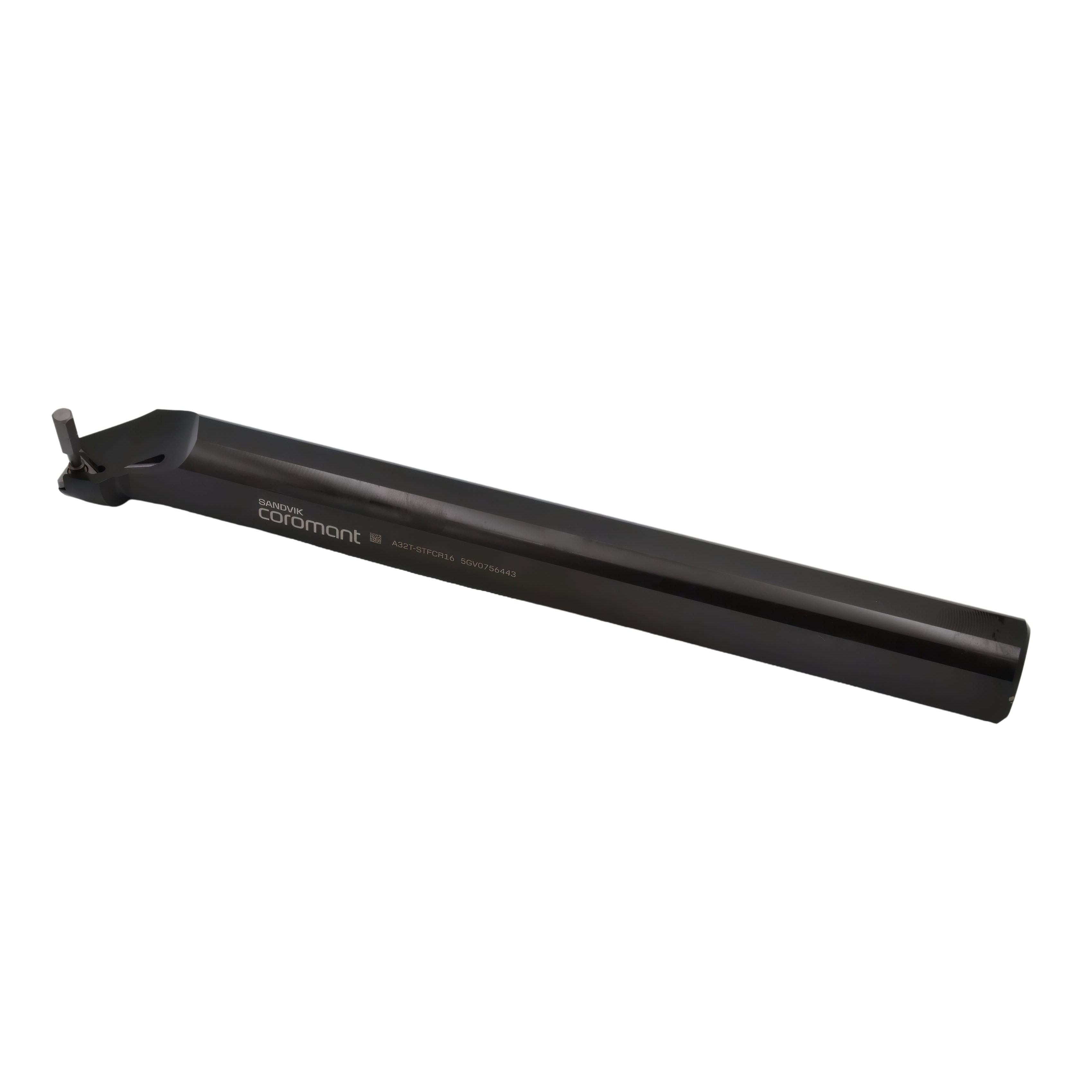

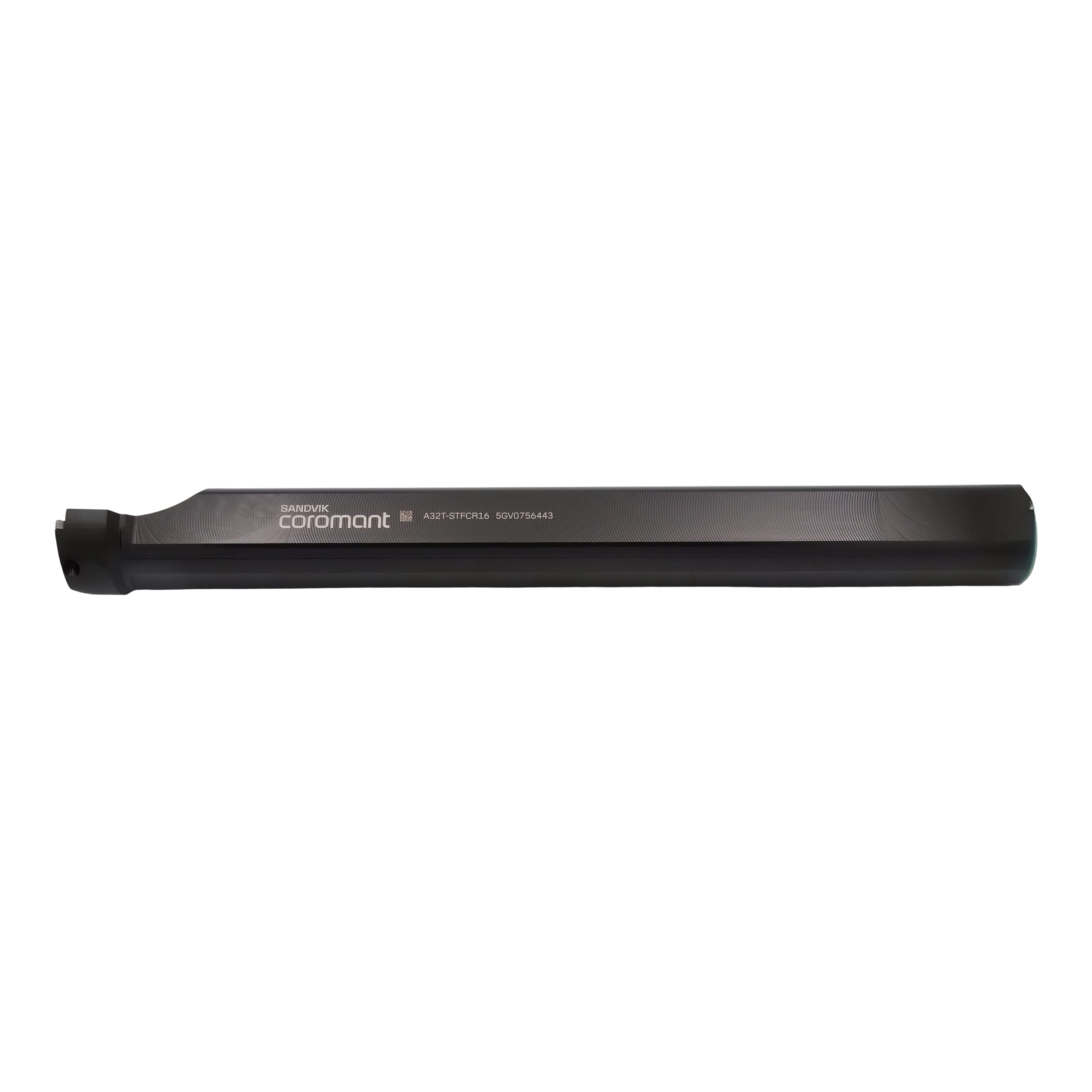

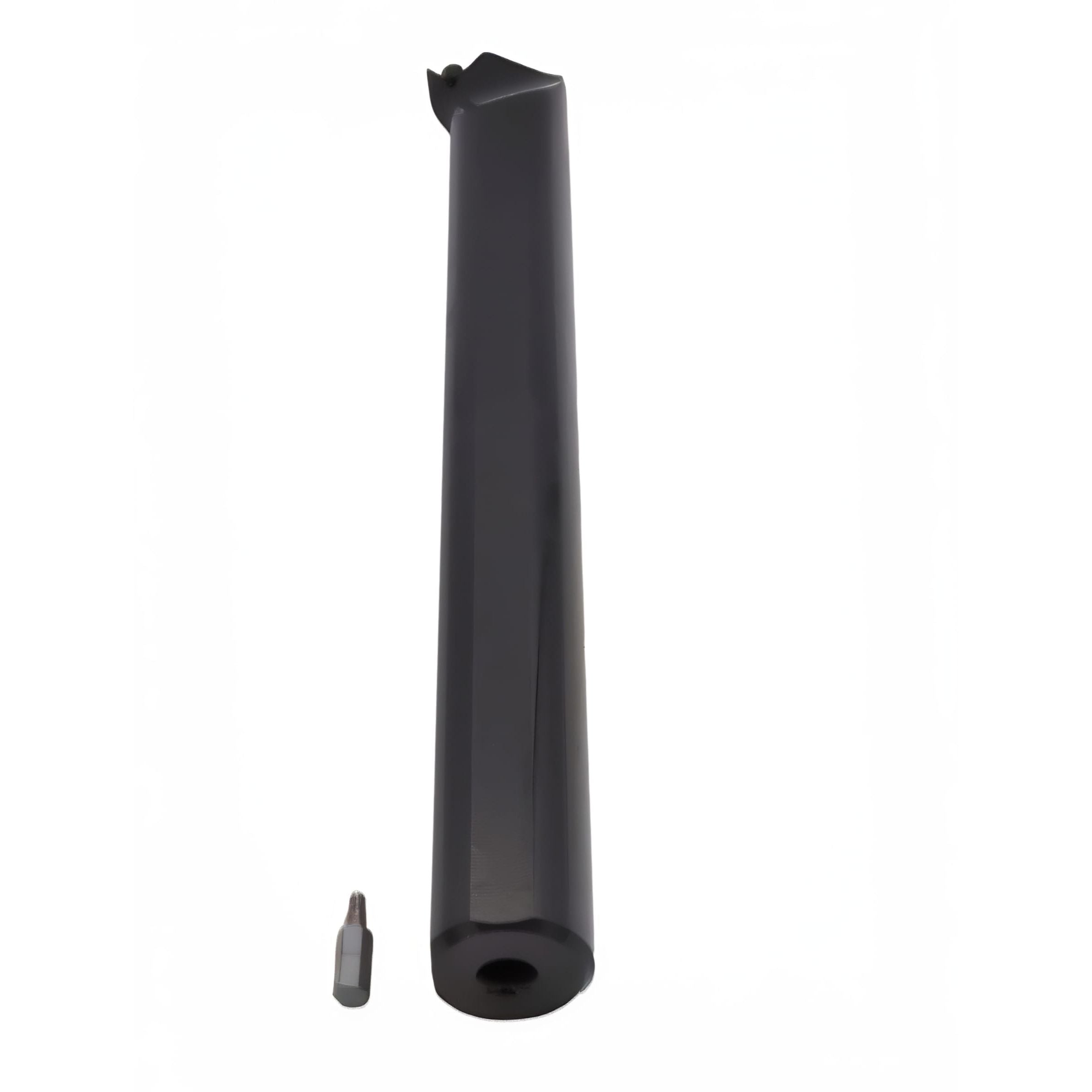

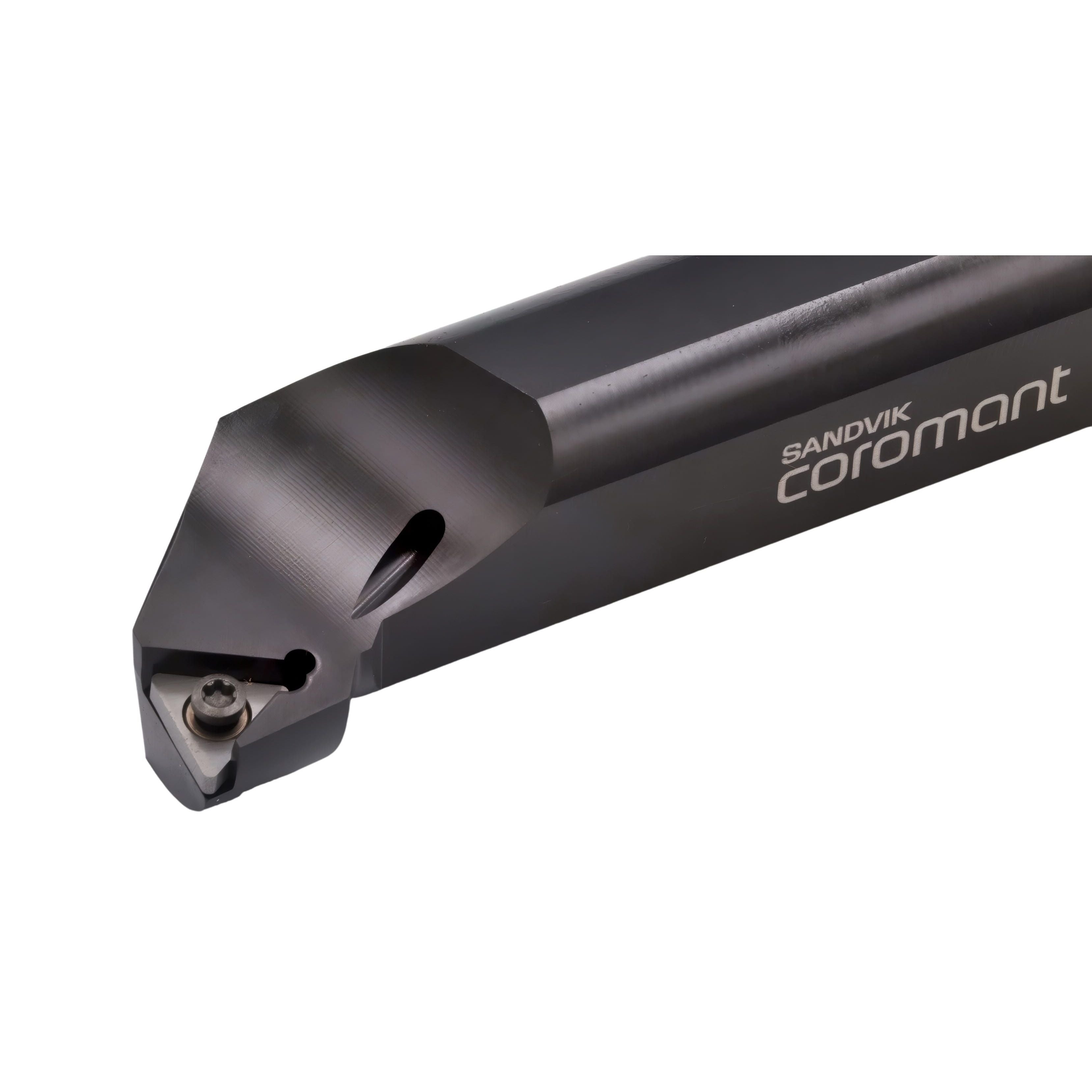

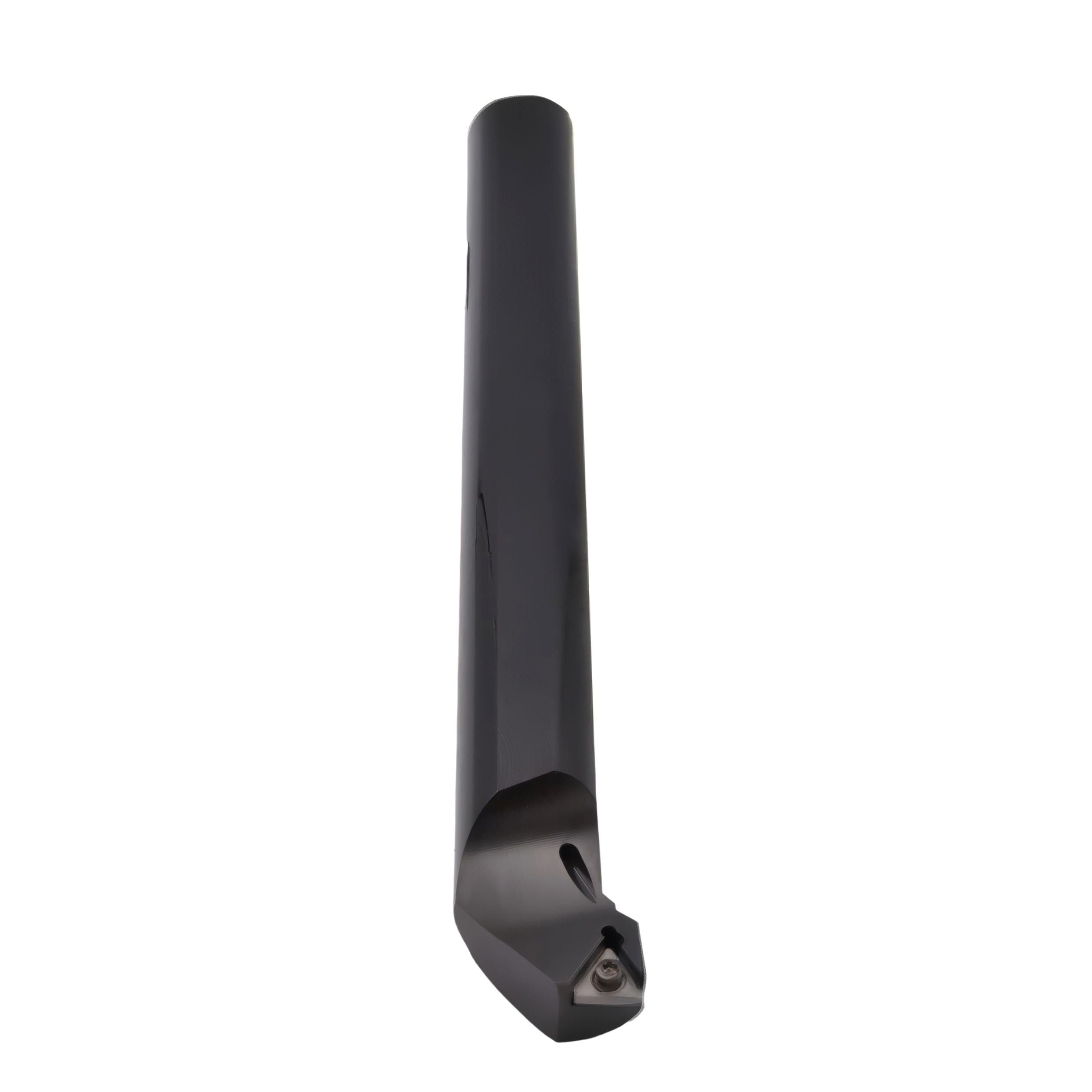

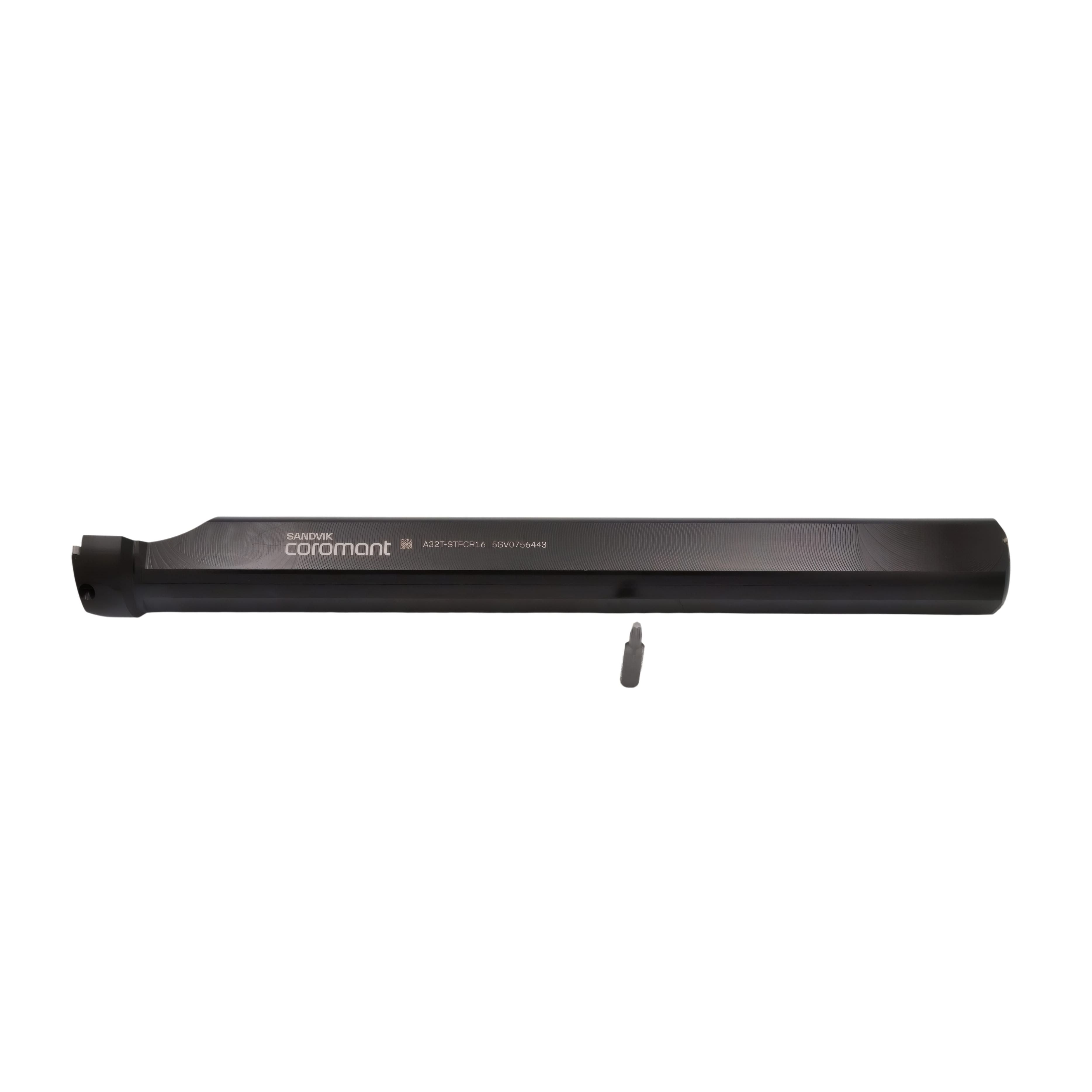

A32T-STFCR 16 Sandvik CoroTurn® Internal Turning Boring Bar – 32mm Shank

The A32T-STFCR 16 is a precision internal turning boring bar from Sandvik Coromant, designed for stable boring and internal profiling operations. Built with a 32mm cylindrical shank with 3 flats,...
$387.00
$0.00
$387.00
(-0%)
Vendor: SANDVIK
SKU: A32T-STFCR 16
Availability: In Stock
Subtotal: $387.00
SANDVIK BORING BAR A32T-STFCR 16 Sandvik CoroTurn® Internal Turning Boring Bar – 32mm Shank

A32T-STFCR 16 Sandvik CoroTurn® Internal Turning Boring Bar – 32mm Shank

$0.00 $387.00

A32T-STFCR 16 Sandvik CoroTurn® Internal Turning Boring Bar – 32mm Shank

$0.00 $387.00

The A32T-STFCR 16 is a precision internal turning boring bar from Sandvik Coromant, designed for stable boring and internal profiling operations. Built with a 32mm cylindrical shank with 3 flats, this toolholder provides secure mounting and excellent rigidity for internal machining applications. It is suitable for use with TCMT 16T308 inserts and is designed for reliable cutting performance in demanding workshop and CNC environments.

This right-hand boring bar features through-tool coolant with axial concentric entry and axial inclined exit, supporting improved chip evacuation and cutting-edge cooling during internal turning. With a 40mm minimum bore diameter, 300mm overall length, and 128mm maximum overhang, the A32T-STFCR 16 is ideal for internal turning where reach, accuracy, and stability are required.

Key Features & Benefits

• Internal turning boring bar for boring and internal profiling operations.
• Compatible with TCMT 16T308 triangular turning inserts.
• 32mm cylindrical shank with 3 flats for secure toolholding.
• Right-hand design for directional internal turning applications.
• Through-tool coolant capability up to 40 bar for improved chip evacuation.
• Long 300mm overall length with 128mm maximum overhang for extended reach.

Technical Specifications

Item No / Material Id: A32T-STFCR 16
Insert Compatibility: TCMT 16T308
Tool Type: Internal Turning / Boring Bar
Clamping Type: Clamp with screw through hole
Shank Type: Cylindrical shank with 3 flats
Shank / Body Diameter: 32mm
Minimum Bore Diameter: 40mm
Overall Length: 300mm
Functional Length: 300mm
Minimum Overhang: 48mm
Maximum Overhang: 128mm
Hand: Right
Tool Cutting Edge Angle: 91°
Lead Angle: -1°
Coolant Entry: Axial concentric entry
Coolant Exit: Axial inclined exit
Coolant Pressure: 40 bar
Torque: 3 Nm
Body Material: Steel
Weight: 1.585kg
Pack Quantity: 1
