Insize Chamfer Gauge 0.5-5.0mm 45° Stainless Steel Series 4814-1

The Insize 4814-1 Chamfer Gauge is a precision measuring tool designed for quick and accurate inspection of 45° chamfer lengths. Manufactured from durable stainless steel, this gauge is ideal for...
$619.00
$0.00
$619.00
(-0%)
Vendor: INSIZE
SKU: 4814-1
Availability: In Stock
Subtotal: $619.00

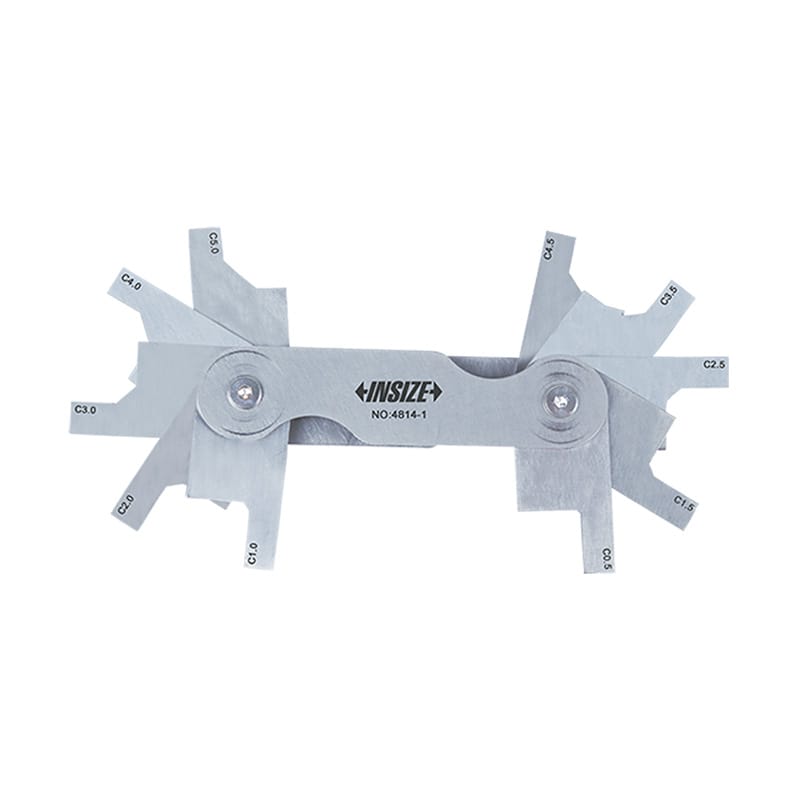

INSIZE MEASURING EQUIPMENT Insize Chamfer Gauge 0.5-5.0mm 45° Stainless Steel Series 4814-1

Insize Chamfer Gauge 0.5-5.0mm 45° Stainless Steel Series 4814-1

$0.00 $619.00

Insize Chamfer Gauge 0.5-5.0mm 45° Stainless Steel Series 4814-1

$0.00 $619.00

The Insize 4814-1 Chamfer Gauge is a precision measuring tool designed for quick and accurate inspection of 45° chamfer lengths. Manufactured from durable stainless steel, this gauge is ideal for machining, inspection, deburring, and quality control applications where consistent chamfer dimensions are critical.

Featuring 10 measuring leaves covering a range from 0.5mm to 5.0mm, the gauge allows fast verification of chamfer sizes on machined components. Its compact folding design provides convenient storage and portability for workshop and inspection use.

Key Features & Benefits

  • Designed to measure 45° chamfer length
  • Measurement range from 0.5mm to 5.0mm
  • 10 precision measuring leaves included
  • Made from durable stainless steel
  • Compact folding leaf design for portability
  • Quick and easy chamfer verification
  • Suitable for machining and deburring inspection
  • Ideal for workshop and quality control applications
  • Simple visual measurement method
  • High measurement accuracy and repeatability

Technical Specifications

  • Part Number: 4814-1
  • Product Type: Chamfer Gauge
  • Chamfer Angle: 45°
  • Measuring Range: 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
  • Quantity of Leaves: 10
  • Accuracy: ±0.03mm
  • Material: Stainless Steel
  • Application: Chamfer measurement and inspection

Applications

  • Machined part inspection
  • Chamfer verification
  • Deburring quality control
  • Engineering workshops
  • CNC machining inspection
  • Toolroom measurement tasks
  • Manufacturing quality assurance
  • Precision component inspection

Insize precision measuring tools are widely trusted in industrial, machining, and engineering industries for their accuracy, durability, and dependable inspection performance.

The Insize 4814-1 Chamfer Gauge provides fast and reliable 45° chamfer measurement for professional workshop and inspection applications.
