Multi Spline Screw Extractor Set 10 Piece Kit
Click to enlarge

in stock

Multi Spline Screw Extractor Set 10 Piece Kit

sold in last hours
Vendor: Twin Eagle Imports
SKU: 159
$36.00
Order in The Next to get it by
Real Time 7 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Hand Tool

Barcode: 600154530127

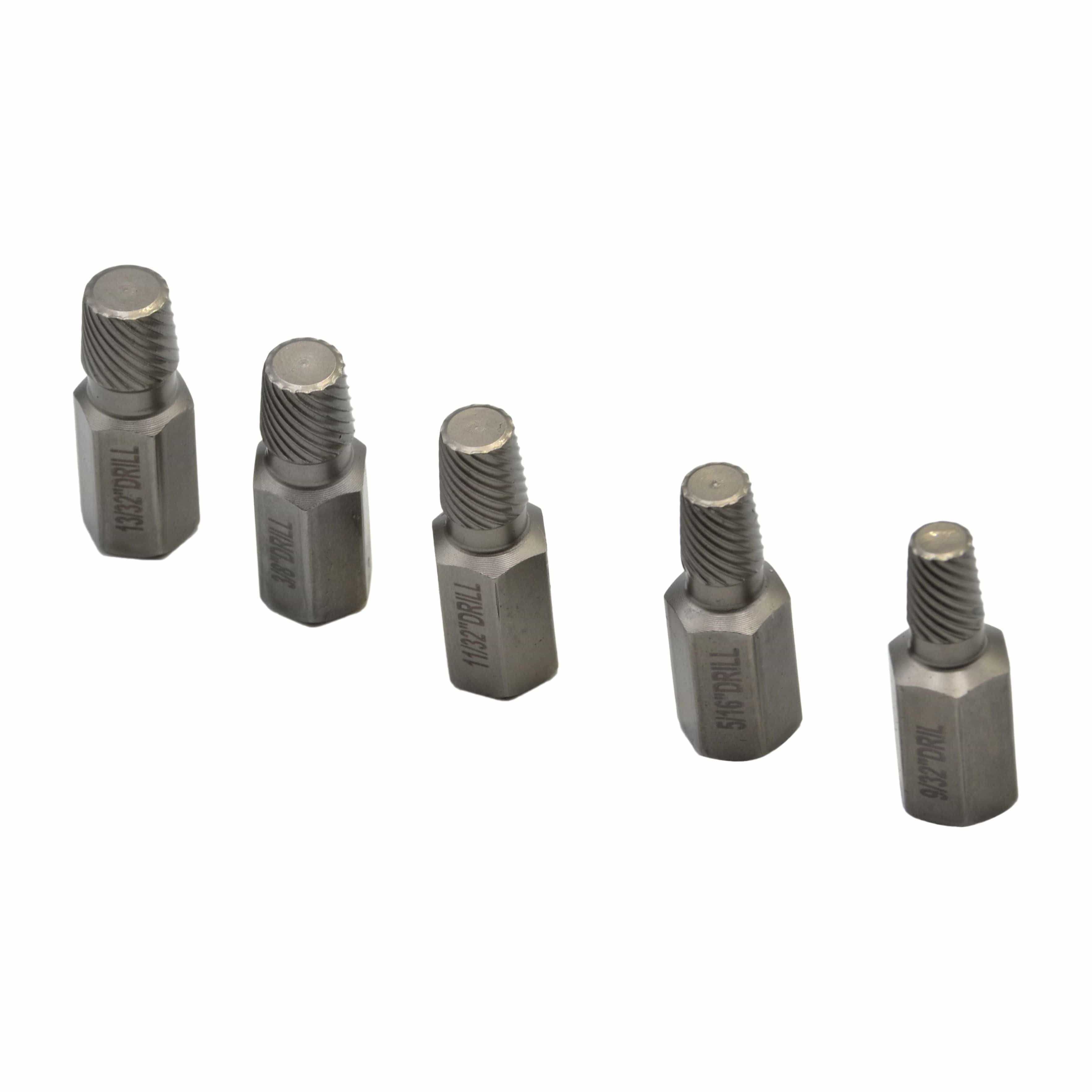

Multi Spline Screw Extractor Kit

The multi spline bolt extractor 10 piece kit is a must-have for any toolkit. With the recommended drill size included, removing broken bolts or studs has never been easier. Increase efficiency with this comprehensive set.

Specifications:

  • Manufactured from heat treated Chrome Molybdenum steel, designed to remove broken studs and bolts
  • Reverse spiral design for maximum grip and hex shaped head

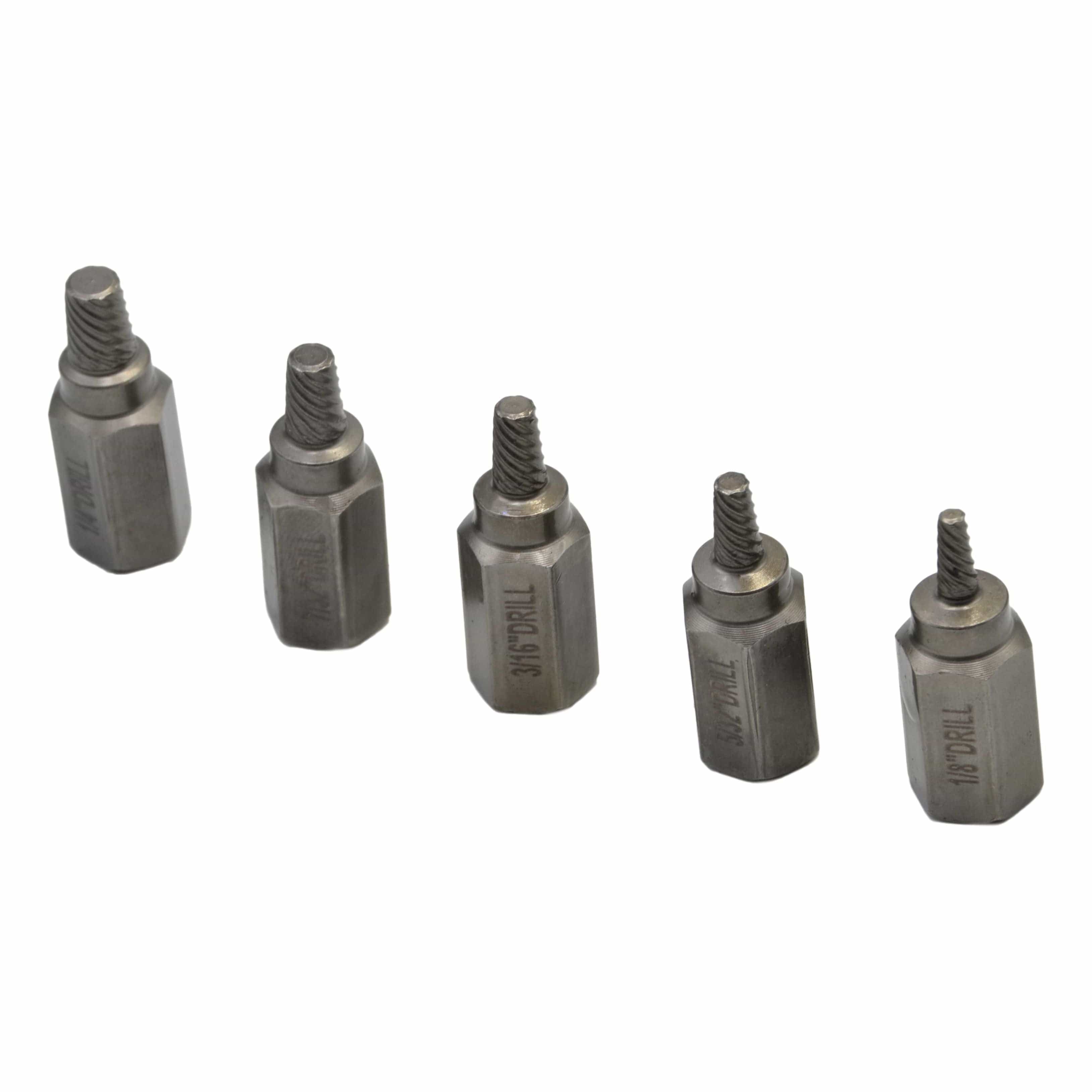

  • Recommended drill bit size (for pilot hole) etched on each extractor.
  • Designed to remove broken studs and bolts.
  • Suitable for high torque applications.

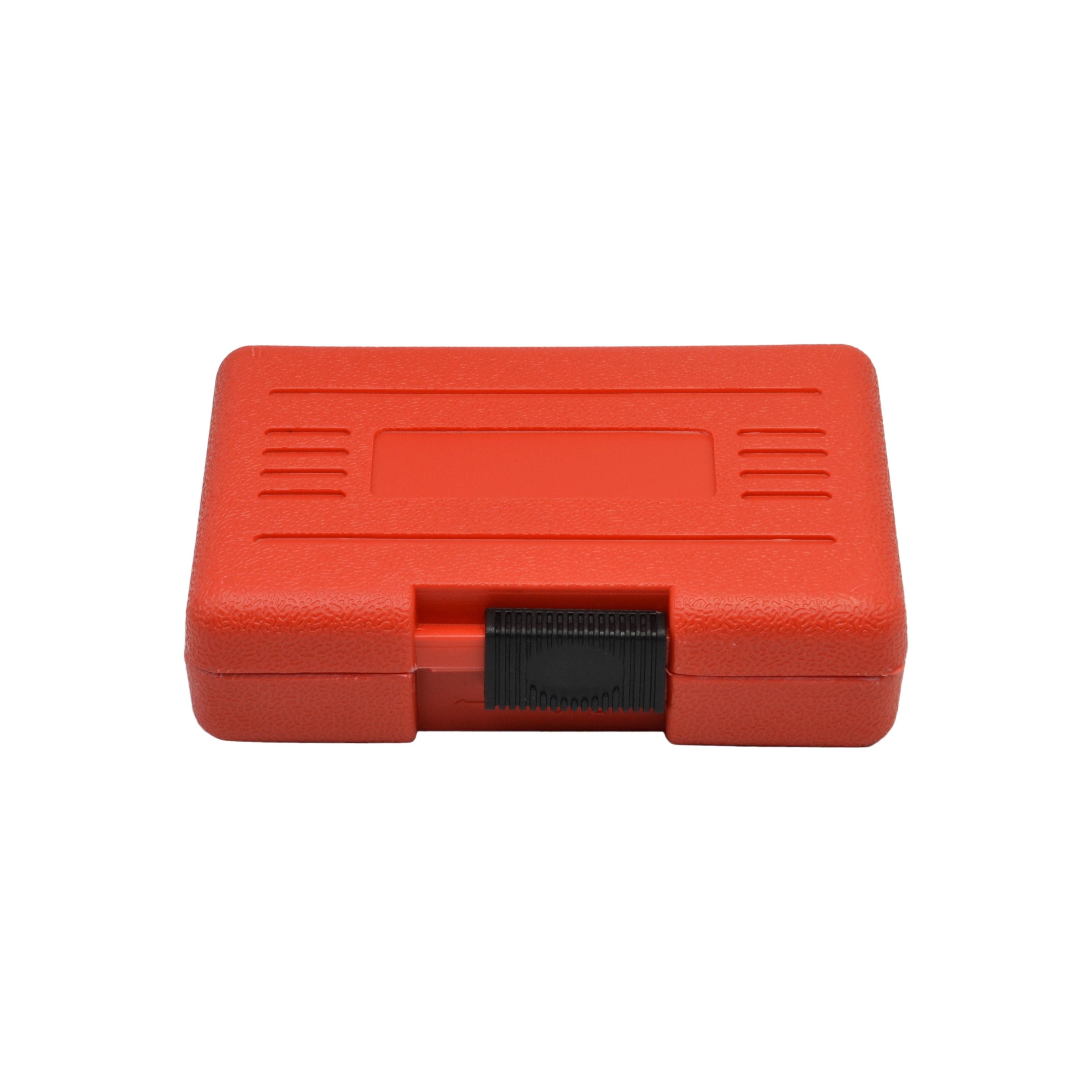

  • Everything in a handy storage box

Instructions:

  • 1. Drill out the damaged bolt/stud using the correctly sized drill bit indicated. For best results drill through the bolt.
  • 2. Gently tap the extractor into the drilled hole.
  • 3. Using a hex spanner or socket unscrew as you would any bolt or nut.
  • 4. The left hand spiral of the extractor will tighten on the wall of your broken bolt /stud and wind out.
  • 5. To remove your extractor be sure to hold the bolt/stud securely in a vice and tighten, right hand turn to remove.

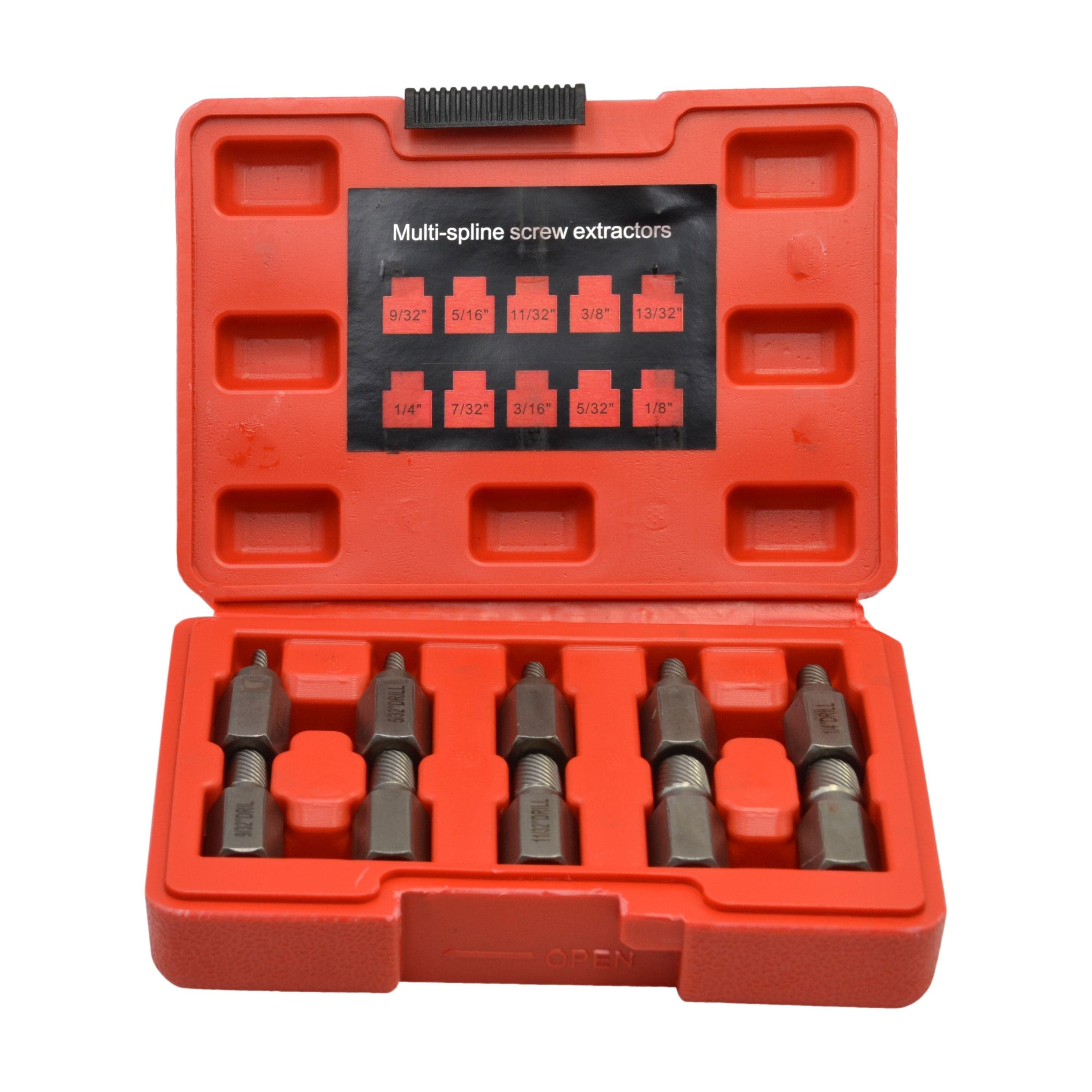

Kit Incudes:

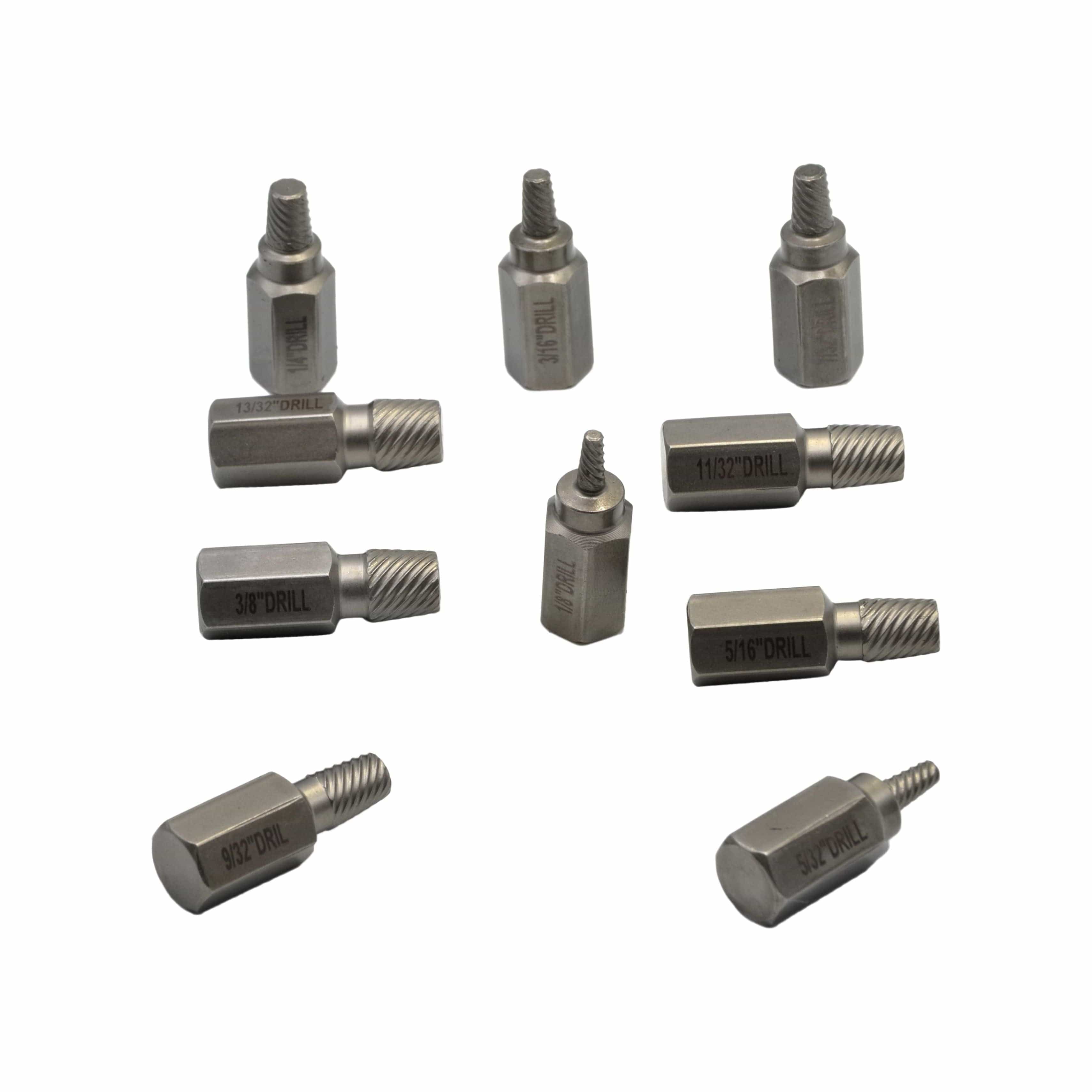

1/8"(3.2mm), 5/32"(4mm), 3/16"(4.8mm), 7/32"(5.5mm), 1/4"(6.3mm), 9/32"(7mm), 5/16"(8mm),  11/32"(8.7mm), 3/8"(9.5mm), 13/32"(10.3mm)
