Multi Spline Screw Extractor 25 Piece Kit
Click to enlarge

in stock

Multi Spline Screw Extractor 25 Piece Kit

sold in last hours
Vendor: Twin Eagle Imports
SKU: 156
$69.00
Order in The Next to get it by
Real Time 2 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Stud Remover

Barcode: 749355906543

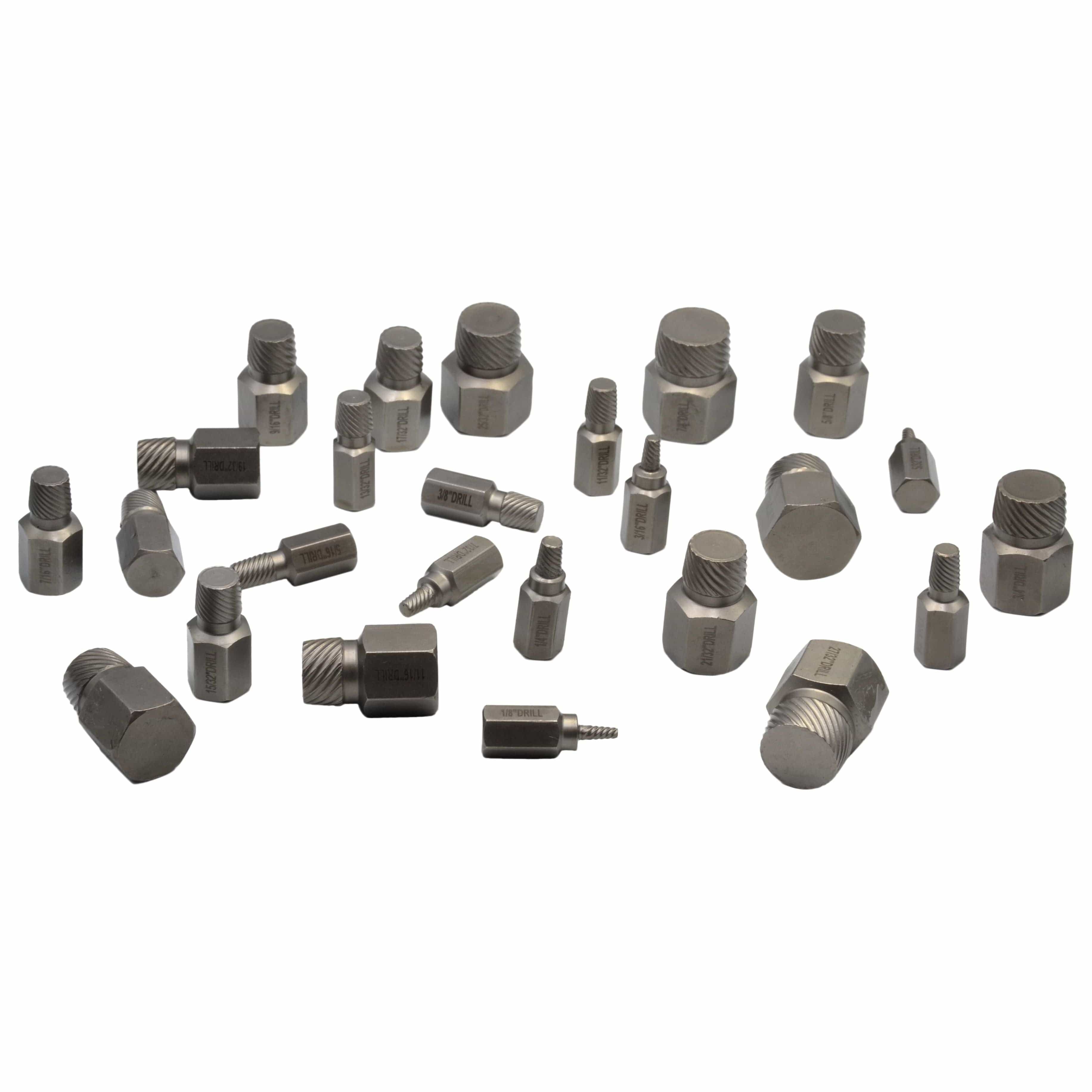

Multi Spline Screw Extractor Kit

The multi spline bolt extractor 25 piece kit is a must-have for any toolkit. With the recommended drill size included, removing broken bolts or studs has never been easier. Increase efficiency with this comprehensive set.

Specifications:

  • Manufactured from heat treated Chrome Molybdenum steel, designed to remove broken studs and bolts

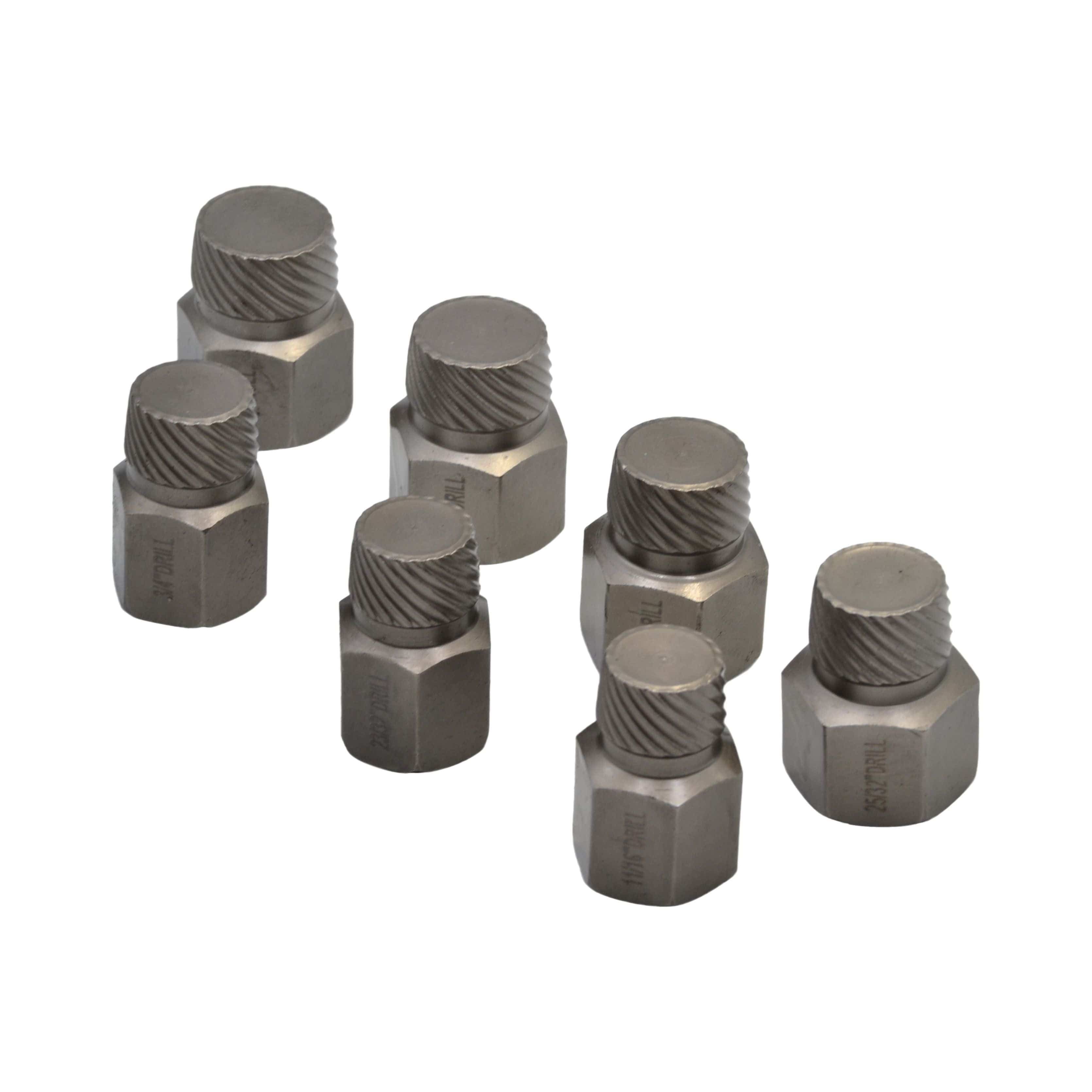

  • Reverse spiral design for maximum grip and hex shaped head

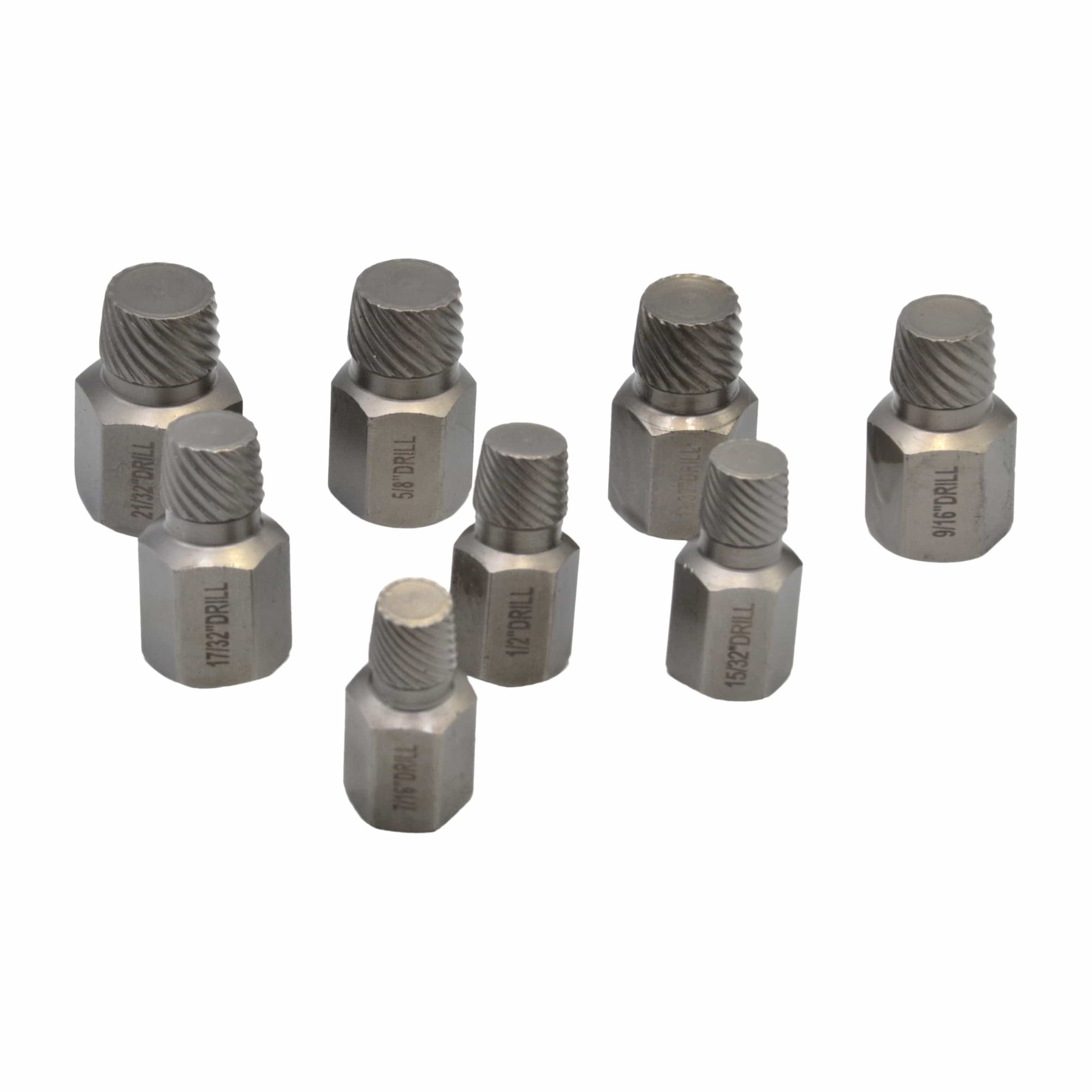

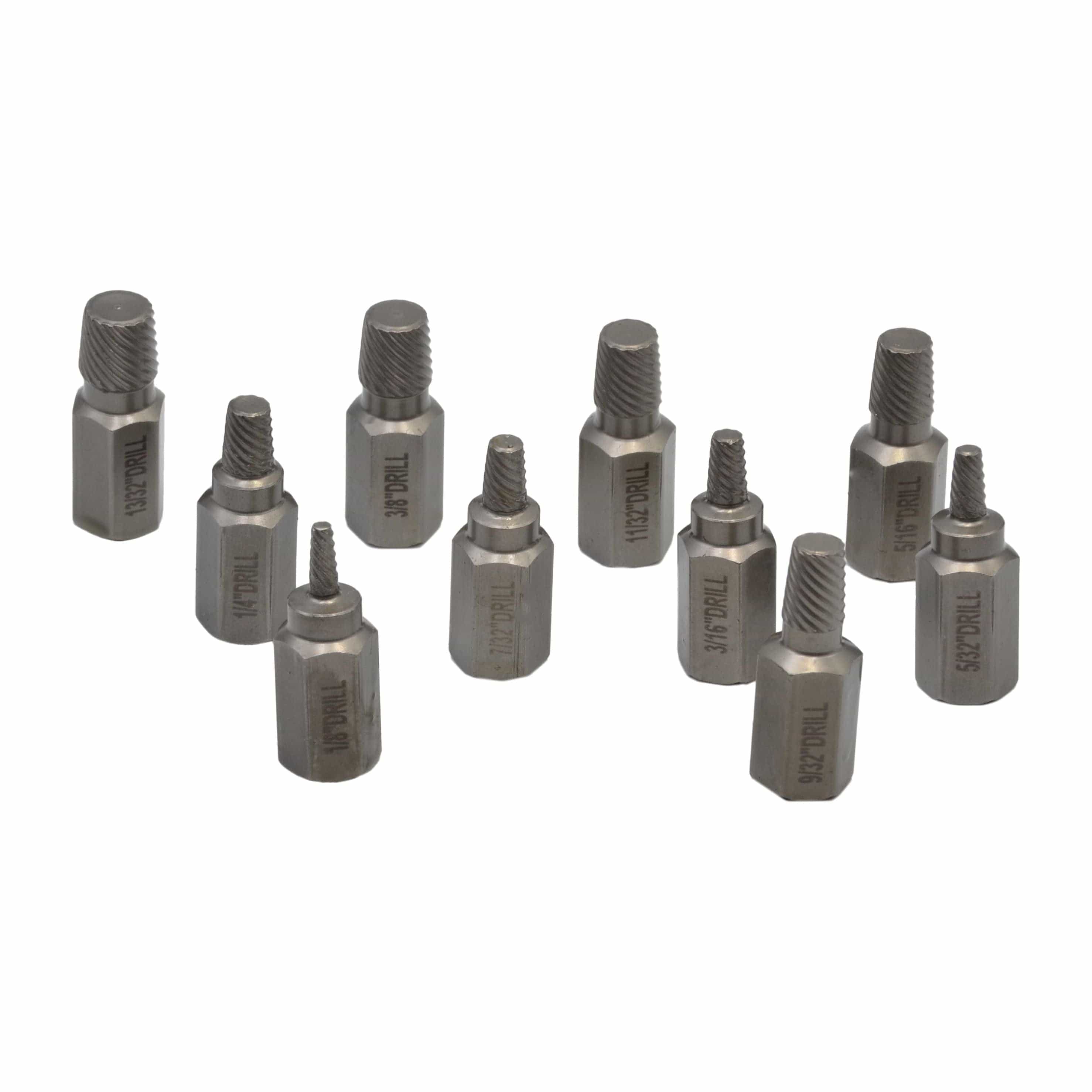

  • Recommended drill bit size (for pilot hole) etched on each extractor.
  • Designed to remove broken studs and bolts.
  • Suitable for high torque applications.

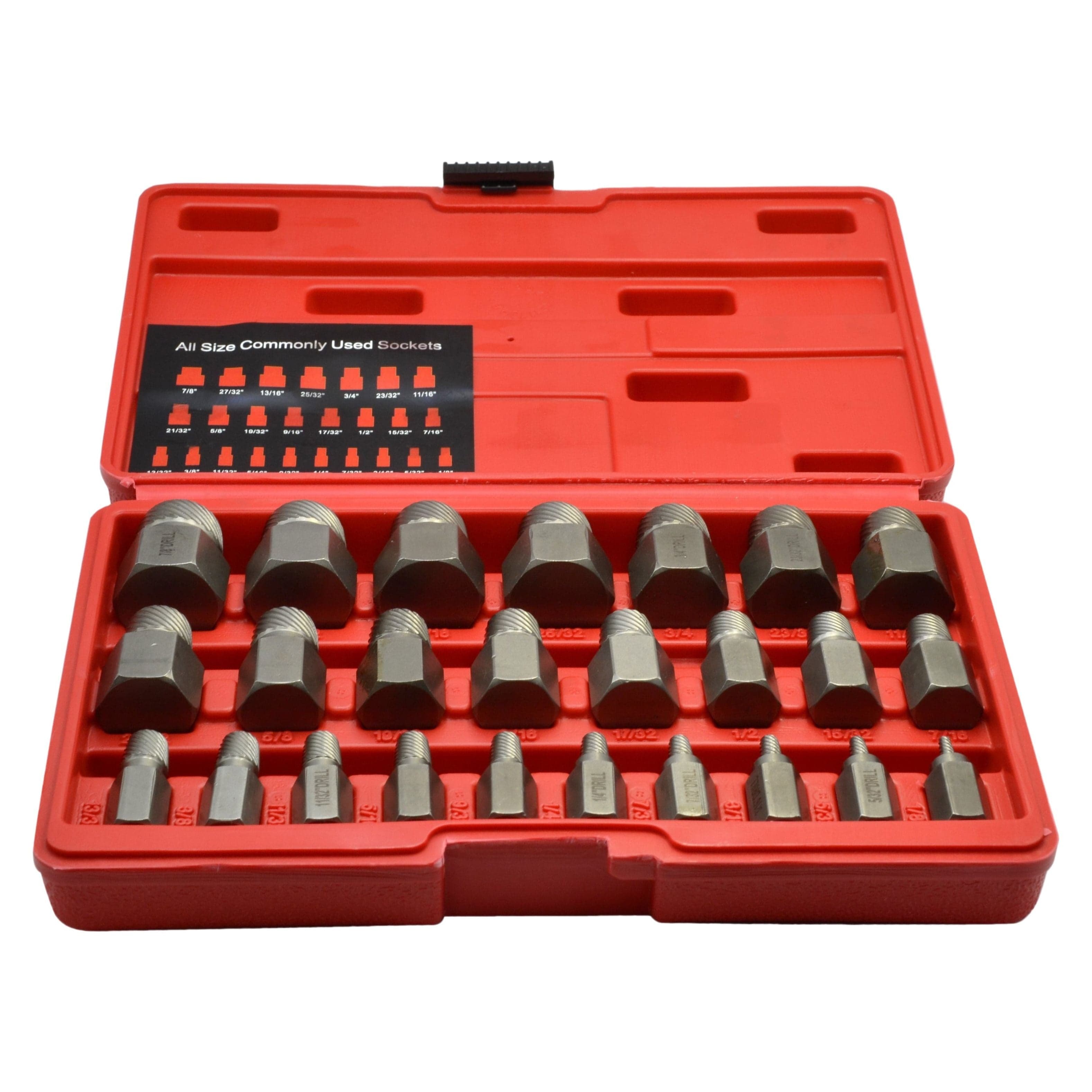

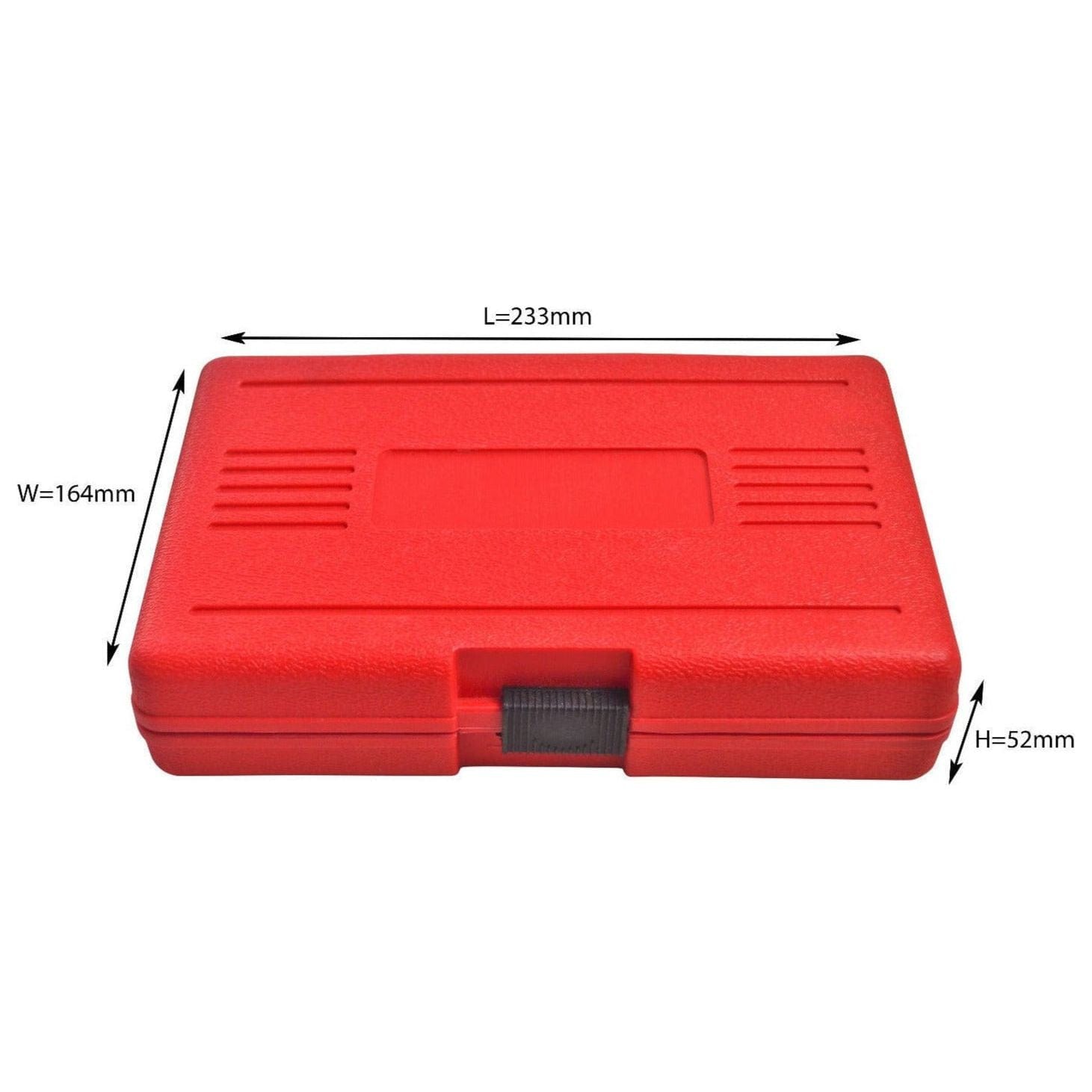

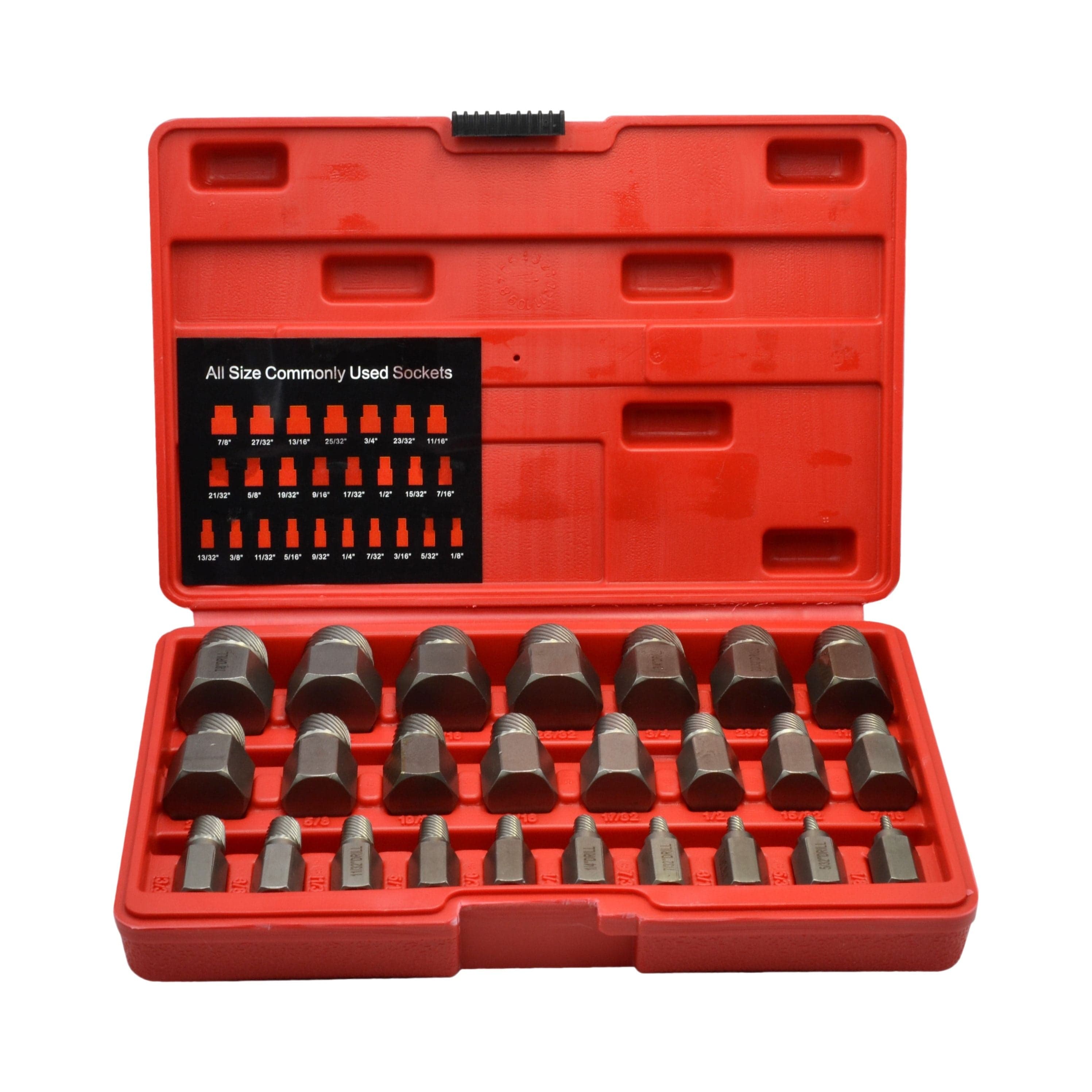

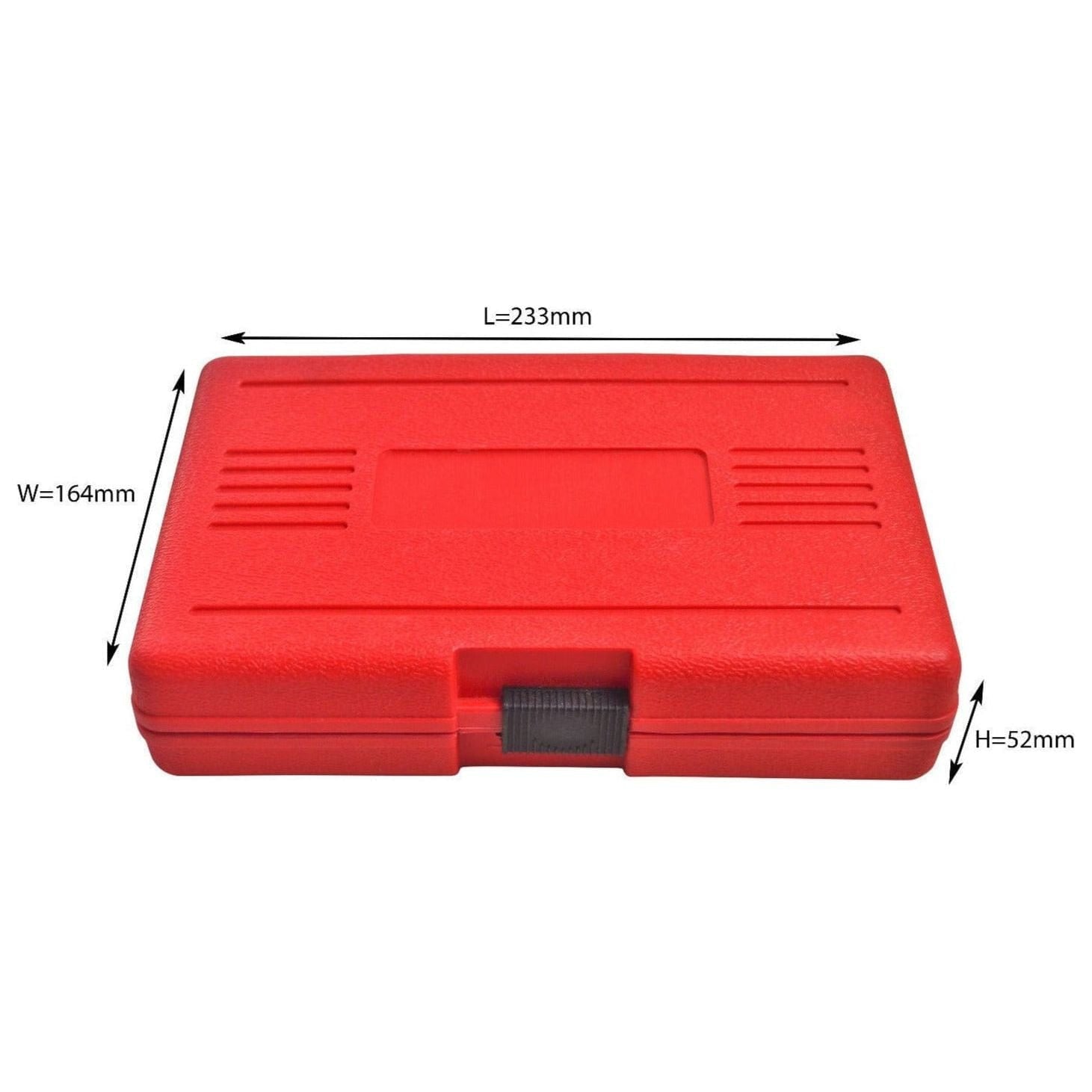

  • Everything in a handy storage box

Instructions:

  • 1. Drill out the damaged bolt/stud using the correctly sized drill bit indicated. For best results drill through the bolt.
  • 2. Gently tap the extractor into the drilled hole.
  • 3. Using a hex spanner or socket unscrew as you would any bolt or nut.
  • 4. The left hand spiral of the extractor will tighten on the wall of your broken bolt /stud and wind out.
  • 5. To remove your extractor be sure to hold the bolt/stud securely in a vice and tighten, right hand turn to remove.

Kit Incudes:

1/8"(3.2mm), 5/32"(4mm), 3/16"(4.8mm), 7/32"(5.5mm), 1/4"(6.3mm), 9/32"(7mm), 5/16"(8mm),  11/32"(8.7mm), 3/8"(9.5mm), 13/32"(10.3mm), 7/16"(11.5mm), 15/32"(12mm), 1/2"(13mm), 17/32"(14mm),  9/16"(14.5mm), 19/32"(15.5mm), 5/8"(16mm), 21/32"(17mm), 11/16"(18mm), 23/32"(18.5mm), 3/4"(19.5mm),  25/32"(20mm), 13/16"(21mm), 27/32"(22mm), 7/8"(23mm).
