Morse Taper 3 Extended Nose Precision CNC High Speed Live Centre M12 drawbar
Click to enlarge

in stock

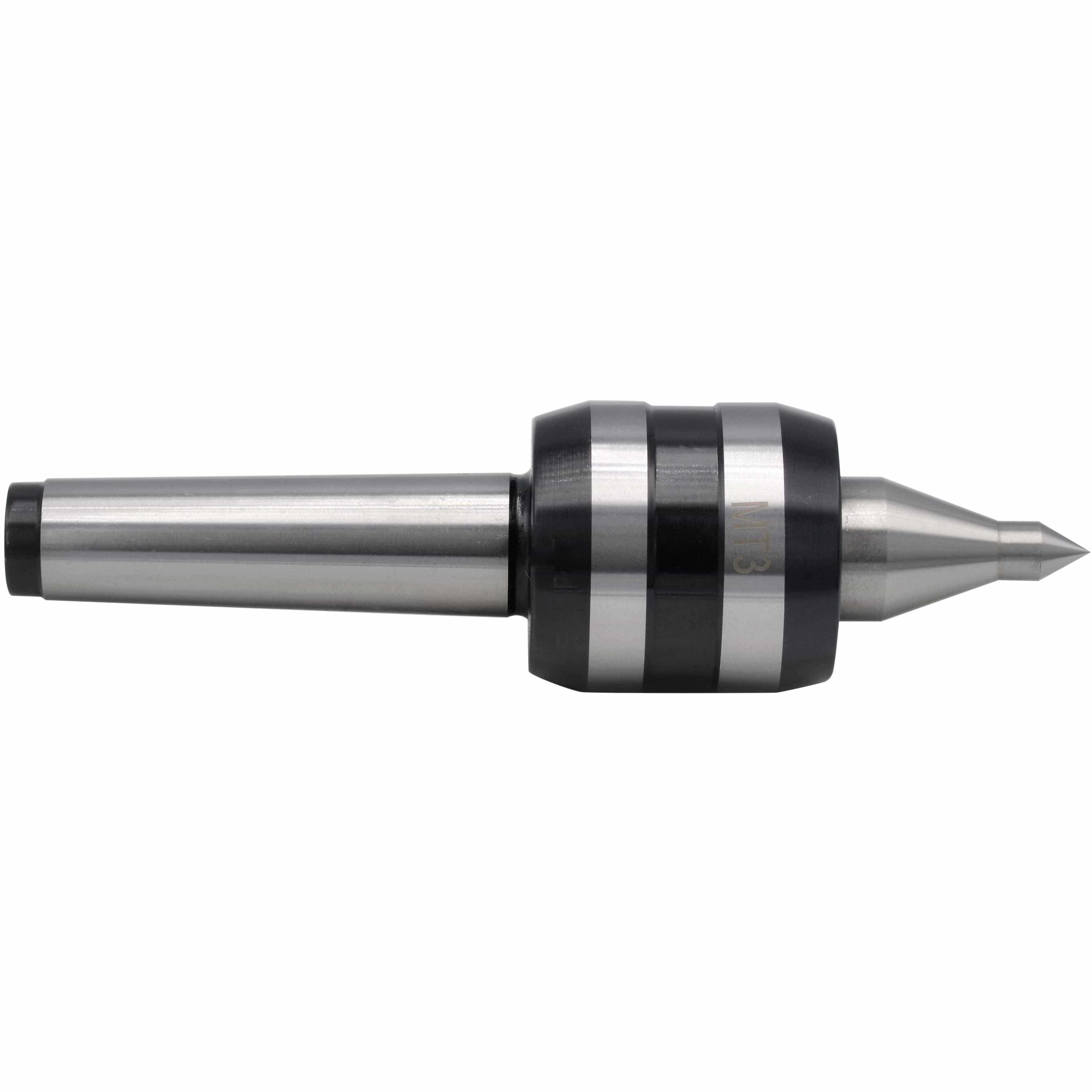

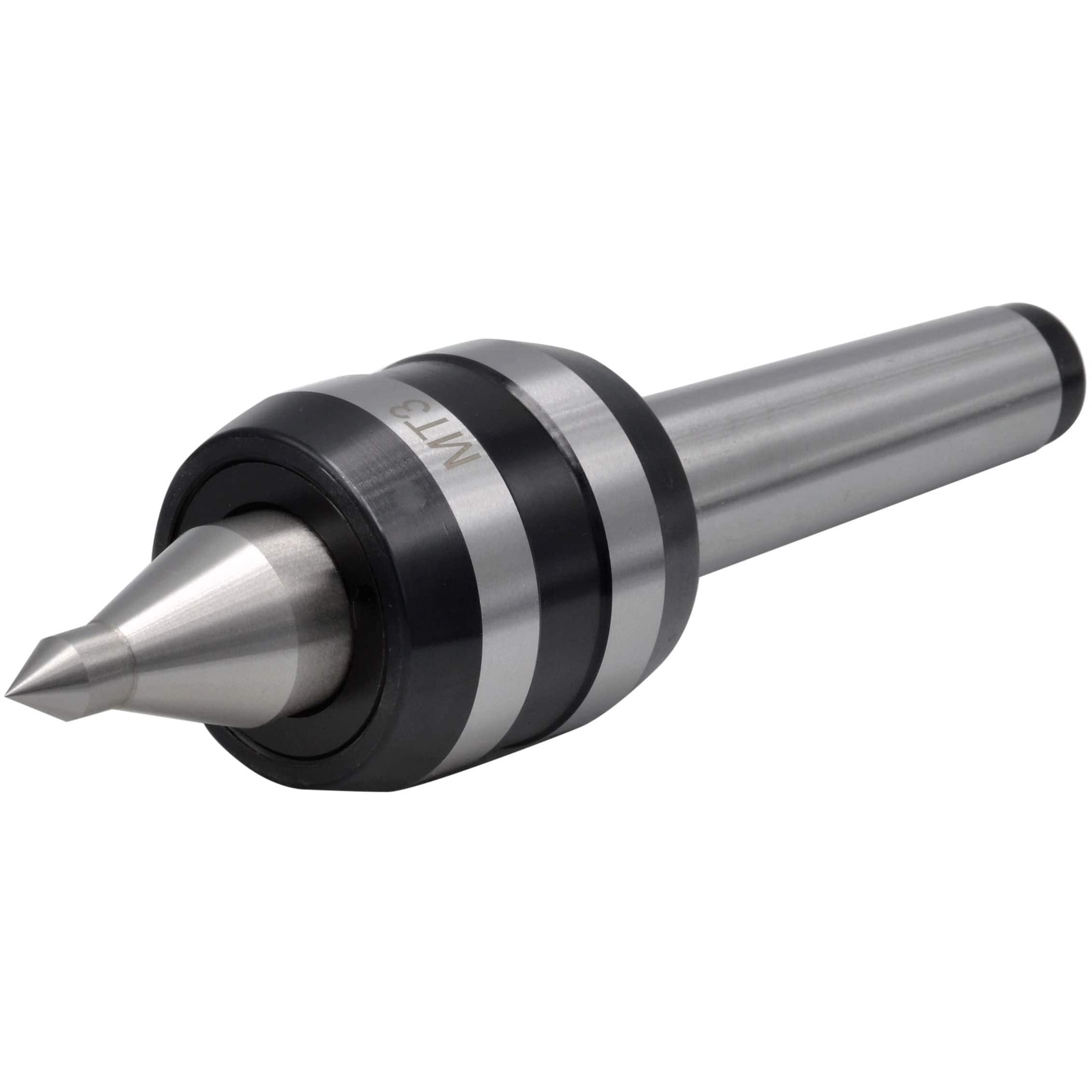

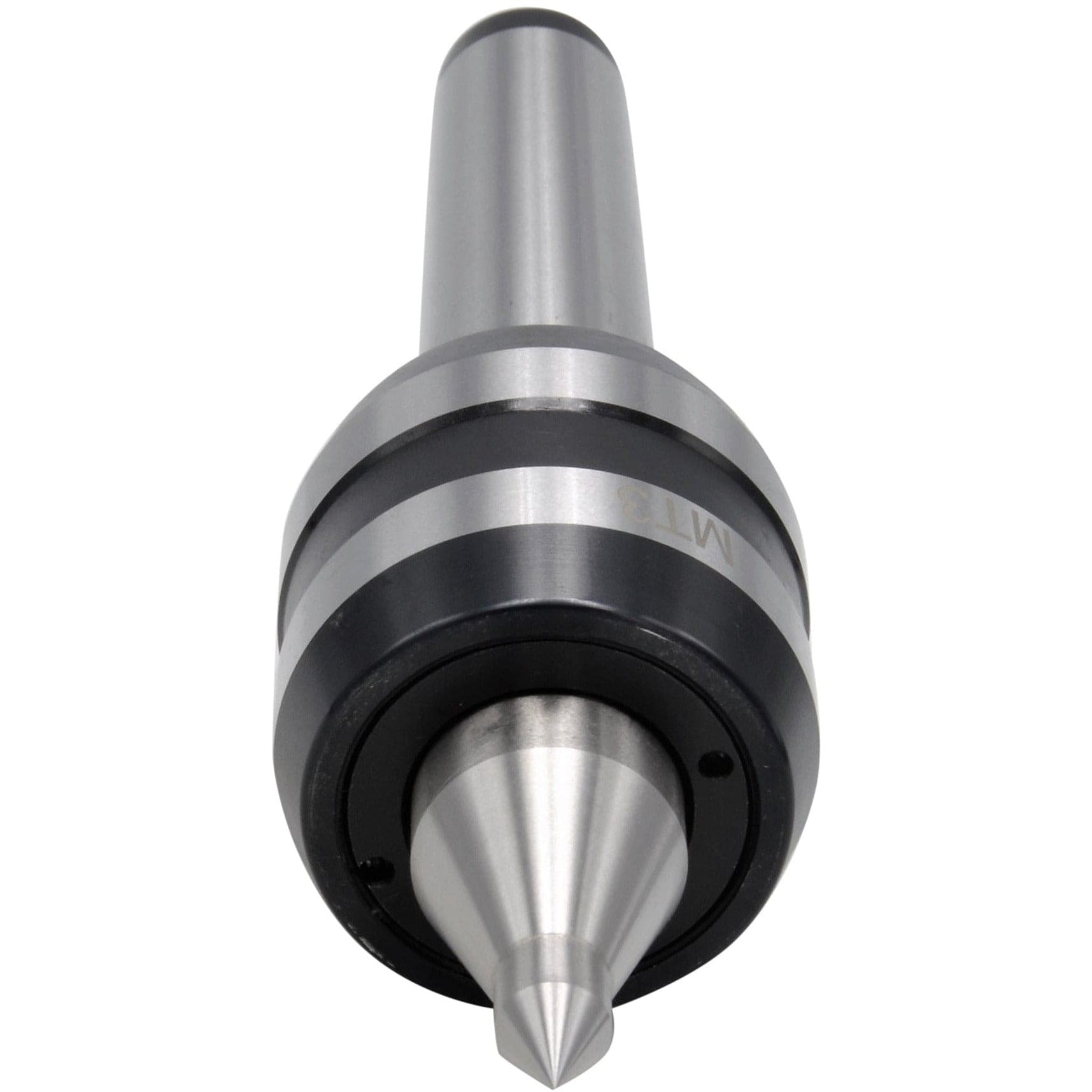

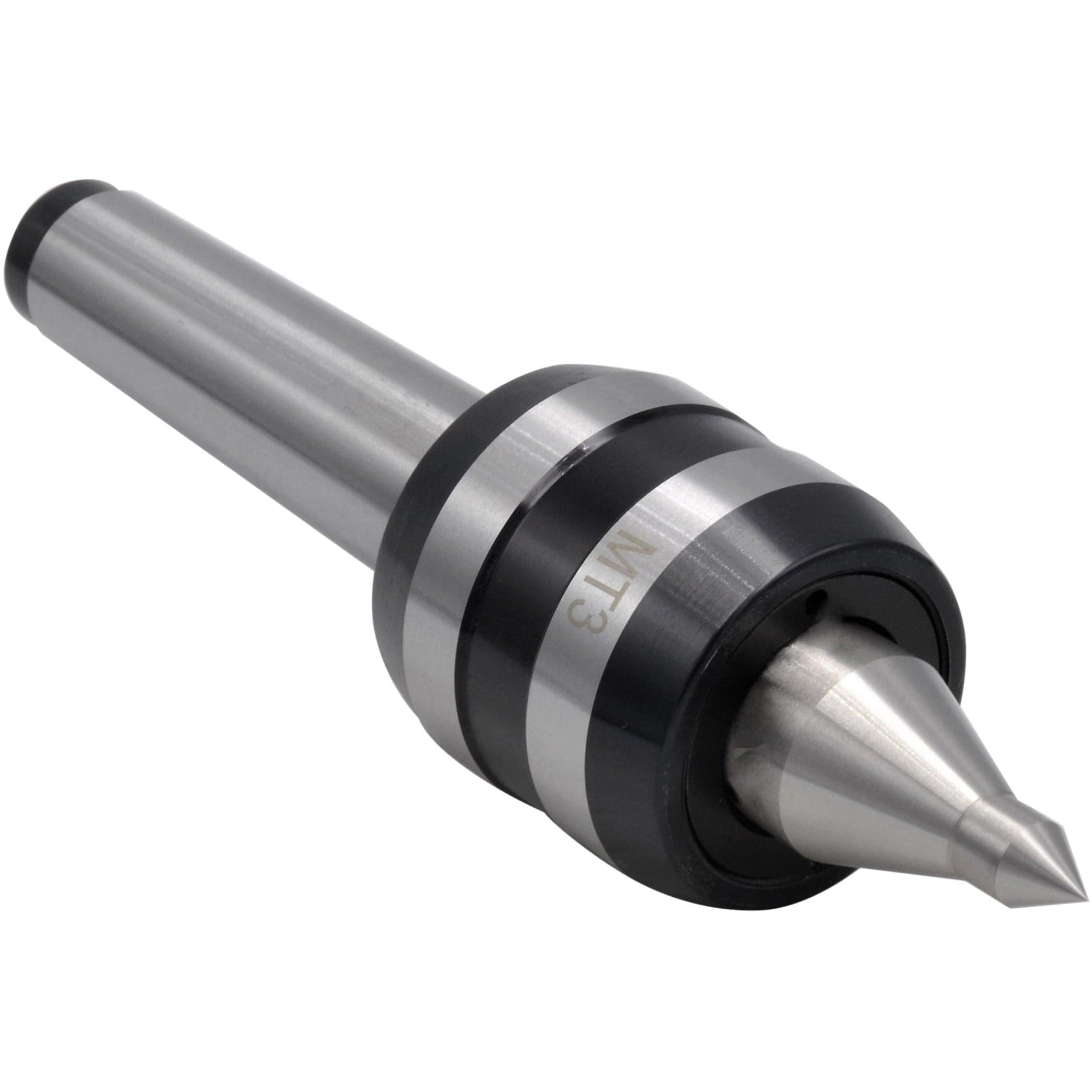

Morse Taper 3 Extended Nose Precision CNC High Speed Live Centre

sold in last hours
Vendor: Dajiu
SKU: 573
$299.00
Order in The Next to get it by
Real Time 1 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Live Centre

Barcode: 749355905492

Morse Taper 3 High Speed CNC Live Centre

Designed for medium high speed light load CNC application lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing.

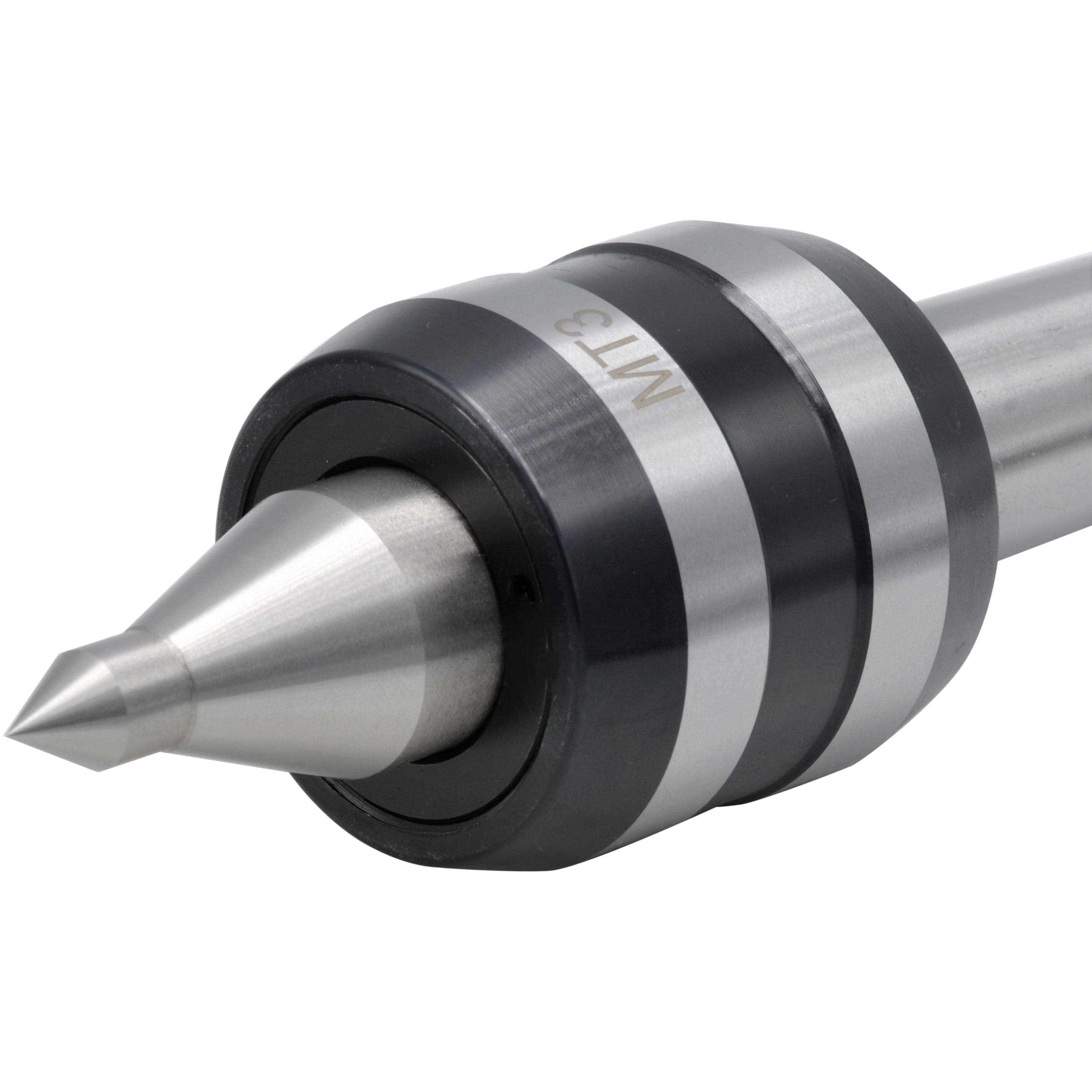

Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 3
  • Part No:DJ-S06008/MT3
  • Max RPM: 6000
  • Accuracy: 0.005 mm
  • Load Capacity: 180 kg
  • 60 Degree Centre Point
  • Triple bearing

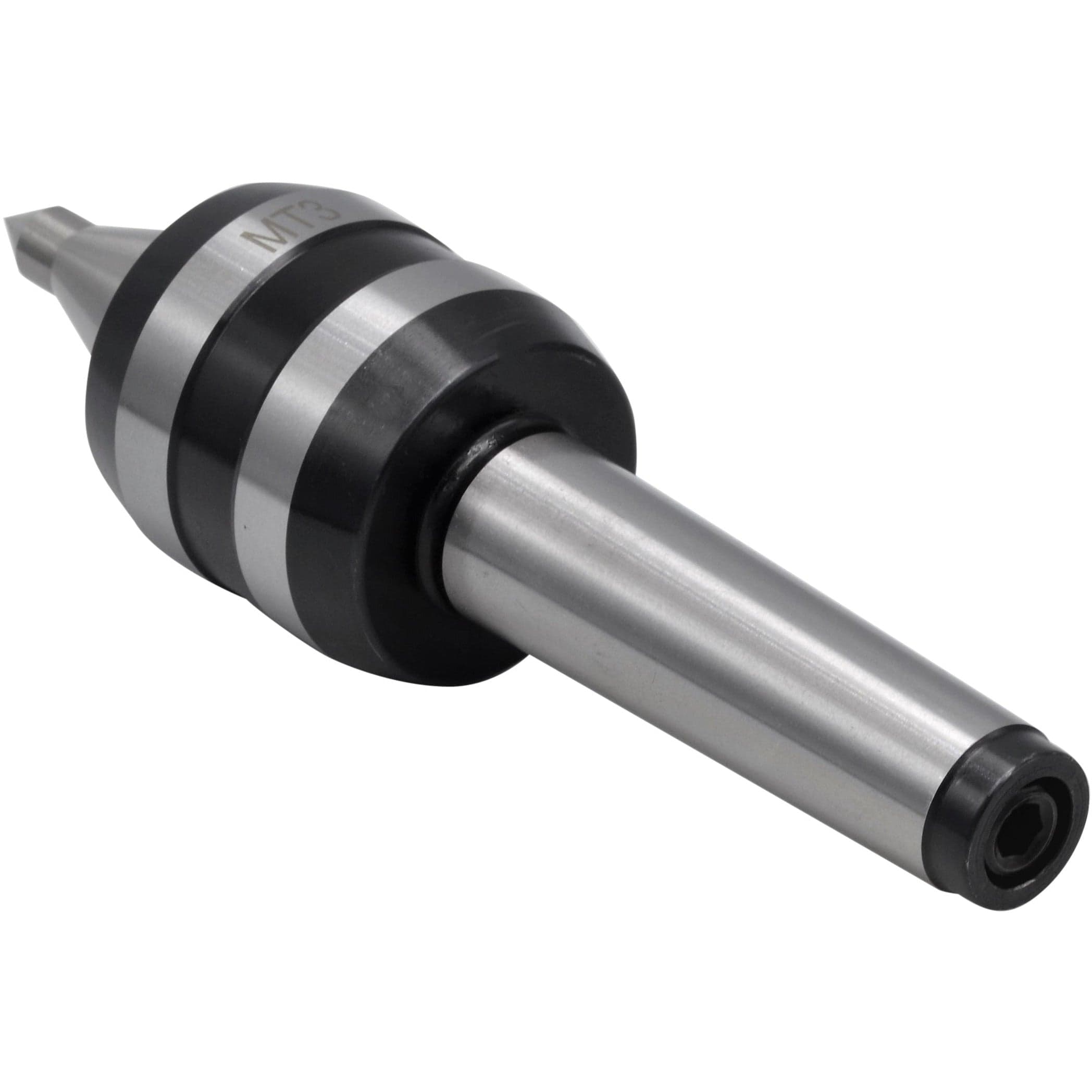

  • M12 Drawbar thread with cap

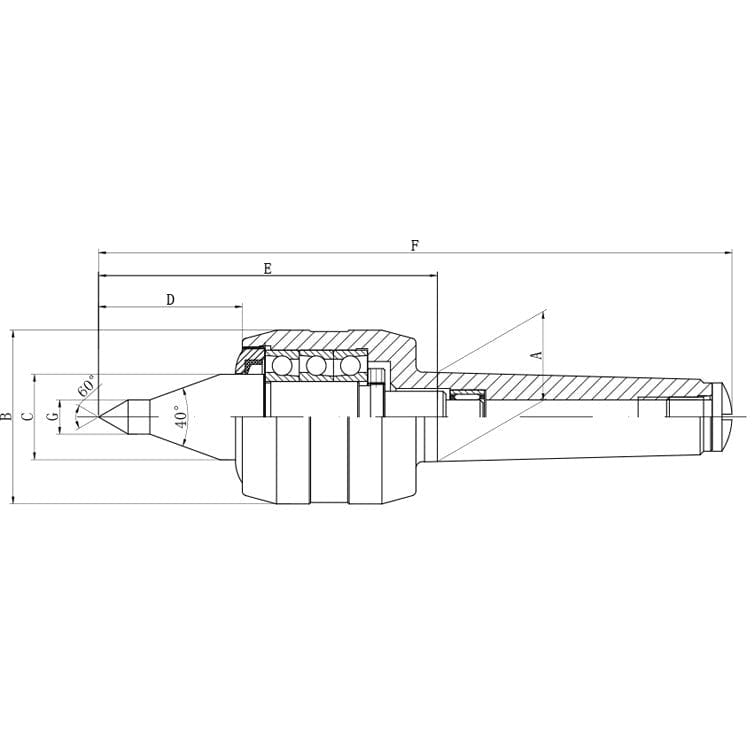

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)







    MT3 23.825 48
    24 43 99 180 8
    MT4 31.267 61 30
    50.5
    119.5 222 10
    MT5 44.399 72
    38
    62
    140.5 270 12
