Broken Bolt Master Extractor Kit 35 Piece

sold in last hours
Vendor: Twin Eagle Imports
SKU: 155
$119.00
Order in The Next to get it by
Real Time 1 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Extractor Kit

Barcode: 600154530295

Master Extractor Kit 35 Piece

This 35-piece Broken Bolt Master Extractor Kit offers a comprehensive solution for removing broken bolts and studs. With its range of left-hand drill bits and twist-style eazi outs, it provides a powerful first option for any extraction job. The perfect addition to any toolkit for efficient and effective bolt removal.

Specifications:

  • Manufactured from heat treated Chrome Molybdenum steel, designed to remove broken studs and bolts.
  • Reverse spiral design for maximum grip and hex shaped head.
  • Recommended drill bit size (for pilot hole) etched on each extractor.
  • Supplied with left hand drill bits that extract while you drill.
  • Designed to remove broken studs and bolts.
  • Suitable for high torque applications.

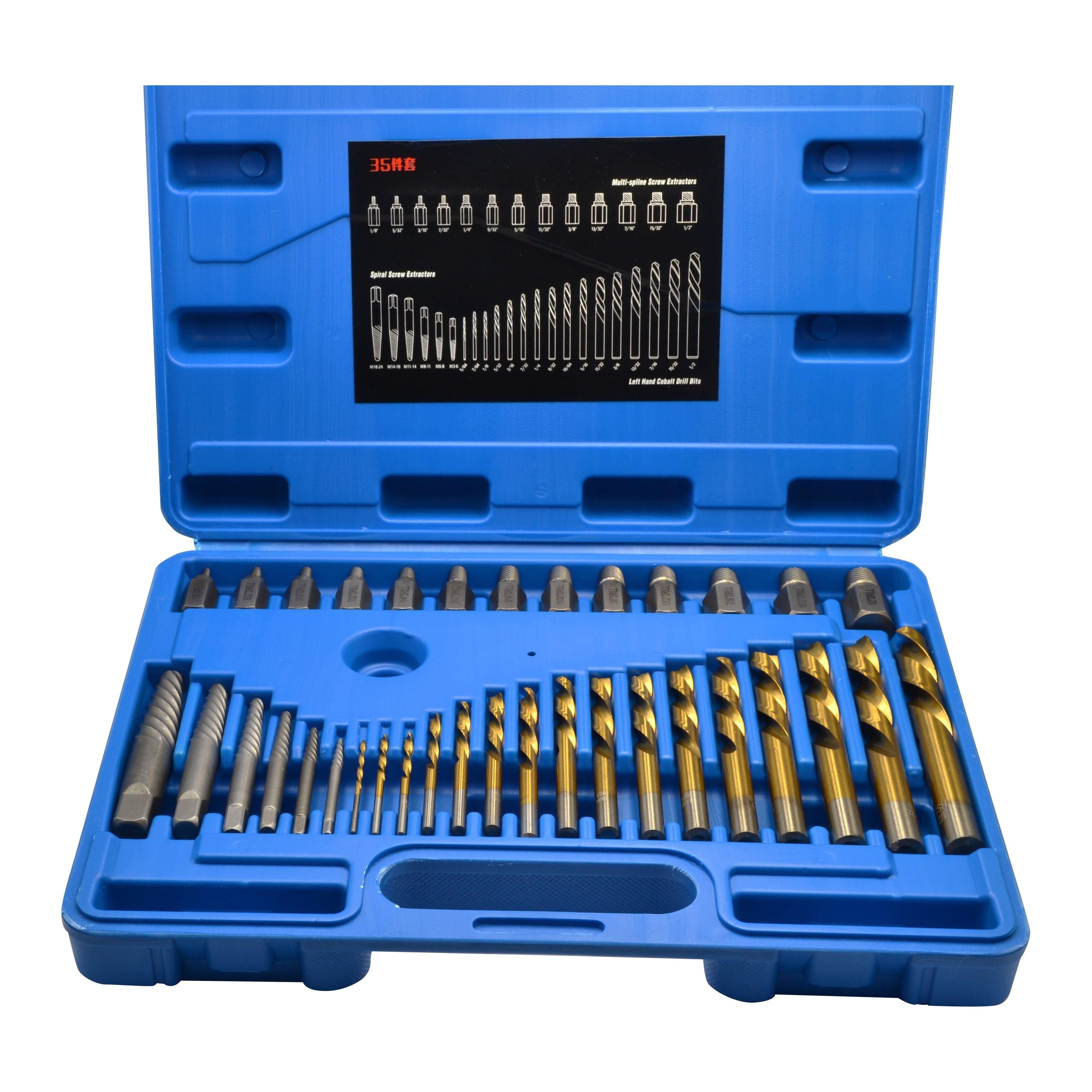

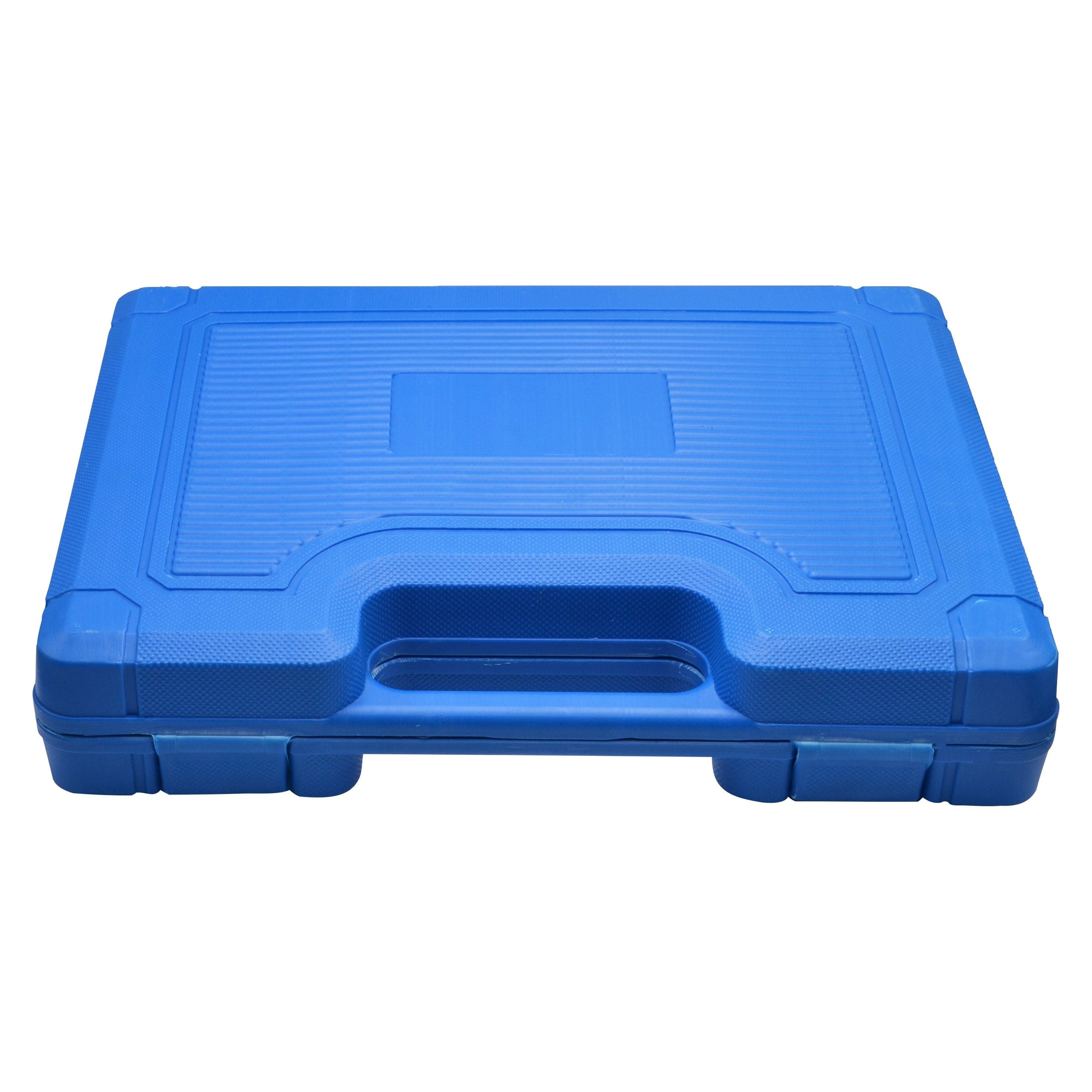

  • Everything in a handy storage box.

Instructions:

  • 1. Drill out the damaged bolt/stud using the correctly sized left hand drill bit supplied. For best results drill through the bolt.
  • 2. Gently tap the extractor into the drilled hole.
  • 3. Using a hex spanner or socket unscrew as you would any bolt or nut.
  • 4. The left hand spiral of the extractor will tighten on the wall of your broken bolt /stud and wind out.
  • 5. To remove your extractor be sure to hold the bolt/stud securely in a vice and tighten, right hand turn to remove.

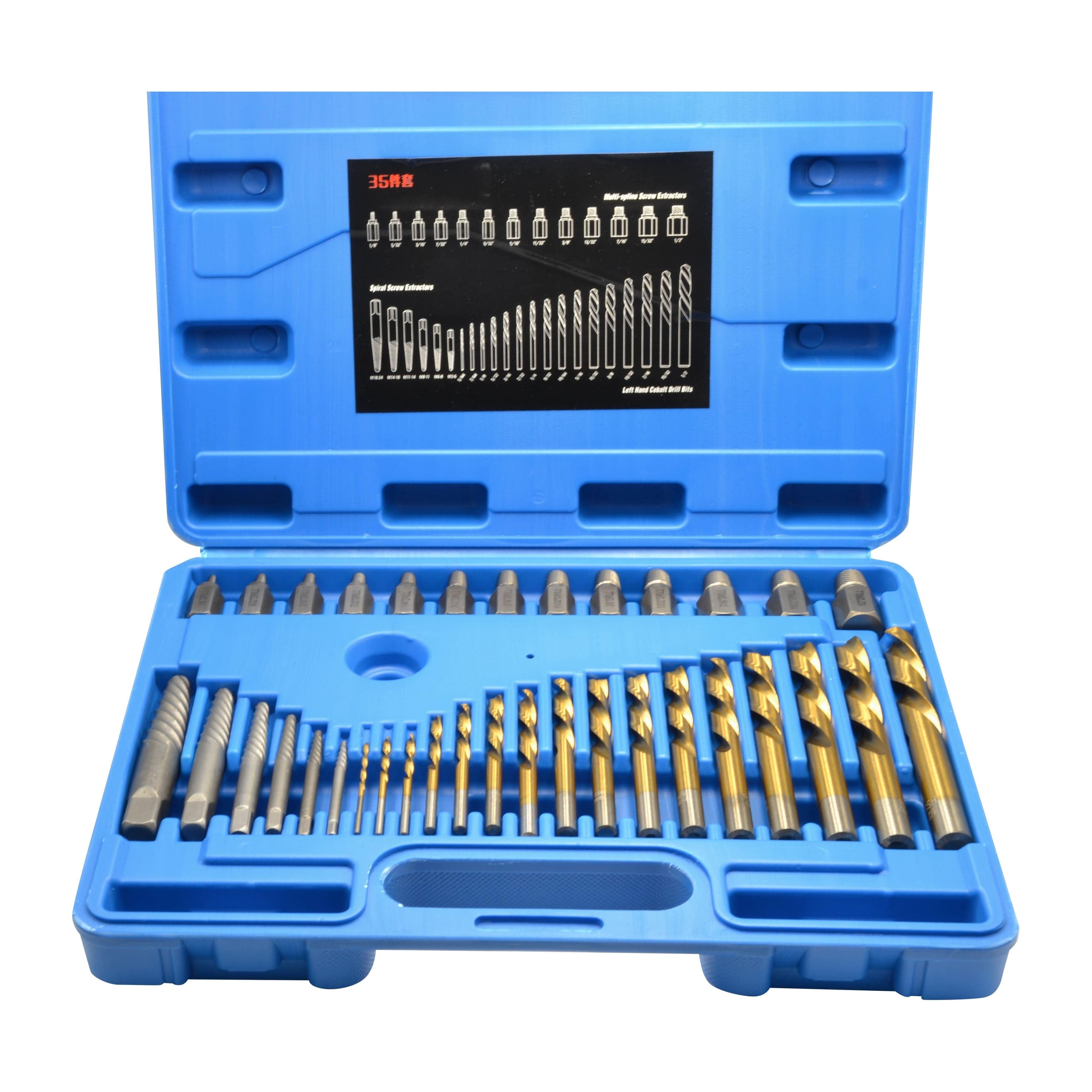

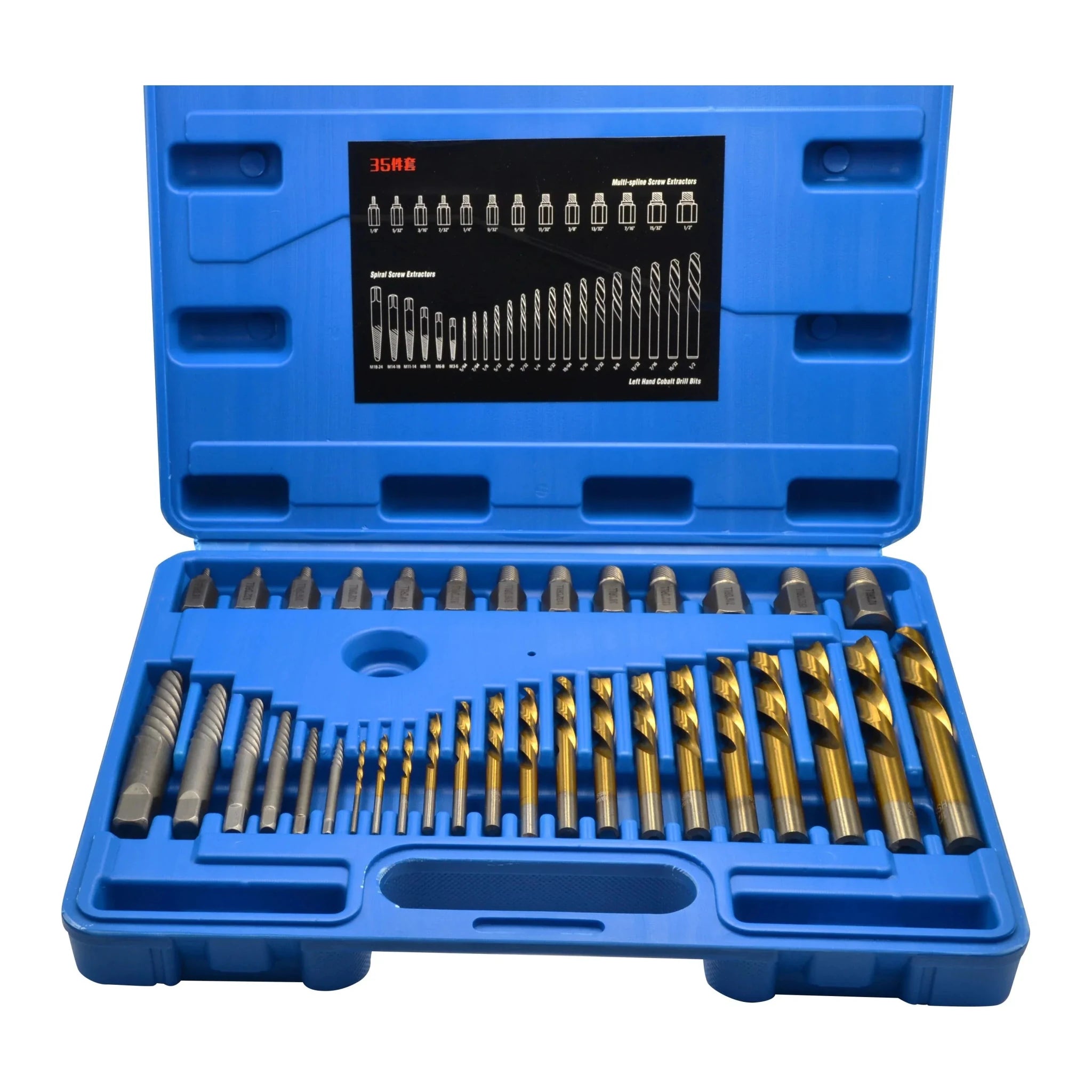

Kit Incudes:

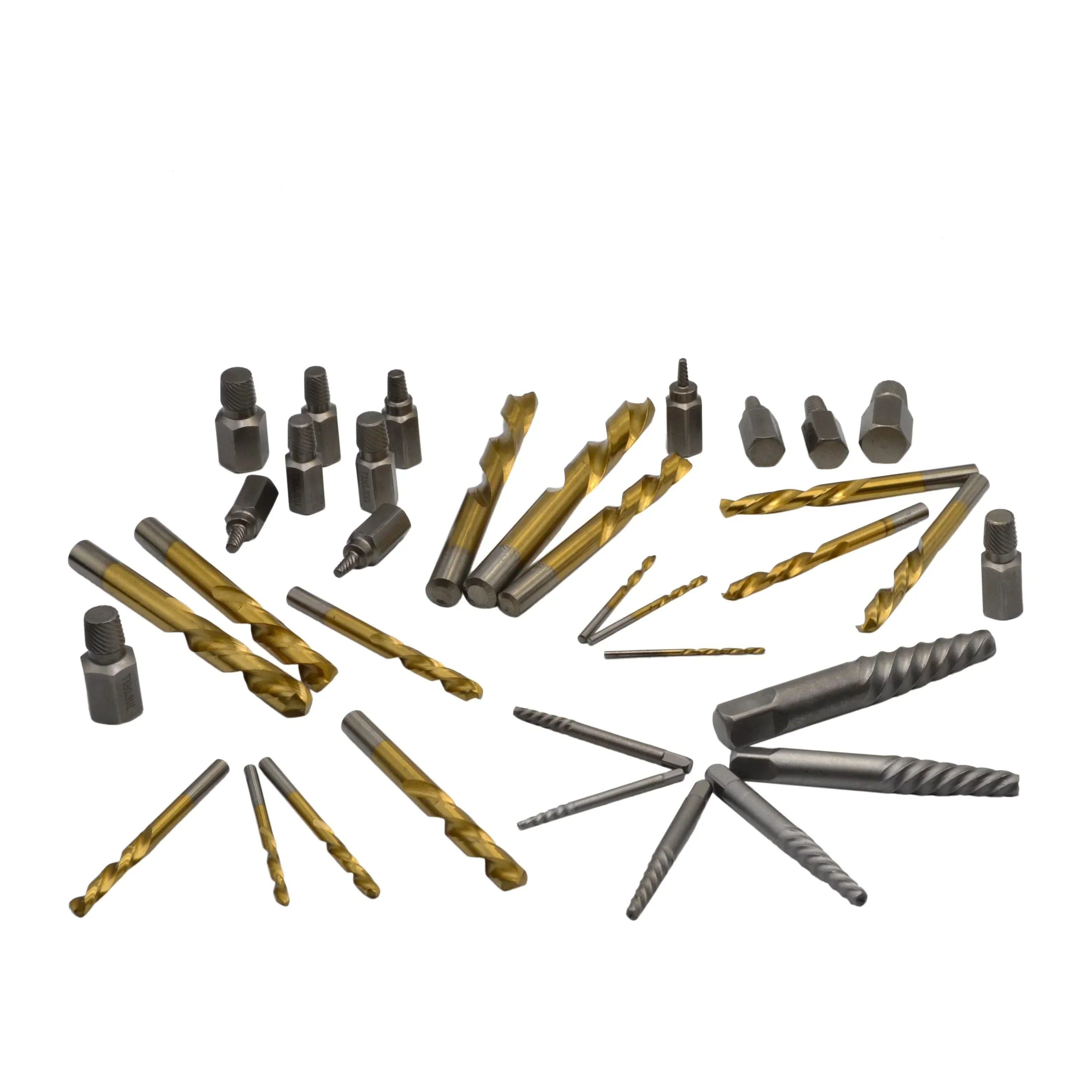

  • Set contains multi-spline extractors, spiral extractors and left-handed drill bits

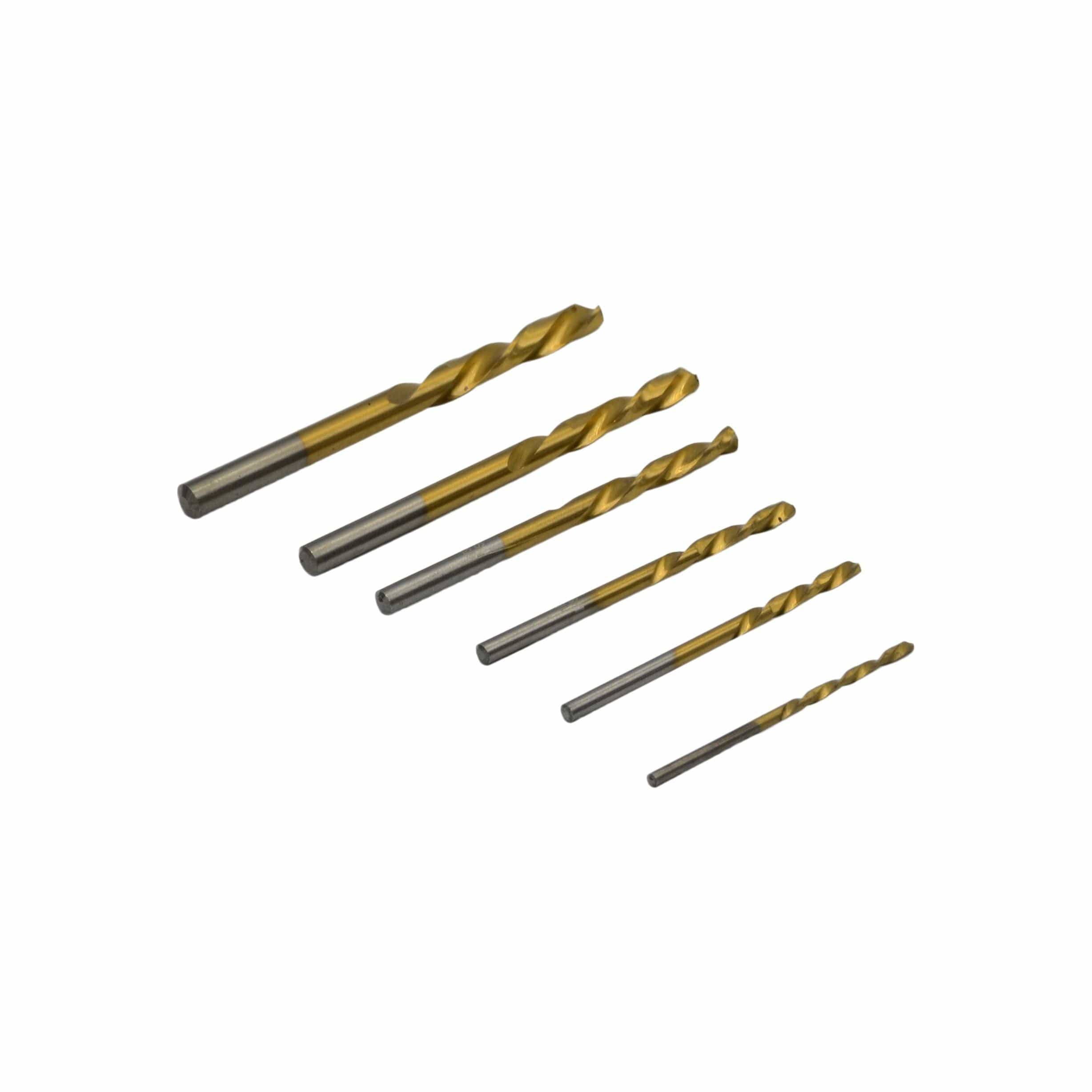

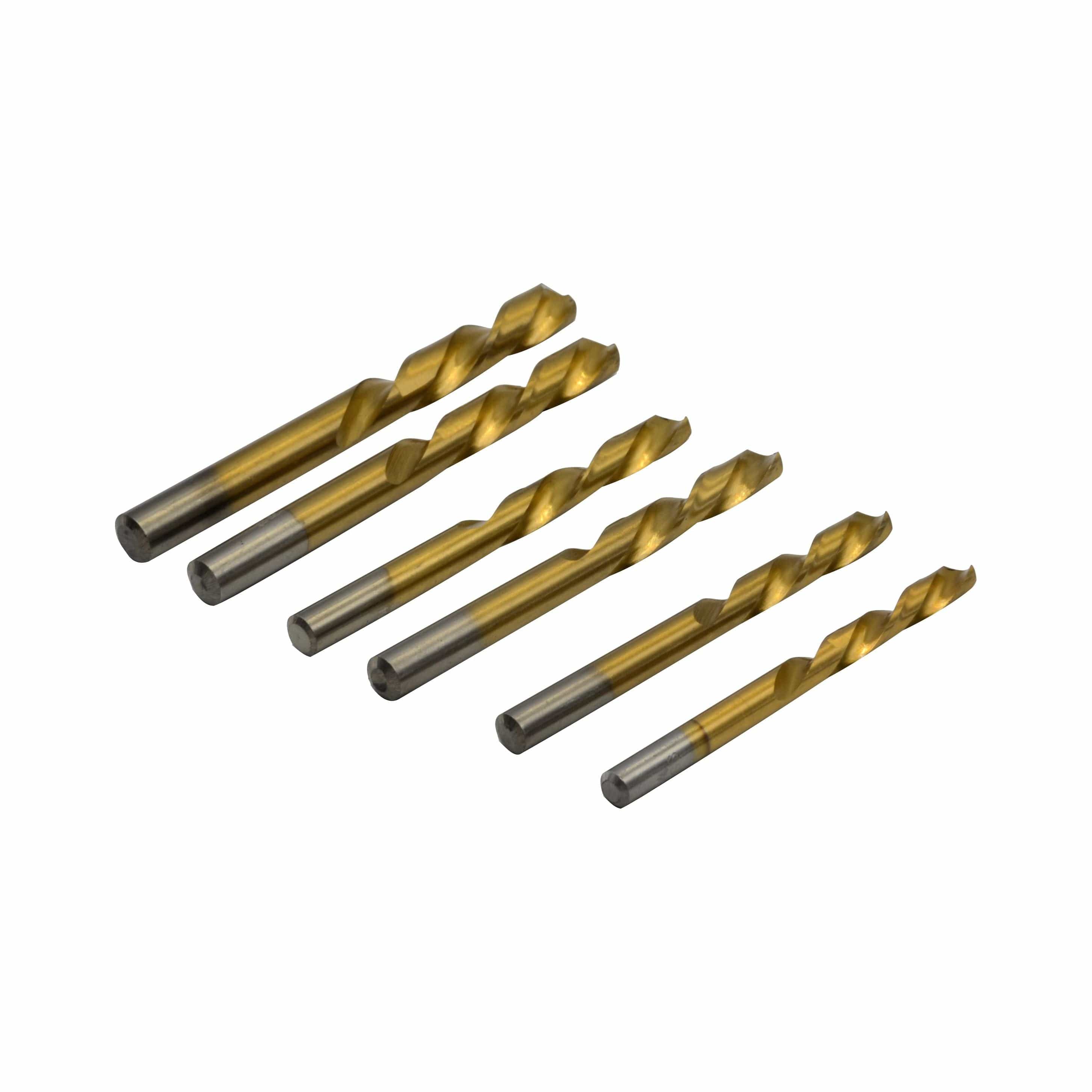

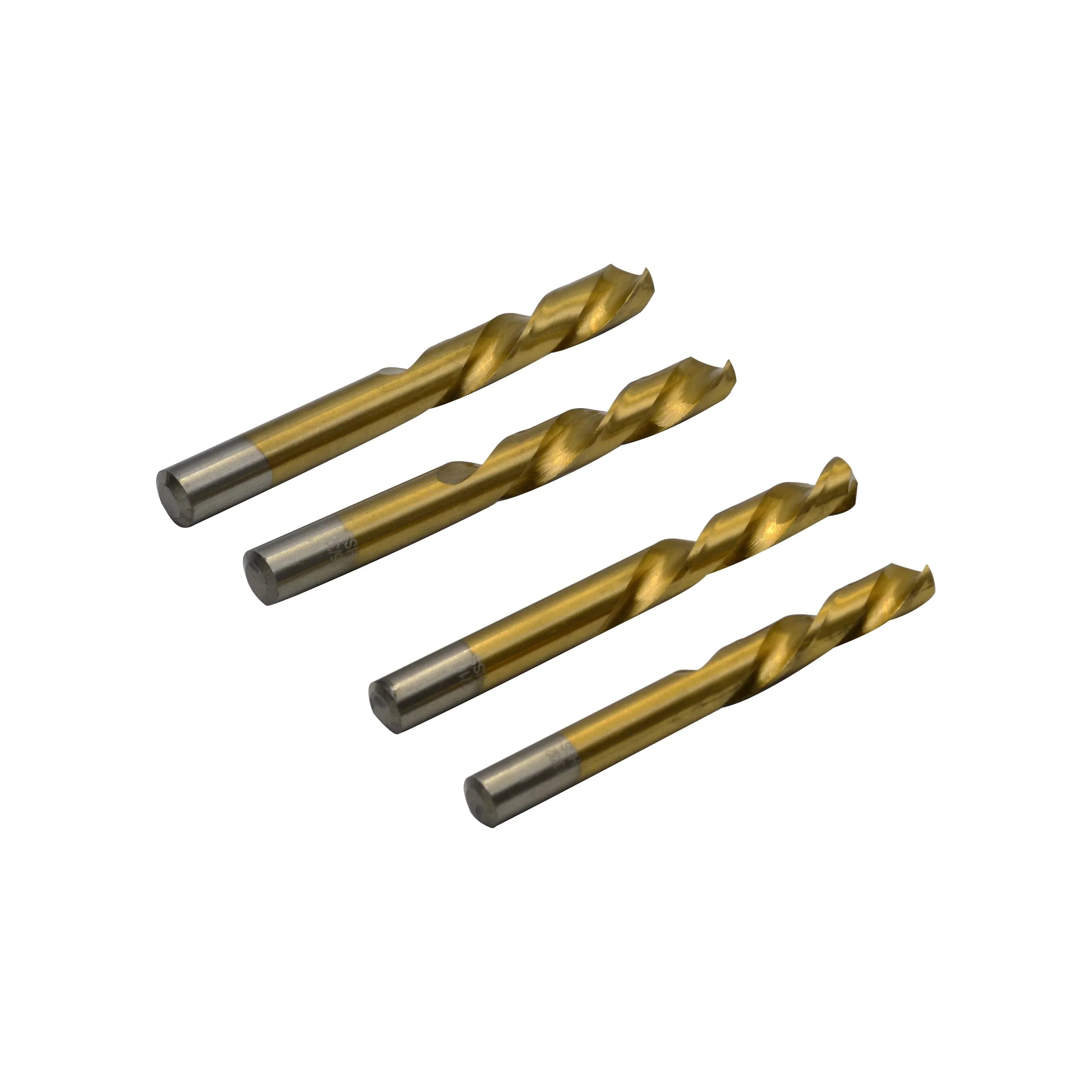

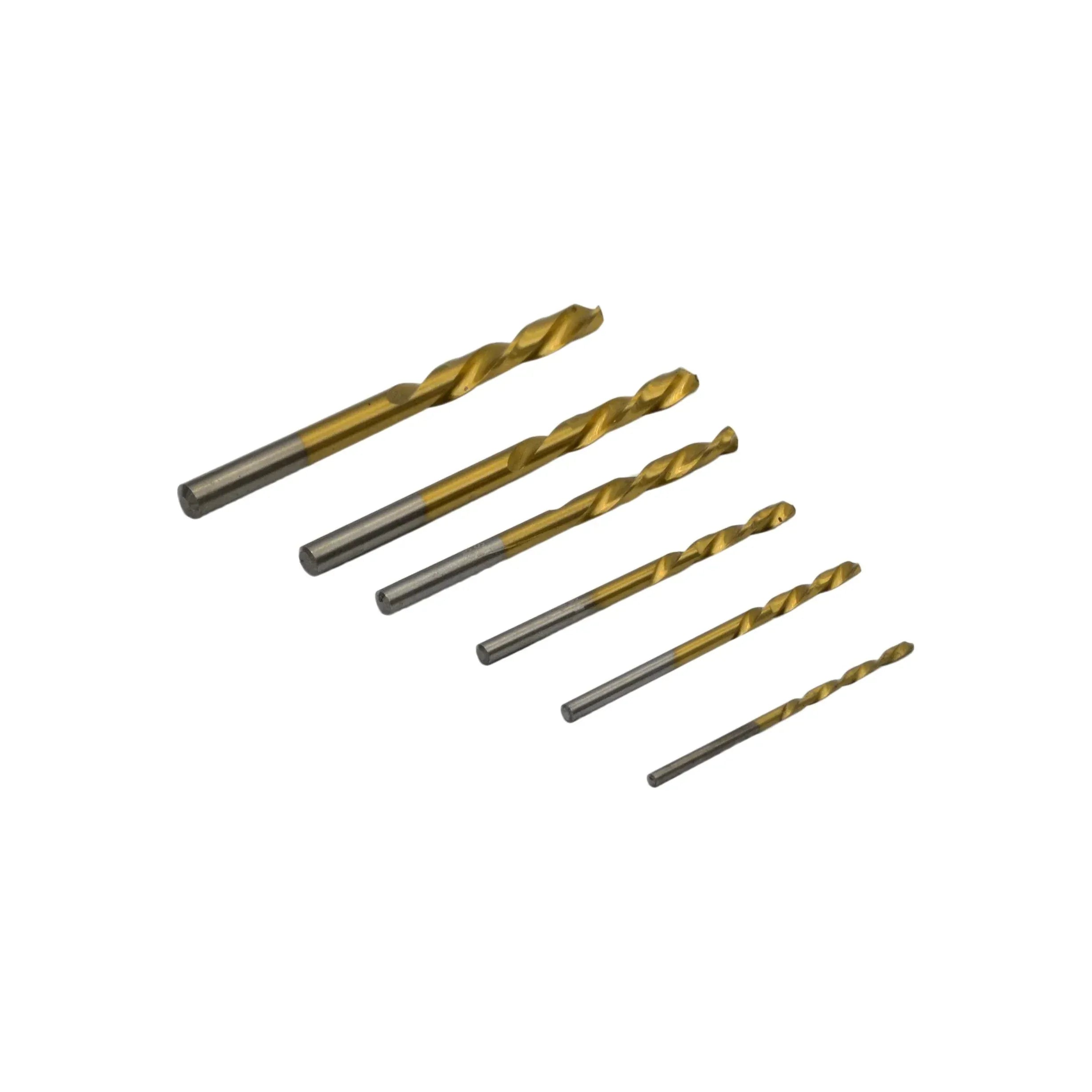

  • Drill bits: 5/64", 7/64", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 19/64", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32" and 1/2"

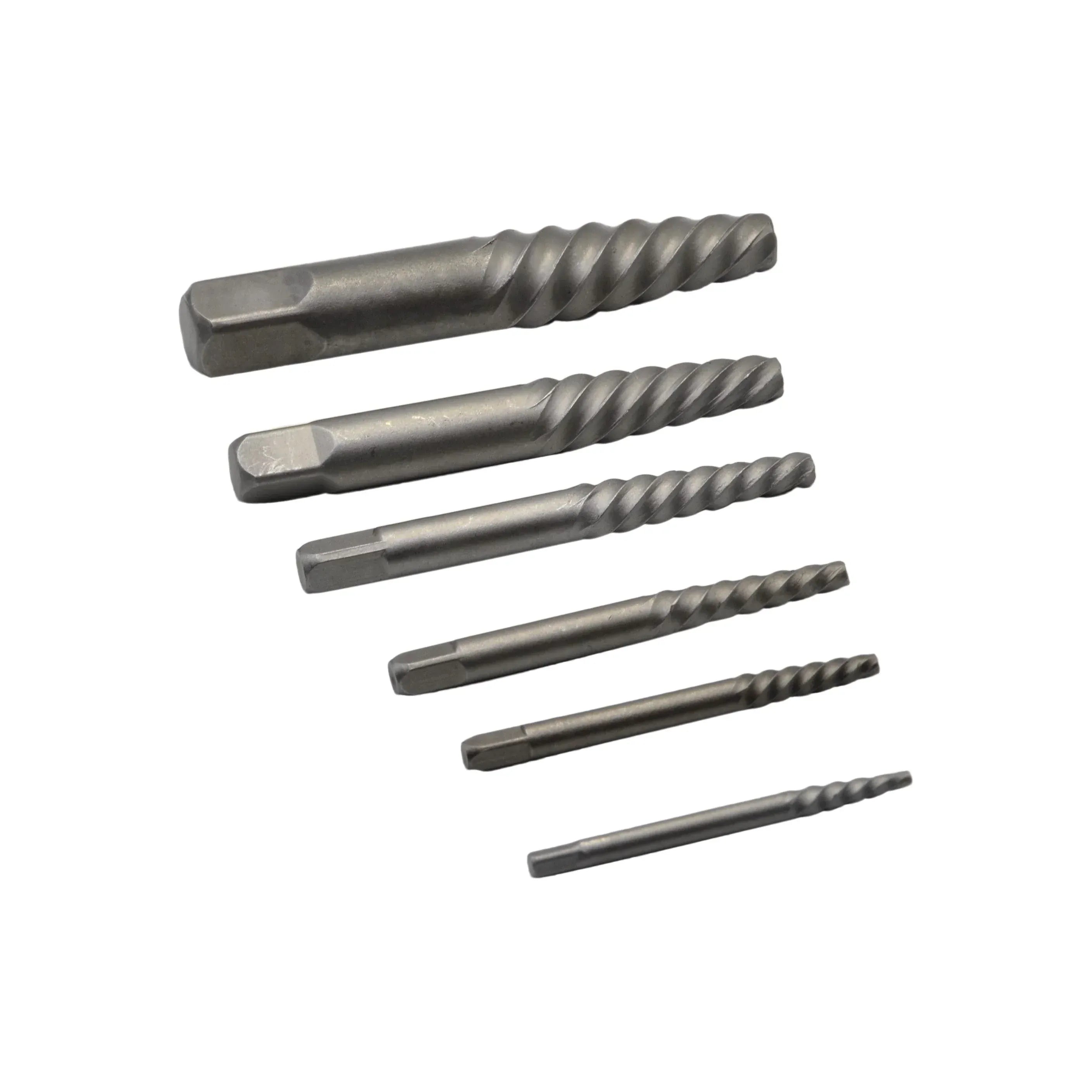

  • Extractors: Ex-1, Ex-2, Ex-3, Ex-4, Ex-5 and Ex-6

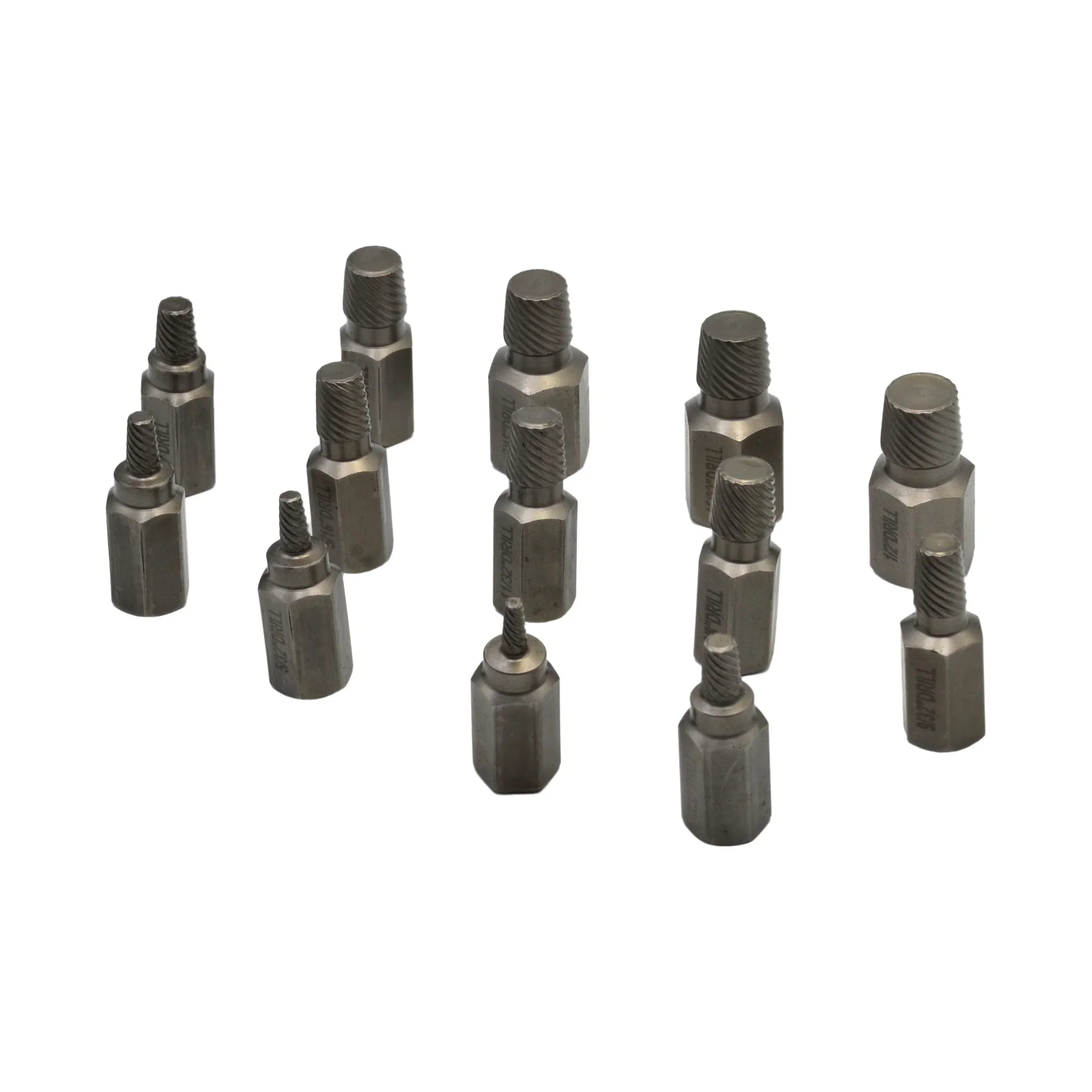

  • Multi-spline screw extractors size: 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32" and 1/2"
  • Full range of spiral and multi-spline extractors for removing the toughest bolts and screws from 3/32" to 1-5/16"
