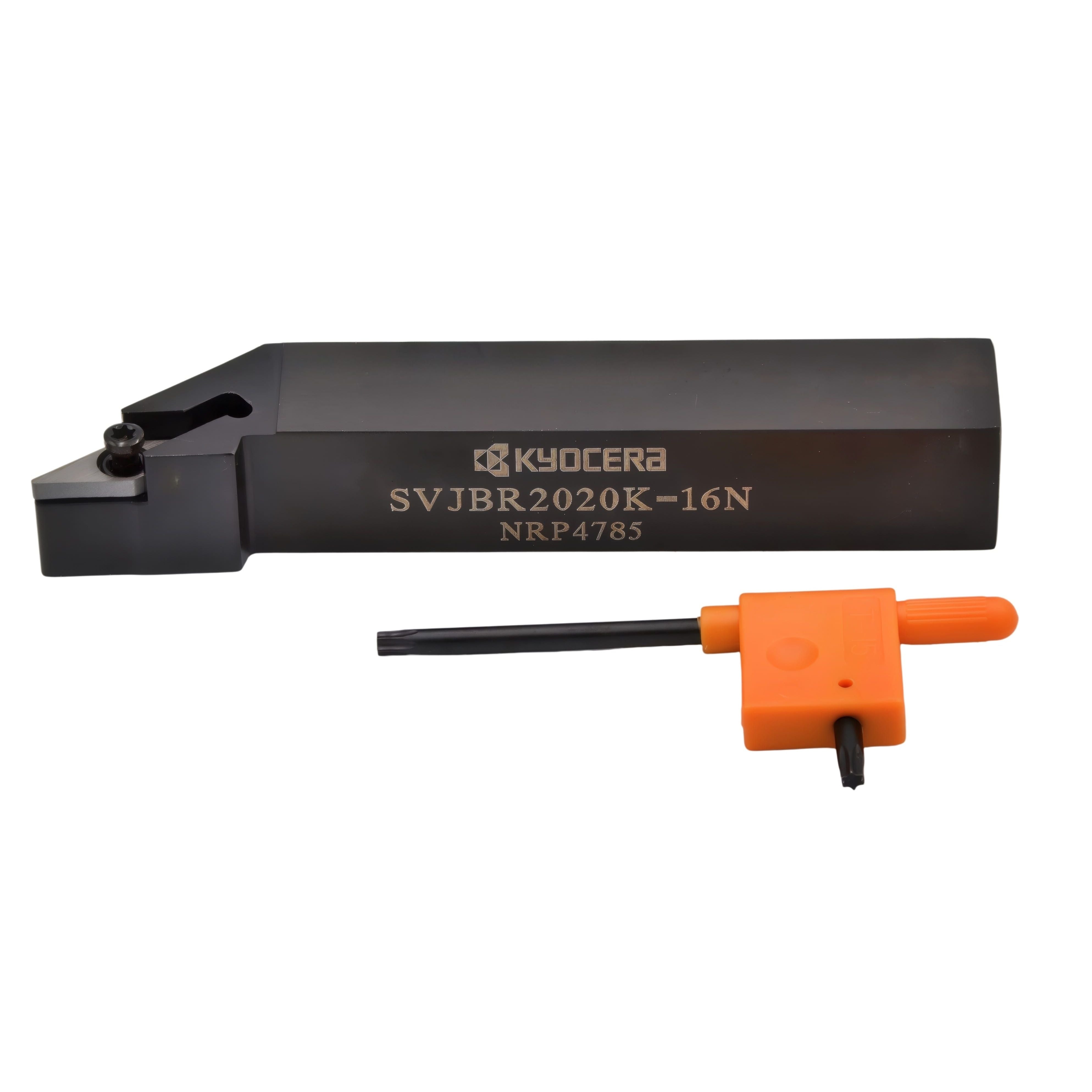

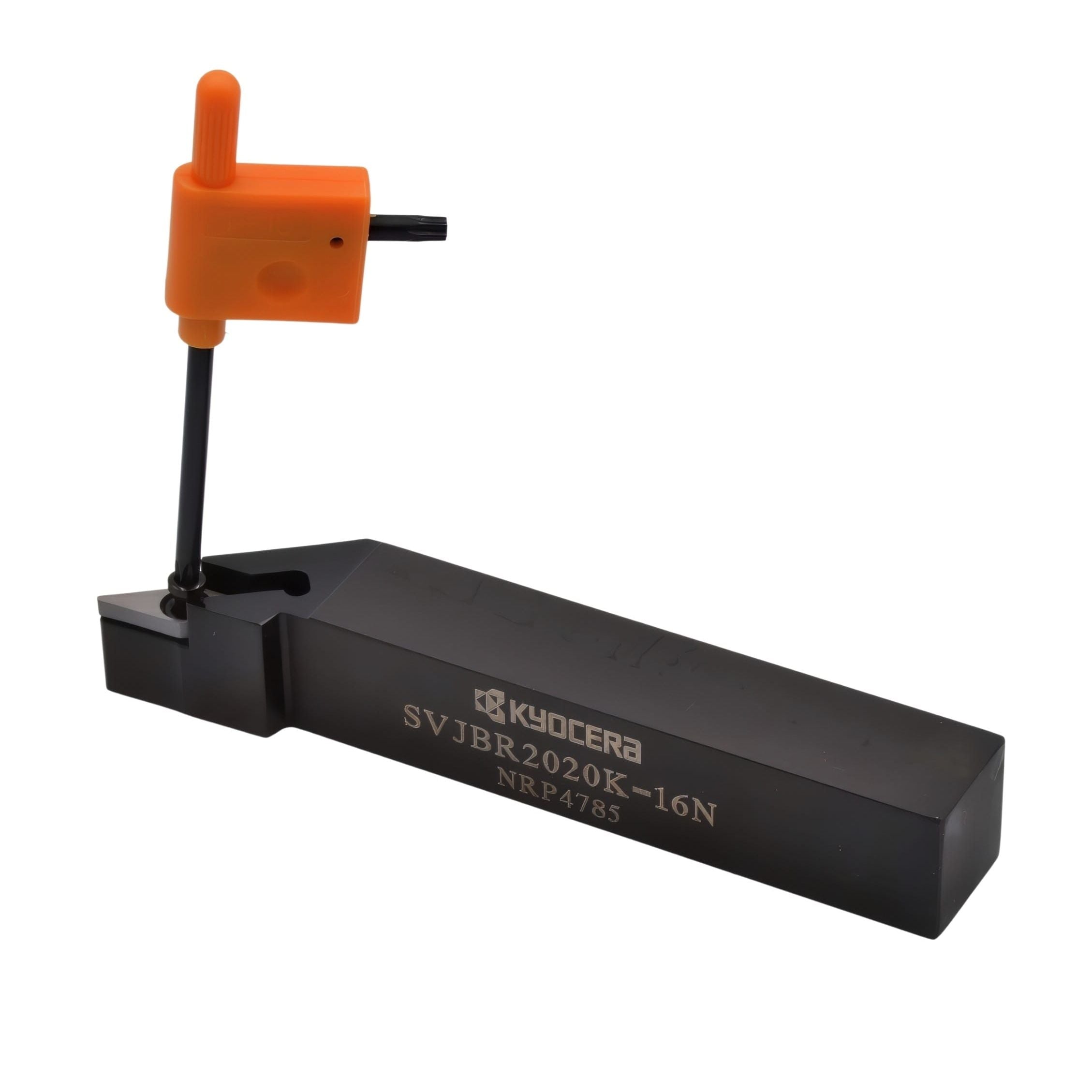

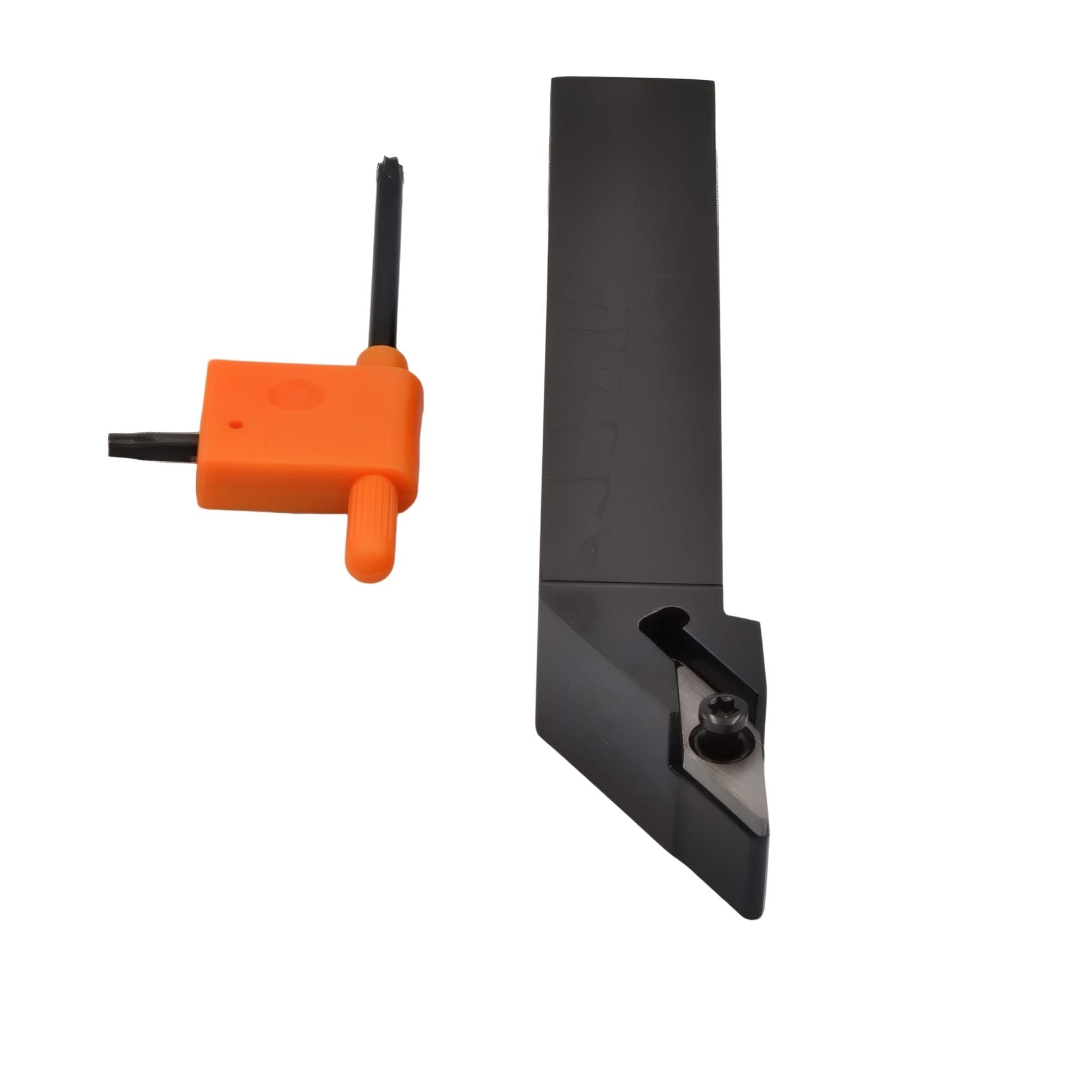

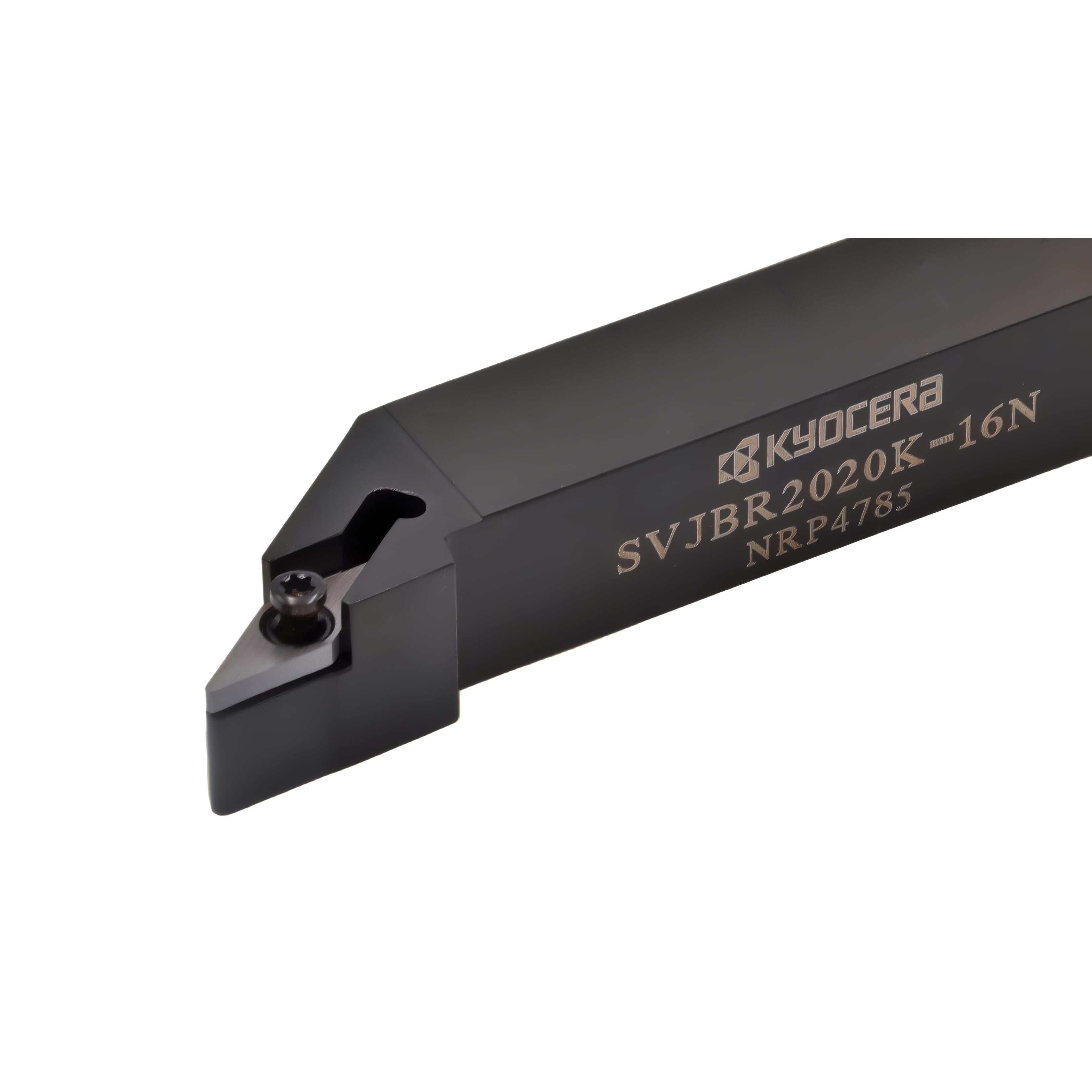

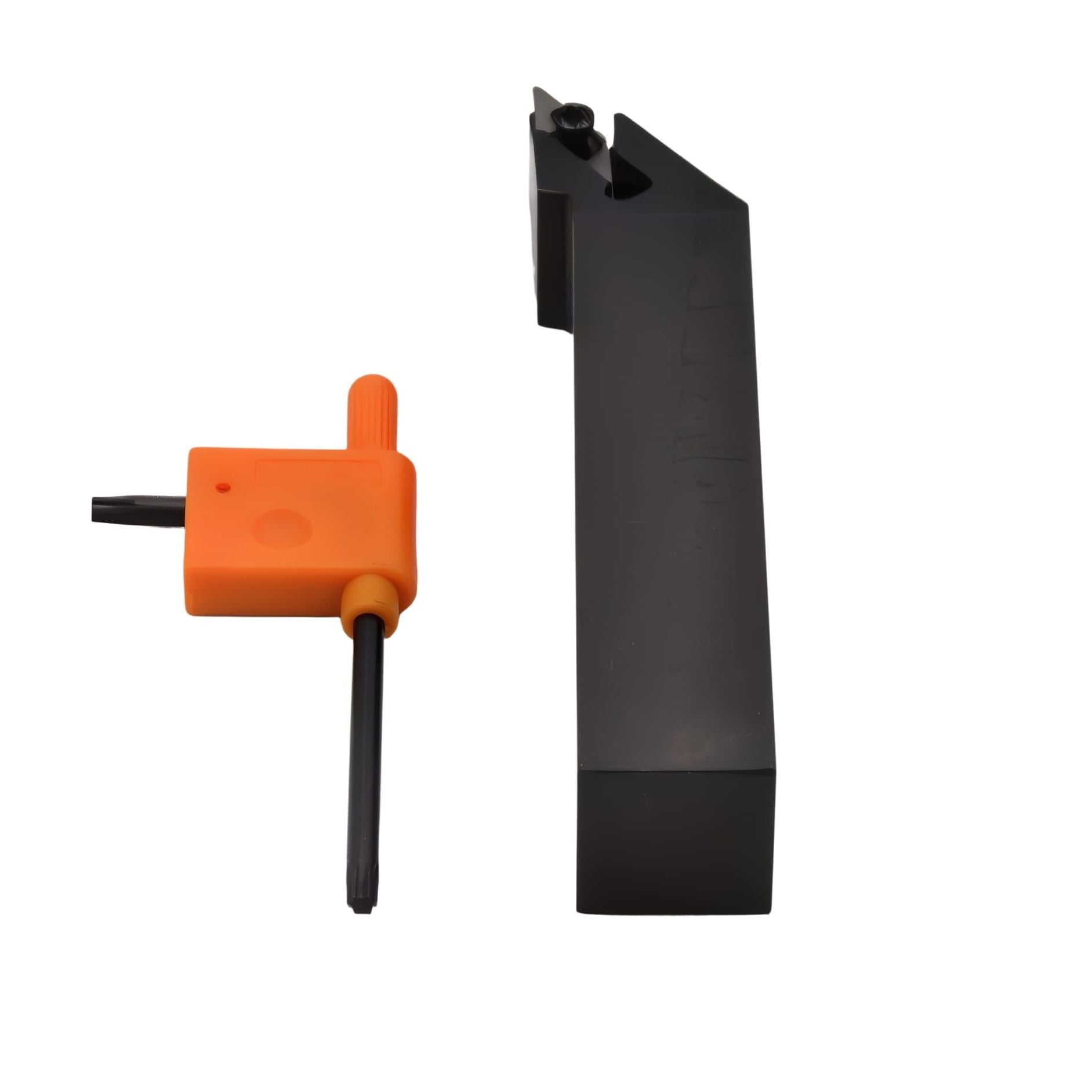

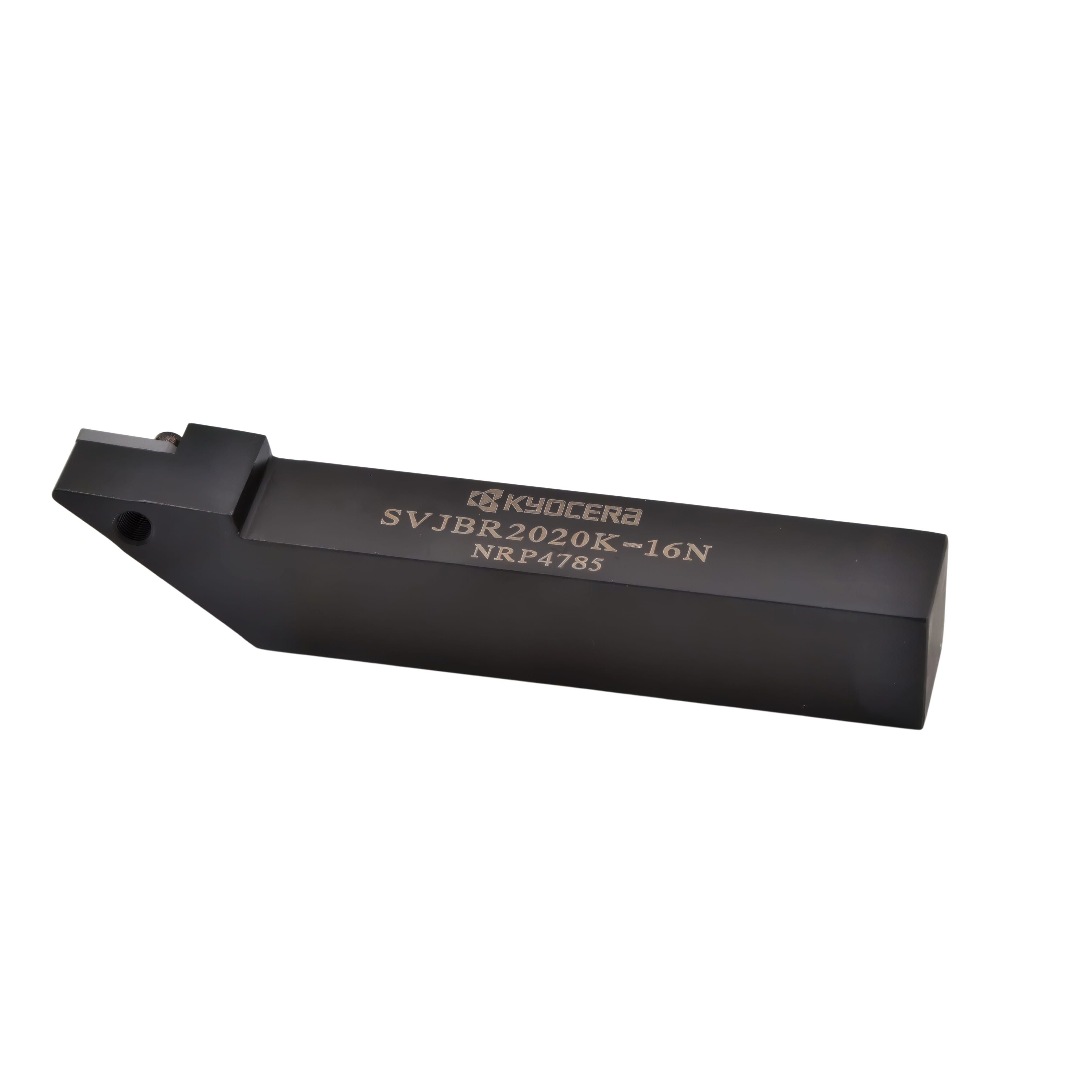

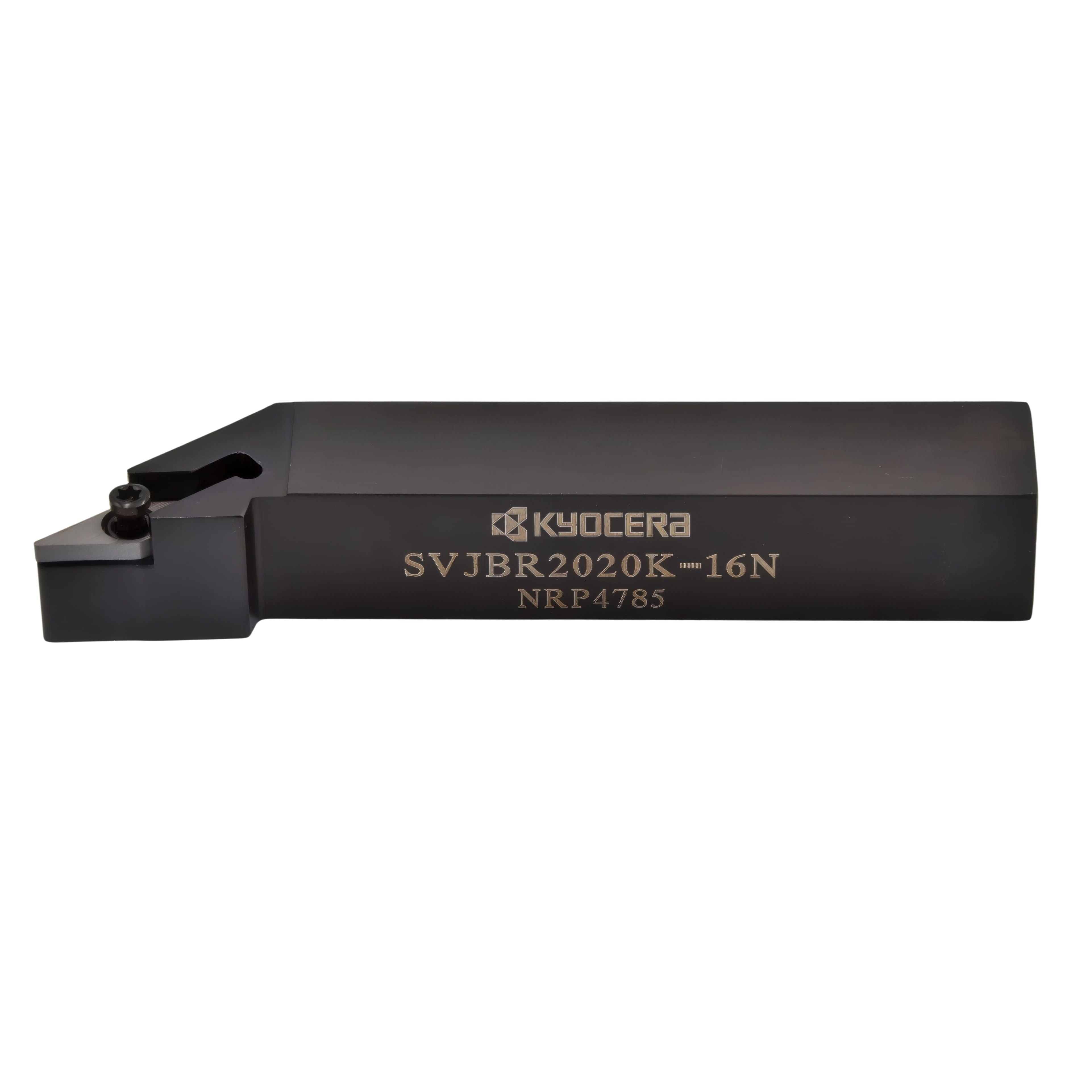

Kyocera SVJBR2020K-16N External Turning Toolholder – THC07318

The Kyocera SVJBR2020K-16N is a precision external turning toolholder designed for profiling and general turning operations. Engineered for stability and accuracy, it provides consistent cutting performance with excellent chip control,...
$139.00
$0.00
$139.00
(-0%)
SKU: SVJBR2020K-16N
Availability: In Stock
Subtotal: $139.00
KYOCERA ASIA PACIFIC PTE LTD TOOL HOLDERS Kyocera SVJBR2020K-16N External Turning Toolholder – THC07318

Kyocera SVJBR2020K-16N External Turning Toolholder – THC07318

$0.00 $139.00

Kyocera SVJBR2020K-16N External Turning Toolholder – THC07318

$0.00 $139.00

The Kyocera SVJBR2020K-16N is a precision external turning toolholder designed for profiling and general turning operations. Engineered for stability and accuracy, it provides consistent cutting performance with excellent chip control, making it suitable for a wide range of machining applications.

This right-hand toolholder is designed to suit VB**16-style positive inserts, offering versatility across various materials and cutting conditions. Its square shank construction ensures secure clamping and precise positioning, delivering reliable performance in both CNC and manual lathe environments.

Key Features & Benefits

  • Designed for external turning and profiling operations
  • Compatible with VBMT16 inserts (35° positive rhombic)
  • Right-hand cutting configuration for standard machining direction
  • Square shank design for rigid and stable mounting
  • High rigidity reduces vibration and improves surface finish
  • Excellent chip control for efficient machining
  • Suitable for general to medium-duty applications
  • Durable construction for long service life

Technical Specifications

  • Part Number: SVJBR2020K-16N
  • Item Number: THC07318
  • Product Type: External Turning Toolholder
  • Insert Compatibility: VBMT16
  • Shank Width (B): 20 mm
  • Shank Height (H): 20 mm
  • Hand: Right
  • Total Length (OAL): 150 mm
  • Head Length (LH): 30 mm
  • Clearance Angle: 5°
  • Insert Included Angle: 35°
  • Rake Angle Radial: 0°
  • Rake Angle Axial: 0°
  • Functional Height (HF): 20 mm
  • Inscribed Circle (IC): 9.525 mm
  • Tool Cutting Edge Angle: 93°
  • Cutting Edge Length: 16.606 mm
  • Corner Radius: 0.8 mm
  • Insert Thickness: 4.76 mm
  • Internal Coolant: No

Kyocera is globally recognised for high-performance cutting tools, delivering precision, durability, and consistent machining results across a wide range of industrial applications.
