Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant) The Kyocera MFWN90063R-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient face milling operations. Featuring a 63mm...
$1,368.95
$0.00
$1,368.95
(-0%)
SKU: MFWN90063R4TM
Availability: In Stock
Subtotal: $1,368.95

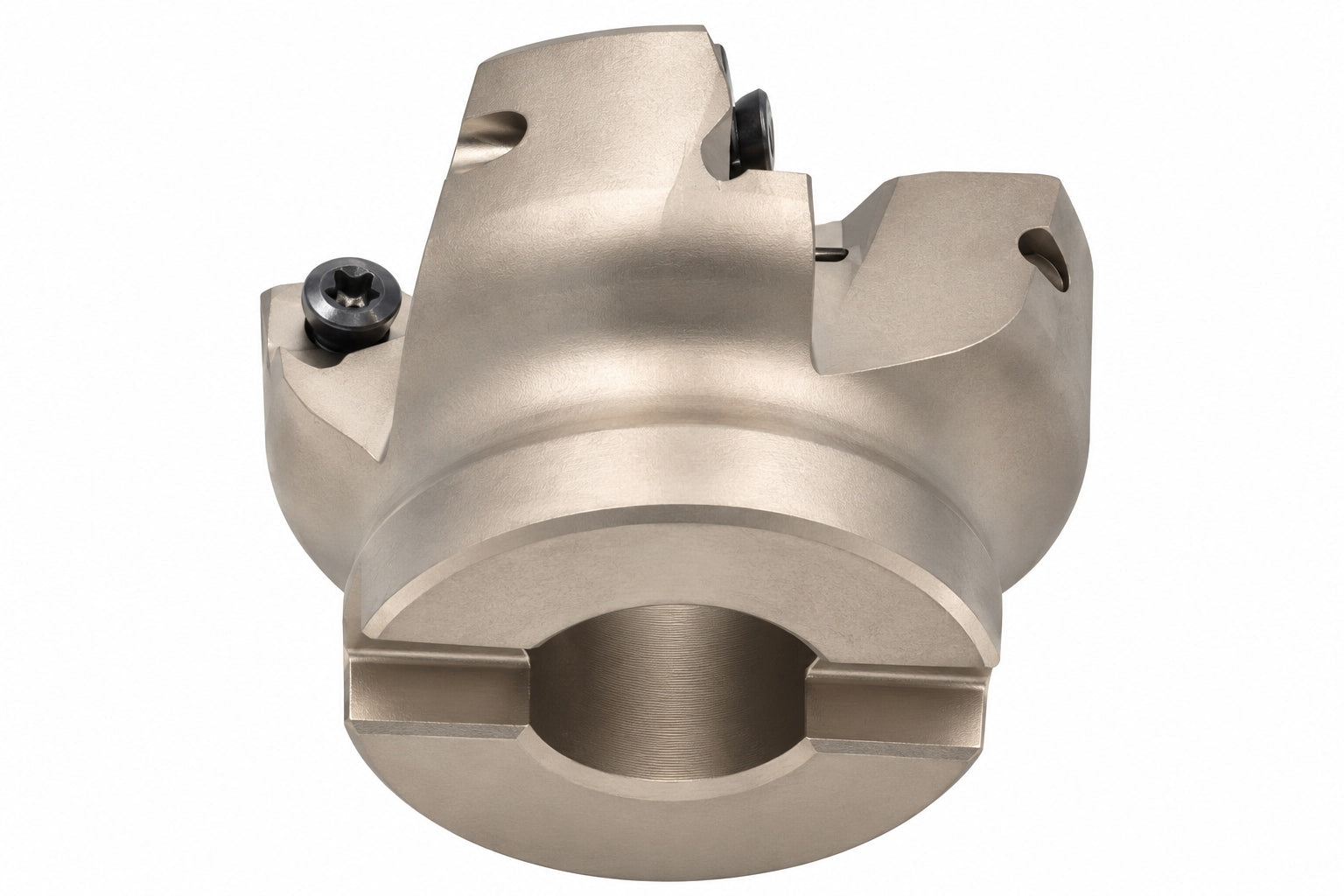

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant) - Twin Eagle Imports

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

$0.00 $1,368.95

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

$0.00 $1,368.95

Kyocera MFWN90063R-4T-M 63mm Milling Toolholder (4 Inserts 22mm Bore Internal Coolant)

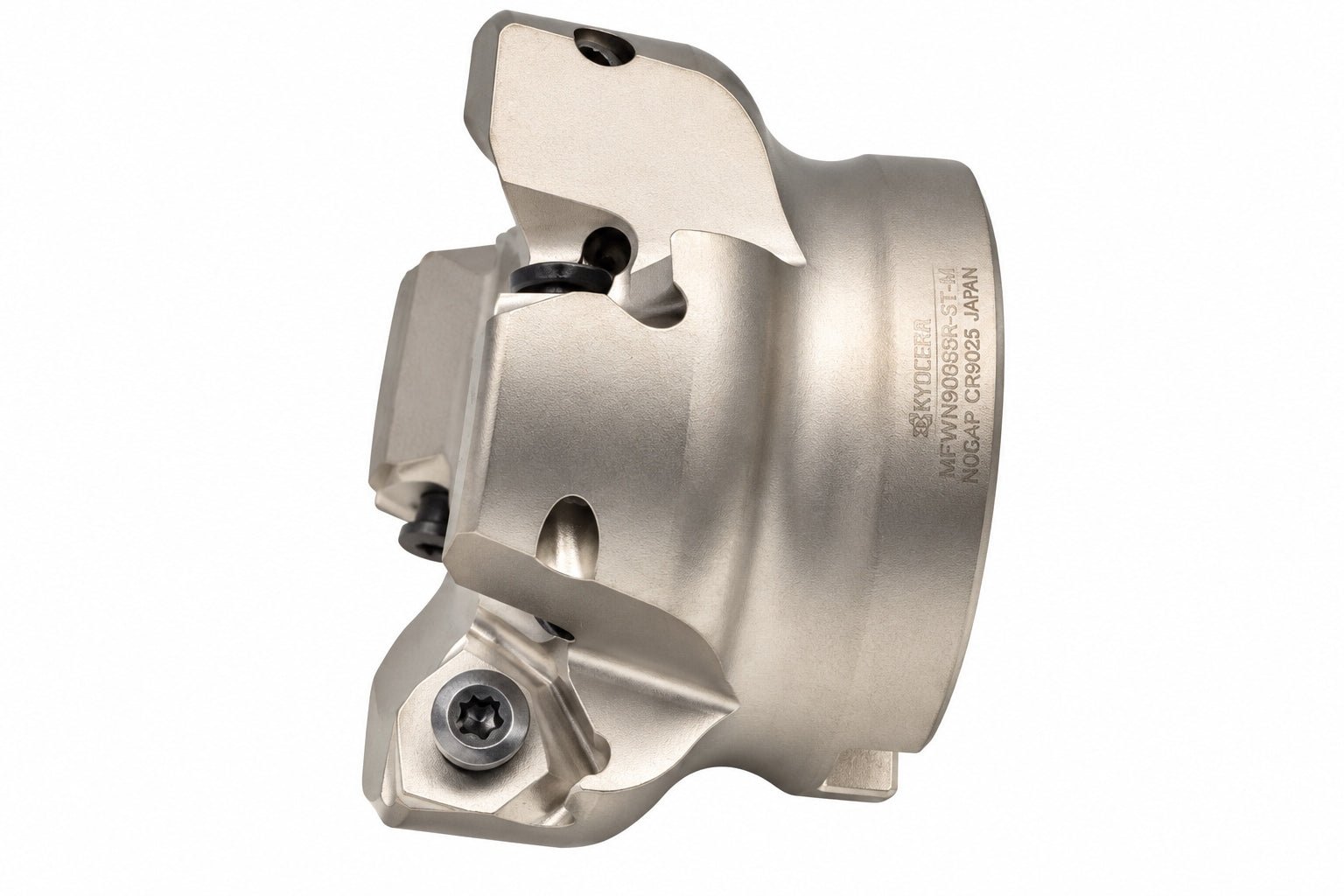

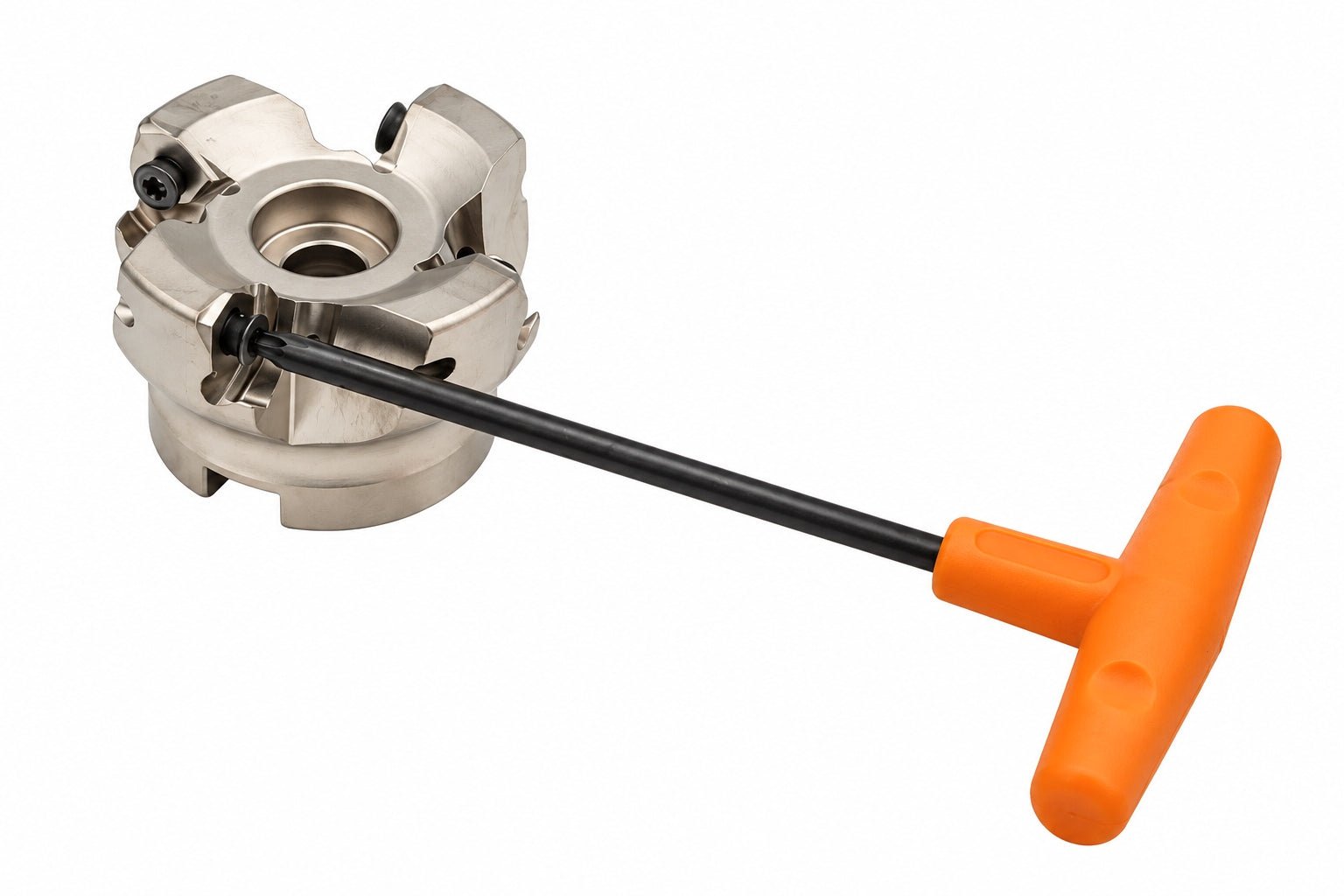

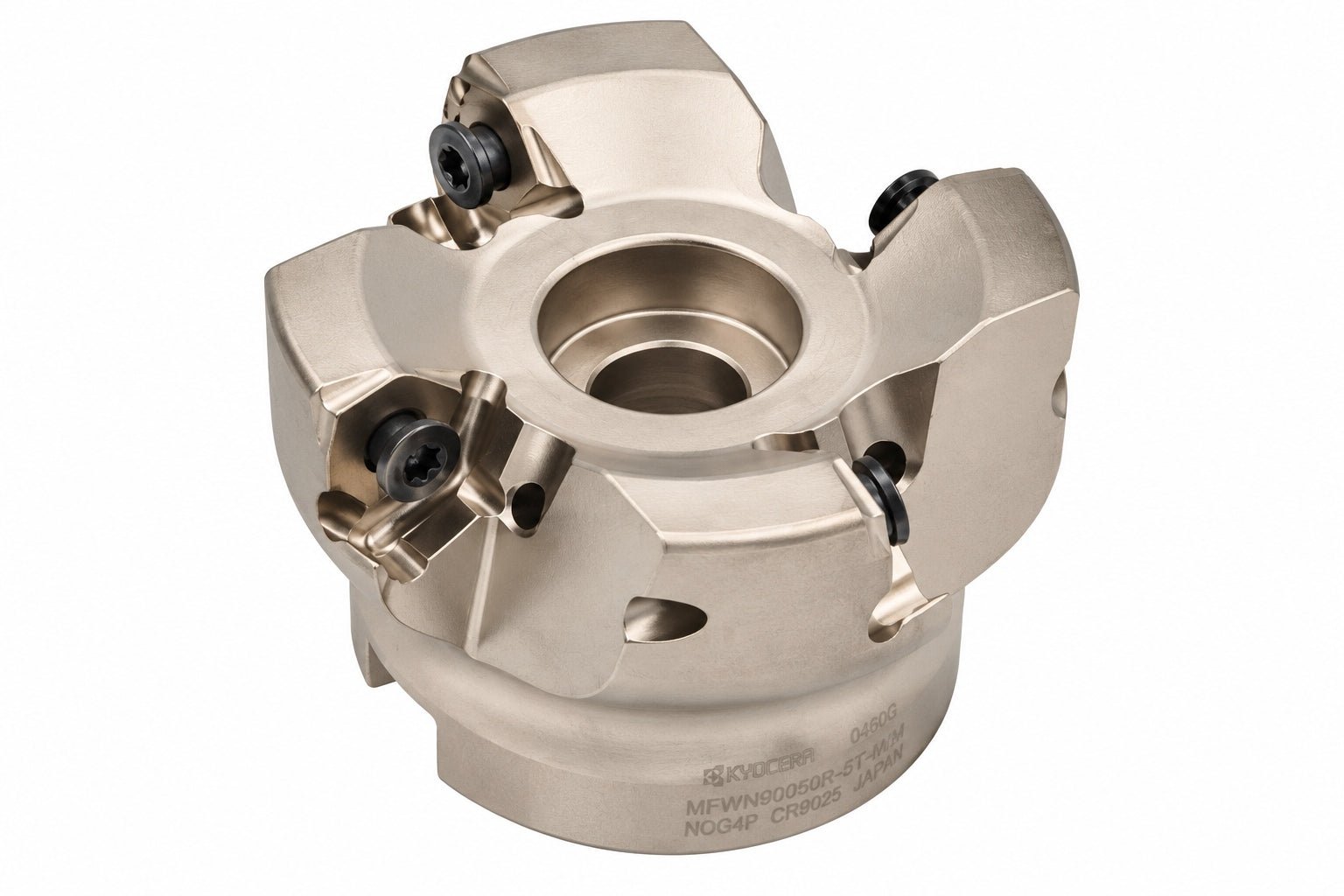

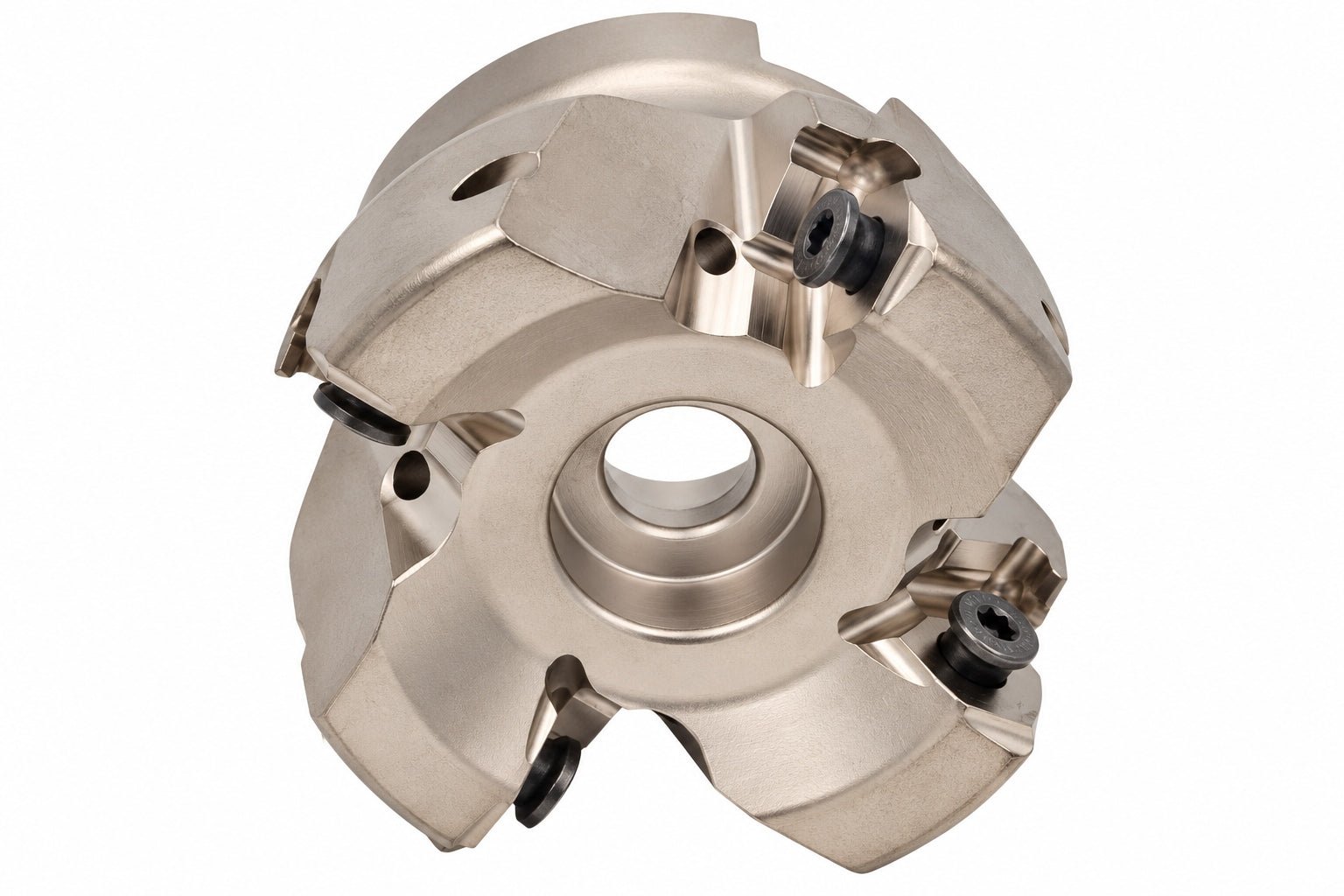

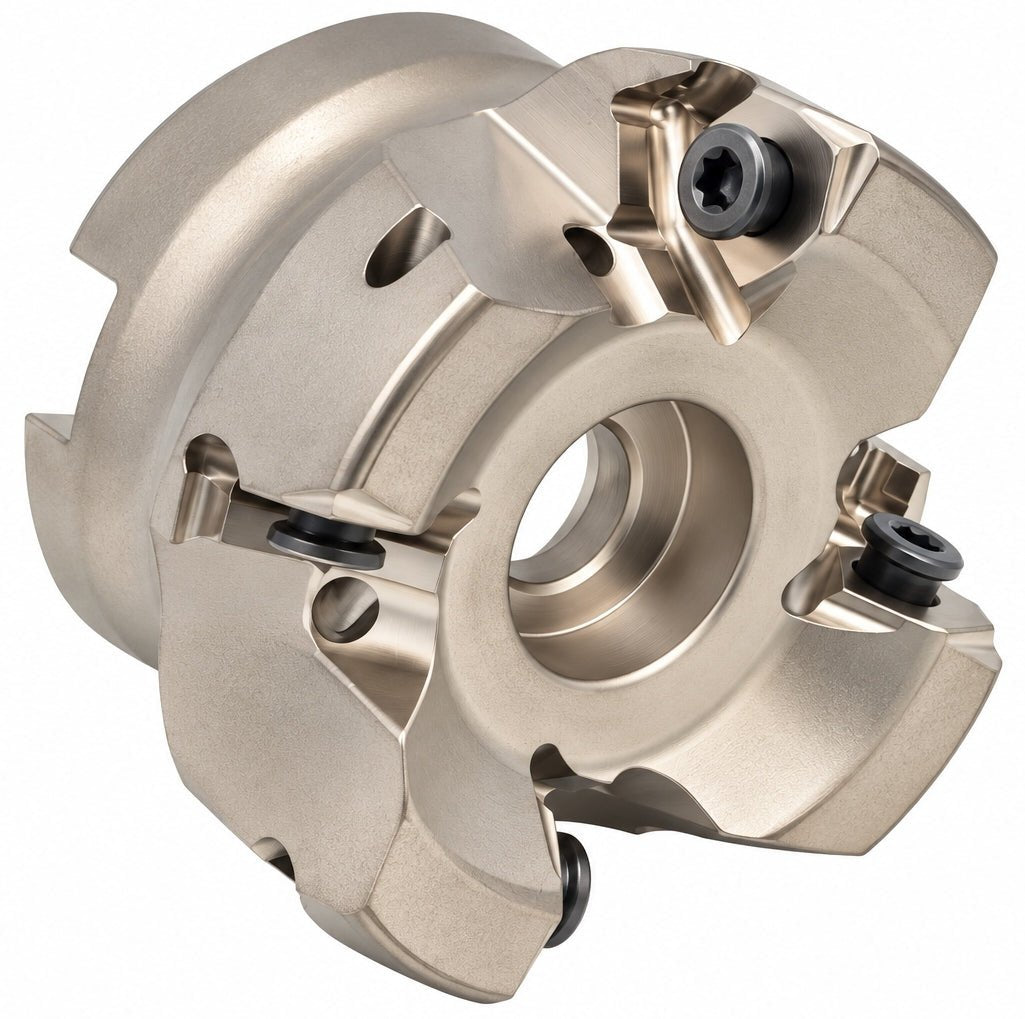

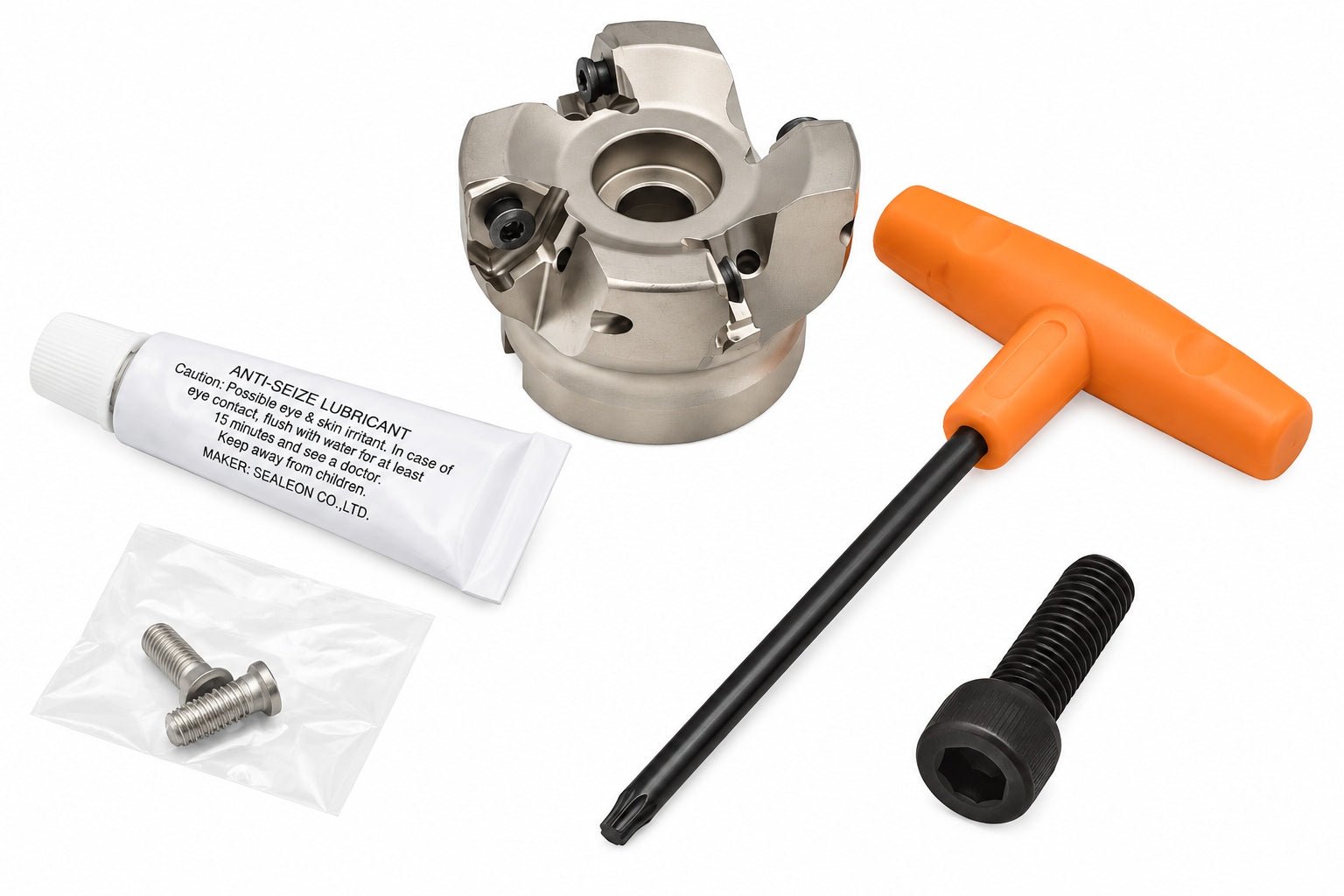

The Kyocera MFWN90063R-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient face milling operations. Featuring a 63mm cutting diameter, a 90° cutting angle, and a four-insert configuration, it supports productive material removal and accurate machining. The 22mm connection bore provides a secure mounting interface, while the integrated internal coolant capability helps deliver coolant to the cutting area for effective heat management during machining.

Key Features & Benefits

  • 63mm Cutting Diameter: Designed for milling applications requiring a 63mm cutter diameter.
  • Four-Insert Configuration: Accommodates four face-mounted inserts for efficient cutting performance.
  • 90° Cutting Angle: Supports machining operations requiring a right-angle cutting geometry.
  • Internal Coolant: Helps direct coolant towards the cutting zone to manage heat during milling.
  • 8mm Maximum Depth of Cut: Provides a maximum cutting depth of 8mm, with a recommended depth of cut of 3mm.

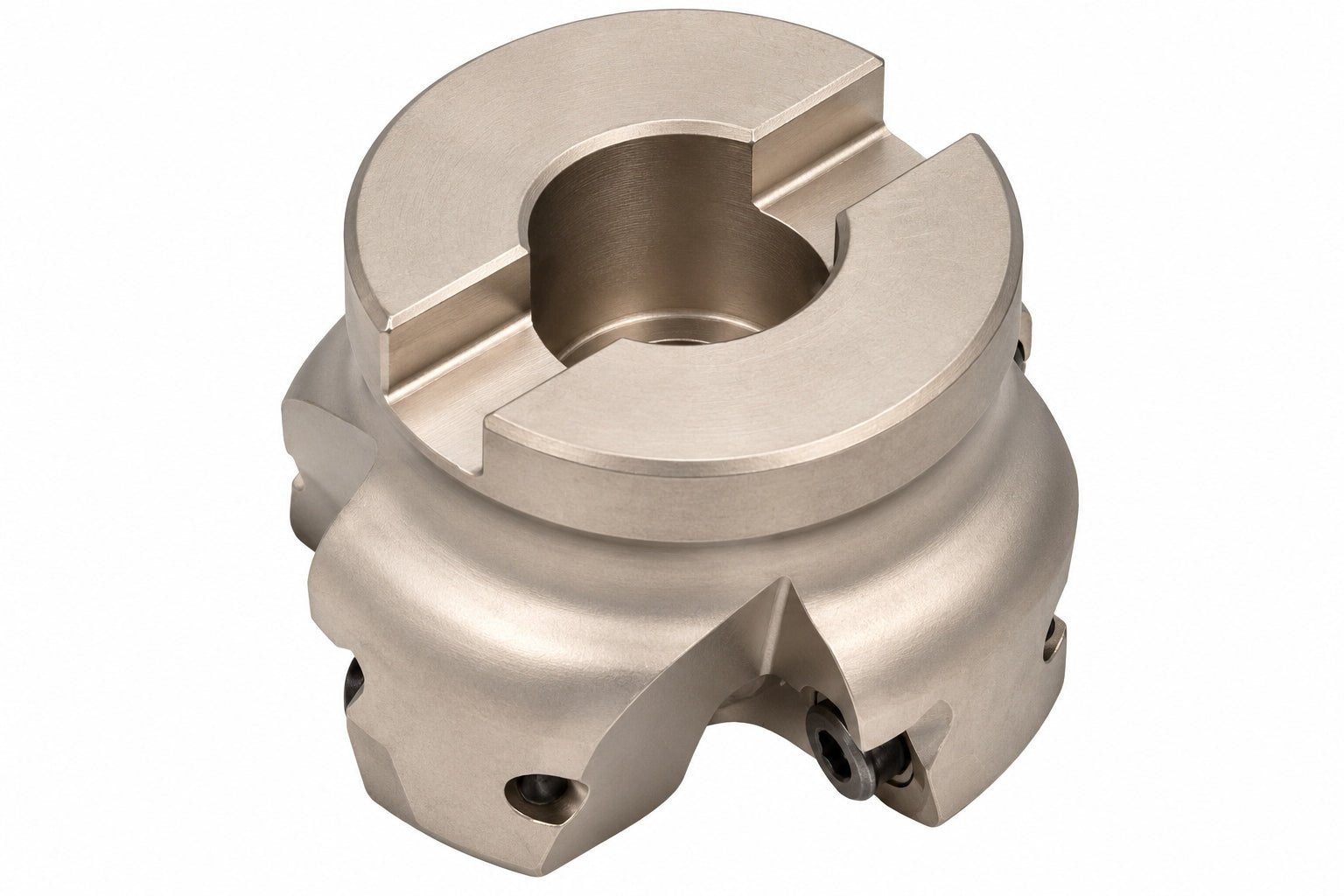

  • 22mm Connection Bore: Designed for mounting on a compatible milling arbor or machine connection.
  • Compact Construction: Features a 40mm overall length for a compact tool setup.
  • High-Speed Capability: Supports a maximum rotational speed of 16,000 RPM, subject to appropriate operating conditions.

Technical Specifications

  • Brand: Kyocera
  • Model: MFWN90063R-4T-M
  • Item Number: THN04700
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 63 mm
  • Number of Inserts: 4
  • Connection Bore Diameter: 22 mm
  • Cutting Angle: 90°
  • Maximum Depth of Cut: 8 mm
  • Recommended Depth of Cut: 3 mm
  • Maximum Rotational Speed: 16,000 RPM
  • Overall Length (OAL): 40 mm
  • Functional Length (LF): 40 mm
  • Contact Surface Diameter (Machine Side): 47 mm
  • Hub Diameter: 47 mm
  • Connection Bore Depth: 21 mm
  • Radial Rake Angle: -10°
  • Axial Rake Angle: 13°
  • Insert Included Angle: 80°
  • Inscribed Circle Diameter: 14.02 mm
  • Insert Thickness: 6.65 mm
  • Inside Corner Radius: 0.8 mm
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes

The Kyocera MFWN90063R-4T-M Milling Toolholder is available from Twin Eagle Imports for face milling and other compatible milling applications requiring a 63mm cutter with four inserts and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
