Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant) The Kyocera MEW040R-15-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient material removal and accurate machining. Featuring...
$979.47
$0.00
$979.47
(-0%)
SKU: MEW040R154TM
Availability: In Stock
Subtotal: $979.47

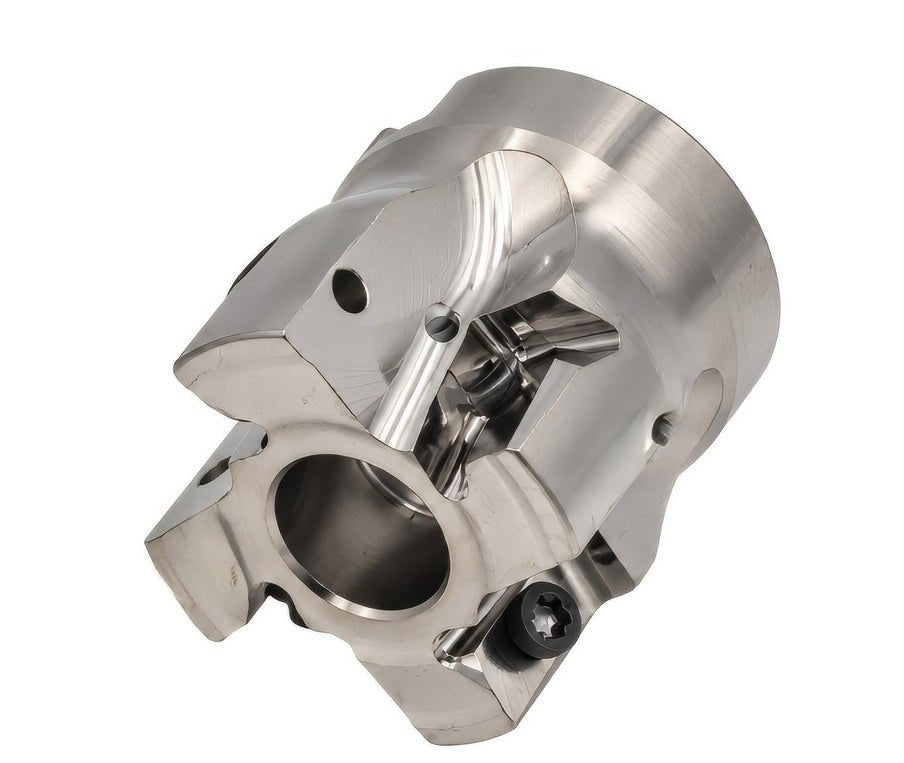

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant) - Twin Eagle Imports

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

$0.00 $979.47

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

$0.00 $979.47

Kyocera MEW040R-15-4T-M 40mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

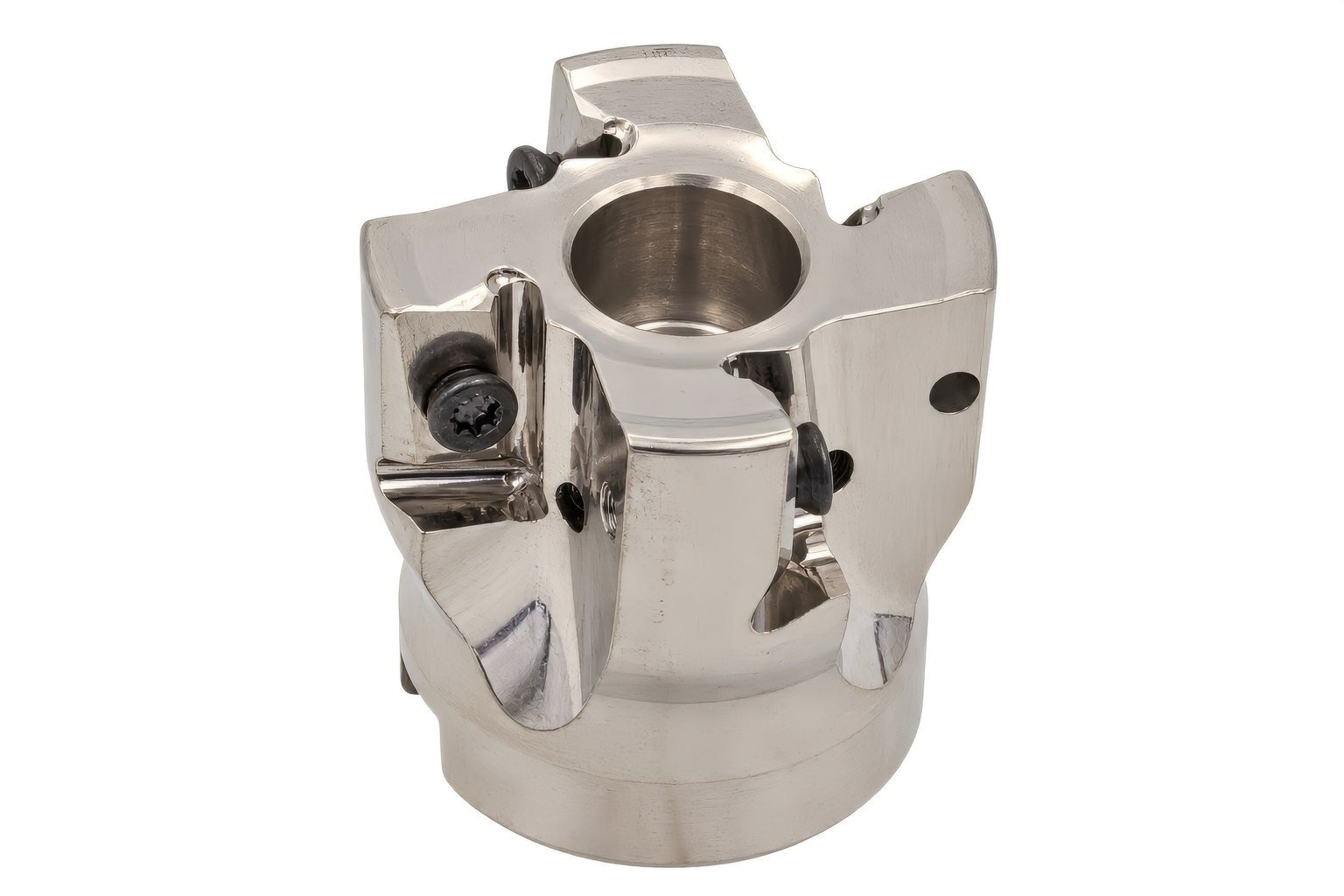

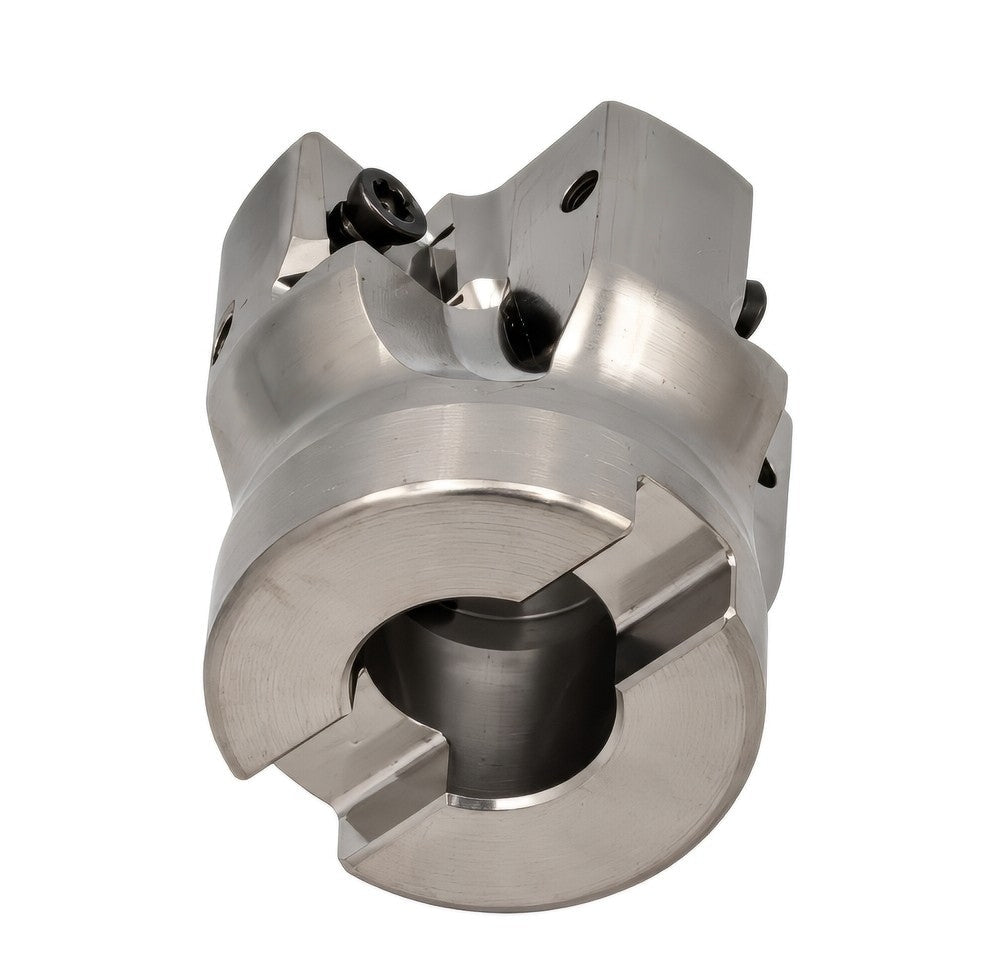

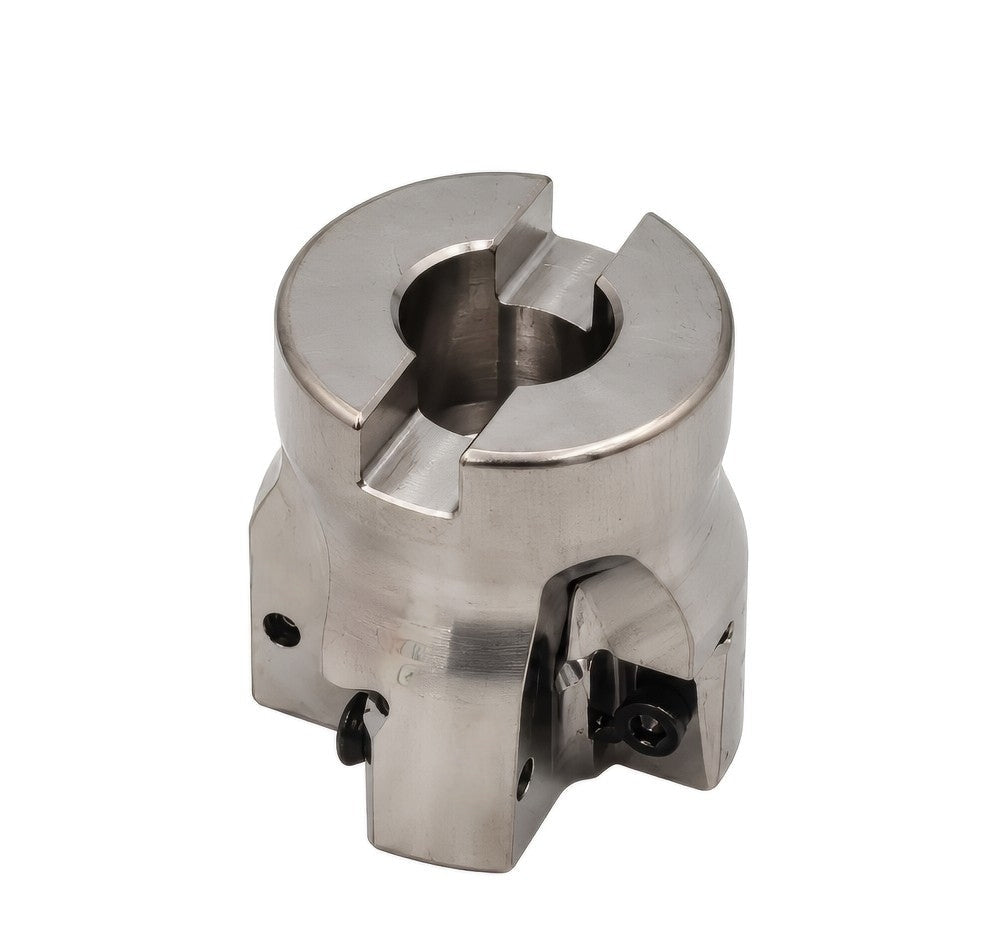

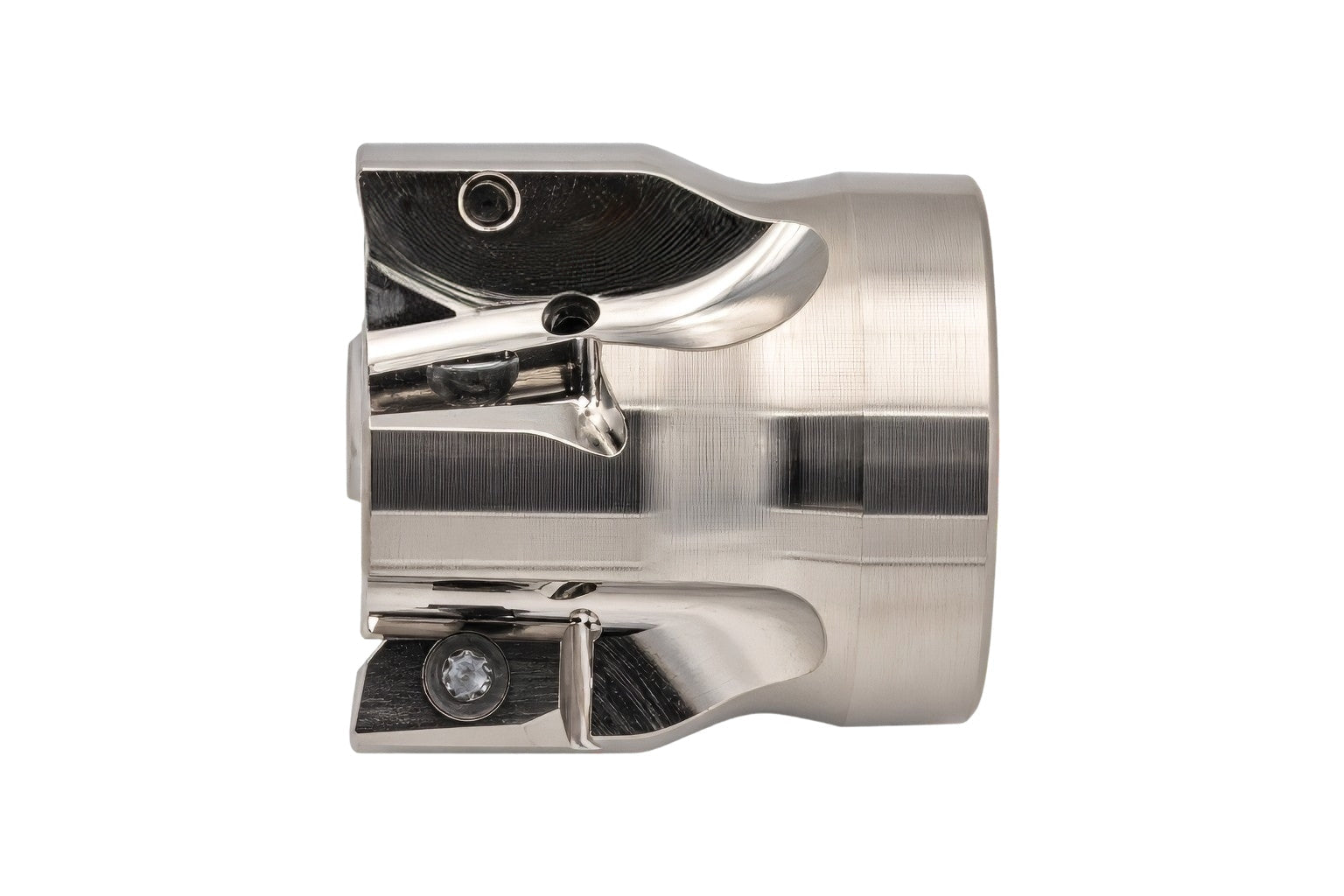

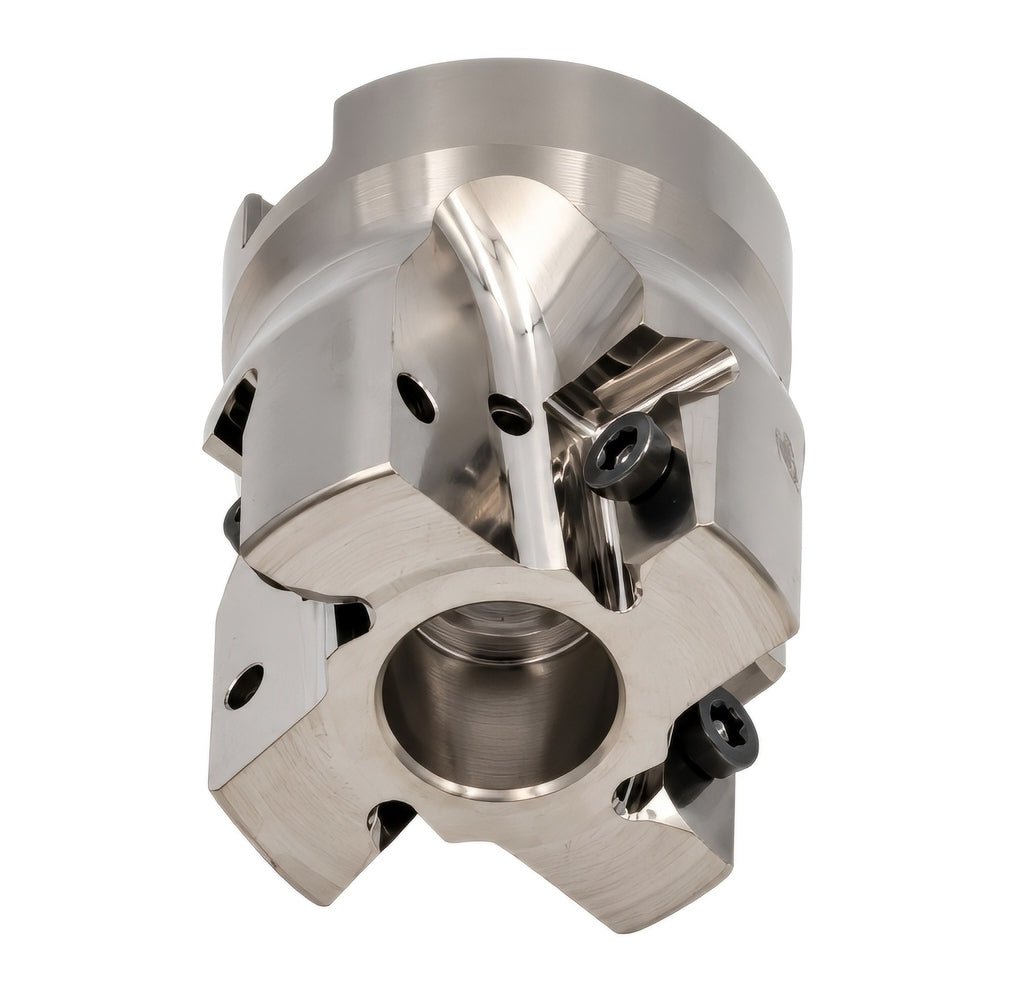

The Kyocera MEW040R-15-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient material removal and accurate machining. Featuring a 40mm cutting diameter, a 90° cutting edge angle, and a four-insert configuration, it supports productive milling operations with consistent cutting performance. The 16mm connection bore provides a mounting interface for compatible equipment, while the integrated internal coolant system helps deliver coolant to the cutting area for effective heat management. With a maximum depth of cut of 15mm, this toolholder is designed for compatible milling applications requiring deeper cutting capability.

Key Features & Benefits

  • 40mm Cutting Diameter: Designed for milling operations requiring a 40mm cutter diameter.
  • Four-Insert Configuration: Accommodates four face-mounted inserts for efficient material removal.
  • 90° Cutting Edge Angle: Supports milling applications requiring a right-angle cutting geometry.
  • Internal Coolant: Helps deliver coolant to the cutting zone to manage heat during machining.
  • 15mm Maximum Depth of Cut: Provides a maximum cutting depth of 15mm, with a recommended depth of cut of 3mm.
  • 16mm Connection Bore: Designed for mounting on compatible milling equipment.
  • 0.8mm Inside Corner Radius: Features a specified inside corner radius of 0.8mm.
  • High-Speed Capability: Supports a maximum rotational speed of 25,000 RPM, subject to appropriate operating conditions.
  • Compact Construction: Features a 40mm overall length for a compact tool setup.

Technical Specifications

  • Brand: Kyocera
  • Model: MEW040R-15-4T-M
  • Item Number: THN05180
  • EAN: 4960664648672
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 40 mm
  • Number of Inserts: 4
  • Connection Bore Diameter: 16 mm
  • Cutting Edge Angle: 90°
  • Maximum Depth of Cut: 15 mm
  • Recommended Depth of Cut: 3 mm
  • Overall Length (OAL): 40 mm
  • Functional Length (LF): 40 mm
  • Machine-Side Contact Surface Diameter: 34 mm
  • Hub Diameter: 34 mm
  • Connection Bore Depth: 19 mm
  • Radial Rake Angle: -21°
  • Axial Rake Angle: 10°
  • Insert Included Angle: 88°
  • Inscribed Circle Diameter: 9.2 mm
  • Cutting Edge Length: 15.7 mm
  • Insert Thickness: 5.6 mm
  • Insert Width: 9.2 mm
  • Inside Corner Radius: 0.8 mm
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes
  • Maximum Rotational Speed: 25,000 RPM

The Kyocera MEW040R-15-4T-M Milling Toolholder is available from Twin Eagle Imports for compatible milling applications requiring a 40mm cutter with four inserts and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
