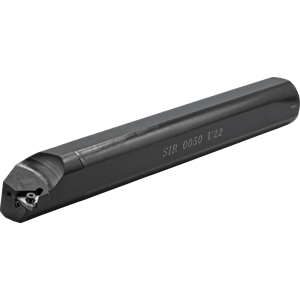

Carmex SIR 0050 U22 Internal Thread Toolholder, 22 mm Insert

Internal Thread Turning Toolholder – 22 mm Insert The Carmex SIR 0050 U22 is a heavy-duty internal thread turning toolholder built for high-stability machining using 22 mm IC internal threading...
$857.47
$0.00
$857.47
(-0%)
SKU: SIR 0050 U22
Availability: In Stock
Subtotal: $857.47
Carmex SIR 0050 U22 Internal Thread Toolholder, 22 mm Insert

Carmex SIR 0050 U22 Internal Thread Toolholder, 22 mm Insert

$0.00 $857.47

Carmex SIR 0050 U22 Internal Thread Toolholder, 22 mm Insert

$0.00 $857.47

Internal Thread Turning Toolholder – 22 mm Insert

The Carmex SIR 0050 U22 is a heavy-duty internal thread turning toolholder built for high-stability machining using 22 mm IC internal threading inserts. With a reinforced 50 mm shank, this toolholder offers exceptional rigidity and vibration control, making it ideal for deep internal threading, large-diameter bores, and demanding industrial applications.

Designed for compatibility with the full Carmex 22 mm internal insert family—including Metric, UN, Whitworth, ACME, Buttress, TR, NPT, and specialty profiles—the SIR 0050 U22 provides reliable insert seating, secure clamping, and consistent performance in heavy-cutting environments. Its robust geometry ensures smooth chip flow and precise thread formation even under continuous or interrupted loads.

Key Features:

  • Ordering Code: SIR 0050 U22
  • Tool Type: Internal Thread Turning Toolholder (U-Type)
  • Insert Compatibility: 22 mm IC threading inserts
  • Shank Diameter (D): 50 mm
  • Head Diameter (D1): 50 mm
  • Minimum Bore Diameter: 47 mm
  • Overall Length (L): 350 mm
  • Functional Length (L1): 28.1 mm
  • Front Overhang (F): 22.2 mm
  • Insert Screw: S22
  • Anvil Screw: A22
  • Torx Key: K22
  • Right-Hand Anvils: A122 / A22U
  • Left-Hand Anvils: AE22 / AE22U
  • Construction: Large-section hardened steel body for maximum stiffness and durability
  • Applications: Heavy internal threading on large-diameter bores, pressure-rated components, and alloy steels
  • Key Advantage: Ultra-rigid 50 mm shank allows stable deep-reach threading with superior tool life and accuracy

Manufactured by Carmex Precision Tools Ltd.—a global leader in premium threading and grooving solutions—the SIR 0050 U22 is trusted in high-performance machining environments requiring maximum rigidity and precision.
