Carmex DIR 0025 R16 Internal Thread Toolholder, 16 mm Insert

Internal Thread Turning Toolholder – 16 mm Insert (Top Clamp) The Carmex DIR 0025 R16 is a robust internal thread turning toolholder designed for use with 16 mm IC internal...
$431.50
$0.00
$431.50
(-0%)
SKU: DIR 0025 R16
Availability: In Stock
Subtotal: $431.50
Carmex DIR 0025 R16 Internal Thread Toolholder, 16 mm Insert

Carmex DIR 0025 R16 Internal Thread Toolholder, 16 mm Insert

$0.00 $431.50

Carmex DIR 0025 R16 Internal Thread Toolholder, 16 mm Insert

$0.00 $431.50

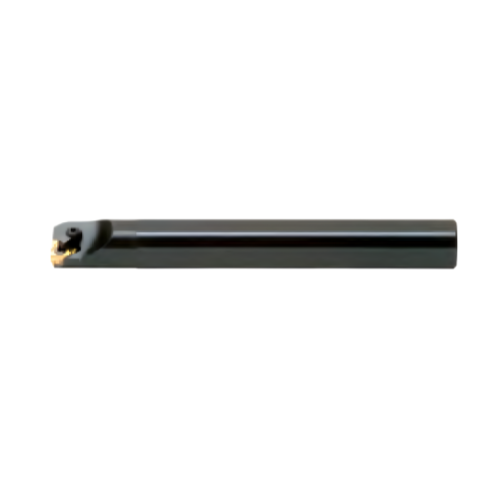

Internal Thread Turning Toolholder – 16 mm Insert (Top Clamp)

The Carmex DIR 0025 R16 is a robust internal thread turning toolholder designed for use with 16 mm IC internal threading inserts. Featuring a secure top-clamp mechanism, this toolholder provides exceptional insert stability, making it ideal for heavy-duty machining, intermittent cuts, and demanding internal threading operations.

With a strong 25 mm shank and a minimum bore capacity of 29 mm, the DIR 0025 R16 delivers excellent rigidity, vibration control, and threading accuracy. Compatible with the complete range of Carmex 16 mm internal inserts—including Metric, UN, Whitworth, ACME, Buttress, Trapez, and NPT forms—it offers versatility across a broad range of precision threading tasks.

Key Features:

  • Ordering Code: DIR 0025 R16
  • Tool Type: Internal Thread Turning Toolholder (Top Clamp)
  • Insert Compatibility: 16 mm IC internal threading inserts
  • Shank Diameter (D): 25 mm
  • Head Diameter (D1): 25 mm
  • Minimum Bore Diameter: 29 mm
  • Overall Length (L): 200 mm
  • Functional Length (L1): 16.2 mm
  • Front Overhang (F): 16.2 mm
  • Insert Screw: S16
  • Clamp: C16
  • Anvil Screw: A16S
  • Torx Key: K16
  • Right-Hand Anvil: A16
  • Left-Hand Anvil: AE16
  • Construction: Reinforced toolholder body with top-clamp locking for secure insert retention
  • Applications: Internal threading of steels, stainless steels, alloy steels, and high-strength materials
  • Key Advantage: Superior insert stability under heavy loads and interrupted cuts due to robust top-clamp system

Manufactured by Carmex Precision Tools Ltd.—an industry leader in threading and grooving technologies—the DIR 0025 R16 delivers top-tier precision, reliability, and performance in demanding internal threading operations.
