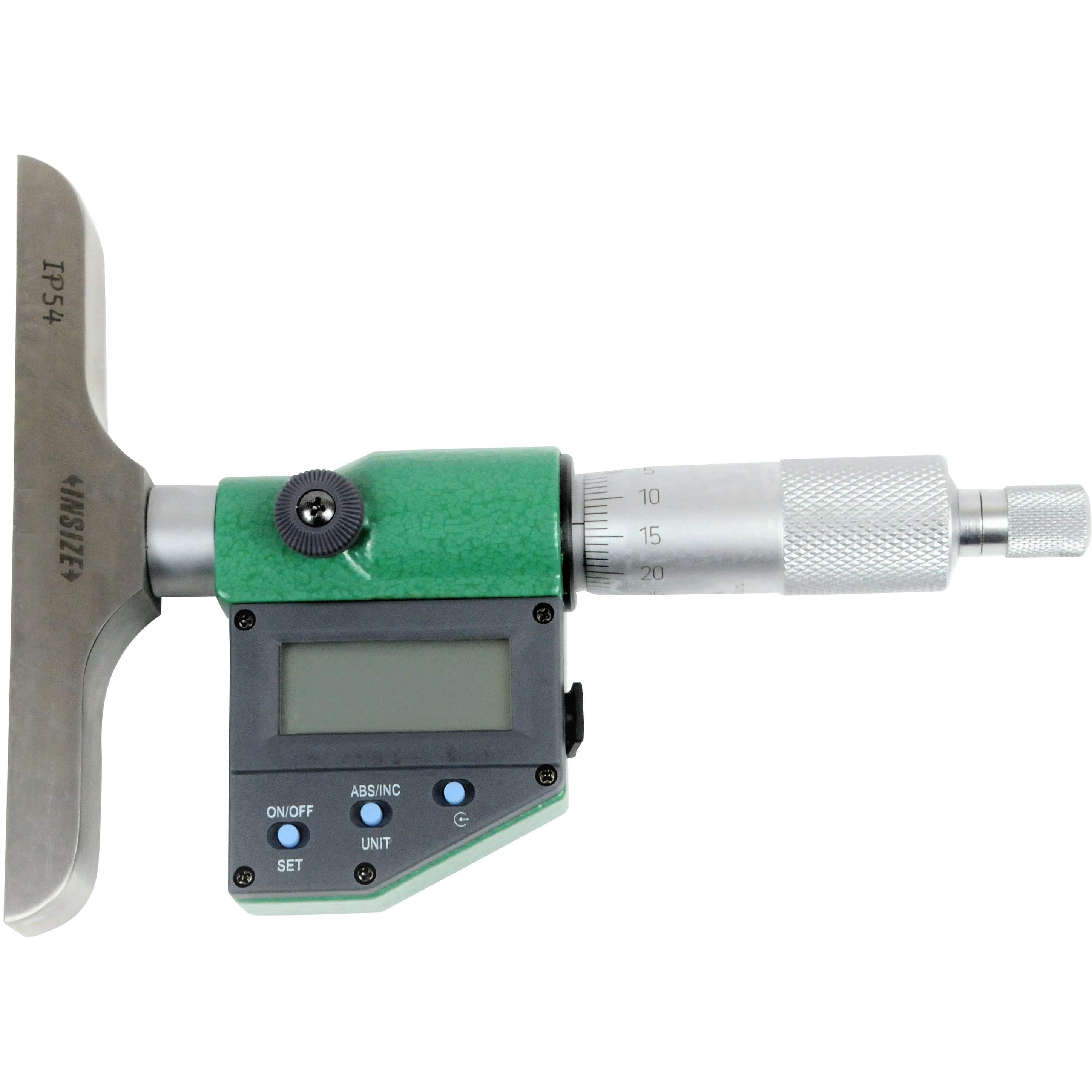

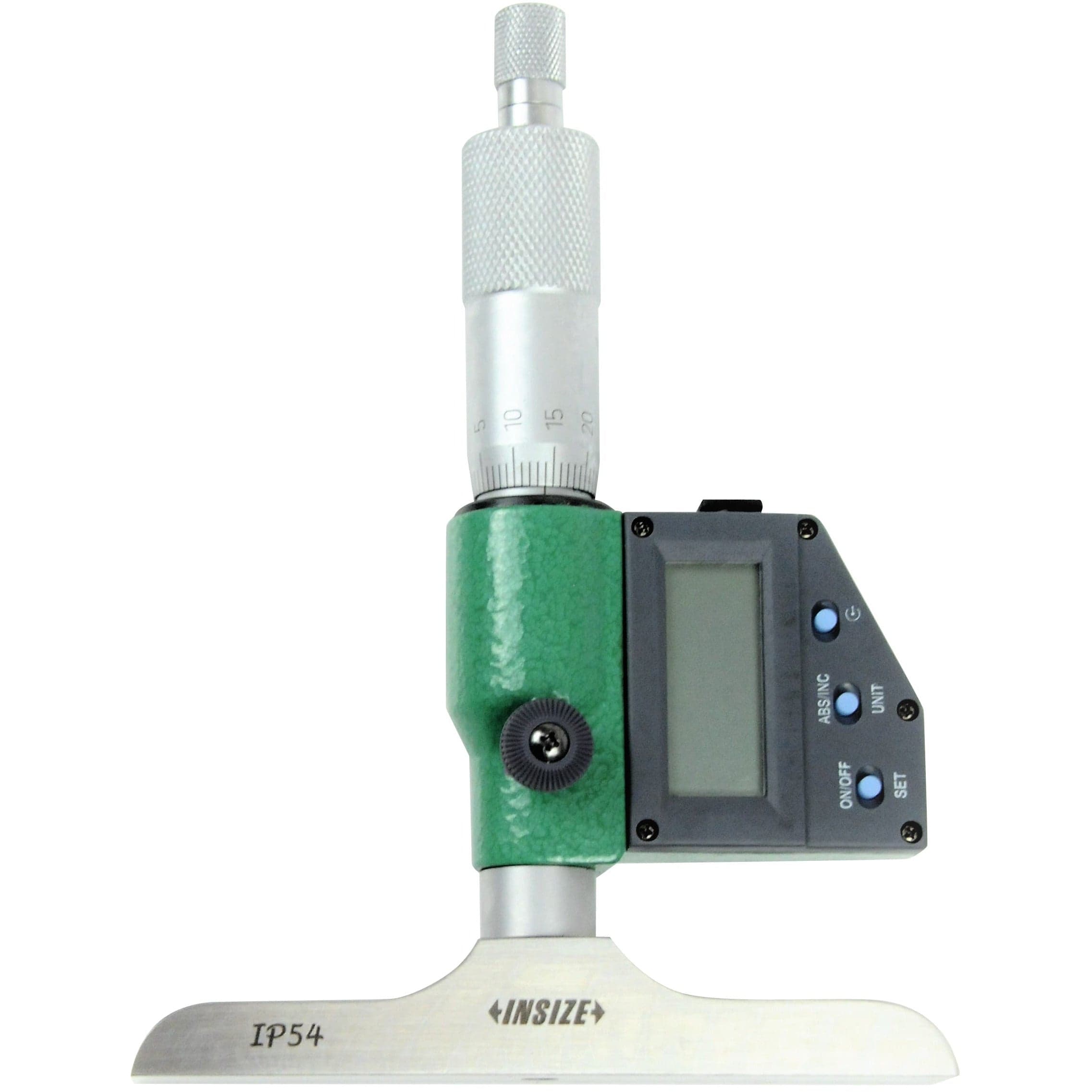

Insize Digital Depth Micrometer 0-50MM 0-2" Range Series 3540-50
Click to enlarge

in stock

Insize Digital Depth Micrometer 0-50MM 0-2" Range Series 3540-50

sold in last hours
Vendor: INSIZE
SKU: 3540-50
Order in The Next to get it by
Real Time 4 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Measuring Equipment

Barcode: 6928640303586

Insize Digital Depth Micrometer

You are buying a genuine Insize product from the agent appointed distributor of all Insize products within Australia. What does this mean for you, all our product warranty is honoured within Australia by Twin Eagle. Each product is shipped with a unique identifier. Feel free to contact us to supply your Insize products.

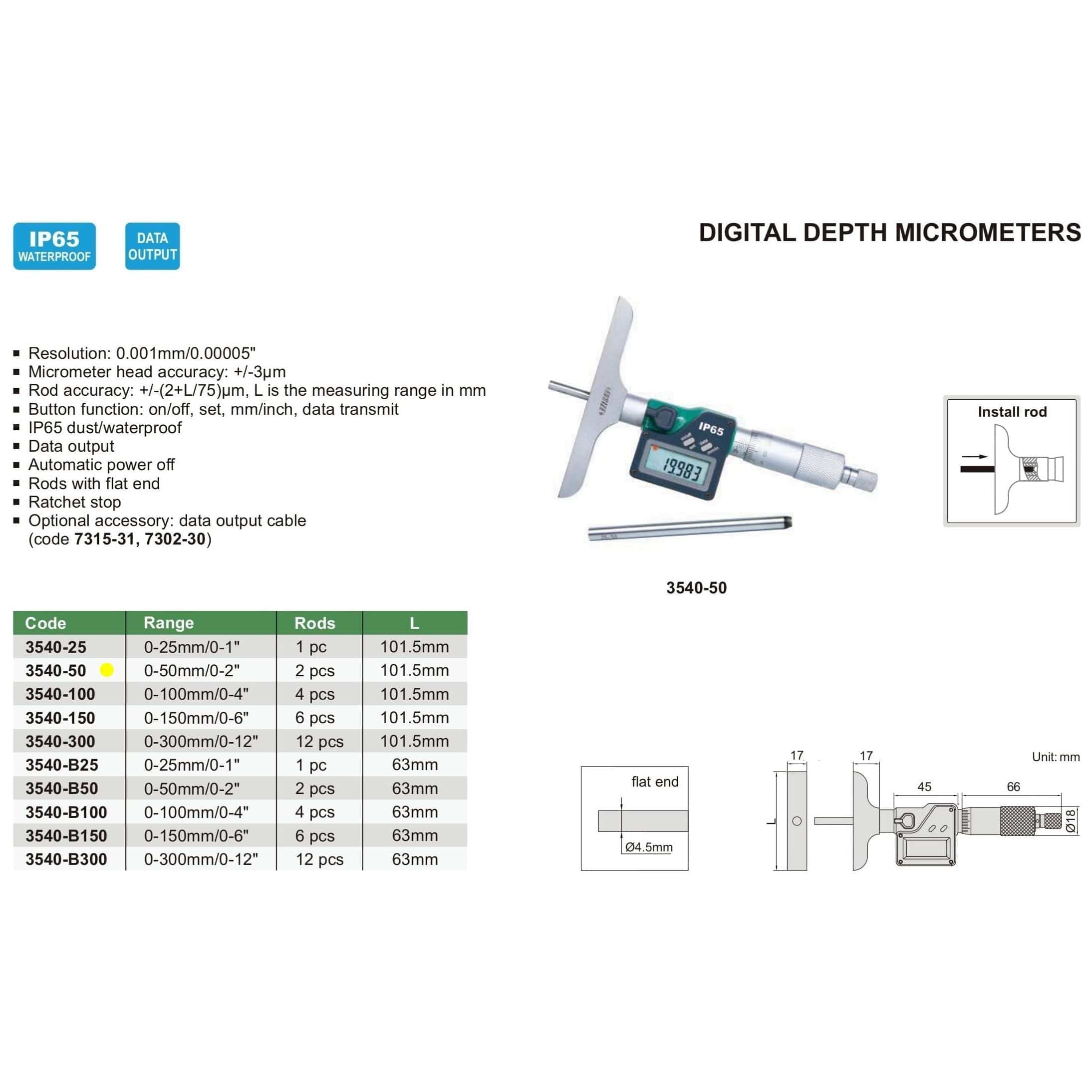

Specifications :

  • Strictly made in accordance with Din863-2
  • Rated IP54 dust and waterproof.
  • Spindle thread hardened, ground and lapped for absolute accuracy.
  • Barrel and thimble satin chrome finish
  • Resolution 0.001mm/0.00005".

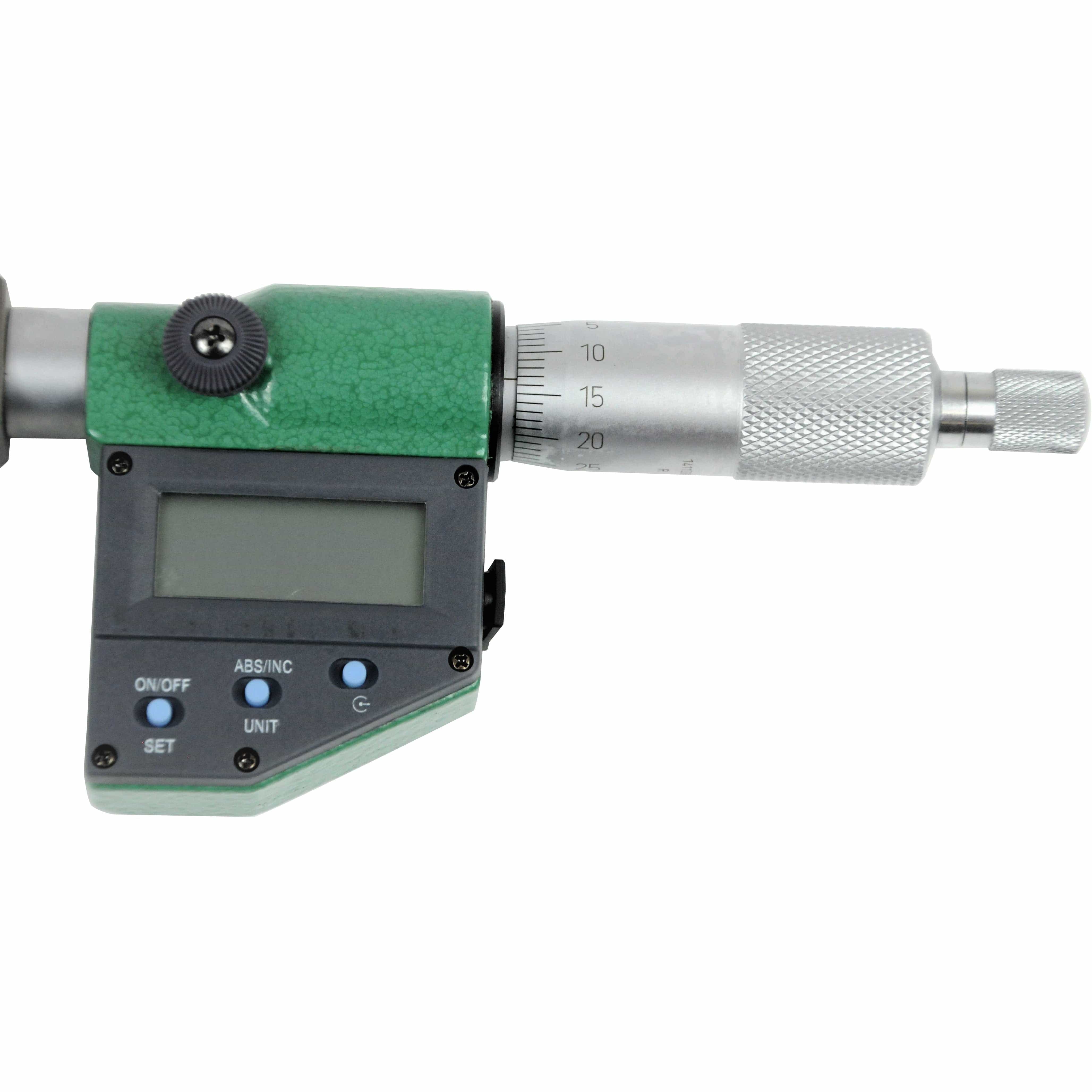

  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Micrometer head accuracy: +/-3μm
  • Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm

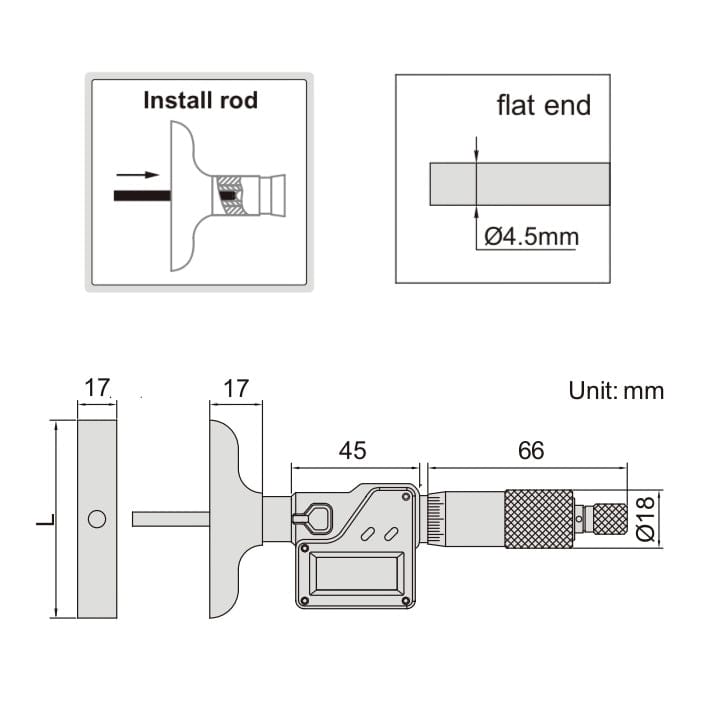

  • Rod with flat end.
  • LR44 battery, automatic power off.
  • Quick and easy adjustment.
  • Carbide measuring face
  • With measuring rod clamp.
  • Ratchet stop
  • Optional accessory: data output cable (code 7306-30, 7302-SPC2A, 7305-SPC3).

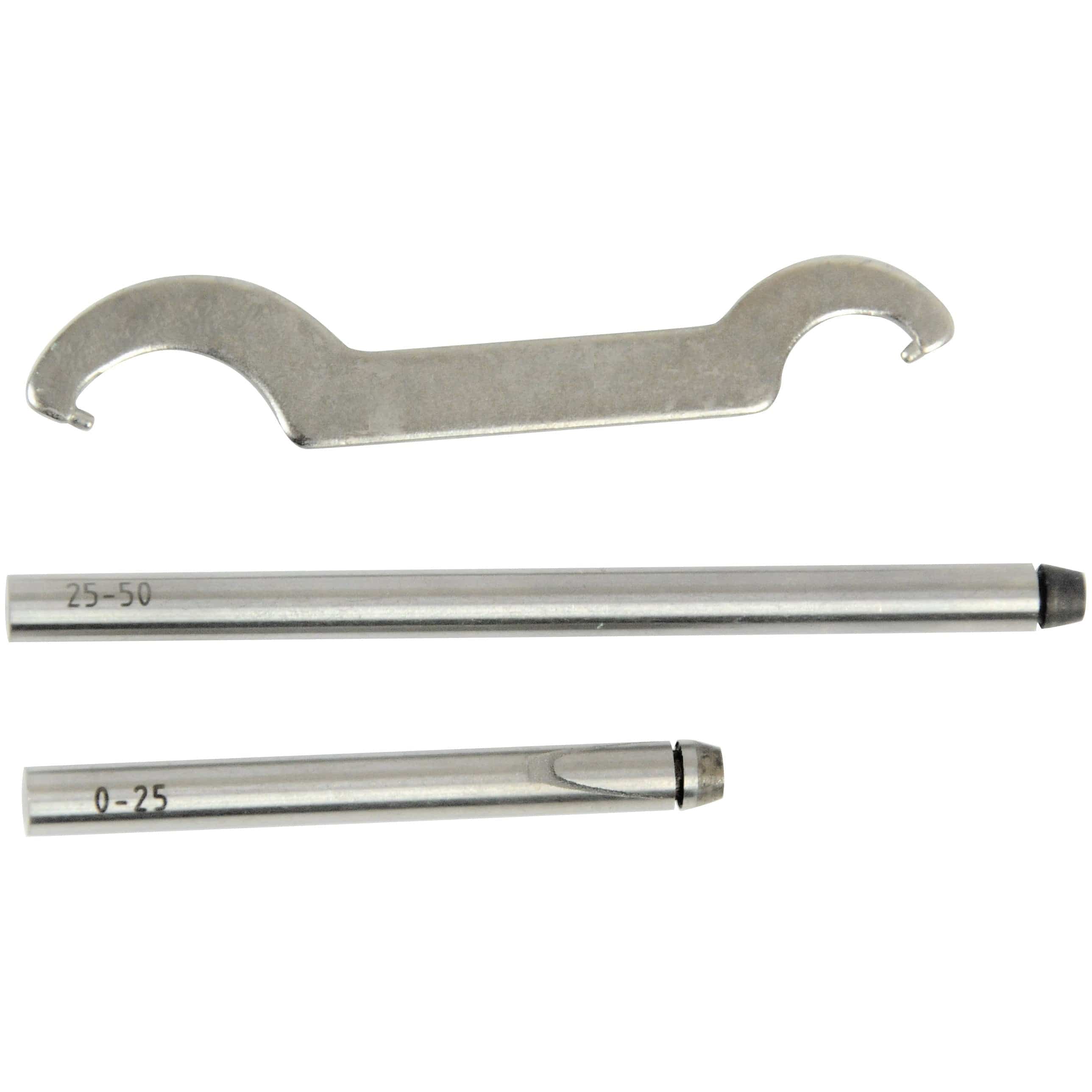

  • Zero adjusting wrench.
  • 3540-50 0 - 50 mm
  • Two depth rods in 25 mm increments

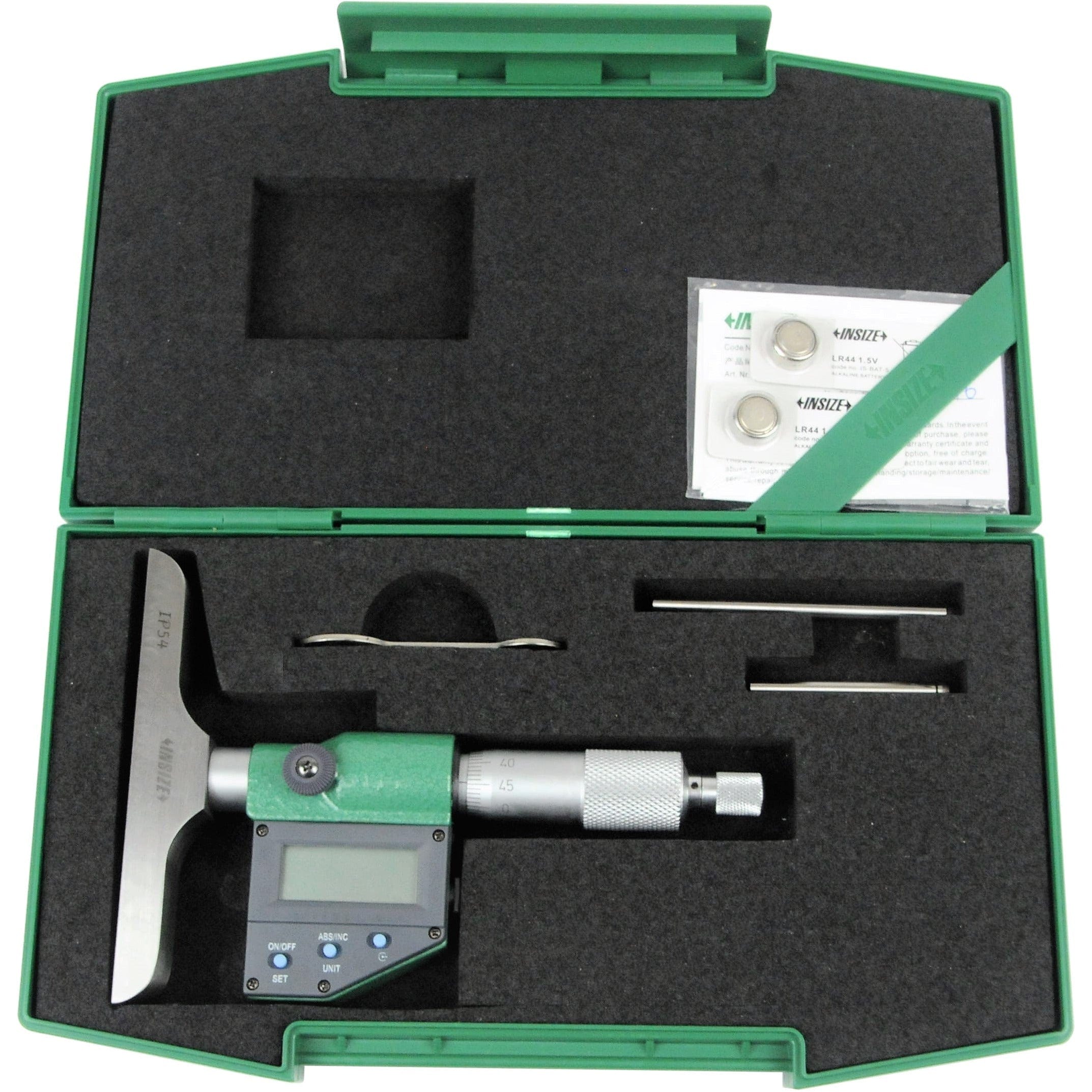

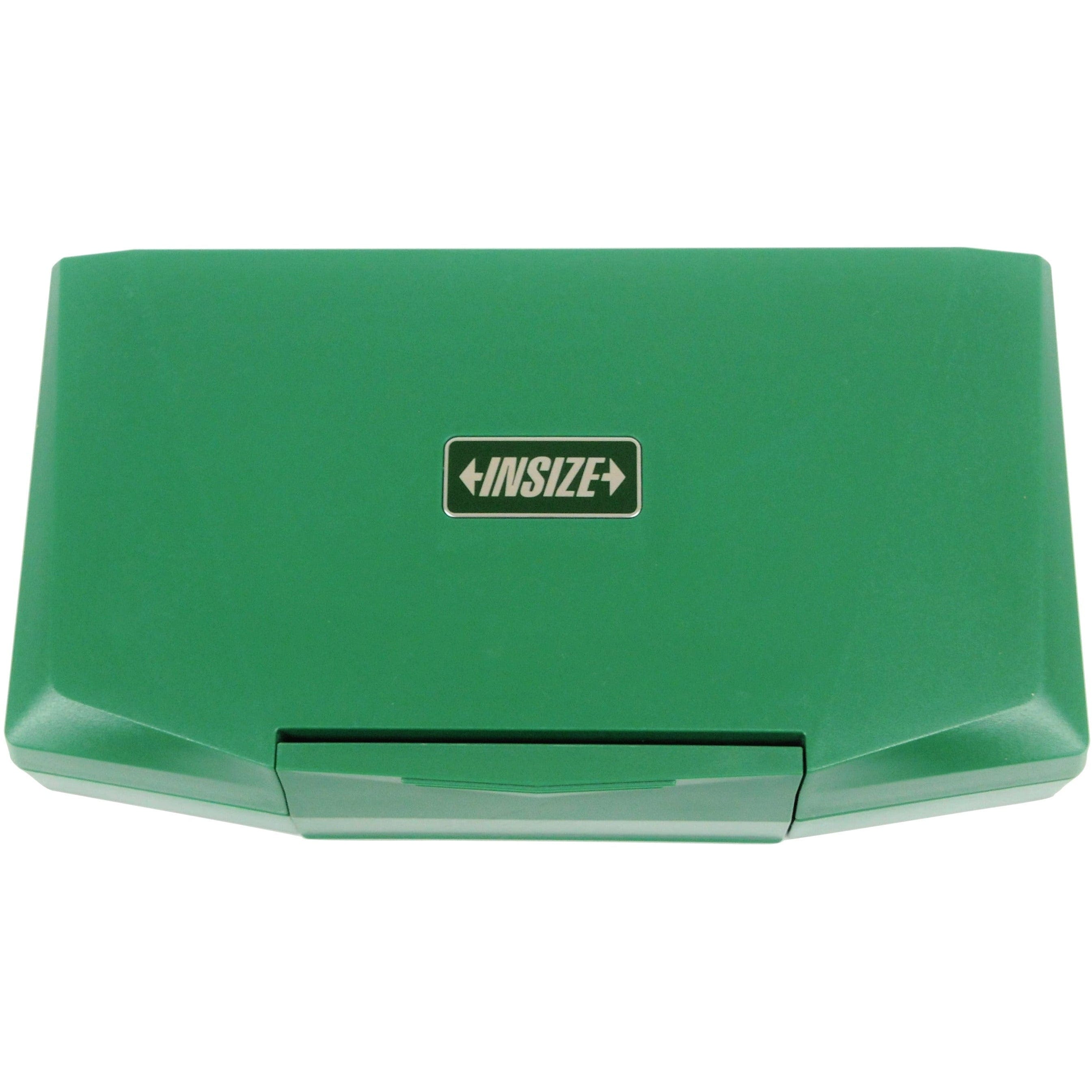

  • Housed in a custom styled case.

Well designed, durable high precision tools that are suitable for various measuring ranges. INSIZE measuring tool sets include the perfect instruments for measuring a wide range of components. Easy to use tools for measuring.
