Hepyc 23/32" HSS Morse Taper Shank Drill MT2 DIN 345

Hepyc Drill HSS DIN345N 23/32" – Taper Shank, 118° Point High-performance HSS taper shank drill manufactured to DIN345N standards for precise drilling in steel, cast iron, and non-ferrous materials. The...
$92.89
$0.00
$92.89
(-0%)
Vendor: HEPYC
SKU: 11219002332
Availability: In Stock
Subtotal: $92.89
HEPYC DRILLS Hepyc 23/32" HSS Morse Taper Shank Drill MT2 DIN 345

Hepyc 23/32" HSS Morse Taper Shank Drill MT2 DIN 345

$0.00 $92.89

Hepyc 23/32" HSS Morse Taper Shank Drill MT2 DIN 345

$0.00 $92.89

Hepyc Drill HSS DIN345N 23/32" – Taper Shank, 118° Point

High-performance HSS taper shank drill manufactured to DIN345N standards for precise drilling in steel, cast iron, and non-ferrous materials. The short series construction provides excellent rigidity and reduced deflection, making it ideal for engineering workshops, fabrication facilities, maintenance operations, and production machining environments.

Manufactured from premium High Speed Steel (HSS), this drill offers outstanding wear resistance, heat resistance, and long service life. The precision-ground 118° point ensures accurate hole starting and efficient cutting action, while the 30° helix design improves chip evacuation and drilling efficiency. The Morse taper shank provides secure spindle engagement and reliable torque transmission during heavy-duty drilling applications.

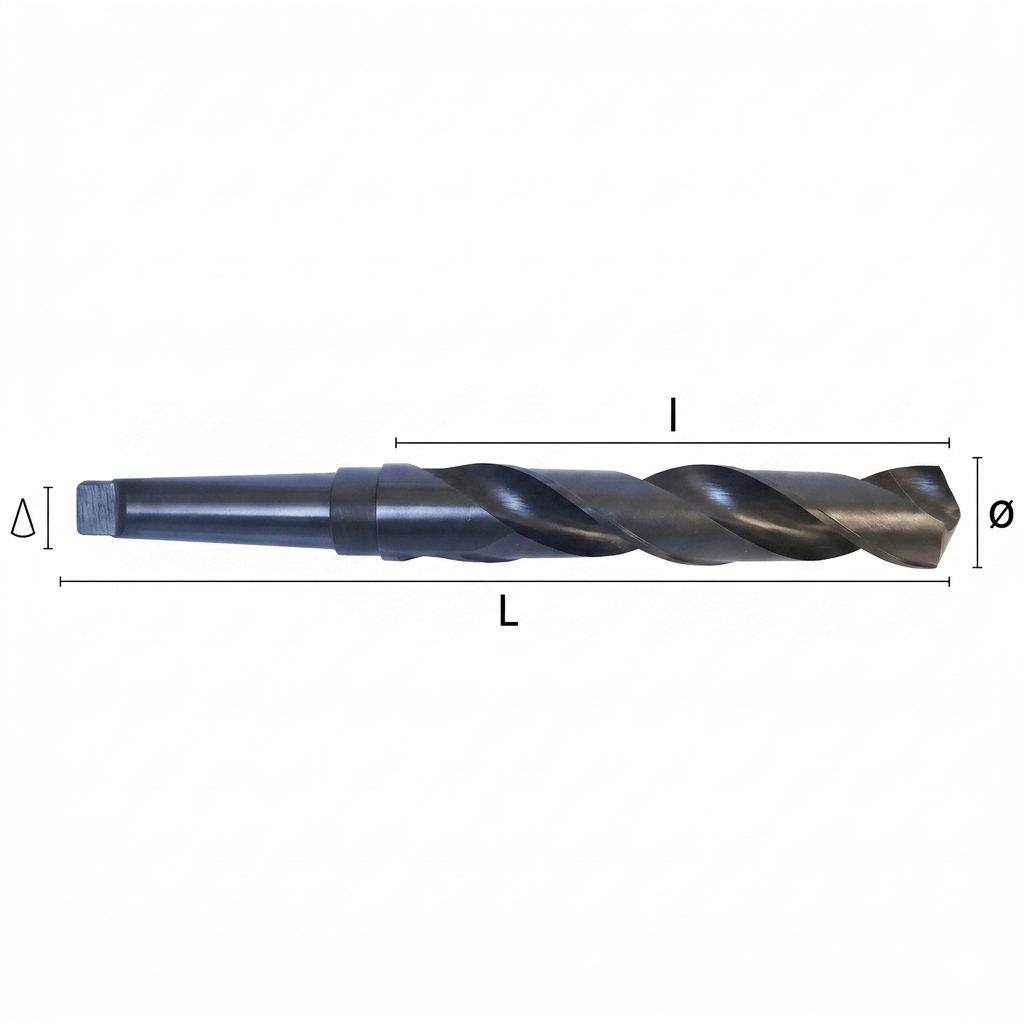

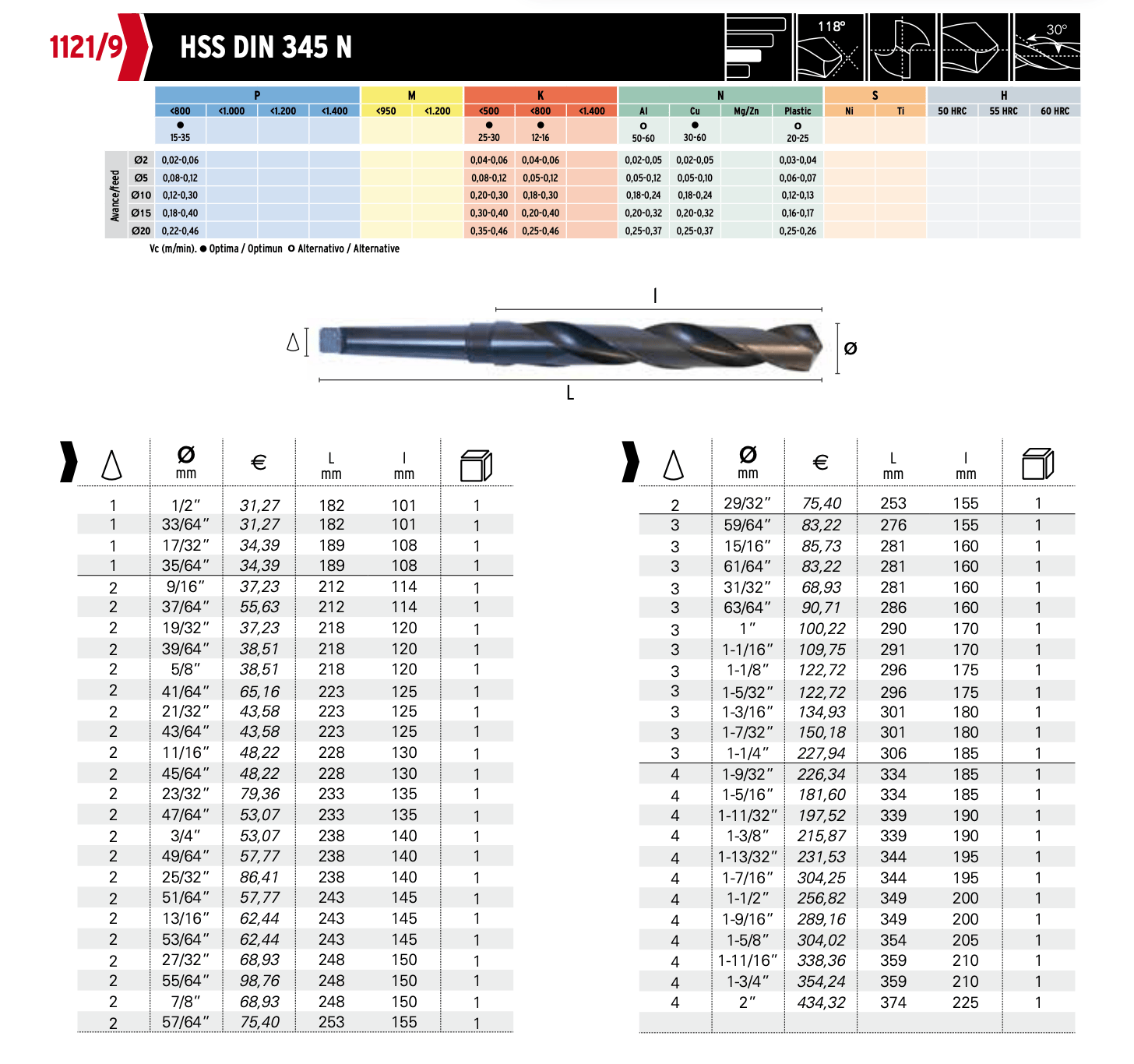

Specifications:

  • Diameter: 23/32" (18.26mm)
  • Overall Length (L): 233mm
  • Flute Length (l): 135mm
  • Morse Taper Shank: MT2 (CM2)
  • Standard: DIN345N
  • Material: High Speed Steel (HSS)
  • Point Angle: 118°
  • Helix Angle: 30°
  • Series: Short Series
  • SKU: 11219002332

Features:

  • Premium High Speed Steel construction for extended tool life
  • Manufactured to DIN345N specifications
  • Precision-ground 118° point for accurate drilling
  • 30° helix for efficient chip evacuation
  • Short series design for maximum rigidity and stability
  • Morse taper shank for secure machine mounting
  • Suitable for steels up to 800 N/mm² tensile strength
  • Suitable for steel, cast iron, aluminium, copper, and plastic materials

Hepyc drilling tools are designed to provide dependable performance, excellent hole quality, and consistent machining results across a wide range of industrial and professional drilling applications.
