Haron H109 1/2, 3/4 and 1″ Heavy Duty Block and Pin Flaring Tool
Click to enlarge

in stock

Haron H109 1/2, 3/4 and 1″ Heavy Duty Block and Pin Flaring Tool

sold in last hours
Vendor: HARON
SKU: H109
$99.00
Order in The Next to get it by
Real Time 1 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Tube Expander

Barcode: 9312343062500

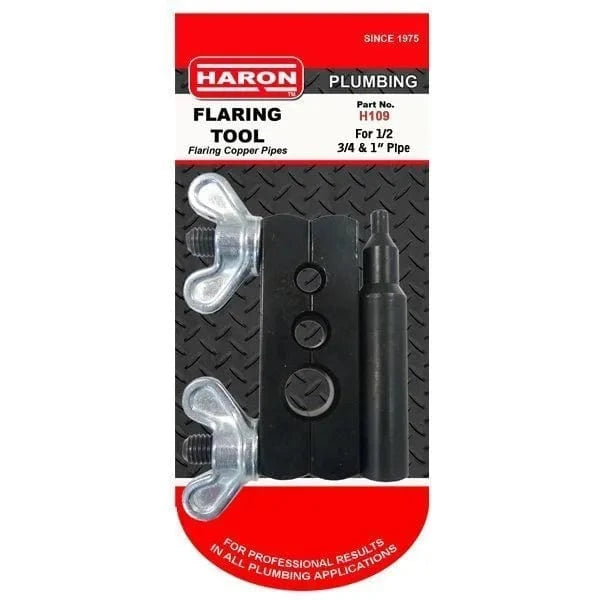

Haron  1/2, 3/4, and 1″ Block and Pin Flaring Tool

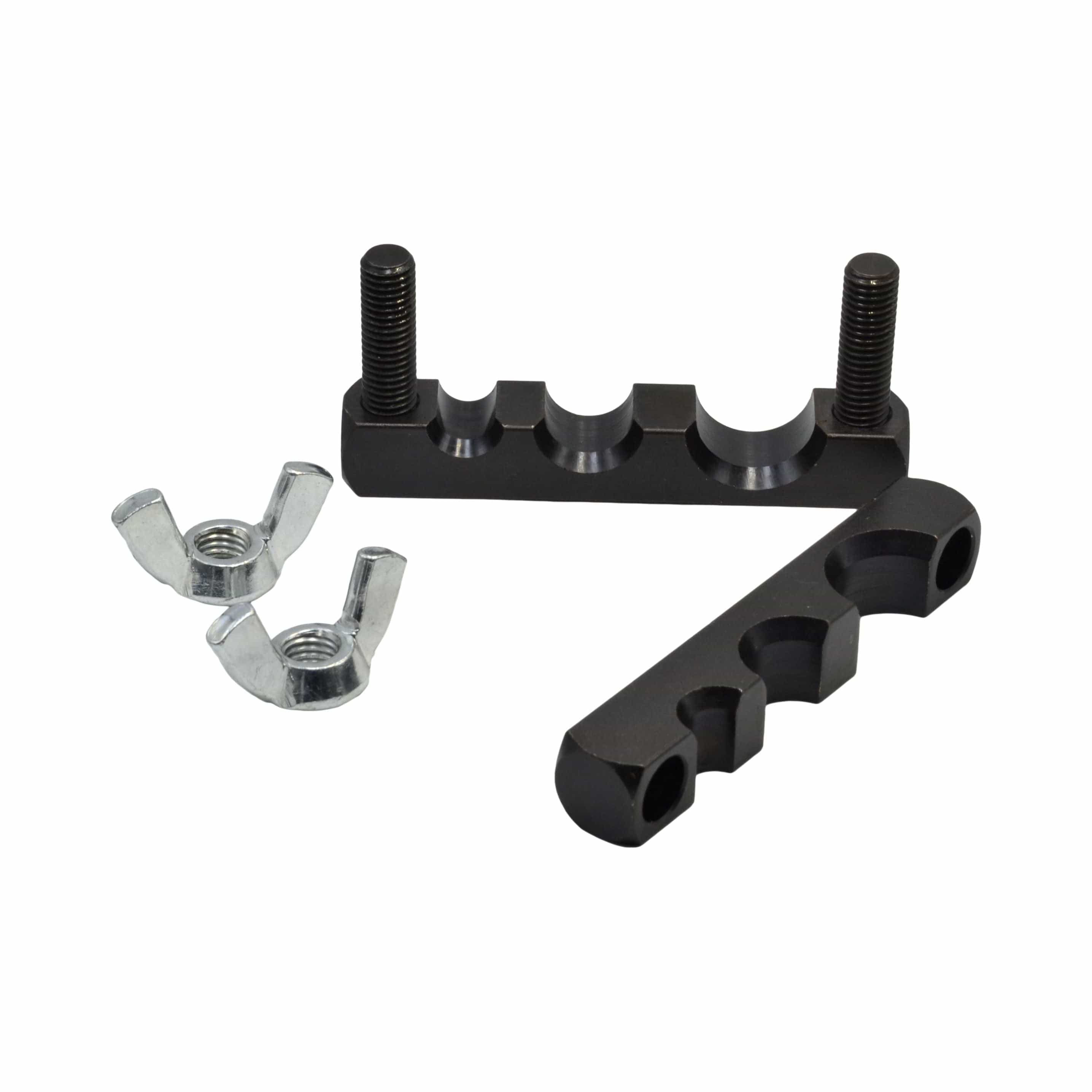

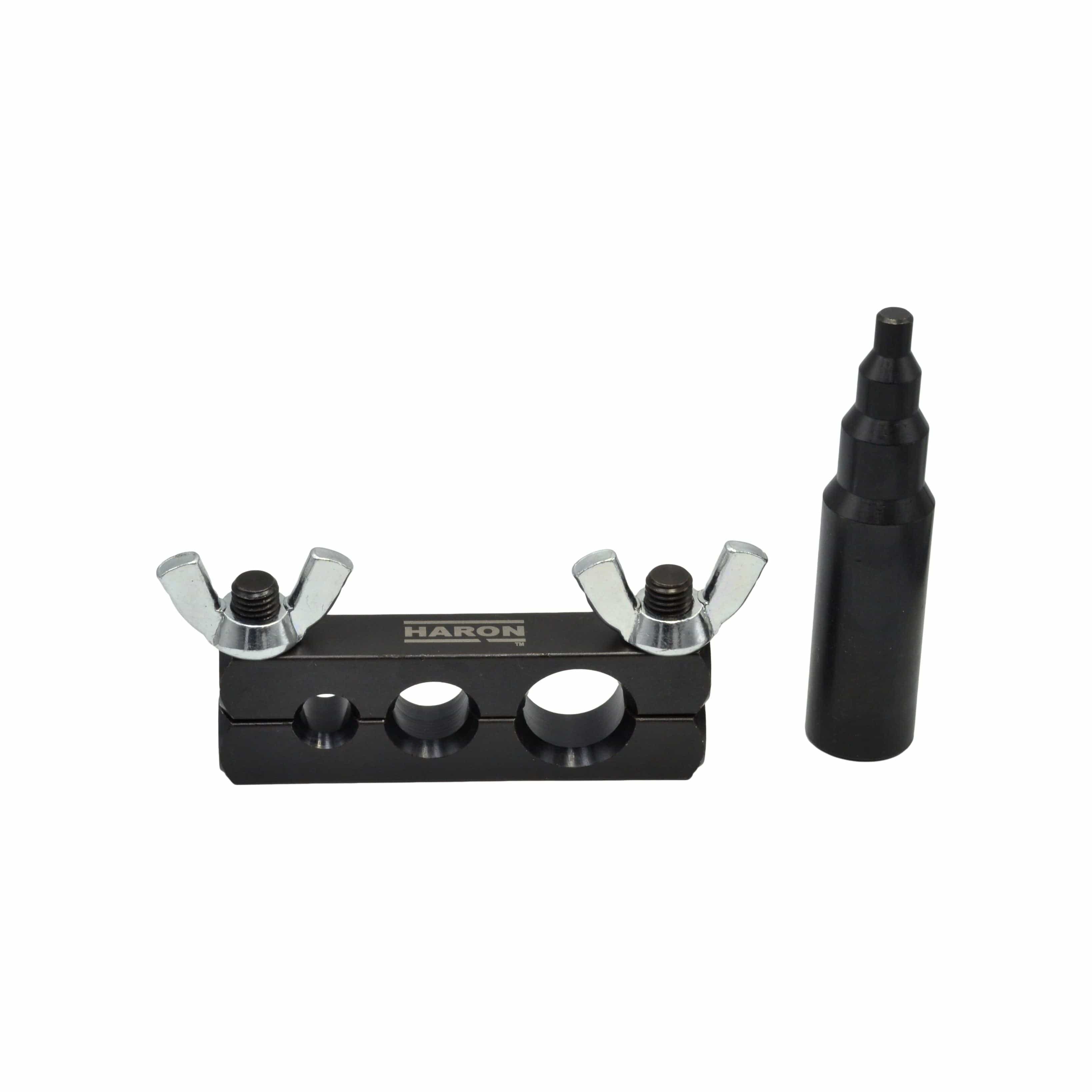

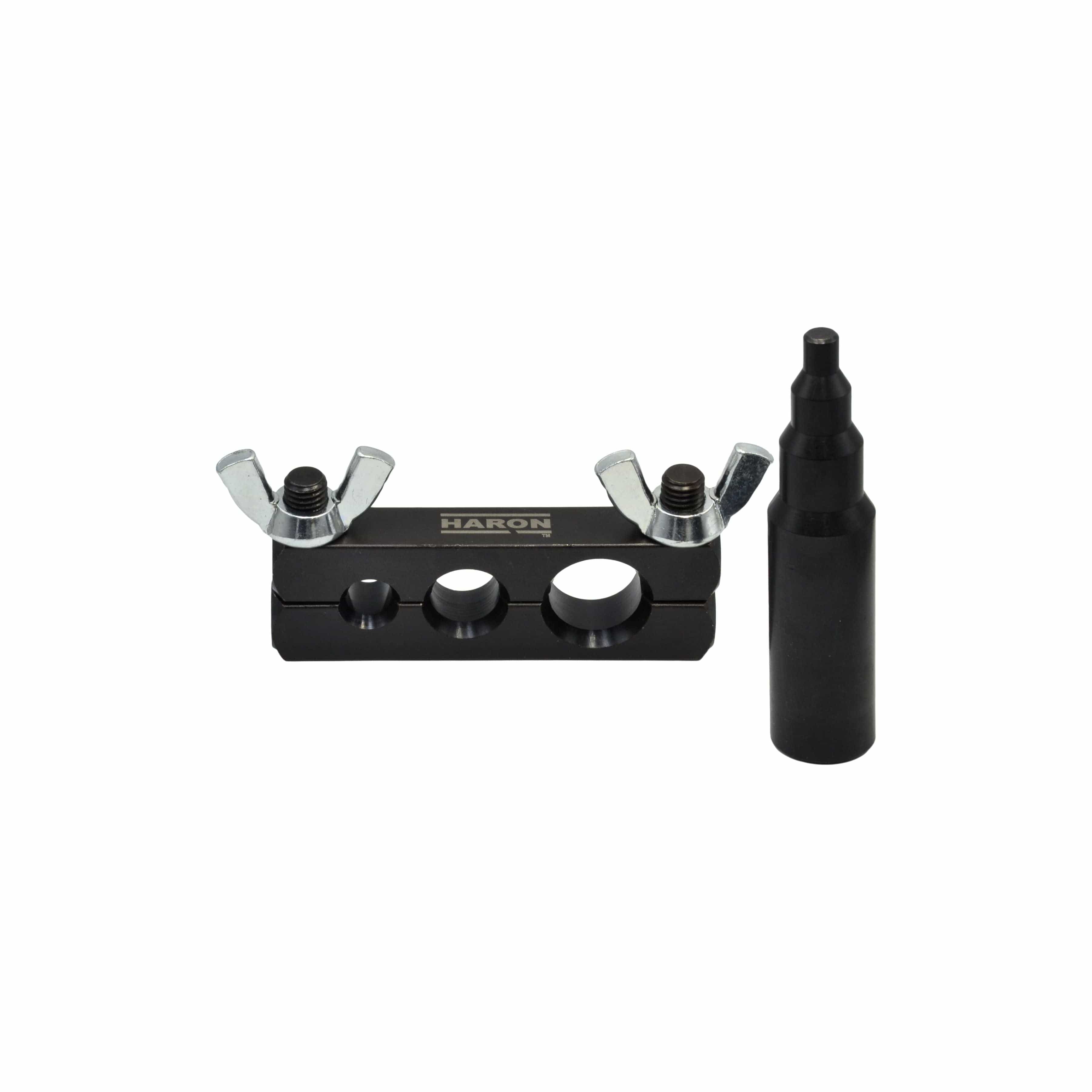

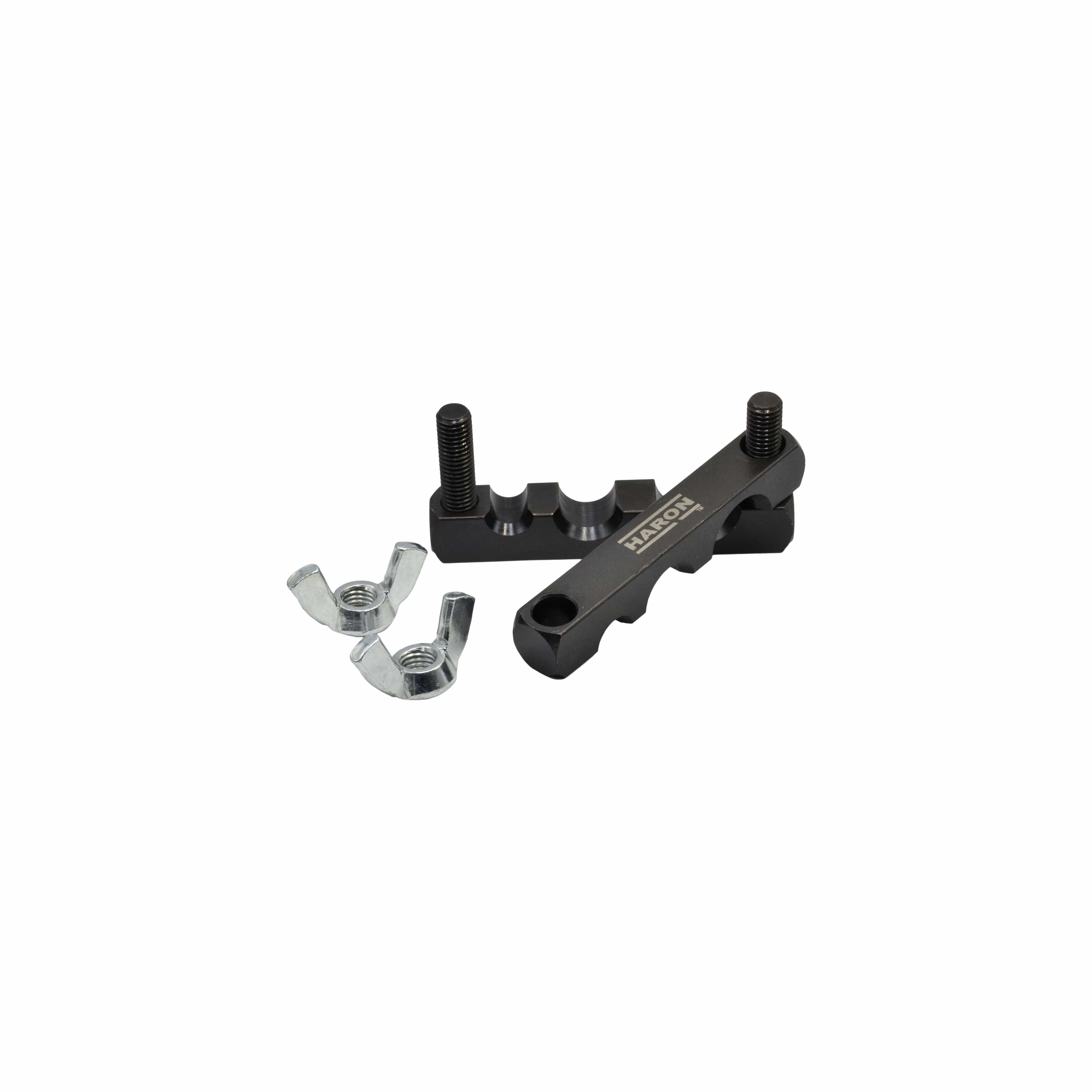

The Haron H109 Heavy Duty Block and Pin Flaring Tool is designed for precision flaring of 1/2", 3/4" and 1'' pipes. This robust tool is crafted to meet the demands of heavy-duty applications, ensuring reliable and accurate flares in copper pipes. The block-and-pin mechanism guarantees secure and consistent results.

Instructions:

Ensure that the required flared or compression nut is placed on the tube before flaring.

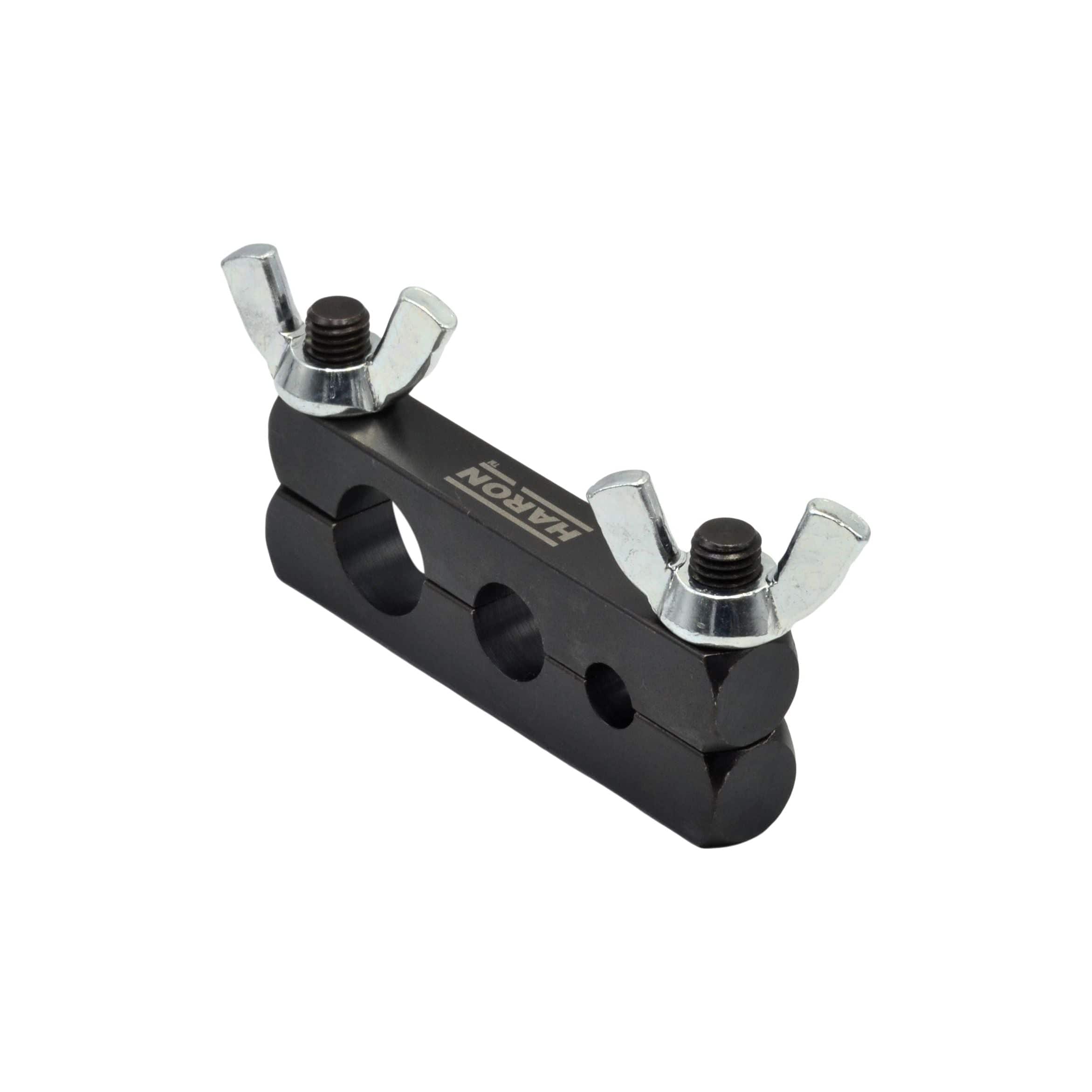

Loosen the wing nuts on the tool and position the tube in appropriate size hole, allowing the tube to project above the tool by 5mm, then tighten the wing nuts to hold the tube firmly.

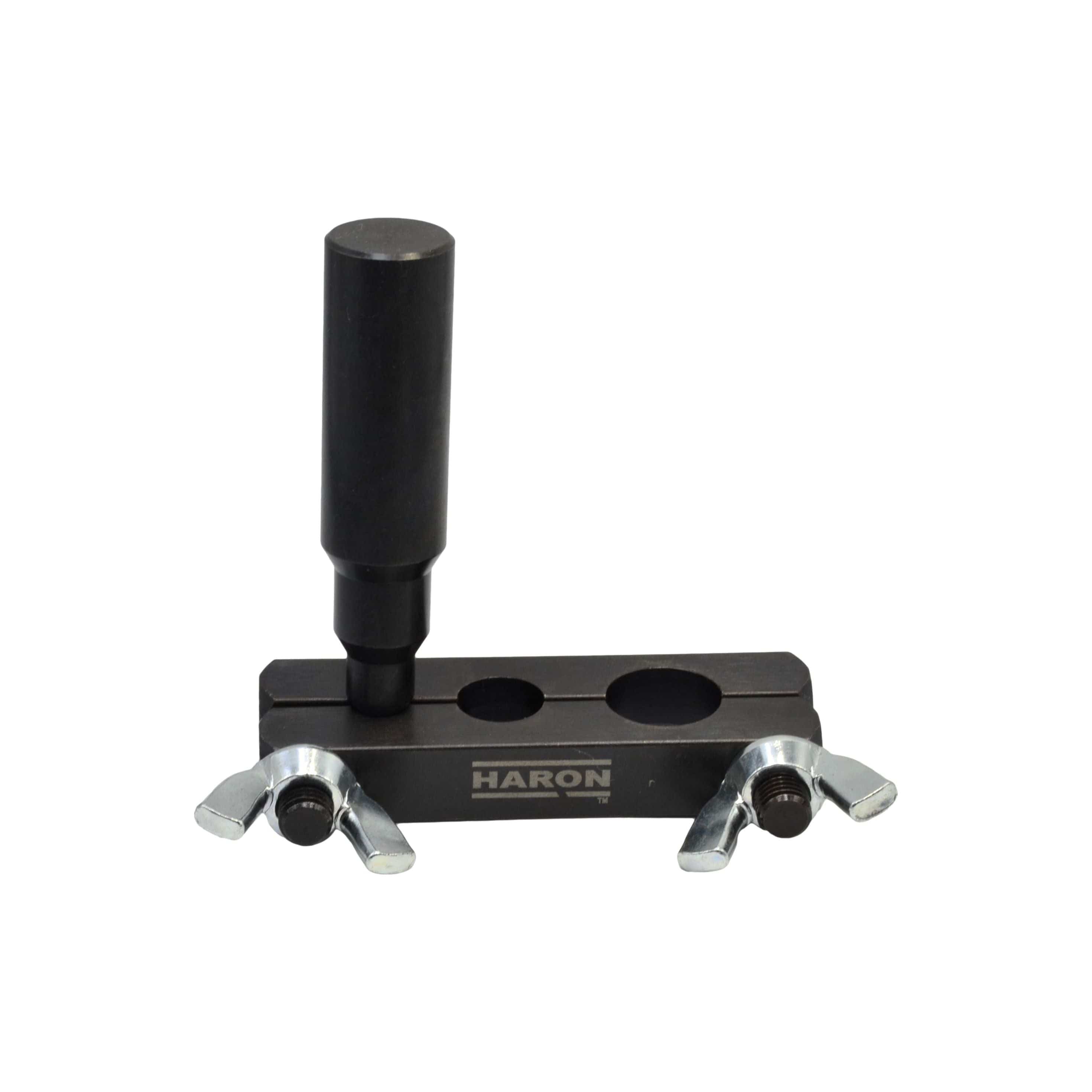

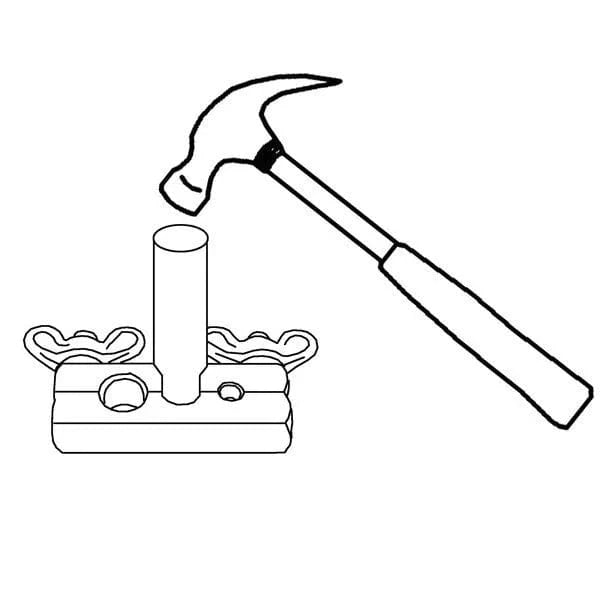

Insert the tip of the striking pin into the top of the Copper tube and strike until the tube is flared to the shape of the tool.

Remove by releasing the wing nuts.



  • Part no: H109.
  • Width: 128mm.
  • Height: 220mm.
  • Length: 330mm.
  • Sturdy and robust design for heavy-duty applications.
  • Total weight: 1.1kg
  • Total Footprint: 23x16x5cm
